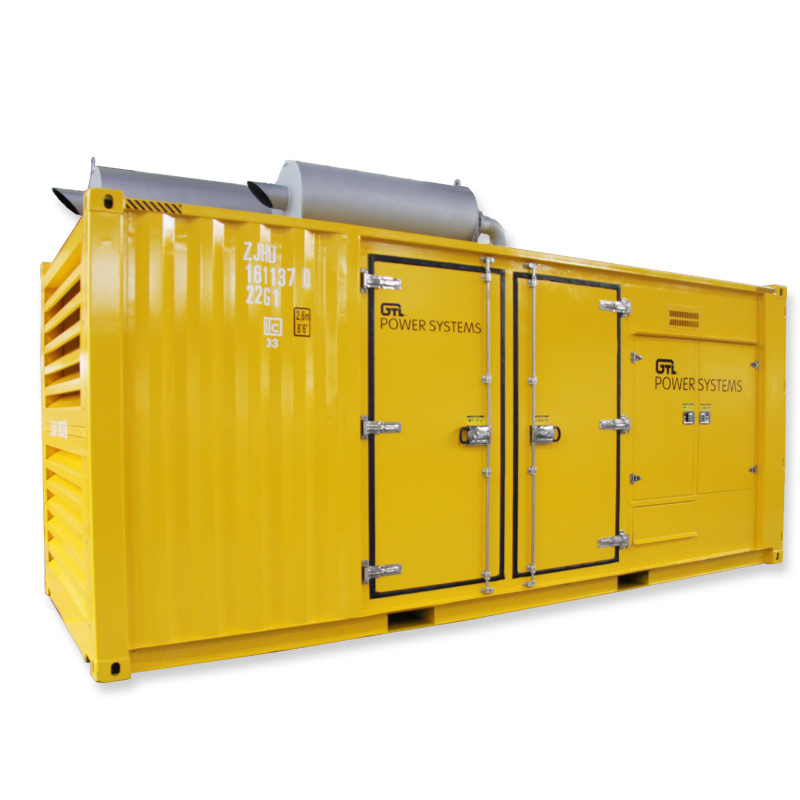

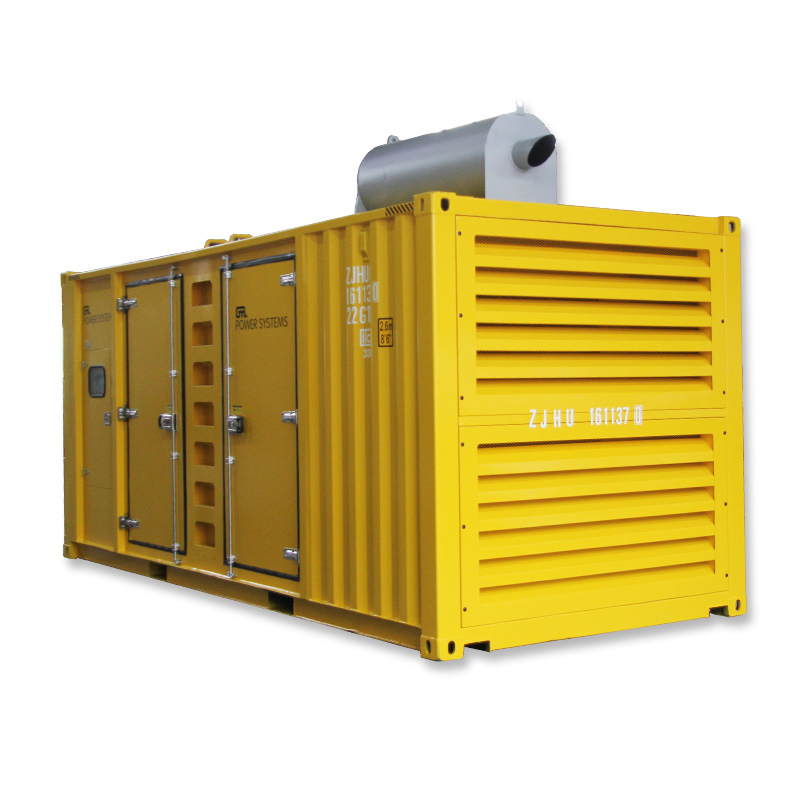

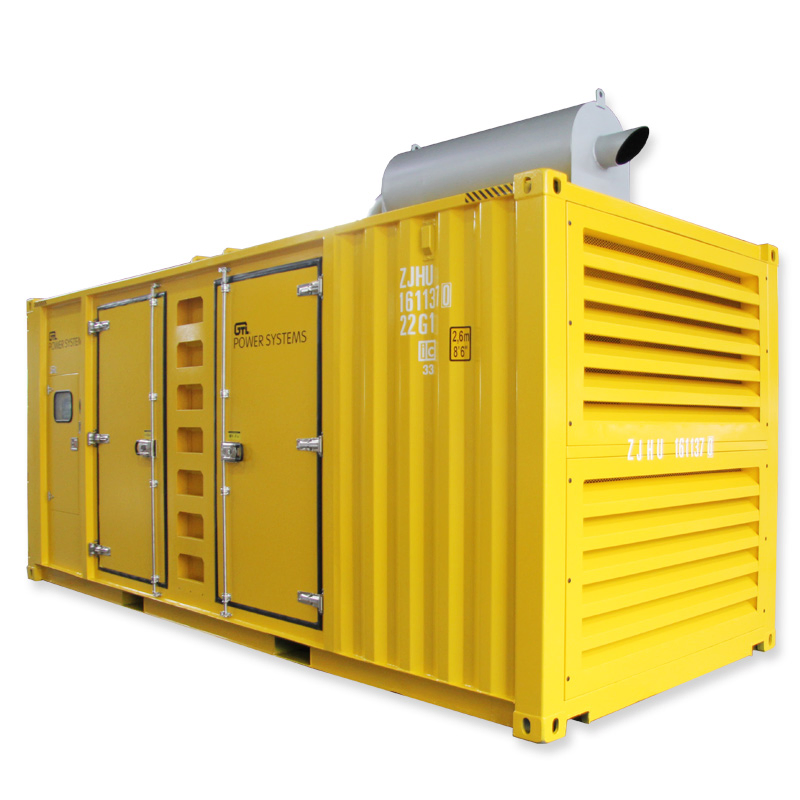

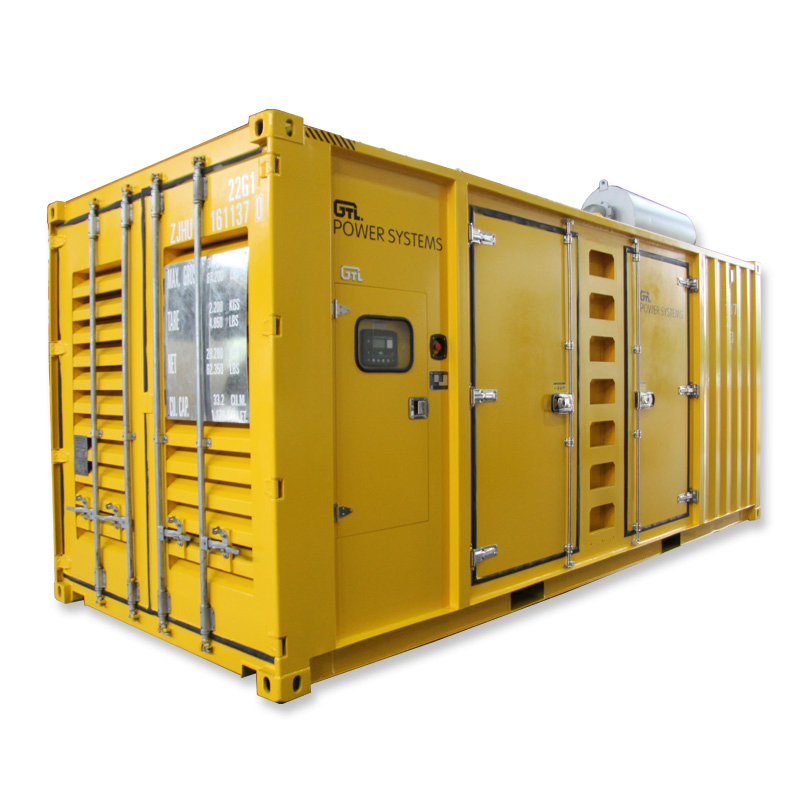

Diesel Generator 700kw Generator New 60Hz Powerd by Cummins Engine
Diesel Genset Features P.F=0.8 3Phase Generating Set Performance 60Hz Service Prime PowerStandby Power Rated outputkVA875963 Active power outputkW700770 Rated speed r.p.m1800 Avai......
Send Inquiry
Product Description
| Diesel Genset Features P.F=0.8 3Phase | ||||||||||||
| Generating Set Performance | 60Hz | |||||||||||
| Service | Prime Power | Standby Power | ||||||||||
| Rated output | kVA | 875 | 963 | |||||||||
| Active power output | kW | 700 | 770 | |||||||||
| Rated speed | r.p.m | 1800 | ||||||||||
| Available voltages | V | 480/277 - 440/254 - 416/240- 380/220 V | ||||||||||
| Rated at power factor | 0.8 | 0.8 | ||||||||||
| Engine Specifications 1.800 r.p.m. | ||||||||||
| Prime Mover Performance | ||||||||||
| Engine model | CUMMINS KTA38-G1 | |||||||||
| Rated output | kW | 770 | ||||||||
| 4 stroke diesel engine - injection type | Direct Injection Cummins PT | |||||||||
| Aspiration type | Turbocharged and AfterCooled | |||||||||
| Cylinders,number and arrangement | L12 | |||||||||
| Bore×Stroke | mm | 159X159 | ||||||||
| Total displacement | L | 38 | ||||||||
| Cooling system | WATER | |||||||||
| Coolant capacity-engine only | L | 123.8 | ||||||||
| Lube oil specifications | ACE A3 - A5 | |||||||||
| Specific fuel consumption(at full load) | (L/h) | 161.8 | ||||||||
| Specific oil consumption(at full load) | (L/h) | N.A | ||||||||
| Compression ratio | 14.5:1 | |||||||||
| Speed governor type | Type | Mechanical | ||||||||
| GTL Generator configuration | ||||||||||
| Engine: | Brand new genuine in warranty | |||||||||
| Alternator: | Brand new brushless alternator, IP23, H insulation class. | |||||||||
| Base Frame: | Heavy-duty steel channel base frame. | |||||||||
| Radiator: | With safety guard. | |||||||||
| Vibration Damper | Vibration damper between Engine/Alternator and base frame | |||||||||
| Breaker: | 3-pole output manual circuit breaker as standard, 4 poles for option | |||||||||
| Controller: | Comap AMF9, AMF20, AMF25 for option.DSE702,DSE6020 DSE6120 DSE7320 DSE7420 and other deepsea models, | |||||||||
| Silencer: | Heavy duty industrial type silencer with flexible bellow,elbow. | |||||||||
| Battery: | Varta Brand, high capacity sealed maintenance-free battery c/w battery cables. | |||||||||
| Fuel Tank: | 8 hours base fuel tank, External Daily Fuel Tank for option | |||||||||
| Accessory: | Standard tool kits and complete operation/maintenance/manuals for Generator/Engine/Alternator/control panel, etc. | |||||||||
| Inquiry Items | ||||||||||
| Before we talk about diesel generators and make an offer for you, and in order to make a good choice for you, please kindly allow me to ask you the following issues and kindly fill in the blanks: | ||||||||||
| Genset parameter | ||||||||||
| Prime power | Standby power | Voltage | Frequency | Phase | Quantity | Another requirement | ||||
| kva | kw | kva | kw | V | 50Hz or 60hz | 1 or 3 phase | set | |||
| Voltage&Frequency | 50hz 380-440/ 190-220/ 220-254 | |||||||||
| 60hz 416-480/ 380-416/ 240-277/ 208-240 | ||||||||||
| Requirement of brand | ||||||||||
| Engine | Alternator | Control Module | ATS(Include or not) | |||||||
| Engine: | Cummins, Perkins, FPT, MTU, Volvo, Doosan,Deutz,Yanmar, Kubota, Chinese brand | |||||||||
| Alternator: | Leroy Somer, Stamford, Marathon, Meccalte, Chinese brand | |||||||||
| Controller: | Deepsea, Comap, Deif | |||||||||
| Circuit Breaker: | ABB/SCHNEIDER | |||||||||
| Physical conditions | ||||||||||
| Ambient temperature | Sea level height | Relative Humidity | ||||||||
| (ºC) | (m) | (%) | ||||||||
