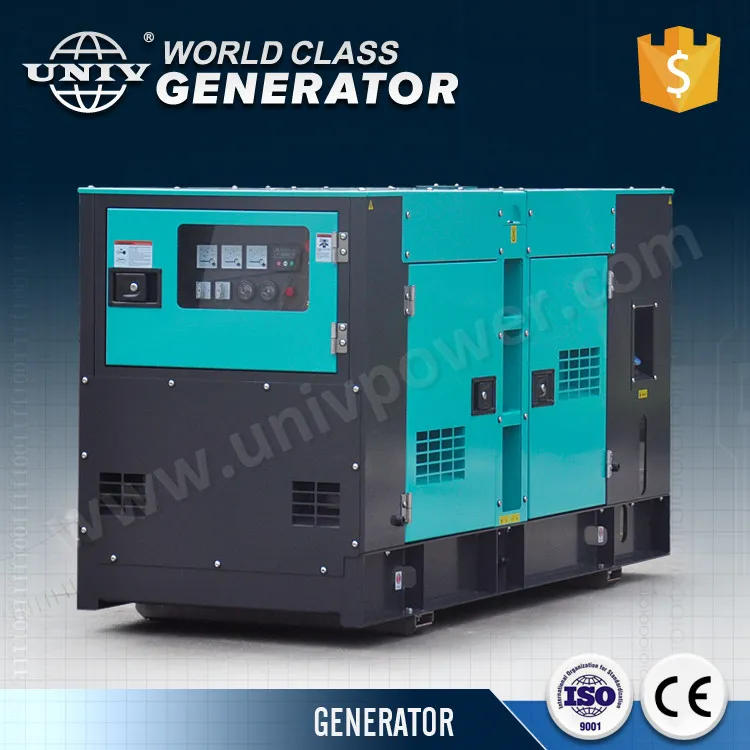

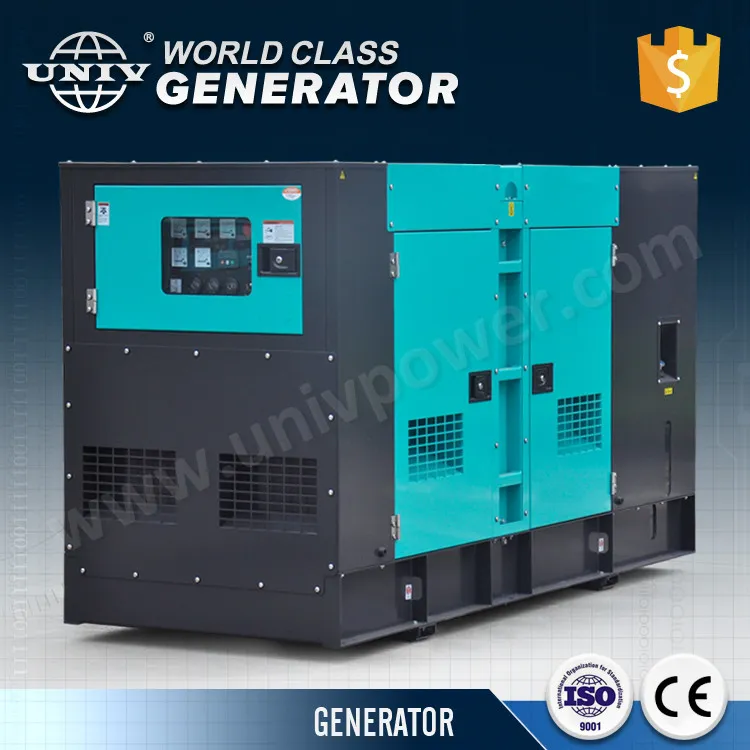

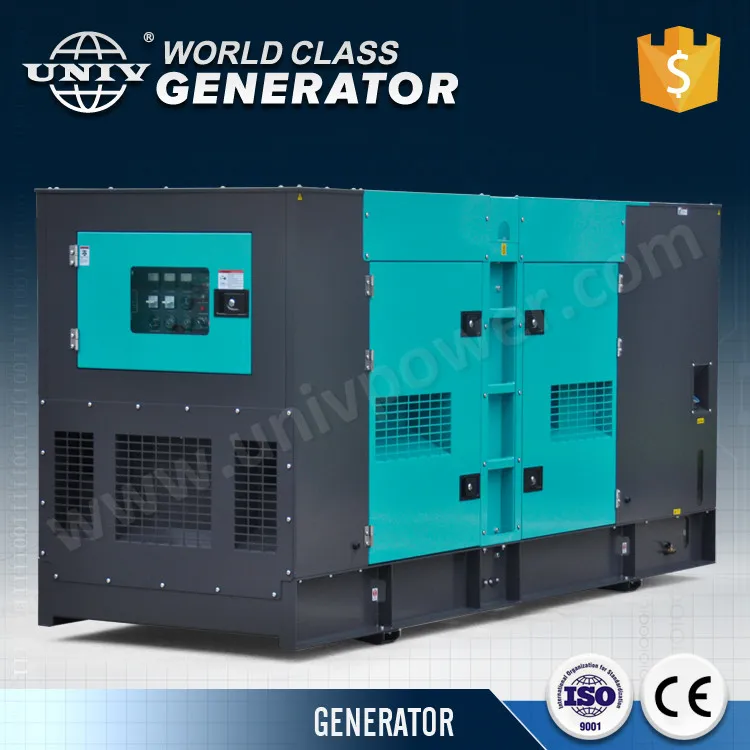

Deutz Silent Type Diesel Generator Set (UD125E)
Deutz Silent Type Diesel Generator Set (UD125E)Genset Model Super silent diesel generator setUD125ESETRated power(Kw/kva) Prime power100KW/25KVAFrequency(Hz)50Pahse3Voltage(V)230/400Current(A)180.5Fuel capacity(L)220Fuel consumption(L/Hour)100% Prime power 22.5Dimension (mm) L3000W1050H1......
Send Inquiry
Product Description
Deutz Silent Type Diesel Generator Set (UD125E)
| Genset Model Super silent diesel generator set | UD125E | ||
| SET | Rated power(Kw/kva) Prime power | 100KW/25KVA | |
| Frequency(Hz) | 50 | ||
| Pahse | 3 | ||
| Voltage(V) | 230/400 | ||
| Current(A) | 180.5 | ||
| Fuel capacity(L) | 220 | ||
| Fuel consumption(L/Hour) 100% Prime power | 22.5 | ||
| Dimension (mm) | L | 3000 | |
| W | 1050 | ||
| H | 1650 | ||
| Weight(kg) | 1670 | ||
| Noice level for silent type (Db/7m) | 64.5 | ||
| ENGINE | Model | BF4M1013FC, DEUTZ | |
| Prime power(kw) | 129 | ||
| Cylinders | 6 | ||
| Bore× stroke(mm) | 93× 102 | ||
| Intake Method | Turbo charged. | ||
| Displacement(L) | 5.4 | ||
| Speed governing | Electric governor | ||
| Cooling starting method | Water cooling | ||
| ALTERNATOR | Model | Stamford UCI274E | |
| Rated power(kw/kva) | 100/125 | ||
| Insulation class | H | ||
| Alternator enclosure | IP23 | ||
| THIS SET COULD BE OPERATED ON 100% OF THE POWER CAPACITY AT ALTITUTE OF 1500M, AMBIENT TEMPERATUR OF 50° C. WE RESERVE THE RIGHT TO EXPLAIN THE TERMS OF THIS SPECIFICATION. | |||
