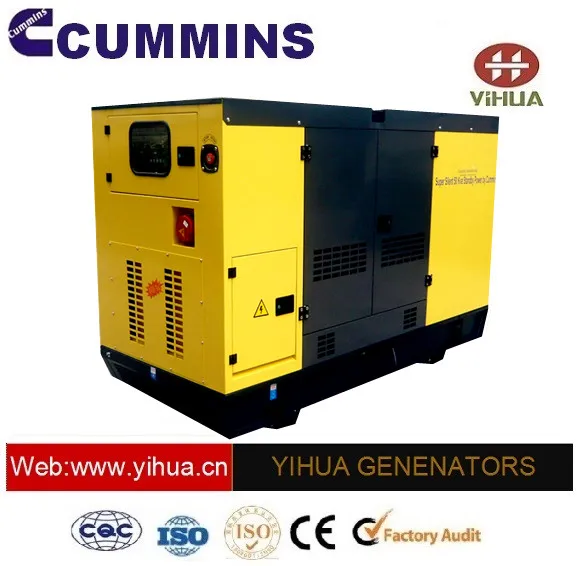

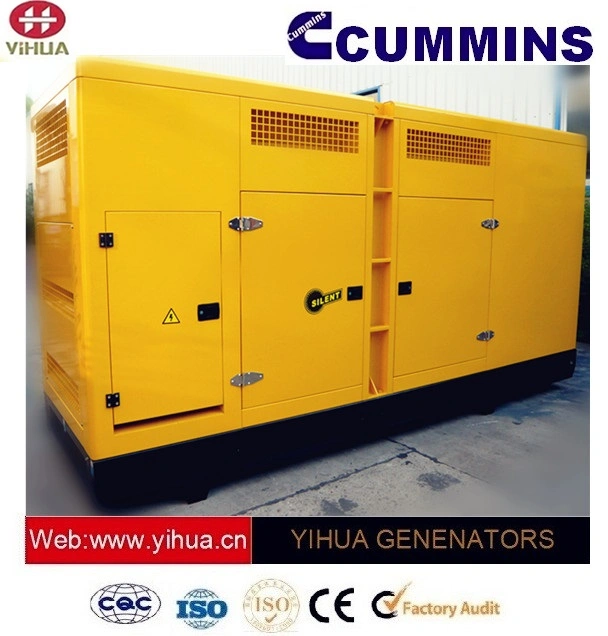

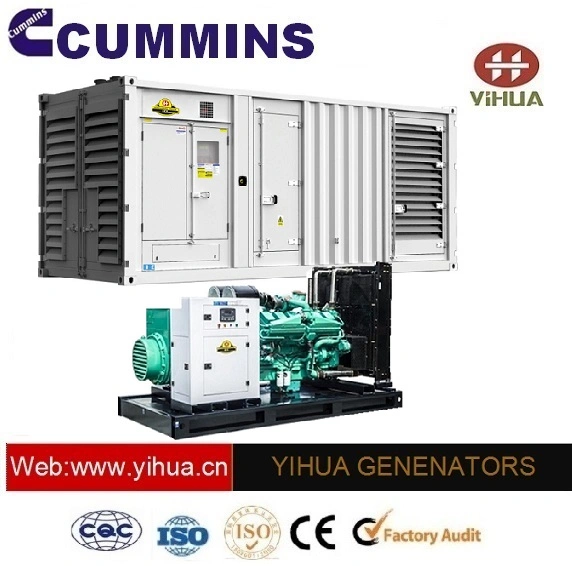

China Cummins 200-1200kw Silent Power Electrical Generator[IC180930A]

Product Description

Power coverage from 16kw~200kw.

Prime products are 4B,6B,6C,6L series diesel engine Gen-set.
Globally uniform quality standard, compact structure ,reliable capability, highly durability, safety and emission.

Model: GF: Open type &GFS: Soundproof /Silent/Supper silent type

Engine: DCEC Cummins

Speed: 1500/1800rpm

Alternator: Stamford /Leroysomer /Marathon/ABB/YIHUA YHG IP &Insulation Class: IP22-23 &F/H

Frequency: 50/60HZ

Controller: Deepsea/Comap/Smartgen/DKG/Others

ATS  System: Smartgen/ABB/SOCOMIC /Others

Silent&Supper silent  Gen-set Sound level: 63-75db(at 7m side)

Payment terms:T/T,L/C,Western Union, Paypal etc.

Production cycle & delivery time:Within 30 days upon downpayment receiving.

-GENERATOR DATA-

Generator set Techinical specification
generator set performance						Engine performance			Dim.LWH
Genset model	Prime power		Standby power		Fre.	Model	Power	Full load	Open type	Weight
	Prime power		Standby power		Fre.		Power	Fuel Com.	Open type	Weight
	KW	KVA	KW	KVA	HZ		KW	(L)	(mm)	(kg)
GF/GFS-C20KW	20	25	26	32.5	50	4B3.9-G1/G2	24	6	17007501150	850
GF/GFS-C30KW	30	37.5	33	41.3	50	4BT3.9-G1/G2	36	8	18207601150	900
GF/GFS-C34KW	34	42.5	37.4	46.8	50	4BT3.9-G1/G2	36	8	18207601150	950
GF/GFS-C40KW	40	50	44	55	50	4BTA3.9-G2	50	9.8	19508301150	1050
GF/GFS-C45KW	45	56.25	49.5	61.9	50	4BTA3.9-G2	50	13	19508301150	1070
GF/GFS-C58KW	58	72.5	63.8	79.8	50	6BT5.9-G1/G2	86-92	23	21508801350	1120
GF/GFS-C68KW	68	85	74.8	93.6	50	6BT5.9-G1/G2	86-92	23	21508801350	1120
GF/GFS-C80KW	80	100	88	110	50	6BT5.9-G1/G2	86-92	23	21508801400	1120
GF/GFS-C90KW	91	113.75	100.1	125.1	50	6BTA5.9-G2	110	23	23509501360	1200
GF/GFS-C100KW	100	125	110	137.5	50	6BTA5.9-G2	110	23	23509501360	1235
GF/GFS-C110KW	110	137.5	121	151.3	50	6BTAA5.9-G2	120	26	23509501360	1400
GF/GFS-C128KW	128	160	140.8	176	50	6CTA5.9-G2	163	33.9	24709501430	1900
GF/GFS-C144KW	144	180	158.4	198	50	6CTA5.9-G2	163	35.1	24709501430	1900
GF/GFS-C150KW	150	187.5	165	206.3	50	6CTA5.9-G2	163	35.1	24709501430	2000
GF/GFS-C160KW	160	200	176	220	50	6CTAA5.9-G2	183	38.7	26009801450	2300
GF/GFS-C180KW	180	225	198	247.5	50	6LTAA8.9-G2	220	38.7	260010001450	2400
GF/GFS-C200KW	200	250	220	275	50	6LTAA8.9-G2	220	41.6	260010001500	2500
GF/GFS-C20KW	20	25	26	32.5	60	4B3.9-G1/G2	27	5	17007501230	850
GF/GFS-C22KW	22	27.5	26	32.5	60	4B3.9-G1/G2	27	6	17007501230	850
GF/GFS-C30KW	30	37.5	33	41.3	60	4BT3.9-G1/G2	40	8	18207601240	900
GF/GFS-C34KW	34	42.5	37.4	46.8	60	4BT3.9-G1/G2	40	8	18207601240	950
GF/GFS-C48KW	48	60	52.8	66	60	4BTA3.9-G2	60	9.8	19508301270	1050
GF/GFS-C55KW	55	68.75	60.5	75.6	60	4BTA3.9-G2	60	13	19508301270	1070
GF/GFS-C68KW	68	85	74.8	93.5	60	6BT5.9-G1/G2	92-102	23	21508801400	1120
GF/GFS-C80KW	80	100	88	110	60	6BT5.9-G1/G2	92-102	23	21508801400	1120
GF/GFS-C90KW	90	112.5	99	123.8	60	6BT5.9-G1/G2	92-102	23	21508801400	1120
GF/GFS-C100KW	100	125	110	137.5	60	6BTA5.9-G2	120	23	23509501360	1200
GF/GFS-C110KW	110	137.5	121	151.3	60	6BTA5.9-G2	120	23	23509501360	1235
GF/GFS-C120KW	120	150	132	165	60	6BTAA5.9-G2	132	26	23509501360	1400
GF/GFS-C144KW	144	180	158.4	198	60	6CTA5.9-G2	180	33.9	24709501430	1900
GF/GFS-C150KW	150	187.5	165	206.3	60	6CTA5.9-G2	180	35.1	24709501430	1900
GF/GFS-C160KW	160	200	176	220	60	6CTA5.9-G2	180	35.1	24709501430	2000
GF/GFS-C180KW	180	225	198	247.5	60	6CTAA5.9-G2	201	38.7	26009801450	2300
GF/GFS-C200KW	200	250	220	275	60	6LTAA8.9-G2	240	38.7	260010001450	2400
