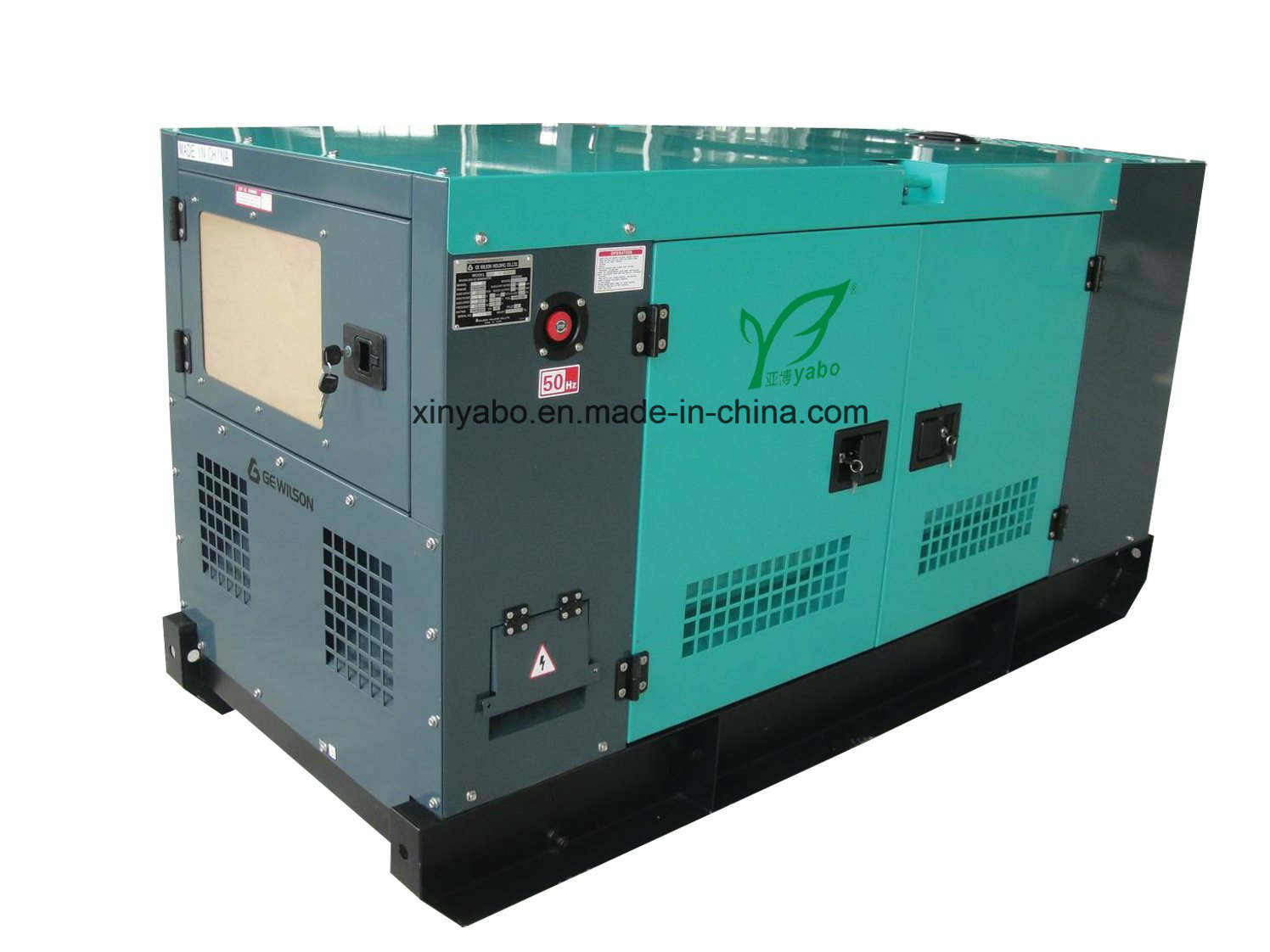

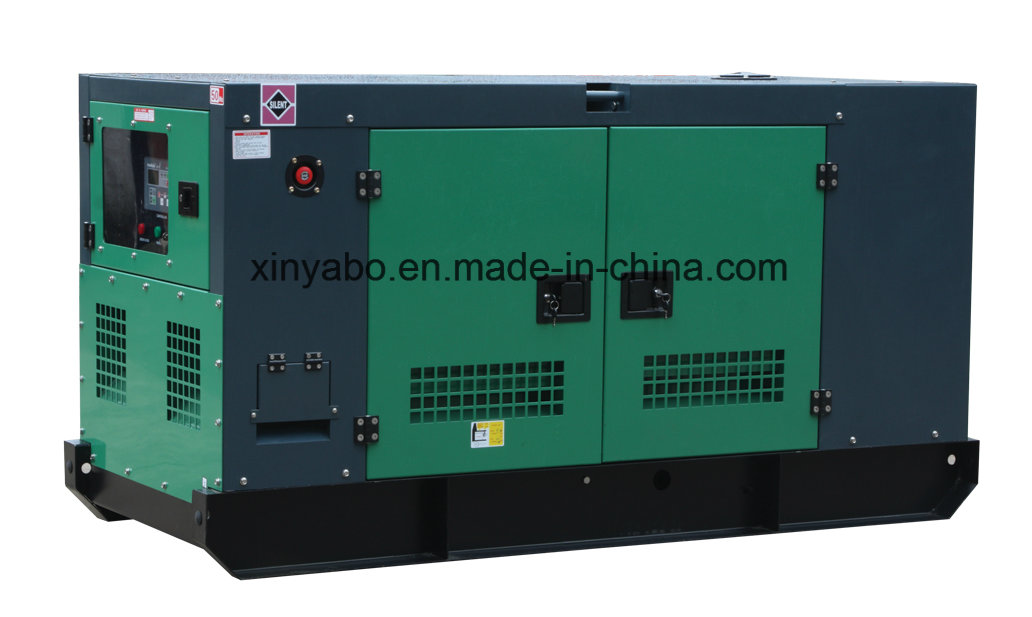

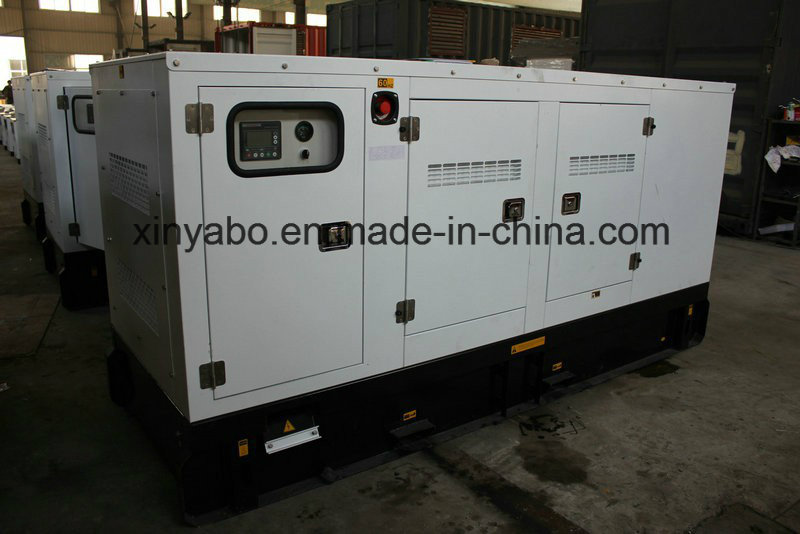

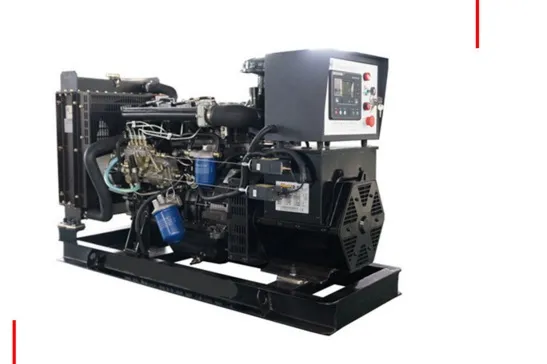

Chinese Xichai Generator Set with Special Price

Product Description

Packaging & Delivery

Packaging Details
Packing details: poly wooden case/poly bag
Delivery details:shipped in 30 days after payment
Delivery Time
Shipped in 30 days after payment

Product Description

Generating Set Specification

MODEL	GF2/3F-20
PRIME POWER (KVA/KW)	25/20
STANDBY POWER(KVA/KW)	28/22
Rated voltage(V)	400/230
Rated speed(rpm)	1500
Rated frequency(Hz)	50
Power factor	0.8
Ambient temperature(°C)	40
Altitude(m)	1000
Connection type	3 phase 4 wires
ENGINE MANUFACTURER	FAWDE
Model	4DW91-29D
Rated Power(kW)	28.6
No. of cylinders & configuration	In-Line 4 cylinders
Method of operation	4-stroke
Speed regulation	Mechanical governor
Starting system	DC 12V Electronic start
Cooling method	Closed-circuit cooling system
Total displacement(L)	2.54
Compression ratio	17.0:1
Bore×Stroke(mm)	90*100
100% Load fuel consumption(L/h)	≤7
ALTERNATOR MANUFACTURER	Copy Stamford
Number of Phase	3
Connection Type	3Phase and 4Wires
Number of Bearing	1
Power Factor	0.8
Protection Grade	IP23
Terminal	12
Winding/ Pitch	100% Copper 2/3 Pitch
Cooling Fan	Cast alloy aluminum
Exciter Type	Brushless, Self-Exciting
Insulation Class, Temperature Rise	H/H
Telephone Influence Factor( TIF)	TIF <50 / THF<2%
Total Harmonic TGH/THC	<1.5% at no load / <5% at load
Voltage Regulation, Steady State	≤±1%
Sustained Short-Circuit Current	300%(3 in):10s
CONTROL SYSTEM	Smartgen Series

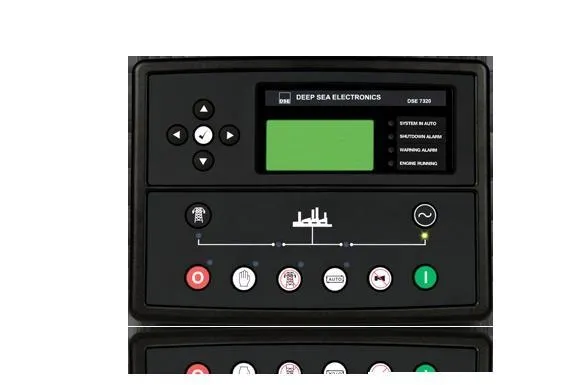

AMF Control Panel- ComAp AMF20 Or DSE7320

Brand

Deepsea/ComAp

The control module gives digital readouts of:
Generator voltage;
Output frequency;
Engine speed;
Battery voltage;
Engine hours run.
The control module has indicators for failure
information:
Overspeed/underspeed,
Emergency stop
Low oil pressure;
High water temperature
Failure to start
Battery charger failure
Automatic shutdown occurs under:
Low engine oil pressure;
High engine water temperature;
Overspeed/underspeed;
Failure to start after three attempts.

FAQ(Frequently Asked Question):

1.What is your warranty period?

Our payment terms is 1 year or 1000 running hours whichever comes first. But based on some special project, we can extended our warranty period.

2.Does your generator have global warranty?

Yes, most of our products like Cummins, Perkins, Doosan power generator enjoy the global warranty service. And the alternator we use like Leroysomer, Stamford, marathon also enjoy the global warranty service, so you do not need to worry about the aftersales service.

3.Can you accept OEM?

Yes, we can accept OEM.

4.What is your payment terms?

We can accept T/T 30% in advance, and the balance 70% shall be paid before shipment or L/C at sight, L/C deferred payment terms or west union.

5.What is your delivery time?

Our normal delivery time is 2 to 5 weeks. But if your order is some special engine and alternator, then the delivery time is longer.
