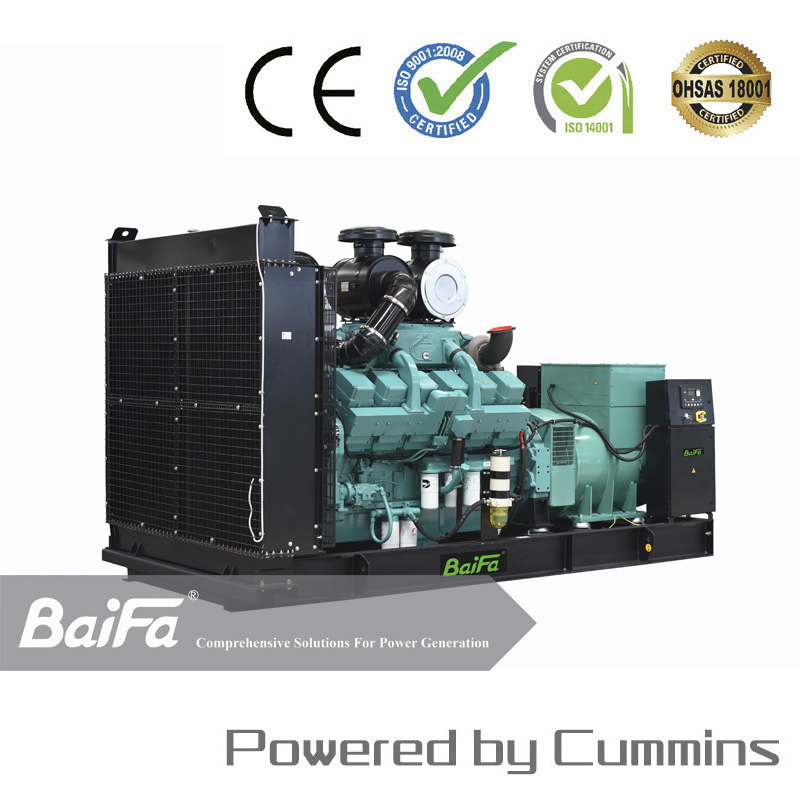

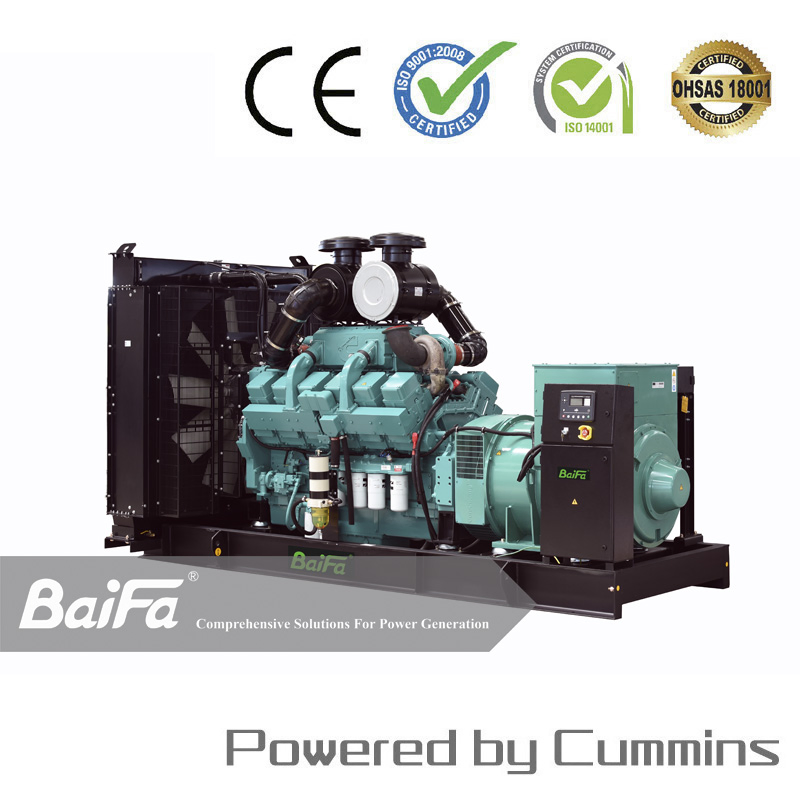

Auto Start/Stop High Voltage 880kVA 700kw Cummins Diesel Power Generator with Stamford Brushless Alternator Factory
Baifa, located in Wuxi, near Shanghai, which is the flourishing area of the world manufacturing, owns one of the largest manufacturing bases of diesel generator sets, marine diesel generator sets, green energy fuel generator sets and lighting towers in Asia, even in globe, covering an area of 60,000......
Send Inquiry
Product Description
Baifa, located in Wuxi, near Shanghai, which is the flourishing area of the world manufacturing, owns one of the largest manufacturing bases of diesel generator sets, marine diesel generator sets, green energy fuel generator sets and lighting towers in Asia, even in globe, covering an area of 60,000 sq.m, and with a 34,000 sq.m. assembly workshop. Baifa has long-term cooperation with world leading companies such as VOLVO PENTA, CUMMINS, MTU, SME MITSUBISHI, SCANIA, BAUDOUIN, STAMFORD and etc. With a range from 8KW to 3000KW, Baifa products cover types of general and special field. 'One stop' comprehensive solutions for power generation.
General Features:
Engine (CCEC Cummins KTA38-G2B)
Radiator 40OC max, fans are driven by belt, with
safety guard
24V charge alternator

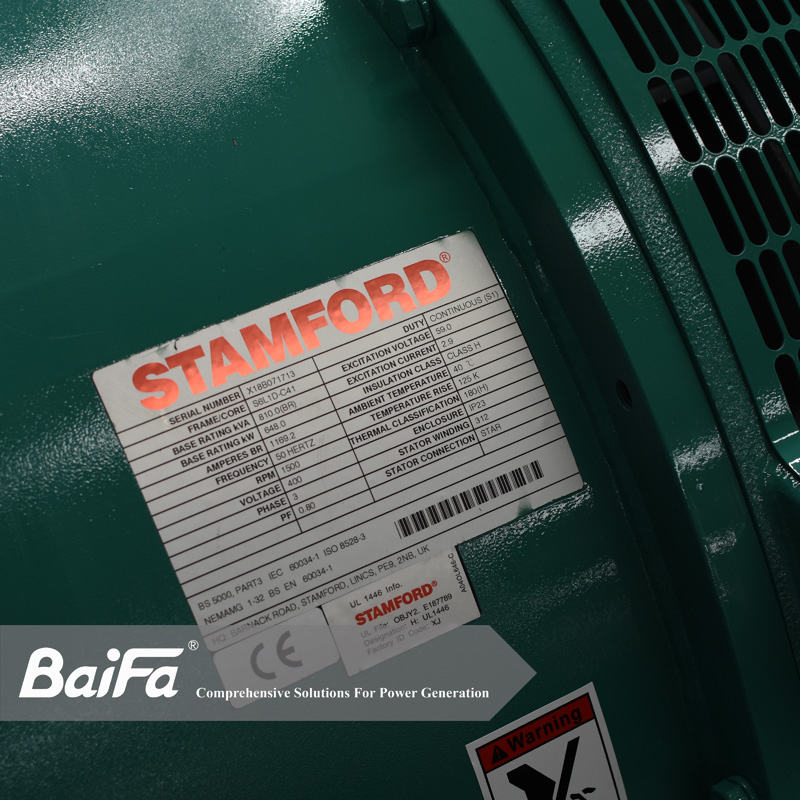

Alternator: single bearing alternator IP23, insulation
class H/H
Absorber
Dry type air filter, fuel filter, oil filter, coolant filter
Main line circuit breaker
Permanent Magnet Generator(PMG)
Standard control panel
Two12V batteries, rack and cable
Ripple flex exhaust pipe, exhaust siphon, flange,
muffler
User manual
For Cummins genset model list, please go to the end of this page
General Features:
Engine (CCEC Cummins KTA38-G2B)
Radiator 40OC max, fans are driven by belt, with
safety guard
24V charge alternator
Alternator: single bearing alternator IP23, insulation
class H/H
Absorber
Dry type air filter, fuel filter, oil filter, coolant filter
Main line circuit breaker
Permanent Magnet Generator(PMG)
Standard control panel
Two12V batteries, rack and cable
Ripple flex exhaust pipe, exhaust siphon, flange,
muffler
User manual
For Cummins genset model list, please go to the end of this page
| Powered by CUMMINS | 400V, 1500RPM, 50Hz | ||||||||||
| Baifa Model | Standby kW | Prime kW | Engine Model | Alternator Stamford | Dimension mm Open Type | Dimension mm Soundproof Type | Fuel Cons 75%(L/H) | Displacement L | Cylinder | Gov |
| BF-C28 | 22 | 20 | 4B3.9-G1 | S0L2-M1 | 1760*760*1380 | 2290*1060*1680 | 5.5 | 3.9 | 4 | M |
| BF-C30 | 24 | 22 | 4B3.9-G1 | S0L2-P1 | 1760*760*1380 | 2290*1060*1680 | 6.0 | 3.9 | 4 | M |
| BF-C40 | 35 | 32 | 4BT3.9-G1 | S1L2-K1 | 1760*760*1380 | 2290*1060*1680 | 7.9 | 3.9 | 4 | M |
| BF-C65 | 52 | 48 | 4BTA3.9-G2 | S1L2-Y1 | 1760*760*1380 | 2440*1060*1680 | 10.3 | 3.9 | 4 | E |
| BF-C70Q | 55 | 50 | QSB3.9-G2 | S1L2-Y1 | 1800*760*1380 | 2810*1140*1830 | 12.6 | 3.9 | 4 | E |
| BF-C80 | 64 | 58 | 4BTA3.9-G11 | UCI 224F1 | 1760*760*1380 | 2440*1060*1680 | 12.0 | 3.9 | 4 | E |
| BF-C90Q | 72 | 65 | QSB3.9-G3 | UCI 224G1 | 1760*760*1380 | 2600*1060*1680 | 13.4 | 3.9 | 4 | E |
| BF-C103 | 82 | 75 | 6BT5.9-G1 | UCI 274C1 | 2300*830*1700 | 2810*1140*1830 | 15.6 | 5.9 | 6 | M |
| BF-C110 | 87 | 80 | 6BT5.9-G2 | UCI 274C1 | 2300*830*1700 | 2810*1140*1830 | 17.2 | 5.9 | 6 | E |
| BF-C110Q | 88 | 80 | QSB5.9-G2 | UCI 274C1 | 2300*830*1700 | 2810*1140*1830 | 20.1 | 5.9 | 6 | E |
| BF-C125 | 100 | 92 | 6BTA5.9-G2 | UCI 274D1 | 2300*830*1700 | 3230*1170*1800 | 19.3 | 5.9 | 6 | E |
| BF-C140Q | 110 | 100 | QSB5.9-G3 | UCI 274E1 | 2350*830*1700 | 3230*1170*1800 | 22.6 | 5.9 | 6 | E |
| BF-C142 | 114 | 104 | 6BTAA5.9-G2 | UCI 274E1 | 2350*830*1700 | 3230*1170*1800 | 21.2 | 5.9 | 6 | E |
| BF-C170 | 136 | 125 | 6BTAA5.9-G12 | UCI 274F1 | 2390*860*1850 | 3230*1170*1800 | 24.6 | 5.9 | 6 | E |
| BF-C200 | 160 | 145 | 6CTA8.3-G2 | UCI 274G1 | 2390*860*1850 | 3230*1170*1800 | 29.7 | 8.3 | 6 | E |
| BF-C200Q | 160 | 145 | QSB6.7-G4 | UCI 274G1 | 2390*860*1850 | 3230*1170*1800 | 31.8 | 6.7 | 6 | E |
| BF-C220 | 176 | 160 | 6CTAA8.3-G2 | UCI 274H1 | 2450*960*1850 | 3590*1150*2050 | 32.2 | 8.3 | 6 | E |
| BF-C275D | 220 | 200 | 6LTAA8.9-G2 | UCDI 274K1 | 2500*960*1850 | 3590*1150*2050 | 38.3 | 8.9 | 6 | E |
| BF-C275DQ | 220 | 200 | QSL8.9-G4 | UCDI 274K1 | 2500*960*1850 | 3590*1150*2050 | 46.1 | 8.9 | 6 | E |
| BF-C350D | 272 | 248 | 6LTAA9.5-G1 | S4L1D-D41 | 2500*1060*1850 | 3590*1250*2050 | 48.0 | 9.5 | 6 | E |
| BF-C500DQ | 400 | 360 | QSZ13-G3 | S4L1D-G41 | 3400*1258*2050 | 4630*1660*2250 | 67.7 | 13 | 6 | E |
| BF-C275N | 220 | 200 | NT855-GA | UCDI 274K1 | 3020*1100*1850 | 3890*1460*2150 | 39.3 | 14 | 6 | E |
| BF-C350 | 272 | 248 | MTAA11-G3 | HCI 444D1 | 3020*1100*1850 | 3890*1460*2150 | 44.9 | 10.8 | 6 | E |
| BF-C350Q | 272 | 248 | QSNT-G1 | HCI 444D1 | 3150*1160*1850 | 4230*1460*2150 | 52.3 | 14 | 6 | E |
| BF-C360 | 280 | 256 | NTA855-G1B | S4L1D-E41 | 3020*1100*1850 | 4230*1460*2150 | 53.5 | 14 | 6 | E |
| BF-C375 | 300 | 275 | NTA855-G2A | S4L1D-E41 | 3020*1100*1850 | 4230*1460*2150 | 53.5 | 14 | 6 | E |
| BF-C400Q | 310 | 280 | QSNT-G2 | S4L1D-E41 | 3020*1100*1850 | 4230*1460*2150 | 62.0 | 14 | 6 | E |
| BF-C412 | 330 | 300 | NTAA855-G7 | S4L1D-F41 | 3090*1100*1850 | 4230*1460*2150 | 62.2 | 14 | 6 | E |
| BF-C440Q | 350 | 320 | QSNT-G3 | S4L1D-F41 | 3090*1100*1850 | 4230*1460*2150 | 67.4 | 14 | 6 | E |
| BF-C450 | 360 | NA | NTAA855-G7A | S4L1D-F41 | 3090*1100*1850 | 4230*1460*2150 | 71.8 | 14 | 6 | E |
| BF-C500 | 400 | 360 | KTA19-G3 | S4L1D-G41 | 3400*1258*2050 | 4630*1660*2250 | 72.8 | 19 | 6 | E |
| BF-C550 | 440 | 400 | KTA19-G3A | HCI 544C1 | 3400*1258*2050 | 4630*1660*2250 | 80.1 | 19 | 6 | E |
| BF-C650 | 520 | NA | KTA19-G8 | HCI 544E1 | 3650*1500*2050 | 4630*1660*2250 | NA | 19 | 6 | E |
| BF-C660 | 520 | 460 | KTAA19-G6 | HCI544E1 | 3650*1638*2050 | 5030*1860*2550 | 94.6 | 19 | 6 | E |
| BF-C688 | 550 | NA | KTAA19-G6A | HCI 544FS1 | 3650*1638*2050 | 5030*1860*2550 | NA | 19 | 6 | E |
| BF-C700Q | 560 | 508 | QSK19-G4 | HCI 544FS1 | 3650*1638*2050 | 5030*1860*2550 | 106.8 | 19 | 6 | E |
| BF-C825 | 660 | 600 | KTA38-G2 | LVI634B1 | 4550*2100*2320 | ISO 20'ft GP | 127.3 | 38 | 12V | E |
| BF-C880 | 704 | 640 | KTA38-G2B | S6L1D-C4 | 4550*2100*2320 | ISO 20'ft GP | 125.6 | 38 | 12V | E |
| BF-C1000 | 800 | 728 | KTA38-G2A | HCI 634H1 or: S6L1D-D4 | 4550*2100*2320 | ISO 20'ft GP | 145.1 | 38 | 12V | E |
| BF-C1100 | 880 | 800 | KTA38-G5 | S6L1D-E4 | 4750*2100*2320 | ISO 20'ft GP | 158.2 | 38 | 12V | E |
| BF-C1250 | 1000 | NA | KTA38-G9 | S6L1D-F4 | 4750*2100*2320 | ISO 20'ft GP | NA | 38 | 12V | E |
| BF-C1375Q | 1100 | 1000 | QSK38-G5 | S6L1D-G4 | 5000*2200*2500 | ISO 20'ft GP | 202.3 | 38 | 12V | E |
| BF-C1375 | 1100 | 1000 | KTA50-G3 | S6L1D-G4 | 5000*2200*2500 | ISO 20'ft GP | 195.9 | 50 | 16V | E |
| BF-C1600 | 1320 | 1200 | KTA50-GS8 | PI 734C1 | 5820*2200*2800 | ISO 20'ft GP | 238.5 | 50 | 16V | E |
| BF-C2060Q | 1650 | 1500 | QSK60-G3 | PI 734E1 | 5820*2200*2800 | ISO 40'ft HQ | 270.9 | 60.2 | 16V | E |
| BF-C2250Q | 1800 | 1640 | QSK60-G4 | PI 734F1 | 5820*2200*2800 | ISO 40'ft HQ | 296.2 | 60.2 | 16V | E |
| BF-C2500Q | 2000 | 1800 | QSK60-G21 | PI 734H1 | 5820*2200*2800 | ISO 40'ft HQ | 363.4 | 60.2 | 16V | E |
| Powered by CUMMINS | 440V,1800RPM,60Hz | ||||||||||
| Baifa Model | Standby kVA | Prime kVA | Engine Model | Alternator Stamford | Dimension mm Open Type | Dimension mm Soundproof Type | Fuel Cons 75%(L/H) | Displacement L | Cylinder | Gov |
| BF-C28-60 | 33 | 30 | 4B3.9-G2 | PI 144F1 | 1760*760*1380 | 2290*1060*1680 | 6.8 | 3.9 | 4 | M |
| BF-C40-60 | 50 | 45 | 4BT3.9-G2 | PI 144J1 | 1760*760*1380 | 2290*1060*1680 | 8.4 | 3.9 | 4 | E |
| BF-C65-60 | 68 | 62.5 | 4BTA3.9-G2 | UCI224D1 | 1760*760*1380 | 2440*1060*1680 | 11.9 | 3.9 | 4 | E |
| BF-C70-60 | 70 | 65 | 4BTA3.9-G2 | UCI224E1 | 1760*760*1380 | 2440*1060*1680 | 11.9 | 3.9 | 4 | E |
| BF-C75-60 | 77 | 70 | 4BTA3.9-G11 | UCI224E1 | 1760*760*1380 | 2440*1060*1680 | 12.5 | 3.9 | 4 | E |
| BF-C80-60 | 95 | 85 | 4BTA3.9-G11 | UCI224F1 | 1760*760*1380 | 2440*1060*1680 | 14 | 3.9 | 4 | E |
| BF-C90-60 | 100 | 90 | 4BTA3.9-G11 | UCI224G1 | 1760*760*1380 | 2600*1060*1680 | 15.6 | 3.9 | 4 | E |
| BF-C105-60 | 120 | 110 | 6BT5.9-G2 | UCI274C1 | 2300*830*1700 | 2810*1140*1830 | 20.8 | 5.9 | 6 | E |
| BF-C110-60 | 138 | 125 | 6BT5.9-G2 | UCI274D1 | 2300*830*1700 | 2810*1140*1830 | 21.9 | 5.9 | 6 | E |
| BF-C125-60 | 145 | 130 | 6BTA5.9-G2 | UCI 274D1 | 2300*830*1700 | 3230*1170*1800 | 22.8 | 5.9 | 6 | E |
| BF-C142-60 | 156 | 145 | 6BTAA5.9-G2 | UCI274E1 | 2350*830*1700 | 3230*1170*1800 | 23.4 | 5.9 | 6 | E |
| BF-C170-60 | 180 | 168 | 6BTAA5.9-G12 | UCI274E1 | 2390*860*1850 | 3230*1170*1800 | 29.2 | 5.9 | 6 | E |
| BF-C200-60 | 212 | 200 | 6CTA8.3-G2 | UCI274G1 | 2390*860*1850 | 3230*1170*1800 | 34.3 | 8.3 | 6 | E |
| BF-C220-60 | 250 | 230 | 6CTAA8.3-G2 | UCI274H1 | 2450*960*1850 | 3590*1150*2050 | 37.8 | 8.3 | 6 | E |
| BF-C275D-60 | 275 | 250 | 6LTAA8.9-G2 | UCDI 274J1 | 2500*960*1850 | 3590*1150*2050 | 41.6 | 8.9 | 6 | E |
| BF-C300D-60 | 306 | 280 | 6LTAA8.9-G3 | UCDI 274J1 | 2500*960*1850 | 3590*1150*2050 | 44.4 | 8.9 | 6 | E |
| BF-C350D-60 | 330 | 300 | 6LTAA9.5-G1 | UCDI 274K1 | 2500*1060*1850 | 3590*1250*2050 | 50 | 9.5 | 6 | E |
| BF-C312-60 | 344 | 310 | NTA855-G1 | S4L1D-C41 | 3020*1100*1850 | 4230*1460*2150 | 56.1 | 14 | 6 | E |
| BF-C360-60 | 375 | 344 | NTA855-G1B | S4L1D-D41 | 3020*1100*1850 | 4230*1460*2150 | 61.7 | 14 | 6 | E |
| BF-C400-60 | 435 | 400 | NTA855-G3 | S4L1D-E41 | 3020*1100*1850 | 4230*1460*2150 | 66 | 14 | 6 | E |
| BF-C440-60 | 500 | 438 | KTA19-G2 | S4L1D-F41 | 3400*1258*2050 | 4630*1660*2250 | 76 | 19 | 6 | E |
| BF-C500DQ-60 | 500 | 460 | QSZ13-G3 | S4L1D-F41 | 3400*1258*2050 | 4630*1660*2250 | 75.7 | 13 | 6 | E |
| BF-C550-60 | 625 | 562 | KTA19-G3A | HCI 544D1 | 3400*1258*2050 | 4630*1660*2250 | 83.4 | 19 | 6 | E |
| BF-C688-60 | 750 | NA | KTAA19-G6A | HCI 544E1 | 3650*1638*2050 | 5030*1860*2550 | 106.5 | 19 | 6 | E |
| BF-C700Q-60 | 750 | 688 | QSK19-G5 | HCI 544E1 | 3650*1638*2050 | 5030*1860*2550 | 120 | 19 | 6 | E |
| BF-C700-60 | 850 | 775 | KT38-G | HCI 544F1 | 4550*2100*2320 | ISO 20'ft GP | 118 | 38 | 12V | E |
| BF-C825-60 | 1000 | 910 | KTA38-G2 | S6L1D-C4 | 4550*2100*2320 | ISO 20'ft GP | 157 | 38 | 12V | E |
| BF-C1000-60 | 1100 | 1000 | KTA38-G2A | S6L1D-D4 | 4550*2100*2320 | ISO 20'ft GP | 164 | 38 | 12V | E |
| BF-C1100-60 | 1250 | 1125 | KTA38-G4 | S6L1D-E4 | 4750*2100*2320 | ISO 20'ft GP | 190 | 38 | 12V | E |
| BF-C1250-60 | 1375 | NA | KTA38-G9 | S6L1D-F4 | 5000*2200*2500 | ISO 20'ft GP | 271 | 38 | 12V | E |
| BF-C1375-60 | 1562 | 1420 | KTA50-G3 | S6L1D-G4 | 5000*2200*2500 | ISO 20'ft GP | 222 | 50 | 16V | E |
| BF-C1600-60 | 1760 | 1600 | KTA50-G9 | PI 734B1 | 5820*2200*2800 | ISO 20'ft HQ | 257 | 50 | 16V | E |
| BF-C1600-60 | 1875 | 1600 | KTA50-G9 | PI 734C1 | 5820*2200*2800 | ISO 20'ft HQ | 257 | 50 | 16V | E |
| BF-C700V-60 | 750 | 682 | VTA28-G5 | HCI 544E1 | 4000*1750*2050 | 5800*1800*2550 | 118 | 28 | 12V | E |
| BF-C900Q-60 | 1000 | 910 | QSK23-G3 | S6L1D-C4 | 4550*2100*2320 | ISO 20'ft GP | 139 | 23.15 | 6 | E |
| BF-C1000Q-60 | 1125 | 1029 | QST30-G3 | S6L1D-D4 | 4550*2100*2320 | ISO 20'ft GP | 154 | 30 | 12V | E |
| BF-C1100Q-60 | 1250 | 1138 | QST30-G4 | S6L1D-E4 | 4750*2100*2320 | ISO 20'ft GP | 177 | 30 | 12V | E |
| BF-C1800Q-60 | 2000 | 1600 | QSK50-G6 | PI 734D1 | 5450*2300*2600 | ISO 40'ft GP | 365 | 50 | 16V | E |
| BF-C2500Q-60 | 2500 | 2280 | QSK60-G6 | PI 734F1 | 5820*2300*2600 | ISO 40'ft GP | 391 | 60 | 16V | E |
