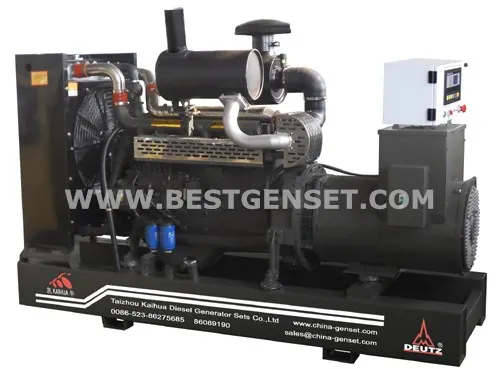

Air Cooled Diesel Engine Deutz Genset 15kVA 25kVA 30kVA 45kVA 50kVA 65kVA 120kVA 150kVA

Product Description

Air Cooled Diesel Engine Deutz Genset 15kva 25kva 30kva 45kva 50kva 65kva 120kva 150kva

GENSET DATA
Gensets Model			KH-120GF
Prime Power			150KVA
Standby Power			175KVA
Rated Voltage(V)			380/220V
Rated Frequency(Hz)			50
Rated Speed (RPM)			1500
Power Factor(COS¢)			0.8(lagging)
ENGINE DATA
Engine brand			Deutz
Engine model			BF6M1013EC
Number of Cylinders			6
Cylinder arrangement			Vertical in Line
Cycle			Four stroke
Aspiration			Turbocharged
Fuel System			Direct Injection
Bore×Stroke (mm×mm)			108*130
Displacement (Liter)			18.9
Compression Ratio			17:01
Governor Type			Electronic
Cooling System			water cooling
Speed Governor			Electronic
Cooltant capacity (L)-engine			20
Starting Method			DC 24V electrical starting

Alternator brand			Stamford
Alternator model			UCI274E
Number of Phase			3
Connecting Type			3 Phase and 4 Wires
Number of Bearing			1
Protection Grade			IP23
Altitude			≤1000m
Exciter Type			Brushless ,Self-exciting, AVR &100% Copper winding wire

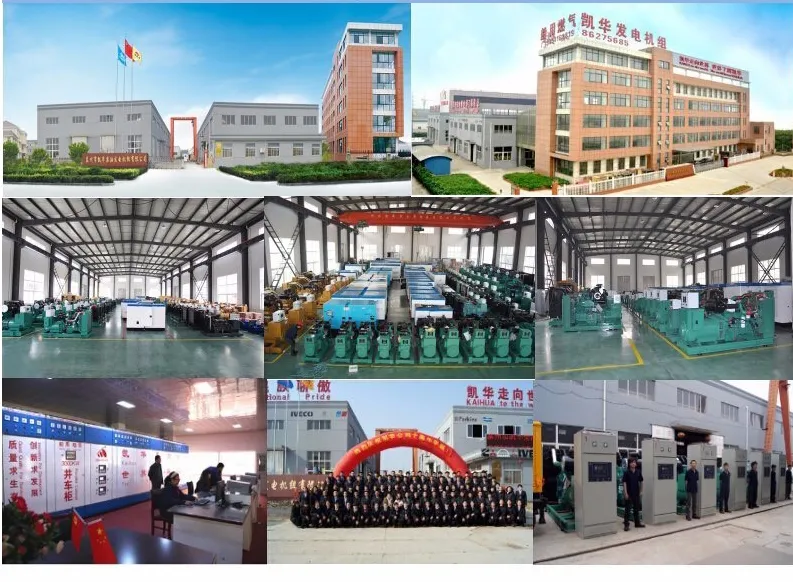

Taizhou Kaihua Diesel Generator sets Co.,Ltd
