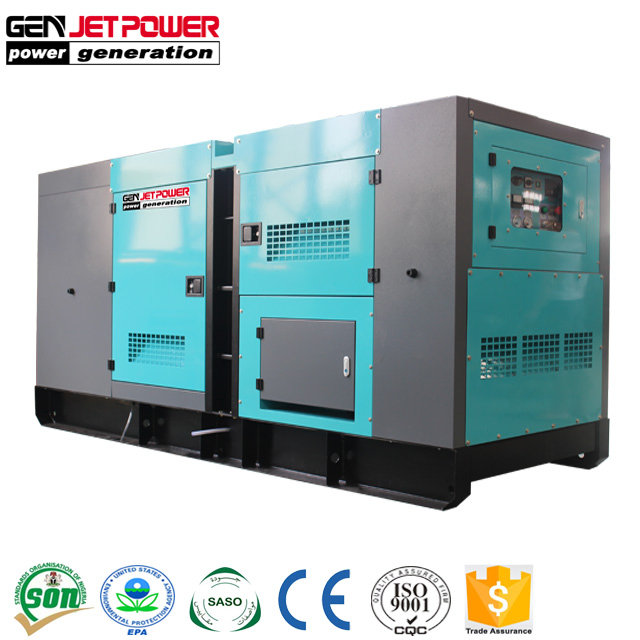

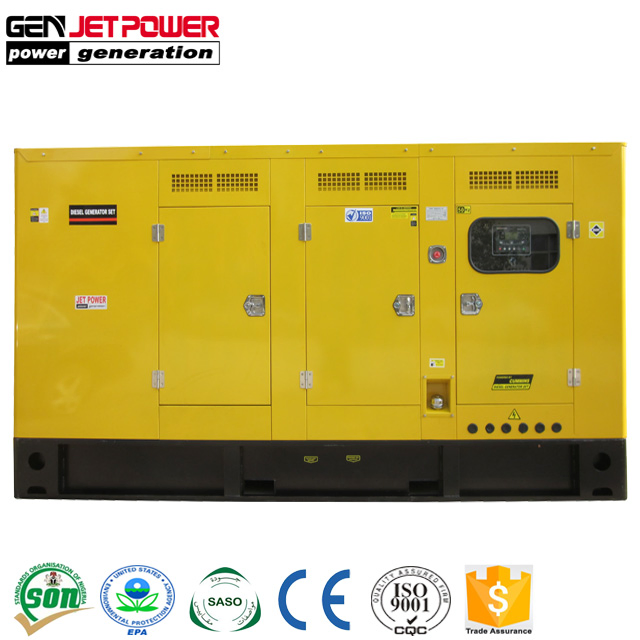

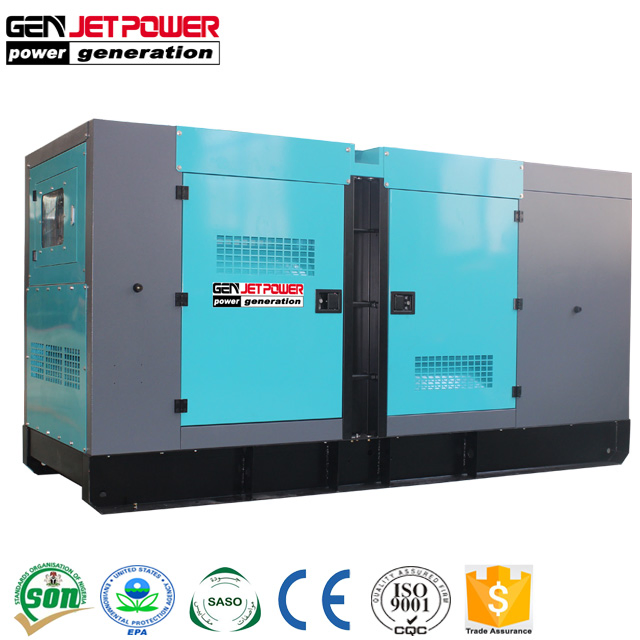

AC Three Phase Genset 260kw 325kVA Soundproof Diesel Generator Set
Product Description 1. Our cooperate with famous diesel engine -powered by Yuchai, Fawde, Yangdong, Deutz, Lovol,UK brand, USA brand, Weichai ,Volvo etc..2. Brushless alternator -- Stamford, Leroy Somer, Marathon, JET.3. High-quality steel are thickness -- 2MM to 4MM4. High density sound-absorbing m......
Send Inquiry
Product Description
Product Description
1. Our cooperate with famous diesel engine -powered by Yuchai, Fawde, Yangdong, Deutz, Lovol,UK brand, USA brand, Weichai ,Volvo etc..
2. Brushless alternator -- Stamford, Leroy Somer, Marathon, JET.
3. High-quality steel are thickness -- 2MM to 4MM
4. High density sound-absorbing material -- sound insulation, fireproofing
5. New design of turn-back type for air inflow & air outlet which can reduce the noise and advance engine efficiency.
6. Generator set use High-quality steel are thickness canopy -- 2MM to 6MM
7. Generator equipped with 12V/ 24V DC battery with charger, battery connects wire.
8. Generator equipped with 10-12 hours fuel tank with fuel indicator, long time for working.
9. Beautiful & practicably design, Bottom hole for forklift, Water outlet & oil outlet for easy maintenance
10. Double open door on both sides of the Gensets. Spacious doors can check for every part of the engine and alternator.
11. All new design for diesel generator set of Silent, Supper silent, Soundproof, Trailer type, Container type.

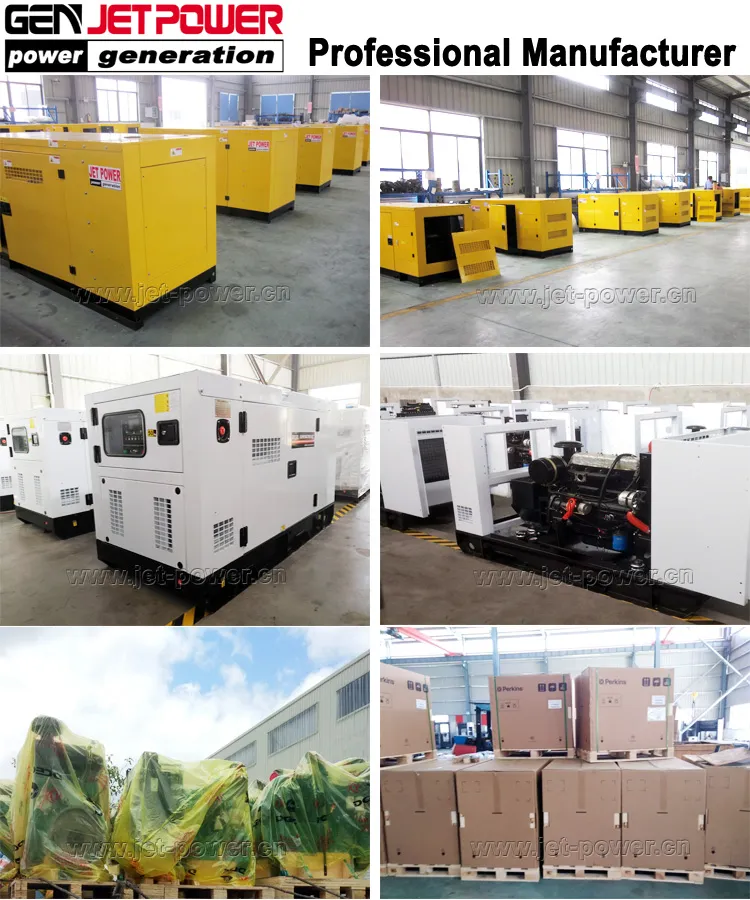

Ricardo engine diesel generator set details pictures

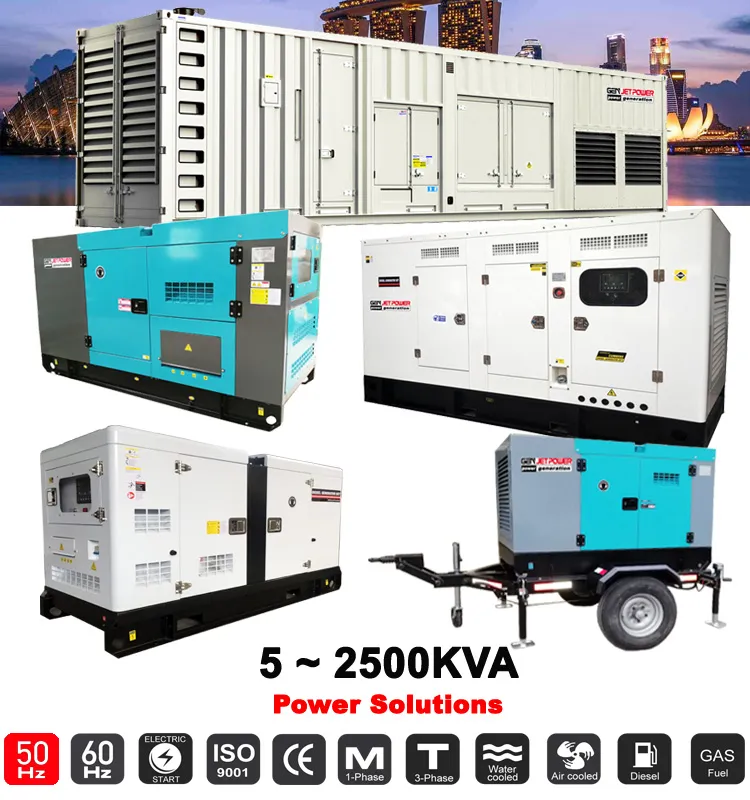

Generator diesel All new design for diesel generator set of open, Silent, Supper silent, Soundproof, Trailer type container
Genset Specification
Generator Diesel Description
Our advantages
1.Generator diesel High-quality steel are thickness canopy -- 2MM to 6MM
2.Generator diesel high density sound-absorbing material -- sound insulation, fireproofing
3.Generator diesel 12V/ 24V DC battery with charger, battery connects wire
4. Generator diesel 10-12 hours fuel tank with fuel indicator, long time for working.
5. Genset High protect class control box and power output box. IP55, Waterproof, Electric leakage protect, Breaker
6.New design of turn-back type for air inflow & air outlet which can reduce the noise and improve engine efficiency.
7.Generator diesel Beautiful & practicably design, Bottom hole for forklift, water outlet & oil outlet for easy maintenance
8. Double open door on both sides of the Gensets.Spacious doors can check for every part of the engine and alternator.
Our Service
one year or 1000 hours(diesel generator set ) whichever reach first from exfactory date.
1. During the guarantee period-
ur will provide the free easydamageable spare parts of alternator caused by our quality of production or raw material.
2. After expiration-
our provides cost spare parts maintenance of alternator. If engine with international warranty service, the engine product warranty by local authorization Service agent.
Our Company
FUZHOU JET ELECTRIC MACHINERY CO., LTD is a leadind manufacturer focus on Gasonline Generators, Disel Generators, Pump, Motor,Garden Machines. The factory is located in Fuan City Fujian provice, which is a well-konw electrical and machine city in China. For more convenient and efficient business, we set up company inHONGKONG and FUZHOU ITY
1. Our cooperate with famous diesel engine -powered by Yuchai, Fawde, Yangdong, Deutz, Lovol,UK brand, USA brand, Weichai ,Volvo etc..
2. Brushless alternator -- Stamford, Leroy Somer, Marathon, JET.
3. High-quality steel are thickness -- 2MM to 4MM
4. High density sound-absorbing material -- sound insulation, fireproofing
5. New design of turn-back type for air inflow & air outlet which can reduce the noise and advance engine efficiency.
6. Generator set use High-quality steel are thickness canopy -- 2MM to 6MM
7. Generator equipped with 12V/ 24V DC battery with charger, battery connects wire.
8. Generator equipped with 10-12 hours fuel tank with fuel indicator, long time for working.
9. Beautiful & practicably design, Bottom hole for forklift, Water outlet & oil outlet for easy maintenance
10. Double open door on both sides of the Gensets. Spacious doors can check for every part of the engine and alternator.
11. All new design for diesel generator set of Silent, Supper silent, Soundproof, Trailer type, Container type.
Ricardo engine diesel generator set details pictures
Generator diesel All new design for diesel generator set of open, Silent, Supper silent, Soundproof, Trailer type container
Genset Specification
| Model | Standby output KVA | Standby output KW | Prime Output KVA | Prime Output KW | Chinese Ricardo Diesel Engine | No. of Cylinder | Governor | Displacement | Alternator Stamford |
| GF-10 | 14 | 11 | 13 | 10 | K2105D/495 | L2 | Mech. | 1.63 | JET164C |
| GF-12 | 17 | 13.2 | 15 | 12 | 495D | L4 | Mech. | 3.61 | JET164D |
| GF-15 | 21 | 16.5 | 19 | 15 | 495D | L4 | Mech. | 3.61 | JET184E |
| GF-20 | 28 | 22 | 25 | 20 | K4100D | L4 | Mech. | 3.61 | JET184F |
| GF-24 | 33 | 26 | 30 | 24 | K4100D | L4 | Mech. | 3.61 | JET184G |
| GF-30 | 41 | 33 | 38 | 30 | K4100ZD | L4 | Mech. | 3.93 | JET184H |
| GF-40 | 55 | 44 | 50 | 40 | R4105ZD | L4 | Mech. | 4.33 | JET224D |
| GF-50 | 69 | 55 | 63 | 50 | R4105AZD | L4 | Mech. | 4.5 | JET224E |
| GF-70 | 96 | 77 | 88 | 70 | R6105ZD | L6 | Mech. | 5.86 | JET224G |
| GF-80 | 110 | 88 | 100 | 80 | R6105ZLD | L6 | Mech. | 6.46 | JET274C |
| GF-90 | 125 | 100 | 113 | 90 | R6105AZLD | L6 | Mech. | 6.49 | JET274D |
| GF-100 | 138 | 110 | 125 | 100 | R6105IZLD | L6 | Mech. | 6.49 | JET274ES |
| GF-120 | 165 | 132 | 150 | 120 | R6110ZLD | L6 | Mech. | 7.52 | JET274F |
| GF-150 | 206 | 165 | 188 | 150 | TH6113AZLD | L6 | Mech. | 7.82 | JET274G |
| GF-180 | 248 | 198 | 225 | 180 | R6126ZD | L6 | Mech. | 9.726 | JET274J |
| GF-200 | 275 | 220 | 250 | 200 | 6135BZLD | L6 | Mech. | 13.3 | JET274K |
| GF-250 | 344 | 275 | 313 | 250 | 12V135AZD | 12V | Mech. | 25.8 | JET444E |
| GF-300 | 375 | 300 | 413 | 330 | 12V135AZLD | 12V | Mech. | 25.8 | JET444FS |
| GF-360 | 495 | 396 | 450 | 360 | 12V135BZLD | 12V | Electric | 26.6 | JET544C |
| GF-400 | 550 | 440 | 500 | 400 | 12V135BZLD-1 | 12V | Electric | 26.6 | JET544D |
| GF-500 | 688 | 550 | 625 | 500 | SY630 | 12V | Electric | 27.14 | JET544E1 |
| GF-600 | 825 | 660 | 750 | 600 | SY720 | 12V | Electric | 29.61 | JET634 |
Generator Diesel Description
| Main standards | GB/T2820, ISO8528,IEC34, CE, EPA Tier4 standard |
| Prime output power | from 5KVA to 2500KVA |
| Rated voltage | 120V/240V, 220/380V, 230V/400V, 254V/440V etc. other voltage is optional |
| Generator phase and connecting | 3 phase, 4wire |
| Rated frequency | 50Hz@1500rpm or 60Hz@1800rpm |
| Alternator excited type | Brushless, self excited or PMG optional |
| Alternator Insulation | Class H |
| Alternator Protection | IP21 ~ IP23 |
| Voltage regulation | AVR automatic control 1% |
| Altitude above sea level | ≤1000 meters |
| Ambient air temperature | ≤40°C |
| Relative air humidity | ≤ 90% |
1.Generator diesel High-quality steel are thickness canopy -- 2MM to 6MM
2.Generator diesel high density sound-absorbing material -- sound insulation, fireproofing
3.Generator diesel 12V/ 24V DC battery with charger, battery connects wire
4. Generator diesel 10-12 hours fuel tank with fuel indicator, long time for working.
5. Genset High protect class control box and power output box. IP55, Waterproof, Electric leakage protect, Breaker
6.New design of turn-back type for air inflow & air outlet which can reduce the noise and improve engine efficiency.
7.Generator diesel Beautiful & practicably design, Bottom hole for forklift, water outlet & oil outlet for easy maintenance
8. Double open door on both sides of the Gensets.Spacious doors can check for every part of the engine and alternator.
Our Service
one year or 1000 hours(diesel generator set ) whichever reach first from exfactory date.
1. During the guarantee period-
ur will provide the free easydamageable spare parts of alternator caused by our quality of production or raw material.
2. After expiration-
our provides cost spare parts maintenance of alternator. If engine with international warranty service, the engine product warranty by local authorization Service agent.
Our Company
FUZHOU JET ELECTRIC MACHINERY CO., LTD is a leadind manufacturer focus on Gasonline Generators, Disel Generators, Pump, Motor,Garden Machines. The factory is located in Fuan City Fujian provice, which is a well-konw electrical and machine city in China. For more convenient and efficient business, we set up company inHONGKONG and FUZHOU ITY
