80kVA Silent Generator Powered by Perkins Diesel Engine
50Hz 80kva silent generator powered by perkins diesel engineEngine: 1104A-44TG2Diesel Generator Specifications: Diesel generator set, , generator set, diesel generator, generator, silent generator, soundproof / weatherproof canopy, genset, diesel genset1) Top brand engine2) Global warranty3) ATS, AM......
Send Inquiry
Product Description

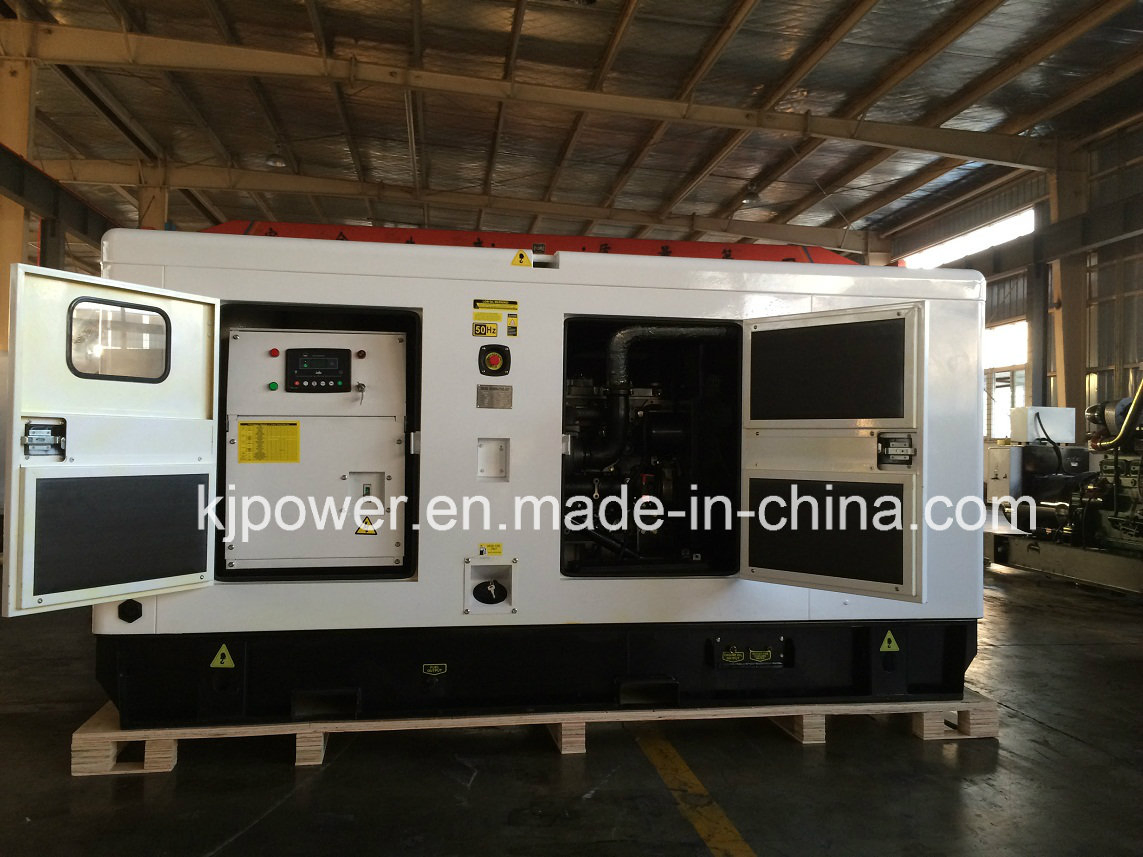

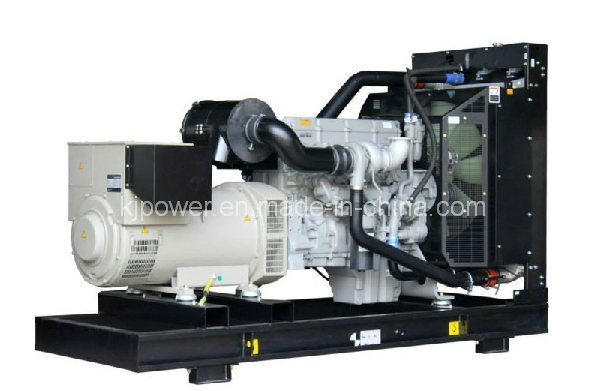

50Hz 80kva silent generator powered by perkins diesel engine
Engine: 1104A-44TG2
Diesel Generator Specifications: Diesel generator set, , generator set, diesel generator, generator, silent generator, soundproof / weatherproof canopy, genset, diesel genset
1) Top brand engine
2) Global warranty
3) ATS, AMF, Synchronization Optional
4) ISO approved supplier
5) Competitive Price with High Quality
4) Coupled to Stanford/Leroy Somer/Kaijie alternator
Supply scope of Kaijie Cummins diesel generator set:
1. Various Voltage available but coupled alternator model may be changed. For detailed inquiry, pls contact Kaijie sales.
2. Leroy Somer Brushless Alternator, Single Bearing, Flange Connection, IP23, Insulation Class H, AVR Fitted. (Stamford, Engga, Kaijie and Marathon for Option)
3. With 8 Working Hours Base Fuel Tank(for the both of open & silent genset ≤ 650kVA prime, only Base Frame for other models), AVM Suspension System, Set-mounted Exhaust System, Battery, Battery Charger and Lead supplied
4. With Chint Breaker
5. Complete Operation/Maintenance Manuals for Genset/Engine/Alternator, Genset testing report
6. Warranty: One year or 1000 Working Hours from the shipment date, whichever comes first.
Engine: 1104A-44TG2
Diesel Generator Specifications: Diesel generator set, , generator set, diesel generator, generator, silent generator, soundproof / weatherproof canopy, genset, diesel genset
1) Top brand engine
2) Global warranty
3) ATS, AMF, Synchronization Optional
4) ISO approved supplier
5) Competitive Price with High Quality
4) Coupled to Stanford/Leroy Somer/Kaijie alternator
Supply scope of Kaijie Cummins diesel generator set:
1. Various Voltage available but coupled alternator model may be changed. For detailed inquiry, pls contact Kaijie sales.
2. Leroy Somer Brushless Alternator, Single Bearing, Flange Connection, IP23, Insulation Class H, AVR Fitted. (Stamford, Engga, Kaijie and Marathon for Option)
3. With 8 Working Hours Base Fuel Tank(for the both of open & silent genset ≤ 650kVA prime, only Base Frame for other models), AVM Suspension System, Set-mounted Exhaust System, Battery, Battery Charger and Lead supplied
4. With Chint Breaker
5. Complete Operation/Maintenance Manuals for Genset/Engine/Alternator, Genset testing report
6. Warranty: One year or 1000 Working Hours from the shipment date, whichever comes first.
DIESEL GENERATOR SET | Diesel GenSet Model | KJ-P88 |
| Prime power (KW/KVA) | 64/80 | |
| Standby power (KW/KVA) | 70/88 | |
| Rated voltage(V) | 230/400 | |
| Rated current (A) | 115.2 | |
| Frequency(Hz) | 50 | |
| Rated Rotary Speed (RPM) | 1500 | |
| Power factor | 0.8 | |
| Power supply mode | 3 phase,4wire | |
| Starting method | 24 V DC | |
ENGINE | Diesel Engine | Perkins |
| Model | 1104A-44TG2 | |
| Engine prime power (KW/KVA) | 73.4/91.75 | |
| Engine standby power(KW/KVA) | 80.7/100.9 | |
| Cylinder Qty. | 4 | |
| Fuel consumption.(L/ h) | 215 | |
| Bore(mm) *Stroke (mm) | 105*127 | |
| Compression rate | 17.25:1 | |
| Cooling liquid volume (L) | 13 | |
| Displacement(L) | 4.4 | |
| Lubricant capacity (L) | 8 | |
| Cooling method | Water cooled | |
| Intake method | Turbocharged | |
ALTERNATOR | Alternator Features: 1. Kaijie,ENGGA,Stamford, Leroy Somer, Marathon 2. Brushless, 4 poles, rotation magnet 3. IP21-23(NEMA1) enclose is standard for all industrial alternators 4. H class insulation system 5. AVR self-regulated, voltage regulation rate: ≤±1% 6. Simple installation and maintenance with easy access to terminals, rotating diodes and coupling bolts 7. Wide range of flange adapters and single bearing disc coupling 8. Radio interference restraining accords with the stipulation of VDE0875-N and ISO8528 9. Moisture proof, sand-proof, dustproof, salt-proof and vibration-proof | |
