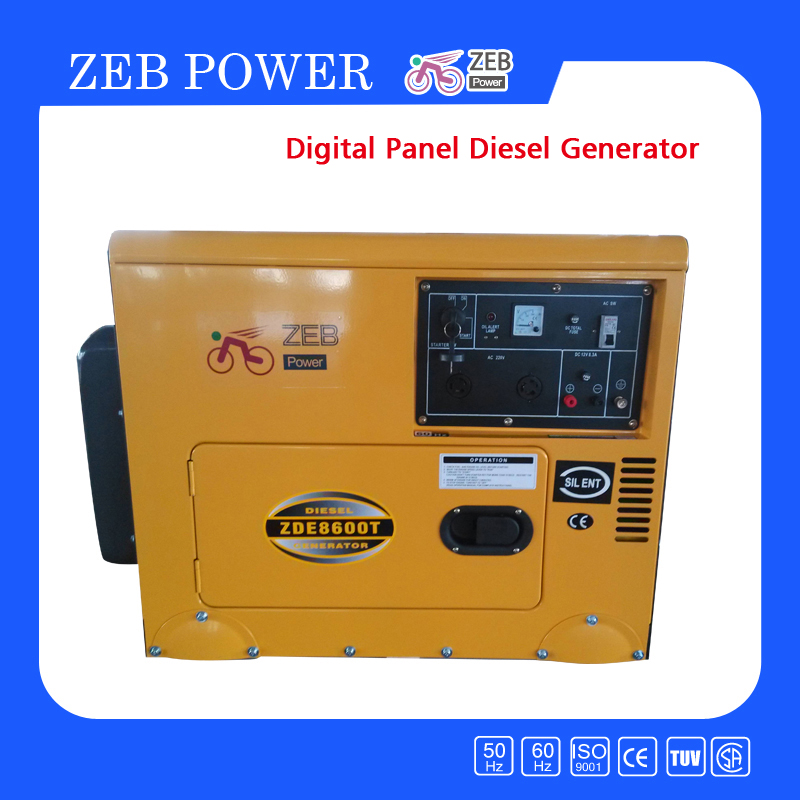

7kVA Silent Type Portable Generators (ZDE8600T)
Silent Type Single Phase Diesel Generator1. Bulk Order Pictures: 2. Brief Introduction: Model: ZDE8600T 50HZ Rated /Max power: 6/6.5kva 60HZ Rated /Max power: 6.5/7kva MOQ: 20 pcs Dimension: 970*560*770mm Gross/Net weight: 185/175kg 20/40 Container loading: 72/144pcs ......
Send Inquiry
Product Description
Silent Type Single Phase Diesel Generator

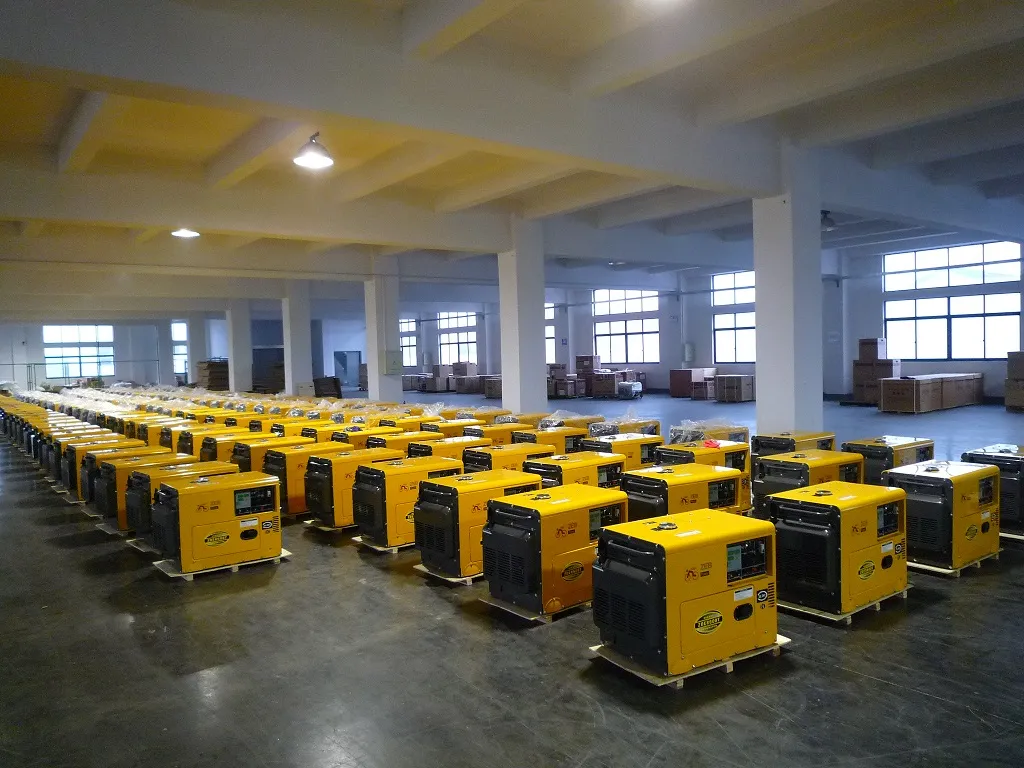

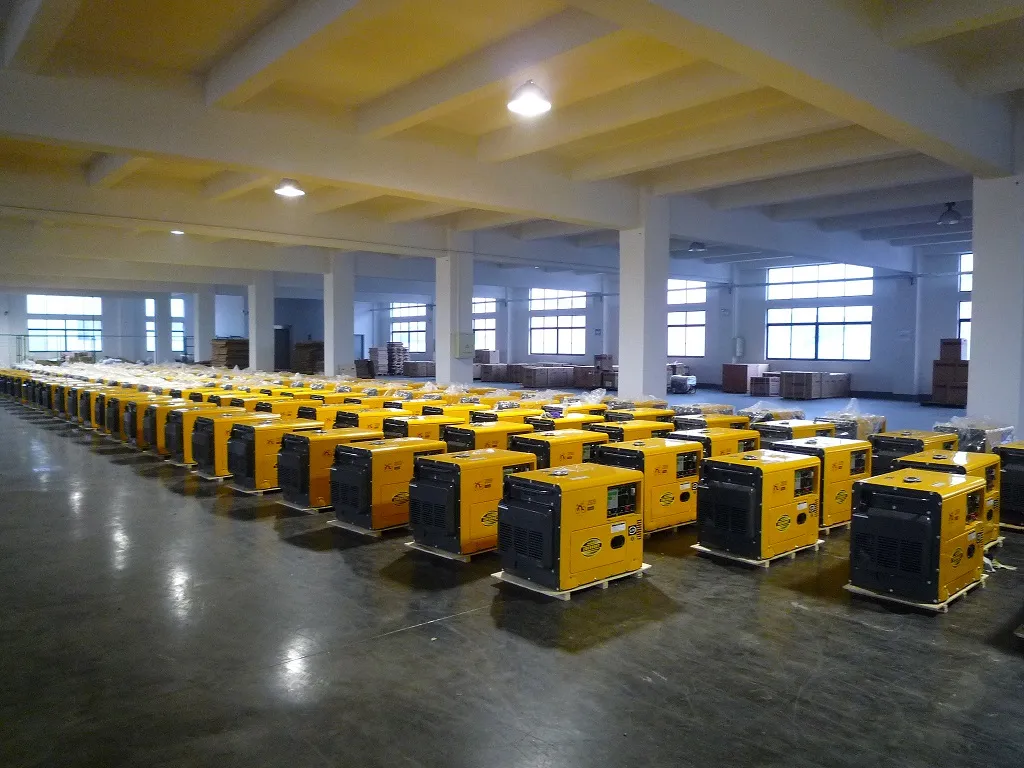

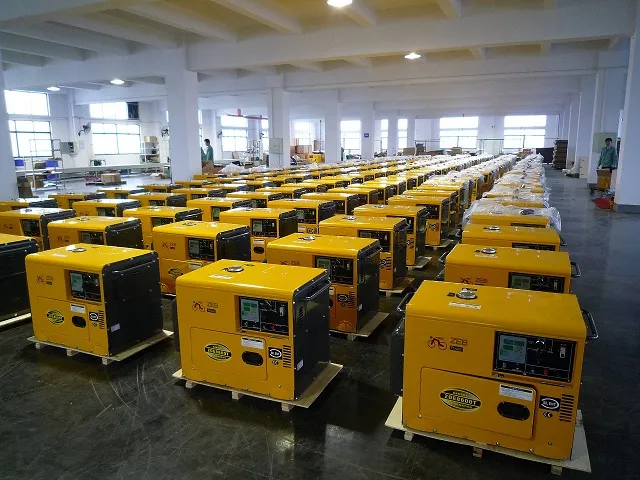

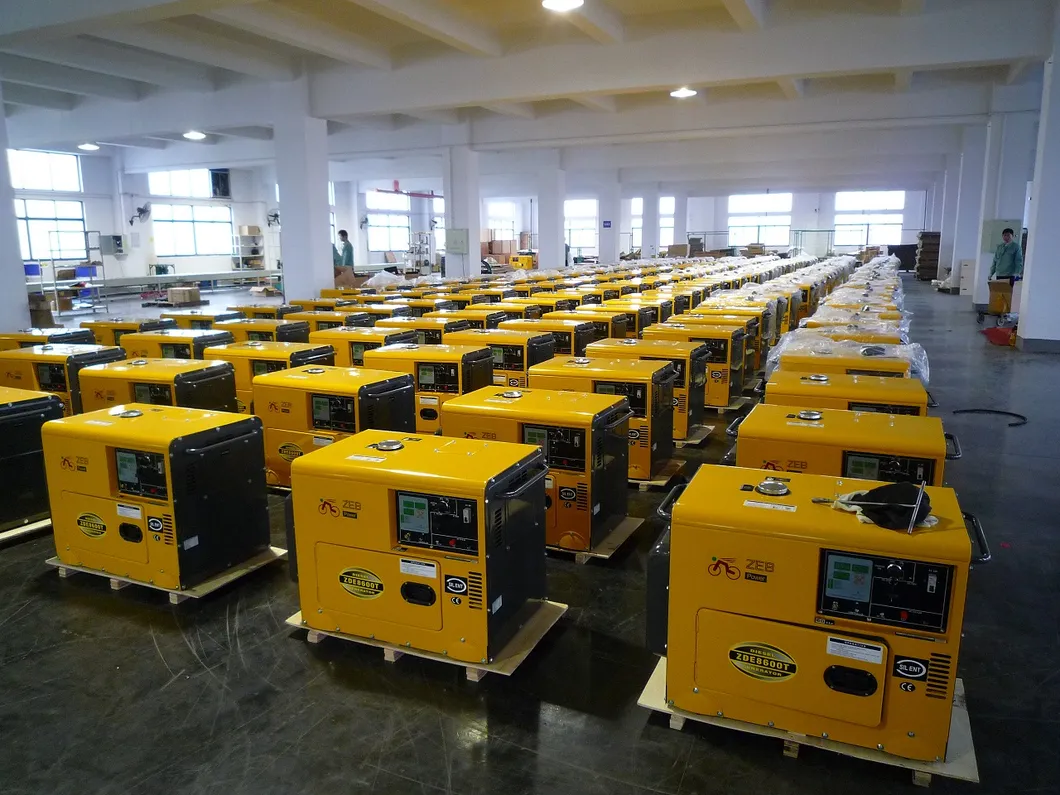

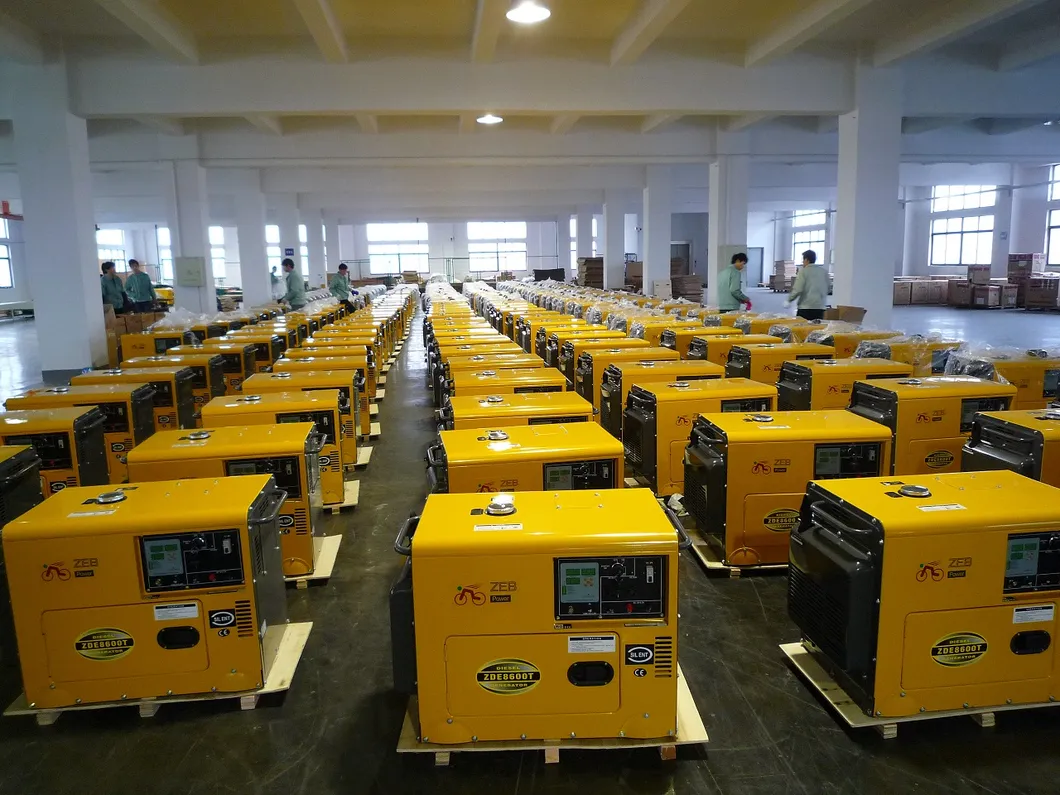

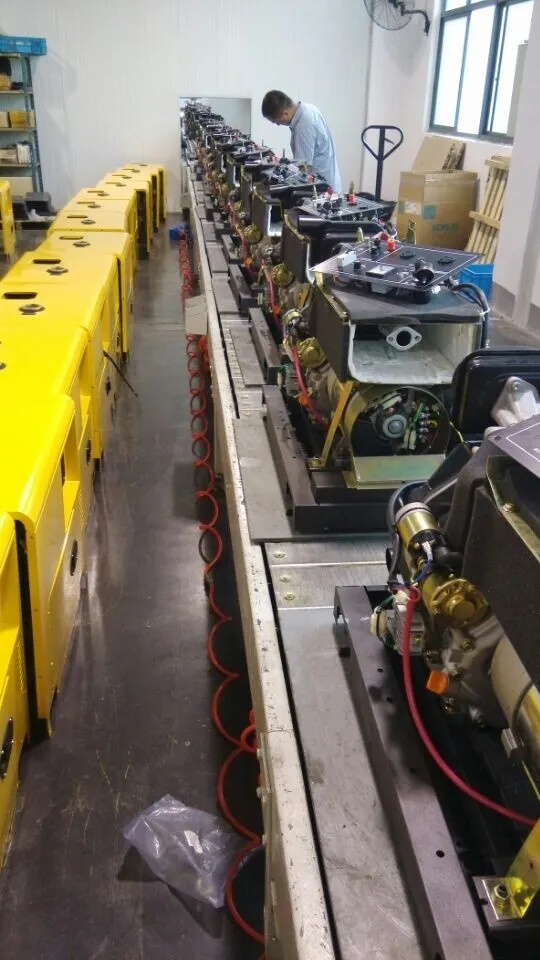

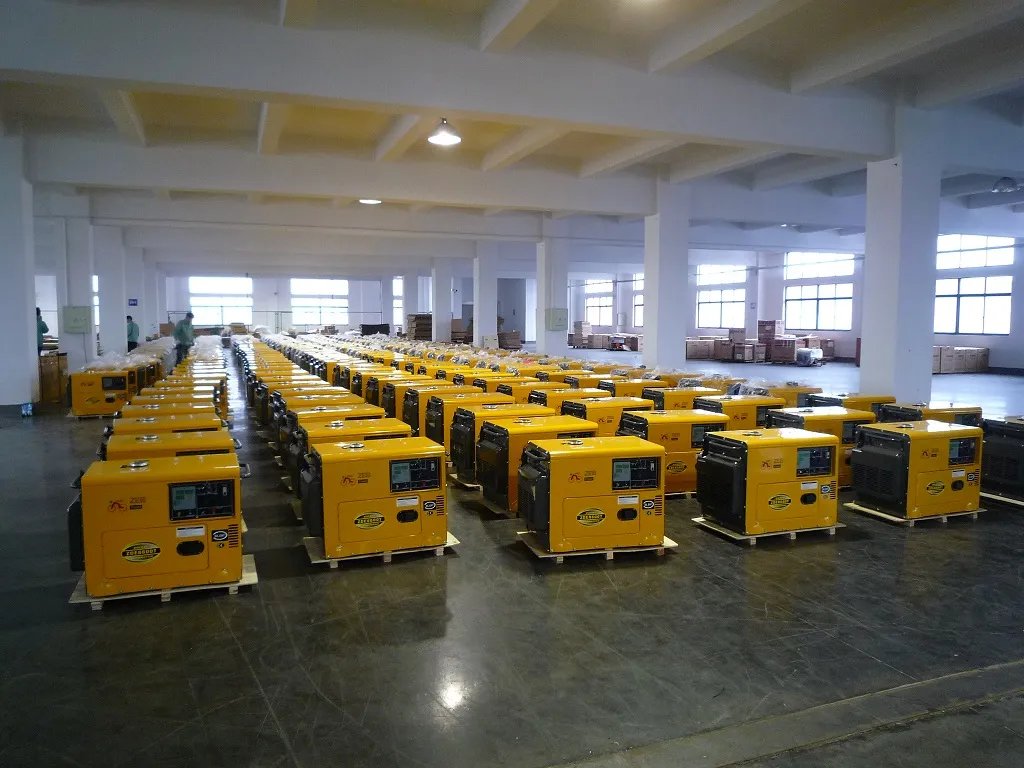

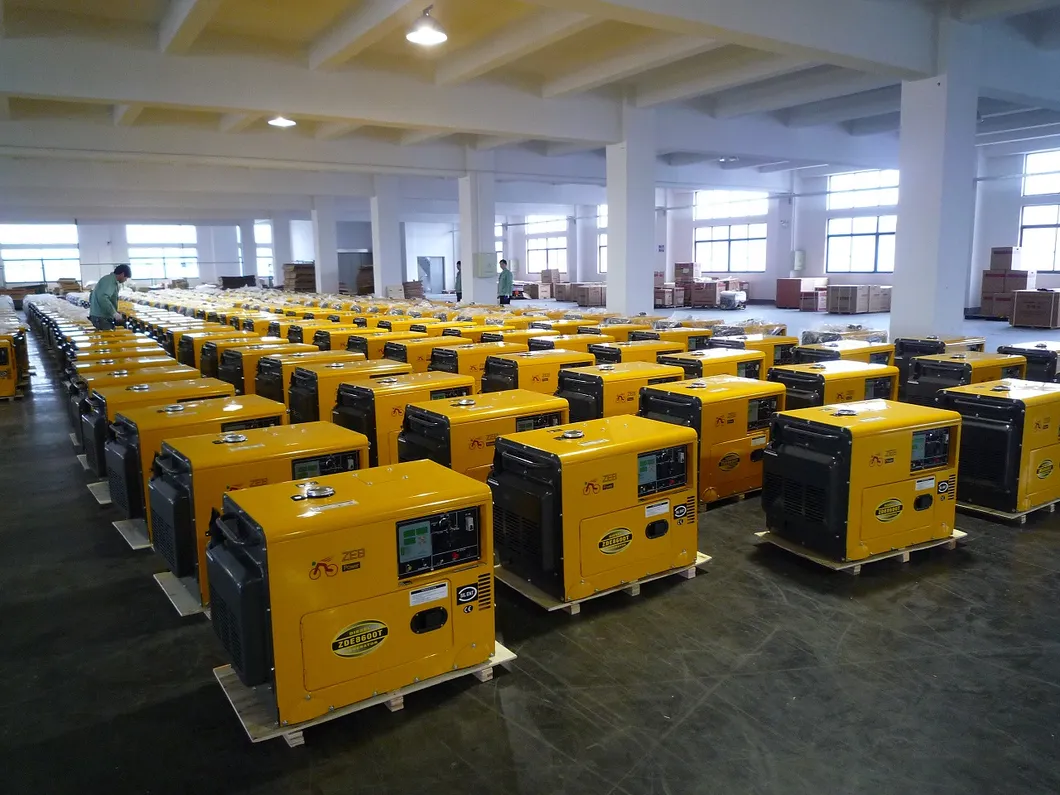

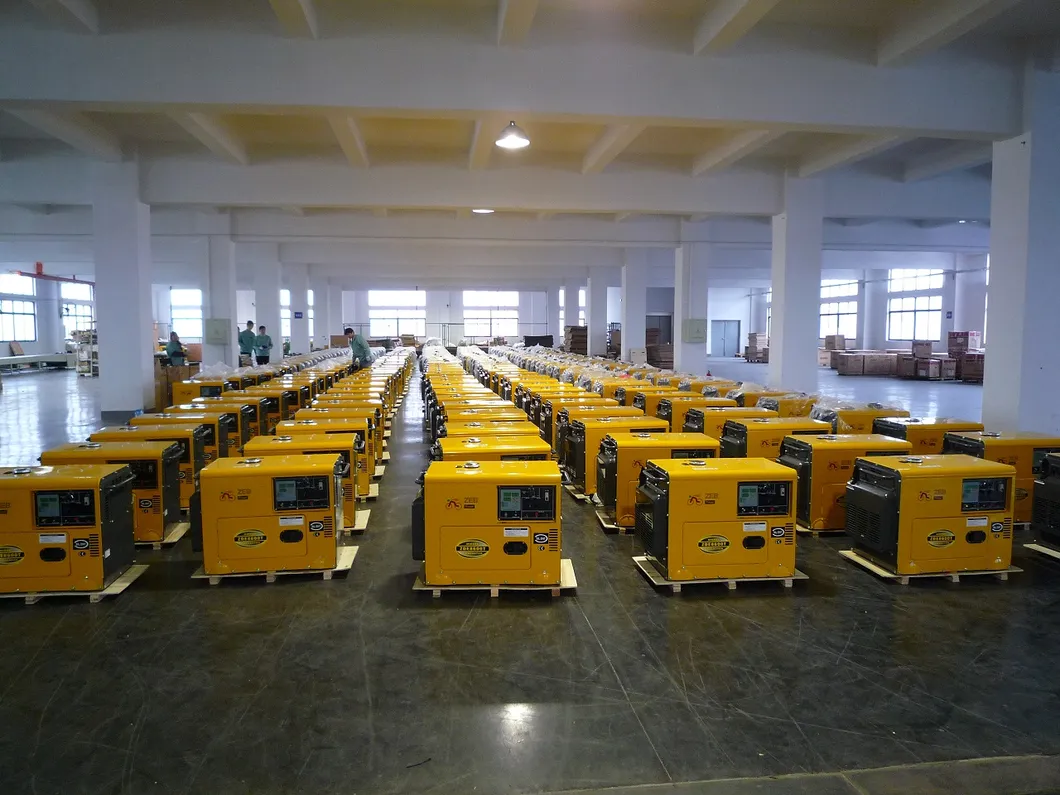

1. Bulk Order Pictures:
2. Brief Introduction:
Model: ZDE8600T
50HZ Rated /Max power: 6/6.5kva
60HZ Rated /Max power: 6.5/7kva
MOQ: 20 pcs
Dimension: 970*560*770mm
Gross/Net weight: 185/175kg
20/40 Container loading: 72/144pcs
Electrical start
Optional advanced configured components:
ATS

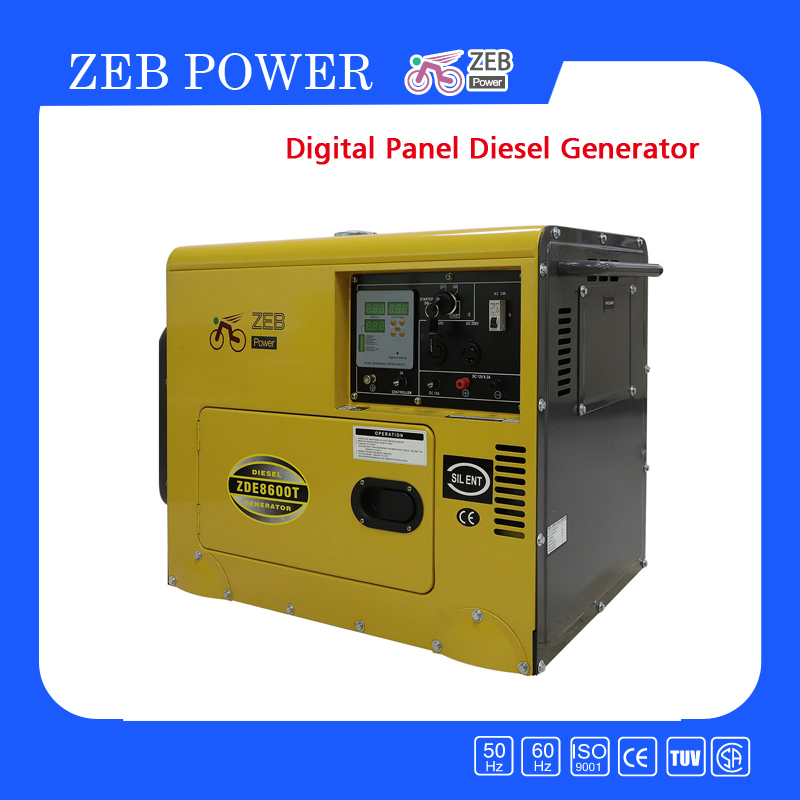

Digital panel
Remote control start
Wheels
This type of portable diesel generator are suit for many working conditions, such as camping, home, telecom station etc.
3. Super silent:
Equiped with high quality muffler, reduce some noise till 68dB(A), does not affact normal life and work. The generators cover with soundproof hood with completely closed construction attach sound absorption cotton to reduce the noise significantly, but also keep away the rain, dust and water, rust, fire as well.
4. Main Features:
This is hot selling power model with AVR(Automatic Voltage Regulator)-which ensure steady voltage output and protect the machine against the over load-, low oil pressure alarm system, -which protect the machine from abrading-, it can also be installed by electric starting with storage battery.
Ground system is equipped to secure the human safety. ATS system can automatically switch between main power and backup generator. Also it can be installed remote starter. The enlarged all-in-one fuel tank lengthens the each run time.
5. Advantages:
The generator comply with ISO9001, CE
Skilled technicians and professional engineers
Warranty: one year
High-end application for telecom station with hundreds of pcs supplied already
100% copper wires
6. Model Technical Data:
1. Bulk Order Pictures:
2. Brief Introduction:
Model: ZDE8600T
50HZ Rated /Max power: 6/6.5kva
60HZ Rated /Max power: 6.5/7kva
MOQ: 20 pcs
Dimension: 970*560*770mm
Gross/Net weight: 185/175kg
20/40 Container loading: 72/144pcs
Electrical start
Optional advanced configured components:
ATS
Digital panel
Remote control start
Wheels
This type of portable diesel generator are suit for many working conditions, such as camping, home, telecom station etc.
3. Super silent:
Equiped with high quality muffler, reduce some noise till 68dB(A), does not affact normal life and work. The generators cover with soundproof hood with completely closed construction attach sound absorption cotton to reduce the noise significantly, but also keep away the rain, dust and water, rust, fire as well.
4. Main Features:
This is hot selling power model with AVR(Automatic Voltage Regulator)-which ensure steady voltage output and protect the machine against the over load-, low oil pressure alarm system, -which protect the machine from abrading-, it can also be installed by electric starting with storage battery.
Ground system is equipped to secure the human safety. ATS system can automatically switch between main power and backup generator. Also it can be installed remote starter. The enlarged all-in-one fuel tank lengthens the each run time.
5. Advantages:
The generator comply with ISO9001, CE
Skilled technicians and professional engineers
Warranty: one year
High-end application for telecom station with hundreds of pcs supplied already
100% copper wires
6. Model Technical Data:
| Model | ZDE8600T | |
| Frequency (Hz) | 50 | 60 |
| Output power (KVA) | 6 | 6.5 |
| Max. Power(KVA) | 6.5 | 7 |
| Voltage (V) | 115/230 | 120/240 |
| Current (A) | 52.1/26.1 | 54.1/27.1 |
| Engine speed (r/min) | 3000 | 3600 |
| Phase | Single | |
| Power factor(cosφ) | 1 | |
| Excitation system | Self-excited constant voltage | |
| Noise level (7m) | DB (A): 72 | |
| Fuel tank capacity (L) | 12.5 | |
| Structure | silent type | |
| Panel | Ordinary | |
| Outputsocket | Two | |
| DC12V output | Terminal post | |
| Bore*stroke (mm) | 88 *75 | |
| Displacement (L) | 0.418 | |
| Power (KW) | 7.5/3000 | 8.2/3600 |
| Fuel consumption rate (g. KW/h) | 290 | 295 |
| Compression ratio | 19 | |
| Lubrication system | Spring | |
| Engine starting system | Electric starter | |
| Diesel oil model | Summer: 0#, winter: -10# | |
| Lube oil model | SAE10W-30 (above CD grade) | |
| Lube oil capacity (L) | 1.65 | |
| Battery capacity(V-AH) | 12V-36Ah | |
| Net weight(KG) | 175 | |
| Dimension(L*W*H) | 970*560*770mm | |
