70kw/95HP Marine Deutz Generator Td226b- 4c1
70kw/95HP Marine Deutz generator set Td226b-4c1Specification Typewater cooled,in-line,4-stroke,naturally aspirated,supercharged,charge inter-coolingcylinders3 cyliners,4 cylidners,6 cylindersbore & stroke(mm)105/120Displacement3.12L,4.16L,6.23LMin fuel consumption(g/kw.h)≤198Min oil consu......
Send Inquiry
Product Description
70kw/95HP Marine Deutz generator set Td226b-4c1
Specification
35-150kw

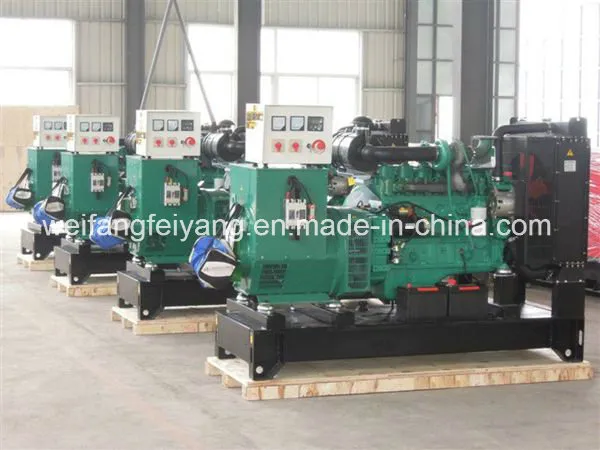

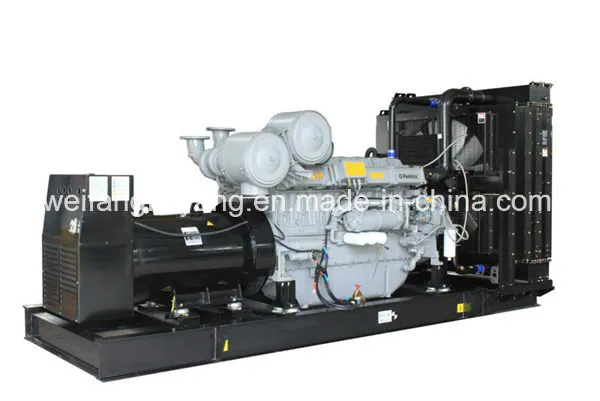

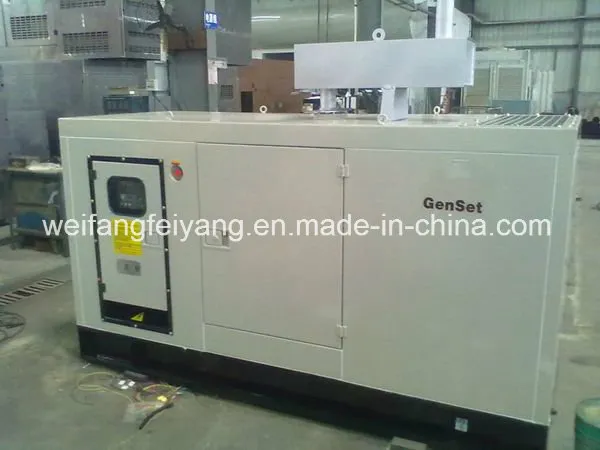

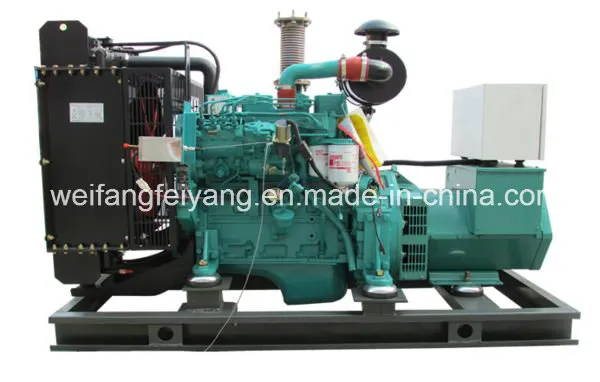

Photos
engine partner
Our Company
Weifang Feiyang Machinery Equipment Co.,Ltd is located in China Power City-Weifang,which is specialized in diesel engine,generator set,agricultural machinery and spare parts.
Our main products are Weifang whole series diesel engines,which apply to truck,bus,generating equipment,construction machinery,marine,agricultural machinery and so on.
With the international economic integration,we keep the principle of "Quality first,Customer foremost",dedicated service to customers national and abroad!
We supply all accessories for diesel engine,like cylinder head,cylinder head cover,cylinder block,alternator,turbocharger,piston,piston ring,piston pin,liner,crankshaft,cam shaft,main bearing,connecting rod,connecting rod bearing,water pump,oil pump,injector,fuel injection pump,starter motor,fan,belt,gasket,oil pan,flywheel,intake valve,exhaust valve and so on.
Brand:Weichai Deutz,Steyr,Cummins
Apply to:construction machinery,marine,Howo heavy truck,bus.
Specification
| Type | water cooled,in-line,4-stroke,naturally aspirated,supercharged,charge inter-cooling | ||||
| cylinders | 3 cyliners,4 cylidners,6 cylinders | ||||
| bore & stroke(mm) | 105/120 | ||||
| Displacement | 3.12L,4.16L,6.23L | ||||
| Min fuel consumption(g/kw.h) | ≤198 | ||||
| Min oil consumption(g/kw.h) | ≤1.36 | ||||
| idling | 600±50 | ||||
| average noise | ≤100 | ||||
| steady-state speed regulation | ≤8% | ||||
| FO | 1-3-2,1-3-2-4,1-5-3-6-2-4 | ||||
| starting mode | electric ignition | ||||
| cooling mode | water cooled | ||||
| Lubrication method | pressure lubrication | ||||
| lubricating oil capacity(oil pan) | 15(6 cylinder) | ||||
| Crankshaft rotation | anticlockwise | ||||
35-150kw
| Model | cylinder | bore & stroke(mm) | Displacement(L) | rated power(kw) | rated speed (r/min) | starting mode | N.W | Apply |
| D226B-3C | 3 cylinders | 105/120 | 3.117 | 35 | 1800 | electric ignition | 560kg | fishing boat,transport ship |
| TD226B-3C | 3 cylinders | 105/120 | 3.117 | 40 | 1500 | electric ignition | 560kg | fishing boat,transport ship |
| TD226D-3C1 | 3 cylinders | 105/120 | 3.117 | 50 | 1800 | electric ignition | 560kg | fishing boat,transport ship |
| TD226D-3C2 | 3 cylinders | 105/120 | 3.117 | 55 | 2100 | electric ignition | 560kg | fishing boat,transport ship,yacht |
| TD226D-3C3 | 3 cylinders | 105/120 | 3.117 | 60 | 2500 | electric ignition | 560kg | transport ship,yacht |
| TD226B-4C | 4 cylinders | 105/120 | 4.156 | 60 | 1500 | electric ignition | 650kg | fishing boat,transport ship |
| TD226B-4C1 | 4 cylinders | 105/120 | 4.156 | 70 | 1800 | electric ignition | 650kg | fishing boat,transport ship |
| TD226B-4C2 | 4 cylinders | 105/120 | 4.156 | 75 | 2100 | electric ignition | 650kg | fishing boat,transport ship,yacht |
| TD226B-4C3 | 4 cylinders | 105/120 | 4.156 | 80 | 2500 | electric ignition | 650kg | transport ship,yacht |
| TD226B-6C | 6 cylinders | 105/120 | 6.234 | 90 | 1500 | electric ignition | 760kg | fishing boat,transport ship |
| TD226B-6C1 | 6 cylinders | 105/120 | 6.234 | 105 | 1800 | electric ignition | 760kg | fishing boat,transport ship |
| TD226B-6C2 | 6 cylinders | 105/120 | 6.234 | 115 | 2100 | electric ignition | 760kg | fishing boat,transport ship,yacht |
| TD226B-6C3 | 6 cylinders | 105/120 | 6.234 | 120 | 2500 | electric ignition | 760kg | transport ship,yacht |
| TBD226B-6C | 6 cylinders | 105/120 | 6.234 | 110 | 1500 | electric ignition | 810kg | fishing boat,transport ship |
| TBD226B-6C2 | 6 cylinders | 105/120 | 6.234 | 110 | 1800 | electric ignition | 810kg | fishing boat,transport ship |
| TBD226B-6C3 | 6 cylinders | 105/120 | 6.234 | 120 | 1800 | electric ignition | 810kg | fishing boat,transport ship,yacht |
| TBD226B-6C4 | 6 cylinders | 105/120 | 6.234 | 135 | 2100 | electric ignition | 810kg | fishing boat,transport ship,yacht |
| TBD226B-6C5 | 6 cylinders | 105/120 | 6.234 | 150 | 2500 | electric ignition | 810kg | transport ship,yacht |
engine partner
Our Company
Weifang Feiyang Machinery Equipment Co.,Ltd is located in China Power City-Weifang,which is specialized in diesel engine,generator set,agricultural machinery and spare parts.
Our main products are Weifang whole series diesel engines,which apply to truck,bus,generating equipment,construction machinery,marine,agricultural machinery and so on.
With the international economic integration,we keep the principle of "Quality first,Customer foremost",dedicated service to customers national and abroad!
We supply all accessories for diesel engine,like cylinder head,cylinder head cover,cylinder block,alternator,turbocharger,piston,piston ring,piston pin,liner,crankshaft,cam shaft,main bearing,connecting rod,connecting rod bearing,water pump,oil pump,injector,fuel injection pump,starter motor,fan,belt,gasket,oil pan,flywheel,intake valve,exhaust valve and so on.
Brand:Weichai Deutz,Steyr,Cummins
Apply to:construction machinery,marine,Howo heavy truck,bus.
