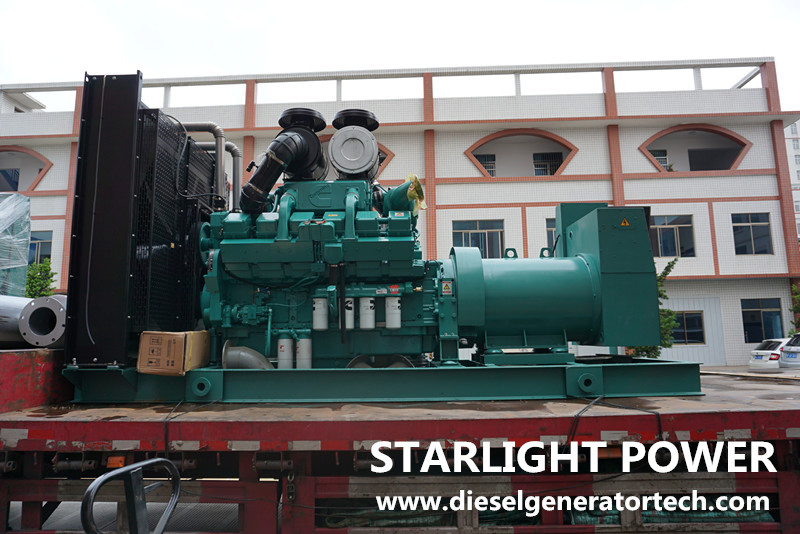

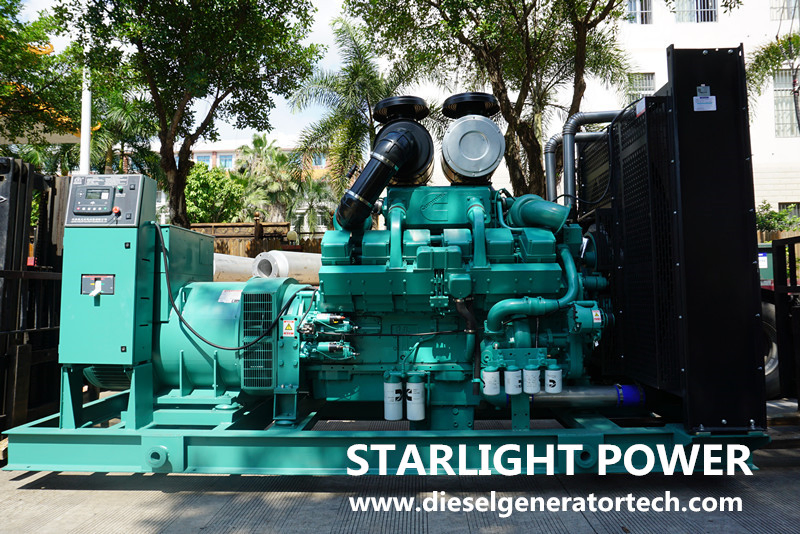

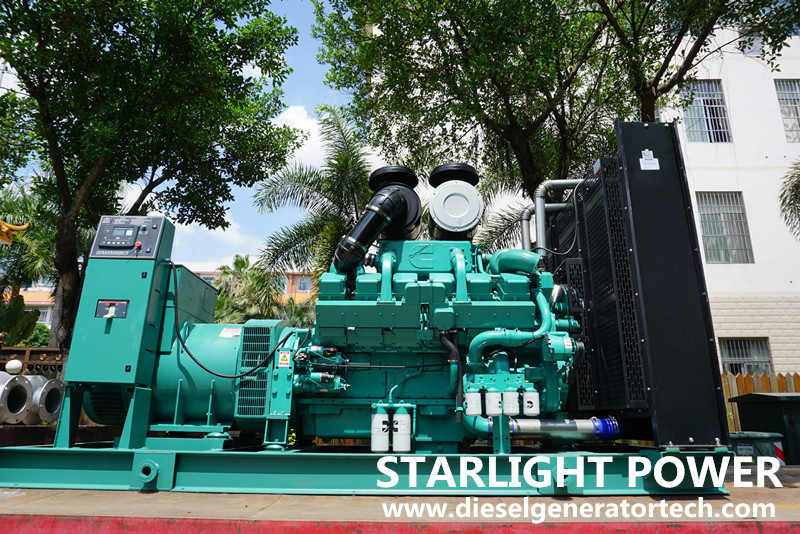

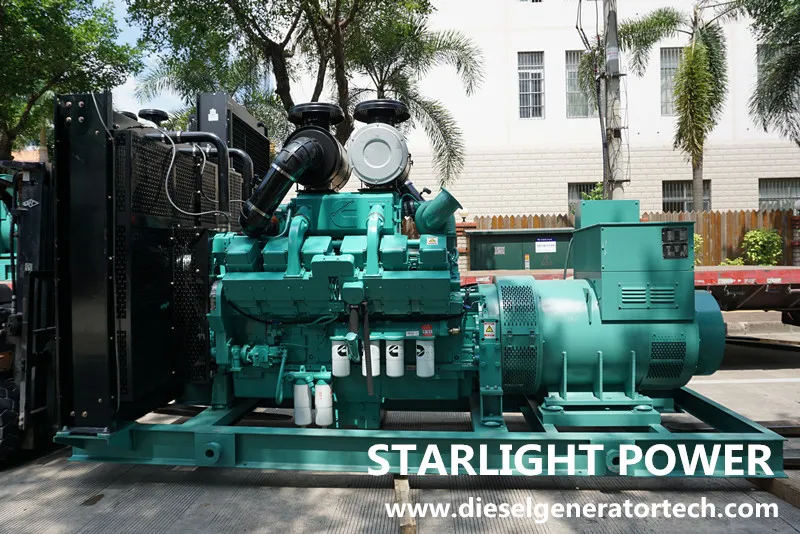

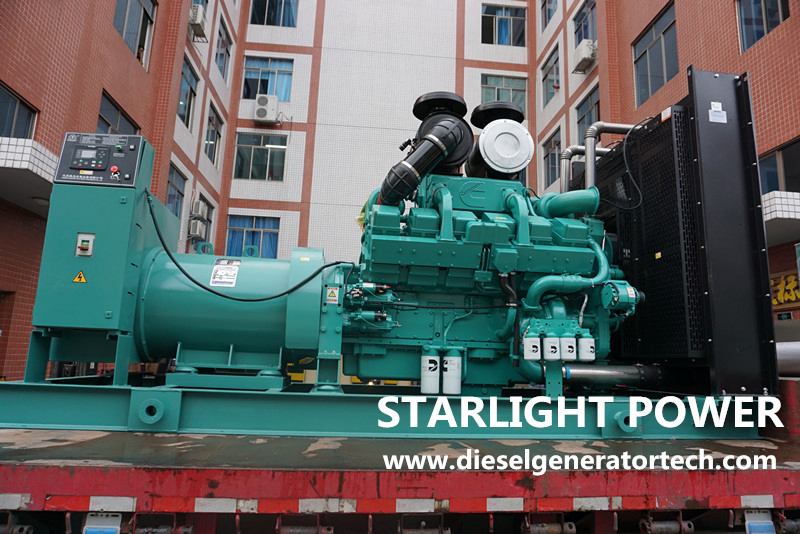

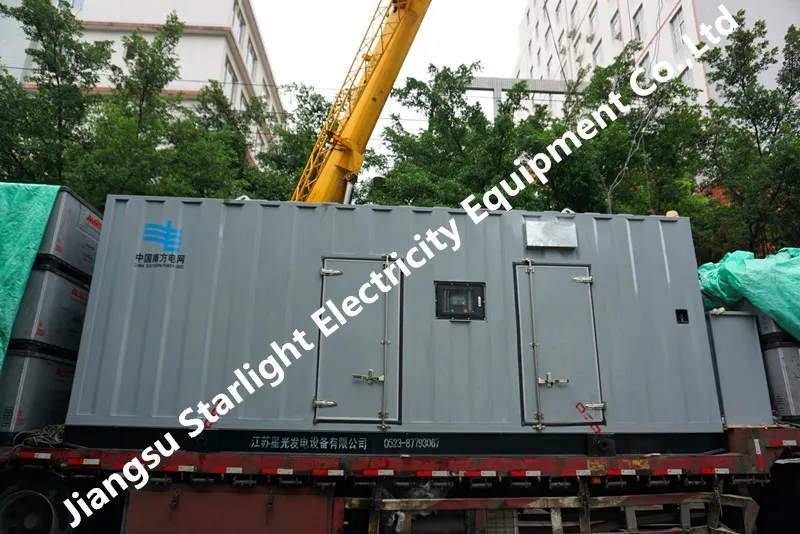

700kw/875kVA Ccec Cummins Engine Kta38- G2a Diesel Generator Genset
Diesel Generator Set DataManufacturer:Jiangsu Starlight Electricity Equipment Co.,Ltd.Set Type:XG-700GFPrime Power:700KW/875KVARated Current:1145(A)Rated Frequency:50(Hz)Start-up time:5~6(s)Power Factor:0.8(Lag)Rated Voltage:400/230(V)Diesel Engine DataManufacturer: CCEC CumminsModel:KTA38-G2APrime/......
Send Inquiry
Product Description
| Diesel Generator Set Data | |
| Manufacturer: | Jiangsu Starlight Electricity Equipment Co.,Ltd. |
| Set Type: | XG-700GF |
| Prime Power: | 700KW/875KVA |
| Rated Current: | 1145(A) |
| Rated Frequency: | 50(Hz) |
| Start-up time: | 5~6(s) |
| Power Factor: | 0.8(Lag) |
| Rated Voltage: | 400/230(V) |
| Diesel Engine Data | |
| Manufacturer: | CCEC Cummins |
| Model: | KTA38-G2A |
| Prime/Standby Power: | 813KW/895KW |
| Rated Speed: | 1500(r/min) |
| Cycle: | 4 stroke |
| Cylinder Arrangement: | 12 "V" |
| Displacement: | 37.8L |
| Bore and Stroke: | 159*159(mm) |
| Compression Ratio: | 14.5:1 |
| Governor Type: | Electronic |
| Start battery voltage: | 24V DC |
| Alternator Data | |
| Manufacturer: | STARLIGHT/ STAMFORD/ SIEMENS/ MARATHON/ ENGGA / KEPU |
| Excitation Mode: | Brushless and self- exciting |
| Number of phase and Access Act: | 3-phase 4-wire |
| Connecting Type: | "Y" type connecting |
| Alternator Capacity: | 875KVA |
| Alternator Efficiencies: | 95% |
| Overload: | (PRP)110% load can run 1h |
| Protection Level: | IP22-IP23 |
| Insulation Class, Temperature Rise: | H/H |
| Telephone Influence Factor (TIF): | <50 |
| THF: | <2% |
| Voltage Regulation, Steady State: | ≤±1% |
| Air Cooling Flow: | 1.614m3/s |
| Altitude: | ≤1000m |
| Options | |||||||
| Engine | Alternator | ||||||
| Heater 2KW & 4KW | Anti Condensation Heater | ||||||
| Battery Charger 3.5A & 7A | Permanent Magnet Generator(PMG) | ||||||
| Water Separator | Drop CT(For Paralleling) | ||||||
| Daily Fuel Tank | |||||||
| Fuel Level Sensor | |||||||
| Control System | Others | ||||||
| Remote Control Panel | Rainproof Type | ||||||
| Auto Transfer Switch (ATS) | Soundproof Type | ||||||
| Paralleling System | Trailer Type | ||||||
Jiangsu Starlight Electricity Equipment Co.,Ltd. as the leading manufacturer of diesel genset, we specialize in producing, assembly, testing, installation, commissioning, sale and maintenance of diesel genset.

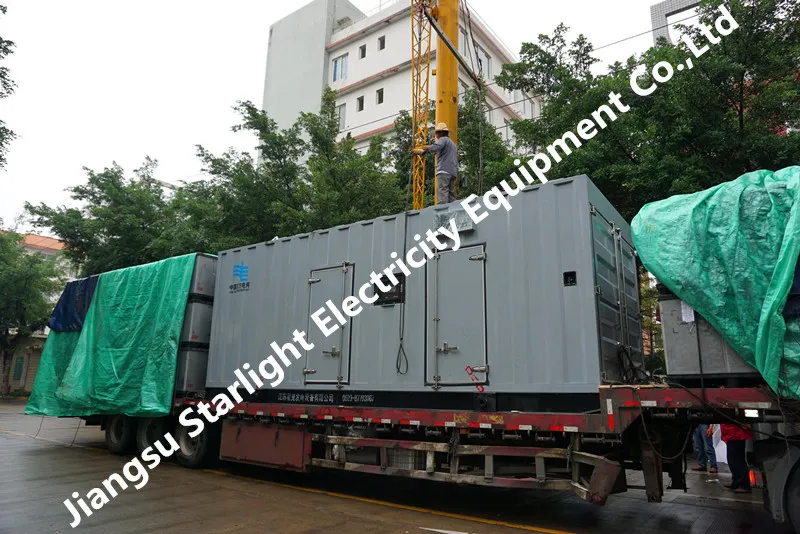

We supply multiple brands of generator set, such as: Cummins, Volvo, Deutz, Doosan Daewoo, MTU, Ricardo, Perkins, Shangchai, Weichai, Yuchai etc. The style of genset is varied, such as: container genset, trailer genset, portable trailer genset, soundproof genset, low noise genset, and silent genset, etc. Besides, we also supply design and construction of the noise reduction project up to the customer's requirements.

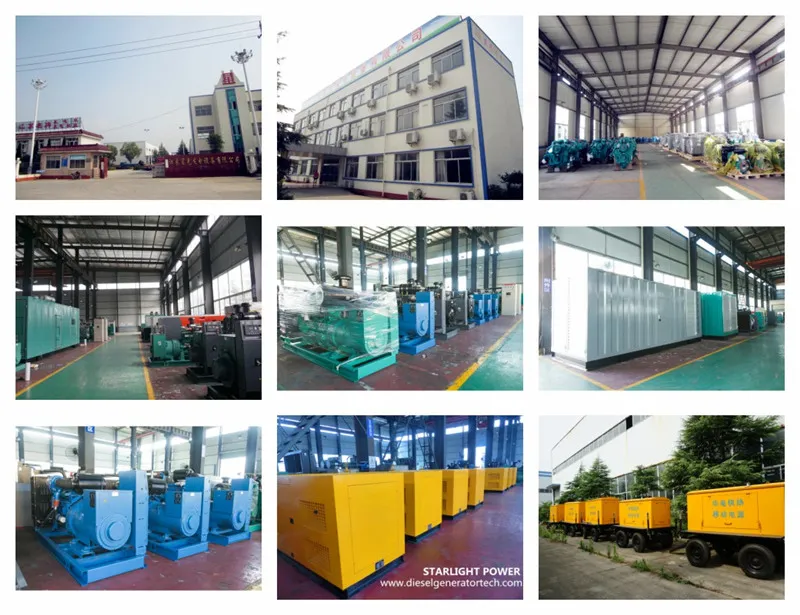

Our company was established in 1974, covering an area of 86,000 square meters and an construction area of 45000 square meters, with the registered capital 218.88 million yuan, and the fixed assets of more than 26 million yuan, with the existing staff of more than 660 people, including 456 professional technical personnel and 106 senior technical personnel. It has 6 subsidiaries (plants) and has set up 64 sales service department all over the country. It provides users with design, supply, commissioning and maintenance of one-stop service for power demand at any time.
Certificates
We have CE,ISO,CQC certificate, and also have independent import and export right.
Our company depends upon high quality product, good service and good prestige, and we will continue spirit of developing "solidify, work hard, expand, innovation". we will run flexible sales strategy and create new brilliancy together with you. Relying on the company's advantage and strength, our company gradually move towards economies of scale and expand global market.
Our company has a consciousness in advance, in the prime of life, service familiarity management troop, they establish one modern enterprise's goal to embark, in line with "high beginning, high tech, service pursue goal superiority", collects positively absorbs the domestic and foreign vanguard technologies, advanced product, unceasingly to product renewal. Our company has built broad cooperation with Sweden Volvo, USA/Chongqing Cummins, British Perkins, German Deutz, South Korea Daewoo, German MTU and so many other companies and become (OEM) component supplier and the technology center which lays the solid foundation for the development international market.
The tenet of our company's business is "Pursuing super excellence, Continuous Innovation". Our goal is to create the world-famous brand. We will try our best to achieve it with co-partners all over the world.
Why Us?
At present, thousands of Startlight generator sets are being reliably operated in fields like telecommunications, banking, security industry, airports, hospital, transportation, oil fields, military industry and the clients have been distributed around the globe. All staff in Startlight are sparing no efforts to make the Startlight brand a symbol for reliable quality, advanced technology, first-class performance, an environment friend, and long operating life.
We believe that the consideration is as important as innovative technology. The leading product is always based on the leading supporting services. We shall follow the philosophy to meet customer's demands and offer customers the genuine spare parts, technical consulting and installation guide, make equipment commissioning free of charge, rebuild generation set and train the person.
Services:
Before service
Our professional engineer will give you some consultation of technology and related planning before sale, such as selection of equipment, supporting facilities, the design of equipment room. We can also answer and solve the using problem you faced.
After sale service
- free guide to install and debugging
- Free training and consult
- Guiding how to protect your equipment
- We will set up clients' document, tracking service, regular inspection, maintenance for life
- We offers pure perennial spare parts and maintenance engineers will be ready to provide.
★ FAQ
1.
Q.:What is your warranty period?
A.:Our warranty is 1 year or 1000running hours whichever comes first. But based on some special project, we can extended our warranty period.
2.
Q.:Does your generator have global warranty?
A.:Yes, We supply the warranty.Also most of our products like Deutz,Cummins, Doosan,Yuchai,Weichai etc.power generator enjoy the global warranty service. And the alternator we use like Stamford and marathon also enjoy the global warranty service, so you do not need to worry about the after-sales service.
3.
Q.:Can you accept OEM?
A.:Yes, we can accept OEM.
4.
Q.:What is your payment terms?
A.:We can accept T/T 30% in advance, and the balance 70% shall be paid before shipment or L/C at sight. But based on some special project and special order,we can do something on payment item.
5.
Q.:What is your delivery time?
A.:Our normal delivery time is 2 to 3 weeks. But if your order is using special engine and alternator, then the delivery time is longer.
