Product Description

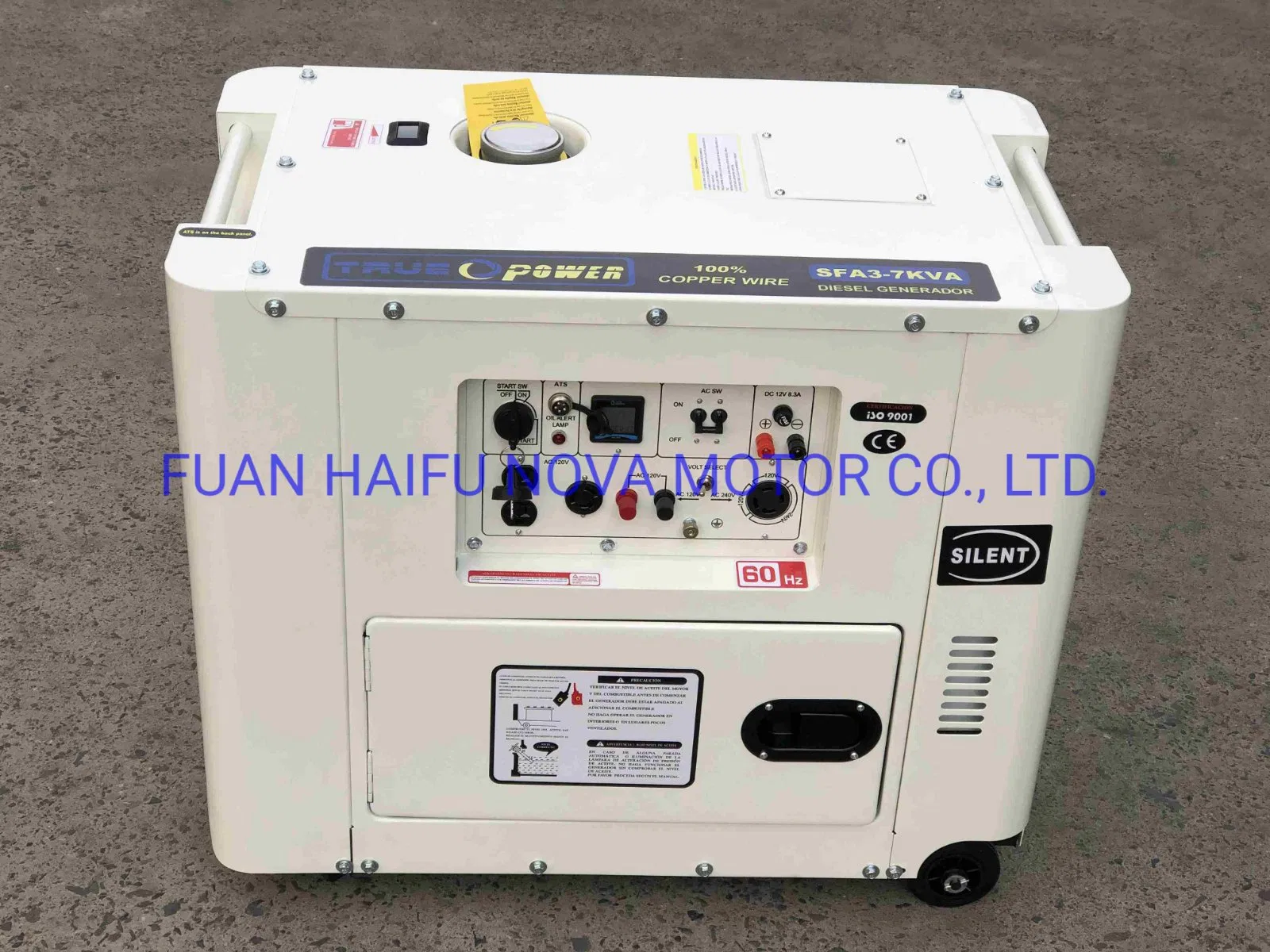

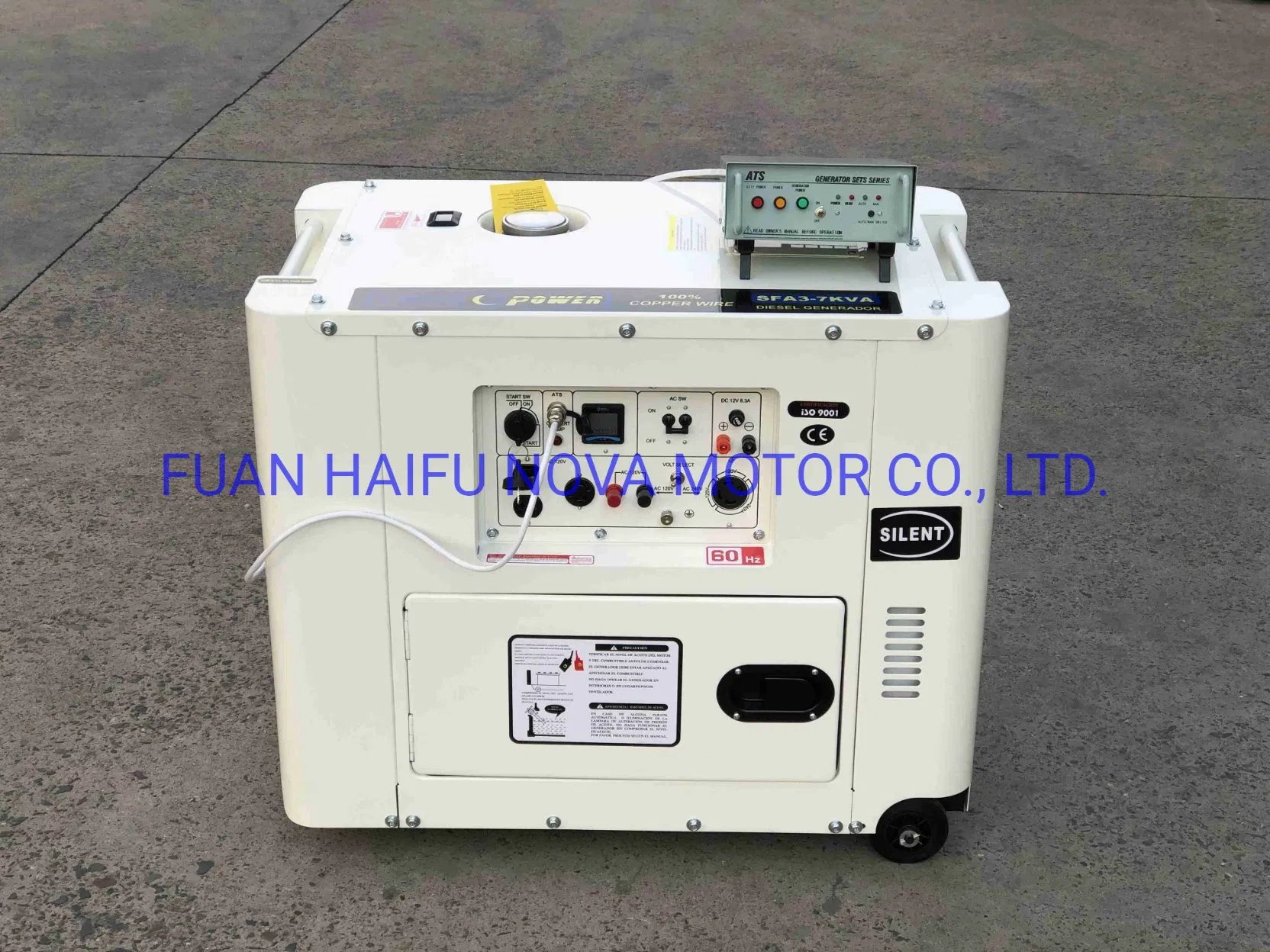

6kw/6.5kw Silent Type Air cooled Diesel Generator/ Homeuse Generator Set (NDG7500CX)

Model		NDG7500CX	SFA3-7KVA	SFA3-10KVA	SFA3-12KVA
GENERATOR	Frequency (HZ)	60	60	60	60HZ
	Max.output (KW)	6	7.7	11	13
	Rated output (KW)	6.5	7.0	10	12
	Rated AC voltage (V)	120/240V	120/240V	120/240V	120/240V
	Power factor	1	1	1	1
	DC output (V)	12V/8.3A	12V/8.3A	12V/8.3A	12V/8.3A
	Phase	Single phase
	Alternator type	Self-excited, 2-pole alternator
	Starting system	Electric	Electric	Electric	Electric
	Noise level (Dba/7m)	65	65~68	70	70
	Fuel tank capacity (L)	16	16	30	30
	Continuous running time (hr)	7.8	7.3	12	8
ENGINE	Engine model	DE188FA	DE190FA	DE1102FA	DE1105FA
	Engine type	Single-cylinder, vertical, 4-stroke air-cooled diesel engine			V-twin cylinder, vertical,4-stroke air-cooled diesel engine
	Bore×Stroke (mm)	86×72	88×75	102×88	98×88
	Fuel consumption rate (g/kw.h)	≤280	≤280	≤250	≤260
	Fuel	0# or -10# light diesel oil			0# or -10# light diesel oil
	Lubrication oil volume (L)	1.65	1.65	1.65	4
	Combustion system	Direct Injection	Direct Injection	Direct Injection	Direct Injection
STANDARD FEATURES	ATS	OPTIONAL	OPTIONAL	OPTIONAL	OPTIONAL
	Voltmeter	YES	YES	YES	YES
	AC output socket	2	2	2	2
	AC circuit breaker	YES	YES	YES	YES
	Oil warning light	YES	YES	YES	YES
	Oil alert	YES	YES	YES	YES
DIMENSIONS	Packing dimention (LxWxH) (cm)	94×56×74	95x56x76	1137686	1348493
	Gross weight (kgs)	158	160	235	360
	20FT loading pcs	72	72	30	22
	40HQ loading pcs	144	144	96	46
