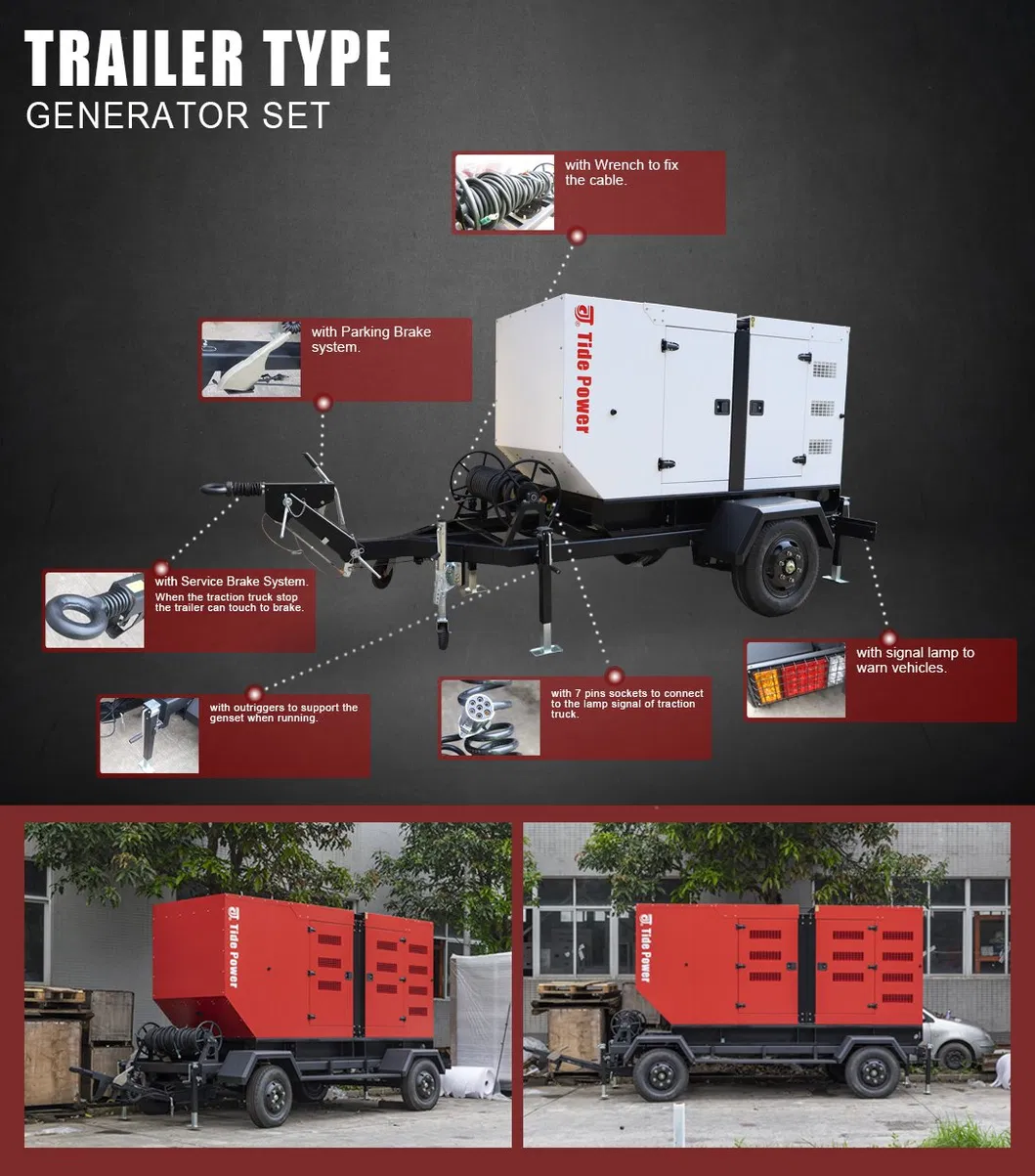

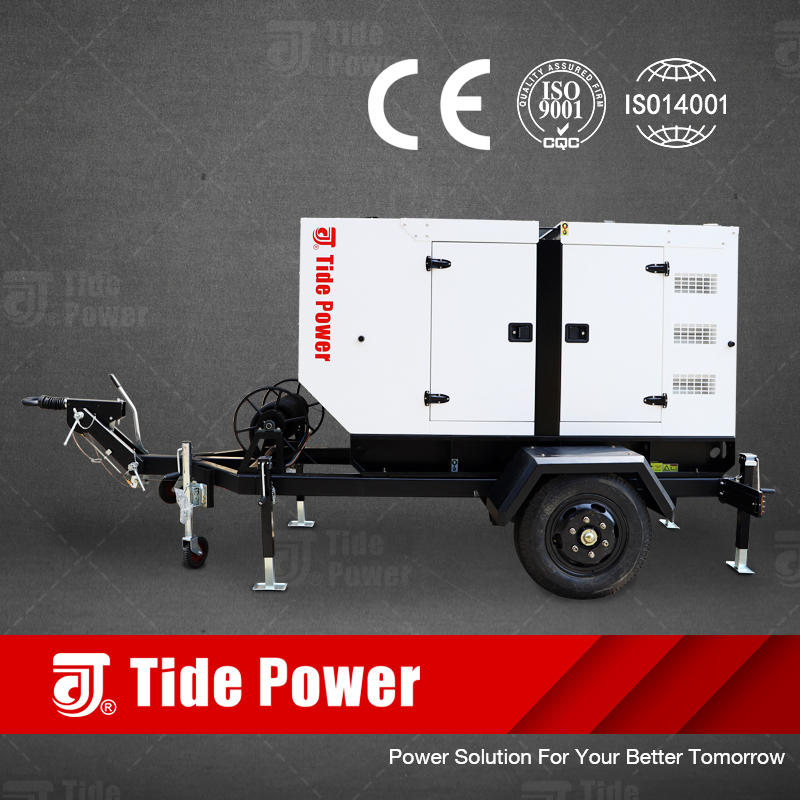

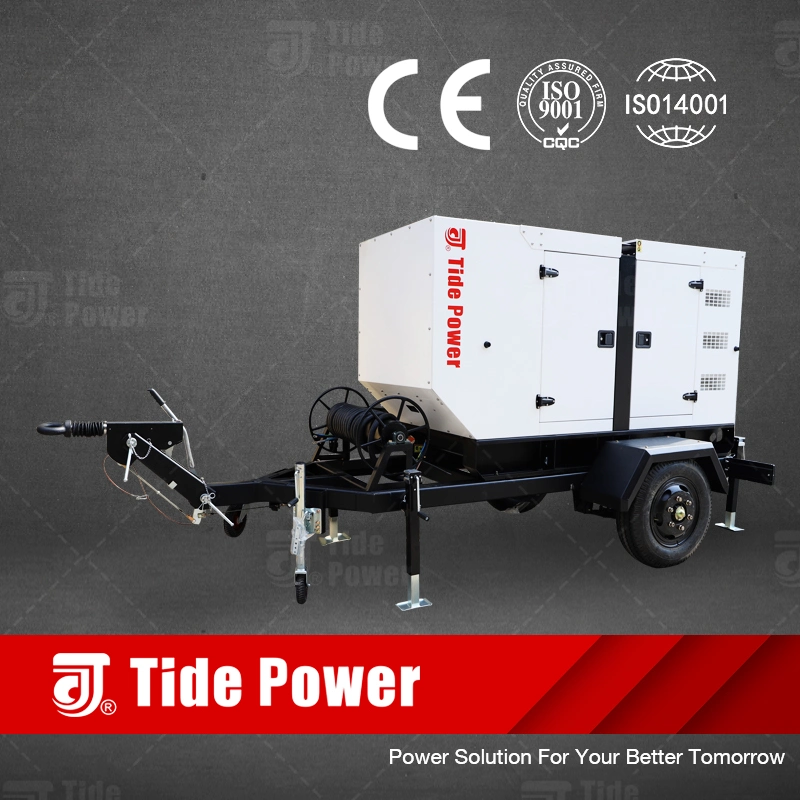

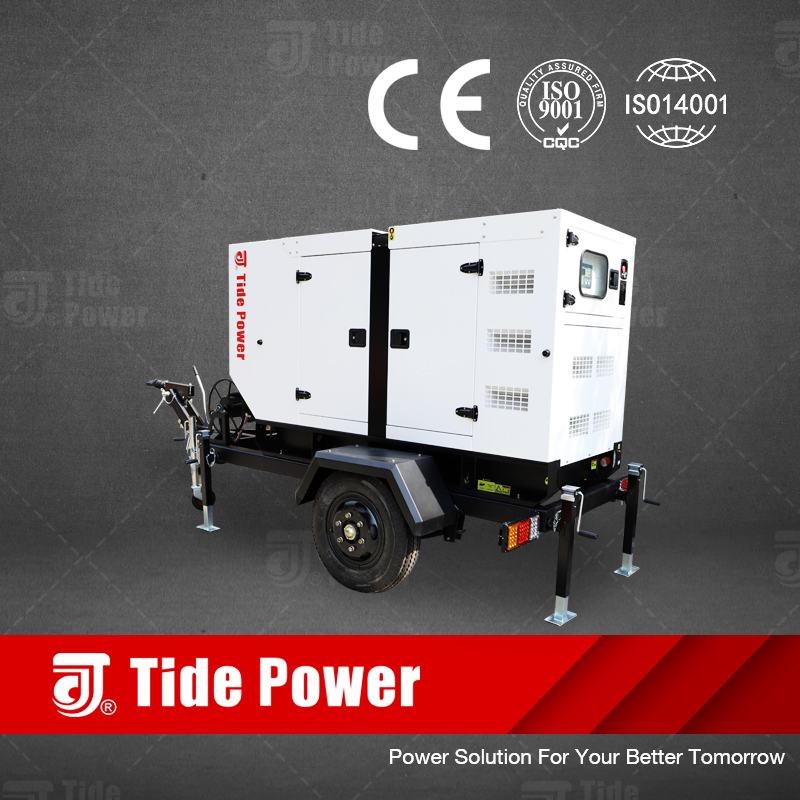

60kVA Diesel Generator Set 48kw of Mobile Power Station Trailer Mounted Generator Diesel Power
PERKINS ENGINE WITH LEROY-SOMER TAL ALTERNATOR1500RPM ,50HZ, 380V,3PH , P.F.0.8GensetModelPrime PowerStandby PowerEngineModelAlternator ModelControl SystemATSRemarkKWKVAKWKVACurrent-AFC9-P79810403D-11G-50HZLSA40VS1EC 2.063A FC9-P79810403A-11G1LSA40VS1EC 2.063A FC13-P10131114403D-15GLSA40VS2EC 2.06......
Send Inquiry
Product Description
| PERKINS ENGINE WITH LEROY-SOMER TAL ALTERNATOR | |||||||||
| 1500RPM ,50HZ, 380V,3PH , P.F.0.8 | |||||||||
| Genset Model | Prime Power | Standby Power | Engine Model | Alternator Model | Control System | ATS | Remark | ||
| KW | KVA | KW | KVA | Current-A | |||||
| FC9-P | 7 | 9 | 8 | 10 | 403D-11G-50HZ | LSA40VS1 | EC 2.0 | 63A | |
| FC9-P | 7 | 9 | 8 | 10 | 403A-11G1 | LSA40VS1 | EC 2.0 | 63A | |
| FC13-P | 10 | 13 | 11 | 14 | 403D-15G | LSA40VS2 | EC 2.0 | 63A | |
| FC13-P | 10 | 13 | 11 | 14 | 403A-15G1 | LSA40VS2 | EC 2.0 | 63A | |
| FC15-P | 12 | 15 | 13 | 16 | 403A-15G2 | LSA40S3 | EC 2.0 | 63A | |
| FC20-P | 16 | 20 | 18 | 22 | 404D-22G-50HZ | LSA40M5 | EC 2.0 | 63A | |
| FC20-P | 16 | 20 | 18 | 22 | 404A-22G1 | LSA40M5 | EC 2.0 | 63A | |
| FC65-P | 52 | 65 | 57 | 72 | 1104A-44TG1 | LSA44.3S2 | EC 2.0 | 160A | |
| FC80-P | 64 | 80 | 70 | 88 | 1104A-44TG2 | LSA44.3S3 | EC 2.0 | 160A | |
| FC100-P | 80 | 100 | 88 | 110 | 1104C-44TAG2 | LSA44.3S5 | EC 2.0 | 250A | |
| FC135-P | 108 | 135 | 120 | 150 | 1106A-70TG1 | LSA44.3M8 | EC 3.0 | 250A | |
| FC150-P | 120 | 150 | 132 | 165 | 1106A-70TAG2 | LSA44.3L10 | EC 3.0 | 400A | |
| FC180-P | 144 | 180 | 160 | 200 | 1106A-70TAG3 | LSA44.3VL13 | EC 3.0 | 400A | |
| FC200-P | 160 | 200 | 176 | 220 | 1106A-70TAG4 | LSA44.3VL14 | EC 3.0 | 400A | |
| Engine form UK/USA | |||||||||
| FC9-P | 7 | 9 | 8 | 10 | 403D-11G | LSA40VS1 | EC 2.0 | 63A | |
| FC9-P | 7 | 9 | 8 | 10 | 403A-11G1 | LSA40VS1 | EC 2.0 | 63A | |
| FC13-P | 10 | 13 | 11 | 14 | 403D-15G | LSA40VS2 | EC 2.0 | 63A | |
| FC13-P | 10 | 13 | 11 | 14 | 403A-15G1 | LSA40VS2 | EC 2.0 | 63A | |
| FC15-P | 12 | 15 | 13 | 16 | 403A-15G2 | LSA40S3 | EC 2.0 | 63A | |
| FC20-P | 16 | 20 | 18 | 22 | 404D-22G | LSA40M5 | EC 2.0 | 63A | |
| FC20-P | 16 | 20 | 18 | 22 | 404A-22G1 | LSA40M5 | EC 2.0 | 63A | |
| FC30-P | 24 | 30 | 26 | 33 | 1103A-33G | LSA42.3VS3 | EC 2.0 | 63A | |
| FC45-P | 36 | 45 | 40 | 50 | 1103A-33TG1 | LSA42.3M7 | EC 2.0 | 80A | |
| FC60-P | 48 | 60 | 53 | 66 | 1103A-33TG2 | LSA42.3L9 | EC 2.0 | 160A | |
| FC65-P | 52 | 65 | 57 | 72 | 1104A-44TG1 | LSA44.3S2 | EC 2.0 | 160A | |
| FC80-P | 64 | 80 | 70 | 88 | 1104A-44TG2 | LSA44.3S3 | EC 2.0 | 160A | |
| FC100-P | 80 | 100 | 88 | 110 | 1104C-44TAG2 | LSA44.3S5 | EC 2.0 | 250A | |
| FC135-P | 108 | 135 | 120 | 150 | 1106A-70TG1 | LSA44.3M8 | EC 3.0 | 250A | |
| FC150-P | 120 | 150 | 132 | 165 | 1106A-70TAG2 | LSA44.3L10 | EC 3.0 | 400A | |
| FC180-P | 144 | 180 | 160 | 200 | 1106A-70TAG3 | LSA44.3VL13 | EC 3.0 | 400A | |
| FC200-P | 160 | 200 | 176 | 220 | 1106A-70TAG4 | LSA44.3VL14 | EC 3.0 | 400A | |
| FC200-P3 | 160 | 200 | 176 | 220 | 1206A-E70TTAG1 | LSA44.3VL14 | EC 4.0 | 400A | |
| FC230-P2 | 184 | 230 | 200 | 250 | 1206A-E70TTAG2 | LSA46.3S4 | EC 4.0 | 400A | |
| FC250-P2 | 200 | 250 | 220 | 275 | 1206A-E70TTAG3 | LSA46.3M7 | EC 4.0 | 630A | |
| FC200-P4 | 160 | 200 | 176 | 220 | 1206D-E70TTAG1 | LSA44.3VL14 | EC 4.0 | 400A | |
| FC230-P3 | 184 | 230 | 200 | 250 | 1206D-E70TTAG2 | LSA46.3S4 | EC 4.0 | 400A | |
| FC250-P3 | 200 | 250 | 220 | 275 | 1206D-E70TTAG3 | LSA46.3M7 | EC 4.0 | 630A | |
| FC200-P | 160 | 200 | 176 | 220 | 1506A-E88TAG1 | LSA44.3VL14 | EC 4.0 | 400A | |
| FC230-P | 184 | 230 | 200 | 250 | 1506A-E88TAG2 | LSA46.3S4 | EC 4.0 | 400A | |
| FC250-P | 200 | 250 | 220 | 275 | 1506A-E88TAG3 | LSA46.3M7 | EC 4.0 | 630A | |
| FC275-P | 220 | 275 | 240 | 300 | 1506A-E88TAG4 | LSA46.3M7 | EC 4.0 | 630A | |
| FC300-P1 | 240 | 300 | 264 | 330 | 1506A-E88TAG5 | LSA46.3L10 | EC 4.0 | 630A | |
| FC300-P2 | 240 | 300 | 264 | 330 | 1706A-E93TAG1 | LSA46.3L10 | EC 4.0 | 630A | without top lifting |
| FC350-P1 | 280 | 350 | 320 | 400 | 1706A-E93TAG2 | LSA46.3L11 | EC 4.0 | 630A | without top lifting |
| FC350-P2 | 280 | 350 | 320 | 400 | 2206C-E13TAG2 | LSA46.3L11 | EC 4.0 | 630A | without top lifting |
| FC400-P | 320 | 400 | 360 | 450 | 2206C-E13TAG3 | LSA47.2S4 | EC 4.0 | 800A | without top lifting |
| FC450-P | 360 | 450 | 400 | 500 | 2506C-E15TAG1 | LSA47.2S5 | EC 4.0 | 800A | without top lifting |
| FC500-P | 400 | 500 | 440 | 550 | 2506C-E15TAG2 | LSA47.2M7 | EC 4.0 | 1000A | without top lifting |
| FC600-P | 480 | 600 | 528 | 660 | 2806C-E18TAG1A | LSA47.2L9 | EC 4.0 | 1250A | without top lifting |
| FC650-P | 520 | 650 | 560 | 700 | 2806A-E18TAG2 | LSA49.3S4 | EC 4.0 | 1250A | without top lifting |
| Engine form India | |||||||||
| FC30-P | 24 | 30 | 26 | 33 | 1103A-33G | LSA42.3VS3 | EC 2.0 | 63A | |
| FC45-P | 36 | 45 | 40 | 50 | 1103A-33TG1 | LSA42.3M7 | EC 2.0 | 80A | |
| FC60-P | 48 | 60 | 53 | 66 | 1103A-33TG2 | LSA42.3L9 | EC 2.0 | 160A | |
| CUMMINS ENGINE WITH STAMFORD ALTERNATOR | |||||||||
| 1500RPM,50HZ, 380V,3PH , P.F.0.8 | |||||||||
| Genset Model | Prime Power | Standby Power | Engine Model | Alternator Model | Control System | ATS | Remark | ||
| KW | KVA | KW | KVA | Current-A | |||||
| FC250-C2 | 200 | 250 | 220 | 275 | NT855-GA-50HZ | UCDI274K | EC 3.0 | 630A | without top lifting |
| FC275-C | 220 | 275 | 250 | 313 | NTA855-G1A | HCI444D | EC 3.0 | 630A | without top lifting |
| FC313-C | 250 | 313 | 280 | 350 | NTA855-G1B | HCI444ES | EC 3.0 | 630A | without top lifting |
| FC344-C | 275 | 344 | 300 | 375 | NTA855-G2A | HCI444E | EC 3.0 | 630A | without top lifting |
| FC350-C | 280 | 350 | 310 | 388 | NTA855-G4 | HCI444E | EC 3.0 | 630A | without top lifting |
| FC375-C | 300 | 375 | 330 | 413 | NTAA855-G7 | HCI444FS | EC 3.0 | 630A | without top lifting |
| FC450E-C | N/A | N/A | 360 | 450 | NTAA855-G7A | HCI544C | EC 3.0 | 800A | without top lifting |
| FC375-C | 300 | 375 | 330 | 413 | KTA19-G2 | HCI444FS | EC 3.0 | 630A | without top lifting |
| FC400Q-C | 320 | 400 | 350 | 438 | QSNT-G3 | HCI444F | EC 4.0 | 800A | without top lifting |
| FC450-C | 360 | 450 | 400 | 500 | KTA19-G3 | HCI544C | EC 3.0 | 800A | without top lifting |
| FC500-C | 400 | 500 | 450 | 563 | KTA19-G3A | HCI544D | EC 3.0 | 1000A | without top lifting |
| FC500-C | 400 | 500 | 450 | 563 | KTA19-G4 | HCI544D | EC 3.0 | 1000A | without top lifting |
| FC525-C | 420 | 525 | 504 | 630 | KTAA19-G5-50HZ | HCI544E | EC 3.0 | 1000A | without top lifting |
| FC575-C | 460 | 575 | 520 | 650 | KTAA19-G6 | HCI544E | EC 3.0 | 1000A | without top lifting |
| FC650E-C | N/A | N/A | 520 | 650 | KTA19-G8 | HCI544FS | EC 3.0 | 1000A | without top lifting |
| FC688E-C | N/A | N/A | 550 | 688 | KTAA19-G6A-50HZ | HCI544F | EC 3.0 | 1250A | without top lifting |
| BAUDOUIN ENGINE WITH LEROY-SOMER ALTERNATOR | |||||||||
| 1500RPM ,50HZ, 380V,3PH , P.F.0.8 | |||||||||
| Genset Model | Prime Power | Standby Power | Engine Model | Alternator Model | Control System | ATS | Remark | ||
| KW | KVA | KW | KVA | Current-A | |||||
| FC437-B | 350 | 437 | 400 | 500 | 6M26D447E200 | LSA47.2S5 | EC 3.0 | 800A | |
| FC500-B | 400 | 500 | 440 | 550 | 6M26D484E200 | LSA47.2M7 | EC 3.0 | 1000A | |
| FC562-B | 450 | 562 | 520 | 650 | 6M33D572E200 | LSA47.2L9 | EC 3.0 | 1000A | |
| FC650-B | 520 | 650 | 550 | 687 | 6M33D633E200 | LSA49.3S4 | EC 3.0 | 1250A | |
| FC750E-B | \ | \ | 600 | 750 | 6M33D670E200 | LSA49.3M6 | EC 3.0 | 1250A | |
| FC750-B | 600 | 750 | 660 | 825 | 12M26D748E200 | LSA49.3M65 | EC 3.0 | 1600A | |
| FC800-B | 640 | 800 | 700 | 875 | 12M26D792E200 | LSA49.3M8 | EC 3.0 | 1600A | |
| FC900-B | 720 | 900 | 800 | 1000 | 12M26D902E200 | LSA49.3L9 | EC 3.0 | 1600A | |
| FC1000-B | 800 | 1000 | 880 | 1100 | 12M26D968E200 | LSA49.3L10 | EC 3.0 | 2000A | |
| FC1125-B | 900 | 1125 | 1000 | 1250 | 12M33D1108E200 | LSA50.2M6 | EC 3.0 | 2000A | |
| FC1250-B | 1000 | 1250 | 1100 | 1375 | 12M33D1210E200 | LSA50.2M6 | EC 3.0 | 2500A | |
| FC1500E-B | \ | \ | 1200 | 1500 | 12M33D1320E310 | LSA50.2L8 | EC 3.0 | 2500A | |
| FC1500-B | 1200 | 1500 | 1360 | 1700 | 16M33D1530E310 | LSA50.2VL10 | EC 4.0 | 3200A | |
| FC1625-B | 1300 | 1625 | 1440 | 1800 | 16M33D1580E310 | LSA50.2VL10 | EC 4.0 | 3200A | |
| FC1750-B | 1400 | 1750 | 1520 | 1900 | 16M33D1680E310 | LSA52.3S5 | EC 4.0 | 3200A | |
| FC2062E-B | \ | \ | 1650 | 2062 | 16M33D1800E310 | LSA52.3S6 | EC 4.0 | 3200A | |
| FC1875-B | 1500 | 1875 | 1650 | 2062 | 12M55D1870E310 | LSA52.3S5 | EC 4.0 | 3200A | |
| FC2000-B | 1600 | 2000 | 1800 | 2250 | 12M55D2020E310 | LSA52.3S6 | EC 4.0 | - | |
| FC2250-B | 1800 | 2250 | 2000 | 2500 | 12M55D2210E310 | LSA52.3L9 | EC 4.0 | - | |
| FC2750E-B | \ | \ | 2200 | 2750 | 12M55D2450E310 | LSA52.3UL16 | EC 4.0 | - | |
| MITSUBISHI ENGINE WITH LEROY-SOMER ALTERNATOR | |||||||||
| 1500RPM ,50HZ, 380V,3PH , P.F.0.8 | |||||||||
| Genset Model | Prime Power | Standby Power | Engine Model | Alternator Model | Control System | ATS | Remark | ||
| KW | KVA | KW | KVA | Current-A | |||||
| FB650-R | 520 | 650 | 572 | 715 | S6R2-PTA-C | LSA49.3S4 | EC 3.0 | 1250A | |
| FB750-R | 600 | 750 | 660 | 825 | S6R2-PTAA-C | LSA49.3M8 | EC 3.0 | 1600A | |
| FB1250-R | 1000 | 1250 | 1100 | 1375 | S12R-PTA-C | LSA50.2M6 | EC 3.0 | 2500A | |
| FB1375-R | 1100 | 1375 | 1200 | 1500 | S12R-PTA2-C | LSA50.2L8 | EC 3.0 | 2500A | |
| FB1500-R | 1200 | 1500 | 1320 | 1650 | S12R-PTAA2-C | LSA50.2VL10 | EC 3.0 | 3200A | |
| FB1700-R | 1360 | 1700 | 1500 | 1875 | S16R-PTA-C | LSA52.3S5 | EC 3.0 | 3200A | |
| FB1875-R | 1500 | 1875 | 1650 | 2063 | S16R-PTA2-C | LSA52.3S6 | EC 3.0 | 3200A | |
| FB2000-R | 1600 | 2000 | 1800 | 2250 | S16R-PTAA2-C | LSA52.3S6 | EC 3.0 | - | |
| FB2250-R | 1800 | 2250 | 2000 | 2500 | S16R2-PTAW-C | LSA52.3L9 | EC 3.0 | - | |
Remark:the above specifications are only for your review . Please contact us for more details if you are interested.
