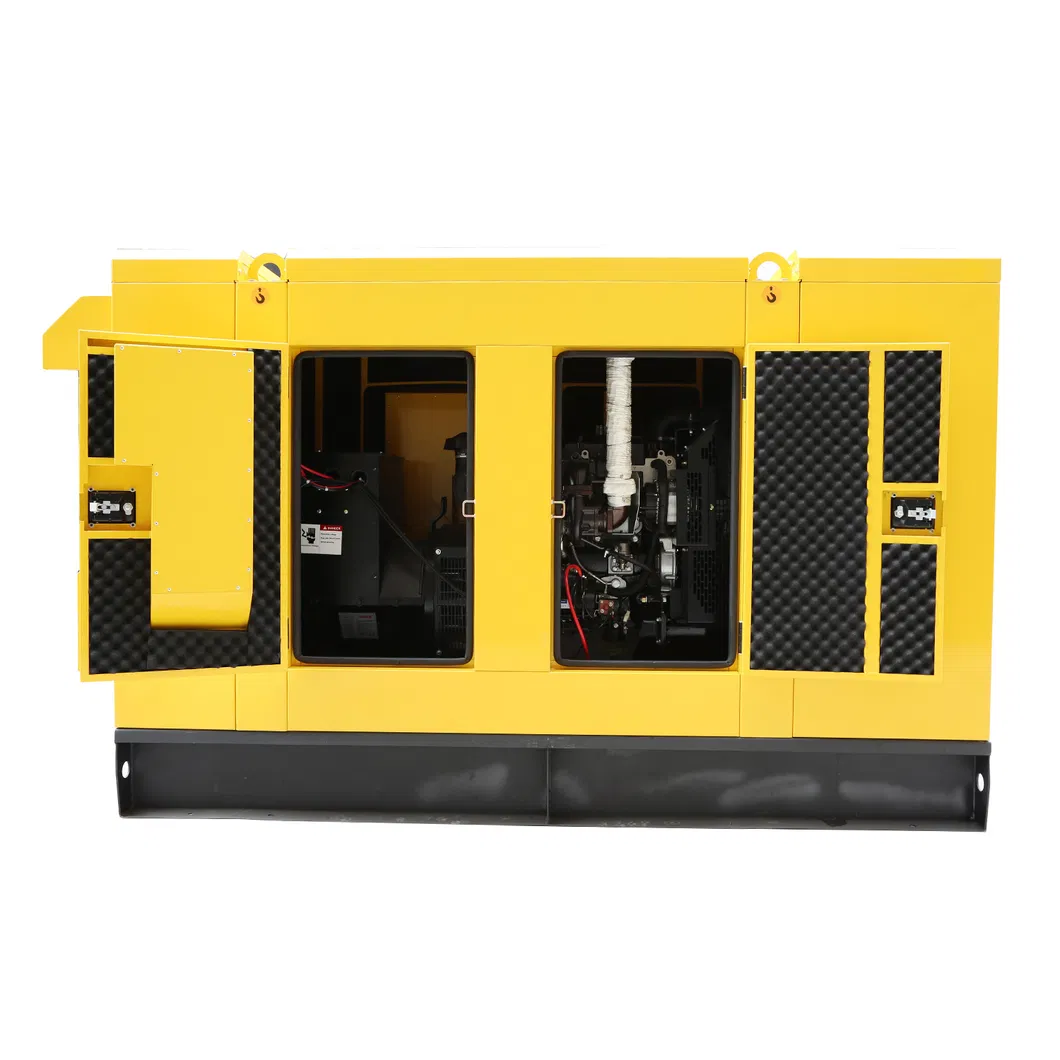

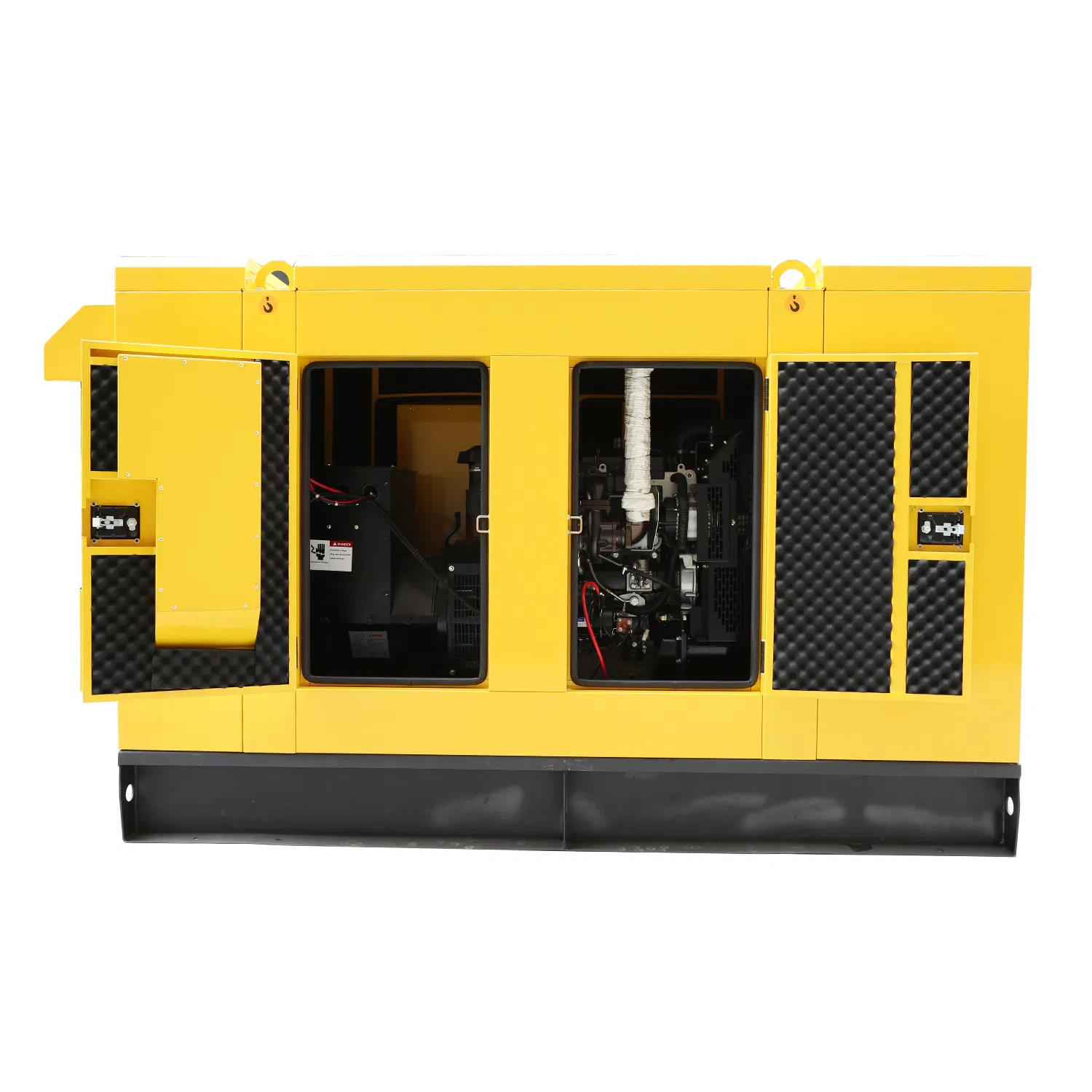

60kVA 48kw UK Perkin (1103A-33TG2) Best Silent Generac Generator Near Me for Home (CDP60kVA)
UK Perkin Diesel Generating Set - Model CDC48KW/60KVA Prime PowerMODELCD-P48kw/60kvaPowered by PERKIN EngineStandby Power (50HZ)48kw/60kvaPrime Power (50HZ)52kw/65kvaEngine ModelOriginal Uk Perkin 1103A-33TG2Engine Prime Power (50HZ)55kwEngine Standby Power (50HZ)60.5kwSpeed1500rpmCylinders3LFuel......
Send Inquiry
Product Description
UK Perkin Diesel Generating Set - Model CDC48KW/60KVA Prime Power
SPECIFICATIONS MAY CHANGE WITHOUT NOTICE!!!
Professional OEM diesel generator factory in Guangzhou
*Diesel Generator open type or silent type (soundproof type)
*Generator Diesel Engine: Cummins,WeiChai, Yangdong, Quanchai, etc.
*Generator with alternator: Stamford, Marathon, Leroy Somer etc.
*Diesel Generator Rated output: 5kVA - 2000kVA
*Rated frequency 50/60 Hz
*Rated voltage 230/400, 220/380, according to customers
*Power factor: 0.8(lag)
*Super Silent type Noise level at 7m ≤ 65DB
*Excitation Mode: (Brushless) Self-excitation and constant voltage (AVR)
*Starting system: Electric start 12V/24V
*Protection System: High water temperature protection, Engine oil alarm, Over load Protection
*Overfrequency protection, Emergency stop

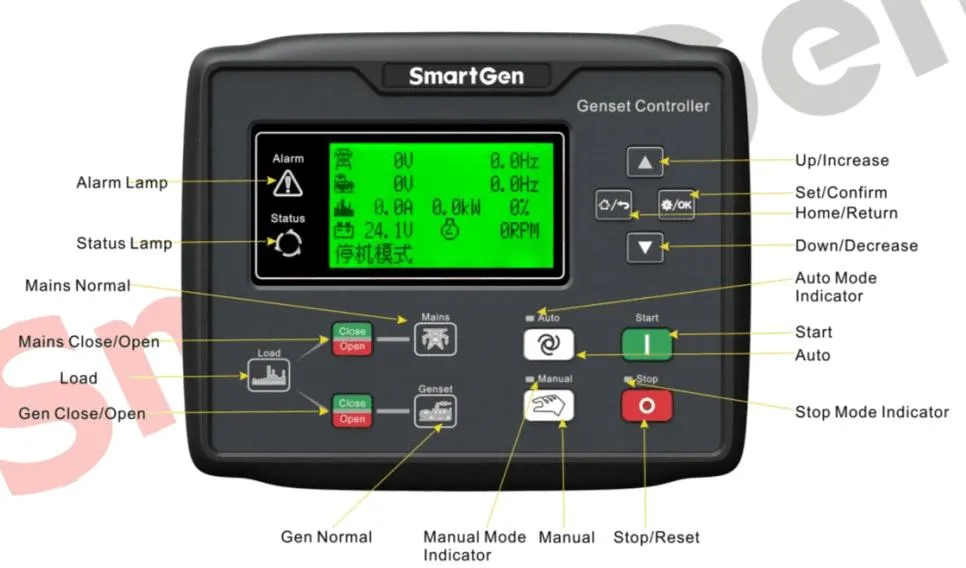

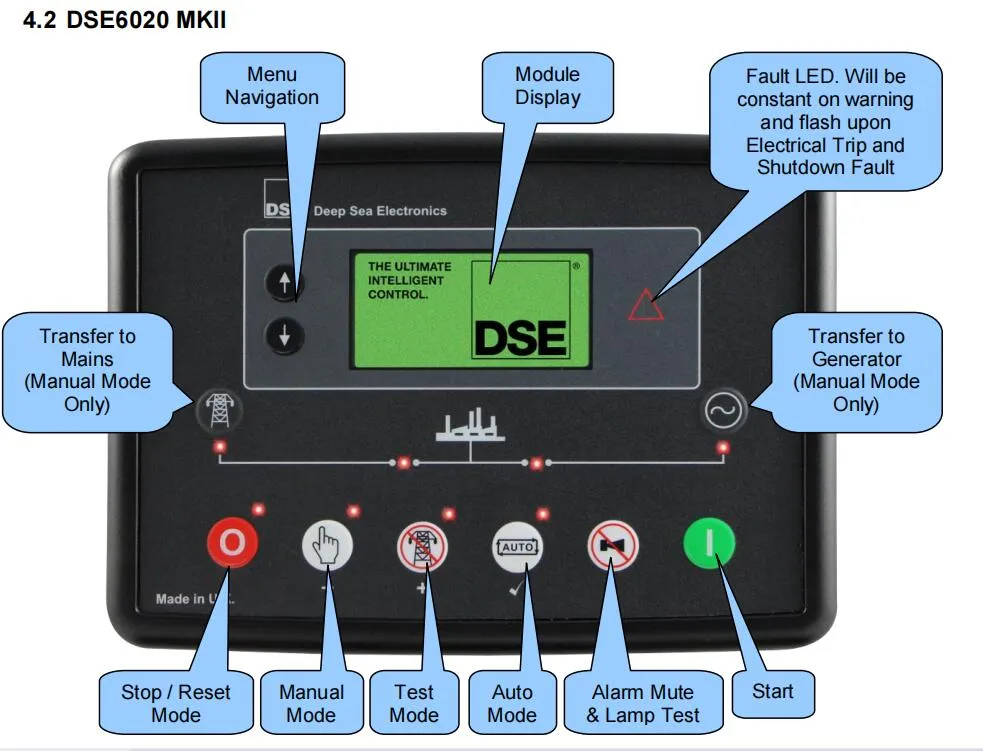

*Control System: Digital Control Panel; Meter Panel
JIUAN Diesel Generator Set Advantage
*50Hz@1500rpm or 60Hz@1800rpm all are available
*AVR delivers non fluctuating power
*Panel type digital control panel
*12 Volt / 24 Volt electric starter ensures easy starting
*Low oil pressure shut down system
*Low fuel cut out protection
*Low water cut out engine protection
*Enclosed structure ensures quieter operation
*Alternator (Dynamo) excitation mode brushless self excitation
*Three-phase output meets differing requirements
*Four Cylinder, four stroke, water cooled diesel engine
*8 hours running @ full load on a single tank of fuel

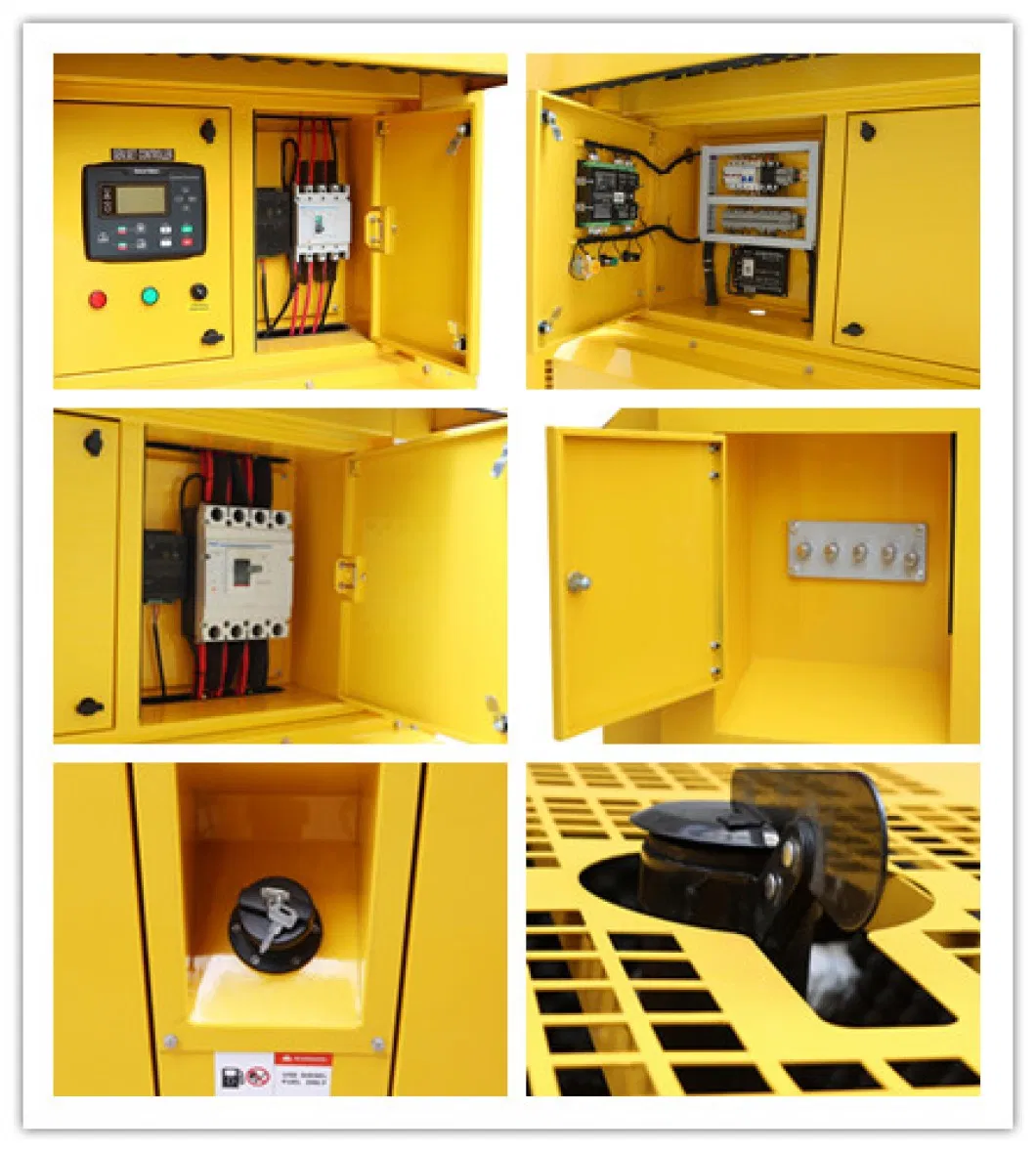

*Dual access doors for easy maintenance
*Optional automatic or manual transfer switches available
*ATS ( auto transfer switch for city power and generator power ) / AMF (auto mains failure) /parallel running for option
*Weatherproof and soundproof, enclosure high grade steel protected by powder coat painting and incorporate internally mounted exhaust silencers
*Noise Level (65-70dBA @ 7m)
All ratings are at sea level!!!
After-sales Service
*1 year or 1800 running hours subject to the earlier one.
*Contact Sales Manager
Our Diesel Generator Set Production Range is as follows
* Engine (motor) for Choice
1. Cummins (USA ) 20kVA - 2000kVA
2. Deutz (Germany) 20kVA - 150kVA
3. Perkin (UK) 8kVA - 2000kVA
4. 1SUZU (Japanese) 20kVA - 40kVA
5. Lovol (China) 20kVA - 150kVA
6. Yangdong (China) 8kVA - 40kVA
7. Weichai (China) 8kVA - 150kVA
8. SDEC Engine
9. Yuchai Engine
10. KUBOTA Engine 10kVA - 50kVA
* Canopy for Choice
1. Silent type (75- 80 dB(A) at 7 meters)
2. Super Silent type (65-70 dB(A) at 7 meters )
3. Open type
4. Trailer type (mobile)
5. Container Type
6. Parallel System
Terms of Payment
T/T ,Western Union,Cash
| MODEL | CD-P48kw/60kva |
| Powered by PERKIN Engine | |
| Standby Power (50HZ) | 48kw/60kva |
| Prime Power (50HZ) | 52kw/65kva |
| Engine Model | Original Uk Perkin 1103A-33TG2 |
| Engine Prime Power (50HZ) | 55kw |
| Engine Standby Power (50HZ) | 60.5kw |
| Speed | 1500rpm |
| Cylinders | 3L |
| Fuel Consumption(100% loading) | 13.9L/H |
| Displacement (L) | 3.3 |
| Compression Ratio | 17.25:1 |
| Bore x Stroke | 105*127mm |
| Lube Volume (L) | 7.9 |
| Coolant Volume (L) | 10.2 |
| Cooling Method | Water - cooled |
| Starting Method | 12V DC electrical start |
| Alternator Model | LEADTECH OR STAMFORD 224E |
| Voltage | 380/220 |
| Electric Current | 91A |
| Power Factor | 0.8 |
| Phase | 3-phases |
| Brush/Brushless | Brushless |
| Insulation Grade | H |
| Protection Grade | IP23 |
| G.W/N.W | 900 KGS |
| Overall Size | 2250*950*1350MM SILENT 2600*1100*1650MM SUPER SILENT |
| 20FT | 6PCS |
| OPTIONAL | ATS(auto transfer switch) |
| Auto Battery Charger | |
| AMF(auto mains failure) | |
| SUPER SILENT | |
SPECIFICATIONS MAY CHANGE WITHOUT NOTICE!!!
Professional OEM diesel generator factory in Guangzhou
*Diesel Generator open type or silent type (soundproof type)
*Generator Diesel Engine: Cummins,WeiChai, Yangdong, Quanchai, etc.
*Generator with alternator: Stamford, Marathon, Leroy Somer etc.
*Diesel Generator Rated output: 5kVA - 2000kVA
*Rated frequency 50/60 Hz
*Rated voltage 230/400, 220/380, according to customers
*Power factor: 0.8(lag)
*Super Silent type Noise level at 7m ≤ 65DB
*Excitation Mode: (Brushless) Self-excitation and constant voltage (AVR)
*Starting system: Electric start 12V/24V
*Protection System: High water temperature protection, Engine oil alarm, Over load Protection
*Overfrequency protection, Emergency stop
*Control System: Digital Control Panel; Meter Panel
JIUAN Diesel Generator Set Advantage
*50Hz@1500rpm or 60Hz@1800rpm all are available
*AVR delivers non fluctuating power
*Panel type digital control panel
*12 Volt / 24 Volt electric starter ensures easy starting
*Low oil pressure shut down system
*Low fuel cut out protection
*Low water cut out engine protection
*Enclosed structure ensures quieter operation
*Alternator (Dynamo) excitation mode brushless self excitation
*Three-phase output meets differing requirements
*Four Cylinder, four stroke, water cooled diesel engine
*8 hours running @ full load on a single tank of fuel
*Dual access doors for easy maintenance
*Optional automatic or manual transfer switches available
*ATS ( auto transfer switch for city power and generator power ) / AMF (auto mains failure) /parallel running for option
*Weatherproof and soundproof, enclosure high grade steel protected by powder coat painting and incorporate internally mounted exhaust silencers
*Noise Level (65-70dBA @ 7m)
All ratings are at sea level!!!
After-sales Service
*1 year or 1800 running hours subject to the earlier one.
*Contact Sales Manager
Our Diesel Generator Set Production Range is as follows
* Engine (motor) for Choice
1. Cummins (USA ) 20kVA - 2000kVA
2. Deutz (Germany) 20kVA - 150kVA
3. Perkin (UK) 8kVA - 2000kVA
4. 1SUZU (Japanese) 20kVA - 40kVA
5. Lovol (China) 20kVA - 150kVA
6. Yangdong (China) 8kVA - 40kVA
7. Weichai (China) 8kVA - 150kVA
8. SDEC Engine
9. Yuchai Engine
10. KUBOTA Engine 10kVA - 50kVA
* Canopy for Choice
1. Silent type (75- 80 dB(A) at 7 meters)
2. Super Silent type (65-70 dB(A) at 7 meters )
3. Open type
4. Trailer type (mobile)
5. Container Type
6. Parallel System
Terms of Payment
T/T ,Western Union,Cash
