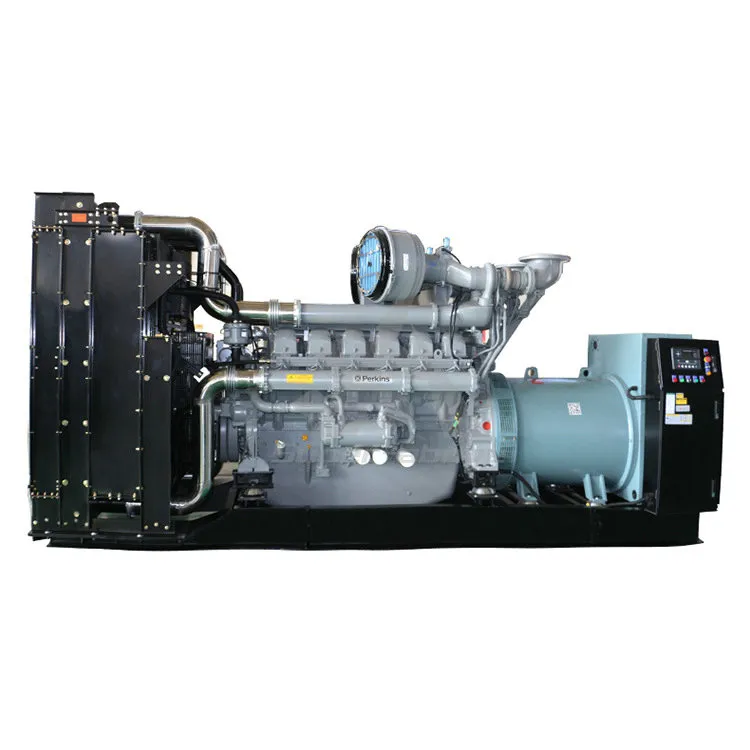

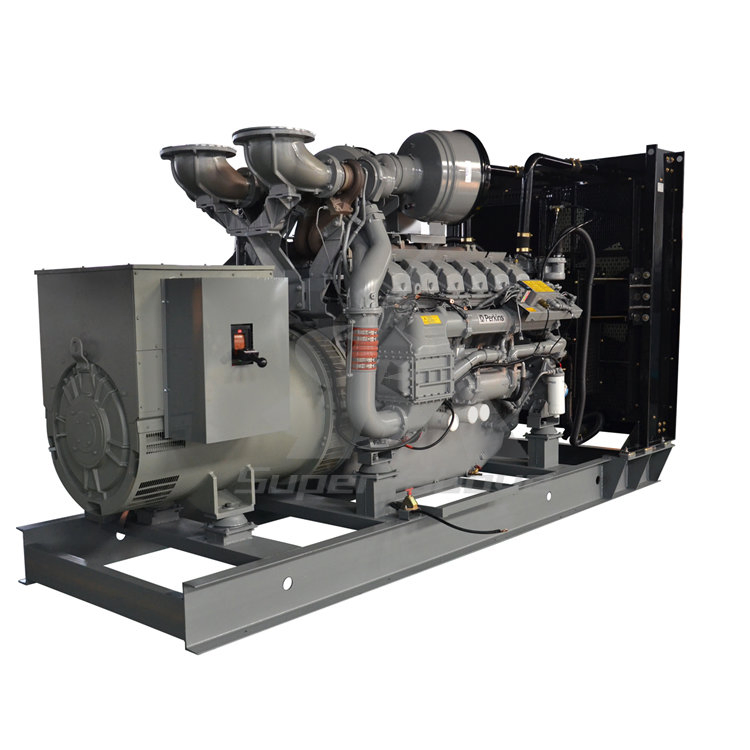

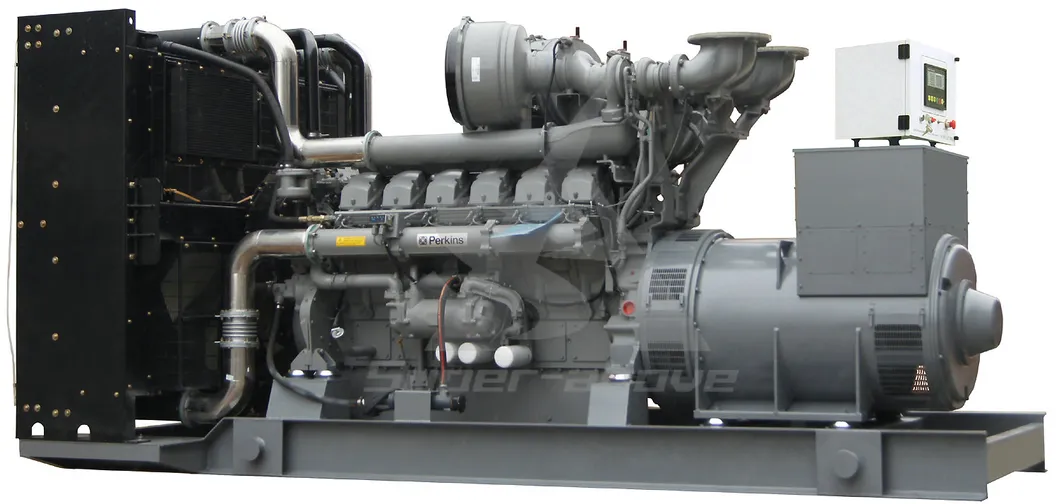

60Hz Prime Power 700kw Diesel Generator with CE Certification
60Hz Prime Power 700kw Diesel Generator with CE certificationProduct DescriptionConfiguration Spec.1) Powered by brand new original water cooled diesel engine.2) Brand new STAMFORD, LEROY SOMER or GENLITEC single bearing 3 phase alternator with IP23 and H insulation class.3) Delixi or Chint branded ......
Send Inquiry
Product Description
Product Description
Configuration Spec.
1) Powered by brand new original water cooled diesel engine.
2) Brand new STAMFORD, LEROY SOMER or GENLITEC single bearing 3 phase alternator with IP23 and H insulation class.
3) Delixi or Chint branded case circuit breaker mounted.
4) Heavy-duty fabricated steel based frame with built-in fuel tank.
5) Complete set mounted on a based frame with anti-vibration mountings.
6) Based frame with fuel, oil and coolant drain cocks for easy maintenance.
7) 12/24V DC electric start system with free maintain battery & smartgen brand battery charger.
8) Set mounted automatic control panel, with SMARTGEN brand AMF controller module for automatic start & stop.
9) Test report of generator, set of drawings and manuals.
10) CE, ISO9001 approved
| 700kw electric generator UK 4008TAG1 engine IL-NT MRS10 controller 700KW diesel generator | |
Gensets model | SAP700GF |
Prime power | 700KW/875KVA |
Rated Voltage(V) | 400 |
Rated frequency(HZ) | 50 |
Rated Speed(RPM) | 1500 |
Power Factor | 0.8(lagging) |
Dimensions(mm) (L×W×H) | 4600x1800x2300 |
Genset Weight(kg) | 6000 |
2. Specification of diesel engine | |
Engine model | 4008TAG1A |
Prime power | 767KW |
Number of Cylinders | 6 |
Cylinder arrangement | inLine |
Cycle | Four stroke |
Aspiration | Direction injectioin |
Bore×Stroke (mm×mm) | 160x 190 |
Displacement (Liter) | 30.5 |
Speed Governor | Electrical Governor |
Starting Method | DC24V electrical starting |
3. Specification of alternator | |
Alternator brand | Stamford |
Alternator model | LVI634D |
Rated power | 700kw/875kva |
Number of Phase | 3 |
Connecting Type | 3 Phase and 4 Wires |
Number of Bearing | Single |
Protection Grade | IP21 |
Altitude | ≤1000m |
Exciter Type | Brushless ,Self-exciting, AVR automatic voltage regulating,100% Copper winding wire |
Insulation Class | H |
Telephone Influence Factor (TIF) | ≤50 |
THF | ≤2% |
Voltage Regulation, Steady State | ≤±1% |
Transient State Voltage | ≤-15%~+20% |

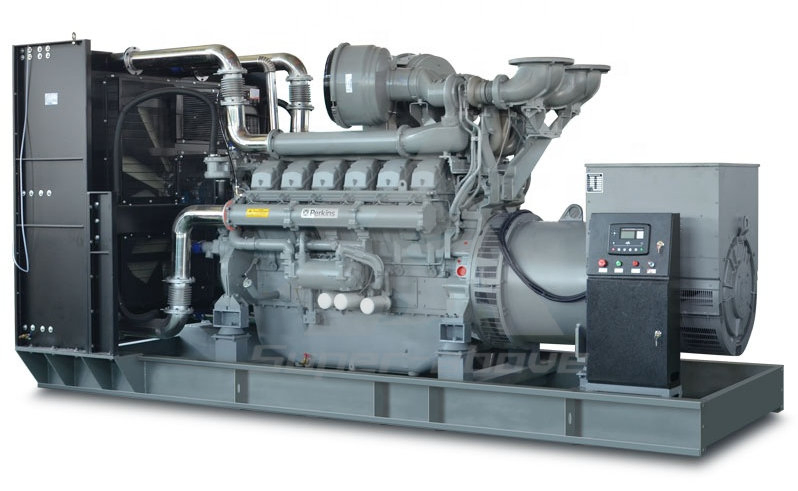

More Pictures

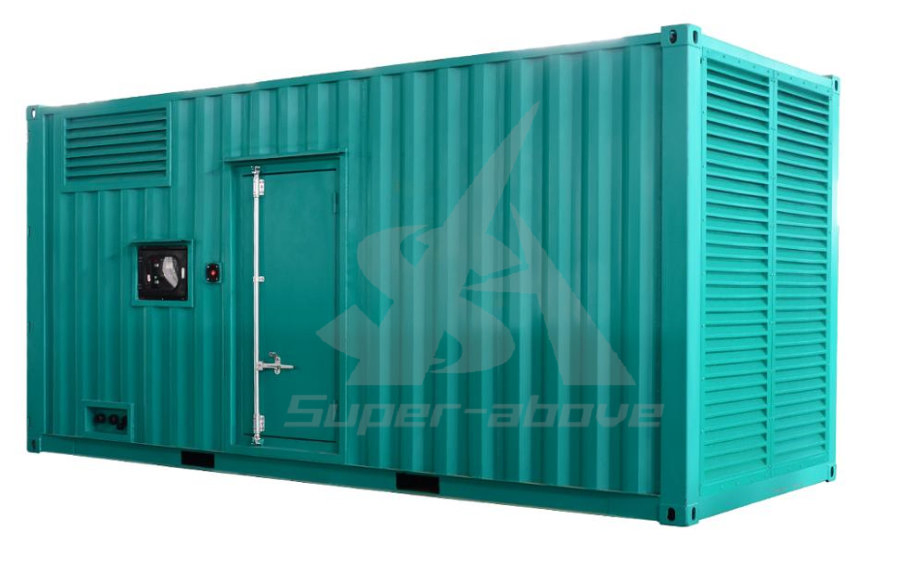

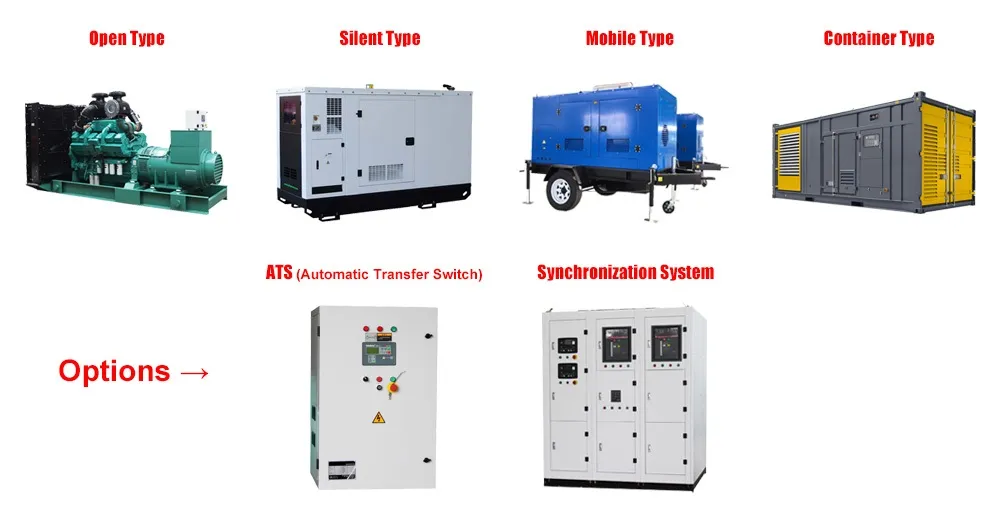

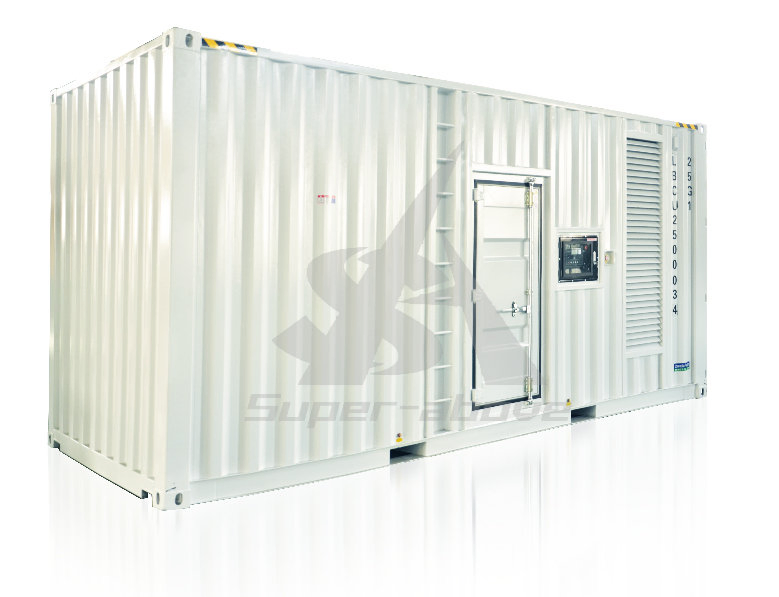

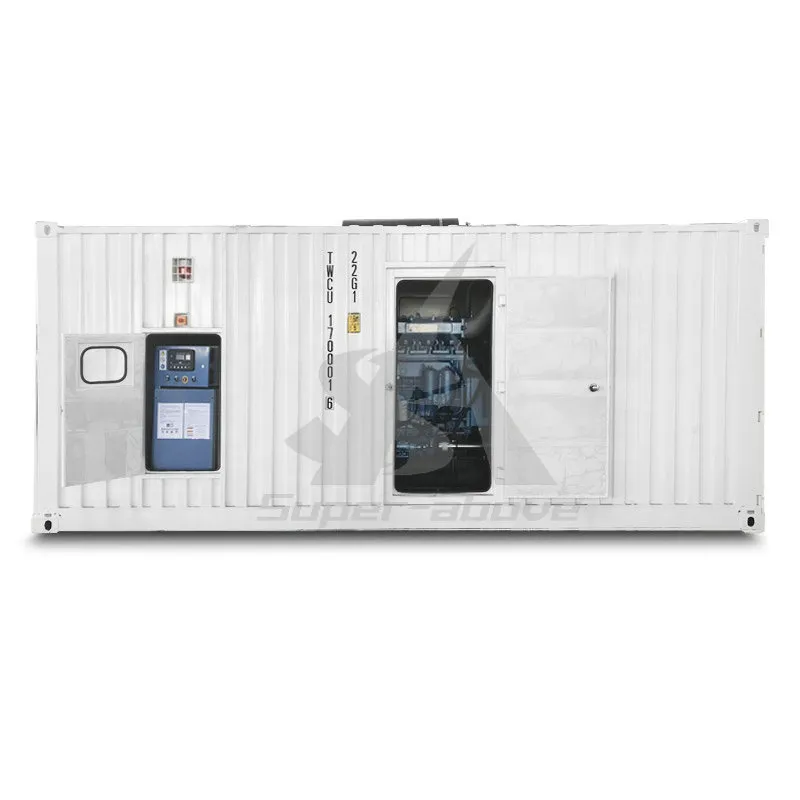

Types you can chooseAll design for Open, Silent, Trailer, container type generator
Partners
Packing & Delivery
1) Wrap the generator set by stretch film, and put some drying agent.2) Adopt steel plate or wood rib to make it stronger, can afford rough handling.
3) Design for forklift truck working in 4 directions. Fastened by 8cm length galvanized nail.
4) Load the case into container by forklift truck.
