60Hz 1800rpm Prime Output 32kw 40kVA Cummins 4bt3.9g2 Power Generation Kanpor Electric Diesel Generator
60Hz Prime output 32kw 40kVA Cummins 4BT3.9G2/42KW Diesel generatorPrime output 80kVA/64kw Standby putput 88kVA 70kw Deutz BF4M2012C Diesel Electric Silent GeneratorWHO WE ARE·KANPOR -Your reliable professional generator set and service supplier. Kanpor - Power solution Solver / Generato......
Send Inquiry
Product Description

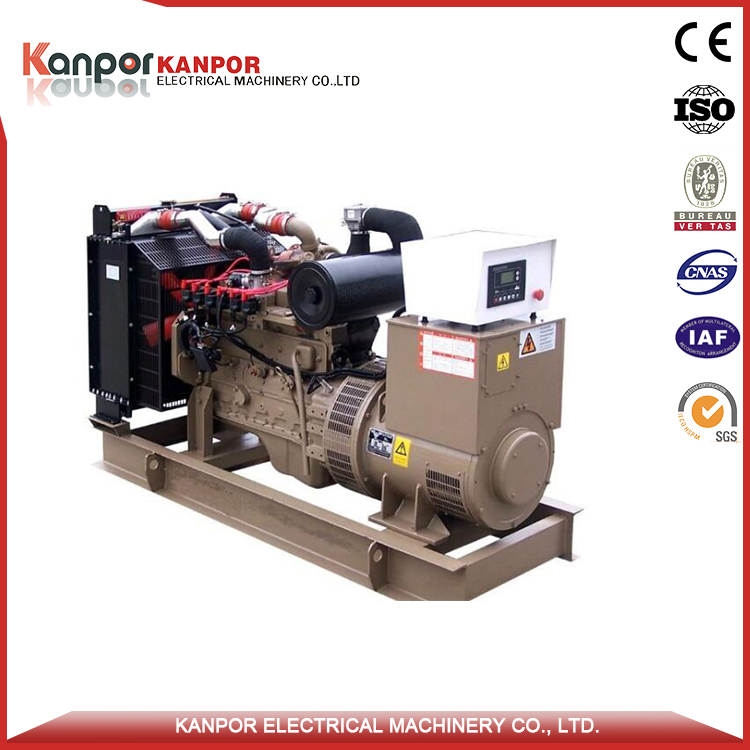

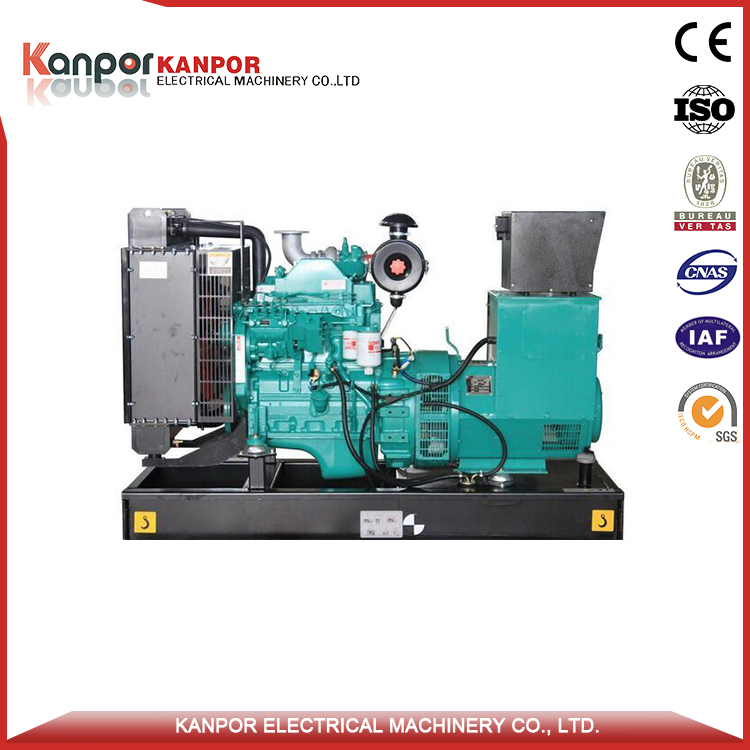

60Hz Prime output 32kw 40kVA Cummins 4BT3.9G2/42KW Diesel generator
Prime output 80kVA/64kw Standby putput 88kVA 70kw Deutz BF4M2012C Diesel Electric Silent Generator
★ PRODUCT FEATURES
(1).Full control panel with power indicator light and oil light.
(2).Emergency shutdown for low oil pressure and high water temperature.
(3).Large fuel tank ensure continuous running.
(4).Low noise & vibration.
(5).Compact structure.
(6).Reliable performance.
(7).Easy for installation and maintenance.
(8).50Hz and 60Hz both are available for choice
★ GENERATOR DATA/SPECIFICATION
★ MAIN TECHNICAL DATA/SPECIFICATION
Power by: Cummins
12 13
★ PRODUCT FEATURES
(1).Full control panel with power indicator light and oil light.
(2).Emergency shutdown for low oil pressure and high water temperature.
(3).Large fuel tank ensure continuous running.
(4).Low noise & vibration.
(5).Compact structure.
(6).Reliable performance.
(7).Easy for installation and maintenance.
(8).50Hz and 60Hz both are available for choice
Why Choose Us
Kanpor generator
1)The structure is more compact, the big built-in muffler makes the noise lower;
2) Give up the traditional bottom air intake design, which can avoid dusts and other impurities inhalation and enlarge the area of air intake and discharge.
3)Separated output cable box, easy for cable connections (this kind of generator with soundproof canopy especially suitable for field construction and power tenancy);
4)The performances of weatherproof and soundproof are higher.
5)Material & thickness of canopy and frame,and others important business contents pls only email.
6)Guarantee:
Diesel generator set/Gas generator set/Alternator: 12 months from shipment date.
Gasoline generator set:6 months from shipment date.
Spare parts:3 months from shipment date.
Based on some special project, we can extended our warranty period.
7)Factory Inspection: the test items before delivery are mainly as follows:
1/.Each genset shall be put into commission more than 4 hours totally. They are tested on idle load, fully
load and 10% overload;
2/.The noise level is tested
3/.All of the meters on the control panel shall be tested
The appearance of the genset and all of the label and nameplate shall be checked.
★ FAQ
1.
Q.:What is your warranty period?
A.:Our warranty is 1 year or 1200 running hours whichever comes first. But based on some special project, we can extended our warranty period.
2.
Q.:Does your generator have global warranty?
A.:Yes, We kanpor genset supply the warranty.Also most of our products like Deutz,Perkins,Cummins, Doosan,Yuchai,Weichai etc.power generator enjoy the global warranty service. And the alternator we use like Leroysomer, Stamford, marathon also enjoy the global warranty service, so you do not need to worry about the aftersales service.
3.
Q.:Can you accept OEM?
A.:Yes, we can accept OEM.
4.
Q.:What is your payment terms?
A.:We can accept T/T 30% in advance, and the balance 70% shall be paid before shipment or L/C at sight. But based on some special project and special order,we can do something on payment item.
5.
Q.:What is your delivery time?
A.:Our normal delivery time is 2 to 3 weeks. But if your order is using special engine and alternator, then the delivery time is longer.
Prime output 80kVA/64kw Standby putput 88kVA 70kw Deutz BF4M2012C Diesel Electric Silent Generator
•WHO WE ARE
•·KANPOR -Your reliable professional generator set and service supplier.
• Kanpor - Power solution Solver / Generator professional manufacturer !
•·Certificates ISO CE TUV UL SGS approved quality management system.
Business Type: Manufacturer
Established:2010 QC Number:2 Engineer Number:3
Worker Number:107 Verified Total Employees: 150 People
Verified Location: Fujian, China (Mainland)
Verified Main Products:Generator,Diesel generator set, Gasoline generator, Alterantor,Gas generator, Biogas genset
Total Annual Revenue:2016 USD 10,000,000 /Year Verified Certifications:ISO9001 ISO9002 CE TUV
Government Honor : "The First Largest 10 Enterprises in Ningde Area" 'Class A Enterprise'
Business Type: Manufacturer
Established:2010 QC Number:2 Engineer Number:3
Worker Number:107 Verified Total Employees: 150 People
Verified Location: Fujian, China (Mainland)
Verified Main Products:Generator,Diesel generator set, Gasoline generator, Alterantor,Gas generator, Biogas genset
Total Annual Revenue:2016 USD 10,000,000 /Year Verified Certifications:ISO9001 ISO9002 CE TUV
Government Honor : "The First Largest 10 Enterprises in Ningde Area" 'Class A Enterprise'
•WHAT WE SUPPLY

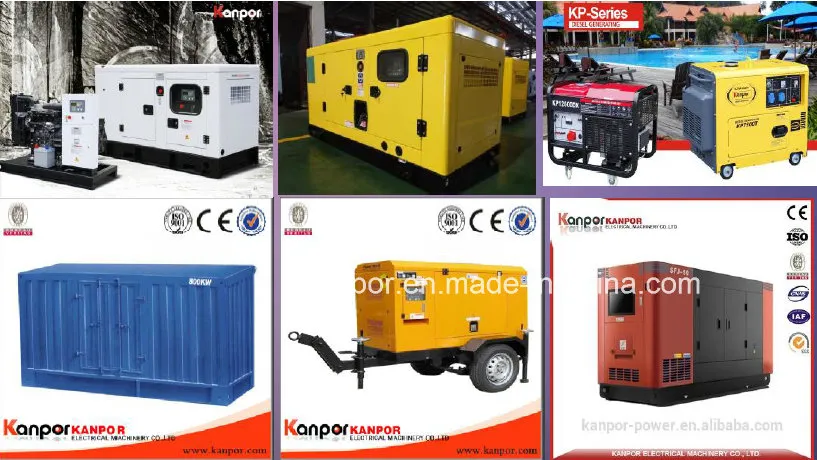

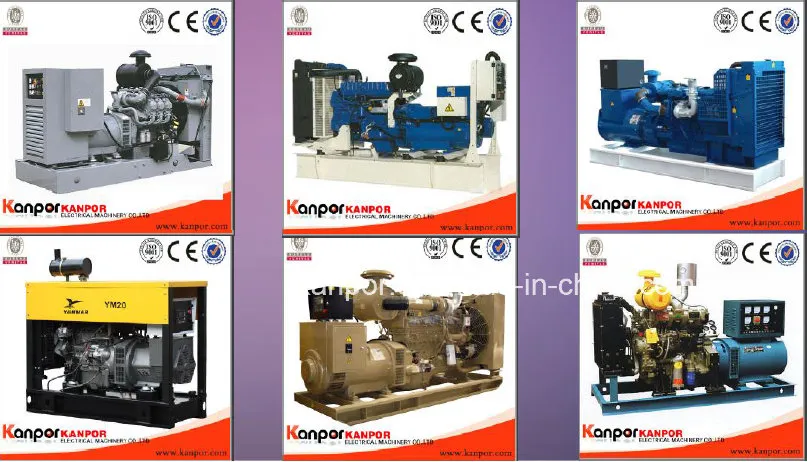

•Our complete new genset from 5kva to 4000 kva powered by Brand New Cummins, Perkins, Deutz, Volvo, MTU, equipped with Stamford, Leroy somer,Mecc-Alte or HON brushless alternators and maintain spare parts.
•Partly built generators (SKD) & CKD-Engines, alternators, base frame and control panels can be shipped in packages for Export to save on Import Duty and local tariffs.(We are allowed and have the export certificate on engine & alternator etc.)
•Components like: Engine/Alternator's spare parts, Radiators, Controllers, Circuit Breakers, Soundproof Canopy, Light tower, External Fuel Tank, Cable, Door Locks, Anti-Vibration pad ,ATS,ATS cabinet etc.
•HOW WE BENEFIT YOU
•·We are OEM of New Cummins, Deutz, Volvo, MTU, equipped with Stamford, Leroy somer, Mecc-Alte, ATS, Radiator and produce our own brand KANPOR brushless alternators. Make sure genuine products and competitive price.
•100% guarantee product quality and delivery time.
•·Lower import Tax, Lower assembling cost, lower transportation cost, lower labor cost make your high efficiency, larger supply scope, competitive quotation and more stable performance.
★ PRODUCT FEATURES
(1).Full control panel with power indicator light and oil light.
(2).Emergency shutdown for low oil pressure and high water temperature.
(3).Large fuel tank ensure continuous running.
(4).Low noise & vibration.
(5).Compact structure.
(6).Reliable performance.
(7).Easy for installation and maintenance.
(8).50Hz and 60Hz both are available for choice
★ GENERATOR DATA/SPECIFICATION
| The main parameters of KPC45 | |
| Manufacturer: | KANPOR ELECTRICAL MACHINERY CO.,LTD. |
| Model: | KPC45 |
| Prime Power: | 32KW / 40KVA |
| Standby Power: | 36KW / 45KVA |
| Frequency: | 60HZ |
| Voltage: | 120/240V |
| Phase: | 1 Phase |
| P.F(COS): | 0.8 |
| Fuel: | Diesel |
| Rated Current: | 43.2A |
| Start Method: | 24V DC Start Battery |
| Accessory: | Battery, wire, exhaust pipe, muffler, damper, breaker |
| Altitude: | ≤1000m |
| Engine Specifications | |
| Brand and Model: | Original Cummins 4BT3.9-G2/42kw |
| Aspiration: | Naturally |
| Cylinder Arrangement: | 3 in line |
| Displacement: | 3.3L |
| Bore and Stroke: | 105×127 mm |
| Compression Ratio: | 23.3:1 |
| Rated RPM: | 1800rpm |
| Maximum Output Power: | 42KW |
| Governor Type: | Mechanical |
| 100% Load Fuel Consumption: | 211 g/Kw.h |
| Total Lubrication Capacity: | 7.9L |
| Total Coolant Capacity: | 10.2L |
| Cooling System: | Forced water cooling cycle |
| Alternator Specifications | |
| Manufacturer: | KANPOR ELECTRICAL MACHINERY CO.,LTD. |
| Model: | STF184H |
| Rated Capacity: | 42.5KVA 34KW |
| Winding: | 100% Copper Wire |
| Frequency: | 60HZ |
| Speed: | 1800 RPM |
| Connecting Type: | 3 Phase and 4 Wires, "Y" type connecting |
| Power Factor: | 0.8 |
| Protection Grade: | IP23 |
| Alternator Warranty: | 2 Year No Time Limited |
| Exciter Type: | Brushless, self-exciting, with AVR |
| Insulation Class, Temperature Rise: | H/H |
| Voltage Regulation: | ≥±5% |
| Control System Specifications | |
| Main Features: | a) Instruments:Analogue Volmeter,Hours Run Meter.Water pressure Meter. b) Controls:Emergency Stop Pushbutton,Volmeter Phase Selector Switch. |
| Manufacturer: | COMAP |
| Model: | AMF25 |
| Type: | Manual Operation |
| Operation: | Via a three position key switch ;with STOP(O), RUN(I) and START(II). |
| Alarm Protect: | Low Oil Pressure, High Engine Temperature, Auxiliary Shutdown, Charge Failure |
| Δ Automatic mains failure | Δ Mains simulation |
| Δ Engine control,Generator protection | Δ Block heater control |
| Δ Built in alarms and warnings | Δ Field adjustable parameters |
| Δ Remote Start operation available | Δ Free MS-Windows Remote monitoring |
| Δ Daily / weekly / monthly exerciser | Δ LED displays |
| Δ Weekly operation schedule programs | Δ Configurable analogue inputs |
| Δ Fuel pump control | Δ I/O expansion capability |
| Δ ECU control and monitoring via J1940 CANBUS | D+ preexcitation terminal |
| AUTOMATIC MAINS FAILURE | 7 binary inputs and outputs |
| Size and Weight | |
| Open Type Overall Size: | 1800mm*700mm*1340mm |
| Weight: | 930 KG |
| Soundproof Type Overall Size: | 2200mm*1050mm*1300mm |
| Weight: | 1200 KG |
★ MAIN TECHNICAL DATA/SPECIFICATION
Power by: Cummins
| KANPOR ELECTRICAL MACHINERY CO.,LTD | DIESEL GENERATOR SETS | ||||||||||||||||||
| 350~725KVA | |||||||||||||||||||
| Technical Data | |||||||||||||||||||
| Genset Model | KPC350 | KPC385 | KPC412 | KPC440 | KPC500 | KPC550 | KPC625 | KPC660 | KPC687 | KPC725 | |||||||||
| Rated Power | KW/KVA | 260/325 | 280/350 | 304/380 | 320/400 | 360/450 | 400/500 | 450/563 | 480/600 | 500/625 | 536/670 | ||||||||
| Standby Power | KW/KVA | 280/350 | 308/385 | 330/412 | 352/440 | 400/500 | 440/550 | 500/625 | 528/660 | 550/687 | 580/725 | ||||||||
| Rated Voltage | V | 220V/127V 380V/220V 400V/230V 415V/240V 480V/277V 600V/346V | |||||||||||||||||
| Speed | RPM | 1500/1800 | |||||||||||||||||
| Rated frequency | Hz | 50/60 | |||||||||||||||||
| Engine Model | NTA855-G1B | NTA855-G2A | NTAA855-G7 | NTAA855-G7A | KTA19-G3 | KTA19-G3A | KTAA19-G5KTAA19-G6A | KTAA19-G6A | QSKTAA19-G3 | ||||||||||
| Engine Power | KW | 321 | 343 | 377 | 407 | 448 | 504 | 555 | 610 | 610 | 634 | ||||||||
| Air intake way | Turbo | Turbo | Turbo | Turbo | Turbo | Turbo | Turbo | Turbo | Turbo | Turbo | |||||||||
| Governor | Electronic | Electronic | Electronic | Electronic | Electronic | Electronic | Electronic | Electronic | Electronic | Electronic | |||||||||
| Cylinder | QTY | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | ||||||||
| Bore*Stroke | mm*mm | 140×152 | 140×152 | 140×152 | 140×152 | 159×159 | 159×159 | 159×159 | 159×159 | 159×159 | 159×159 | ||||||||
| Displacement | L | 14 | 14 | 14 | 14 | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 | ||||||||
| Fuel Consumption | g/kw.h | 209 | 192.6 | 206.7 | 200.5 | 203 | 203 | 203 | 206 | 206 | 212 | ||||||||
| Compression Ratio | 14:1 | 14:1 | 14:1 | 14:1 | 13.9:1 | 13.9:1 | 13.9:1 | 13:1 | 13:1 | 15:1 | |||||||||
| Alternator Model | STF-314ES | STF-314E | STF-314FS | STF-314F | STF-354C | STF-354D | STF-354E | STF-354E | STF-354FS | STF-354F | |||||||||
| Voltage Regulation | AVR | ||||||||||||||||||
| Excitation Method | Brushless | ||||||||||||||||||
| Open Type Size | mm | 3350x1120x1600 | 3350x1120x1600 | 3350x1120x1600 | 3350x1120x1600 | 3370x1220x1900 | 3670x1220x1900 | 3800x1220x1900 | 3800x1220x1900 | 3800x1220x1900 | 3800x1220x1900 | ||||||||
| Open Type Weight | kg | 2660 | 2750 | 3080 | 3130 | 3250 | 3380 | 3700 | 3800 | 4000 | 4050 | ||||||||
| Soundproof Size | mm | 3800x1200x2100 | 3800x1200x2100 | 3800x1200x2100 | 3800x1500x2100 | 4300x1500x2400 | 4300x1600x2500 | 4300x1600x2500 | 4300x2000x2550 | 4300x2000x2550 | 4300x2000x2550 | ||||||||
| Soundproof Weight | kg | 3680 | 3890 | 4200 | 4300 | 4600 | 4850 | 5200 | 5360 | 5600 | 5700 | ||||||||
| 50 | |||||||||||||||||||
| Hz | |||||||||||||||||||
| Power by: Cummins | |||||||||||||||||||
| Http:kanpor.en.made-in-china.com | |||||||||||||||||||
| KANPOR ELECTRICAL MACHINERY CO.,LTD | TEL: +86-593-6692298 | ||||||||||||||||||
| 825~1718KVA | |||||||||||||||||||
| Technical Data | |||||||||||||||||||
| Genset Model | KPC825 | KPC880 | KPC1000 | KPC1100 | KPC1250 | KPC1375 | KPC1500 | KPC1650 | KPC1718 | ||||||||||
| Rated Power | KW/KVA | 600/750 | 640/800 | 728/910 | 800/1000 | 900/1125 | 1000/1250 | 1100/1375 | 1200/1500 | 1250/1560 | |||||||||
| Standby Power | KW/KVA | 660/825 | 704/880 | 800/1000 | 880/1100 | 1000/1250 | 1100/1375 | 1200/1500 | 1320/1650 | 1375/1718 | |||||||||
| Rated Voltage | V | 220V/127V 380V/220V 400V/230V 415V/240V 480V/277V 600V/346V | |||||||||||||||||
| Speed | RPM | 1500/1800 | |||||||||||||||||
| Rated frequency | Hz | 50/60 | |||||||||||||||||
| Engine Model | KTA38-GA | KTA38-G2B | KTA38-G2A | KTA38-G5 | KTA38-G9 | KTA50-G3 | KTA50-G8 | KTA50-GS8 | KTA50-G9 | ||||||||||
| Engine Power | KW | 711 | 789 | 895 | 970 | 1089 | 1227 | 1429 | 1429 | 1656 | |||||||||
| Air intake way | Turbo | Turbo | Turbo | Turbo | Turbo | Turbo | Turbo | Turbo | Turbo | ||||||||||
| Governor | Electronic | Electronic | Electronic | Electronic | Electronic | Electronic | Electronic | Electronic | Electronic | ||||||||||
| Cylinder | QTY | 12 | 12 | 12 | 12 | 12 | 16 | 16 | 16 | 16 | |||||||||
| Bore*Stroke | mm*mm | 159×159 | 159×159 | 159×159 | 159×159 | 159×159 | 159×159 | 159×159 | 159×159 | 159×159 | |||||||||
| Displacement | L | 37.8 | 37.8 | 37.8 | 37.8 | 37.8 | 50.3 | 50.3 | 50.3 | 50.3 | |||||||||
| Fuel Consumption | g/kw.h | 199 | 199 | 199 | 202 | 199 | 197 | 205 | 204 | 203 | |||||||||
| Compression Ratio | 14.5:1 | 14.5:1 | 14.5:1 | 13.9:1 | 13.9:1 | 13.9:1 | 14.9:1 | 14.9:1 | 13.9:1 | ||||||||||
| Alternator Model | STF-634B | STF-634C | STF-634D | STF-634E | STF-634F | STF-634G | STF-734B | STF-734B | STF-734C | ||||||||||
| Voltage Regulation | AVR | ||||||||||||||||||
| Excitation Method | Brushless | ||||||||||||||||||
| Open Type Size | mm | 4000x1600x2250 | 4000x1600x2250 | 4300x1600x2250 | 4670x1750x2250 | 4800x2000x2320 | 4850x2000x2320 | 4980x2000x2350 | 4980x2000x2350 | 5200x2150x2400 | |||||||||
| Open Type Weight | kg | 4260 | 4400 | 5800 | 6000 | 7600 | 7800 | 8200 | 9500 | 10000 | |||||||||
| Soundproof Size | mm | 4800x2200x2600 | 4800x2200x2600 | 5600x2200x2600 | 5800x2200x2600 | 6000x2200x2600 | 6000x2200x2600 | 6000x2200x2600 | 6000x2200x2600 | 7000x2300x2650 | |||||||||
| Soundproof Weight | kg | 5900 | 6100 | 7950 | 8300 | 9660 | 9800 | 10800 | 12300 | 13600 | |||||||||
| 50 | |||||||||||||||||||
| Hz | |||||||||||||||||||
12 13
★ PRODUCT FEATURES
(1).Full control panel with power indicator light and oil light.
(2).Emergency shutdown for low oil pressure and high water temperature.
(3).Large fuel tank ensure continuous running.
(4).Low noise & vibration.
(5).Compact structure.
(6).Reliable performance.
(7).Easy for installation and maintenance.
(8).50Hz and 60Hz both are available for choice
Why Choose Us
Kanpor generator
1)The structure is more compact, the big built-in muffler makes the noise lower;
2) Give up the traditional bottom air intake design, which can avoid dusts and other impurities inhalation and enlarge the area of air intake and discharge.
3)Separated output cable box, easy for cable connections (this kind of generator with soundproof canopy especially suitable for field construction and power tenancy);
4)The performances of weatherproof and soundproof are higher.
5)Material & thickness of canopy and frame,and others important business contents pls only email.
6)Guarantee:
Diesel generator set/Gas generator set/Alternator: 12 months from shipment date.
Gasoline generator set:6 months from shipment date.
Spare parts:3 months from shipment date.
Based on some special project, we can extended our warranty period.
7)Factory Inspection: the test items before delivery are mainly as follows:
1/.Each genset shall be put into commission more than 4 hours totally. They are tested on idle load, fully
load and 10% overload;
2/.The noise level is tested
3/.All of the meters on the control panel shall be tested
The appearance of the genset and all of the label and nameplate shall be checked.
★ FAQ
1.
Q.:What is your warranty period?
A.:Our warranty is 1 year or 1200 running hours whichever comes first. But based on some special project, we can extended our warranty period.
2.
Q.:Does your generator have global warranty?
A.:Yes, We kanpor genset supply the warranty.Also most of our products like Deutz,Perkins,Cummins, Doosan,Yuchai,Weichai etc.power generator enjoy the global warranty service. And the alternator we use like Leroysomer, Stamford, marathon also enjoy the global warranty service, so you do not need to worry about the aftersales service.
3.
Q.:Can you accept OEM?
A.:Yes, we can accept OEM.
4.
Q.:What is your payment terms?
A.:We can accept T/T 30% in advance, and the balance 70% shall be paid before shipment or L/C at sight. But based on some special project and special order,we can do something on payment item.
5.
Q.:What is your delivery time?
A.:Our normal delivery time is 2 to 3 weeks. But if your order is using special engine and alternator, then the delivery time is longer.
Related Category
Send Inquiry
Please Feel free to give your inquiry in the form below. We will reply you in 24 hours.
