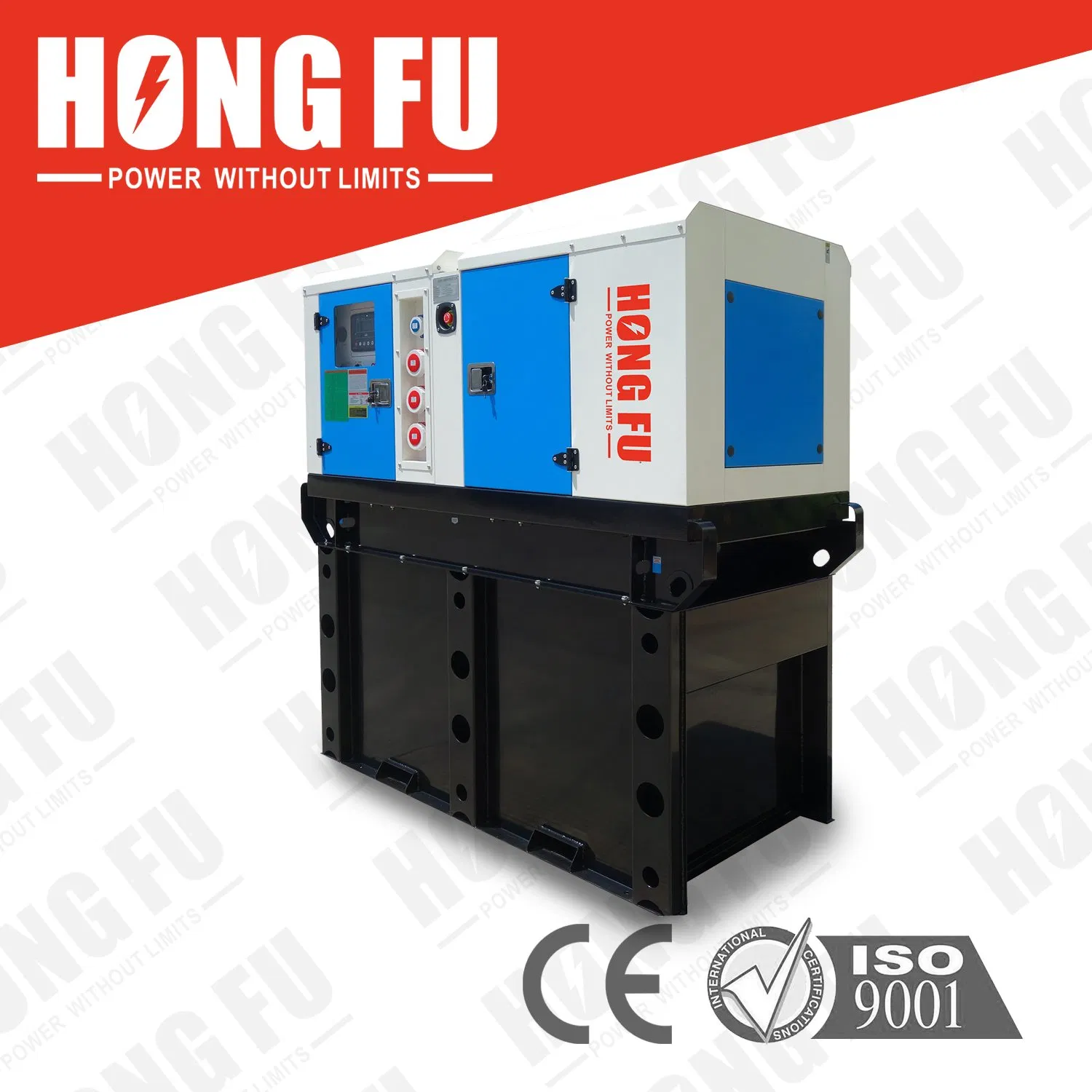

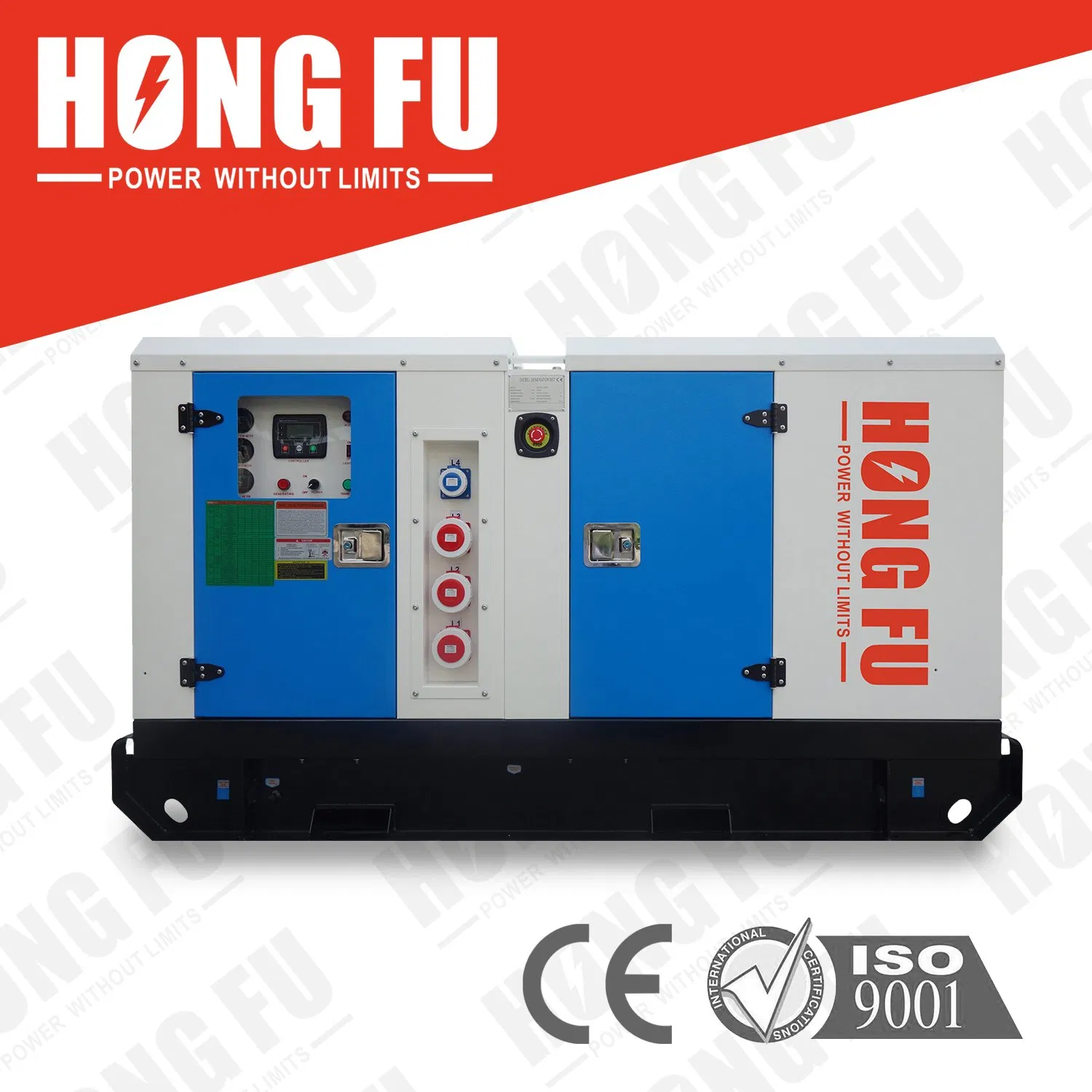

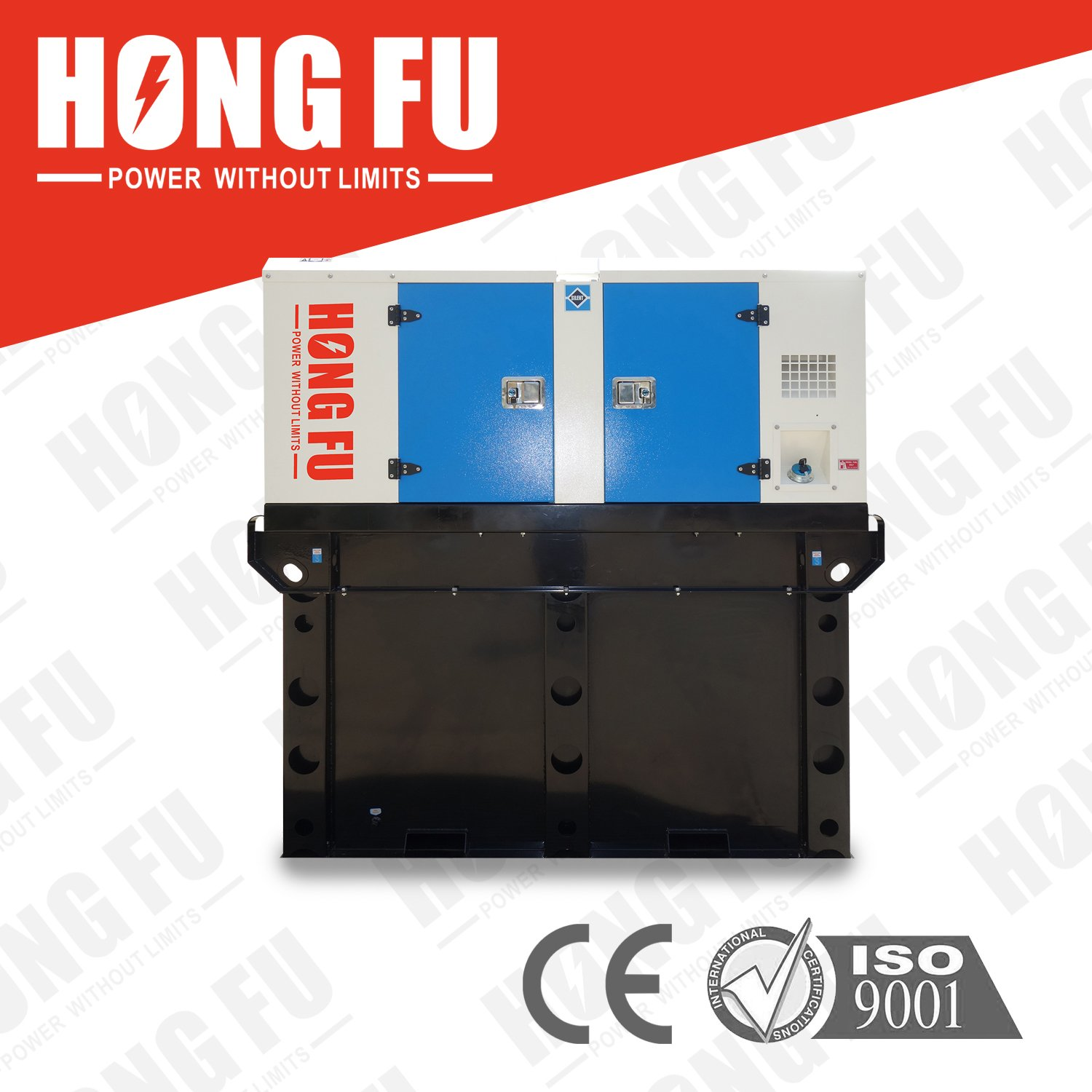

600L Fuel Tank China Xichai Engine 24kw 30kVA Fawde Diesel Generator

Product Description

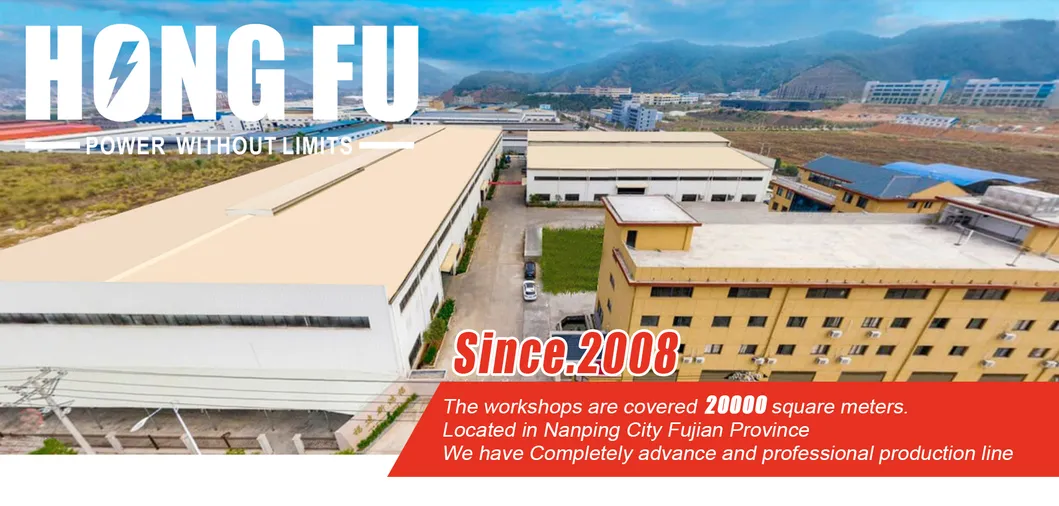

Hongfu Factory 2 workshops covered 20000 square meters:
1) 9000 square meters for canopy cutting, wrenching, welding, polishing, Automatic powder coating.
2) 3000 square meters for brushless alternator production.
3) 6000 square meters for diesel generator assembly.
4) 2000 square meters for diesel generator testing.

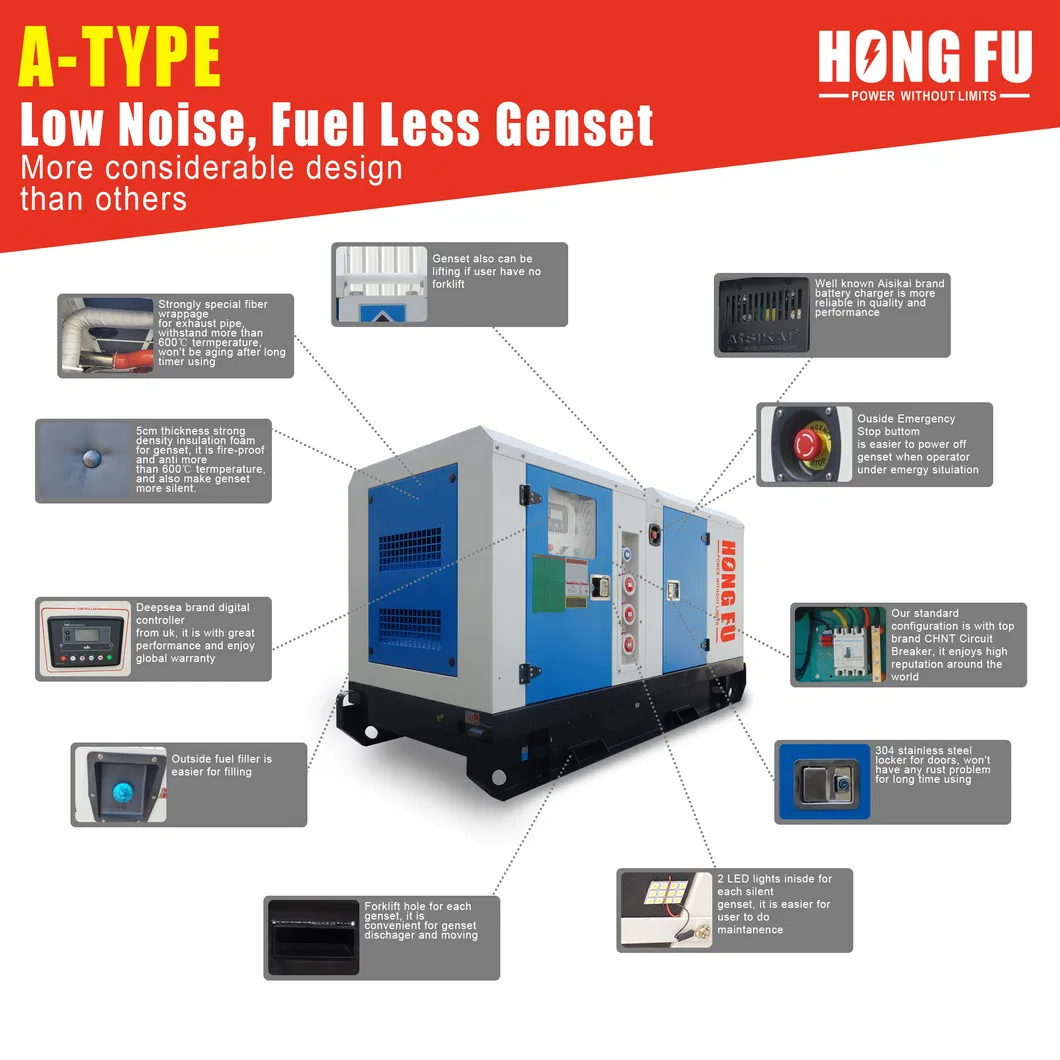

WHY CHOOSE US?

01) The generator is with 8-12 hours fuel tank, the base frame with at least 5-9.5mm thickness.

02) The canopy thickness at least 2.5mm, they are cut by Laser cutting machines, bended by automatic wrench machines and they they also will be welded and polished after wrenched.

03) Coating powder from Taiwan or Japan, All canopy coated by automatic powder painting machine, it can assure there is no any color lose in 3 years.

04) Generator current under 1000A the Circuit Breaker will be CHNT MCCB (ABB or Schneider MCCB for options).

05) Generator current exceed 1000A the Circiut Breaker will be with AISIKAI ACB ( ABB or Schneider ACB for options).

06) We use fire proof insulation foam to down the noise which withstands more than 600ºC temperature.

07) All generators with 2 silencers, it is more silent.

08) All generators with big block behind of the canopy air intake to prevent noise.

09) All generator with Standard 2 LED lights for all users to do generator's checking and maintenance.

10) All our generators with metal cover on the Turbo and intake manifold.

11) All our generators with 304# stainless steel screw, hinge and locker to prevent any rust problem.

HONGFU FAWDE DIESEL GENERATOR PERFORMANCE DATA
Specifications 50Hz 400-230V					General Specifications
GENSETS	Prime Power		Standby Power		Engine Type	Engine Power	CyL.	Bore	Stroke	DSPL	Fuel Cons.	Gov	Silent Type Compact Version
	Prime Power		Standby Power			Engine Power		Bore	Stroke	DSPL	Fuel Cons.		Dimension L x W x H	Weight
	kW	kVA	kW	kVA		kW		mm		L	L/h		mm	kg
AJ18XC	12	15	13	16	4DW81-23D-YFD10W	17	4L	85	95	2.27	≤240	Mechanical	1950x900x1150	760
AJ22XC	16	20	18	23	4DW91-29D-YFD10W	21	4L	90	100	2.54	≤230	Mechanical	1950x900x1150	800
AJ30XC	20	25	22	28	4DW92-35D-YFD10W	26	4L	90	100	2.54	≤230	Mechanical	1950x900x1150	800
AJ35XC	24	30	27	34	4DW92-39D-HMS20W	29	4L	90	100	2.54	≤230	Electronic	1950x900x1150	850
AJ35XC	24	30	27	34	4DW93-42D-YFD10W	31	4L	90	100	2.54	≤230	Mechanical	2220x950x1280	1010
AJ35XC	24	30	27	34	4DX21-45D-YFD10W	33	4L	90	100	2.54	≤220	Mechanical	2220x950x1280	1010
AJ42XC	31	39	34	43	4DX21-53D-HMS20W	37	4L	102	118	3.86	≤225	Electronic	2220x950x1280	1150
AJ42XC	30	38	33	41	4DX22-50D-YFD10W	37	4L	102	118	3.86	≤220	Mechanical	2300x1000x1400	1250
AJ55XC	40	50	44	55	4DX22-65D-HMS20W	48	4L	102	118	3.86	≤220	Electronic	2300x1000x1400	1280
AJ55XC	40	50	44	55	4DX23-65D-YFD10W	48	4L	102	118	3.86	≤215	Mechanical	2400x1000x1400	1280
AJ70XC	50	63	55	69	4DX23-78D-HMS20W	57	6L	102	118	3.86	≤215	Electronic	2400x1000x1400	1260
AJ80XC	55	69	61	76	4110/125Z-09D-YFD10W	65	6L	110	125	4.75	≤215	Electronic	2600x1080x1450	1420
AJ95XC	68	85	75	94	CA4F2-12D-YFD10W	84	6L	110	115	4.75	≤205	Electronic	2600x1080x1450	1470
AJ110XC	80	100	88	110	6CDF2D-14D-YFD10W	96	6L	110	115	6.55	≤202	Electronic	3100x1130x1650	1910
AJ140XC	100	125	110	138	CA6DF2-17D-YFD10W	125	6L	110	125	7.13	≤202	Electronic	3100x1130x1650	1960
AJ165XC	120	150	132	165	CA6DF2-19D-YFD11W	140	6L	110	125	7.13	≤200	Electronic	3100x1130x1650	1960
AJ200XC	150	188	165	206	CA6DL1-24D-VP1GW	176	6L	110	135	7.7	≤195	Electronic	3100x1130x1650	1960
AJ200XC	150	188	165	206	CA6DL1-24D-VP1GW	176	6L	110	135	7.7	≤195	GAC	3100x1130x1650	1960
AJ250XC	180	225	198	248	CA6DL2-27D-VP1GW	205	6L	112	145	8.57	≤195	Electronic	3450x1180x2150	2800
AJ250XC	180	225	198	248	CA6DL2-27D-VP1GW	205	6L	112	145	8.57	≤195	Electronic	3450x1180x2150	2800
AJ275XC	200	250	220	275	CA6DL2-30D-YVP1GW	227	6L	112	145	8.57	≤195	Electronic	3450x1180x2150	3000
AJ275XC	200	250	220	275	CA6DL2-30D-YVP1GW	227	6L	112	145	8.57	≤195	Electronic	3450x1180x2150	3000
AJ345XC	250	313	275	344	CA6DM2J-39D	287	6L	123	155	11.04	≤189	ECU	3900x1400x2250	3800
AJ345XC	250	313	275	344	CA6DM2J-39D	287	6L	123	155	11.04	≤189	ECU	3900x1400x2250	3800
AJ385XC	270	338	297	371	CA6DM2J-41D	300	6L	123	155	11.04	≤195	Electronic	3900x1400x2250	3900
AJ385XC	270	338	297	371	CA6DM2J-41D	300	6L	123	155	11.04	≤195	Electronic	3900x1400x2250	3900
AJ415XC	300	375	330	413	CA6DN1J-45D	332	6L	131	155	12.53	≤195	Electronic	3900x1400x2250	3980
AJ415XC	300	375	330	413	CA6DN1J-45D	332	6L	131	155	12.53	≤191	ECU	3900x1400x2250	3980

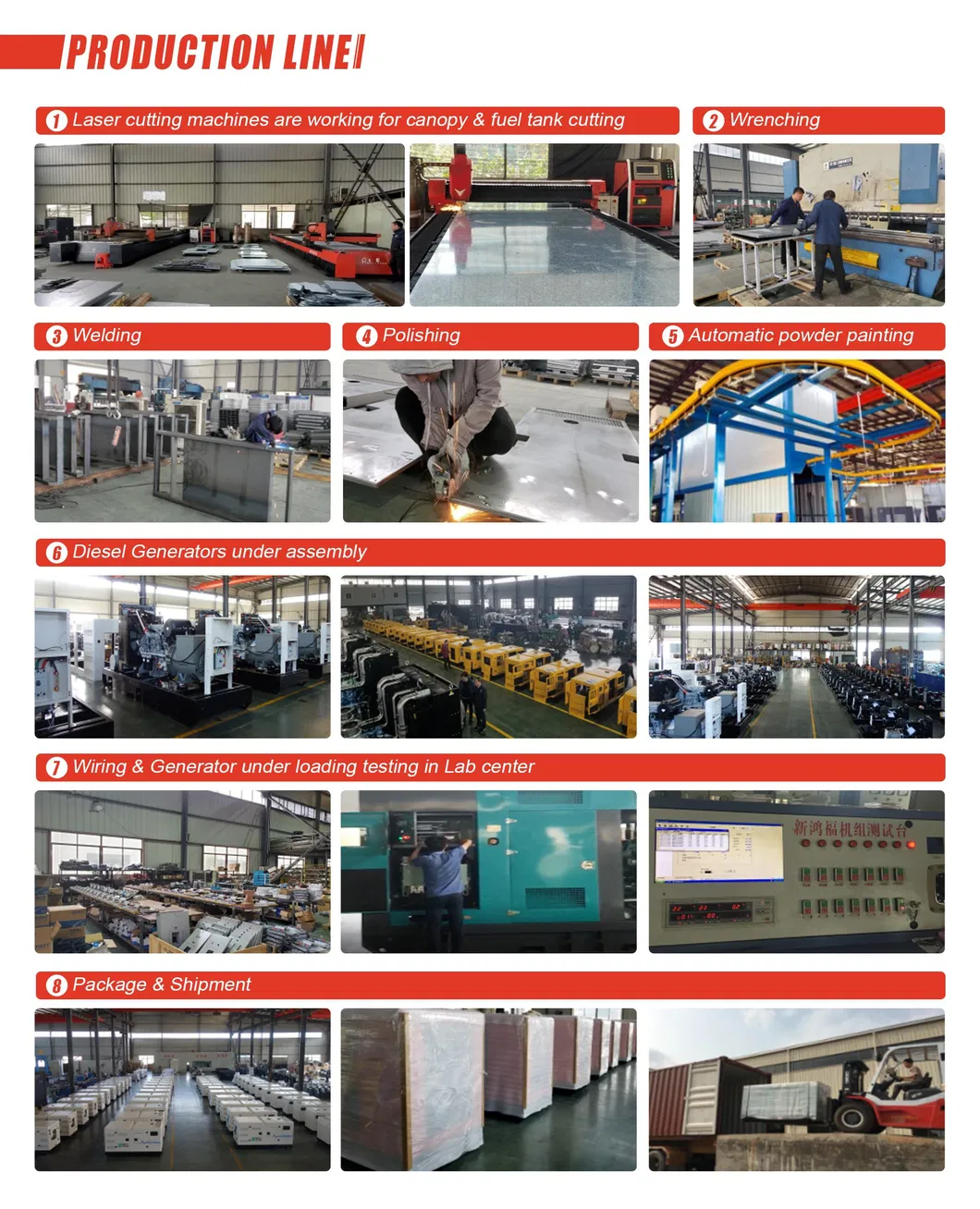

Hongfu generator factory do every production segments: from Cutting, Wrenching, Polishing, Welding, Powder coating, Fuel tank leakage testing, Assembly, Wiring, Generator loaded testing. In order to assure the generator with high quality and stay in excllent performance, we also produce HONGFU BRAND brushless Alternator <IP: 23 / H CLASS > for our generator oder use).

HONGFU GENERATOR TESTING ITEMS:

01) Parts faults testing

02) Fuel tank pressure testing

03) Bolt tightening torque testing

04) Painting thickness testing

05) Voltage bearing and insulation testing

06) Speed performance testing

07) Oil pressure testing

08) Smoke testing (up and down loading testing frequently )

09) Noise testing

10) 1 hour testing for 25% / 50% / 75% / 100% / 110% loaded power to test the fuel consumption and control systems, alarm and shut-down protection

600L Fuel Tank China Xichai Engine 24kw 30kVA Fawde Diesel Generator

Hongfu Power are closely working with wolrd-wide well-known brands, Such as Cummins, Perkins, Deutz, FPT, VOLVO, Doosan, Yanmar, Kubota, Stamford, Leroy Somer, Meccalte, Marathon, Deepsea, Comap, ABB, Schneider etc. they are all with Global warranty and always with prompt and timely service.

Except that, we also provide our Chinese local top brand but economic power generator solution brands, Such as FAW, Weichai, LOVOL, Yangdong, Chinese Stamford, Smartgen, ASIKAI, CHNT etc.

Hongfu Company always providing most suitable power solutions to all clients against your needs.

Hongfu Power, Power without limits.
