Home > Products > Diesel Generator > 5KW Soundproof SIlent Diesel Generator Set KDE6500T from KAIAO POWER
5KW Soundproof SIlent Diesel Generator Set KDE6500T from KAIAO POWER
5KW Silent Diesel Generator KDE6500T1. CE&ISO9001 approved, powered by KAIAO advanced air-cooled diesel engine2. Ideal for home emergency use or as standby power supply3. Large fuel tank, ensuring hours of continuous output4. Advanced direct fuel injection system5. A variety of specially-designe......
Send Inquiry
Product Description

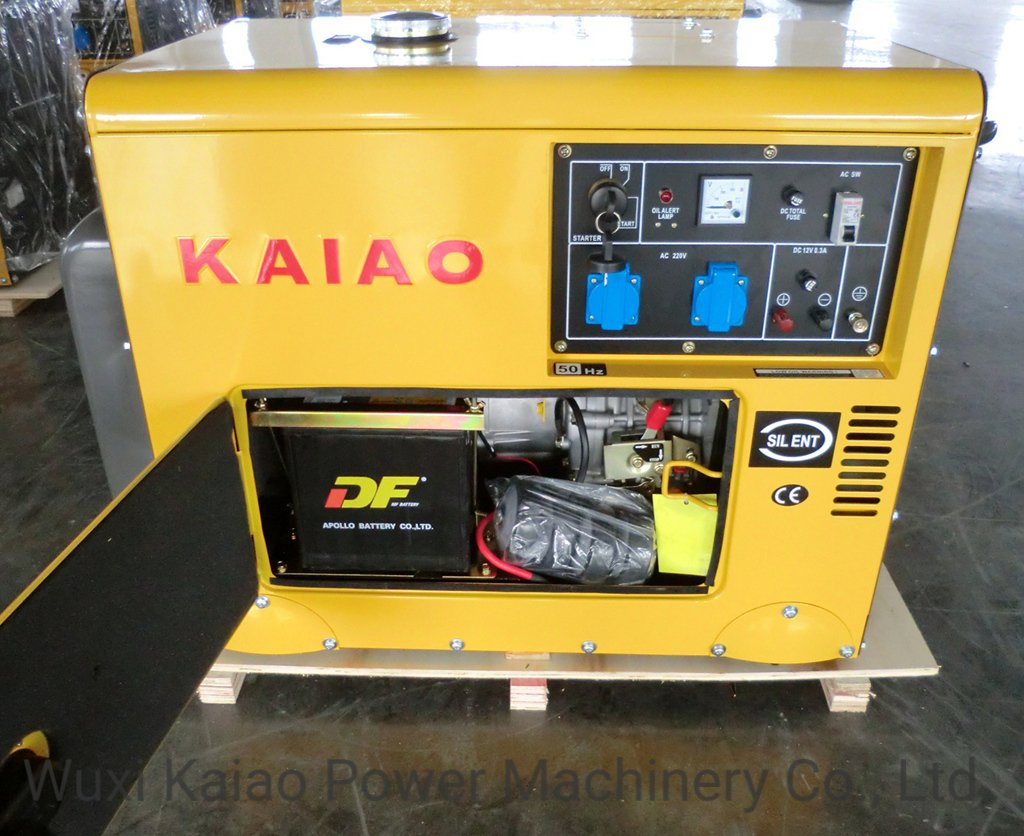

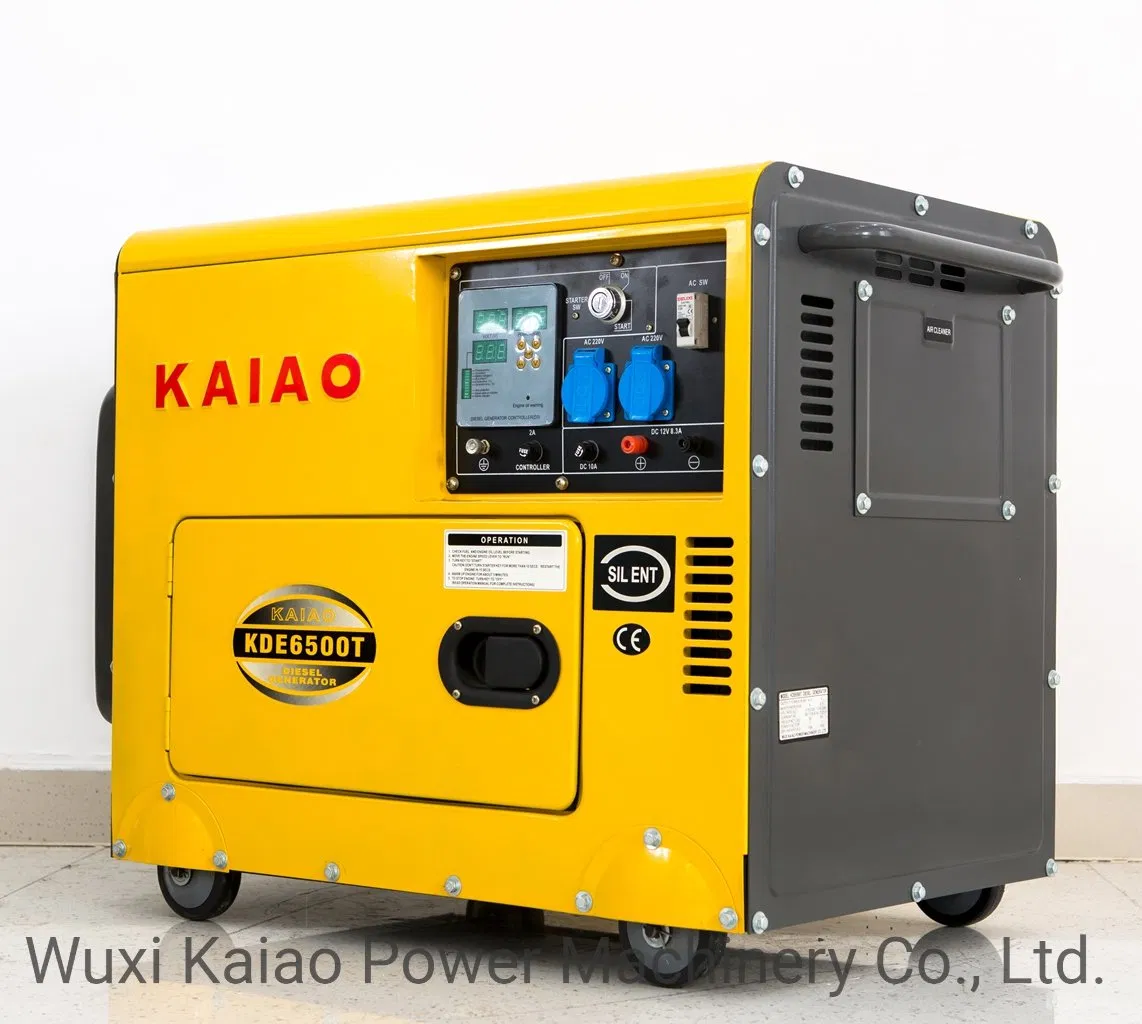

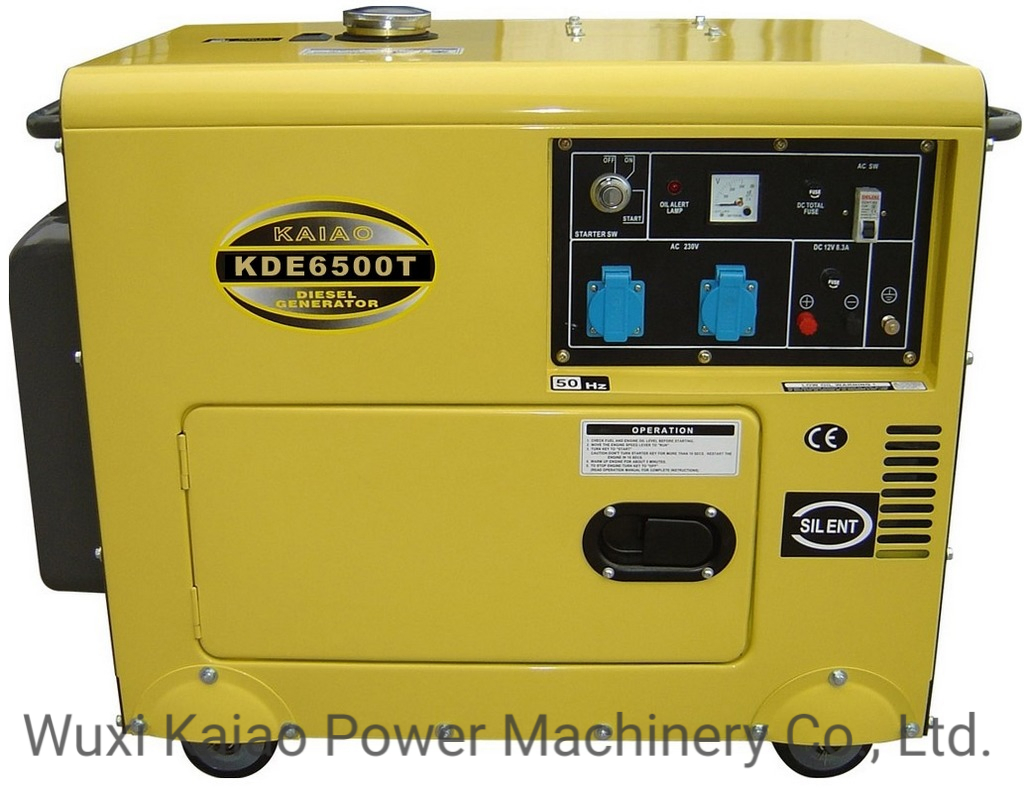

5KW Silent Diesel Generator KDE6500T
1. CE&ISO9001 approved, powered by KAIAO advanced air-cooled diesel engine
2. Ideal for home emergency use or as standby power supply
3. Large fuel tank, ensuring hours of continuous output
4. Advanced direct fuel injection system
5. A variety of specially-designed control panels available for different markets
6. New automatic voltage regulator ensures steady voltage output
7. Low oil pressure alarm system, which can shut down the engine automatically
8. Electric start system(typeE)ensures rapid starts of the set.
9. Integrated cabinet ensures the set running silently.
Wuxi Kaiao Power Machinery Co., Ltd. Establishes the strategic policy emphasizing on quality and service, and the managemeng concept "cooperating, sincerity, mutualbenefit and enterprising". Create value for both our customers and us through innovation!
1. CE&ISO9001 approved, powered by KAIAO advanced air-cooled diesel engine
2. Ideal for home emergency use or as standby power supply
3. Large fuel tank, ensuring hours of continuous output
4. Advanced direct fuel injection system
5. A variety of specially-designed control panels available for different markets
6. New automatic voltage regulator ensures steady voltage output
7. Low oil pressure alarm system, which can shut down the engine automatically
8. Electric start system(typeE)ensures rapid starts of the set.
9. Integrated cabinet ensures the set running silently.
Wuxi Kaiao Power Machinery Co., Ltd. Establishes the strategic policy emphasizing on quality and service, and the managemeng concept "cooperating, sincerity, mutualbenefit and enterprising". Create value for both our customers and us through innovation!
| Diesel generator set KDE6500T | ||
| Model | KDE6500T | |
| Frequency (Hz) | 50 | 60 |
| Output power (KVA) | 4.5 | 5 |
| Max. Power(KVA) | 5 | 5.5 |
| Voltage (V) | 115/230 | 120/240 |
| Current (A) | 39.1/19.6 | 41.7/20.8 |
| Engine speed (r/min) | 3000 | 3600 |
| Phase | Single | |
| Power factor(cosφ ) | 1 | |
| Excitation system | Self-excited constant voltage | |
| Noise level (7m) | DB (A): 72 | |
| Fuel tank capacity (L) | 12.5 | |
| Structure | Silent | |
| Panel | Ordinary | |
| Outputsocket | Two | |
| DC12V output | Terminal post | |
| Engine Model | KA186FA | |
| Bore*stroke (mm) | 86 *72 | |
| Displacement (L) | 0.418 | |
| Power (KW) | 5.7/3000 | 6.3/3600 |
| Fuel consumption rate (g. KW/h) | 275.1 | 281.5 |
| Compression ratio | 19 | |
| Lubrication system | Spring | |
| Engine starting system | Electric starter | |
| Diesel oil model | Summer: 0#, winter: -10# | |
| Lube oil model | SAE10W-30 (above CD grade) | |
| Lube oil capacity (L) | 1.65 | |
| Battery capacity(V-AH) | 12V-36Ah | |
| Net weight (KG) | 170 | |
| Dimension(L*W*H) | 912× 532× 740 | |
