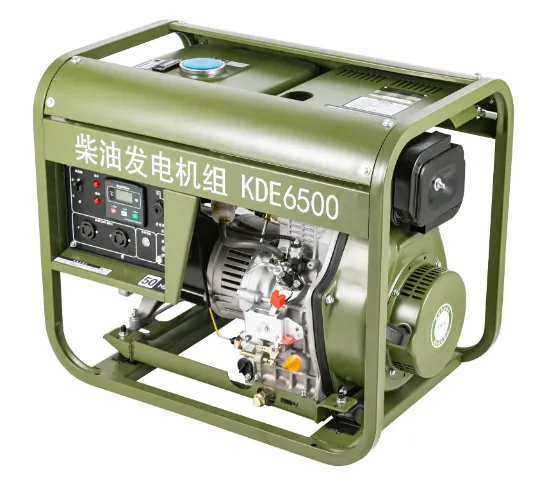

5kw Diesel Generator Open Type with CD186f Diesel Engine
KDE6500EGENERATOR SETFrequency(Hz)50Rated Power(Kva)4.5Max. Power(Kva)5Voltage(V)220Current(A)22.7Fuel Tank Capacity(L)12.5Running Time(Hr)8Noise Level behind 7 Meters(Dba)79DC Output(V/A)12/8.3Battery(Ah)30ENGINEEngine TypeSingle cylinder,vertical,4-stroke,air-cooledEngineCD186FA/EPower Output(Kw)7......
Send Inquiry
Product Description
| KDE6500E | ||
| GENERATOR SET | Frequency(Hz) | 50 |
| Rated Power(Kva) | 4.5 | |
| Max. Power(Kva) | 5 | |
| Voltage(V) | 220 | |
| Current(A) | 22.7 | |
| Fuel Tank Capacity(L) | 12.5 | |
| Running Time(Hr) | 8 | |
| Noise Level behind 7 Meters(Dba) | 79 | |
| DC Output(V/A) | 12/8.3 | |
| Battery(Ah) | 30 | |
| ENGINE | Engine Type | Single cylinder, vertical, 4-stroke,air-cooled |
| Engine | CD186FA/E | |
| Power Output(Kw) | 7.1 | |
| Start Method | Electric | |
| Displacement(Cc) | 418 | |
| Oil Capacity(L) | 1.65 | |
| ALTERNATOR | Rated Power(Kva) | 5 |
| Power Factor(CosΦ) | 1 | |
| Voltage Regulation | AVR | |
| LOG.DATA | N.W.(Kg) | 115 |
| G.W.(Kg) | 117 | |
| Packing Size(Mm) | 740*510*620 | |
Engine
| New Testing Equipment And Spare parts clearing equipment | ||

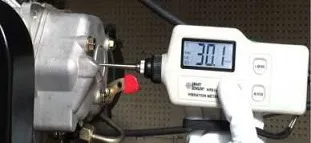

| Others | up and down speed 37.5mm/s  | left and right speed 20.9mm/s  |
| Adopt precise balance equipment, vibration decreased. Adopt precise balance equipment, the up and down vibration can decrease to 19%, left and right side vibration can decrease to 35%, the engine's vibration decreased to 27%. | ||
| Ours | up and down speed 30.1mm/s  | left and right speed 13.4mm/s  |

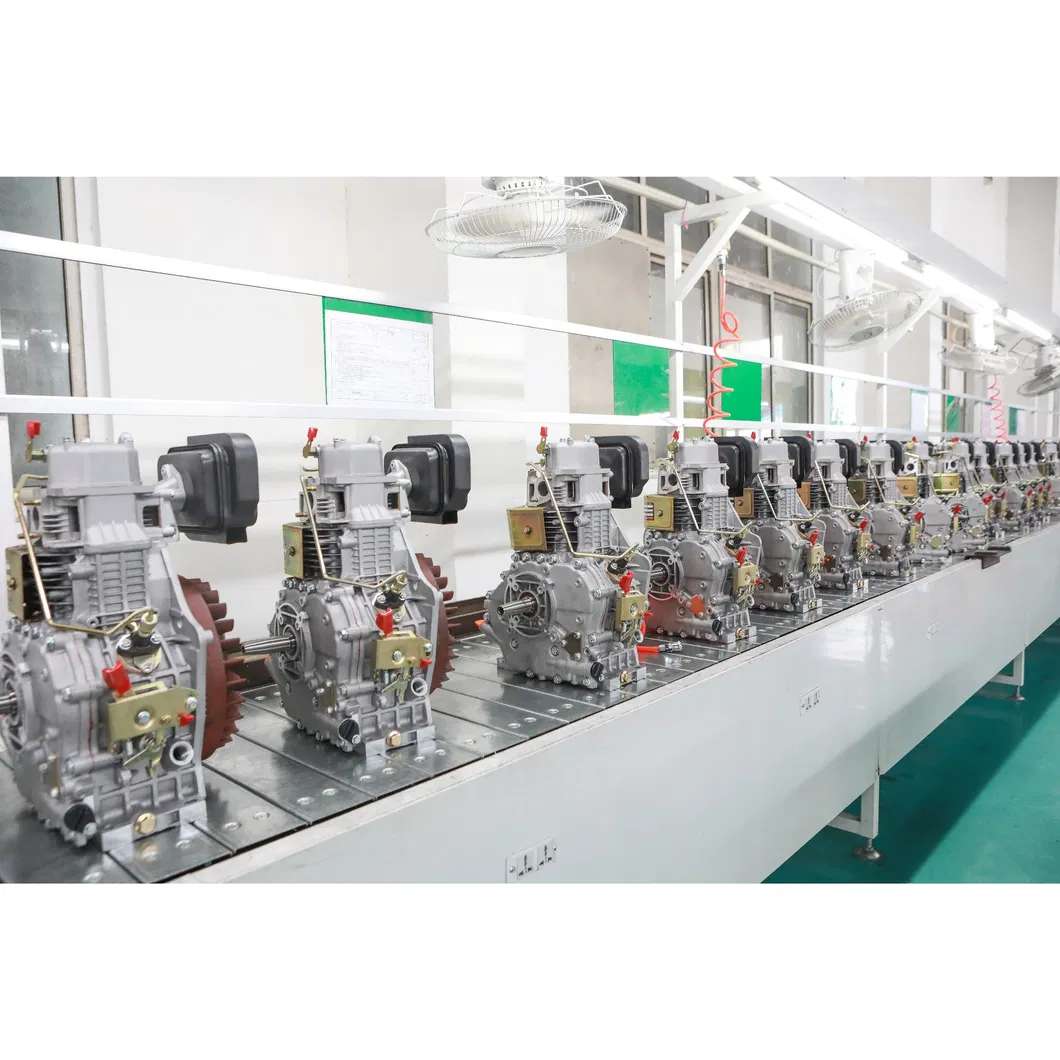

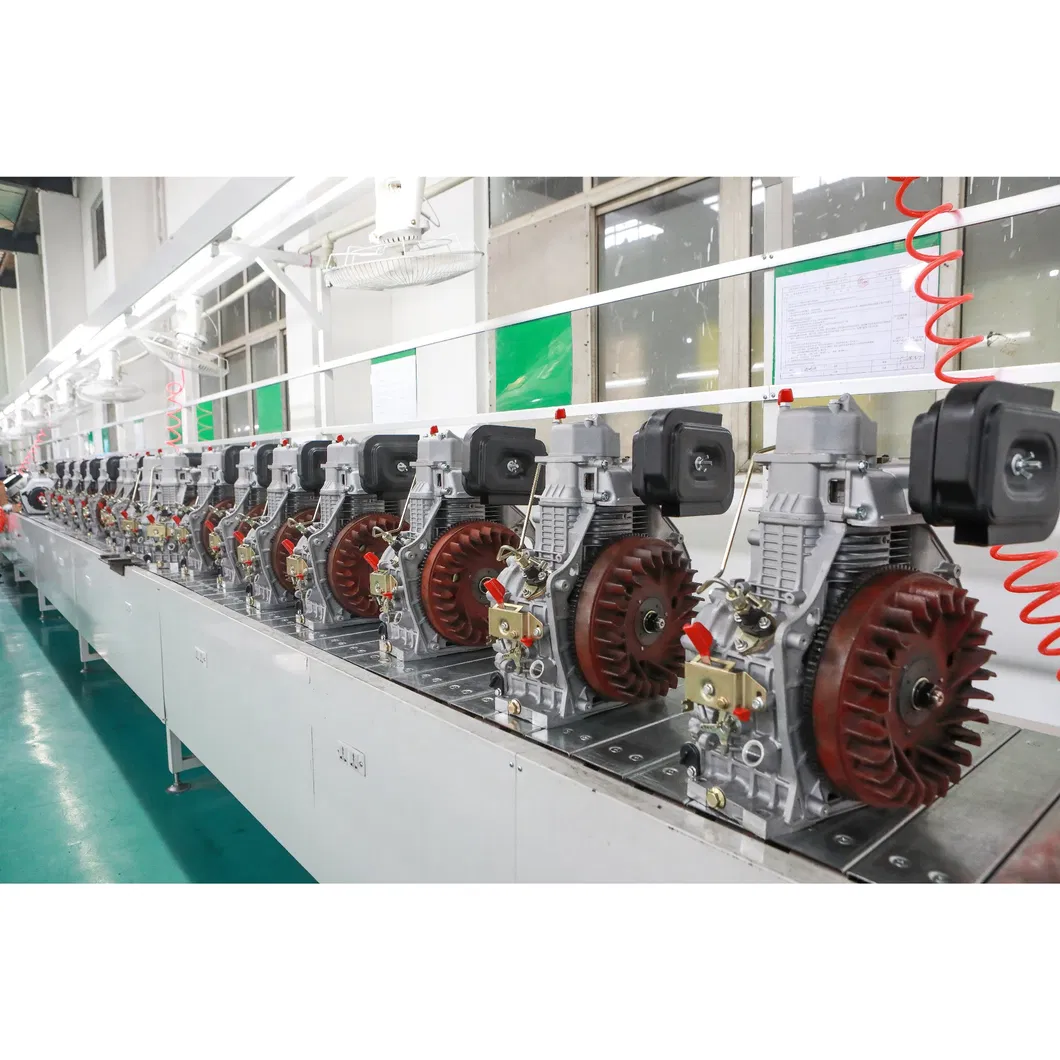

Production Line

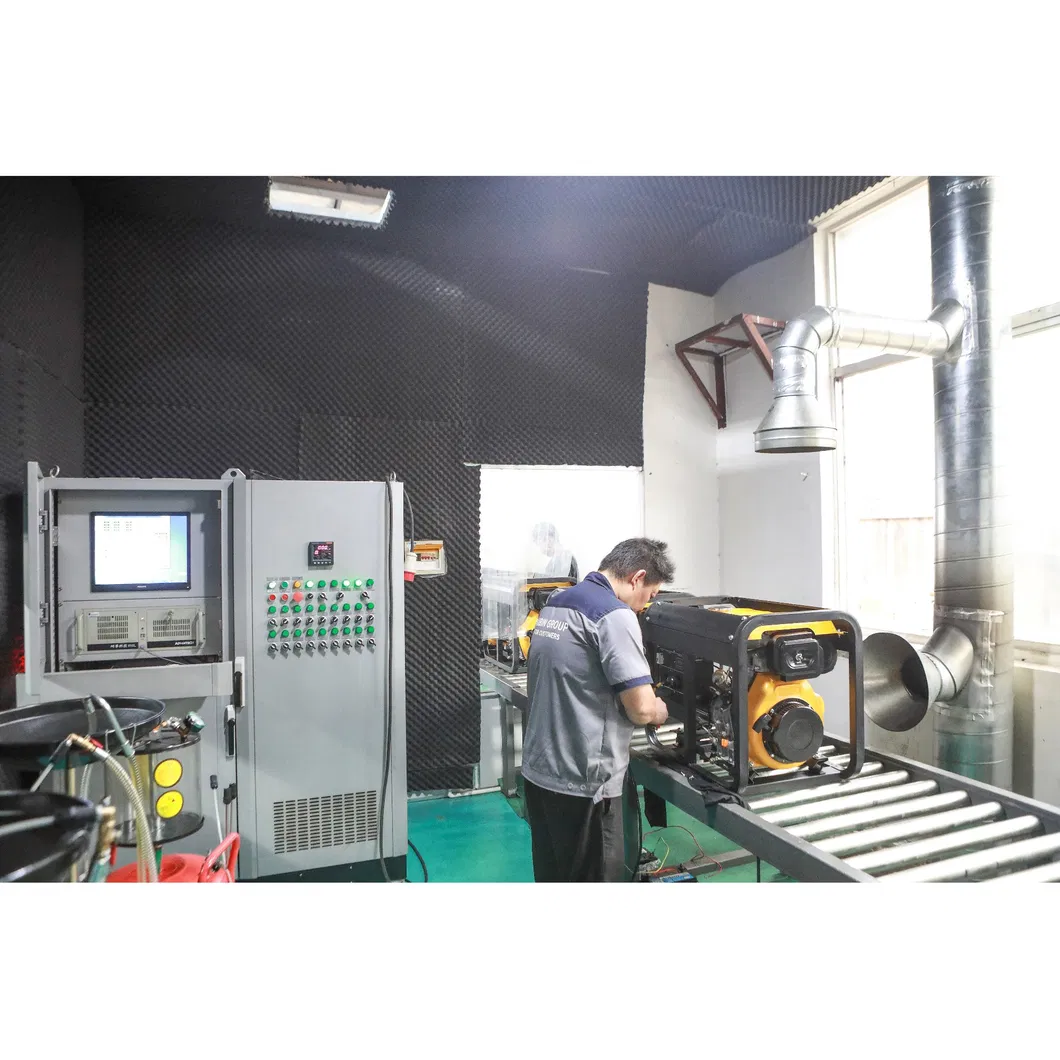

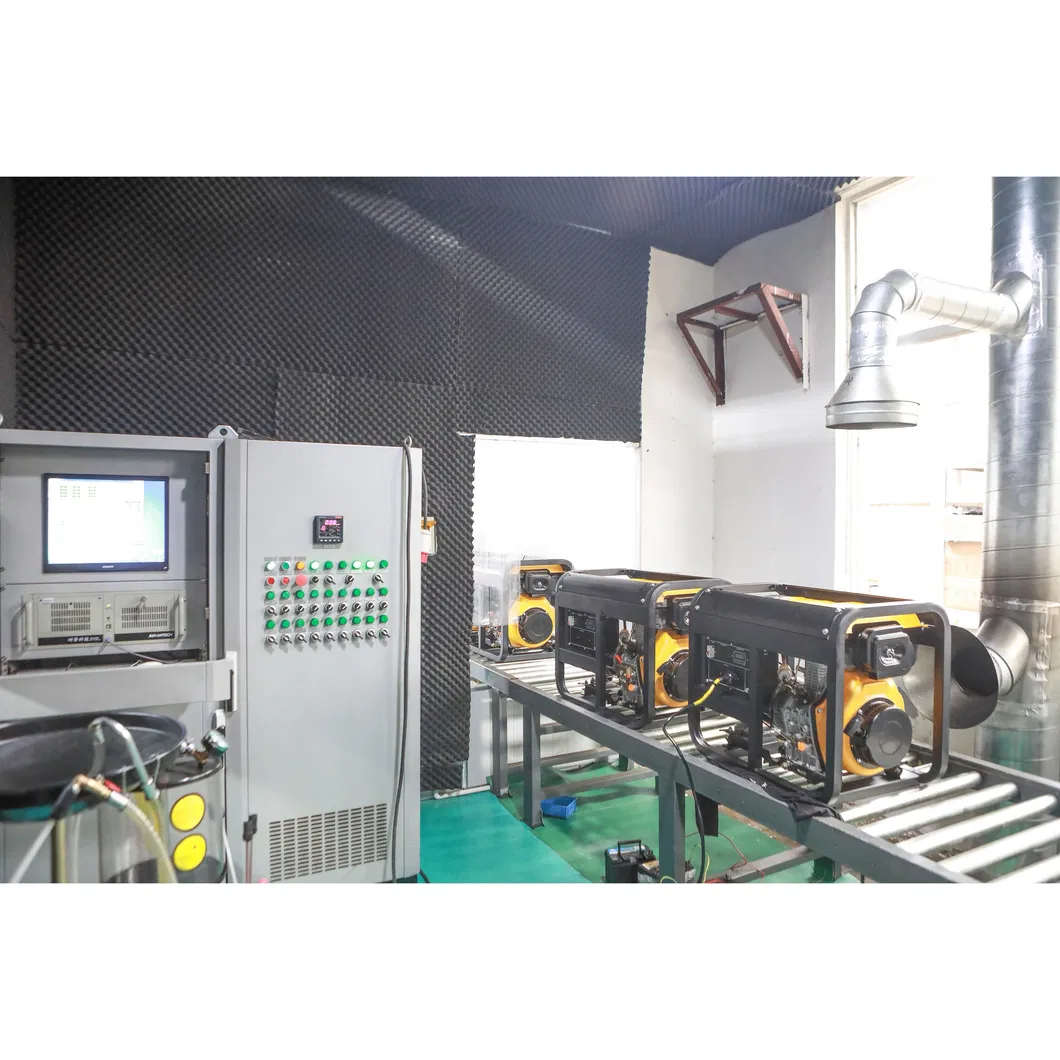

Testing Room

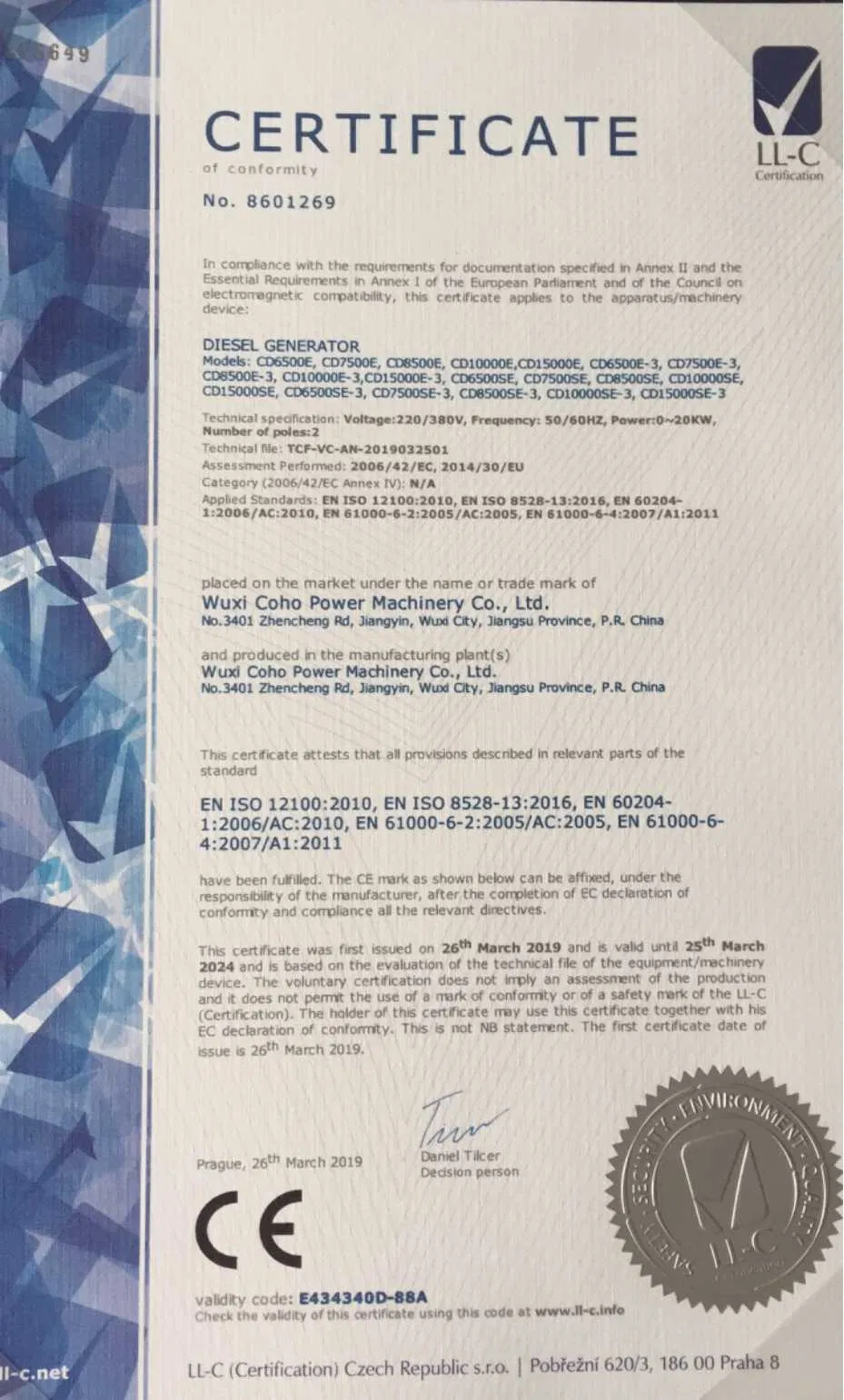

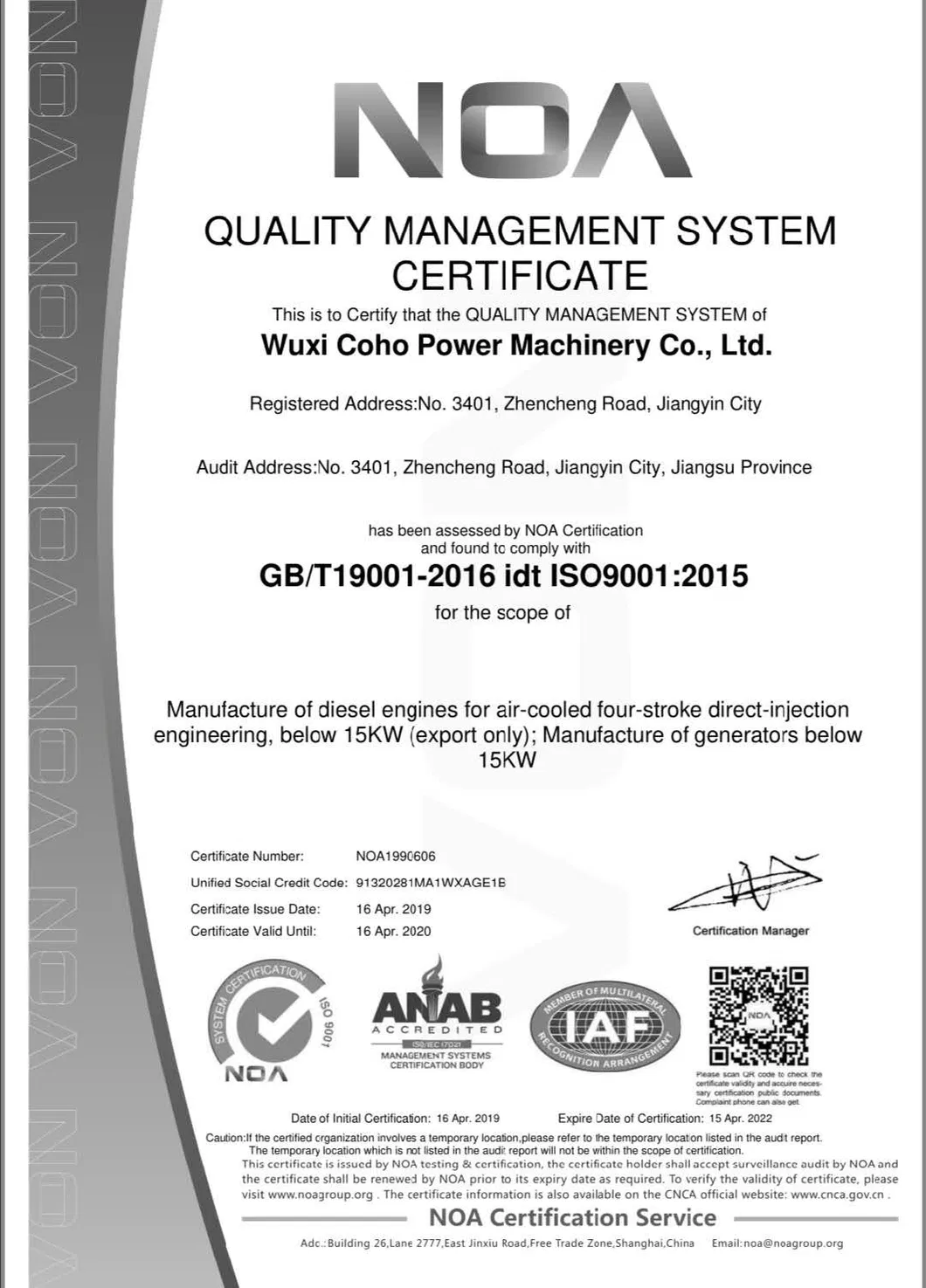

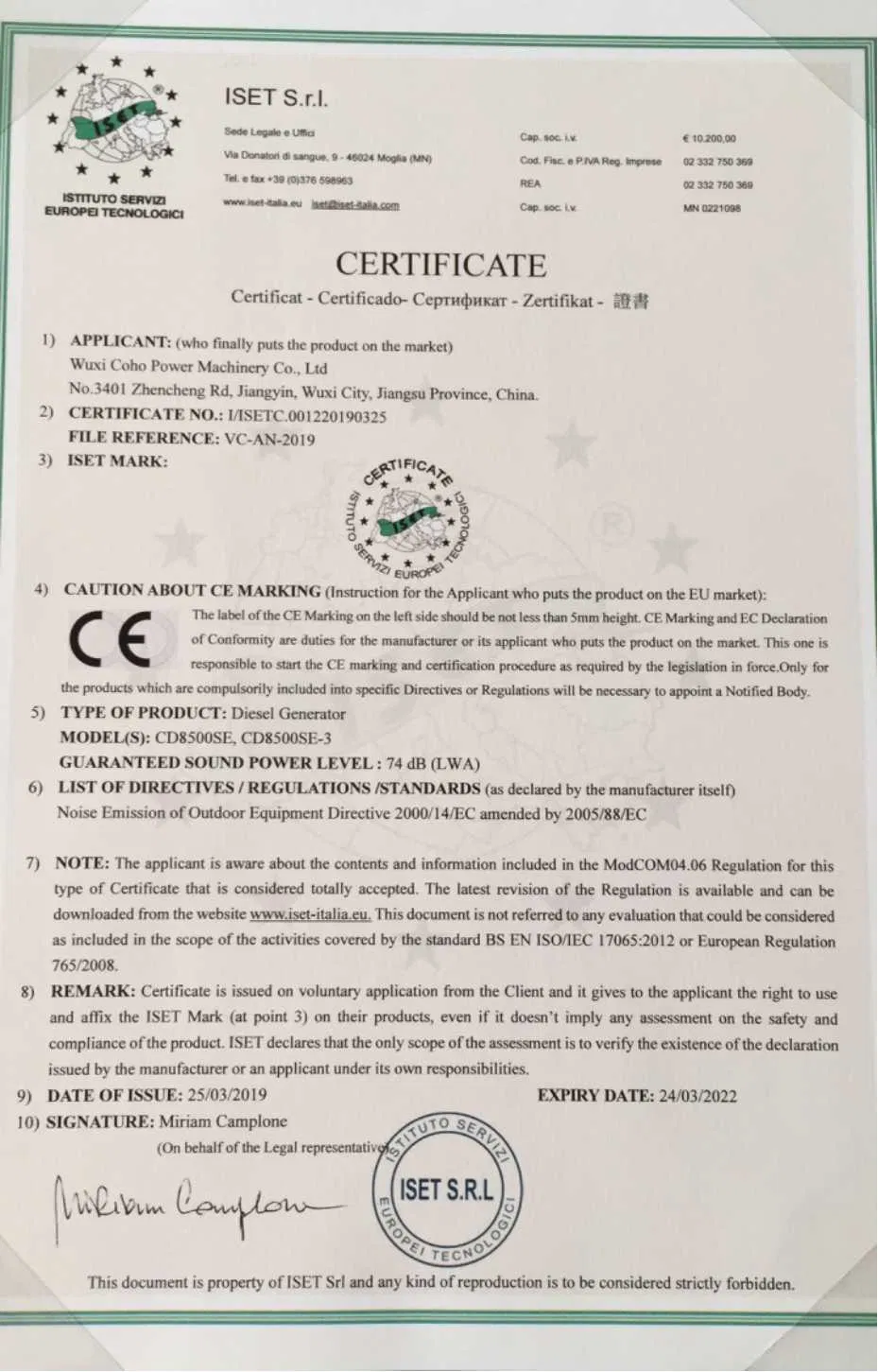

Certificates
