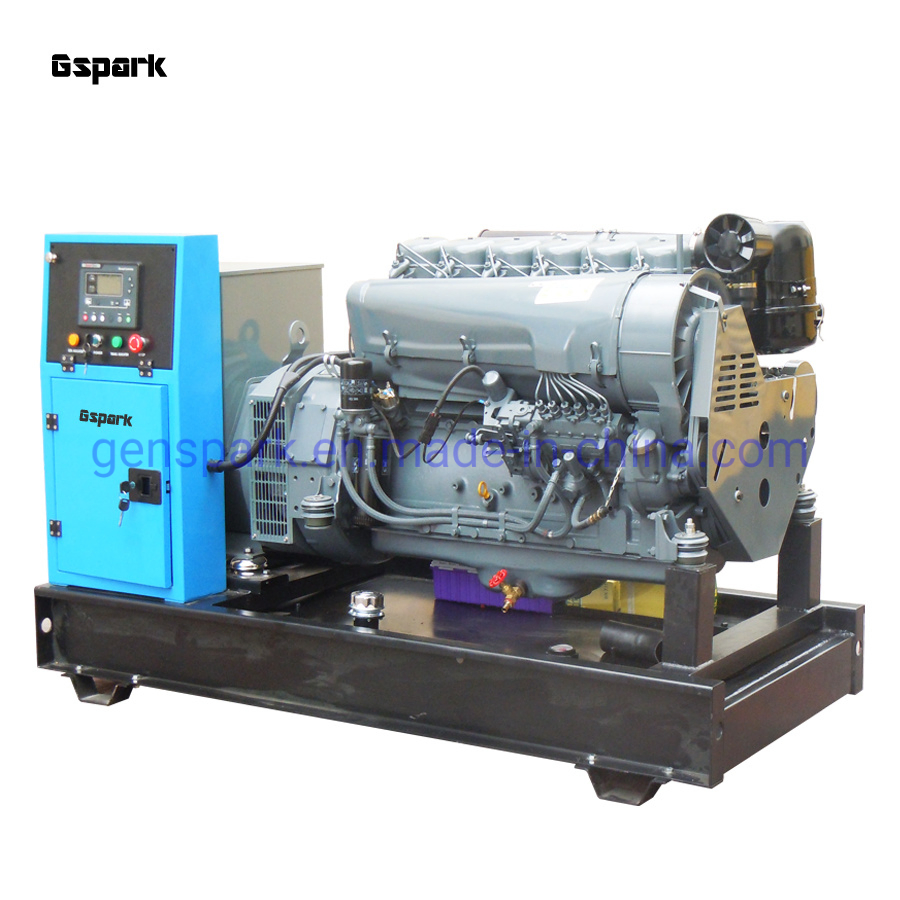

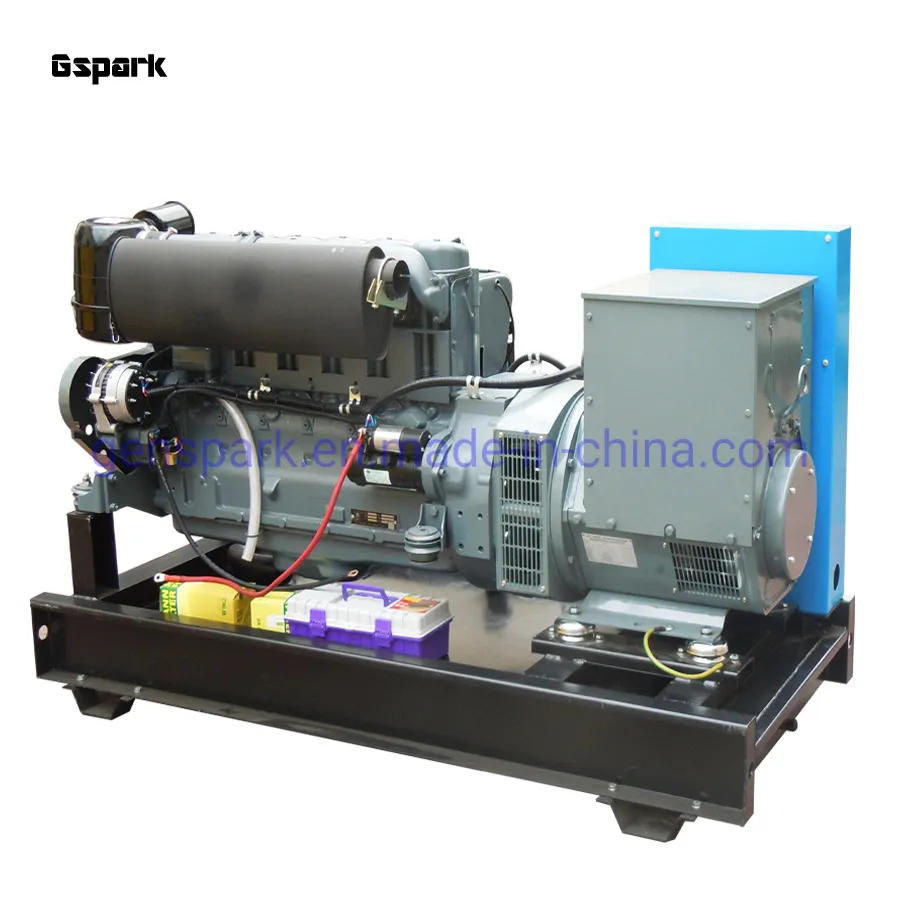

50Hz 3 Phase Open Type Beinei Deutz Engine Diesel Generator Set
Air Cooled Deutz Engine Generator Set GF/GFS-AD Series 50Hz Air-Cooled Deutz Series Generator Set PerformanceEngine SpecificationOpen GensetGenset Model50Hz OutputEngine ModelPower(Kw)Fuel Comsuption(100% Load)Cylingder NoDimensionWeight50HzPrime StandbyKWg/kw.h L*W*H (mm)KGKVAKWKVAKWGF/GFS-AD15151......
Send Inquiry
Product Description
Air Cooled Deutz Engine Generator Set GF/GFS-AD Series
 50Hz Air-Cooled Deutz Series | ||||||||||
| Generator Set Performance | Engine Specification | Open Genset | ||||||||
| Genset Model | 50Hz Output | Engine Model | Power(Kw) | Fuel Comsuption(100% Load) | Cylingder No | Dimension | Weight | |||
| 50Hz | Prime | Standby | KW | g/kw.h | L*W*H (mm) | KG | ||||
| KVA | KW | KVA | KW | |||||||
| GF/GFS-AD15 | 15 | 12 | 17 | 13 | F2L912D | 14 | 238 | 2 | 1200*800*1100 | 600 |
| GF/GFS-AD25 | 25 | 20 | 27 | 22 | F3L912D | 24 | 232 | 3 | 1400*800*1100 | 700 |
| GF/GFS-AD38 | 35 | 28 | 38 | 31 | F4L912D | 32 | 228 | 4 | 1600*800*1100 | 750 |
| GF/GFS-AD43 | 42.5 | 34 | 47 | 36 | F4L912TD | 41 | 228 | 6 | 1600*800*1100 | 780 |
| GF/GFS-AD50 | 50 | 40 | 55 | 44 | BF4L913D | 47 | 229 | 6 | 1600*800*1100 | 800 |
| GF/GFS-AD50 | 50 | 40 | 55 | 44 | F6L912D | 48 | 228 | 6 | 1800*800*1100 | 880 |
| GF/GFS-AD56 | 56 | 45 | 59 | 48 | F6L913D | 51 | 228 | 6 | 1800*800*1100 | 950 |
| GF/GFS-AD63 | 62.5 | 50 | 69 | 55 | F6L912TD | 61 | 228 | 6 | 1800*800*1100 | 980 |
| GF/GFS-AD75 | 75 | 60 | 82.5 | 66 | BF6L913D | 74 | 228 | 6 | 1900*800*1150 | 1050 |
| GF/GFS-AD94 | 94 | 75 | 102 | 82 | BF6L913CD | 84 | 221 | 6 | 1900*800*1150 | 1150 |

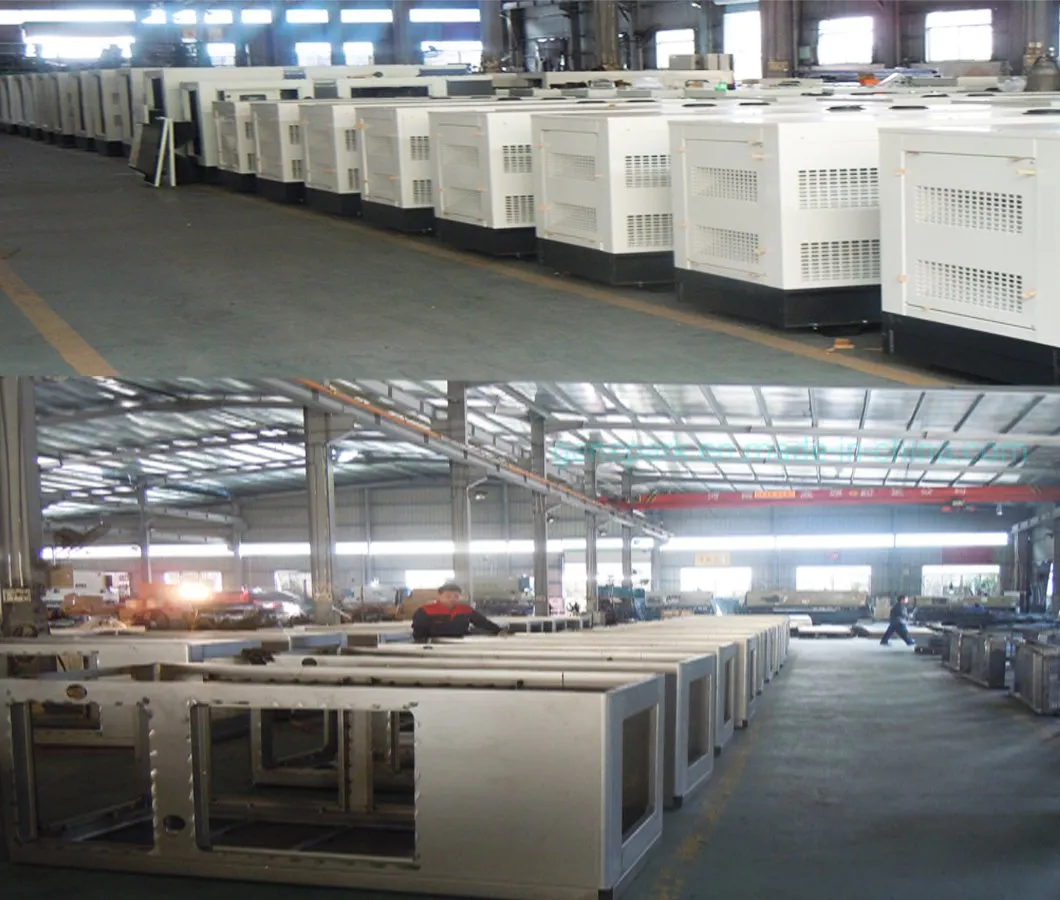

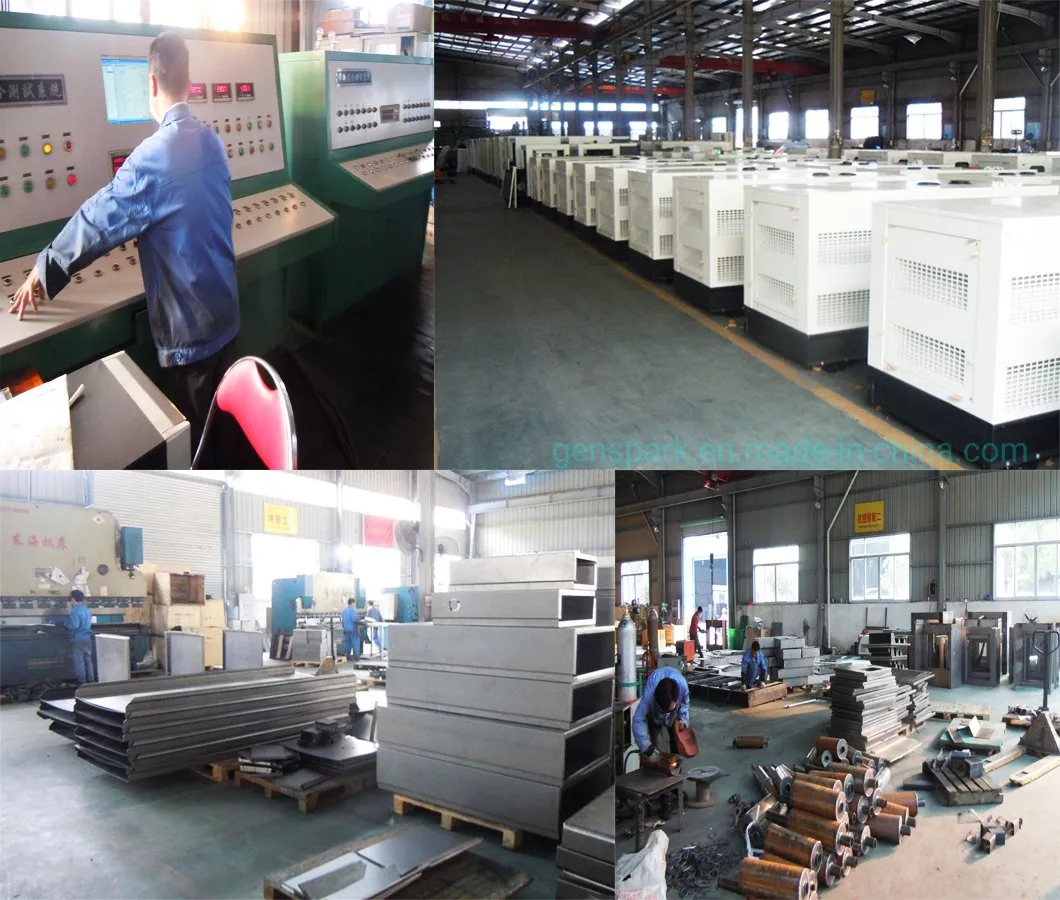

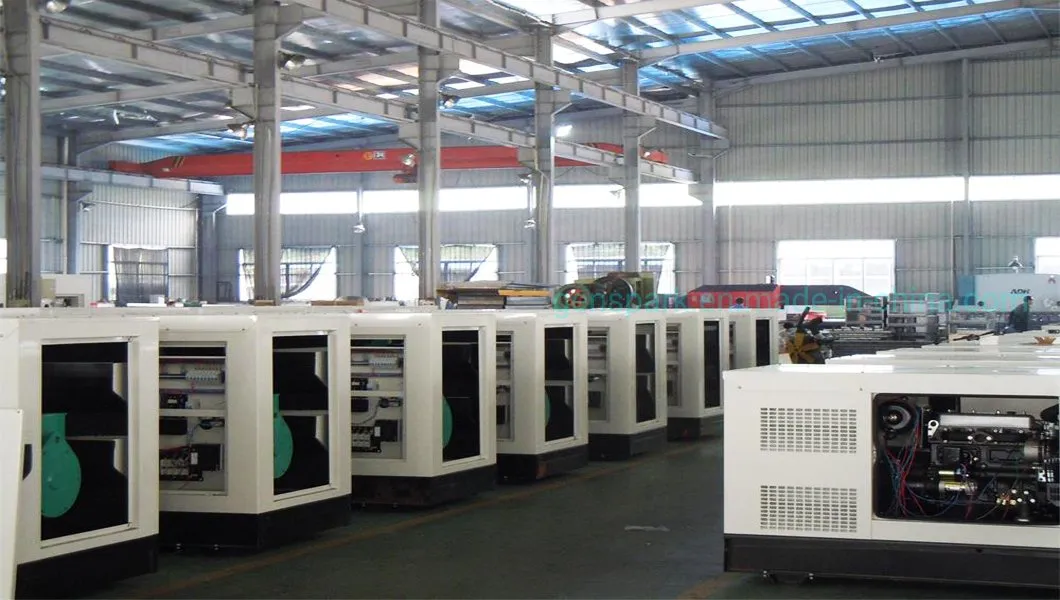

Procution Lines
Customers visited and be visited

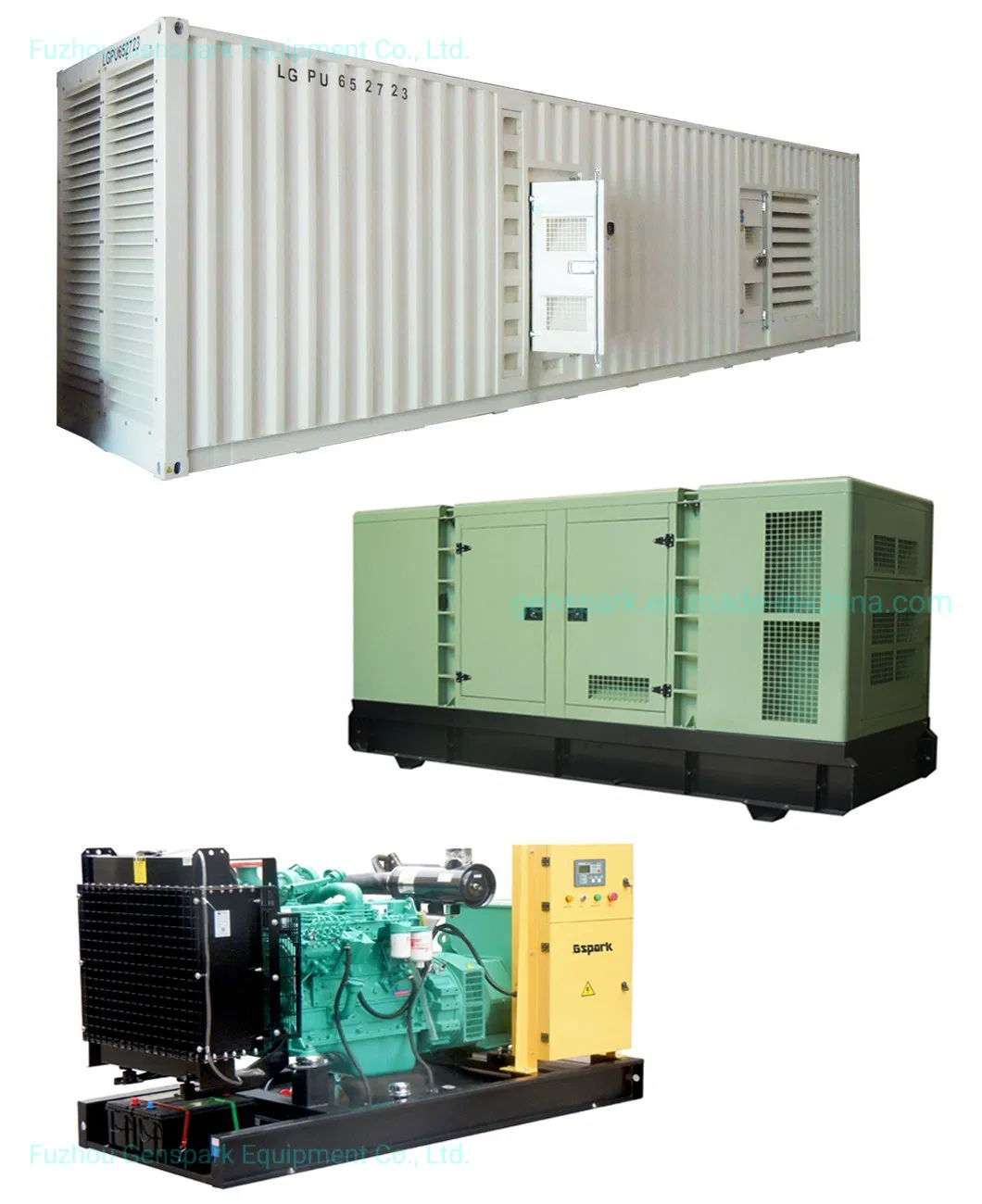

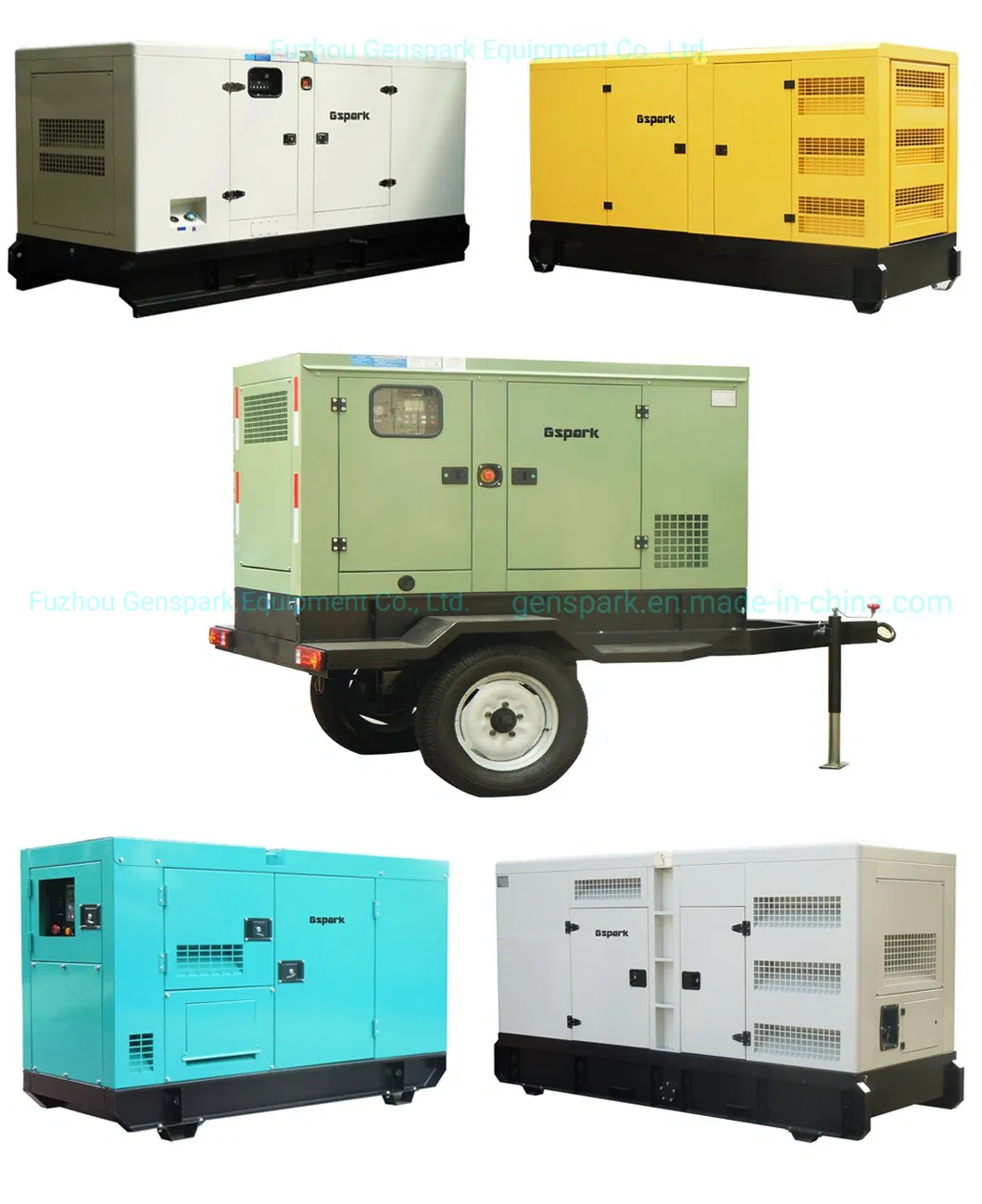

Diesel Generator Set Models

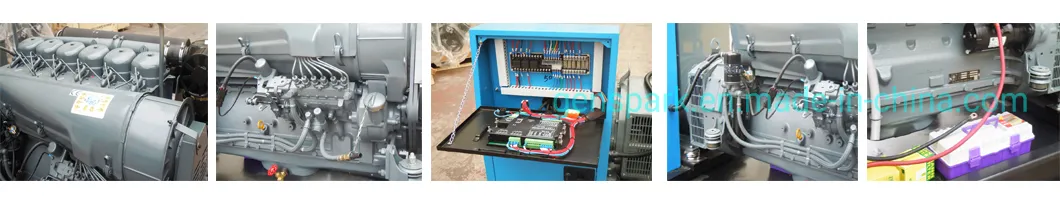

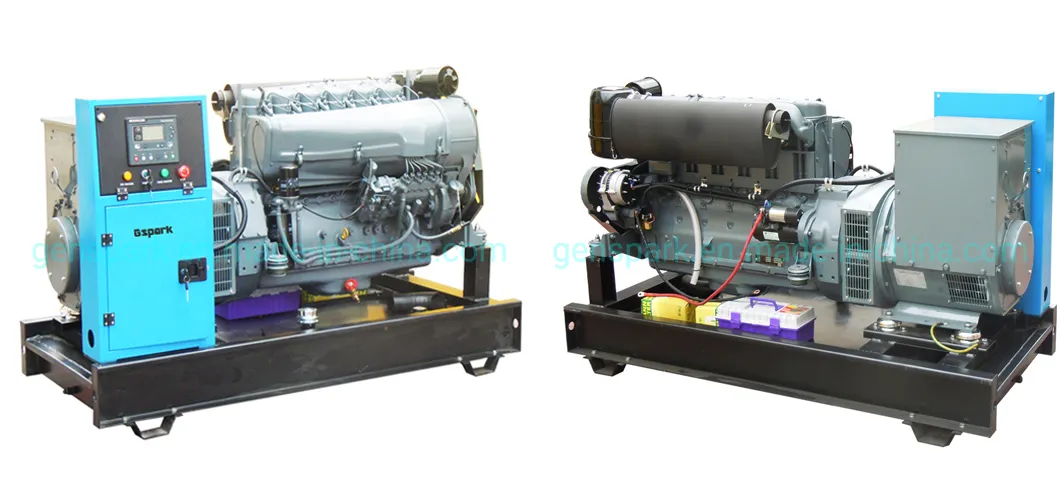

Air Cooled Deutz Generator Set Model in Detail

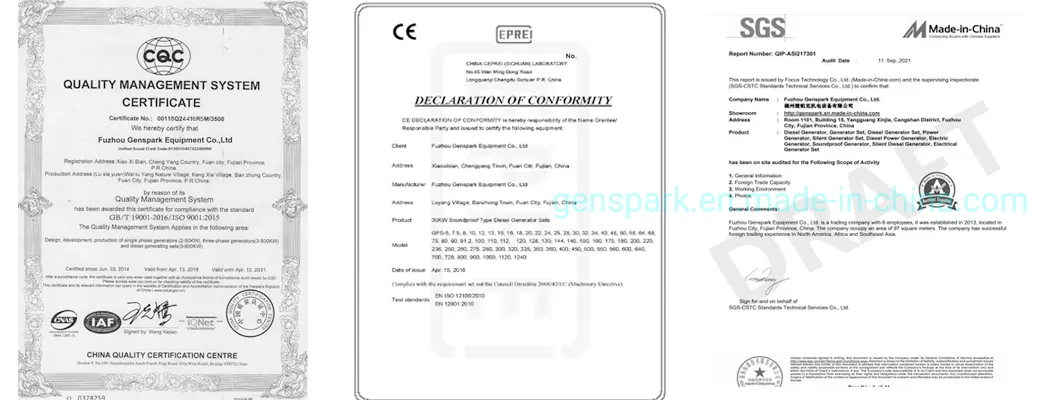

Cerficates
