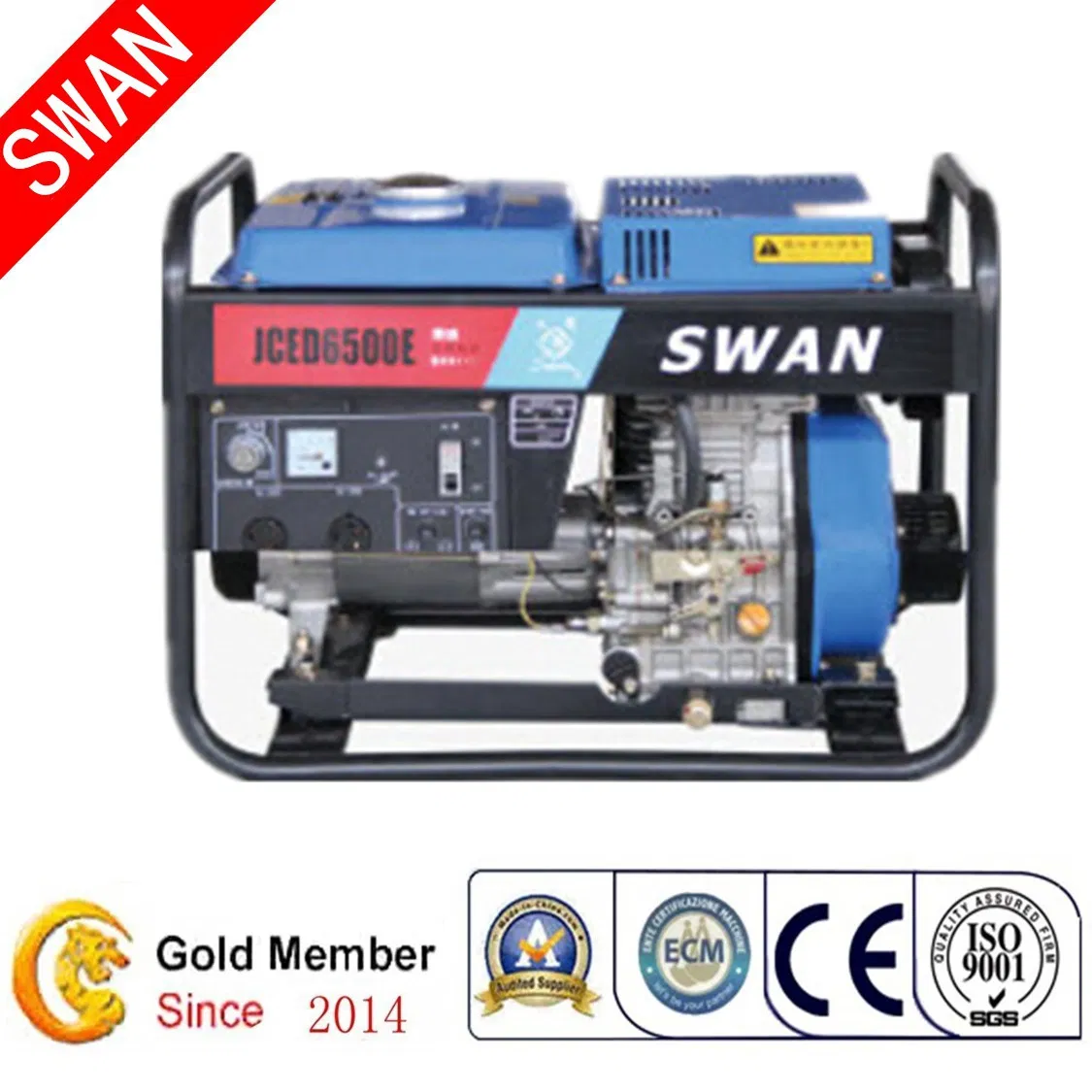

5 Kw Air Cooled Diesel Generators (JCED6500L-3)
5 KW Air Cooled Diesel Generators(JCED6500L-3)Just send us your inquiry with what u need, we will highly appreciate it!The products of Swan brand has 8 series which include diesel engine,gasoline engine,cultivator ,water pumps&co......
Send Inquiry
Product Description
5 KW Air Cooled Diesel Generators(JCED6500L-3)
Just send us your inquiry with what u need, we will highly appreciate it!
The products of Swan brand has 8 series which include diesel engine,gasoline engine,cultivator ,water pumps, Diesel generators and others.
Its features are light weight, small size, big power, reliable performance, and user-friendly.
They are widely used in tractor, small generator, sprinkler, water pumps, boat hanging machine, thresher,and other agricultural machinery and construction machinery. Swan 170 Diesel engine won the national quality silver medal and the title of trustworthy products.
Swan brand 160F,165FA,JC170,JC175,JC75N,JC80N and other products are the first domestic developed, filling the domestic blank.
Just send us your inquiry with what u need, we will highly appreciate it!
The products of Swan brand has 8 series which include diesel engine,gasoline engine,cultivator ,water pumps, Diesel generators and others.
Its features are light weight, small size, big power, reliable performance, and user-friendly.
They are widely used in tractor, small generator, sprinkler, water pumps, boat hanging machine, thresher,and other agricultural machinery and construction machinery. Swan 170 Diesel engine won the national quality silver medal and the title of trustworthy products.
Swan brand 160F,165FA,JC170,JC175,JC75N,JC80N and other products are the first domestic developed, filling the domestic blank.
| Model | JCED6500L-3 | ||||||
| Related frequency | 50 | 60 | |||||
| Related output power(KVA) | 4.5 | 5 | |||||
| Max output power(KVA) | 5 | 5.5 | |||||
| Related voltage(V) | 230/400 | 240/416 | |||||
| Related current(A) | 6.5 | 6.9 | |||||
| Related speed(r/min) | 3000 | 3600 | |||||
| Phrase | Three-phrase | ||||||
| Power factor(COS) | 0.8(lgd) | ||||||
| Excitation mode | Self-excitation constant pressure(with AVR) | ||||||
| Panel form | Ordinary Panel | ||||||
| L*M*H Overall diamension(mm) | 700*480*600 | ||||||
| Dry weight | 86 | ||||||
| Noise level db(A) | 79 | ||||||
| Structure form | Well-catalogued(hang lift type ) | ||||||
| Engine type | JC186FAKL | ||||||
| Engine form | Vertical,single-cyclinder,4-stroke,air-cooled,direct injection | ||||||
| Cylinder number Bore*stroke(mm) | 1-86*72 | ||||||
| Total flow rate(ml) | 418 | ||||||
| Rated power(kw/r/min) | 5.9/3000 | 6.6/3600 | |||||
| lubrication way | Combined presure and Splasing | ||||||
| startup model | Recoil | ||||||
| Fuel type | Diesel:0#(summer)-10#(winter)-35#(cold) | ||||||
| Lubrecating oil type | Cdclass above orSAW10w-30,15w-40 | ||||||
| Lubrecating oil capacity(L) | 1.65 | ||||||
| Starting motor capacity(V-kw) | |||||||
| Changing generator capacity(V-A) | |||||||
| Battery capacity(V-ah) | |||||||
| Set specific-fuel consumption(g/kw.h) | ≤360 | ||||||
| Fuel tank capacity(L) | 13.5 | ||||||
| Mission time(hr) | 6 | ||||||
