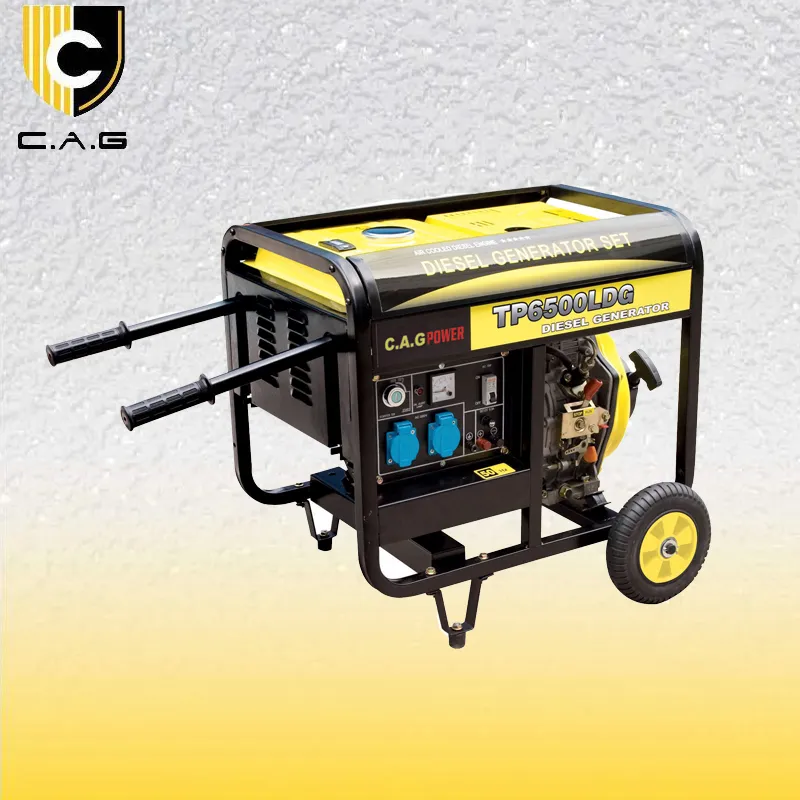

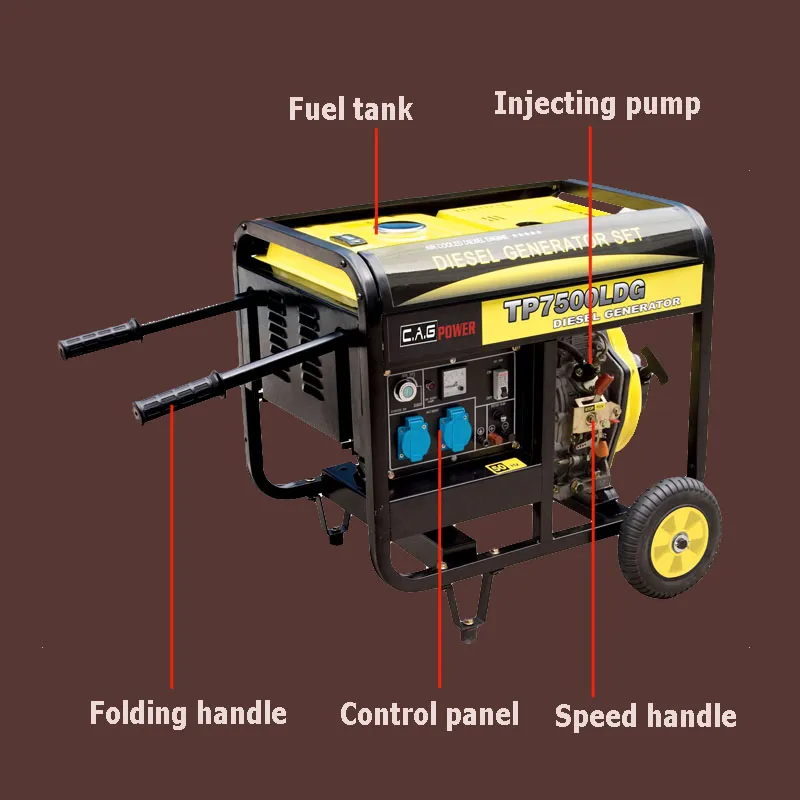

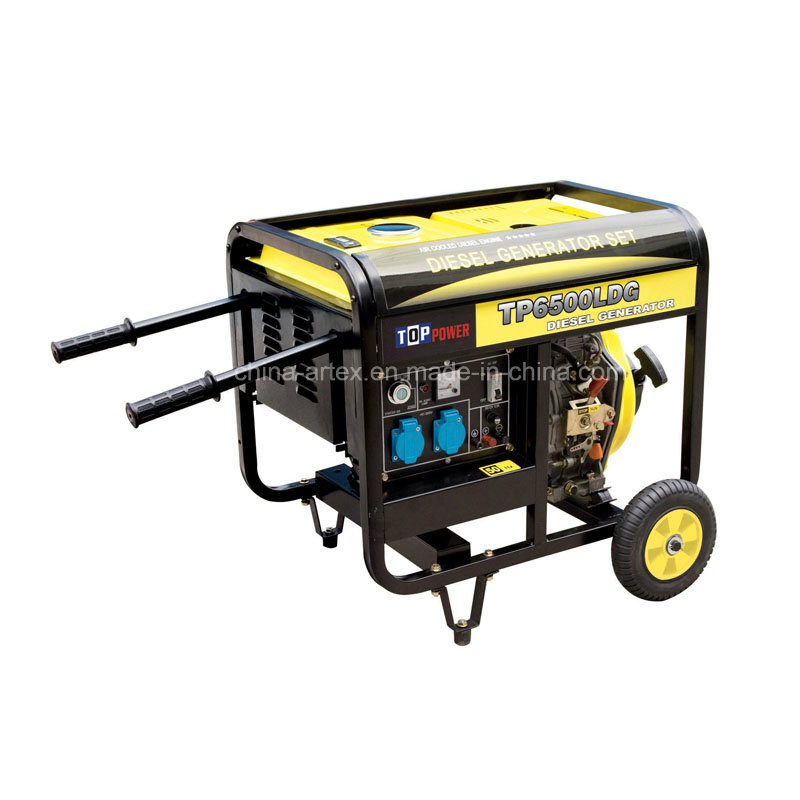

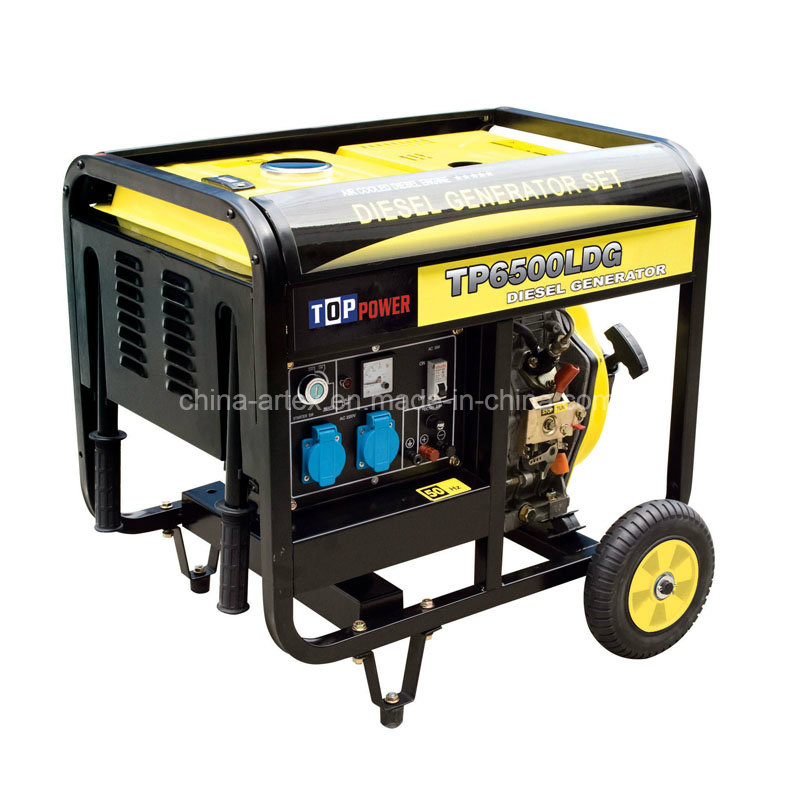

5.0kw/5.0kVA 5.0 Kilowatt Domestic Backup Diesel Engines Powered Generator with Folding Handle
C.A.G Luxury Series 5kw diesel generator are easy to move around with wheels on the backside. The diesel portable generators provides instant power to ensure appliances and other equipment stay charged during a power outage. The AVR voltage control technology provides a clean power supply. The AC ci......
Send Inquiry
Product Description

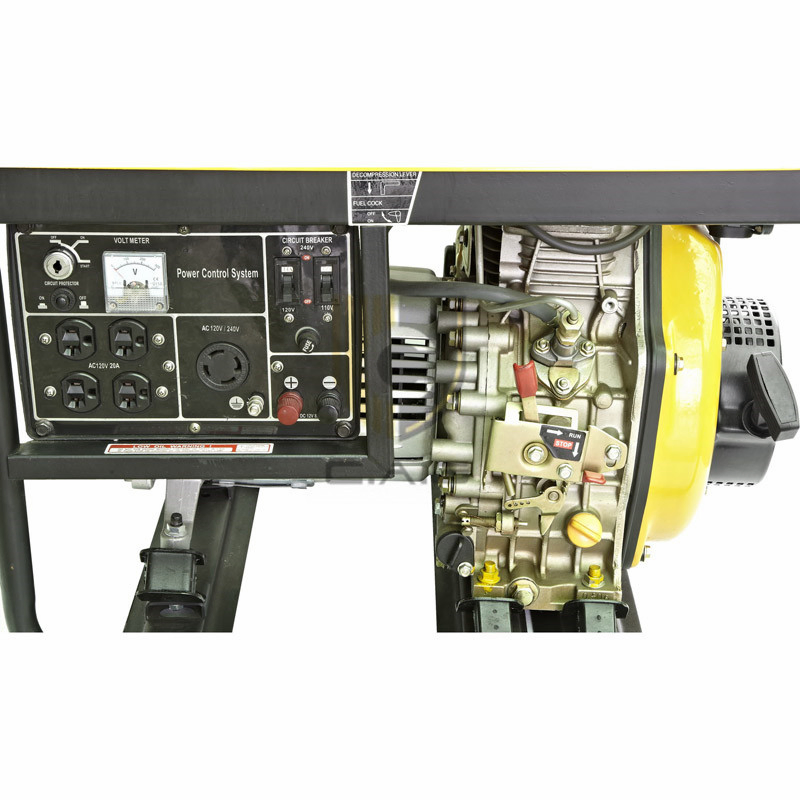

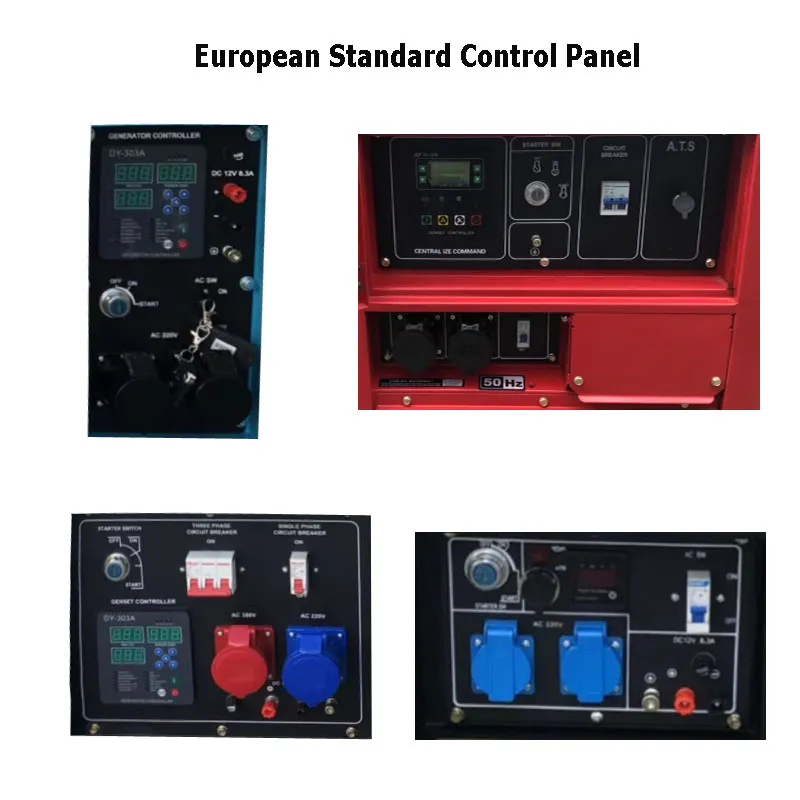

C.A.G Luxury Series 5kw diesel generator are easy to move around with wheels on the backside. The diesel portable generators provides instant power to ensure appliances and other equipment stay charged during a power outage. The AVR voltage control technology provides a clean power supply. The AC circuit breaker, fuel gauge, and oil shutdown system make sure the engine is stable and running safely.
| Model | TP6500LDG |
| Rated frequency (Hz) | 50 / 60 |
| Rated output (kVA) | 4.5 / 5.0 |
| Max. output (kVA) | 5.0 / 5.5 |
| Rated Voltage (V) | 115/230 or 120/240 |
| Rated current (A) | 39.1/19.6 or 41.7/20.8 |
| Rated rotation speed (r/min) | 3000 or 3600 |
| Phase NO. | Single phase or three phase |
| Power factor (Cos Φ) | 1 |
| Insulation Grade | B |
| Pole number | 2 |
| Excitation mode | Self-excitation&constantvoltage(AVR) |
| DC12V output | Connection pole output |

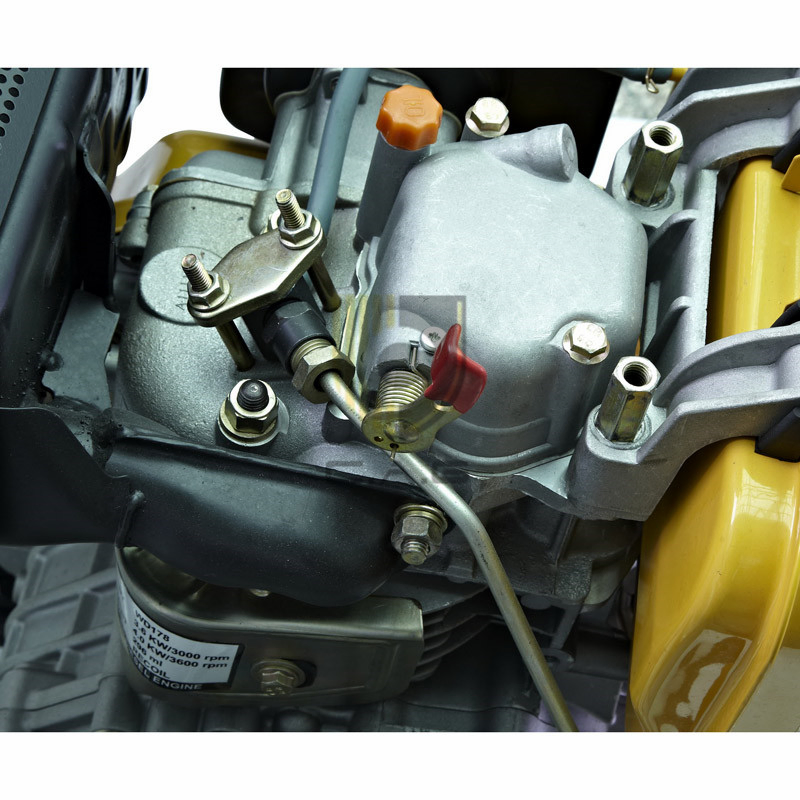

| Engine Model | TP186FAG |
| Displacement (cc) | 418 |
| Engine power [KW/(r/min)] | 5.9/3000 or 6.5/3600 |
| Battery capacity (V-Ah) | 12V36Ah |
| Fuel consumption (g/kW.h) | ≤360 |
| Fuel tank capacity (L) | 13.5 |
| Continuous running time (hr) | 5.5 |
| Noise level(7m)dB(A) | 77 |
| Structure type | Luxy Design Open frame |
| Overall dimension(L×W×H)(mm) | 720X492X655 |
| Dry weight(kg) | 106 |
| Working assorting weight (Kg) | 109 |
