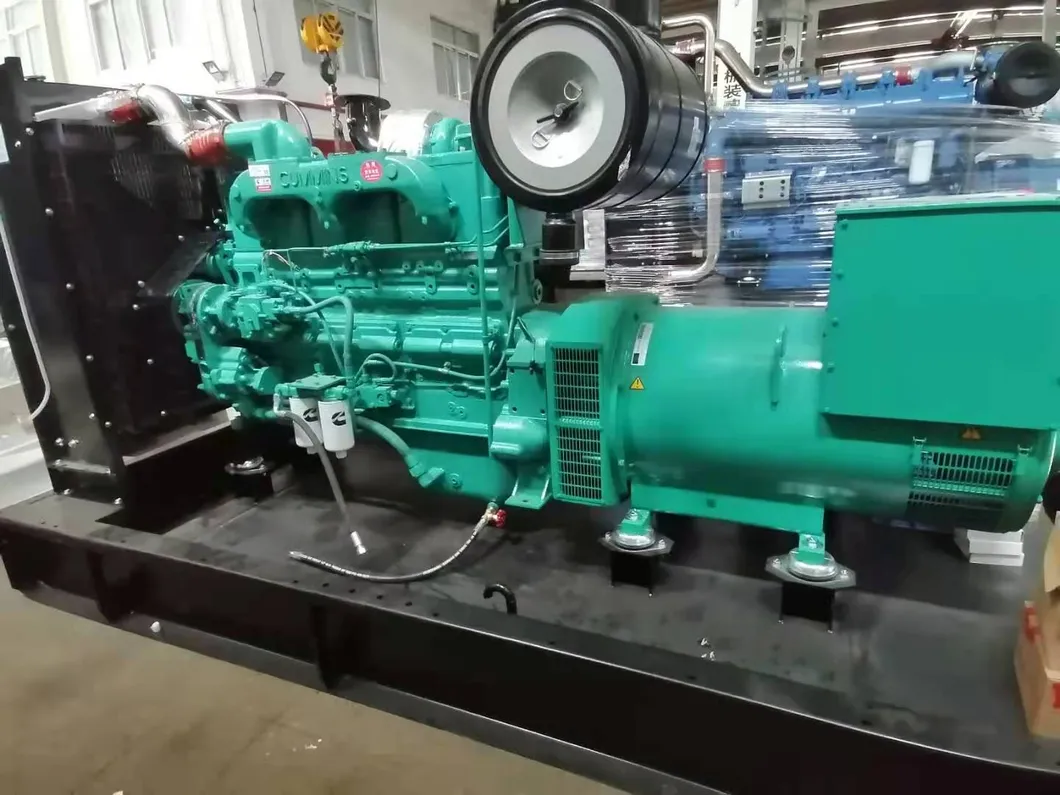

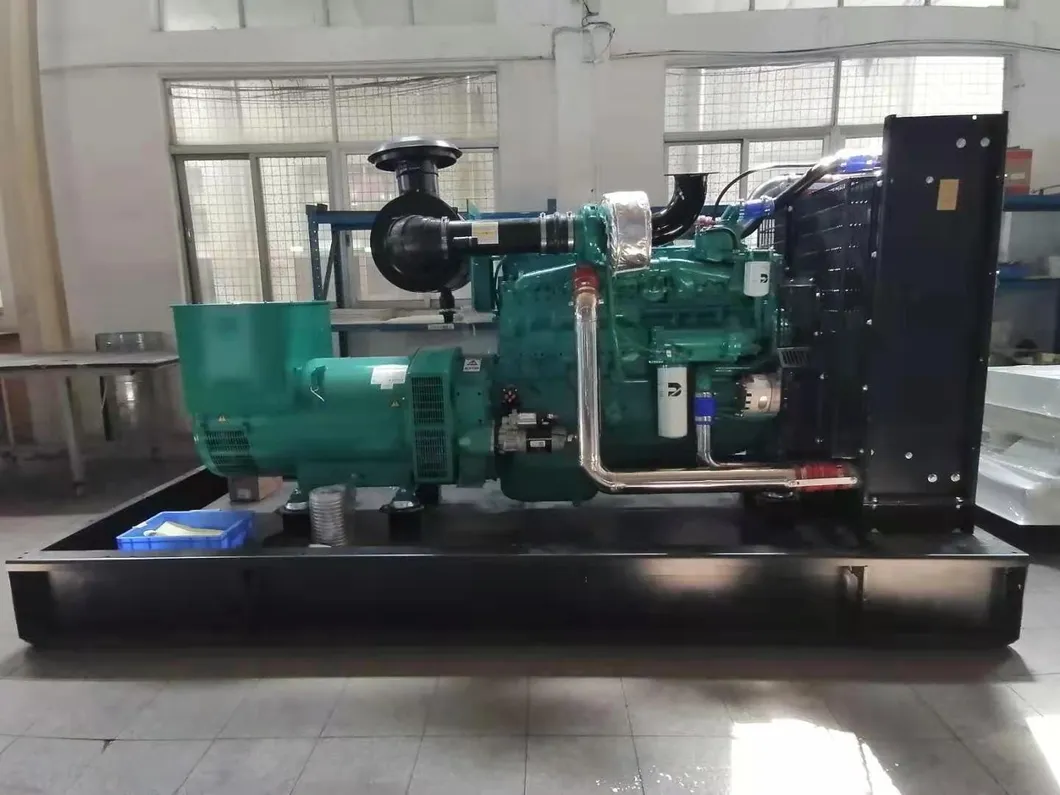

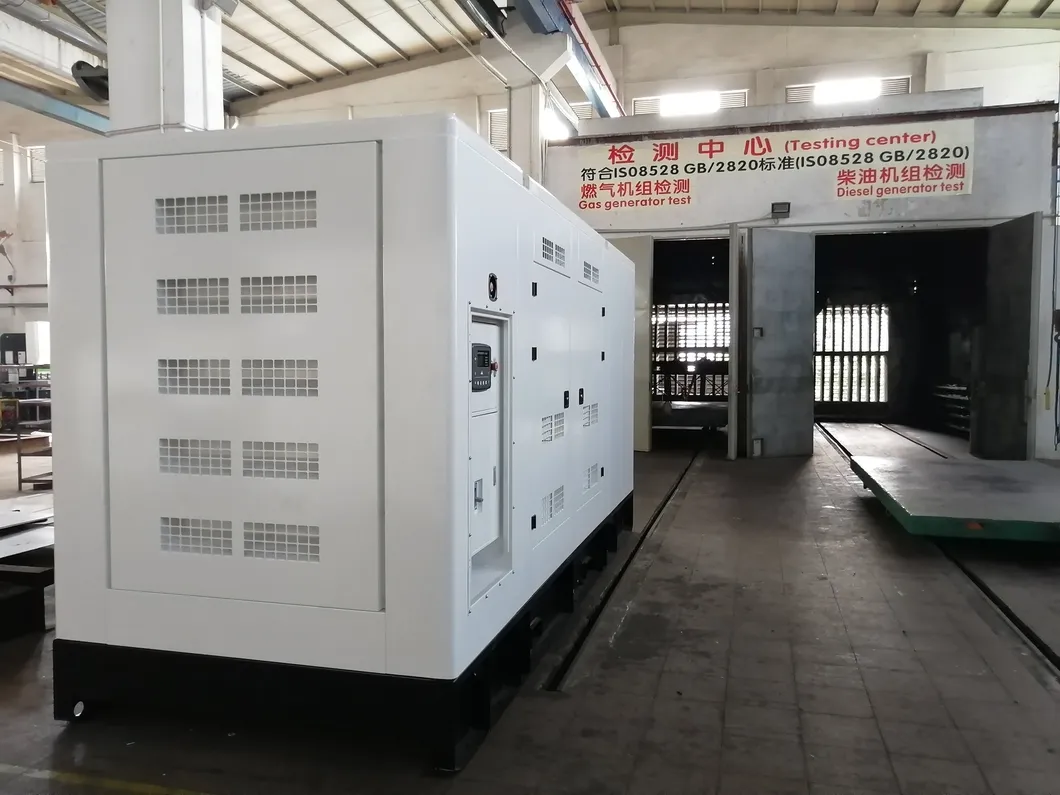

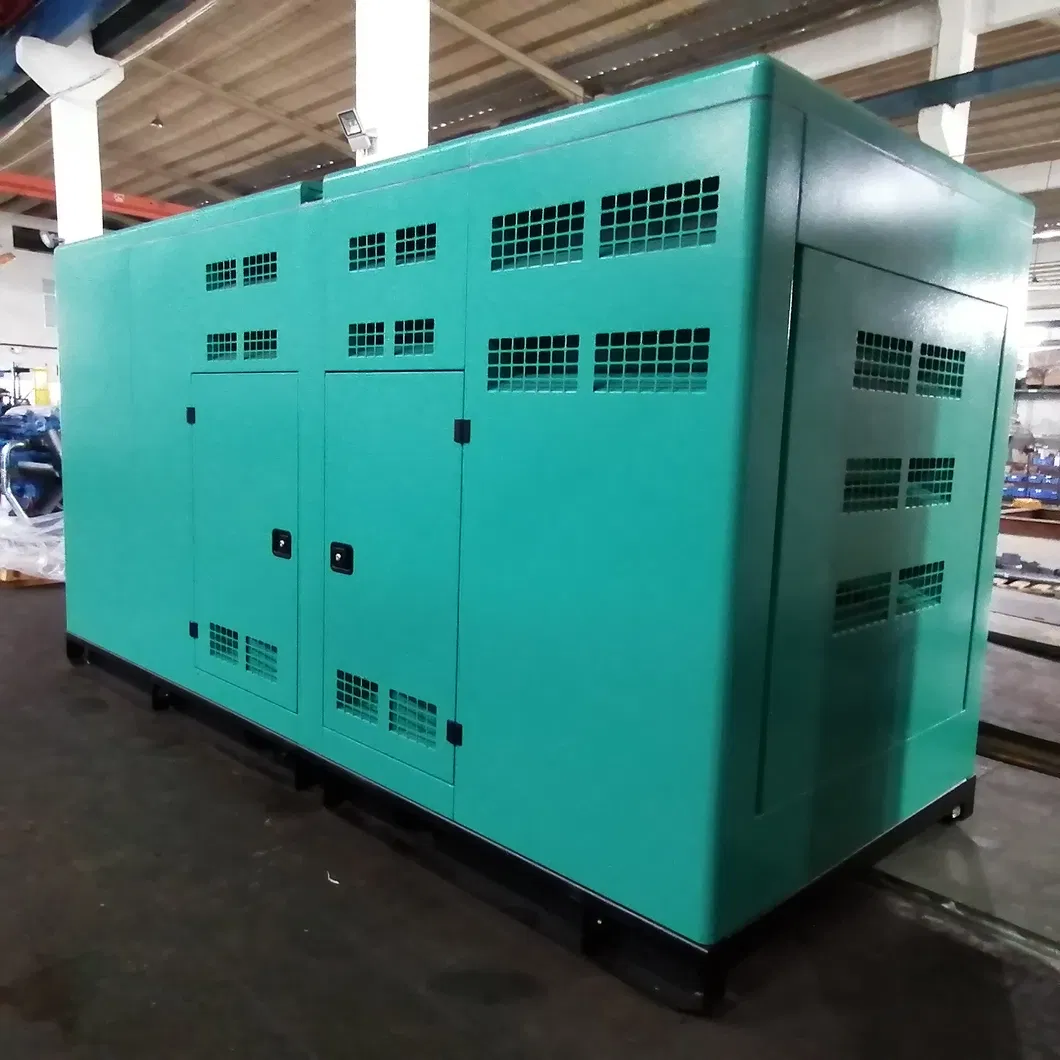

440kVA Cumins Diesel Generator Mc440d5 Super Silent Cumins Power Generation

Product Description

Cumins engins with advanced design, reliable performance, durable operation
Alloy-steel and connecting steel-level, high durability
High conbustion efficiency and low fuel consumption, work continuously
P/T pump injection technology, low cost, completely conbustion
Optimized-design anti-vibration system accurate pressure-boost and low speed cooling fan reducting noise effectively.
Alternator exciting system making generator set recover under any sudden loading with frequency falling ensuring power supplying reliably
Generator ser can be 100% in sudden load or 100% sharp reduction.

New material and advanced production process applied, ventilation system compliant with CCC (China Compulsory Certification)
Residential muffler installed, reduction noise substantially.
Noise level between 65-75dBS@7m,

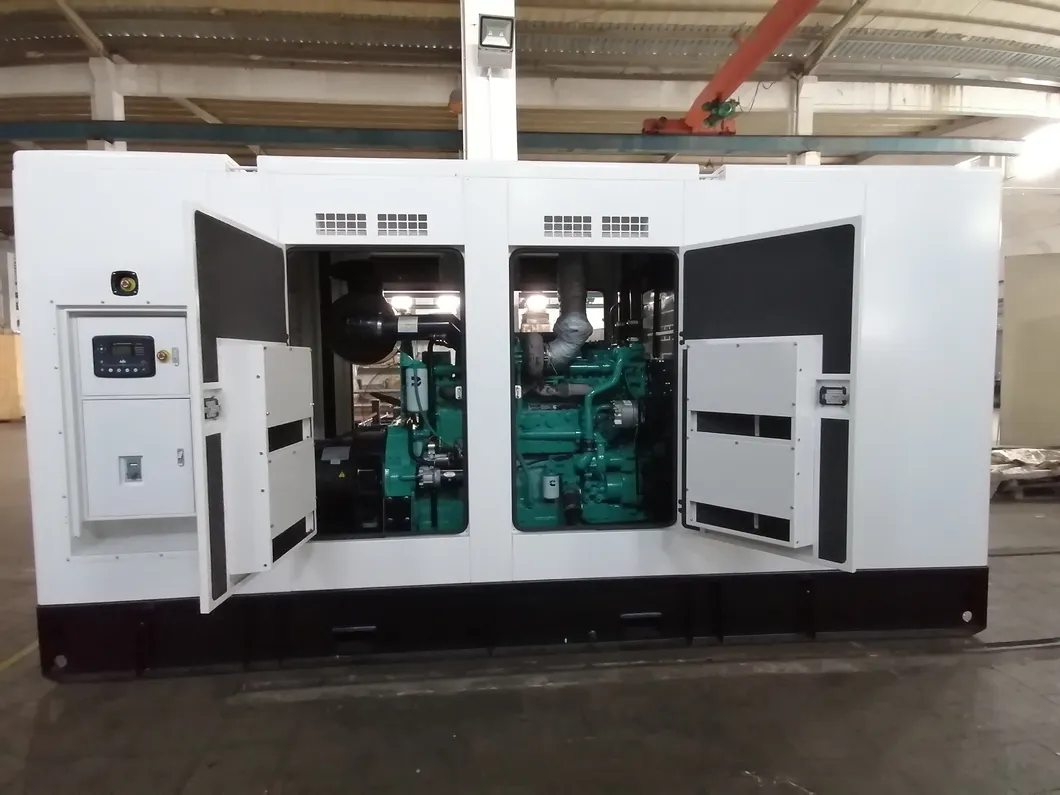

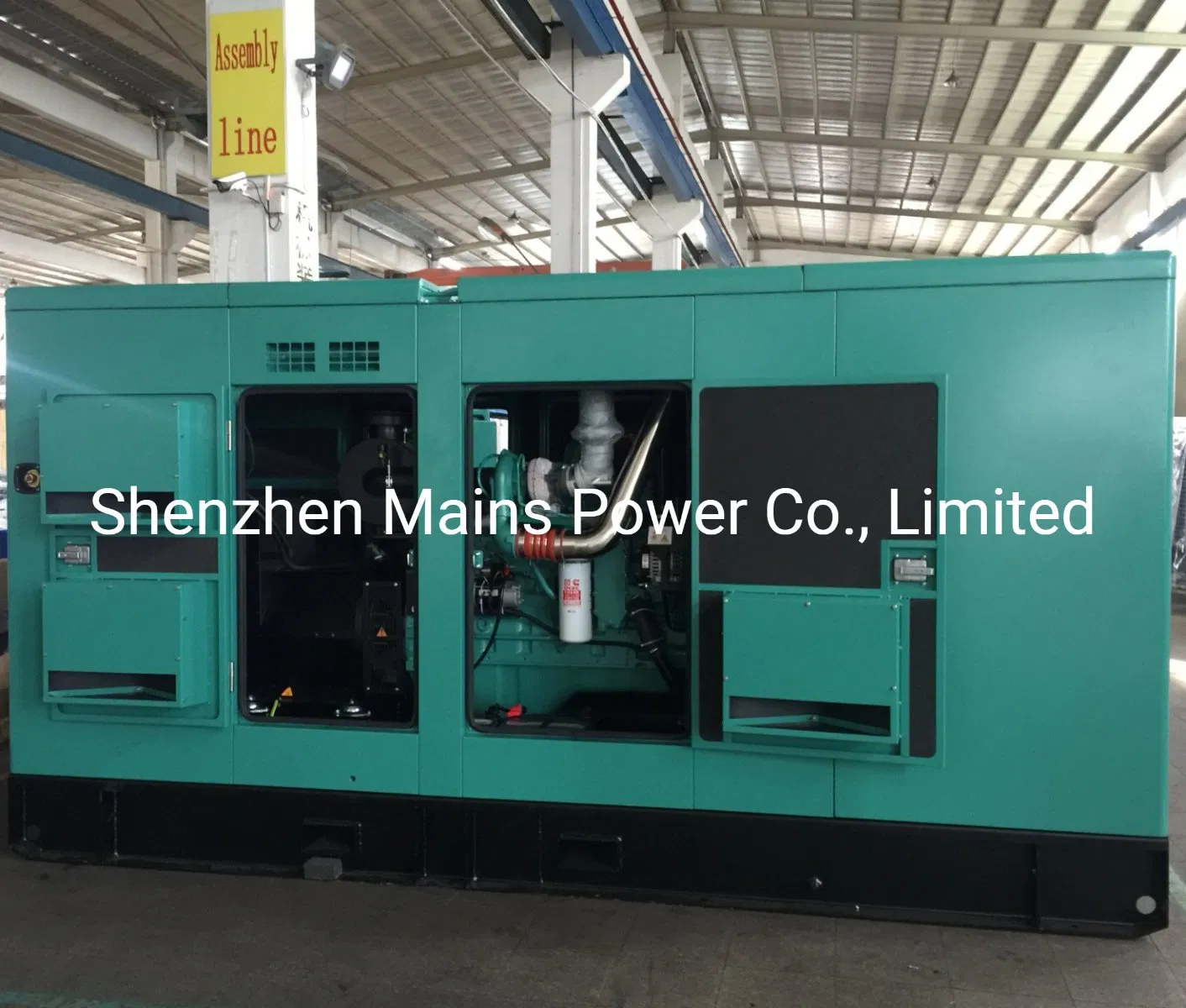

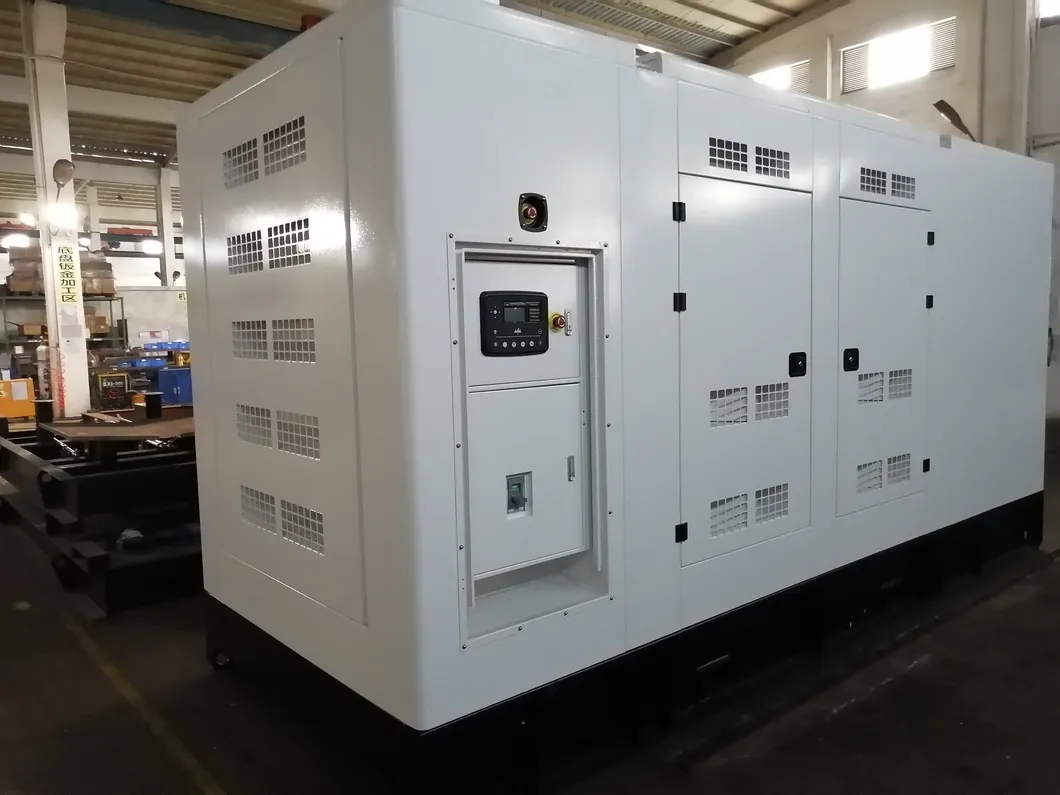

With three accessing doors and one window.

Genset model: MC440D5
Standby power: 440KVA/352KW
Prime power: 400KVA/320KW
Cumins engine: NTAA855-G7A
Alternator: Stamford, Leroy Somer, Marathon, MECC

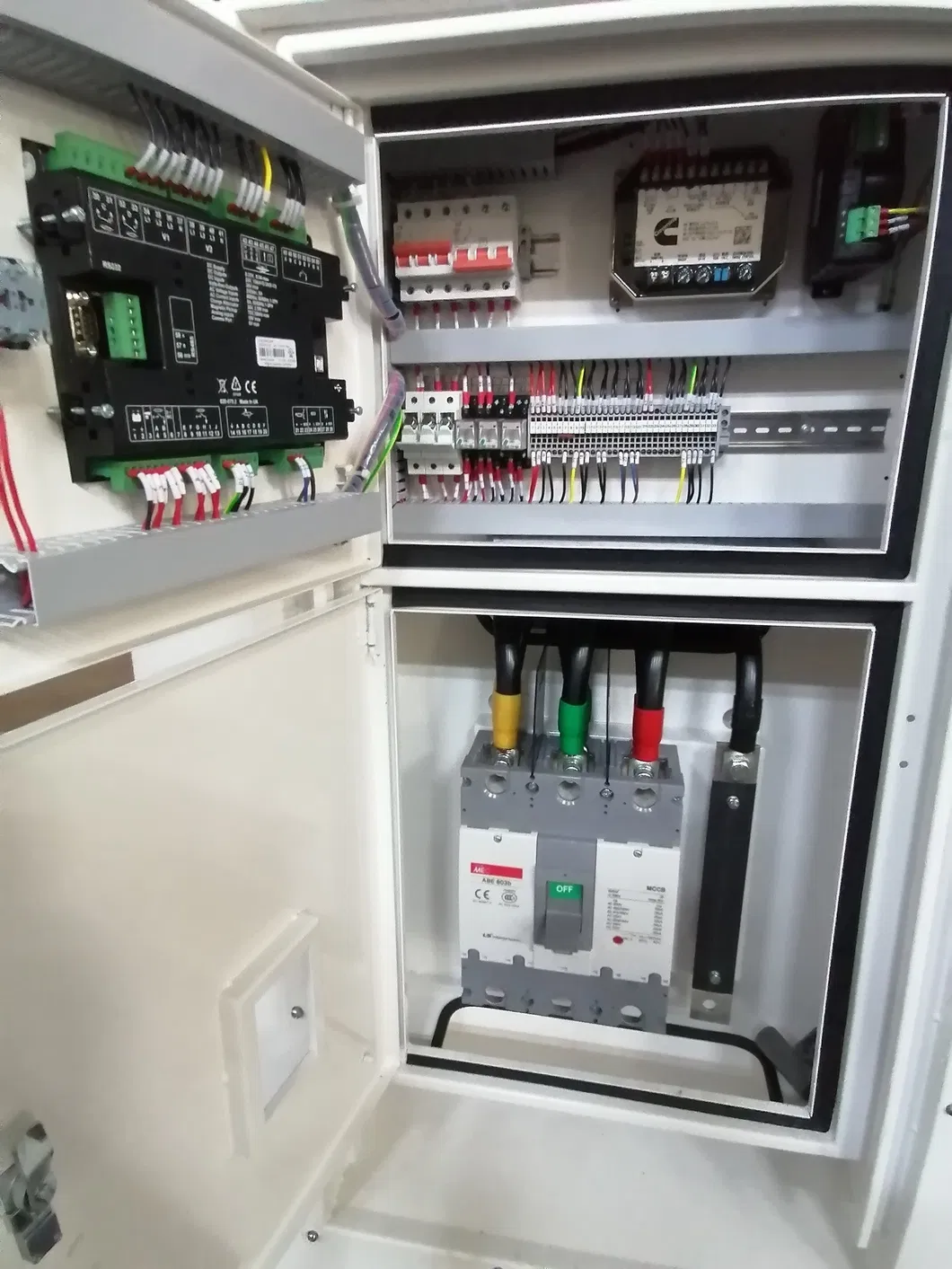

Controller: Deepsea, ComAp, Smartgen
Breaker: ABB, Schneider, CHINT, DELIXI
ATS: ABB, Schneider, Socomec, SmartGen, AISIKAI

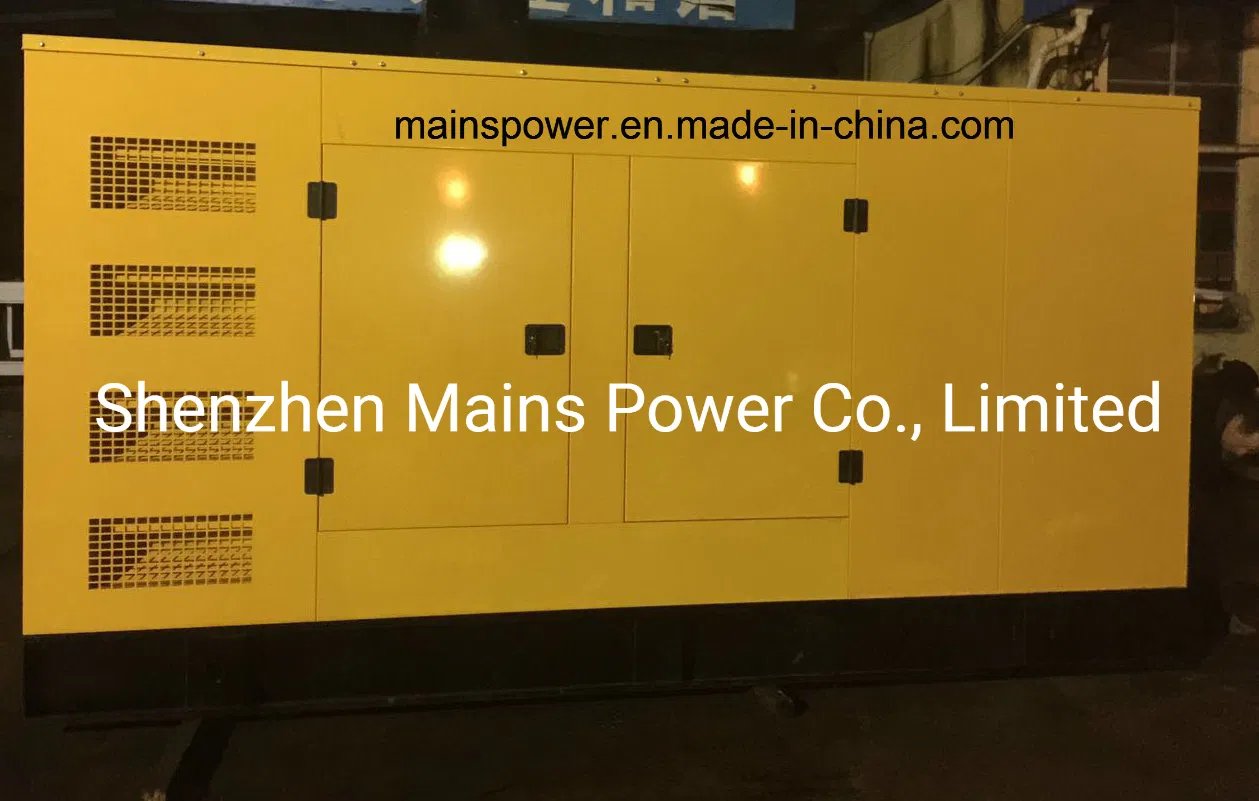

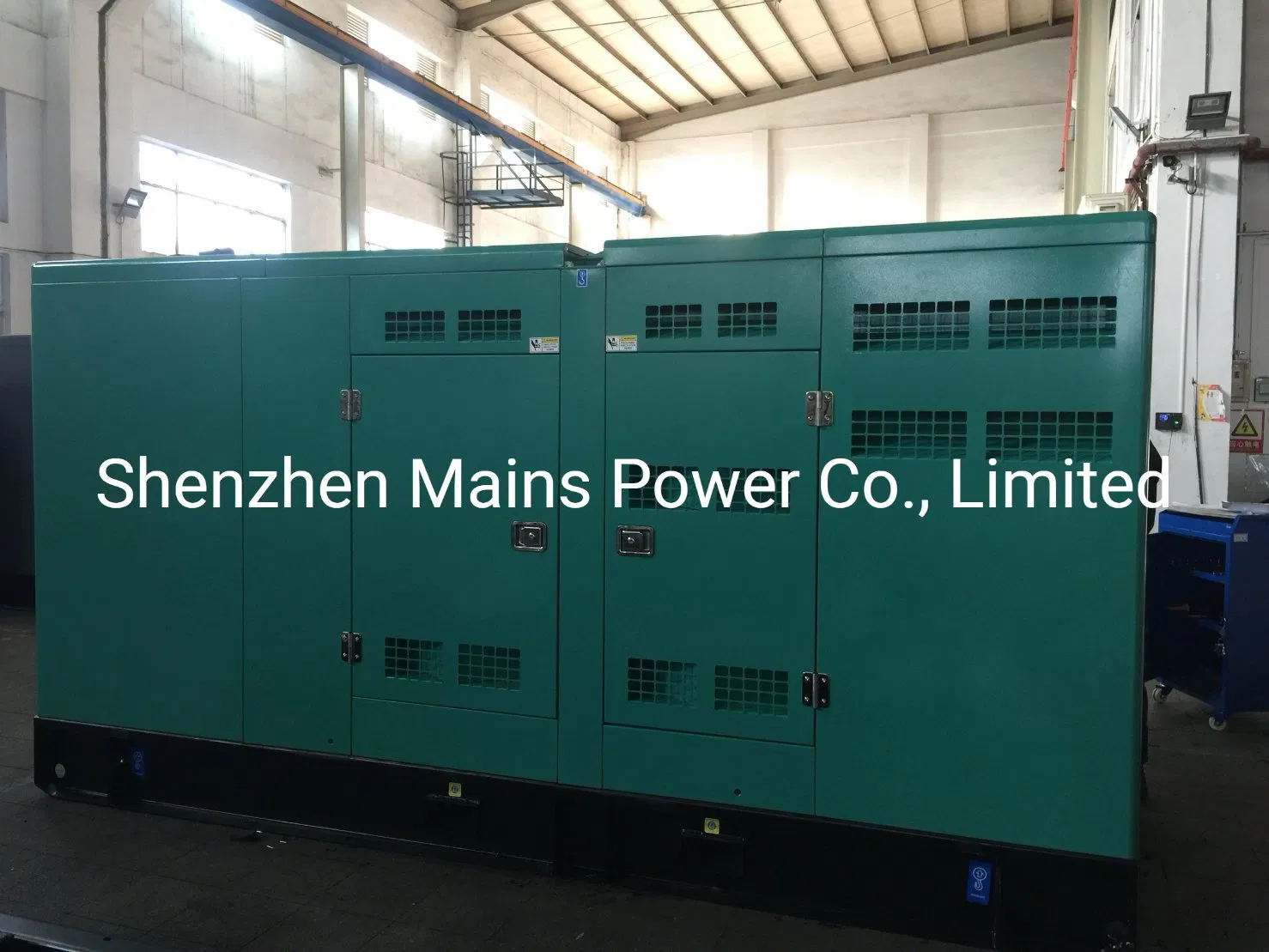

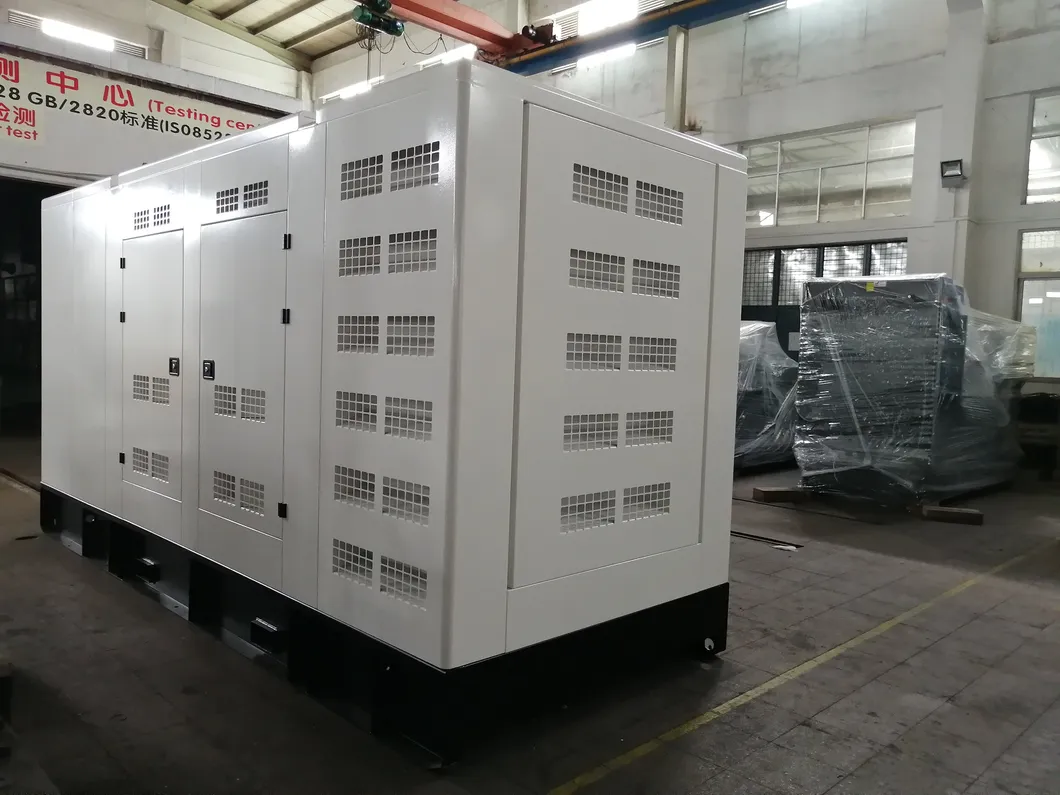

Type: Weatherproof, Soundproof, Canopy, Silent, Silencia, Cabin, Enclosure, Trailer, Mobile

Cumins Diesel Generaotr Model List
Standard Cumins Power Generator Supply Scope

50HZ, 1500rpm, 380-415V, 3phase 4 wire,
Genset Model	Standby Power		Prime Prime		Engine Model	Alternator Model	Dimension (Open type)	Weight (kg)	L/h @100%
Genset Model	KVA	KW	KVA	KW	Engine Model	Alternator Model	Dimension (Open type)	Weight (kg)	L/h @100%
MC22D5	22	18	20	16	4B3.9-G1	PI144D	18007501450	820	5.4
MC28D5	28	22	25	20	4B3.9-G1	PI144E	18007501450	850	5.8
MC33D5	33	26	30	24	4B3.9-G2	PI144G	18007501450	880	6.7
MC44D5	44	35	40	32	4BT3.9-G2	PI144J	19007501450	980	9.3
MC55D5	55	44	50	40	4BTA3.9-G2	UCI224D	19207801500	1020	11.5
MC66D5	66	53	60	48	4BTA3.9-G2	UCI224E	19207801500	1050	13.1
MC88D5	88	70.4	80	64	4BTAA3.9-G11	UCI224F	19507801500	1080	15
MC100D5	100	80	90	72	6BT5.9-G1	UCI274C	25508801600	1280	22
MC110D5	110	88	100	80	6BT5.9-G2	UCI274C	25508801600	1300	24
MC125D5	125	100	112	90	6BTA5.9-G2	UCI274D	25508801600	1450	27
MC150D5	150	120	135	108	6BTAA5.9-G2	UCI274E	25508801600	1550	29
MC175D5	175	140	160	128	6BTAA5.9-G12	UCI274F	26009501700	1650	37
MC200D5	200	160	180	144	6CTA8.3-G2	UCI274G	26009501700	1710	40
MC220D5	220	176	200	160	6CTAA8.3-G2	UCI274H	26009501700	1760	45.4
MC250D5	250	200	225	180	6CTAA8.3-G9	UCD274J	280010001700	1980	53
MC275D5	275	220	250	200	6LTAA8.9-G2	UCDI274K	280010001700	2000	53
MC315D5	315	252	285	228	NTA855-G1A	S4L1D-D41	320011001850	3350	61.3
MC330D5	330	264	300	240	6LTAA9.5-G3	S4L1D-D41	290010001700	2400	57
MC350D5	350	280	320	256	NTA855-G1B	S4L1D-D41	320011001850	3350	71.4
MC380D5	380	304	350	280	NTA855-G2A	S4L1D-D41	320011001850	3380	71.9
MC400D5	400	320	365	292	NTA855-G4	S4L1D-F41	320011001850	3520	85.4
MC440D5	440	352	400	320	NTAA855-G7A	S4L1D-F41	330011551850	3870	94
MC500D5	500	400	450	360	KTA19-G3	S4L1D-G41	340014002040	3950	97
MC500D5A	500	400	450	360	QSZ13-G2	S4L1D-G41	320011001850	3650	92
MC550D5	550	440	500	400	KTA19-G3A	S5L1D-C41	340014002040	4100	106
MC550D5A	550	440	500	400	QSZ13-G3	S5L1D-C41	320011001850	3680	107
MC625D5	625	500	550	440	KTAA19-G5	S5L1D-D41	340014002040	4400	113
MC660D5	660	528	600	480	KTA19-G8	S5L1D-E41	340014002040	4580	127
MC690D5	690	552	625	500	KTAA19-G6A	S5L1D-F41	340014002040	4650	113
MC700D5	700	560	650	520	VTA28-G5	S5L1D-F41	398017202230	6200	140
MC715D5	715	572	650	520	QSK19-G4	S5L1D-F41	375015501960	4600	120
MC750D5	750	600	688	550	QSK19-G11	S5L1D-G41	375015501960	4800	135
MC825D5	825	660	750	600	VTA28-G6	S5L1D-H41	400018702100	6560	162
MC900D5	900	720	810	648	KTA38-G2B	S6L1D-C4	460018502200	7200	181
MC1000D5	1000	800	918	735	KTA38-G2A	S6L1D-D4	460018502200	7450	191
MC1100D5	1100	880	1000	800	KTA38-G5	S6L1D-E4	460018502200	7550	209
MC1250D5	1250	1000	1125	900	KTA38-G9	S6L1D-F4	460020602200	7900	232
MC1375D5	1375	1100	1250	1000	QSK38-G5	S6L1D-G4	470018502200	7800	240
MC1400D5	1400	1120	1250	1000	KTA50-G3	S6L1D-G4	500021002600	9800	254
MC1500D5	1500	1200	1400	1120	KTA50-G8	S6L1D-H4	525021502350	10500	289
MC1675D5	1675	1340	1500	1200	KTA50-GS8	S7L1D-C41	525021502350	10600	295
MC1875D5	1875	1500	1680	1344	KTA50-G15	S7L1D-D41	530021502350	11000	320
MC2000D5	2050	1640	1875	1500	QSK60-G3	S7L1D-F41	620022802540	15200	355
MC2250D5	2250	1800	2000	1600	QSK60-G4	S7L1D-G41	620022802540	15500	394
MC2500D5	2500	2000	2250	1800	QSK60-G21	S7L1D-J41	620024903100	17500	446
MC2750D5	2750	2200	2500	2000	QSK78-G9	LVS1804R	580023102300	20600	488
MC3000D5	3000	2400	2750	2200	QSK78-G9	LVS1804S	580023102300	20600	540
MC3300D5	3300	2640	3000	2400	QSK78G6	LVS1824G	580023102300	20600	596
60hz, 1800rpm, 220-480V, 3phase 4 wire,
Genset Model	Standby power		Prime power		Engine model	Alternator model	Dimension	Weight	L/h
Genset Model	KVA	KW	KVA	KW	Engine model	Alternator model	Dimension	Weight	L/h
MC33D6	33	26.4	30	24	4B3.9-G2	BCI184E	17507801500	850	7.2
MC50D6	50	40	45	36	4BT3.9-G2	BCI184H	17507801500	950	10.1
MC75D6	75	60	68	55	4BTA3.9-G2	UCI224D	19508001500	980	13.8
MC100D6	100	80	90	72	4BTAA3.9-G11	UCI224F	19508001500	1020	16
MC125D6	125	100	113	90.4	6BT5.9-G1	UCI274C	23008501700	1280	24
MC150D6	150	120	137.5	110	6BTA5.9-G2	UCI274D	23008501720	1450	27
MC165D6	165	132	150	120	6BTAA5.9-G2	UCI274E	24808501720	1520	28.5
MC185D6	185	148	168	134.4	6BTAA5.9-G12	UCI274F	24808501720	1560	32
MC220D6	220	176	200	160	6CTA8.3-G2	UCI274F	26509001720	1700	42.6
MC250D6	250	200	225	180	6CTAA8.3-G2	UCI274G	26809001720	1750	44
MC275D6	275	220	250	200	6CTAA8.3-G7	UCI274H	26809001720	1780	49
MC300D6	300	240	275	220	6LTAA8.9-G2	UCDI274J	28009501750	1800	51
MC330D6	330	264	300	240	6LTAA8.9-G3	UCDI274K	28009501750	1950	55
MC350D6	350	280	312.5	250	NTA855-G1	UCDI274K	320011001700	3160	66
MC385D6	385	308	350	280	NTA855-G1B	HCI444D	330011001700	3350	74.5
MC440D6	438	350	394	315.2	NTA855-G3	HCI444D	342011501720	3600	79
MC500D6	500	400	440	352	KTA19-G2	HCI444E	360013501920	4100	92
MC550D6	550	440	500	400	KTA19-G3	HCI444F	360014001920	4150	99
MC625D6	625	500	563	450.4	KTA19-G4	HCI544C	360014001900	4100	112
MC660D6	660	528	600	480	KTAA19-G5	HCI544D	372015401960	4400	117
MC700D6	700	560	630	504	QSK19-G4	HCI544D	375015501960	4500	115
MC750D6	750	600	687.5	550	KTAA19-G6A	HCI544E	378016402040	4600	134
MC850D6	850	680	775	620	KT38-G	HCI544F	440017202200	6650	155
MC1000D6	1000	800	905	724	KTA38-G2	LVI634C	455017502200	6950	183
MC1100D6	1100	1000	1000	800	KTA38-G2A	LVI634D	460018002200	7200	201
MC1250D6	1250	1125	1125	900	KTA38-G4	LVI634E	470018002200	7600	229
MC1375D6	1375	1100	1250	1000	KTA38-G9	LVI634F	490018002200	7800	252
MC1450D6	1450	1160	1200	960	QSK38-G5	LVI634F	480018002300	7900	235
MC1550D6	1550	1240	1400	1120	KTA50-G3	LVI634G	570021002350	9800	285
MC1750D6	1750	1400	1600	1280	QSK50-G3	PI734A	570021002350	10200	300
MC1875D6	1875	1500	1700	1360	KTA50-G9	PI734B	580021002350	10500	318
MC2500D6	2500	2000	2250	1800	QSK60-G7	PI734F	580022002500	13000	440
Note: For Canada, USA if need UL, CSA, then a little different cost and delivery time.
For Australia, New Zealand, the canopy tank and output breaker will be different standard.
