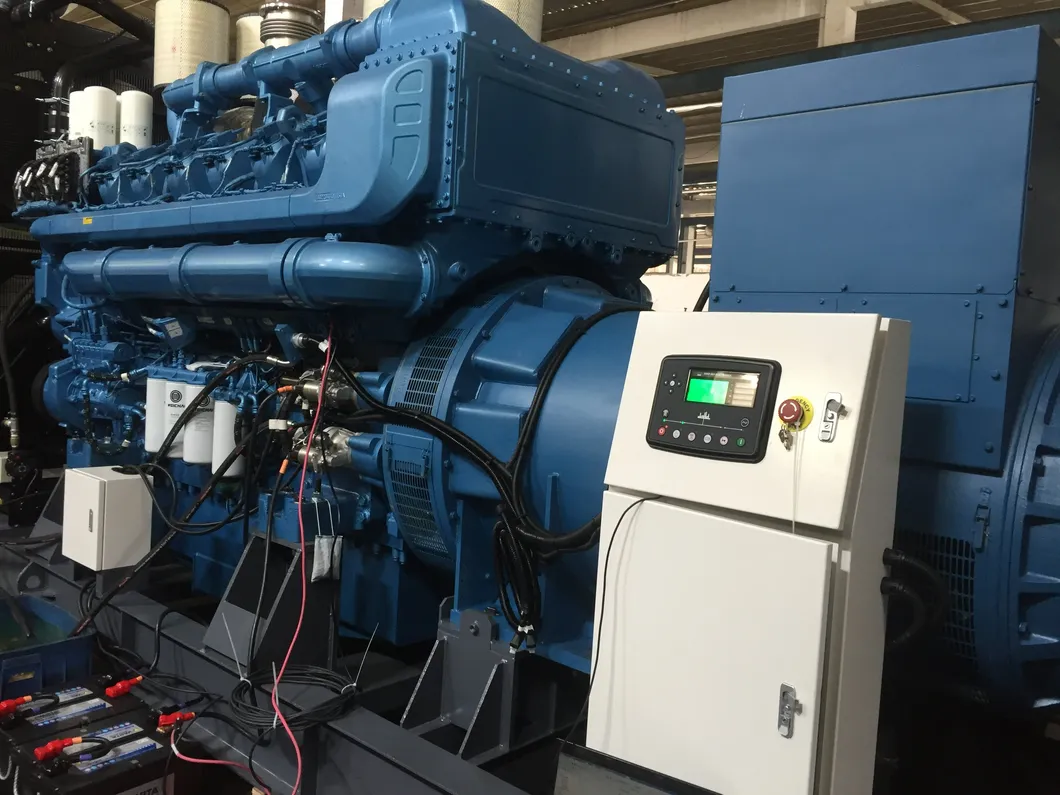

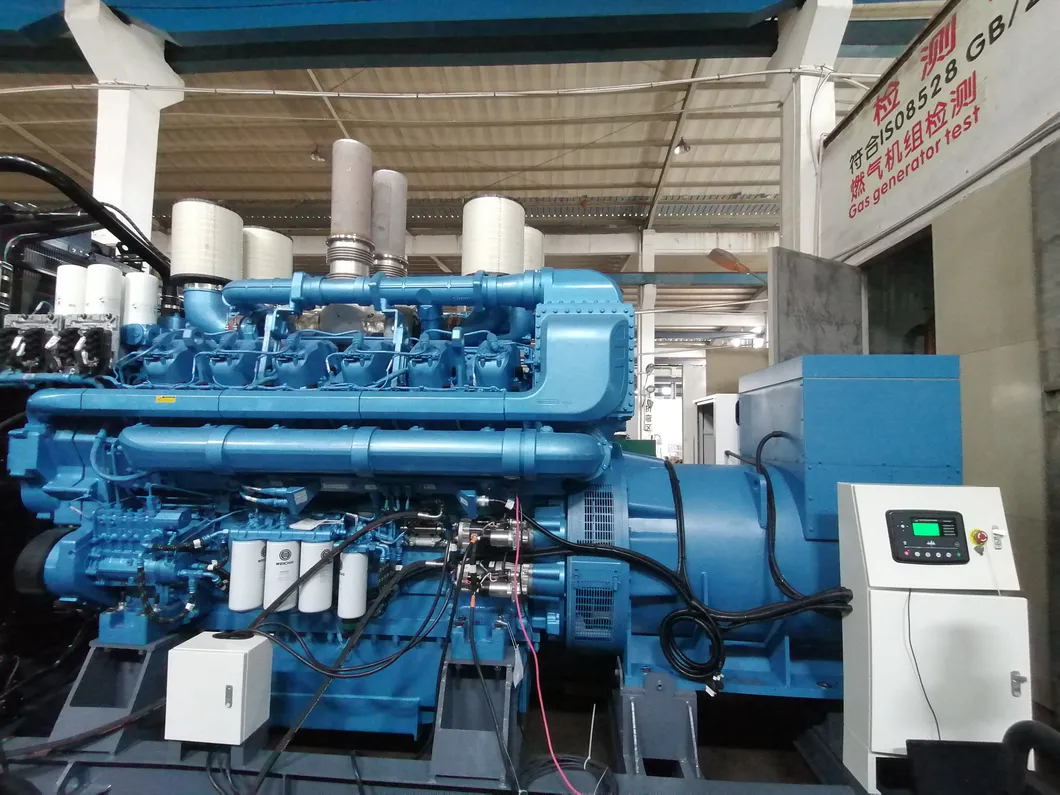

4000kw Diesel Generator Power Plant MB2750g Baudouin Engine Generator Synchronizing

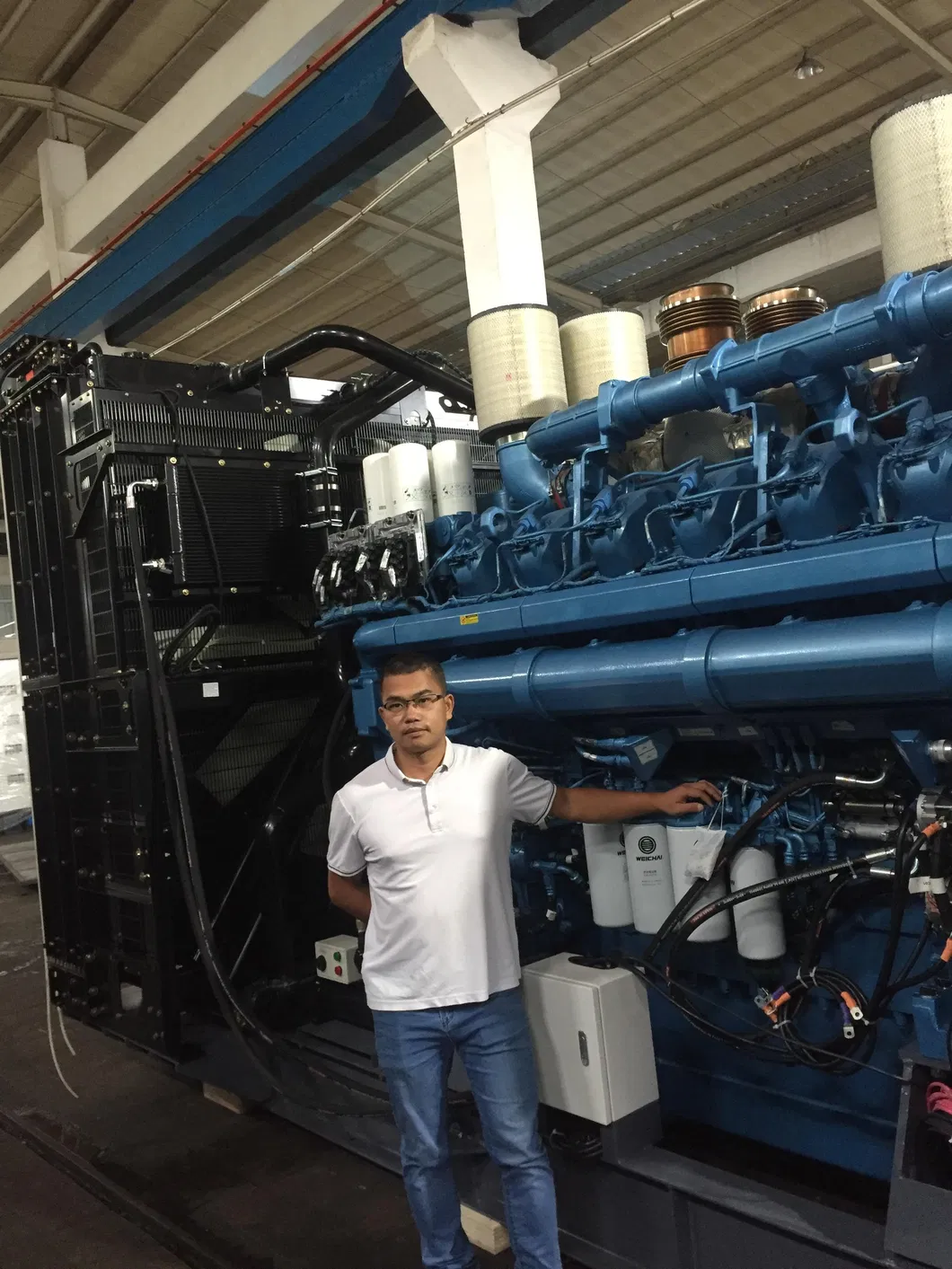

Baudouin Diesel Engine is made by France equipment, original France brand
With integral cast iron crankshaft, alloy cast iron cylinder number head, the engine has the advantages of compact size, ligh weight, less vibration, low noise and high reliability.
4-Valve with electronics unit pump (ECU) injection system and advanced injector provide better combustion, lower fuel consumption.
Dual thermostats with gear driven water pump improve reliability and cooling efficiency.
User friendly with low emissions.
More power reserve, better performance.
Good parts commonality.


Genset model:    MB2750G
Standby power:   2750KVA/2200KW
Prime power:      2500KVA/2000KW
Continuous duty 24/24H under variable load -10% overcharge acceptable
Prime power:    12 hours per day
Standby power:  duty-operation under variable charge 500h/year without overcharge-for continuous use.

Engine model:   12M55D2450E310
Configuration:    Vertical, V-configuration, Water cooled, 4-stroke
Aspiration:       Turbocharged & intercooled
Cylinder:          12 cylinder Vee type
Engine with ECU(Electrical Control Unit), low fuel consumption, better emission

Rated power:     2200KW
Max power:        2450KW
Fuel consumption:  192g/kw.h
Oil consumption:     0.5g/kw.h
Altitude without derating:  less than 2500m
Rated Speed:  1500RPM
Output voltage: 220/380V, 230/400v, 240/415V (High voltage such as 6KV, 10.5KV as optional for extra cost and other model alternator).

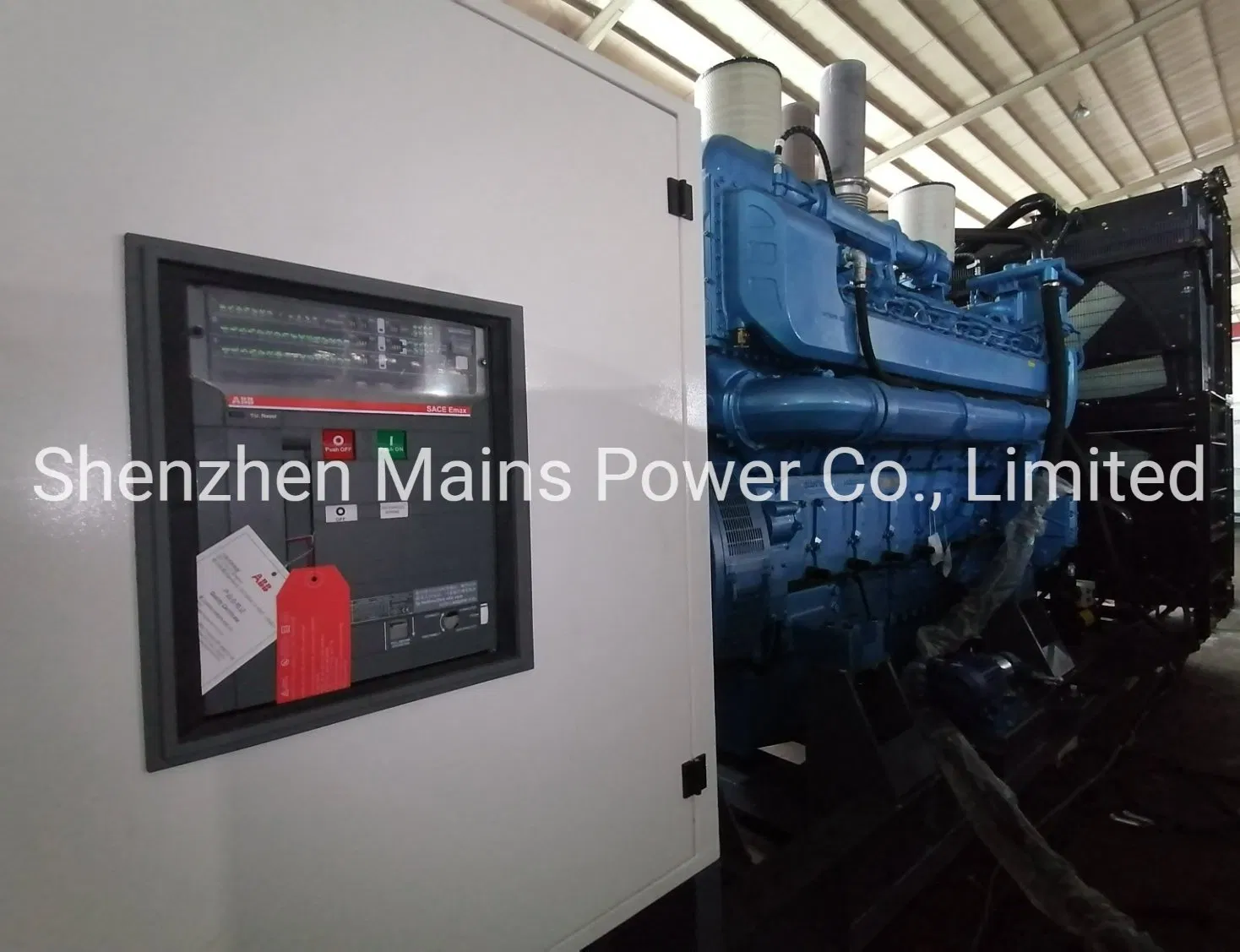

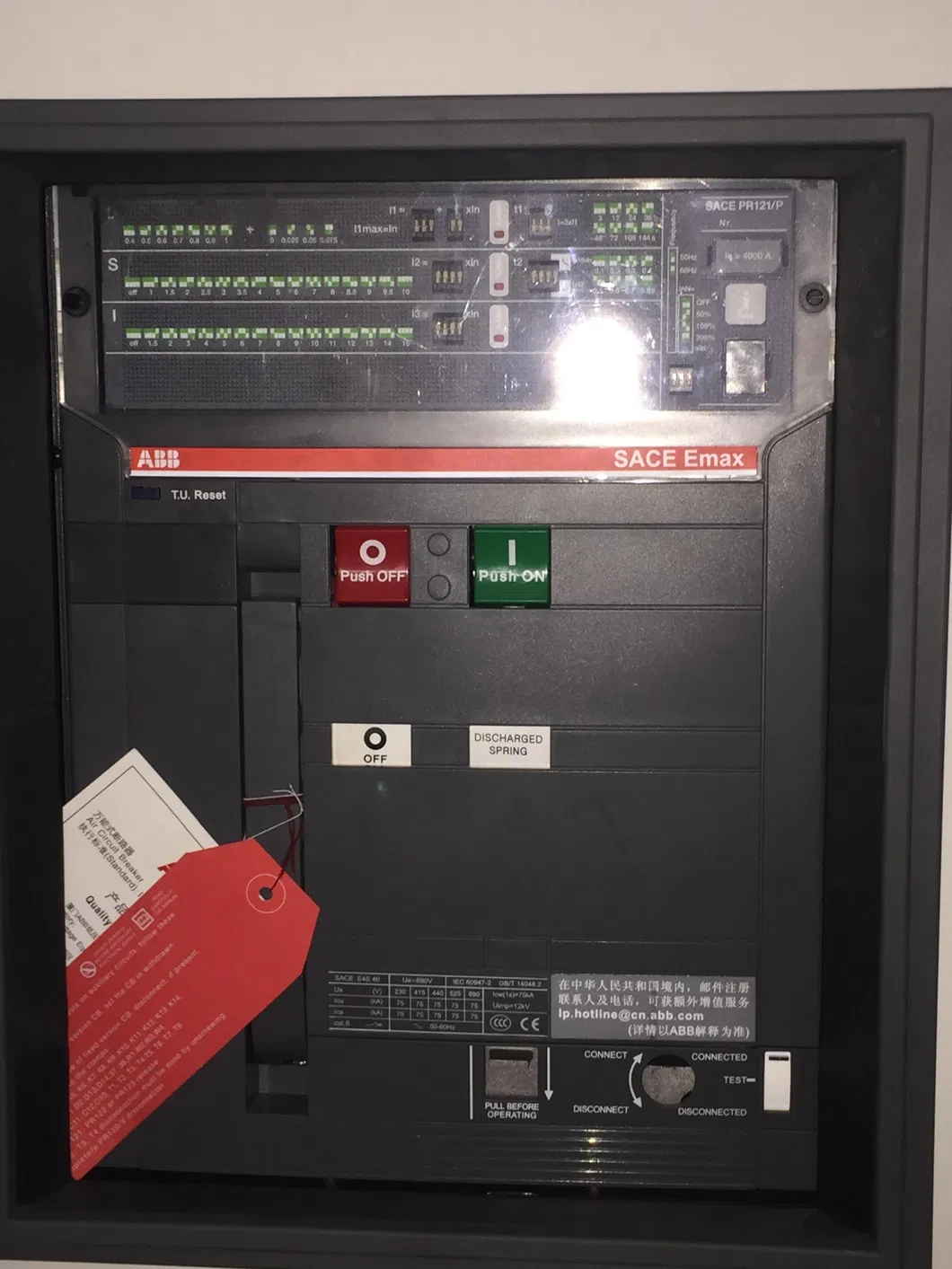

Rated Breaker: 4000Ampere (ABB or Schnieder)

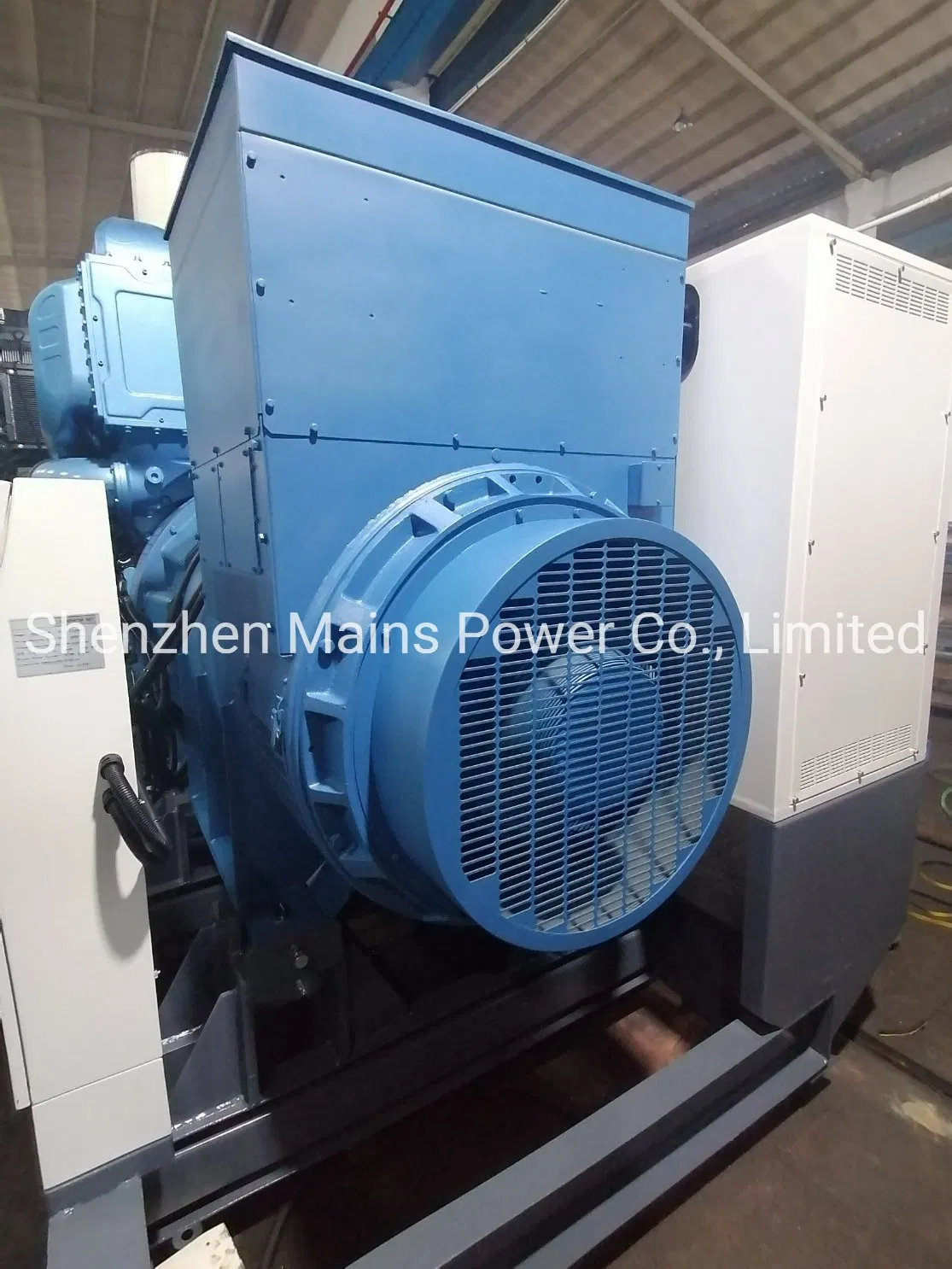

Alternator: Stamford, Marathon, Leroy Somer, MECC, DELCO

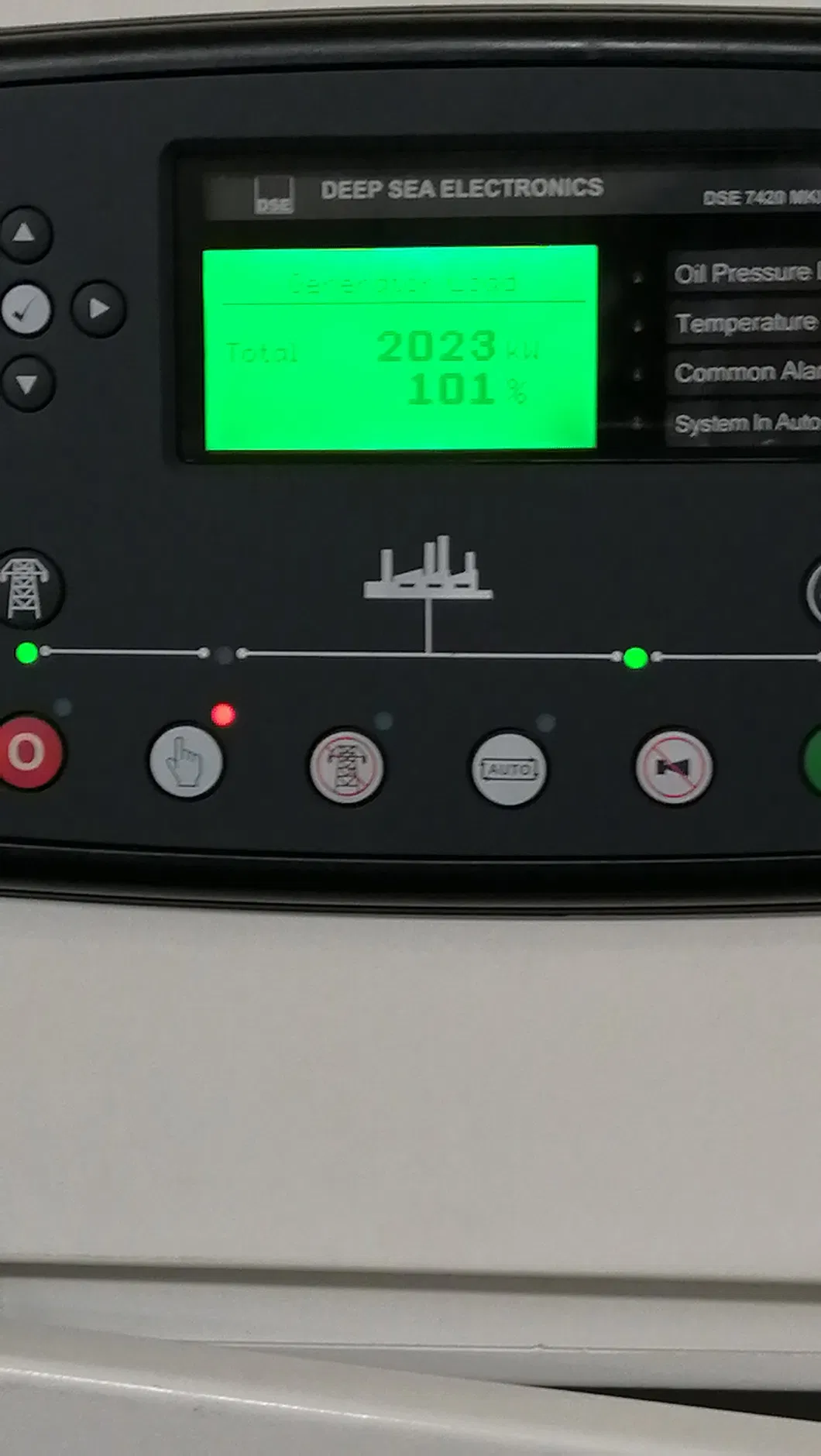

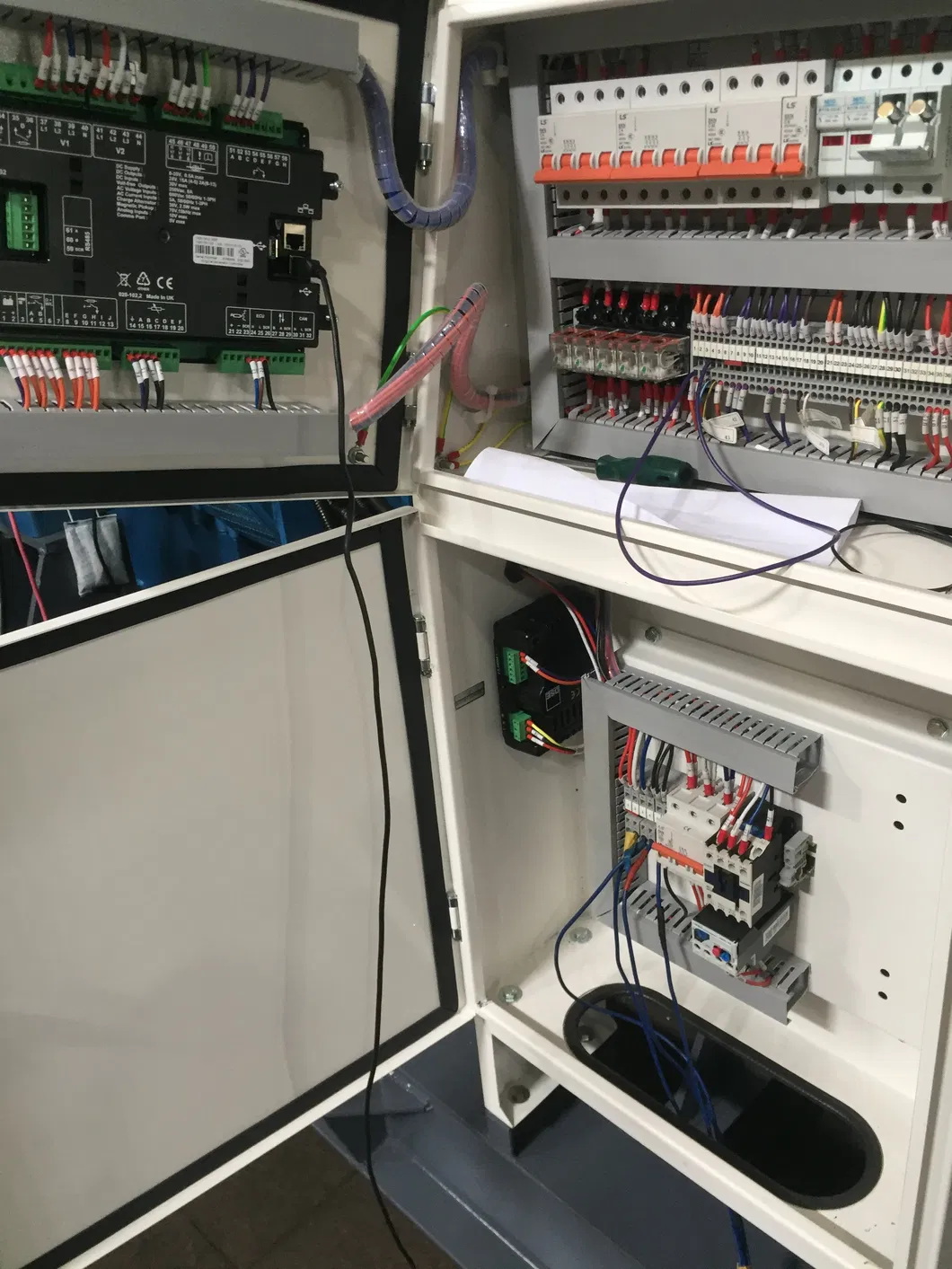

Controller: Deepsea DSE7420, DSE8610, ComAp ICNT, DEIF AGC-150, Woodward 3000, SmartGen HGM9510
Breaker: ABB, CHINT, Schneider
ATS: ABB, Socomec (4000Ampere),
