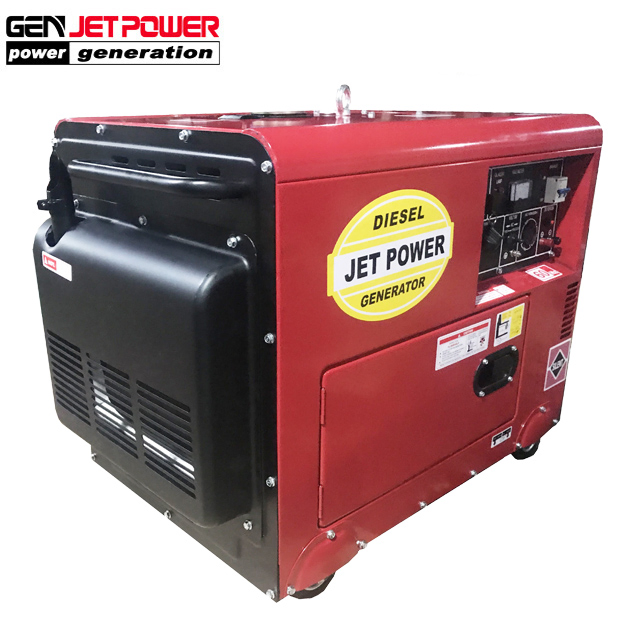

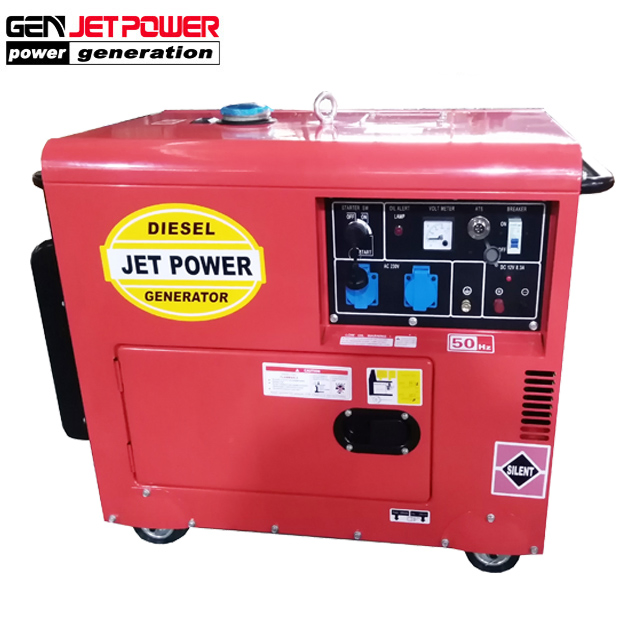

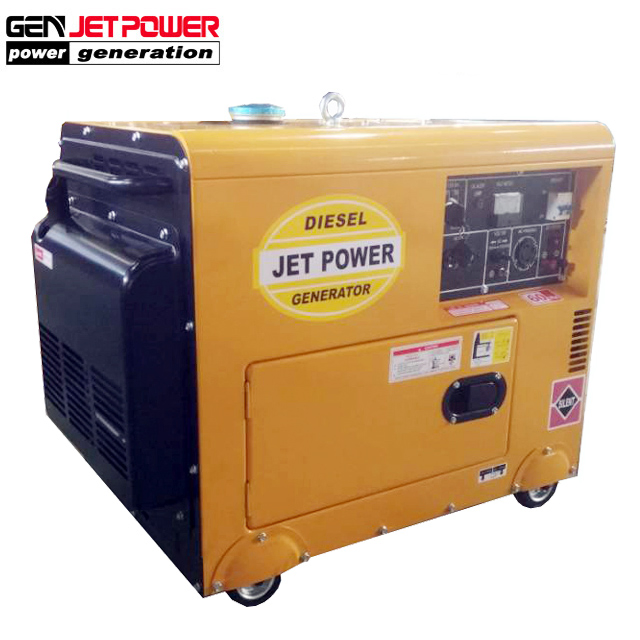

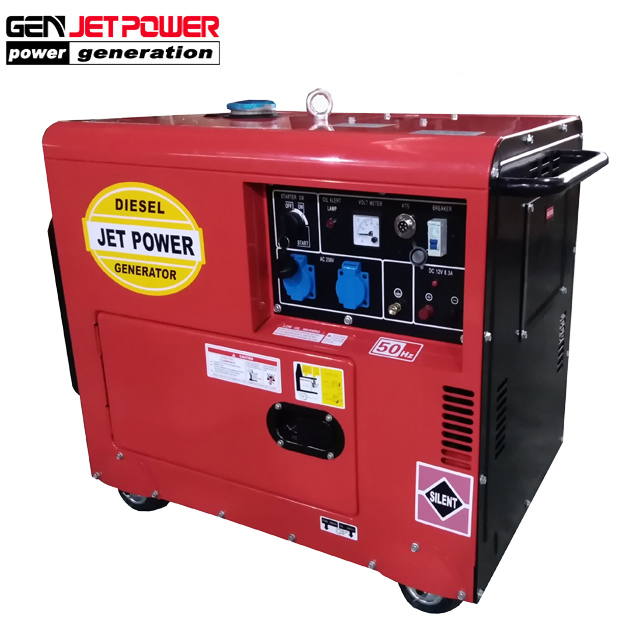

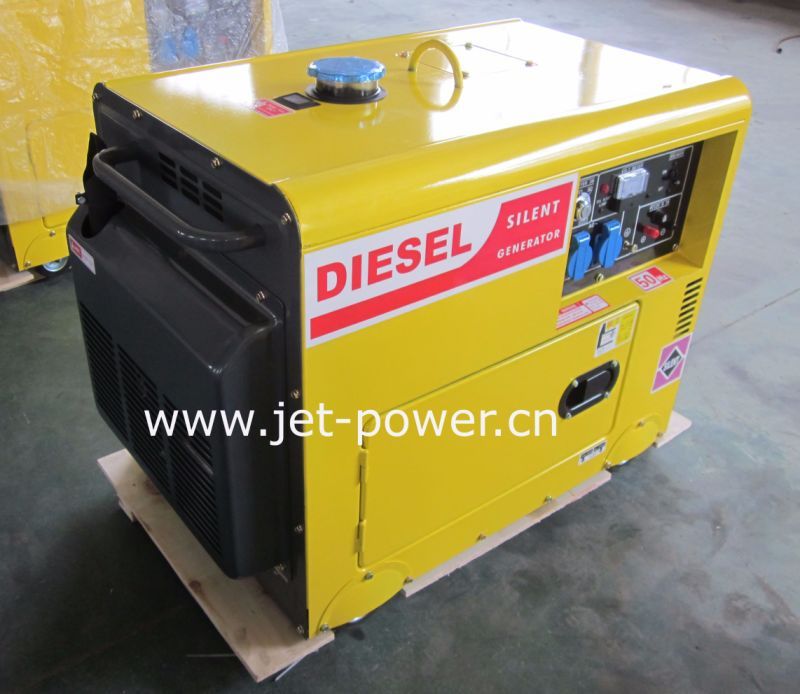

4.5kw Silent Diesel Generator Air Cooled Diesel Generator
Product Description 1. Our cooperate with famous diesel engine -powered by Isuzu,Fawde,Yanmar,Deutz, Lovol/UK brand, UK-Lister Petter, Weichai ,Volvo etc..2. Brushless alternator -- Stamford, Leroy Somer, Marathon, JET.3. High-quality steel are thickness -- 2MM to 4MM4. High density sound-absorbing ......
Send Inquiry
Product Description
Product Description
1. Our cooperate with famous diesel engine -powered by Isuzu,Fawde,Yanmar,Deutz, Lovol/UK brand, UK-Lister Petter, Weichai ,Volvo etc..
2. Brushless alternator -- Stamford, Leroy Somer, Marathon, JET.
3. High-quality steel are thickness -- 2MM to 4MM
4. High density sound-absorbing material -- sound insulation, fireproofing
5. New design of turn-back type for air inflow & air outlet which can reduce the noise and advance engine efficiency.
6. Generator set use High-quality steel are thickness canopy -- 2MM to 6MM
7. Generator equipped with 12V/ 24V DC battery with charger, battery connects wire.
8. Generator equipped with 10-12 hours fuel tank with fuel indicator, long time for working.
9. Beautiful & practicably design, Bottom hole for forklift, Water outlet & oil outlet for easy maintenance
10. Double open door on both sides of the Gensets. Spacious doors can check for every part of the engine and alternator.
11. All new design for diesel generator set of Silent, Supper silent, Soundproof, Trailer type, Container type.
Technical Datas

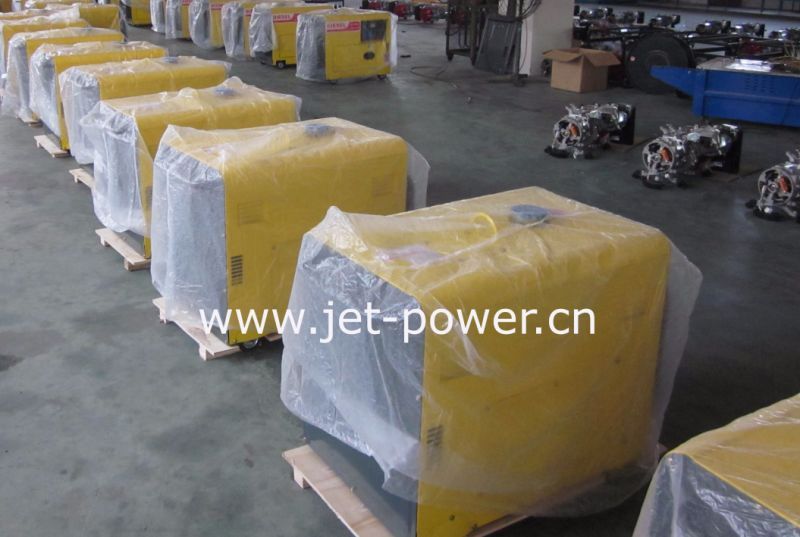

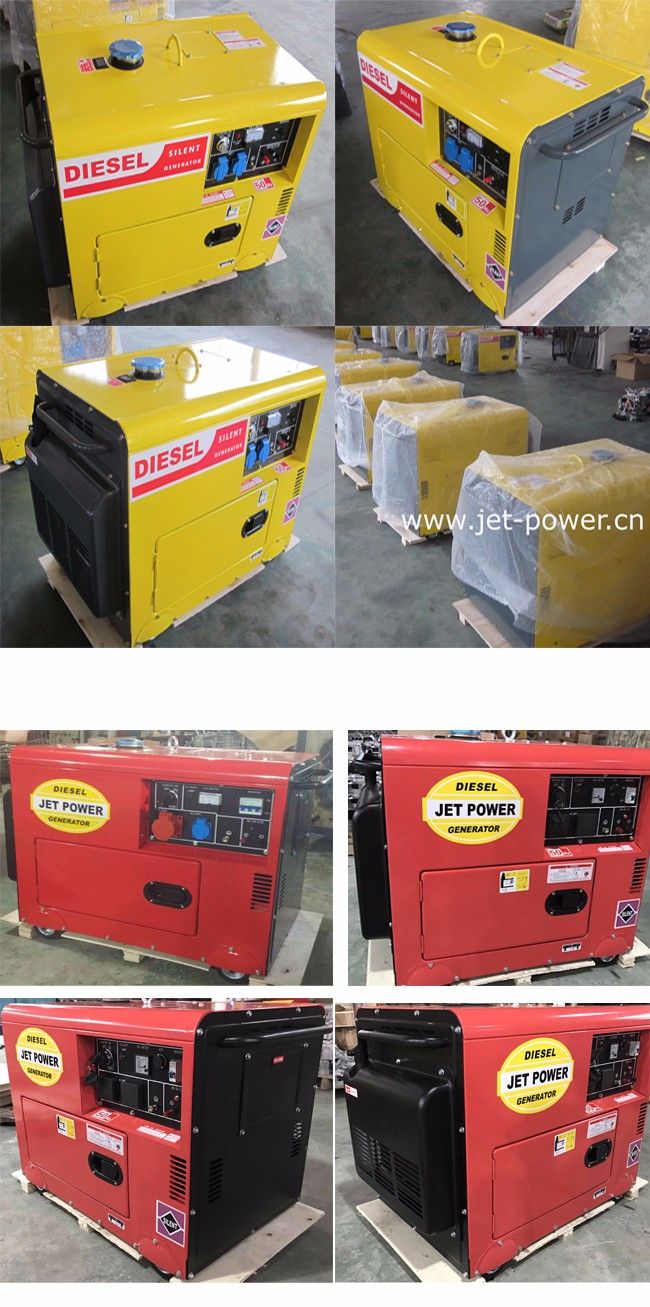

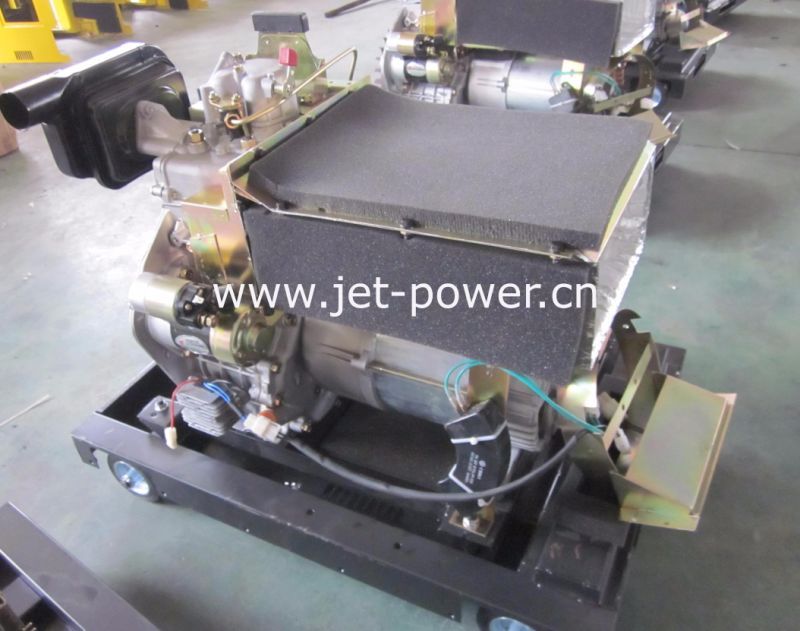

Portable air-cooled diesel generator image:
Controller System
Standard AMF control panel, including digital LED genset control model: HGM6120U, DSE7320, DSE6020, AMF20, AMF25
Manufacturing Standard
GB/T2820, ISO8528,IEC34, CE, EPA Tier4 standard ,GB755,BS 5000,VDE 0530, NEMA MG1-22,IEC34.
Genset specification:
Product Warranty Details
1.JET product has guarantee for one year or 1000 hours whichever reach first from ex-factory date.
2. During the guarantee period, our will provide the free easy-damageable spare parts of alternator caused by our quality of production or raw material.
3.After expiration, our provides cost spare parts maintenance of alternator. If engine with international warranty service, the engine product warranty by local authorization Service agent.
1. Our cooperate with famous diesel engine -powered by Isuzu,Fawde,Yanmar,Deutz, Lovol/UK brand, UK-Lister Petter, Weichai ,Volvo etc..
2. Brushless alternator -- Stamford, Leroy Somer, Marathon, JET.
3. High-quality steel are thickness -- 2MM to 4MM
4. High density sound-absorbing material -- sound insulation, fireproofing
5. New design of turn-back type for air inflow & air outlet which can reduce the noise and advance engine efficiency.
6. Generator set use High-quality steel are thickness canopy -- 2MM to 6MM
7. Generator equipped with 12V/ 24V DC battery with charger, battery connects wire.
8. Generator equipped with 10-12 hours fuel tank with fuel indicator, long time for working.
9. Beautiful & practicably design, Bottom hole for forklift, Water outlet & oil outlet for easy maintenance
10. Double open door on both sides of the Gensets. Spacious doors can check for every part of the engine and alternator.
11. All new design for diesel generator set of Silent, Supper silent, Soundproof, Trailer type, Container type.
Technical Datas
| Open type Model | JDE3500 | JDE6500 | JDE7500 | JDE8500 | JDE9500 | |||||||
| Silen type Model | JDE3500E | JDE6500E | JDE7500E | JDE8500E | JDE9500E | |||||||
| Rated frequency | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz | |||||||
| Max. output(kva) | 3.2 3.8 | 5.0 5.5 | 5.5 6.0 | 6.0 6.5 | 6.5 7.0 | |||||||
| DC output | 12V/8.3A | 12V/8.3A | 12V/8.3A | 12V/8.3A | 12V/8.3A | |||||||
| Rated rotation speed(r/min) | 3000 3600 | 3000 3600 | 3000 3600 | 3000 3600 | 3000 3600 | |||||||
| Phase NO. | Single phase | Single phase | Single phase | Single phase | Single phase | |||||||
| Power factor | 1 | 1 | 1 | 1 | 1 | |||||||
| Insulation Grade | B | B | B | B | B | |||||||
| Pole number | 2 | 2 | 2 | 2 | 2 | |||||||
| Panel type | General Panel | General Panel | General Panel | General Panel | General Panel | |||||||
| Voltage(V) | 60 | 60 | 65 | 65 | 65 | |||||||
| Engine Model | KM178FG | KM186FAG | KM188FG | KM188FG | KM192FG | |||||||
| Engine Type | Single cylinder, vertical. four-stroke, direct injection, air-cooled diesel engine | |||||||||||
| Displacement | 296 | 418 | 456 | 456 | 218 | |||||||
| Continuous running time | 8.5 | 5.5 | 5.5 | 5.5 | 5.5 | |||||||
| Battery capacity(V-Ah) | 12V 36Ah | 12V 36Ah | 12V 36Ah | 12V 36Ah | 12V 36Ah | |||||||
| Lube capacity | 1.1 | 1.65 | 1.65 | 1.65 | 1.65 | |||||||
| Loading quantity@20GP | 72pcs | 72pcs | 72pcs | 72pcs | 72pcs | |||||||
Controller System
Standard AMF control panel, including digital LED genset control model: HGM6120U, DSE7320, DSE6020, AMF20, AMF25
Manufacturing Standard
GB/T2820, ISO8528,IEC34, CE, EPA Tier4 standard ,GB755,BS 5000,VDE 0530, NEMA MG1-22,IEC34.
Genset specification:
| Main standards | GB/T2820, ISO8528,IEC34, CE, EPA Tier4 standard |
| Prime output power | from 2.8KVA to 10KVA |
| Rated voltage | 120V/240V, 220/380V, 230V/400V, 254V/440V etc. other voltage is optional |
| Generator phase and connecting | 3 phase, 4wire |
| Rated frequency | 50Hz@1500rpm or 60Hz@1800rpm |
| Alternator excited type | Brushless, self excited or PMG optional |
| Alternator Insulation | Class H |
| Alternator Protection | IP21 ~ IP23 |
| Voltage regulation | AVR automatic control 1% |
| Altitude above sea level | ≤1000 meters |
| Ambient air temperature | ≤40°C |
| Relative air humidity | ≤ 90% |
Product Warranty Details
1.JET product has guarantee for one year or 1000 hours whichever reach first from ex-factory date.
2. During the guarantee period, our will provide the free easy-damageable spare parts of alternator caused by our quality of production or raw material.
3.After expiration, our provides cost spare parts maintenance of alternator. If engine with international warranty service, the engine product warranty by local authorization Service agent.
