Product Description
Silent Type_

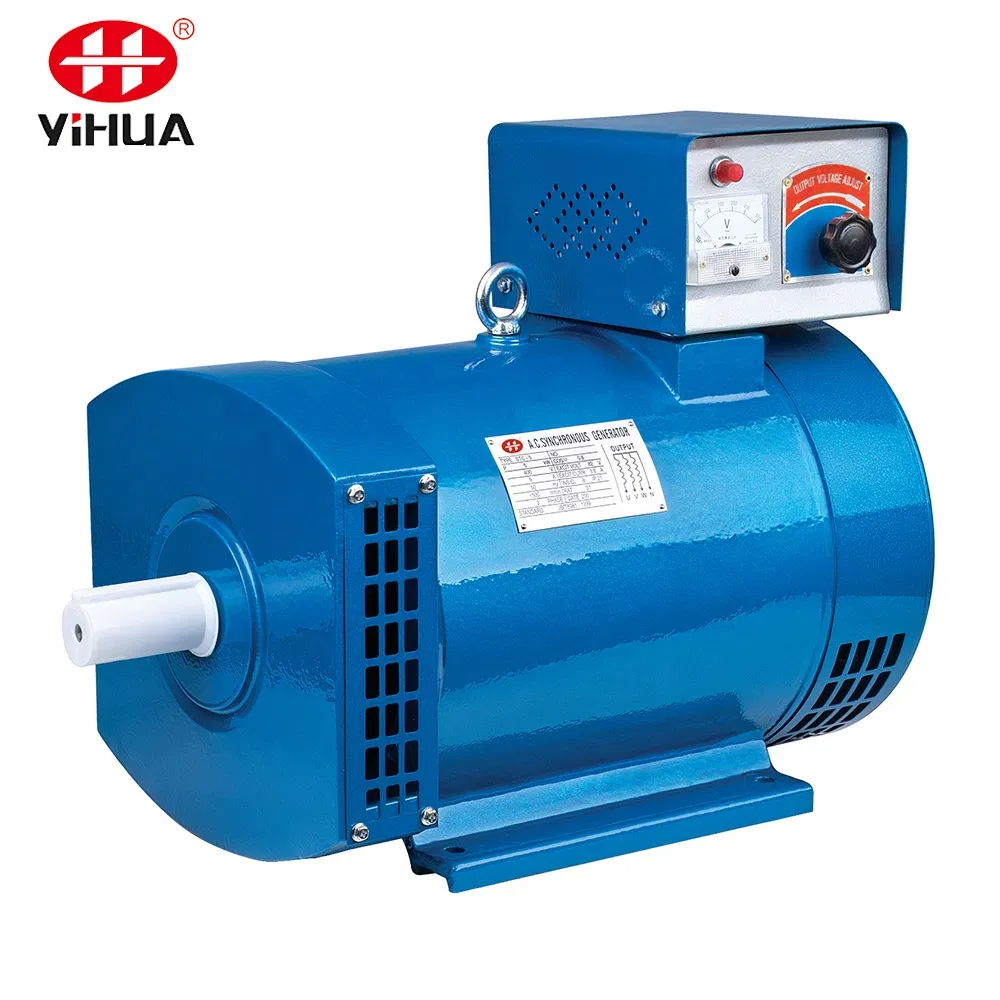

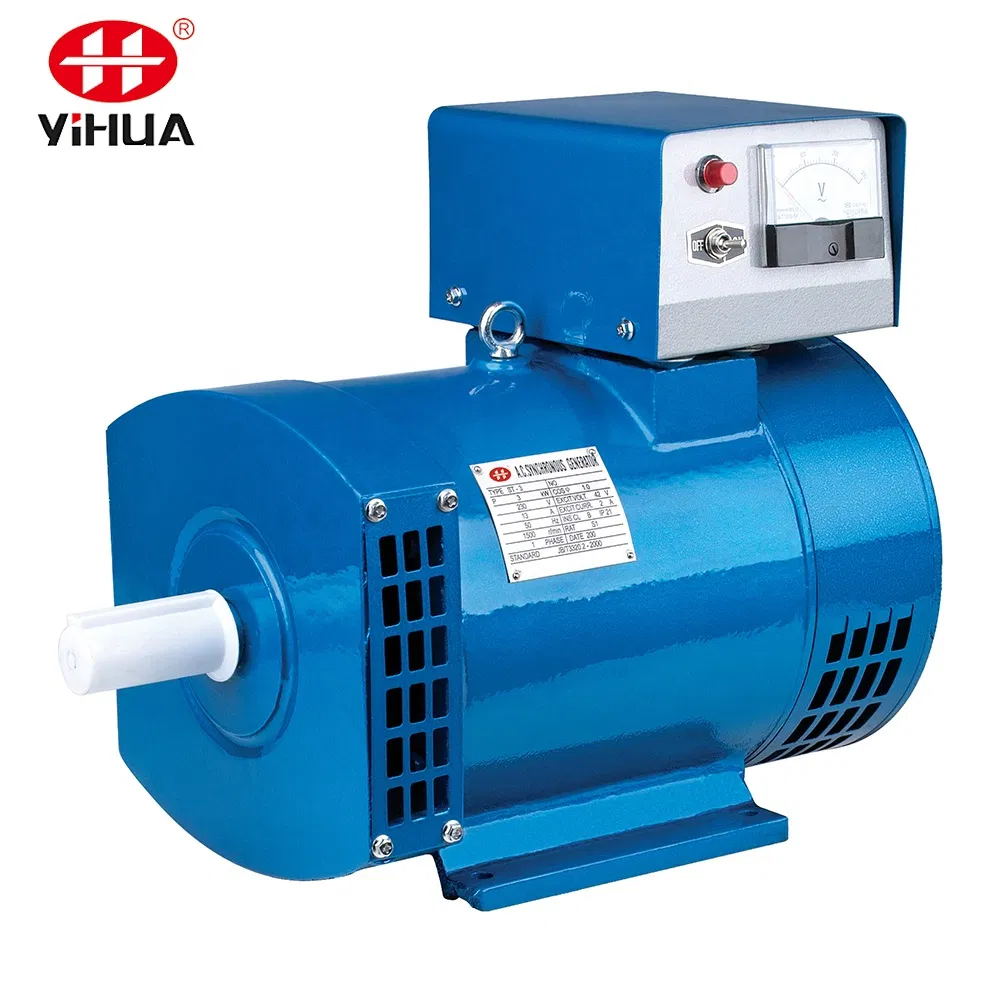

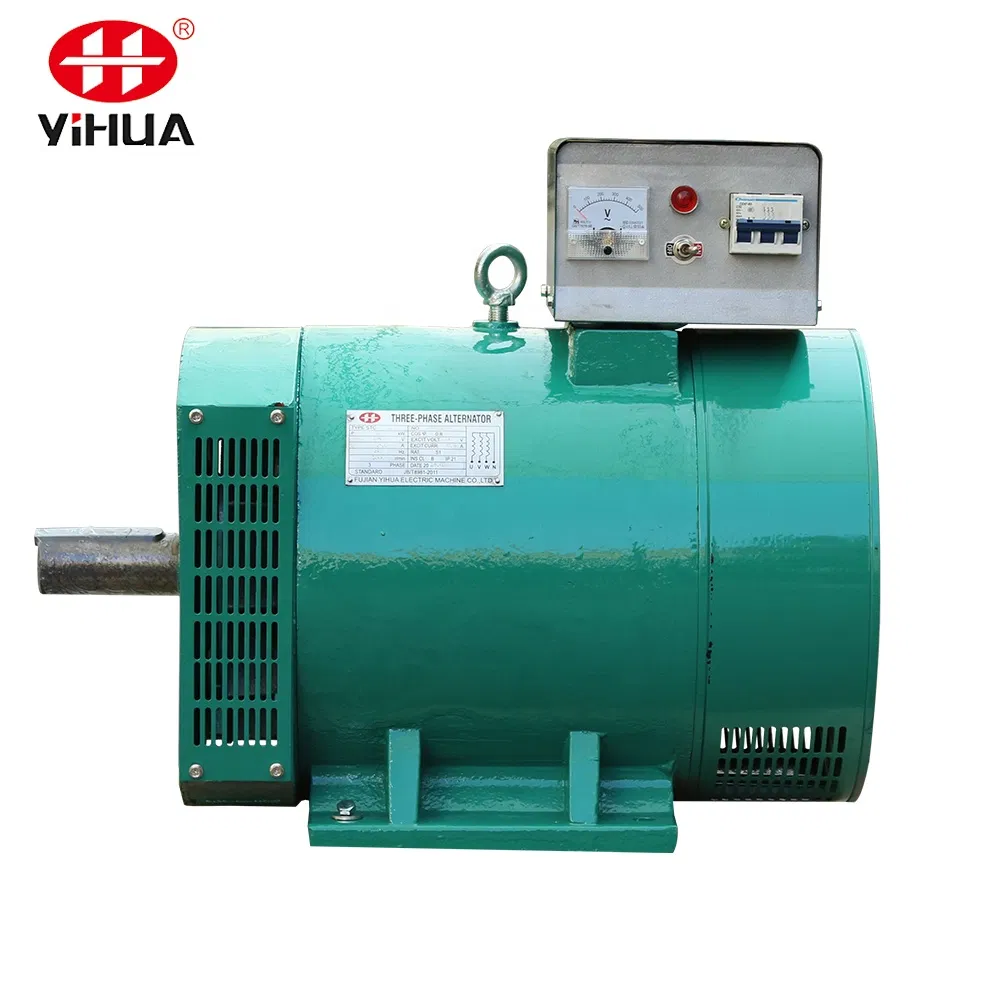

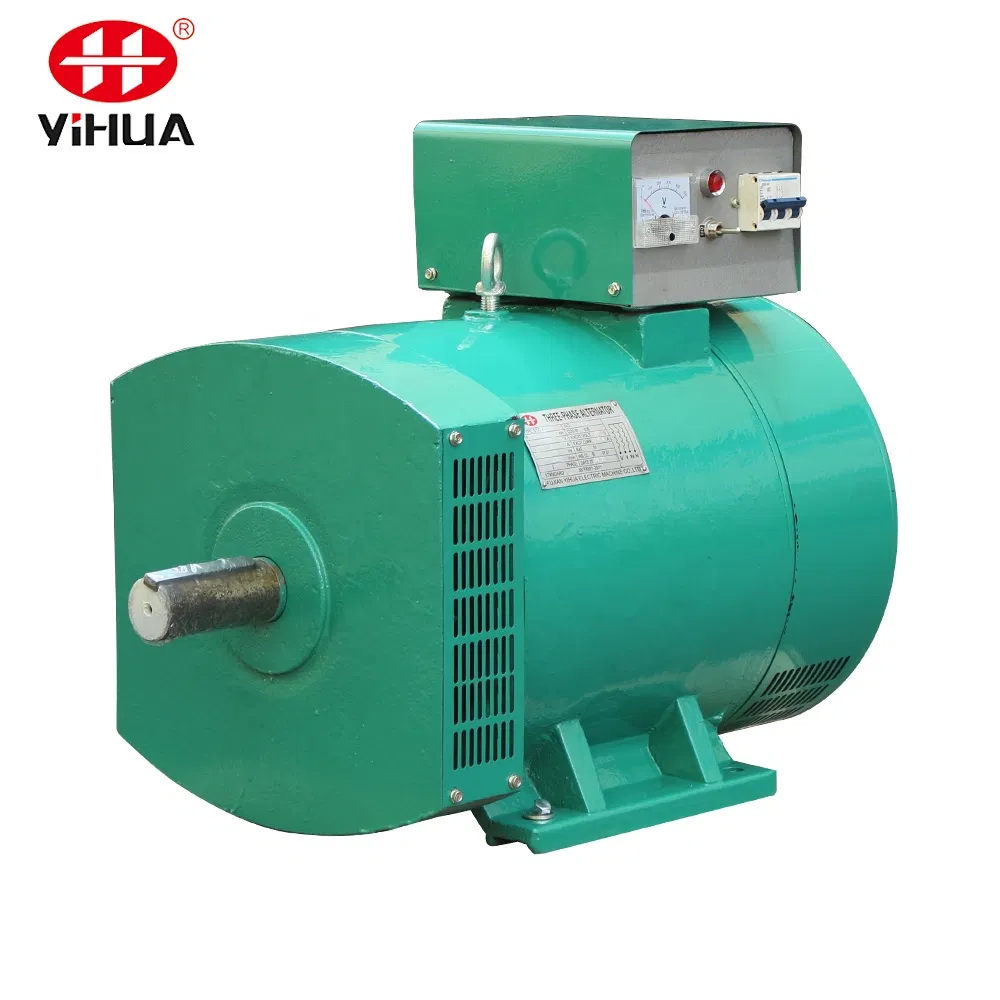

3KW 5KW 10KW 50KW ST/STC AC brush alternator in stock
| Model | Rated Power (KW/KVA) | Rated Volt. (V) | Rated Curr. (A) | Rated P.F. (CosΦ) | Rated Speed (r/min) | Rated Freq (Hz) |
| STC-3 | 3/3.75 | 400 | 5.4 | 0.8 | 1500 | 50 |
| STC-5 | 5/6.25 | 400 | 9 | 0.8 | 1500 | 50 |
| STC-7.5 | 7.5/9.375 | 400 | 13.5 | 0.8 | 1500 | 50 |
| STC-10 | 10/12.5 | 400 | 18.1 | 0.8 | 1500 | 50 |
| STC-12 | 12/15 | 400 | 21.7 | 0.8 | 1500 | 50 |
| STC-15 | 15/18.75 | 400 | 27.1 | 0.8 | 1500 | 50 |
| STC-20 | 20/25 | 400 | 36.1 | 0.8 | 1500 | 50 |
| STC-24 | 24/30 | 400 | 43.4 | 0.8 | 1500 | 50 |
| STC-30 | 30/37.5 | 400 | 54.1 | 0.8 | 1500 | 50 |
| STC-40 | 40/50 | 400 | 72.2 | 0.8 | 1500 | 50 |
| STC-50 | 50/62.5 | 400 | 90.2 | 0.8 | 1500 | 50 |
1) Insulation class: Class H
2) Voltage: 400V / 230V, 380V / 220V, 110V / 220V
3) Frequency: 50Hz, 60Hz
4) Protection class: IP 21/23
5) Power factor: 0.8
6) Voltage adjustment: ±1%
