China 330kw Silent Diesel Generator Powered by Doosan Engine Daewoo Generator

Product Description

Diesel Generator Set Data

Manufacturer:	Jiangsu Starlight Electricity Equipment Co.,Ltd
Set Type:	XG-330GF
Prime Output:	330KW/412.5KVA
Rated Current:	540(A)
Rated Frequency:	50(Hz)
Start-up time:	5~6(s)
Power Factor:	0.8(Lag)
Rated Voltage:	400/230(V)

Standard Features
Engine: DOOSAN P158LE Radiator 50ºC max Fans are driven by belt, with safety guard 24V charge alternator Dry type air filter, fuel filter, oil filter Alternator: single bearing alternator IP23, insulation class H/H Main line circuit breaker Standard control panel Absorber Ripple flex exhaust pipe, exhaust siphon, flange, muffler User manual

Diesel Engine Data
Manufacturer:	DOOSAN
Model:	P158LE
Standby/Prime Power:	414KW/363KW
Rated Speed:	1500(r/min)
Cycle:	4 stroke
Cylinder Arrangement:	8 in line
Displacement:	14.6L
Bore and Stroke:	128*142(mm)
Compression Ratio:	15:1
Governor Type:	Electronic
Start battery voltage:	24V DC

Air Intake System
Air Intake System:	Turbo, Air/Air Cooling
Max Intake Restriction:	6.35kpa
Air Flow:	25.3m3/min

Exhaust System
Exhaust Gas Flow:	78.3m3/min
Exhaust Temperature:	680ºC
Max Back Pressure:	6kPa

Fuel System
Fuel System:	Direct injection
100%( Prime Power) Load:	89.3L/H
50%( Prime Power) Load:	43.9L/H

Oil System
Total Oil Capacity:	28L
Oil Consumption:
Engine Oil Tank Capacity:	28L
Oil Pressure at Rated RPM:

Cooling System
Cooling Way:	Water-cooled
Total Coolant Capacity:	88L
Thermostat:	71-85ºC
Max Water Temperature:	95ºC

Alternator Data

Manufacturer:	STARLIGHT/ STAMFORD/ SIEMENS/ MARATHON/ ENGGA / KEPU
Excitation Mode:	Brushless and self- exciting
Number of phase and Access Act:	3-phase 4-wire
Connecting Type:	"Y" type connecting
Alternator Capacity:	412.5KVA
Alternator Efficiencies:	95%
Overload:	(PRP)110% load can run 1h
Protection Level:	IP22-IP23
Insulation Class, Temperature Rise:	H/H
Telephone Influence Factor (TIF):	<50
THF:	<2%
Voltage Regulation, Steady State:	≤±1%
Altitude:	≤1000m
Genset Electrical Performance

Voltage Regulation:				≥±5%
Voltage Regulation, Stead State:				≤±1%
Sudden Voltage Warp (100% Sudden Reduce):				≤+25%
Sudden Voltage Warp (Sudden Increase):				≤-20%
Voltage Stable Time (100% Sudden Reduce):				≤6S
Voltage Stable Time (Sudden Increase):				≤6S
Frequency Regulation, Stead State:				≤5%
Frequency Waving:				≤1.5%
Sudden Frequency Warp (100% SuddenReduce):				≤+12%
Sudden Frequency Warp (Sudden Increase):				≤-10%
FrequencyRecoveryTime(100%SuddenReduce):				≤5S
FrequencyRecoveryTime(Sudden Increase):				≤5S

Options

Engine		Alternator
Heater 2KW & 4KW			Anti Condensation Heater
Battery Charger 3.5A & 7A			Permanent Magnet Generator(PMG)
Water Separator			Drop CT(For Paralleling)
Daily Fuel Tank
Fuel Level Sensor

Control System		Others
Remote Control Panel			Rainproof Type
Auto Transfer Switch (ATS)			Soundproof Type
Paralleling System			Trailer Type

Why Us?

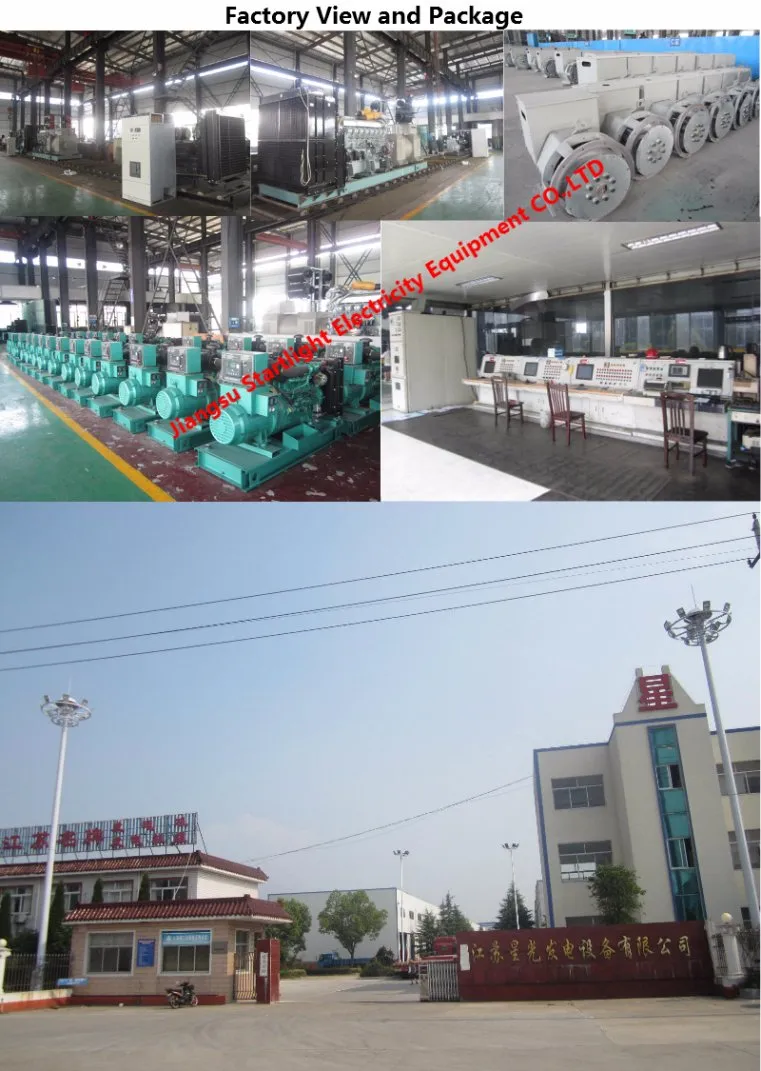

Jiangsu Startlight Electricity Equipment CO.,LTD. was founded in 1974. As the the wholly-owned subsidiary of Jiangsu Startlight Group, it is one of earlier manufactures in China. Our company covers an area of 86,000 square meter, building area of 56,000 square meters, and has more than 120 million yuan of fixed assets, and the registered capital is 151.88 million yuan. Currently, the company has a total staff of 668, including 456 professional and technical personnel 106 senior technician, 45 sales and service department all over the country. We are the only one who can provide customers with one-stop service of design, supply, commissioning and maintenance. We believe that we can build a first-class enterprise and manufacture first-class products. 330kw Silent Diesel Generator Powered by Doosan Engine Daewoo Generator

330kw Silent Diesel Generator Powered by Doosan Engine Daewoo Generator

At present, thousands of Startlight generator sets are being reliably operated in fields like telecommunications, banking, security industry, airports, hospital, transportation, oil fields, military industry and the clients have been distributed around the globe. All staff in Startlight are sparing no efforts to make the Startlight brand a symbol for reliable quality, advanced technology, first-class performance, an environment friend, and long operating life.

Certification

Our company has been an accredited manufacture who obtained the authentication of National Inspection and Supervision Center of Gas Engine and Generating Sets since 1992, and passed the CE Certificate, the quality system certification of ISO1400:2008. We have been certified for the three certification systems of ISO 9001-2008 Quality, ISO 1400-2004 Environment and GBIT28001-2001 occupation health & safety management. In addition, we are authorized self-import and export qualifications. We are the cooperative partner of the Ministry of Information Industry Network, the Ministry of Radio Film and Television Network, CNP and China Mobile.

330kw Silent Diesel Generator Powered by Doosan Engine Daewoo Generator

Our company has a consciousness in advance, in the prime of life, service familiarity management troop, they establish one modern enterprise's goal to embark, in line with "high beginning, high tech, service pursue goal superiority", collects positively absorbs the domestic and foreign vanguard technologies, advanced product, unceasingly to product renewal. Our company has built broad cooperation with Sweden Volvo, USA/Chongqing Cummins, British Perkins, German Deutz, South Korea Daewoo, German MTU and so many other companies and become (OEM) component supplier and the technology center which lays the solid foundation for the development international market.

Services:
Before service
Our professional engineer will give you some consultation of technology and related planning before sale, such as selection of equipment, supporting facilities, the design of equipment room. We can also answer and solve the using problem you faced.

After sale service

free guide to install and debugging
Free training and consult
Guiding how to protect your equipment
We will set up clients' document, tracking service, regular inspection, maintenance for life
We offers pure perennial spare parts and maintenance engineers will be ready to provide.

★ FAQ

1.Q.:What is your warranty period?

A.:Our warranty is 1 year or 1000running hours whichever comes first. But based on some special project, we can extended our warranty period.

2.Q.:Does your generator have global warranty?

A.:Yes, We supply the warranty.Also most of our products like Deutz, Perkins and Cummins power generator enjoy the global warranty service. And the alternator we use like Stamford and marathon also enjoy the global warranty service, so you do not need to worry about the after-sales service.

3.Q.:Can you accept OEM?

A.:Yes, we can accept OEM.

4.Q.:What is your payment terms?

A.:We can accept T/T 30% in advance, and the balance 70% shall be paid before shipment or L/C at sight. But based on some special project and special order,we can do something on payment item.

5.Q.:What is your delivery time?

A.:Our normal delivery time is 2 to 3 weeks. But if your order is using special engine and alternator, then the delivery time is longer.

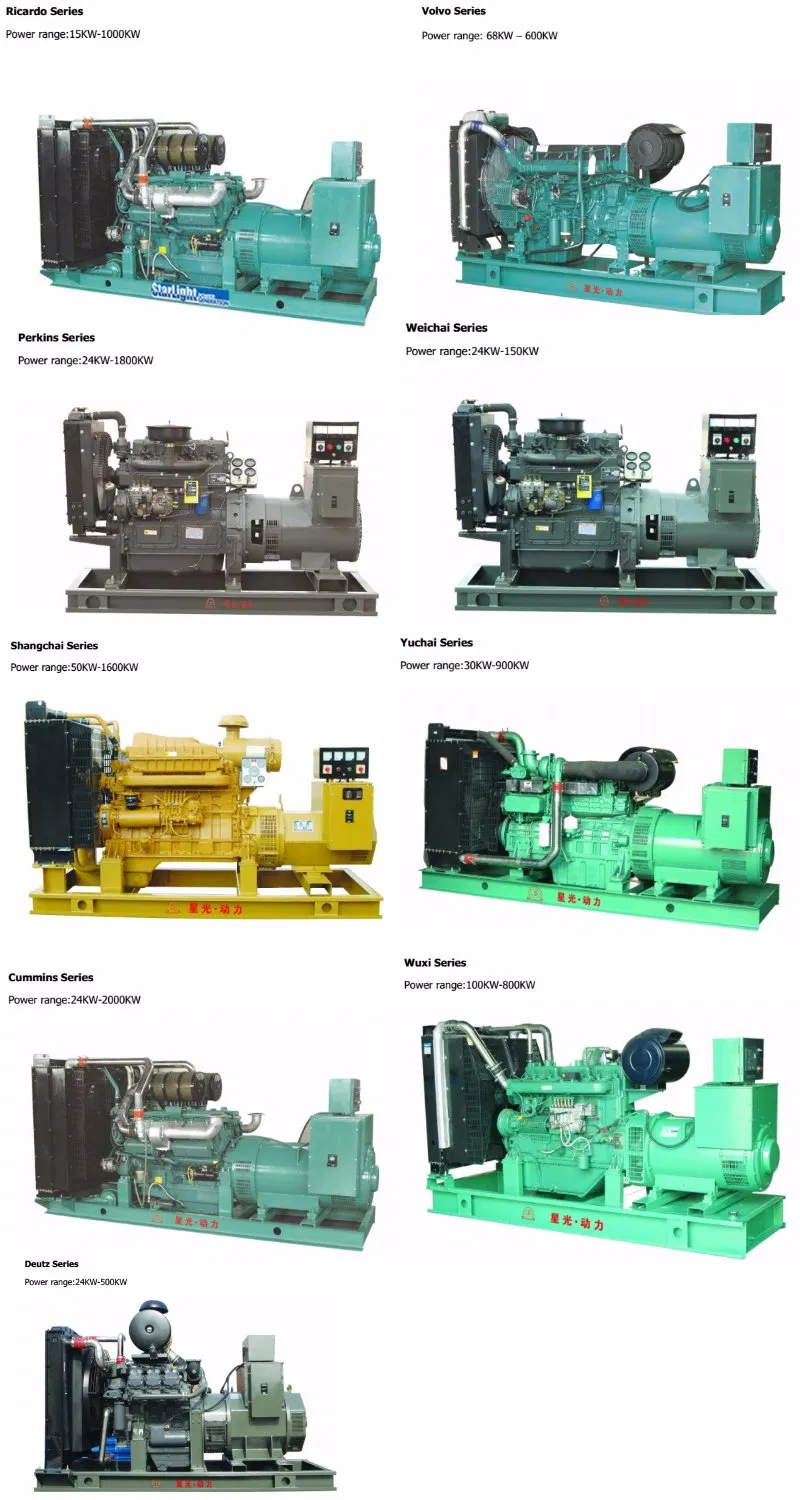

Latest Catalogue

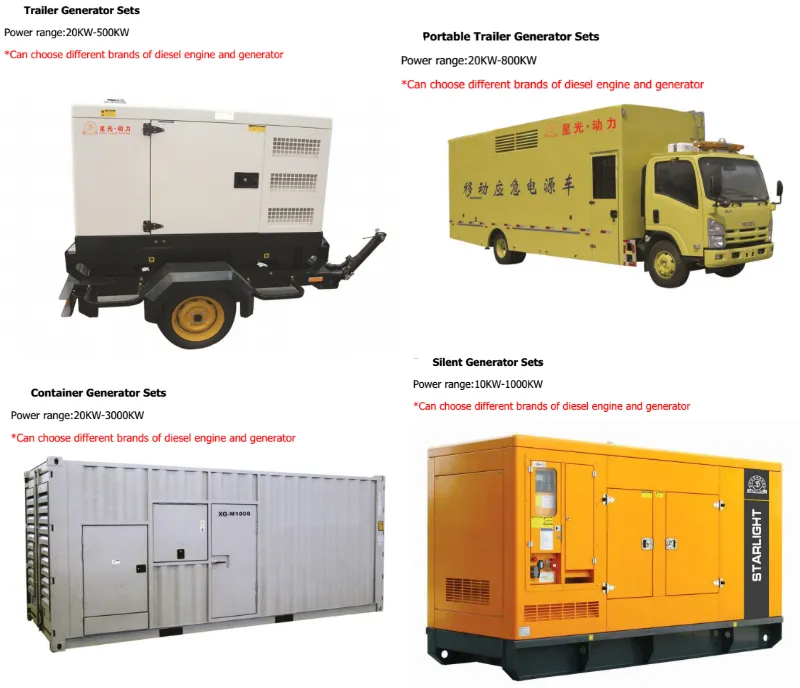

We supply multiple brands of generator set, such as: Cummins, Volvo, Deutz, Doosan Daewoo, MTU, Ricardo, Perkins, Shangchai, Weichai, Yuchai etc. The style of genset is varied, such as: container genset, trailer genset, portable trailer genset, soundproof genset, low noise genset, and silent genset, etc. Besides, we also supply design and construction of the noise reduction project up to the customer's requirements.

330kw Silent Diesel Generator Powered by Doosan Engine Daewoo Generator
