320kw/ 400kVA Volvo Penta Diesel Generator by Tad1341ge Engine
Products Details of Volvo diesel generatorSuper-above Volvo series environment consciousness Gen Sets of its exhaust emission comply with EURO two or EURO three & EPA standards. It is powered by VOLVO PENTA electronic fuel injection diesel engine that was made by the global-famous Swedish VOLVO......
Send Inquiry
Product Description
Products Details of Volvo diesel generator
Super-above Volvo series environment consciousness Gen Sets of its exhaust emission comply with EURO two or EURO three & EPA standards. It is powered by VOLVO PENTA electronic fuel injection diesel engine that was made by the global-famous Swedish VOLVO PENTA. VOLVO brand is established in 1927. For a long time, its strong brands are associated with its three core values: quality, safety and care for the environment. The VOLVO group subordinate's company VOLVO PENTA is absorbed in the production of industrial diesel engine, industrial vehicles and marine diesel engine products. It keeps ahead in the fields of six-cylinders engine and electronic fuel injection technique etc.

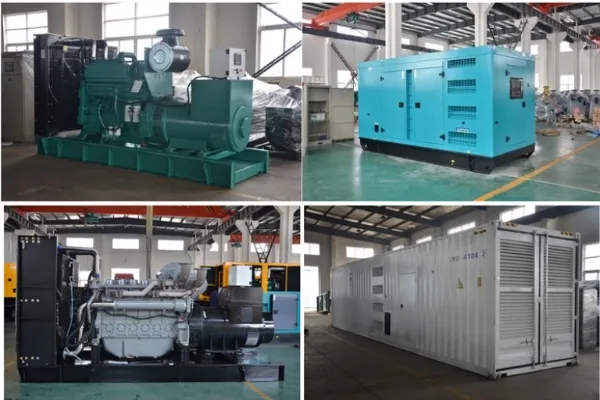

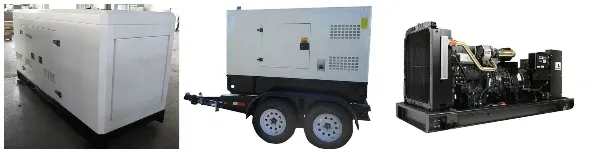

Open type/Silenet/Soundproof type/container type/trailer type Volvo diesel generator

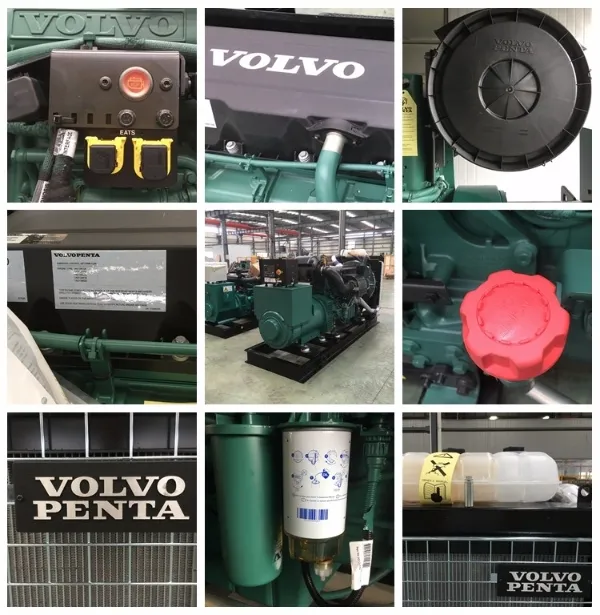

SPECIFICATION OF 320KW/400KVA VOLVO GENERATOR
| Diesel generator Details | |
| Model | SA-400GF |
| Power | 400KVA/320KW |
| Frequency | 50HZ |
| Voltage | 400/230v(voltage can be customized) |
| Optional Type | Open/soundproof/trailer |
| Size of Open type | 3100*1150*1600mm |
| Weight of Open type | 2950kg |
| With Diesel Engine | |
| Brand&model | Volvo TAD1343GE |
| Cylinders | 6 in line arrangement |
| Bore*Stroke | 131*158mm |
| Displacement | 12.78L |
| Fuel Consumption at 100% Load | 198g/kw.h |
| Speed Governor | Electronic |
| With Alternator | |
| Optional Brands | Stamford/Leroy Somer/Mecc Alte/Marathon |
| Exciter type | Single bearing,brushless,Self-excited |
| Power factor | 0.8 |
| Voltage adjust range | ≥5% |
| Insulation Grade | H |
| Protection Grade | IP23 |
| With Controller | |
| Optional brands | Deepsea/ComAp/Smartgen |
Main features of Volvo diesel generator
<1>. Multi-cylinder-line or vee engines, direct injection
<2>. Turbocharged, water cooled, cooling fan
<3>. 24V DC starter, mechanical or electronic governor
<4>. Low fuel consumption and low discharge
<5>. High efficiency
<6>. Maintaining easily and low maintenance expense

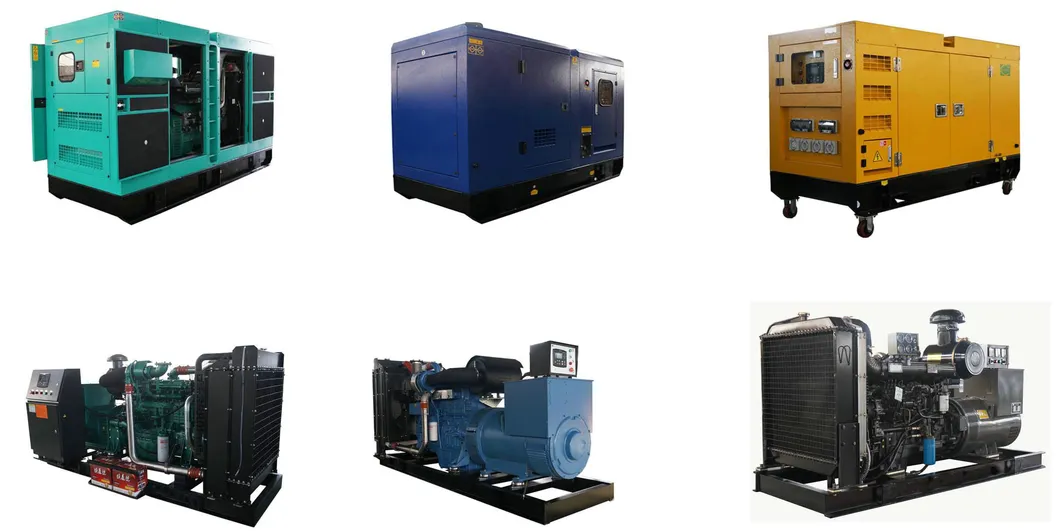

OTHER OPTIONS
| Main Engine Brand Introduction | ||||||
| Generator Brand | Generator Power(KW) | Generator Power(Kva) | Consumption Diesel(l/hr) | Voltage(V) | Frequency(HZ) | Speed(RPM) |
| Cummins Series | 16-1560 | 20-1950 | 5.7-339.9 | 230/400 | 50/60 | 1500/1800 |
| Pks Series | 8-2000 | 10-2250 | 3-529 | 230/400 | 50/60 | 1500/1800 |
| Volvo Series | 68-544 | 85-680 | 16-133 | 230/400 | 50/60 | 1500/1800 |
| MTU serirs | 520-2600 | 650-3250 | 126.5-623.8 | 230/400 | 50/60 | 1500/1800 |
| Mitsubishi Series | 480-2000 | 600-2500 | 125-525 | 230/400 | 50/60 | 1500/1800 |
| Yangdong series | 7.2-48 | 9-65 | <240 | 230/400 | 50/60 | 1500/1800 |
| SDEC series | 48-800 | 60-1000 | 195-225 | 230/400 | 50/60 | 1500/1800 |

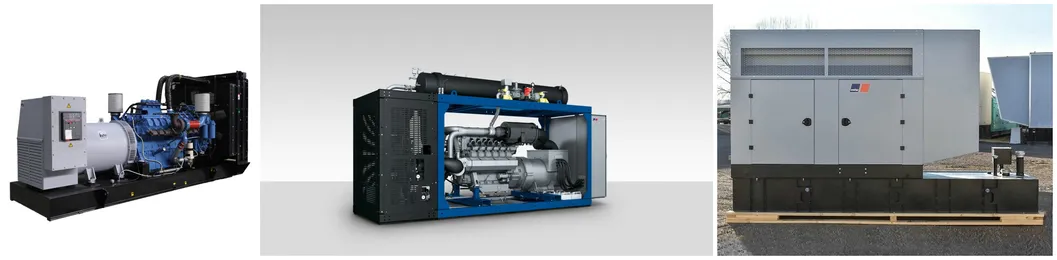

| Other series ( Container type / Marine series etc. ) | ||||||

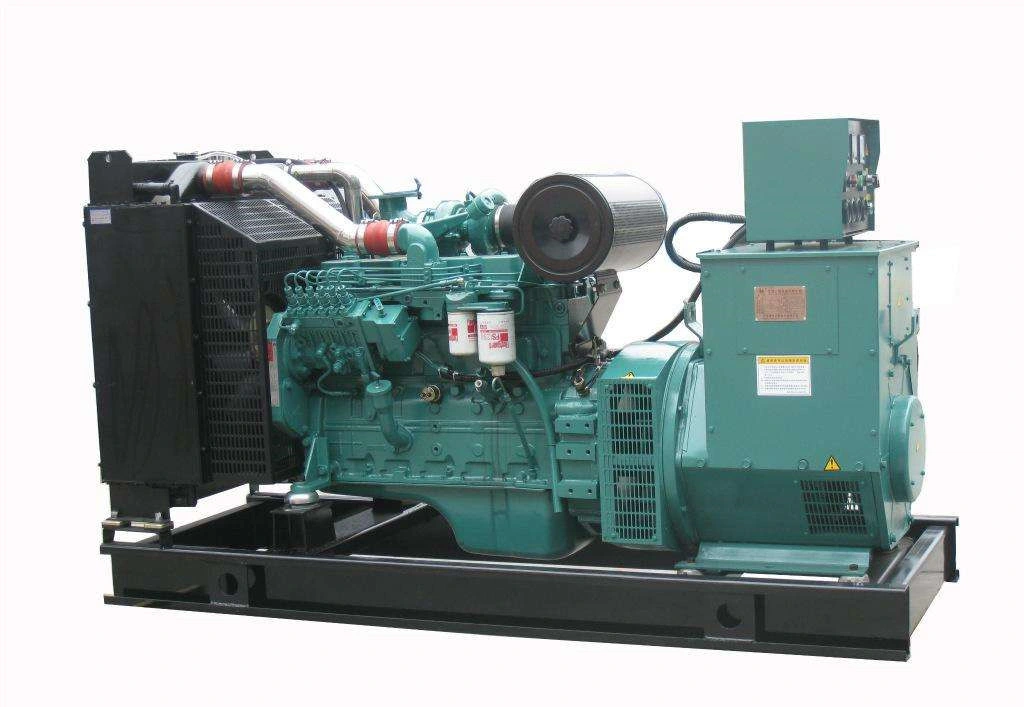

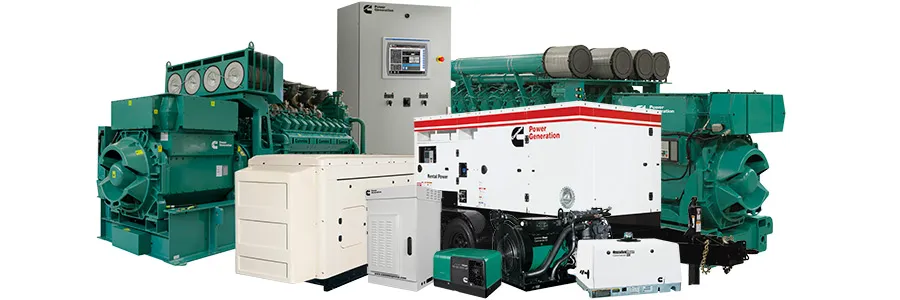

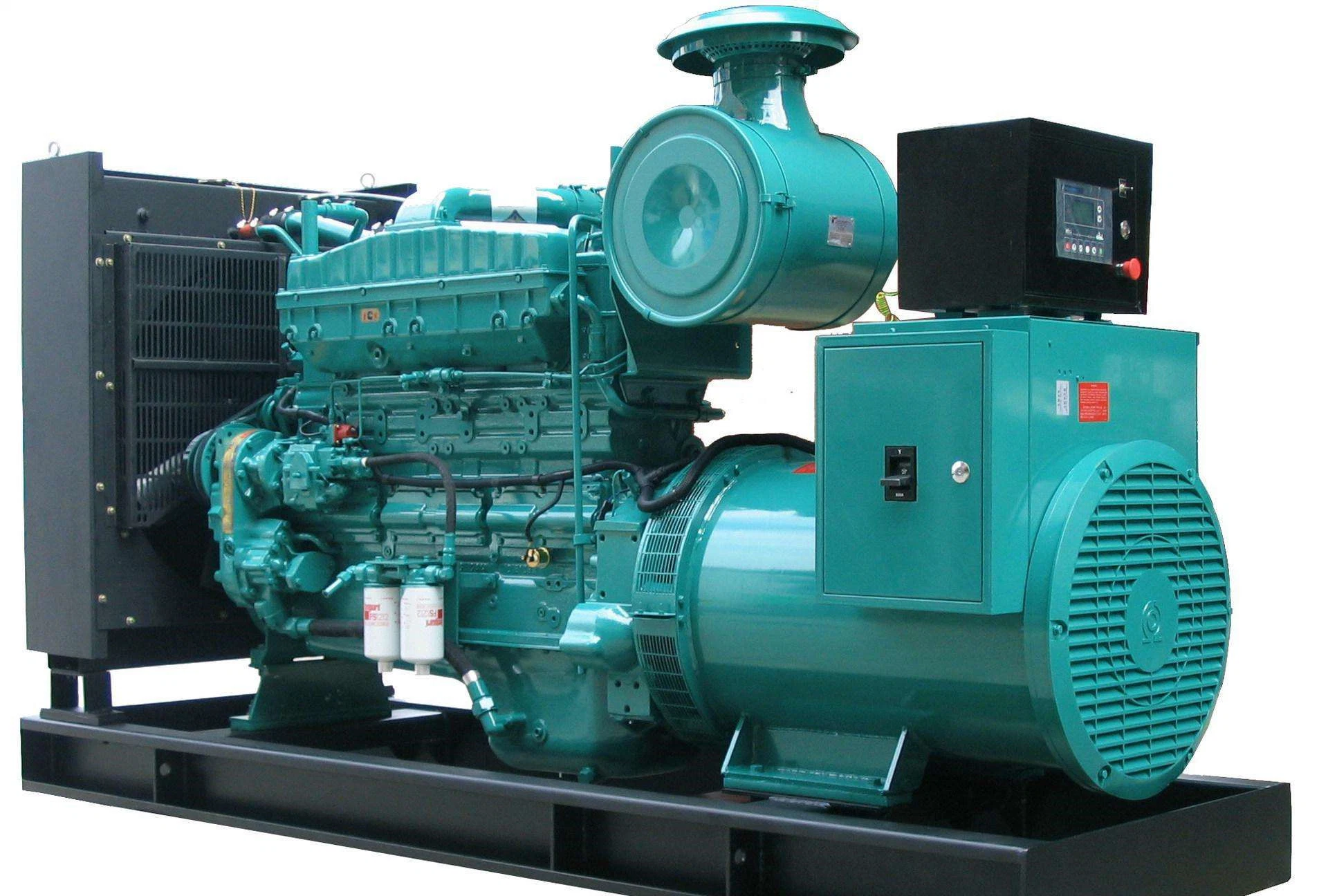

1)Cummins series diesel generator
2) Pks series diesl generotor

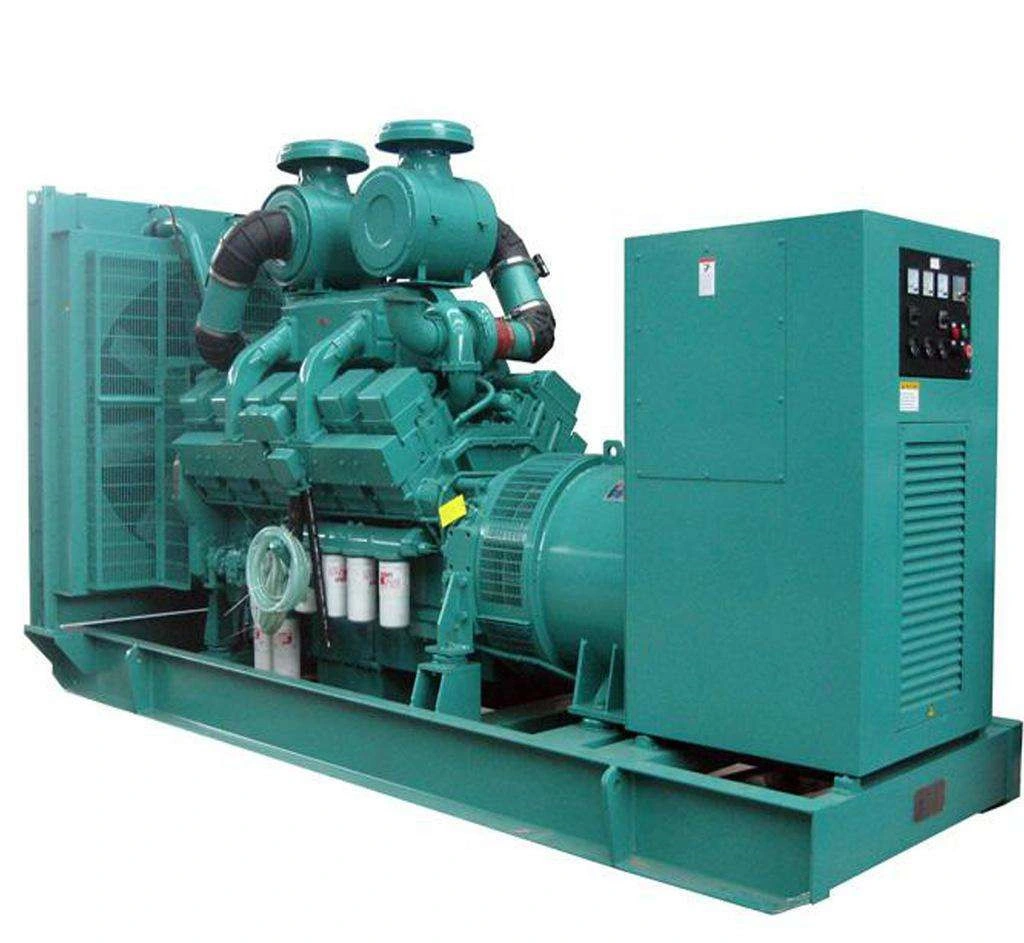

3) MTU series diesel generator
Applications of our diesel generator
Diesel generator sets are widely used in telecommunications, finance, hospitals, schools, commercial
and other sectors, industrial and mining enterprises.

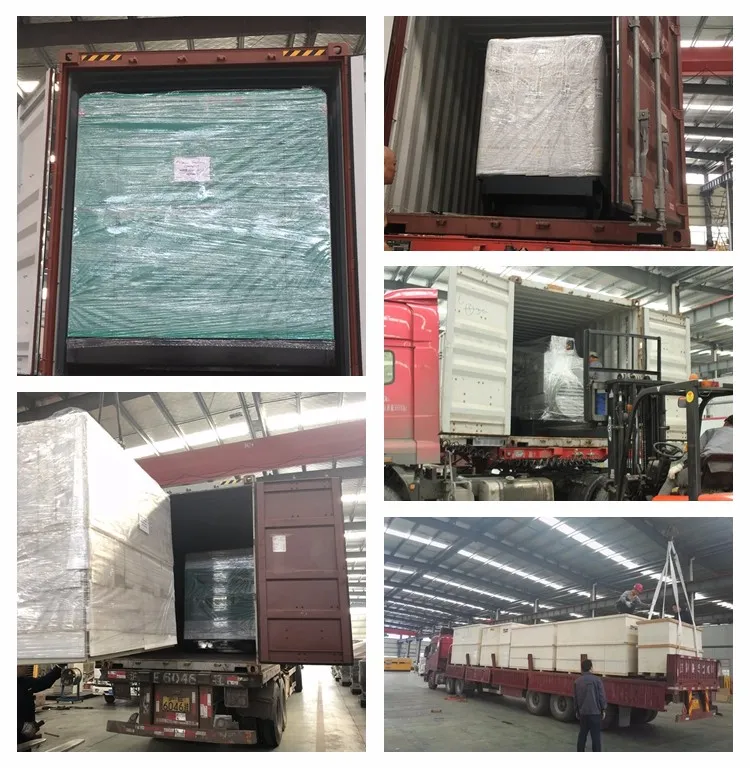

Packing&Delivery
1) Wrap the generator set by stretch film, and put some drying agent.
2) Adopt steel plate or wood rib to make it stronger, can afford rough handling.
3) Design for forklift truck working in 4 directions. Fastened by 8cm length galvanized nail.
4) Load the case into container by forklift truck.
