30kw generator 37.5kva diesel generatorProduct DescriptionThe features of 30kw generator1.The genset can be designed by customers demand2.For Logo, we can paint customer's logo as requirement.3.For technical specification or question, we can support you by our strong technical team.4.All generat......

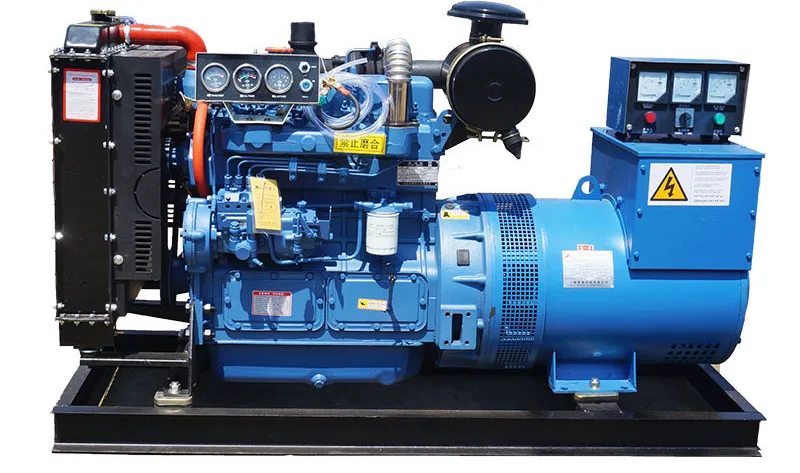

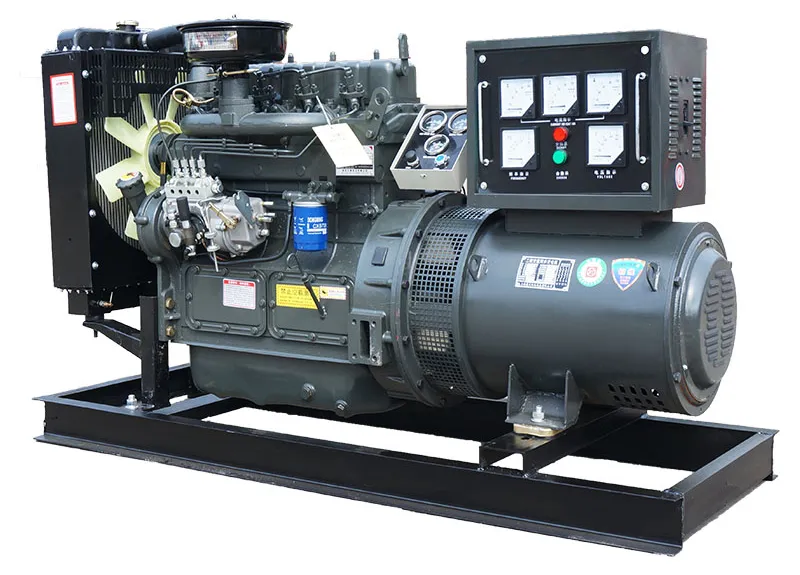

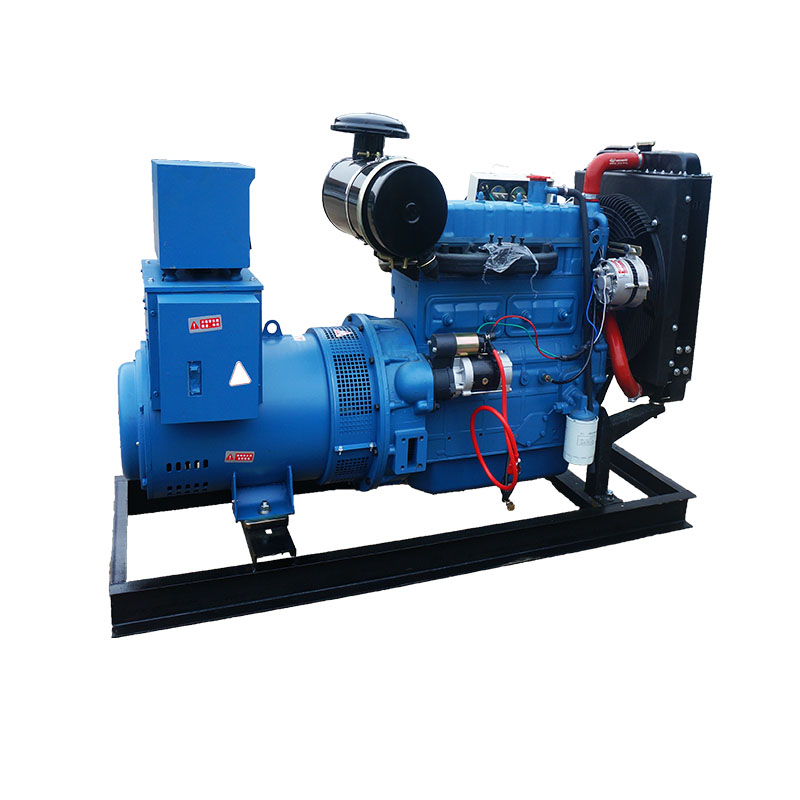

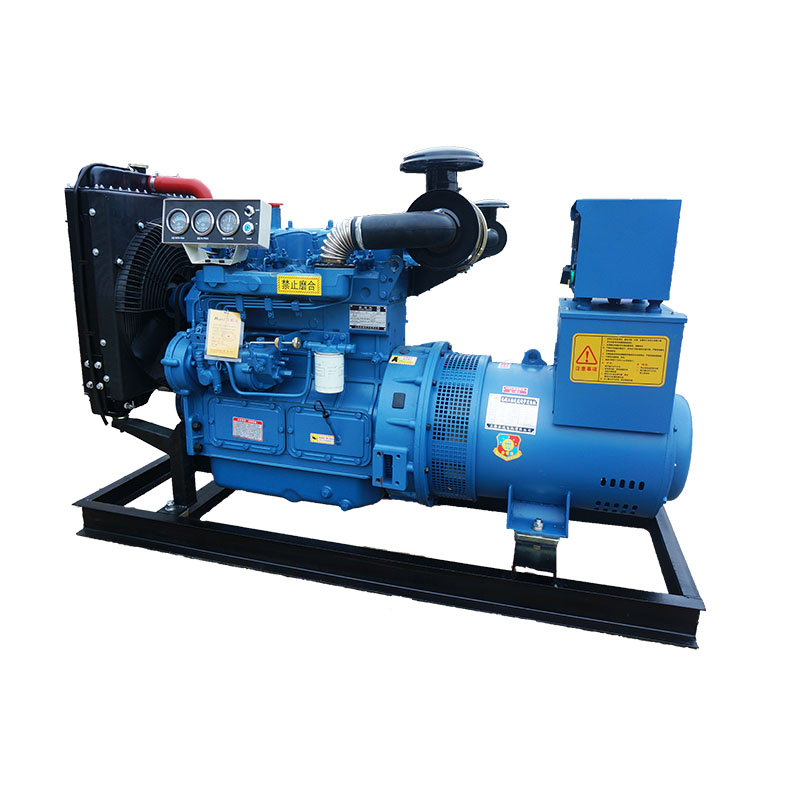

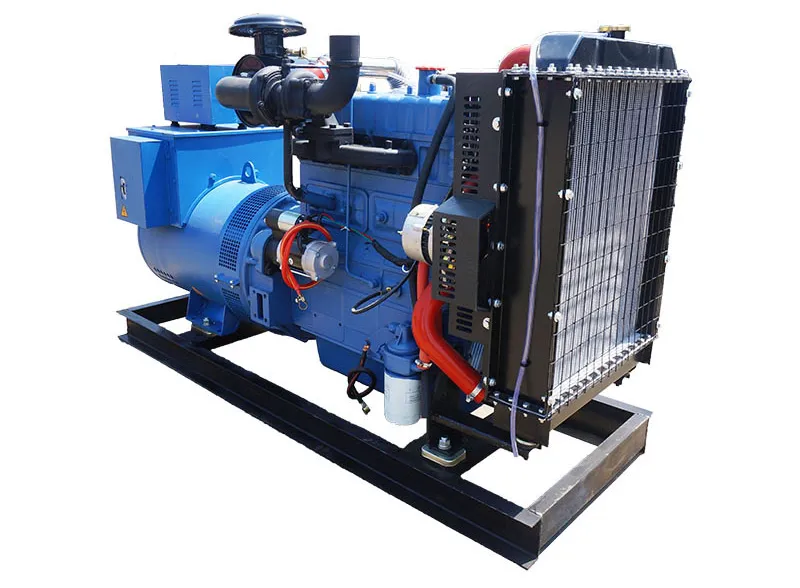

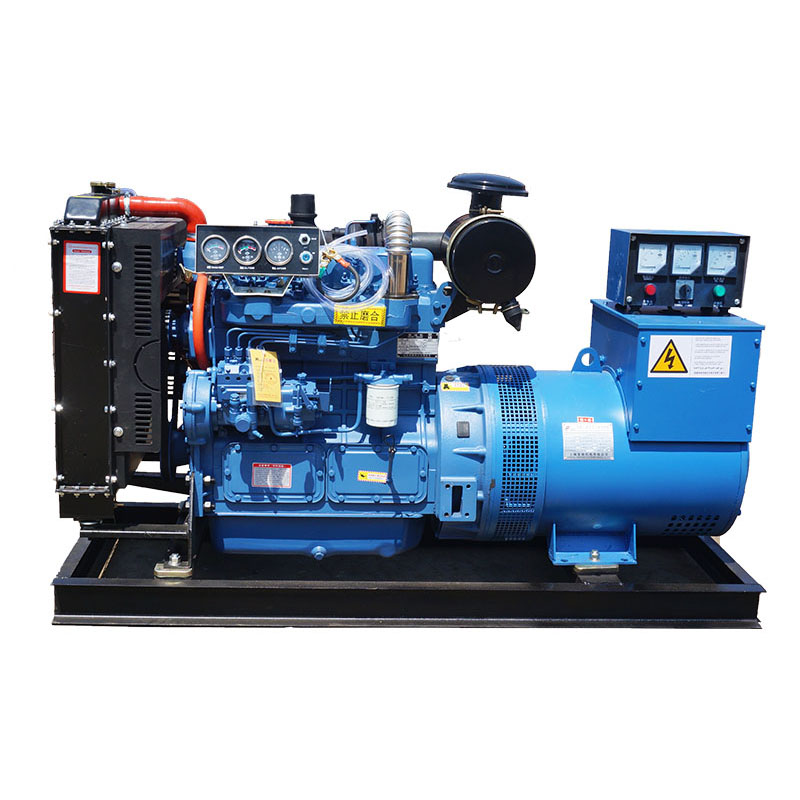

30kw generator 37.5kva diesel generator





| GENSET SPECIFICATION | |
| Model | YN-30GF |
| Rated Power | 30 KW |
| Rated Voltage | 400 V / 230 V |
| Rated Current | 54 A |
| Power Factor | 0.8 |
| Rated Frequency | 50 HZ |
| Rated Revolution Speed | 1500 RMP |
| Starting Mode | DC12V Electic Start |
| Overall dimensions | 1700*600*1100 (L*W*H mm) |
| Net Weight | 550 KG |
| Connection Mode | Three Phase Four Wire Y Type Connection |
| ENGINE SPECIFICATION GENERAL PERFORMANCE | |
| Engine Brand | Ricardo |
| Power | 36 KW |
| Engine Mode | ZH4100D |
| Cylinder | 4 l |
| Bore*Stroke | 100*115 mm |
| Intake Type | Natural |
| Compression Ratio | 16:1 |
| Rated Fule Consumption | 228 G/KW/H |
| Direction Of Rotation | Anticlockwise |
| Cooling Type | Water Cooling |
| Rated Revolution Speed | 1500 RMP |
| ALTERNATOR DATA | |
| Alternator Brand | Shanghai Lantian / Stamford |
| Alternator Mode | STC-30 |
| Rated Power | 30 KW |
| Rated Voltage | 400 V / 230 V |
| Power Factor | 0.8 |
| Insulation Class | H |
| Voltage Regulation | ≥ ± 5% |
| Protection Grade | IP22 |
| Connection Mode | Three Phase Four Wire Y Type Connection |
| Accommodation Mode | AVR |
| Output Frequency | 50 HZ |

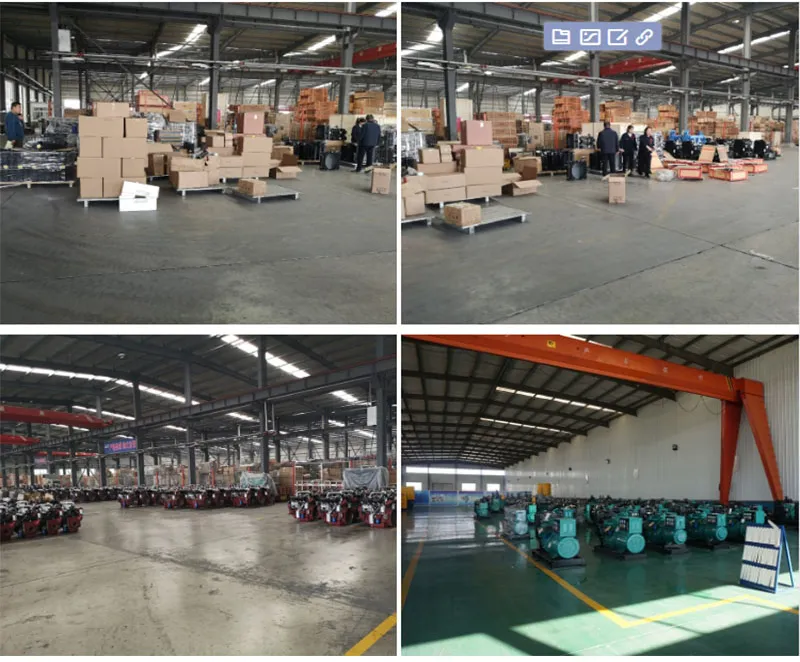

Located in The Power Capital -Weifang, Weifang Convey International Trading Co., Ltd. specializes in sales of generator sets, generators, diesel generator sets, portable generators, mobile generator sets, marine generator sets, silent generator sets, generator parts, pumps, sand pumping units, mud pumps, dredger and supporting equipment, with a technical team composed of senior professionals, to provide the most reasonable solutions.
1.What is your warranty period?
Our payment terms is 1 year or 1000 running hours whichever comes first.
2.Does your generator have global warranty?
Yes, most of our products like Weichai, Yuchai power generator enjoy the global warranty service. And the alternator we use like Leroy somer, Stamford, marathon also enjoy the global warranty service, so you do not need to worry about the aftersales service.
3.Can you accept OEM?
Yes, we can accept OEM.
4.What is your payment terms?
We can accept T/T 30% in advance, and the balance 70% shall be paid before shipment or L/C at sight.
5.What is your delivery time?
Our normal delivery time is 2 to 5 weeks. But if your order is some special engine and alternator, then the delivery time is longer.
