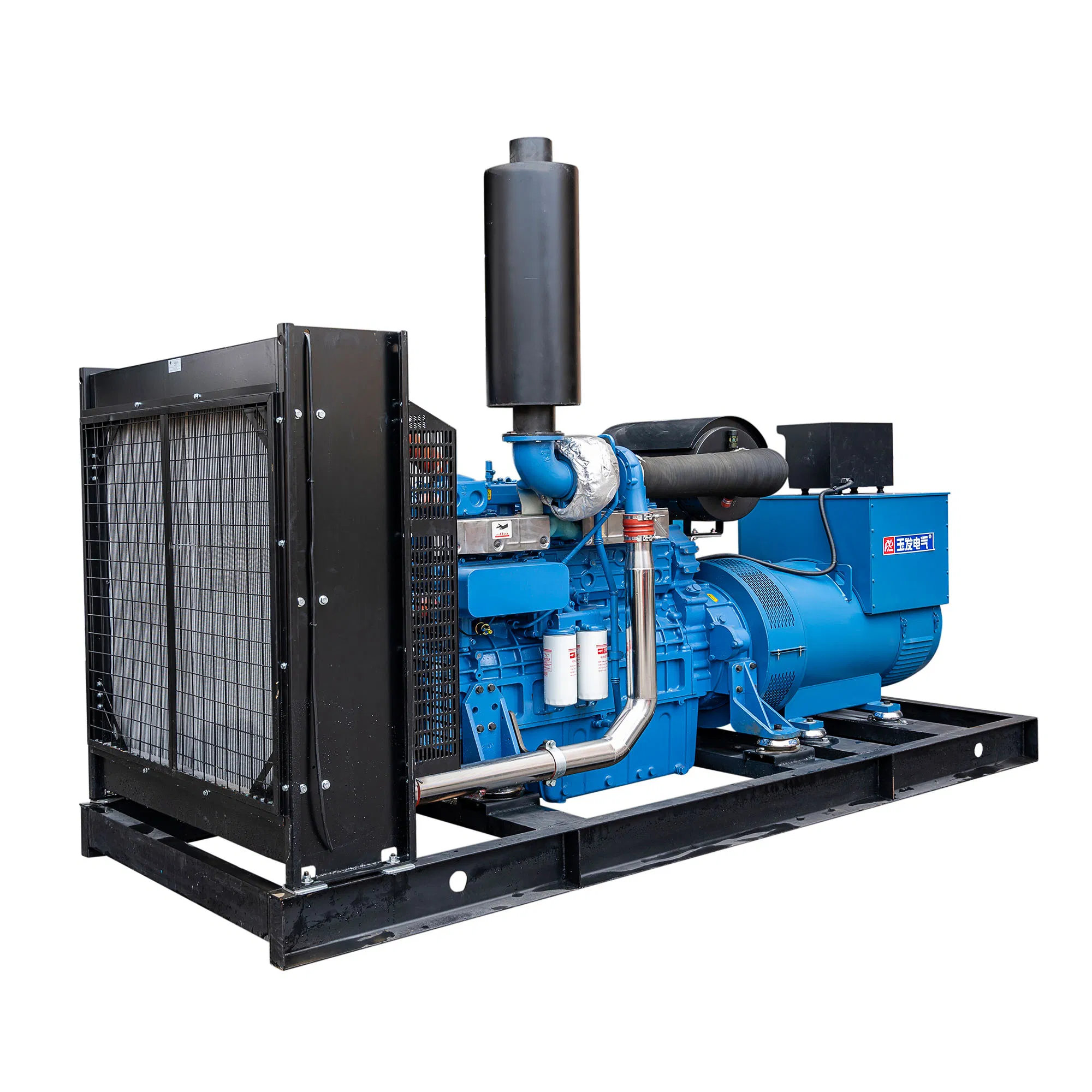

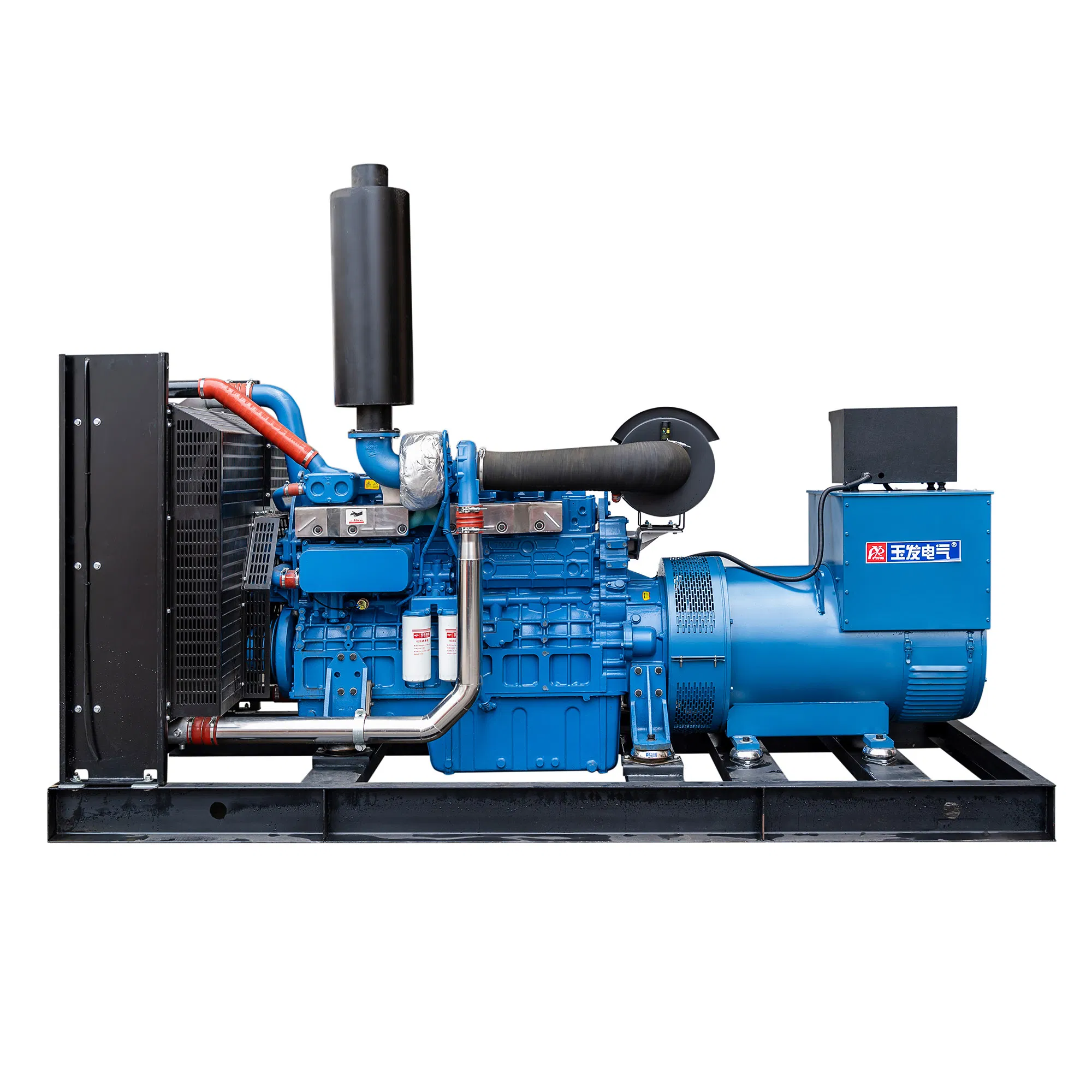

30kw 50kw 100kw 300kw Open Type Diesel Generator with Yuchai Engine
Product introduction We are specialized in diesel generator set 30kw-2200kw.We are the first-class agent of Yuchai engine.We can offer the best application and after-sales support .Strongly focus on innovation and inherent flexibility of product design,All designs for open,silent,trailer,container t......
Send Inquiry
Product Description
Product introduction
We are specialized in diesel generator set 30kw-2200kw.We are the first-class agent of Yuchai engine.We can offer the best application and after-sales support .Strongly focus on innovation and inherent flexibility of product design,All designs for open,silent,trailer,container type.
Container type Product Picture
TECH Datas
Engine
Model introduction:
The YC6T/TD series engine is an independent research and development product based on the advanced technology of large engines at home and abroad.
It adopts four-valve, supercharged and intercooled, electronically controlled unit pump and other configurations, optimized and verified by Yuchai's advanced combustion development technology, and has the characteristics of energy saving and environmental protection, high reliability, strong loading capacity, and good maintainability.
Model features:
Four valves plus turbocharged and intercooled technology, sufficient air intake, sufficient combustion, low fuel consumption, electronically controlled unit pump technology, stable operation, good transient speed regulation, strong loading capacity, and high power density.
High-quality alloy cast iron cylinder block and cylinder head, high reliability, good cold start performance, dual-speed starter plus electronic control fuel injection technology, quick start.
The parts have good versatility, high degree of serialization, one-cylinder one-head structure, low comprehensive maintenance cost, and support dual-energy start-up.
The brushless alternator
The conductive carbon brush of the brush generator is omitted, there is no spark when working, and the interference to radio equipment is small; the voltage, current, and frequency are stable when running; it is maintenance-free and has a long service life.
Suitable for precision instruments, electrical appliances and other equipment.

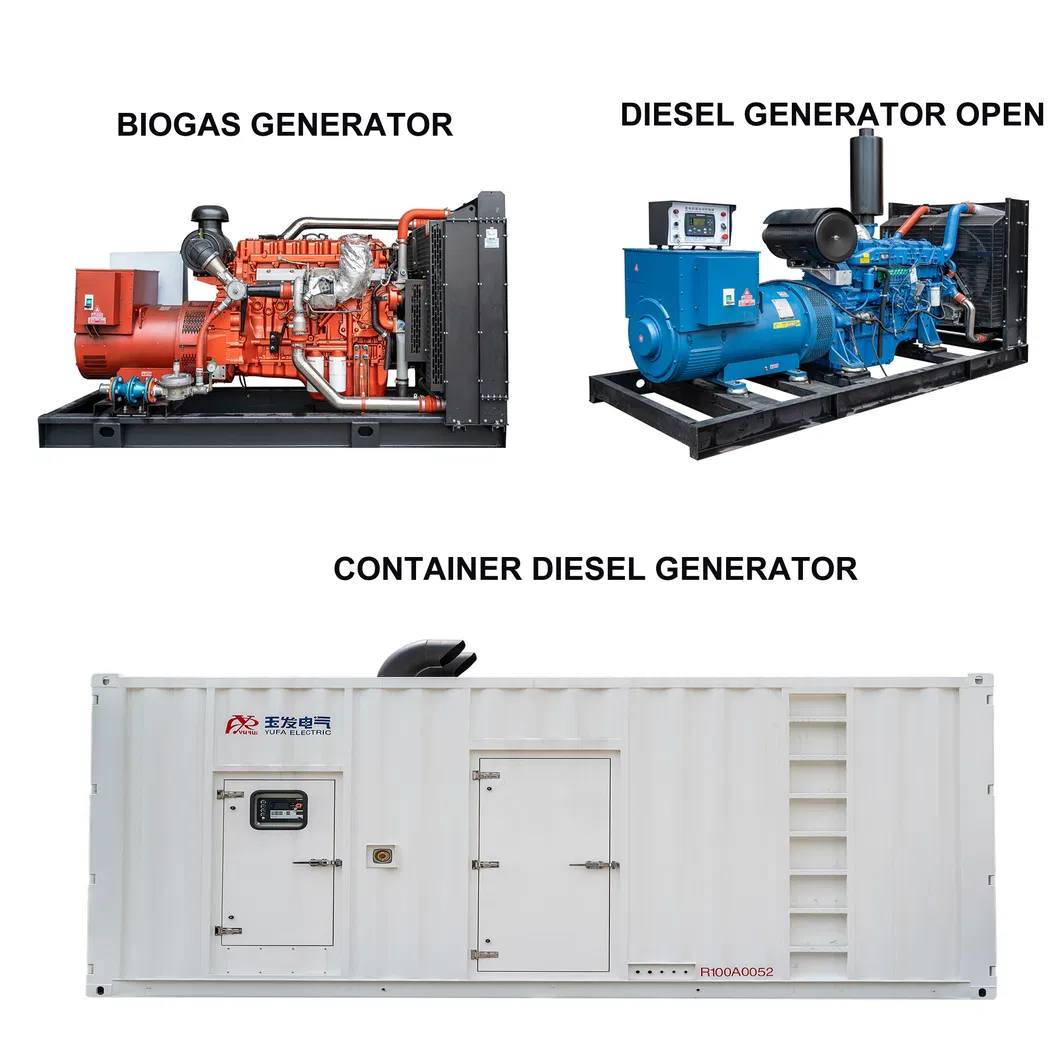

Different types of diesel generator for your choice.
Some detailed introduction

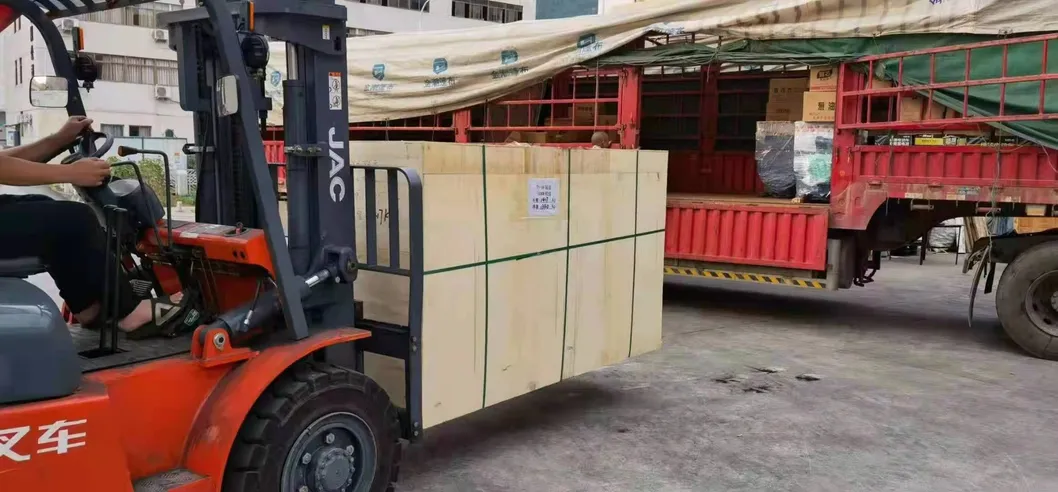

Packing and Delivery
Production Line
Company Profile

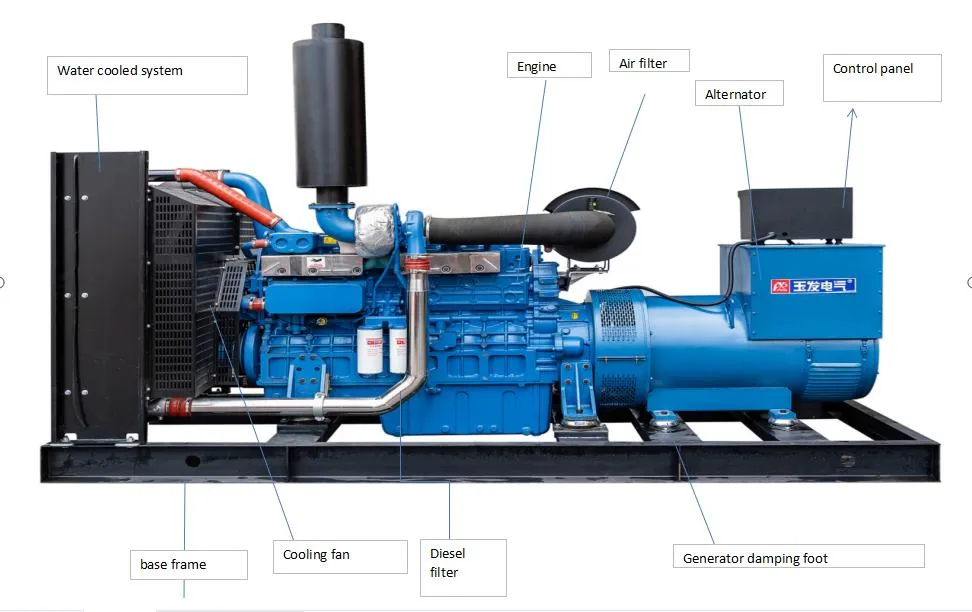

Our Fujian Diamond Electrical and Mechanical Equipment Co.,Ltd are specialized in diesel generator set 30kw-2200kw.it is composed of diesel engine, three-phase AC brushless synchronous generator, control box (screen), cooling water tank, coupling, fuel tank, muffler and common base and other components of the rigid whole . Each cylinder in a certain sequence of work, the thrust on the piston through the connecting rod into the force to push the crankshaft rotation, thus driving the crankshaft rotation.
It has the advantages of flexibility, less investment and convenient start-up, and is widely used in communications, mining, road construction, forest, farmland irrigation, field construction and national defense engineering and other departments.
Container Type 500kw-2200kw by diesle power generator .We use high density insulation foam to down the noise. and there is rockwool inside of silencer to reduce the noise.All generator with big block behind of the canopy air intake to prevent noise.All our generators with 304# stainless steel screw,hinge and locker to prevent any rust during working.We offer high-quality goods with the most competitive factory prices.
Biogas generator refers to a power generation system using biogas to generate electricity.Scientific and reasonable development and utilization of biogas can not only create considerable economic benefits, but also protect the ecological environment and promote the development and utilization of renewable energy .The fuel is a single system, simpler to control than a generator set that can burn two fuels .
Biogas power generation has quick investment and low pollution. The pollutants produced by its combustion are usually only 1P40 of petroleum and 1P800 of coal.As biogas is mixed with carbon dioxide gas, so that its flame propagation speed is low, so it has a good anti-detonation effect in internal combustion engines.
FAQ
1What is the advantages of your product?
We are the first-class agent of Yuchai and Wechai engine.we can offer the most competitive factory price and a whole set after-sales service.Our goods are with high-quality .
2 What is the payment terms?
Payment terms:T/T, 30% as deposit, 70% balance before shipment.
3 What is the delievery time ?
Delivery Time:Within 20 days after the deposit
4Warranty:
1)1 year or 1000 hours working time
2)Beyond warranty time, we supply spare parts with best price.
5 How about the packing ?
Standard Packing: Film plastic
Optional: Plywood Case
We are specialized in diesel generator set 30kw-2200kw.We are the first-class agent of Yuchai engine.We can offer the best application and after-sales support .Strongly focus on innovation and inherent flexibility of product design,All designs for open,silent,trailer,container type.
Container type Product Picture
TECH Datas
| Genset | Model | YF-400 | YF-500 | YF-600 | YF-800 | ||||
| Rated Power | 400KW | 400KW | 500KW | 600KW | 800KW | ||||
| Power factor (PF) | COSφ=0.8(lag) | ||||||||
| Standby Power | 485KW | 441KW | 625KW | 616KW | 735KW | 665KW | 968KW | 897KW | |
| Rated Voltage | 230V/400V | ||||||||
| Frequency | 50HZ | ||||||||
| Rated Current | 720A | 900A | 900A | 1080A | 1440A | ||||
| Rated Speed | 1500 r/min | ||||||||
| Phase/Wire | 3phase,4 wire | ||||||||
| Overall Size (mm) | 3700*1400*1900 | 2900*1050*1650 | 3650*1500*1910 | 3650*1500*1910 | 3650*1500*1910 | 4700*1900*2400 | |||
| Starting Method | DC24V Electrical starting | ||||||||
| Weight | 3900kgs | 2400kgs | 3950kgs | 3950KGS | 3950kgs | 7200kgs | |||
| Speed Regulation | Electric unit pump | ||||||||
| Engine | Model | YC6T660L-D20 | YC6K600-D30 | YC6TD780L-D20 | YC6TD840L-D20 | YC6TD1000-D30 | YC6TD900--D31 | YC6C1320-D31 | YC6C1220-D31 |
| Type | Water cooled,inline,4 stroke | ||||||||
| Intake Type | Turbocharged inter-cooled | ||||||||
| No. of cylinder | 6 | 6 | 6 | ||||||
| Bore * stroke (mm) | 129*165 | 145*165 | 152*180 | 152*180 | 152*180 | 200*210 | |||
| Lube of Capacity | 52L | 32L | 60L | 60L | 60L | 175L | |||
| Oil consumption | ≤0.9g/kw.h | ≤0.2g/kw.h | ≤1.5g/kw.h | ≤1.5g/kw.h | ≤1.5g/kw.h | ||||
| Minimum fuel | ≤195g/kw.h | ≤210g/kw.h | ≤192g/kw.h | ≤192g/kw.h | ≤192g/kw.h | ||||
| Displacement | 16.35L | 12.94 | 19.6L | 19.6L | 19.6L | 39.58L | |||
| Exhaust back pressure (mbar) | 85 | ||||||||
| Alternator | Model | YFW-400 | YFW-400 | YFW-500 | YFW-600 | YFW-800 | |||
| Excitation Type | brushless,self-excited | ||||||||
| Insulation Grade | H | ||||||||
| Protection Grade | IP23 | ||||||||
| Voltage Regulation | AVR | ||||||||

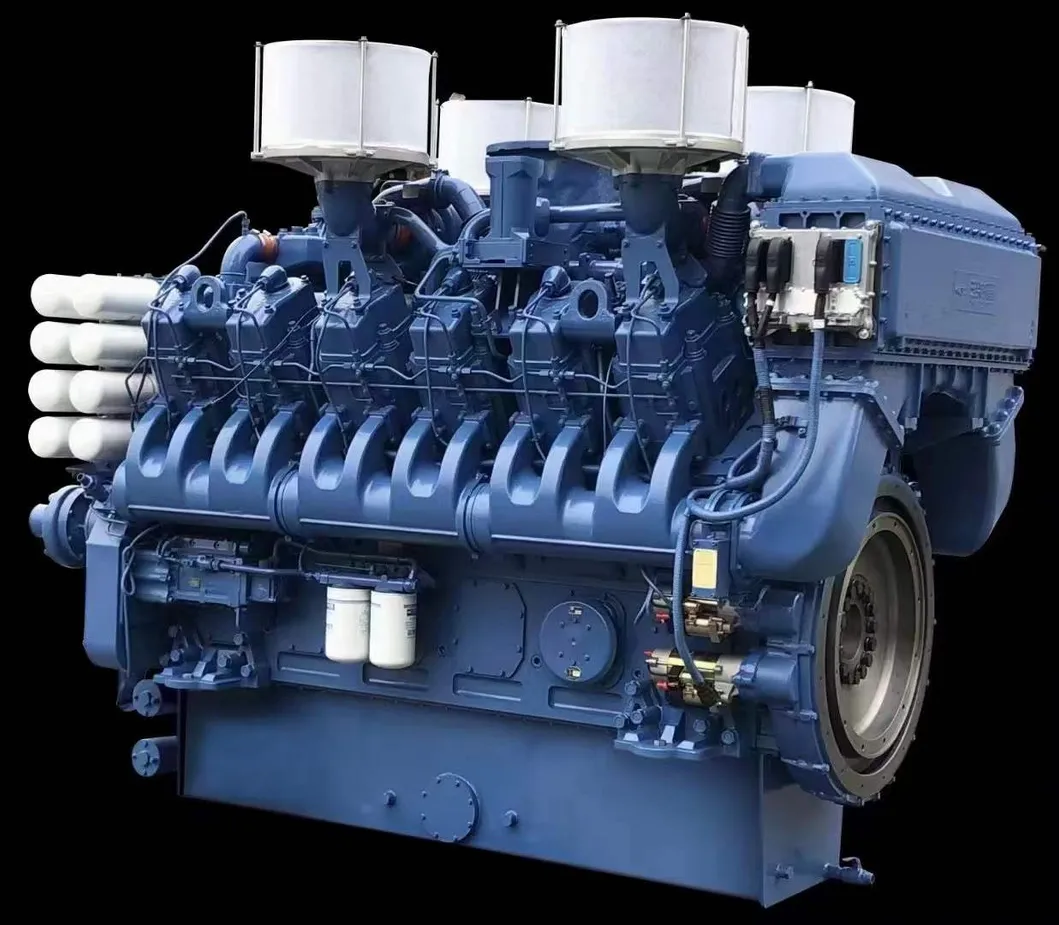

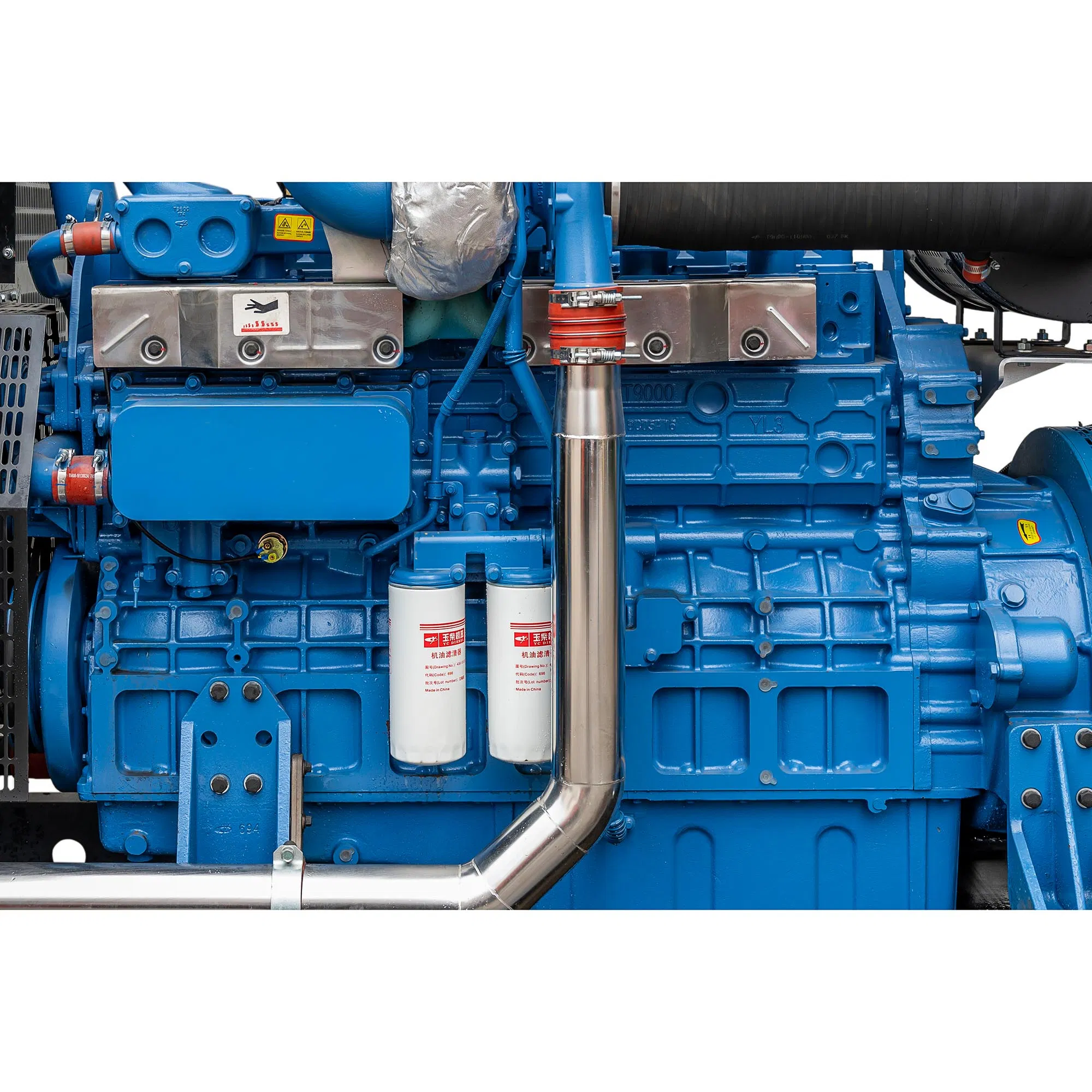

Engine
Model introduction:
The YC6T/TD series engine is an independent research and development product based on the advanced technology of large engines at home and abroad.
It adopts four-valve, supercharged and intercooled, electronically controlled unit pump and other configurations, optimized and verified by Yuchai's advanced combustion development technology, and has the characteristics of energy saving and environmental protection, high reliability, strong loading capacity, and good maintainability.
Model features:
Four valves plus turbocharged and intercooled technology, sufficient air intake, sufficient combustion, low fuel consumption, electronically controlled unit pump technology, stable operation, good transient speed regulation, strong loading capacity, and high power density.
High-quality alloy cast iron cylinder block and cylinder head, high reliability, good cold start performance, dual-speed starter plus electronic control fuel injection technology, quick start.
The parts have good versatility, high degree of serialization, one-cylinder one-head structure, low comprehensive maintenance cost, and support dual-energy start-up.

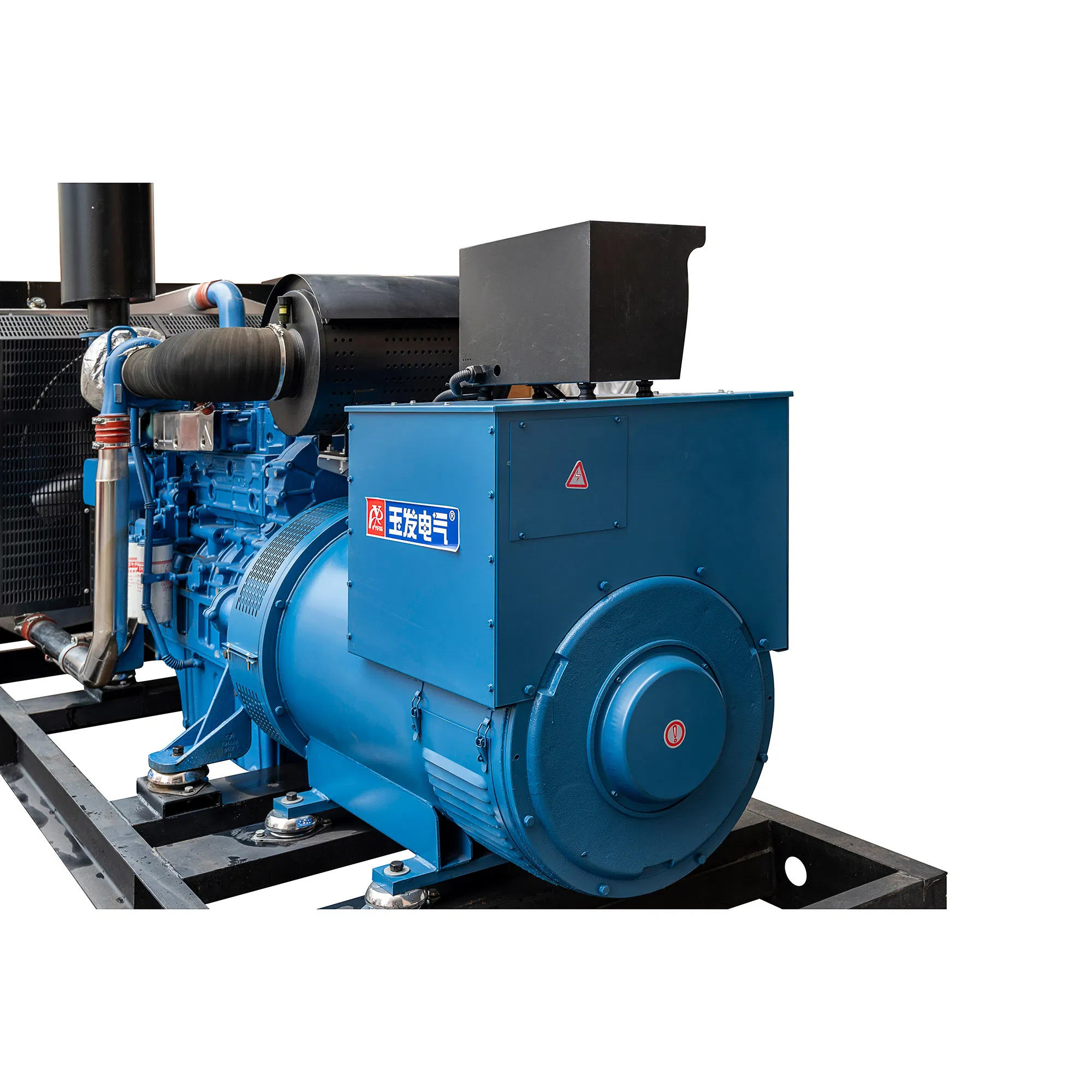

The brushless alternator
The conductive carbon brush of the brush generator is omitted, there is no spark when working, and the interference to radio equipment is small; the voltage, current, and frequency are stable when running; it is maintenance-free and has a long service life.
Suitable for precision instruments, electrical appliances and other equipment.
Different types of diesel generator for your choice.

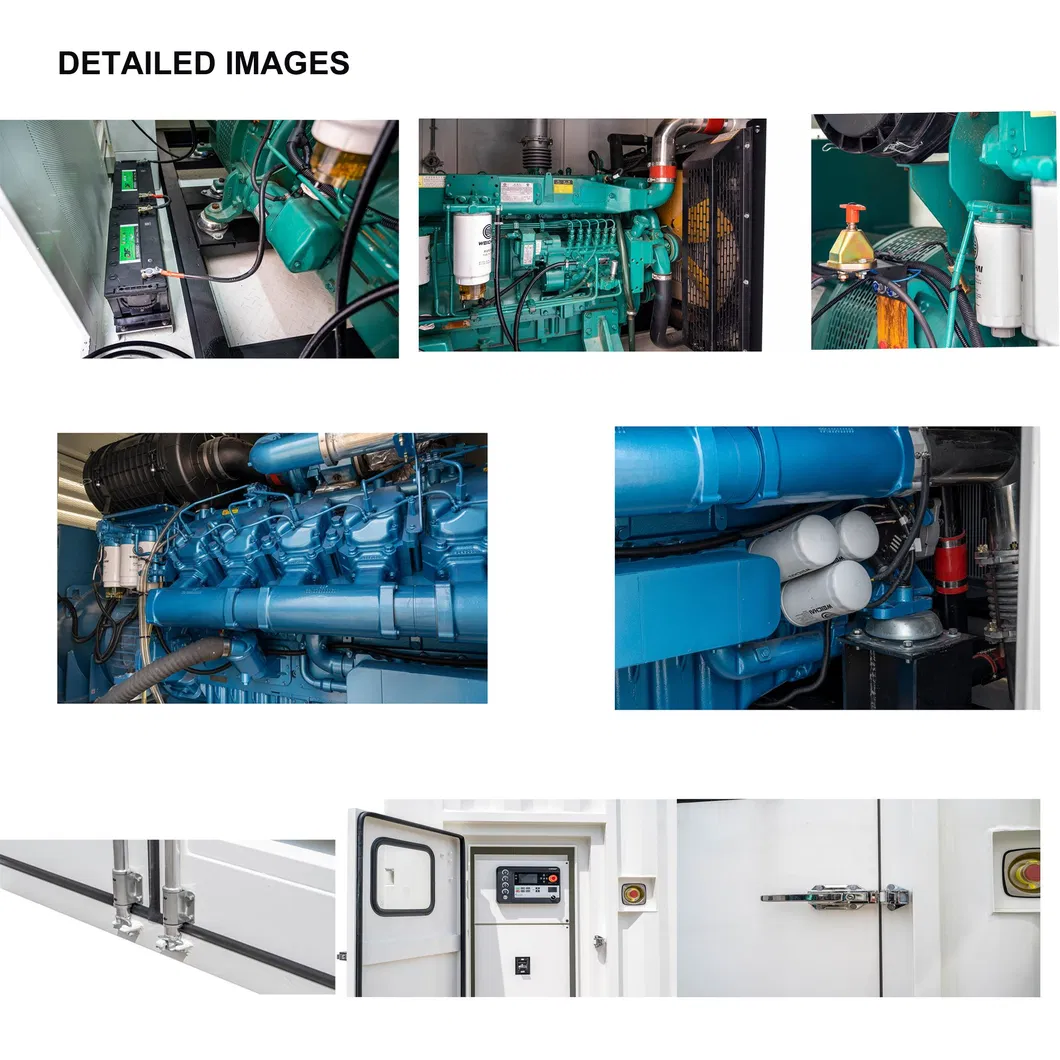

Some detailed introduction
 | 1Water high temperature protection When the water is high, when the temperature of the water tank of the diesel generator set reaches 98 degrees or more, the control module of the generator detects the high temperature of the water and shuts down for protection. | |||||||||||
| 2 Low oil pressure protection When the oil pressure is low, when the oil in the generator is insufficient or reaches the warning level, the generator set will also send out a low oil pressure alarm and shut down | ||||||||||||
| 3 Overcurrent protection In the case of overcurrent, when the user's load exceeds the rated current of the generator set, the generator set will also have a shutdown alarm. | ||||||||||||
| 4 Overload protection In case of overload, the generator will also alarm and stop when the user's load exceeds the generator's rated power. In addition, diesel generator sets have many other protection parameter values, such as low voltage, short circuit and so on. | ||||||||||||

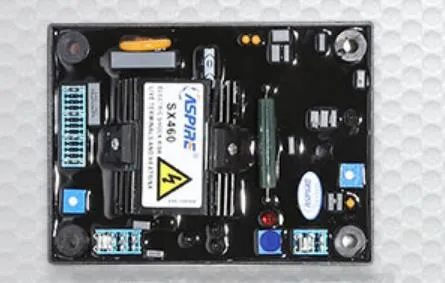

 | Automatic voltage regulator/AVR: Well-known brand accessories, generator voltage is more stable |

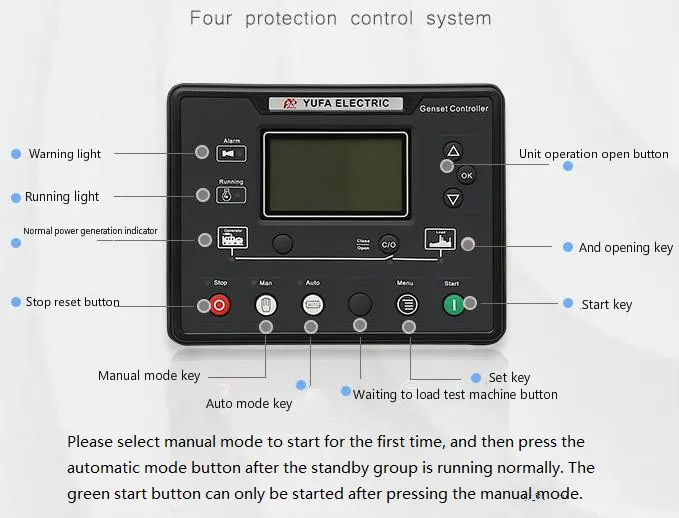

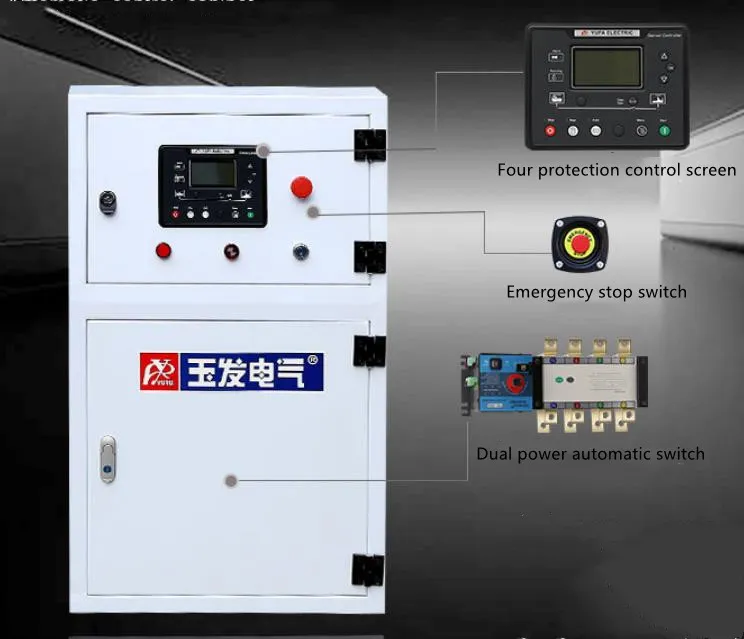

 | Automatic control cabinet: The automation controller has digital, intelligent and networked technologies, with micro-processing as the core, and stable performance. It is suitable for unit automatic control and system monitoring, realizing automatic start and stop, automatic switching, automatic power transmission, data monitoring, and alarm protection of generator sets. |

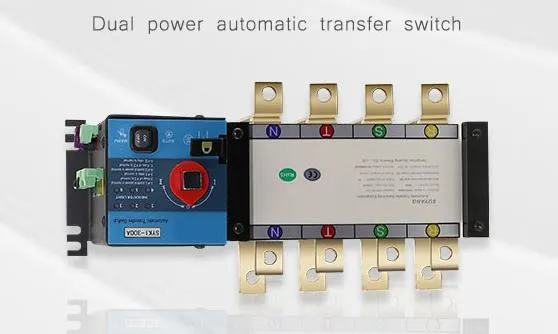

 | When the utility power stops and fails, the unit will automatically start generating electricity. When the utility power is restored, the unit will automatically shut down. The unit is digitized, intelligent and networked. Realize unattended. | |||||||||||

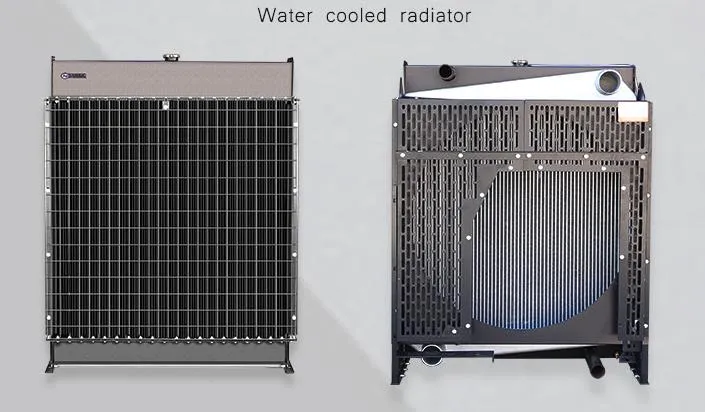

 | Closed integral water tank The core is composed of staggered radiating fins and radiating pipes, and the heat dissipation effect is excellent Safety shield Prevent debris from entering the water tank and damage the water tank and the unit. | |||||||||||

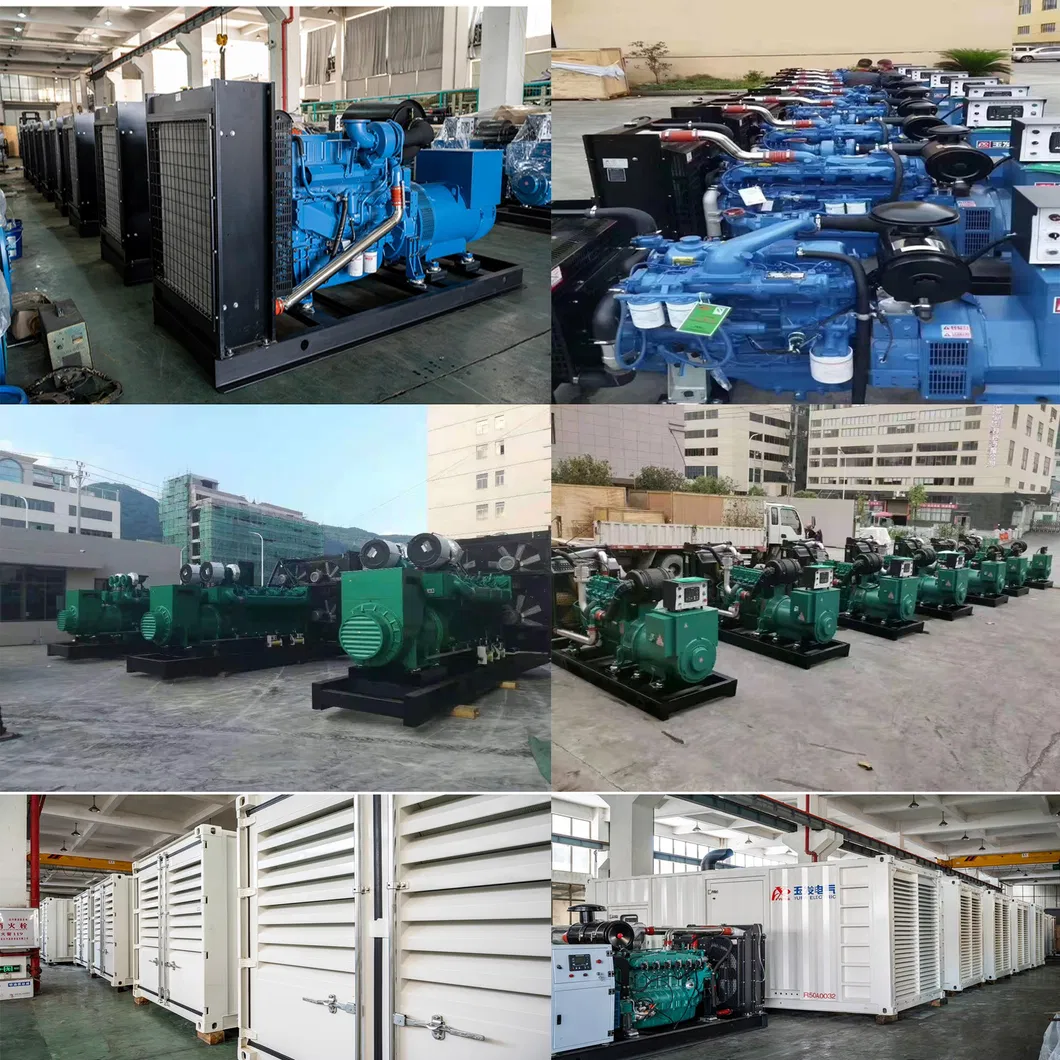

Production Line
Company Profile
Our Fujian Diamond Electrical and Mechanical Equipment Co.,Ltd are specialized in diesel generator set 30kw-2200kw.it is composed of diesel engine, three-phase AC brushless synchronous generator, control box (screen), cooling water tank, coupling, fuel tank, muffler and common base and other components of the rigid whole . Each cylinder in a certain sequence of work, the thrust on the piston through the connecting rod into the force to push the crankshaft rotation, thus driving the crankshaft rotation.
It has the advantages of flexibility, less investment and convenient start-up, and is widely used in communications, mining, road construction, forest, farmland irrigation, field construction and national defense engineering and other departments.

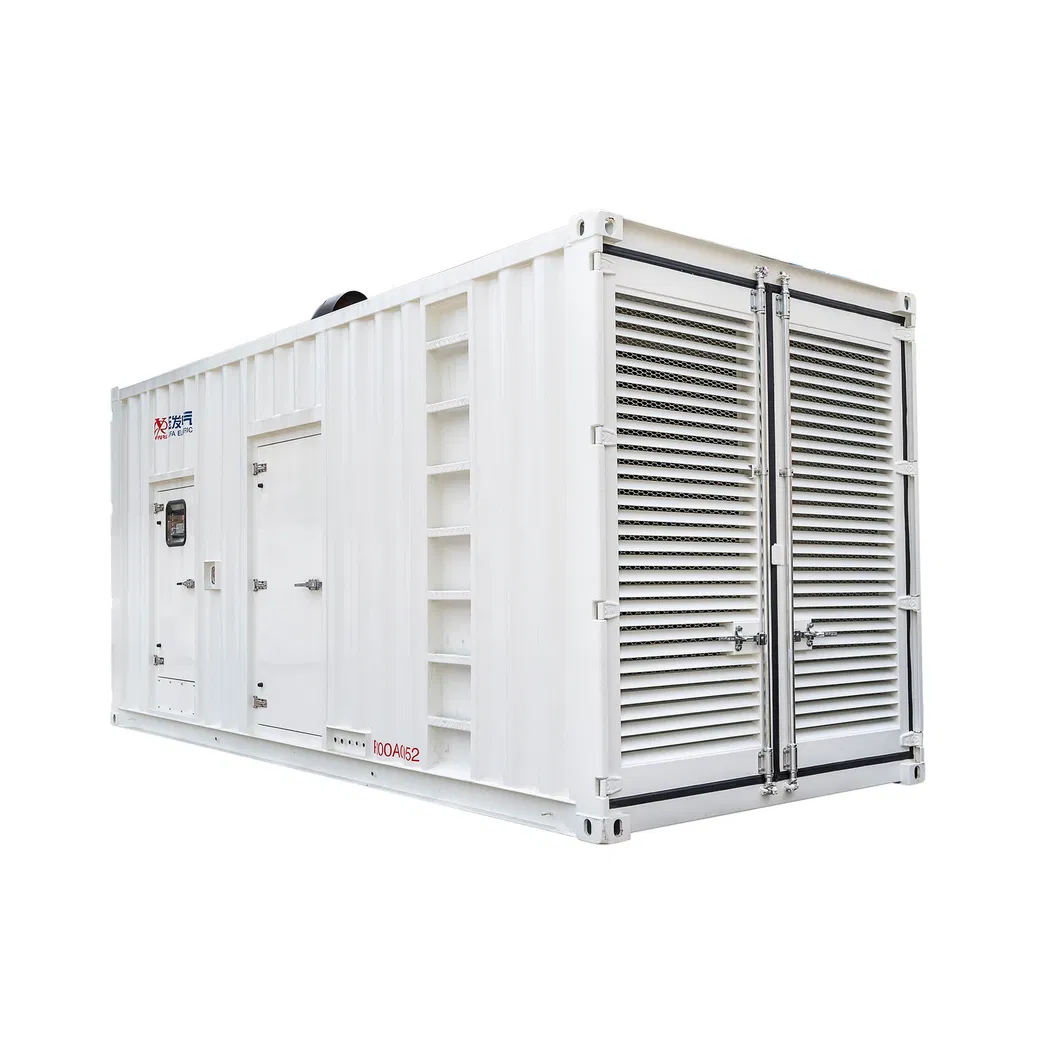

Container Type 500kw-2200kw by diesle power generator .We use high density insulation foam to down the noise. and there is rockwool inside of silencer to reduce the noise.All generator with big block behind of the canopy air intake to prevent noise.All our generators with 304# stainless steel screw,hinge and locker to prevent any rust during working.We offer high-quality goods with the most competitive factory prices.
Biogas generator refers to a power generation system using biogas to generate electricity.Scientific and reasonable development and utilization of biogas can not only create considerable economic benefits, but also protect the ecological environment and promote the development and utilization of renewable energy .The fuel is a single system, simpler to control than a generator set that can burn two fuels .
Biogas power generation has quick investment and low pollution. The pollutants produced by its combustion are usually only 1P40 of petroleum and 1P800 of coal.As biogas is mixed with carbon dioxide gas, so that its flame propagation speed is low, so it has a good anti-detonation effect in internal combustion engines.
FAQ
1What is the advantages of your product?
We are the first-class agent of Yuchai and Wechai engine.we can offer the most competitive factory price and a whole set after-sales service.Our goods are with high-quality .
2 What is the payment terms?
Payment terms:T/T, 30% as deposit, 70% balance before shipment.
3 What is the delievery time ?
Delivery Time:Within 20 days after the deposit
4Warranty:
1)1 year or 1000 hours working time
2)Beyond warranty time, we supply spare parts with best price.
5 How about the packing ?
Standard Packing: Film plastic
Optional: Plywood Case
