30kVA~500kVA Fpt Powered Silent Diesel Generator with CE/ ISO
Silent TypePACELINK silent type generator has good acoustic performance, compact design, user-friendly and safety features. Silent type generator is becoming more popular in the industry as it's easier to install, transport and can be operated outside directly. Key Features:---Improved advanced ......
Send Inquiry
Product Description

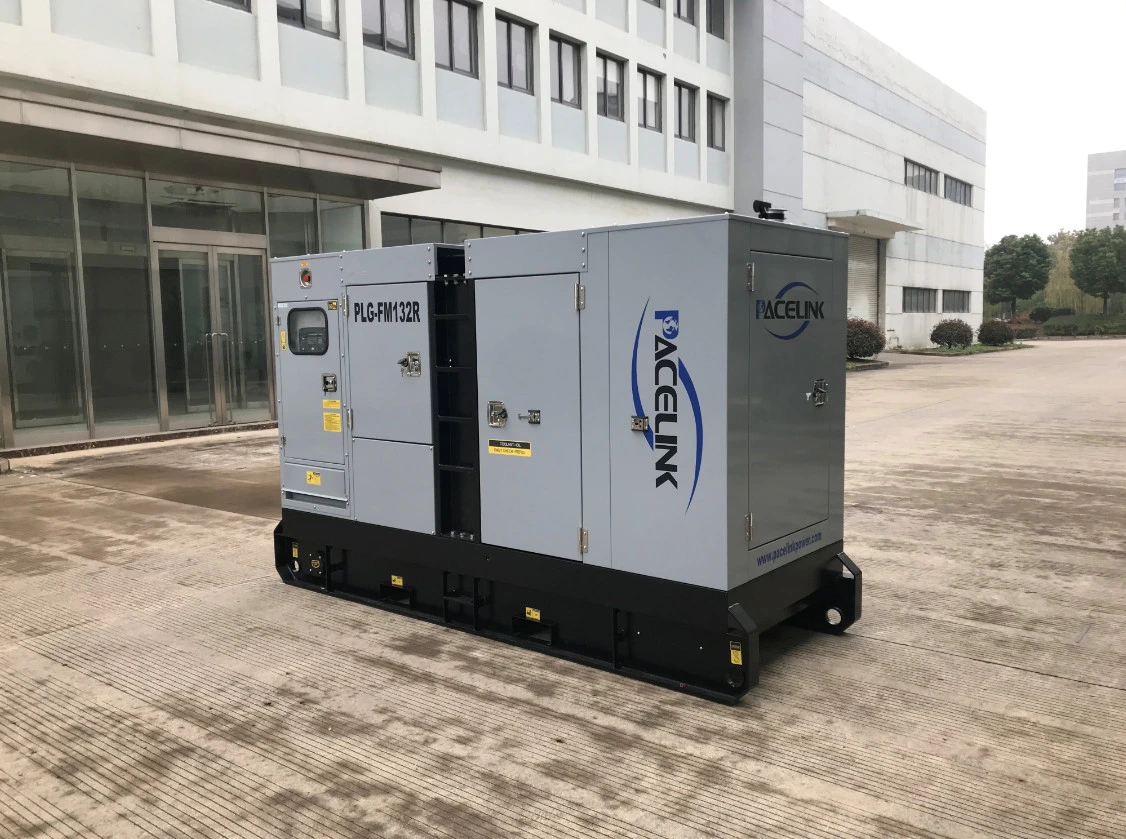

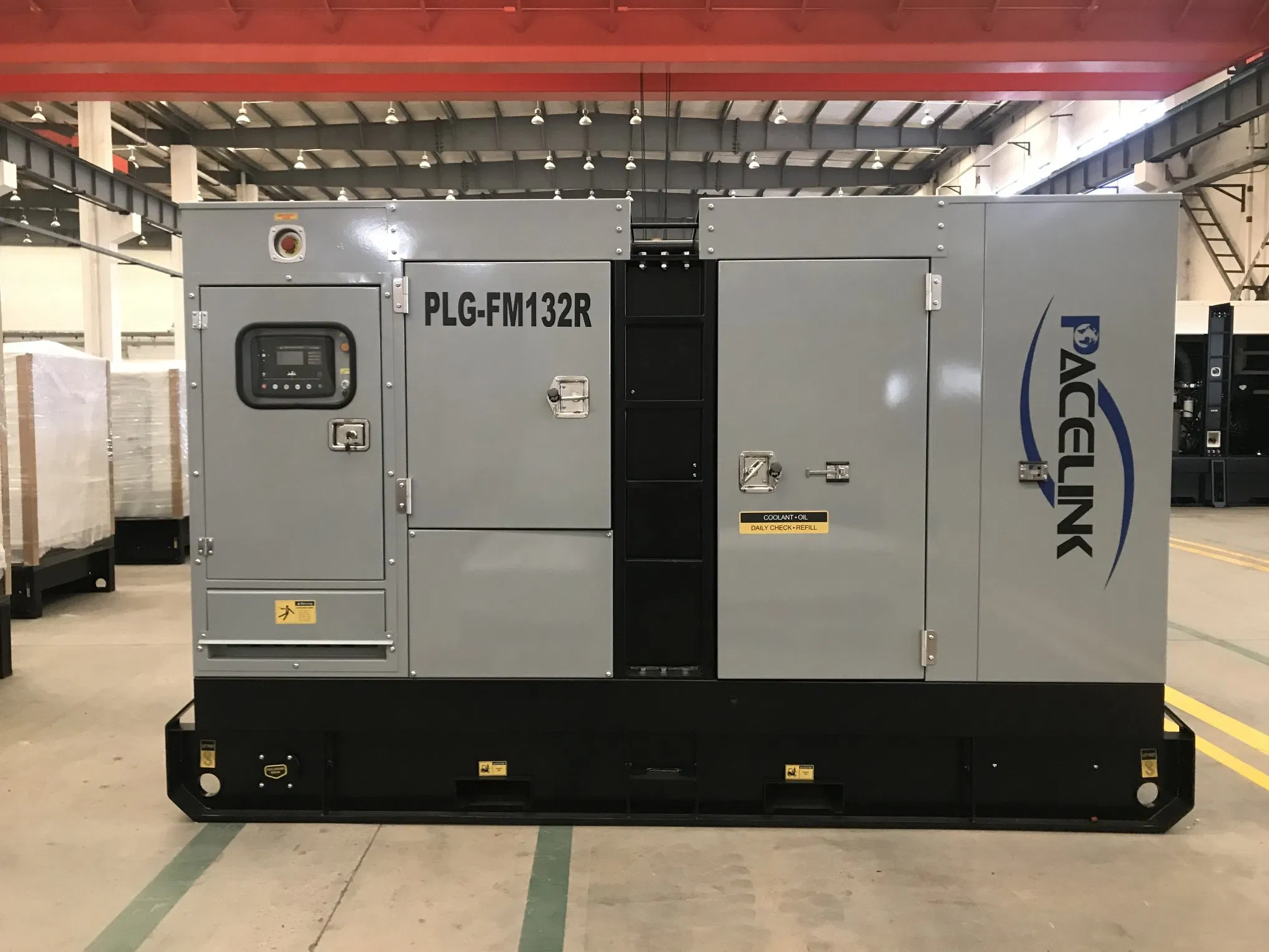

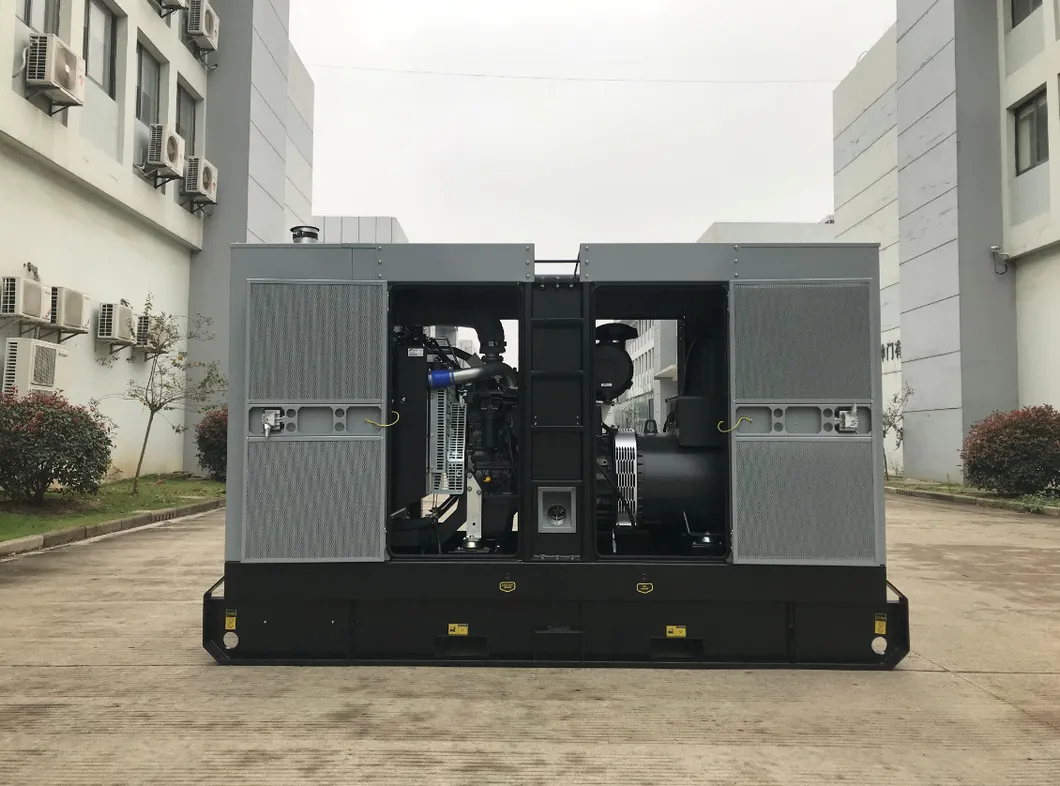

Silent Type
PACELINK silent type generator has good acoustic performance, compact design, user-friendly and safety features. Silent type generator is becoming more popular in the industry as it's easier to install, transport and can be operated outside directly.
PACELINK silent type generator has good acoustic performance, compact design, user-friendly and safety features. Silent type generator is becoming more popular in the industry as it's easier to install, transport and can be operated outside directly.
Key Features:
---Improved advanced air flow and ambient temperature design which assures the generator can perform its utmost capability both at 100% prime and 110% emergency standby use
---Customized built-in high performance residential muffler minimizes the noise level
---Top lifting points as standard feature
---Forklift pockets and eyelets as standard feature
---External robust steel lockable fuel inlet with electrical fuel gauge as standard feature
---User-friendly external power outlet flap
---Environmental-friendly fully bunded base fuel tank assures no oil or coolant spills onto the ground
---Earth strap fitted on all canopy doors to assure safety

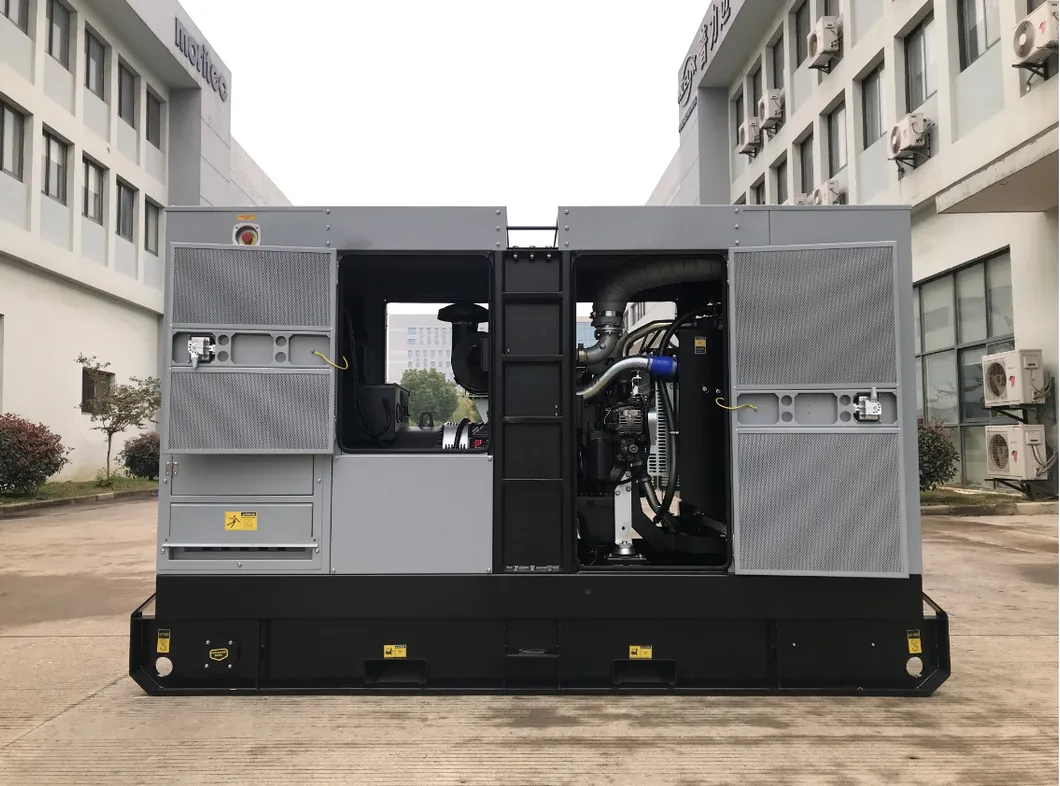

---The canopy adopts a holistic disassembly structure with large size doors to assure the convenience for daily check and maintenance
---High quality outdoor powder coating to strictly protect against rusty, corrosion and ultraviolet radiation
---Improved advanced air flow and ambient temperature design which assures the generator can perform its utmost capability both at 100% prime and 110% emergency standby use
---Customized built-in high performance residential muffler minimizes the noise level
---Top lifting points as standard feature
---Forklift pockets and eyelets as standard feature
---External robust steel lockable fuel inlet with electrical fuel gauge as standard feature
---User-friendly external power outlet flap
---Environmental-friendly fully bunded base fuel tank assures no oil or coolant spills onto the ground
---Earth strap fitted on all canopy doors to assure safety
---The canopy adopts a holistic disassembly structure with large size doors to assure the convenience for daily check and maintenance
---High quality outdoor powder coating to strictly protect against rusty, corrosion and ultraviolet radiation
PLG-F Series:

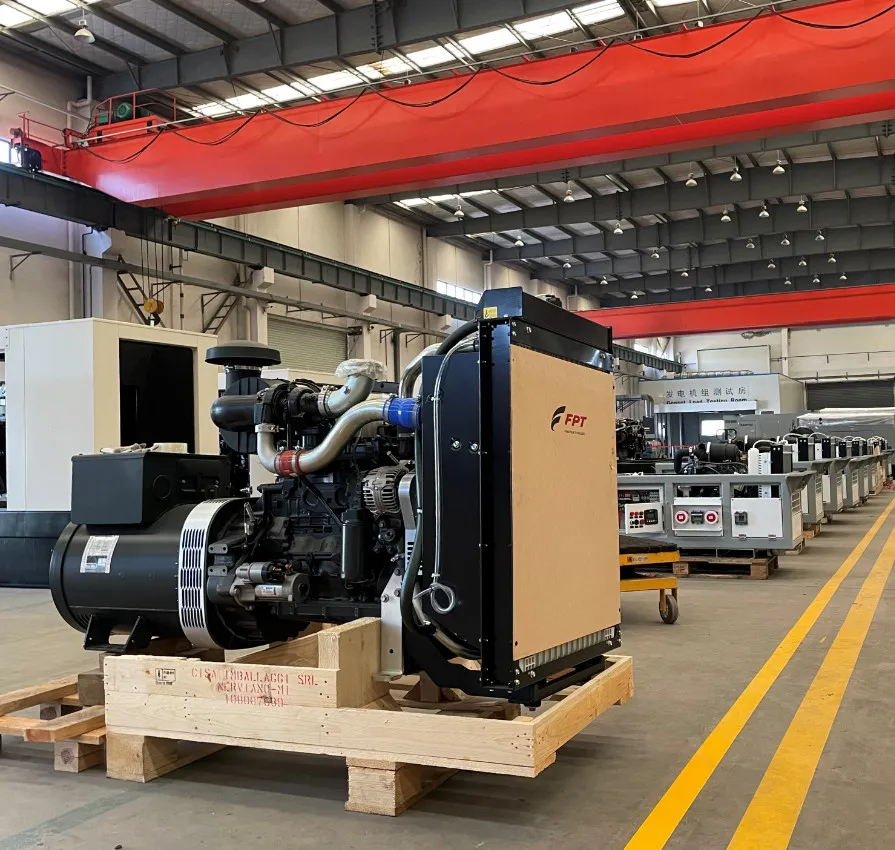

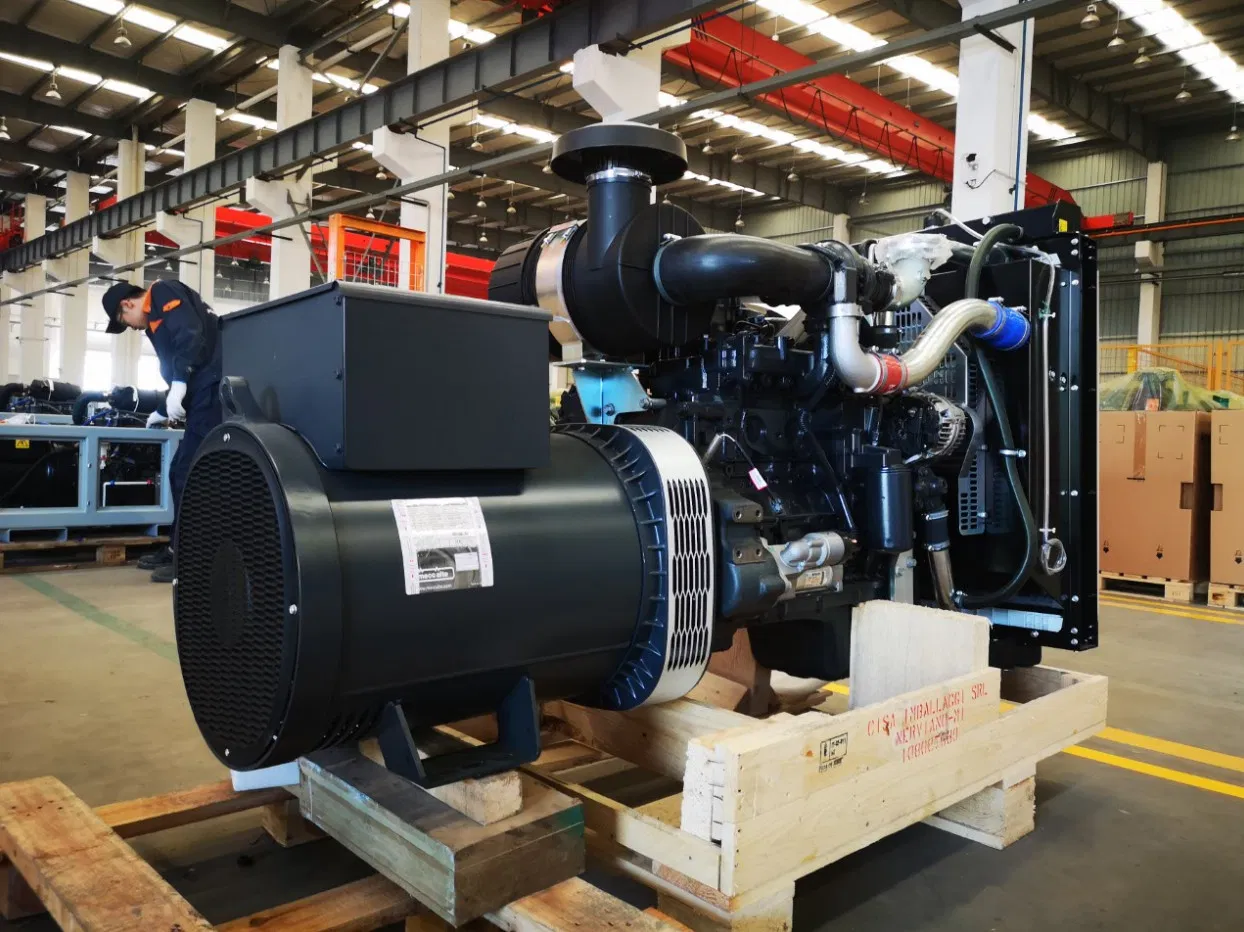

Engine:
With global 10 factories, 6 research centers and covers more than 100 countries business service network, FPT power Technology can undertake research and development activities 24hours a day, from different countries benefit from professional technology and experience, so as to realize rapd sharing information, technology, and the synergistic effort of knowledge, as well as the effective technical communication.FPT engines can offer a variety of power solutions that can be widely used in Banks, Hospitals, Shopping Malls and Shopping Centers, Construction sites and Shipyards, as well as home use.
Alternator:
Stamford, Mecc alte, Leroy Somer, PLG series.
| Genset Model | Frequency(50Hz) | Engine Model | |||
| Prime Power | Standby Power | ||||
| (KVA) | (KW) | (KVA) | (KW) | FPT | |
| PLG-F33 | 30 | 24 | 33 | 26.4 | F32AM1A |
| PLG-F44 | 40 | 32 | 44 | 35.2 | F32SM1A |
| PLG-F50 | 45 | 36 | 50 | 40 | NEF45AT1A |
| PLG-F55 | 50 | 40 | 55 | 44 | F32TM1A |
| PLG-F55 | 50 | 40 | 55 | 44 | NEF45AM2 |
| PLG-F66 | 60 | 48 | 66 | 52.8 | NEF45SM1A |
| PLG-F83 | 75 | 60 | 82.5 | 66 | NEF45SM2A |
| PLG-F88 | 80 | 64 | 88 | 70.4 | NEF45SM3 |
| PLG-F93.5 | 85 | 68 | 93.5 | 74.8 | NEF45TM1A |
| PLG-F110 | 100 | 80 | 110 | 88 | NEF45TM2A |
| PLG-F132 | 120 | 96 | 132 | 105.6 | NEF45TM3 |
| PLG-F132 | 120 | 96 | 132 | 105.6 | NEF67SM1 |
| PLG-F143 | 130 | 104 | 143 | 114.4 | NEF67TM2A |
| PLG-F165 | 150 | 120 | 165 | 132 | NEF67TM3A |
| PLG-F220 | 200 | 160 | 220 | 176 | NEF67TE2A |
| PLG-F250 | 225 | 180 | 250 | 200 | CURSOR87TE2 |
| PLG-F275 | 250 | 200 | 275 | 220 | CURSOR87TE3 |
| PLG-F330 | 300 | 240 | 330 | 264 | CURSOR87TE4 |
| PLG-F385 | 350 | 280 | 385 | 308 | CURSOR13TE2A |
| PLG-F440 | 400 | 320 | 440 | 352 | CURSOR13TE3A |
| PLG-F500 | 450 | 360 | 500 | 400 | CURSOR13TE6 |
| PLG-F550 | 500 | 400 | 550 | 440 | CURSOR13TE7 |
| Genset Model | Frequency(60Hz) | Engine Model | |||
| Prime Power | Standby Power | ||||
| (KVA) | (KW) | (KVA) | (KW) | FPT | |
| PLG-F73-60 | 66 | 52.8 | 72.6 | 58 | NEF45SM1A |
| PLG-F100-60 | 90 | 72 | 100 | 80 | NEF45SM3 |
| PLG-F107-60 | 97.5 | 78 | 107 | 85.8 | NEF45TM1A |
| PLG-F121-60 | 110 | 88 | 121 | 86.8 | NEF45TM2A |
| PLG-F150-60 | 136 | 109 | 150 | 120 | NEF67SM1 |
| PLG-F160-60 | 145 | 116 | 159.5 | 127.6 | NEF67TM2A |
| PLG-F182-60 | 165 | 132 | 181.5 | 145.2 | NEF67TM3A |
| PLG-F242-60 | 220 | 176 | 242 | 193.6 | NEF67TE2A |
| PLG-F300-60 | 275 | 220 | 300 | 240 | CURSOR87TE3 |
| PLG-F363-60 | 330 | 264 | 363 | 290.4 | CURSOR87TE4 |
| PLG-F418-60 | 380 | 304 | 418 | 334 | CURSOR13TE2A |
| PLG-F484-60 | 440 | 352 | 484 | 387.2 | CURSOR13TE3A |
| PLG-F550-60 | 500 | 400 | 550 | 440 | CURSOR13TE6 |
| PLG-F605-60 | 550 | 440 | 605 | 484 | CURSOR13TE7 |
