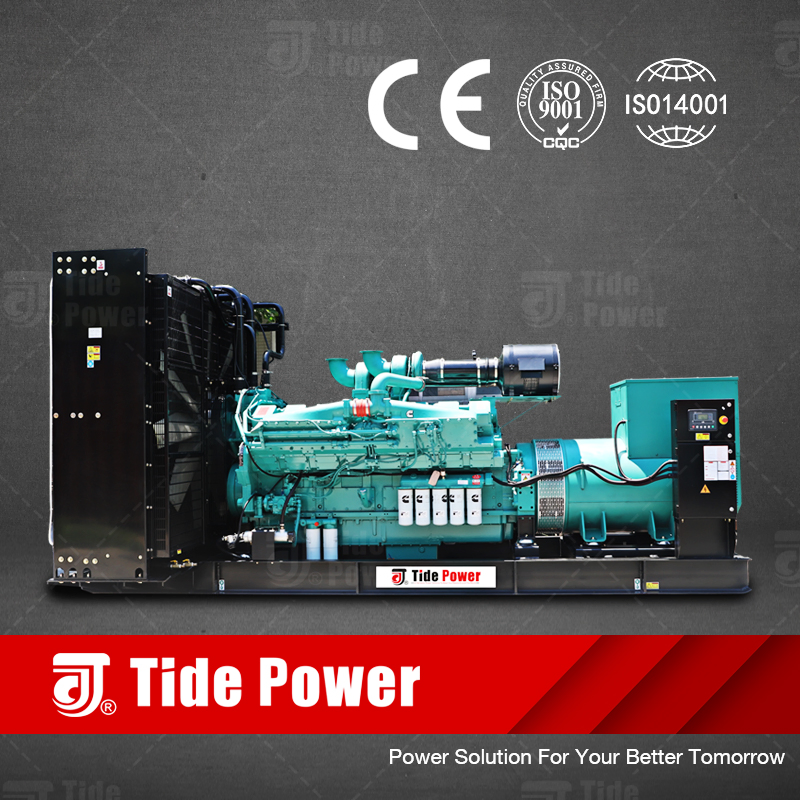

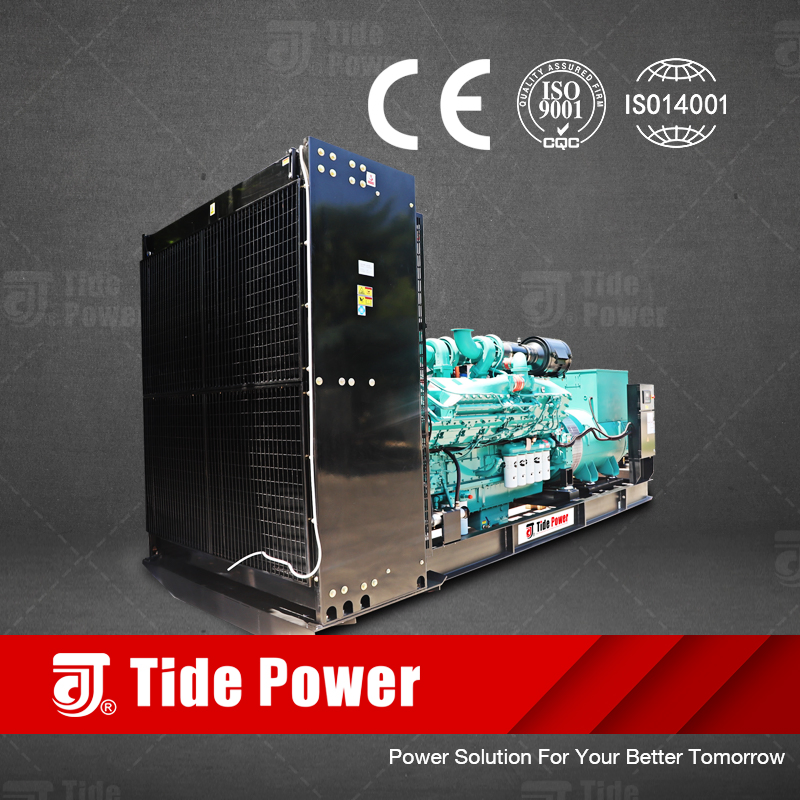

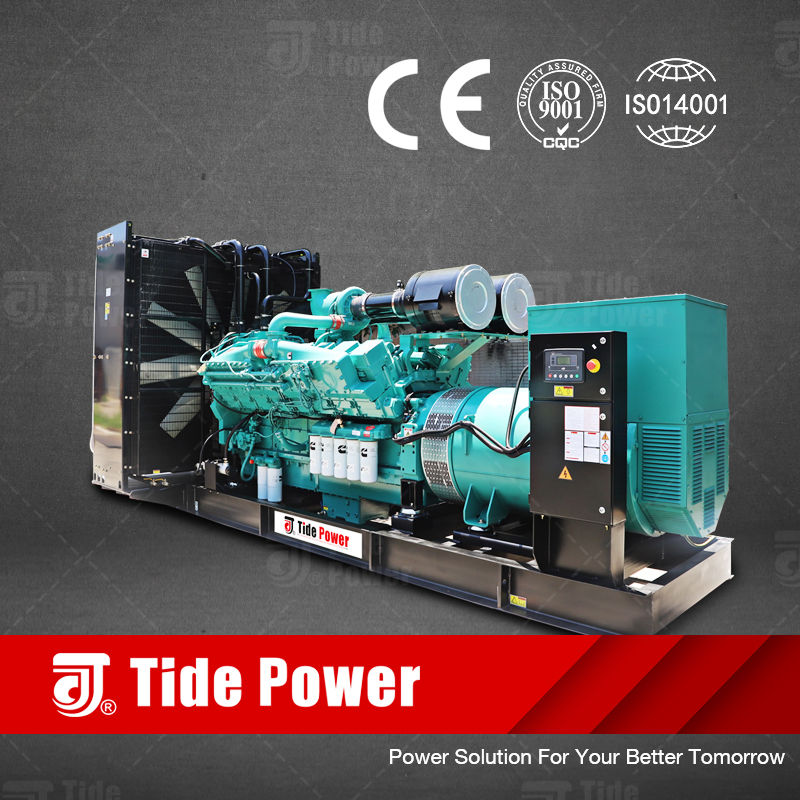

275kVA Open Diesel Generator with Cummins Engine Leroy Somer Stamford Meecalte Deepsea Comap
CUMMINS ENGINE WITH LEROY SOMER ALTERNATOR1500RPM,50HZ, 400V,3PH , P.F.0.8GensetModelPrime PowerStandby PowerEngineModelAlternator ModelControl SystemATSRemarkKWKVAKWKVACurrent-AFB250-C2200250220275NT855-GA-50HZLSA46.3S5EC 3.0400A FB250-C3200250220275MTA11-G2ALSA46.3S5EC 3.0400A FB250-C4200250220......
Send Inquiry
Product Description
| CUMMINS ENGINE WITH LEROY SOMER ALTERNATOR | |||||||||
| 1500RPM,50HZ, 400V,3PH , P.F.0.8 | |||||||||
| Genset Model | Prime Power | Standby Power | Engine Model | Alternator Model | Control System | ATS | Remark | ||
| KW | KVA | KW | KVA | Current-A | |||||
| FB250-C2 | 200 | 250 | 220 | 275 | NT855-GA-50HZ | LSA46.3S5 | EC 3.0 | 400A | |
| FB250-C3 | 200 | 250 | 220 | 275 | MTA11-G2A | LSA46.3S5 | EC 3.0 | 400A | |
| FB250-C4 | 200 | 250 | 220 | 275 | MTA11-G2 | LSA46.3S5 | EC 3.0 | 400A | |
| FB275-C | 220 | 275 | 250 | 313 | NTA855-G1A | LSA46.3M7 | EC 3.0 | 630A | |
| FB313-C1 | 250 | 313 | 280 | 350 | NTA855-G1B | LSA46.3L10 | EC 3.0 | 630A | |
| FB313-C2 | 250 | 313 | 280 | 350 | MTAA11-G3 | LSA46.3L10 | EC 3.0 | 630A | |
| FB344-C | 275 | 344 | 300 | 375 | NTA855-G2A | LSA46.3L11 | EC 3.0 | 630A | |
| FB350-C | 280 | 350 | 310 | 388 | NTA855-G4 | LSA46.3L11 | EC 3.0 | 630A | |
| FB375-C1 | 300 | 375 | 330 | 413 | NTAA855-G7 | LSA47.2S4 | EC 3.0 | 630A | |
| FB375-C2 | 300 | 375 | 330 | 413 | KTA19-G2 | LSA47.2S4 | EC 3.0 | 630A | |
| FB400Q-C | 320 | 400 | 350 | 438 | QSNT-G3 | LSA47.2S4 | EC 4.0 | 630A | |
| FB450E-C | N/A | N/A | 360 | 450 | NTAA855-G7A | LSA47.2S5 | EC 3.0 | 800A | |
| FB450-C2 | 360 | 450 | 400 | 500 | KTA19-G3 | LSA47.2S5 | EC 3.0 | 800A | |
| FB500-C1 | 400 | 500 | 450 | 563 | KTA19-G3A | LSA47.2M7 | EC 3.0 | 800A | |
| FB500-C2 | 400 | 500 | 450 | 563 | KTA19-G4 | LSA47.2M7 | EC 3.0 | 800A | |
| FB525-C | 420 | 525 | 504 | 630 | KTAA19-G5-50HZ | LSA47.2M8 | EC 3.0 | 1000A | |
| FB575-C | 460 | 575 | 520 | 650 | KTAA19-G6 | LSA47.2L9 | EC 3.0 | 1000A | |
| FB650E-C | N/A | N/A | 520 | 650 | KTA19-G8 | LSA49.3S4 | EC 3.0 | 1000A | |
| FB688E-C | N/A | N/A | 550 | 688 | KTAA19-G6A-50HZ | LSA49.3S4 | EC 3.0 | 1000A | |
| FB625-C | 500 | 625 | 560 | 700 | KT38-G | LSA49.3S4 | EC 3.0 | 1000A | |
| FB650Q-C | 520 | 650 | 570 | 713 | QSK19-G4 | LSA49.3S4 | EC 4.0 | 1250A | |
| FB750-C | 600 | 750 | 660 | 825 | KTA38-G2 | LSA49.3M8 | EC 3.0 | 1250A | |
| FB800-C | 640 | 800 | 710 | 888 | KTA38-G2B | LSA49.3M8 | EC 3.0 | 1600A | |
| FB910-C | 728 | 910 | 800 | 1000 | KTA38-G2A | LSA49.3L9 | EC 3.0 | 1600A | |
| FB1000-C | 800 | 1000 | 880 | 1100 | KTA38-G5 | LSA49.3L10 | EC 3.0 | 1600A | |
| FB1250E-C | N/A | N/A | 1000 | 1250 | KTA38-G9 | LSA50.2M6 | EC 3.0 | 2000A | |
| FB1250-C | 1000 | 1250 | 1100 | 1375 | KTA50-G3 | LSA50.2M6 | EC 3.0 | 2000A | |
| FB1250Q-C | 1000 | 1250 | 1100 | 1375 | QSK38-G5 | LSA50.2M6 | EC 4.0 | 2000A | |
| FB1375-C | 1100 | 1375 | 1320 | 1650 | KTA50-G8 | LSA50.2L8 | EC 3.0 | 2500A | |
| FB1500-C | 1200 | 1500 | 1320 | 1650 | KTA50-GS8 | LSA50.2L8 | EC 3.0 | 2500A | |
Remarks: above specifications are only for your review. Please contact us for more details if interested.
