250kw Cummins Nta855-G1a Diesel Power Generators Supplier with OEM Certificate
250KW Cummins Nta855-G1a Diesel Power Generators Supplier with OEM Certificate Cummins diesel power generators DATAGensets ModelKH-250GFPrime Power312.5KVAStandby Power343.75KVARated Voltage(V)380/220VRated Frequency(Hz)50Rated Speed (RPM)1500Power Factor(COS¢)0.8(lagging)ENGINE DATAEngine ......
Send Inquiry
Product Description

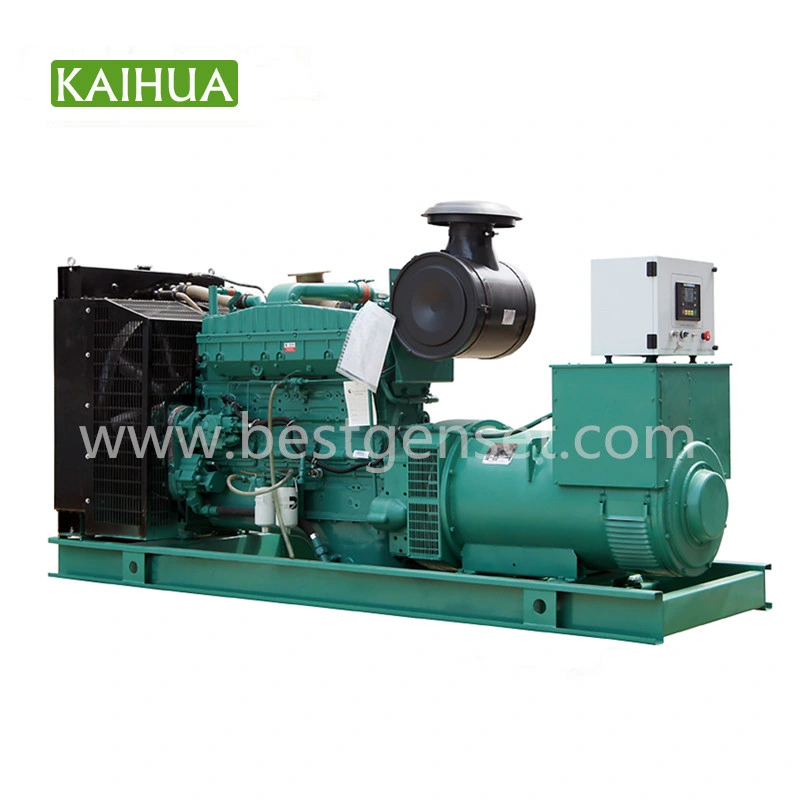

250KW Cummins Nta855-G1a Diesel Power Generators Supplier with OEM Certificate
| Cummins diesel power generators DATA | ||||||||
| Gensets Model | KH-250GF | |||||||
| Prime Power | 312.5KVA | |||||||
| Standby Power | 343.75KVA | |||||||
| Rated Voltage(V) | 380/220V | |||||||
| Rated Frequency(Hz) | 50 | |||||||
| Rated Speed (RPM) | 1500 | |||||||
| Power Factor(COS¢) | 0.8(lagging) | |||||||
| ENGINE DATA | ||||||||
| Engine brand | Cummins | |||||||
| Engine model | NTA855-G1A | |||||||
| Number of Cylinders | 6 | |||||||
| Cylinder arrangement | Vertical in Line | |||||||
| Cycle | Four stroke | |||||||
| Aspiration | Turbocharged | |||||||
| Fuel System | Direct Injection | |||||||
| Bore×Stroke (mm×mm) | 140*152 | |||||||
| Displacement (Liter) | 14 | |||||||
| Compression Ratio | 14:01 | |||||||
| Governor Type | Electronic | |||||||
| Cooling System | water cooling | |||||||
| Speed Governor | Electronic | |||||||
| Cooltant capacity (L)-engine | 20.8 | |||||||
| Starting Method | DC 24V electrical starting | |||||||
 | ||||||||
| Alternator brand | Stamford | |||||||
| Alternator model | HCI444E | |||||||
| Number of Phase | 3 | |||||||
| Connecting Type | 3 Phase and 4 Wires | |||||||
| Number of Bearing | 1 | |||||||
| Protection Grade | IP23 | |||||||
| Altitude | ≤1000m | |||||||
| Exciter Type | Brushless ,Self-exciting, AVR &100% Copper winding wire | |||||||
