Home > Products > Diesel Generator > 250kw (MTAA11- G3 ) Diesel Open Type Generator Set for Sale
    250kw (MTAA11- G3 ) Diesel Open Type Generator Set for Sale
    • 250kw (MTAA11- G3 ) Diesel Open Type Generator Set for Sale250kw (MTAA11- G3 ) Diesel Open Type Generator Set for Sale
    • 250kw (MTAA11- G3 ) Diesel Open Type Generator Set for Sale250kw (MTAA11- G3 ) Diesel Open Type Generator Set for Sale
    • 250kw (MTAA11- G3 ) Diesel Open Type Generator Set for Sale250kw (MTAA11- G3 ) Diesel Open Type Generator Set for Sale
    • 250kw (MTAA11- G3 ) Diesel Open Type Generator Set for Sale250kw (MTAA11- G3 ) Diesel Open Type Generator Set for Sale

    250kw (MTAA11- G3 ) Diesel Open Type Generator Set for Sale

    Specification of generator setGenerator model GDC313Prime power:313KVA/250KWRated voltage:400v/230vRated frequency:50HZRated speed:1500RPM Engine brand: CumminsModel:commins:MTAA11-G3Speed governor electronicCooling system forced water cooling cycle Alternator featurerAlternator brand :stamford Mode......

    Send Inquiry

    Product Description

    Specification of generator set
    Generator model GDC313
    Prime power:313KVA/250KW
    Rated voltage:400v/230v
    Rated frequency:50HZ
    Rated speed:1500RPM

    Engine brand: Cummins
    Model:commins:MTAA11-G3
    Speed governor electronic
    Cooling system forced water cooling cycle

    Alternator featurer
    Alternator brand :stamford
    Model:HCI444ES
    Number of phase:3p
    Number of bearing:1
    Protection grade:ip23
    Exciter type brushless ,self exciter ,AVR automatic voltage regulation ,100% copper winding wire
    Instruction: class H
    Brushless self excited, single bearing, 4 poles
    Self-exciting and self-regulating

    Warranty policy
    Guarantee for one year or 1000 hours whichever reach first from ex-factory date. During the guarantee period, Tang Power will provide the free easy-damageable spare parts of diesel engine caused by our quality of production or raw material. After expiration, Tang Power provides cost spare parts maintenance of gensets.

    Configuration of diesel generator sets powered by Cummins engines:

             Open type Silent type
    ModelEngineAlternatorPrime PowerStandby PowerDimensions(mm)Weight (kg)Dimensions(mm)Weight (kg)Fuel Consumption (lir/hr)
    Open typeSilent typeCumminsGODLIKESTAMFORDKVAKW KVAKWLWHLWH
    GDC25GDC25*S4B3.9G1/24KWJDG 184F/22KWPI144E/20KW25 20 28 22 1946734127276426001130161513076.44
    GDC25GDC25*S4B3.9G2/24KWJDG 184F/22KWPI144E/20KW25 20 28 22 1946734127280126001130161513076.44
    GDC30GDC30*S4BT3.9G1/36KWJDG 184G/25KWPI144G/24KW30 24 33 26 2081750145086526001130161513717.13
    GDC30GDC30*S4BT3.9G2/36KWJDG 184G25KWPI144G/24KW30 24 33 26 2081750141889626001130161514027.13
    GDC38GDC38*S4BT3.9G1/36KWJDG184H/30KWPI144J/32KW38 30 41 33 2081750145086526001130161513719.2
    GDC38GDC38*S4BT3.9G2/36KWJDG184H/30KWPI144J/32KW38 30 41 33 2081750145089626001130161513719.2
    GDC50GDC50*S4BTA3.9G2/50KWJDG 224D/40KWUCI224D/40KW50 40 55 44 21877501450979280011301565148511.5
    GDC60GDC60*S4BTA3.9G2/58KWJDG 224E/48KWUCI224E/48KW60 48 66 53 218775014501005280011301565153812.9
    GDC75GDC75*S4BTA3.9G11/70KWJDG224GS/64KWUCI224G/68KW75 60 83 66 218775014501005280011301565153812.9
    GDC100GDC100*S 6BT5.9G1/86KWJDG 274C/80KWUCI274C/80KW100 80 110 88 262075814641081320011301714172023
    GDC100GDC100*S 6BT5.9G2/86KWJDG 274C/80KWUCI274C/80KW100 80 110 88 262075814641081320011301714172023
    GDC120GDC120*S 6BTA5.9G2/106KWJDG 274DS/96KWUCI274D/96KW120 96 132 106 262080014701100320011301715172027.6
    GDC138GDC138*S 6BTAA5.9G2 /120KWJDG 274ES/112KWUCI274E/112KW138 110 151 121 262080014701120320011301715178131
    GDC160GDC160*S 6BTAA5.9G12 /140KWJDG274F/128KWUCI274F/128KW160 128 176 141 262080015501600320011301715186036.8
    GDC188GDC188*S 6CTA8.3G1/163KWJDG274G/152KWUCI274G/145.6KW188 150 206 165 278785016251694340011301915212041.4
    GDC188GDC188*S 6CTA8.3G2/163KWJDG274G/152KWUCI274G/145.6KW188 150 206 165 278785016251694340011301915220041.4
    GDC200GDC200*S6CTAA8.3G2/183KWJDG 274H/160KWUCI274H/160KW200 160 220 176 2787105016391694360013302065245046
    GDC225GDC225*S6LTAA8.9G2/220KWJDG 274J/184KWUCDI274J/184KW225 180 248 198 2890105017801870360013302065249051.8
    GDC250GDC250*S6LTAA8.9G2/220KWJDG 274K/200KWUCDI274K/200KW250 200 275 220 2890105017801890360013302065251057.5
    GDC250GDC250*SNT855-GA/231KWJDG274K/200KWUCDI274K/200KW250 200 275 220 3425106018103010430014302175380057.5
    GDC263GDC263*S6LTAA8.9G3/230KWJDG314DS/220KWHCI444C/200KW263 210 289 231 2917106018102051360013302065249557.5
    GDC275GDC275*SNTA855-G1A /264KWJDG 314DS/220KWHCI444D/240KW275 220 303 242 3425106018103276430014302175422663.3
    GDC313GDC313*SNTA855-G1B/284KWJDG 314ESS/250KWHCI444ES/260KW313 250 344 275 3425106018103356430014302175430672
    GDC313GDC313*SMTAA11-G3 /282KWJDG 314ESS/250KWHCI444ES/260KW313 250 344 275 3425115017473356430014302175430674.8
    GDC344GDC344*SNTA855-G2A /312KWJDG 314E/280KWHCI444E/280KW344 275 378 303 3425115019173356430014302175430680.5
    GDC350GDC350*SNTA855-G4/317KWJDG 314E/280KWHCI444E/280KW350 280 385 308 3425115019173572430014302175430680.5
    GDC375GDC375*SNTAA855-G7/343KWJDG 314FS/304KWHCI444FS/304KW375 300 413 330 3550120019553898460016222515468086.3
    GDC400GDC400*SNTAA855-G7A/407KWJDG 314F/320KWHCI444F/320KW400 320 440 352 3550120019953783460016222515500986.3
    GDC450GDC450*SKTA19-G3 /403KWJDG 354C/360KWHCI544C/400KW450 360 495 396 3677125021003512460016222515500992
    GDC500GDC500*SKTA19-G3A/448KWJDG 354D/400KWHCI544C/400KW500 400 550 440 36771250210039294600162225155557103.5
    GDC500GDC500*SKTA19-G4 /448KWJDG 354D/400KWHCI544C/400KW500 400 550 440 36771250210039294600162225155760115
    GDC525GDC525*SKTAA19-G5 /470KWJDG 354ES/450KWHCI544D/440KW525 420 578 462 40501330206239294800182225155824115
    GDC575GDC575*SKTAA19-G6/520KWJDG 354E/480KWHCI544E/488KW575 460 633 506 40501245210043024800182225155926126.5
    GDC600GDC600*SKTA19-G8/575KWJDG 354E/480KWHCI544E/488KW600 480 660 528 40551350223545504800182225156090132.3
    GDC625GDC625*SKTAA19-G6A/610KWJDG 354FS/500KWHCI544FS/500KW625 500 688 550 40501330209645504800182225156090138
    GDC625GDC625*SKT38-G/560KWJDG 354FS/500KWHCI544FS/500KW625 500 688 550 405317702234675020GP144
    GDC700GDC700*S KT38-GA/711KWJDG 354G/560KWHCI544F/536KW700 560 770 616 4053177022346851144
    GDC713GDC713*SKTA38-G1/634KWJDG 354G/560KWLVI634B/600KW713 570 784 627 4200177024206600167
    GDC750GDC750*S KTA38-G2/664KWJDG 404B/600KWLVI634B/600KW750 600 825 660 4200177024206600172.5
    GDC800GDC800*S KTA38-G2B/711KWJDG 404C/640KWLVI634C/640KW800 640 880 704 4200177024206750184
    GDC910GDC910*S KTA38-G2A/813KWJDG 404D/728KWLVI634D/728KW910 728 1001 801 4200177024207006230
    GDC1000GDC1000*SKTA38-G4/880KWJDG 404E/800KWLVI634E/800KW1000 800 1100 880 4400198022557065259
    GDC1000GDC1000*S KTA38-G5/800KWJDG 404E/800KWLVI634E/800KW1000 800 1100 880 4545202824177315287.5
    GDC1125GDC1125*S KTA38-G9/1089KWJDG 404F/900KWLVI634F/904KW1125 900 1238 990 4545202823797409316.3
    GDC1250GDC1250*SKTA50-G3/1097KWJDG 404G/1000KWLVI634G/1000KW1250 1000 1375 1100 507021072440867040HP345
    GDC1375GDC1375*SKTA50-G8/1200KW/PI734A/1008KW1375 1100 1513 1210 5070215024548817/
    GDC1475GDC1475*SKTA50-GS8/1287KW/PI734B/1120KW1475 1180 1623 1298 5070225124549405/

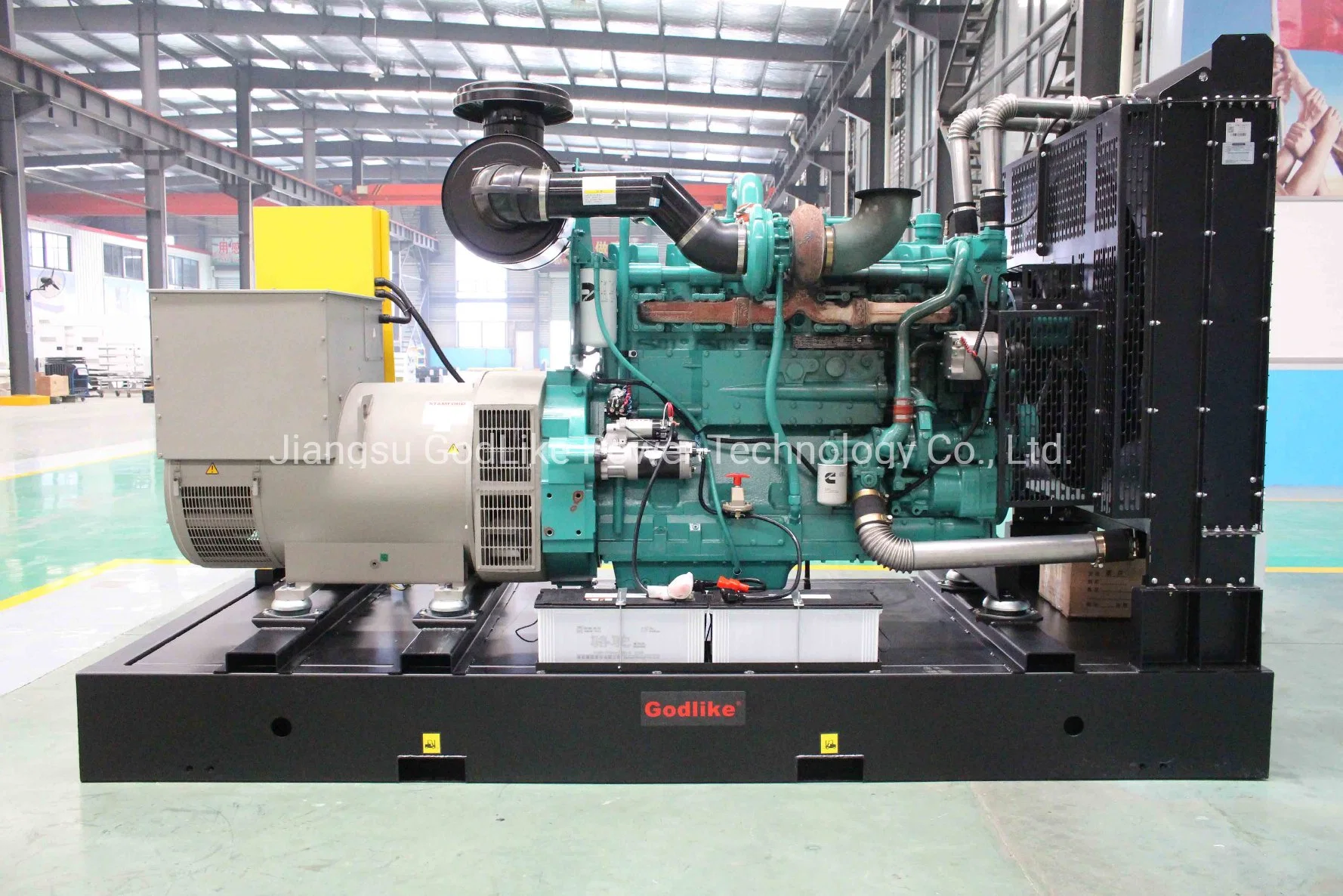

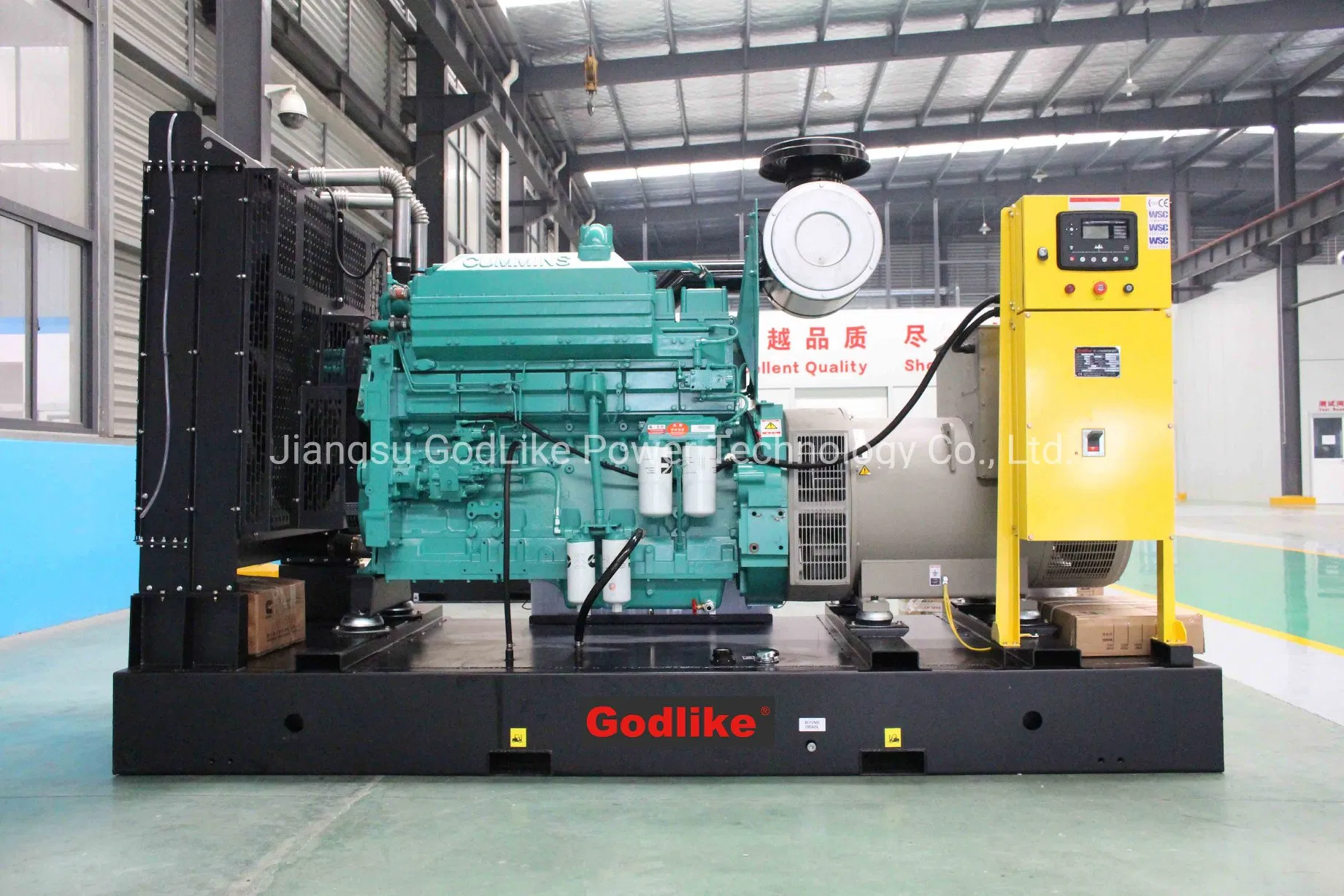

    Detail pictures of open type gensets:

    250kw (MTAA11-G3) Diesel Open Type Generator Set for Sale
    250kw (MTAA11-G3) Diesel Open Type Generator Set for Sale

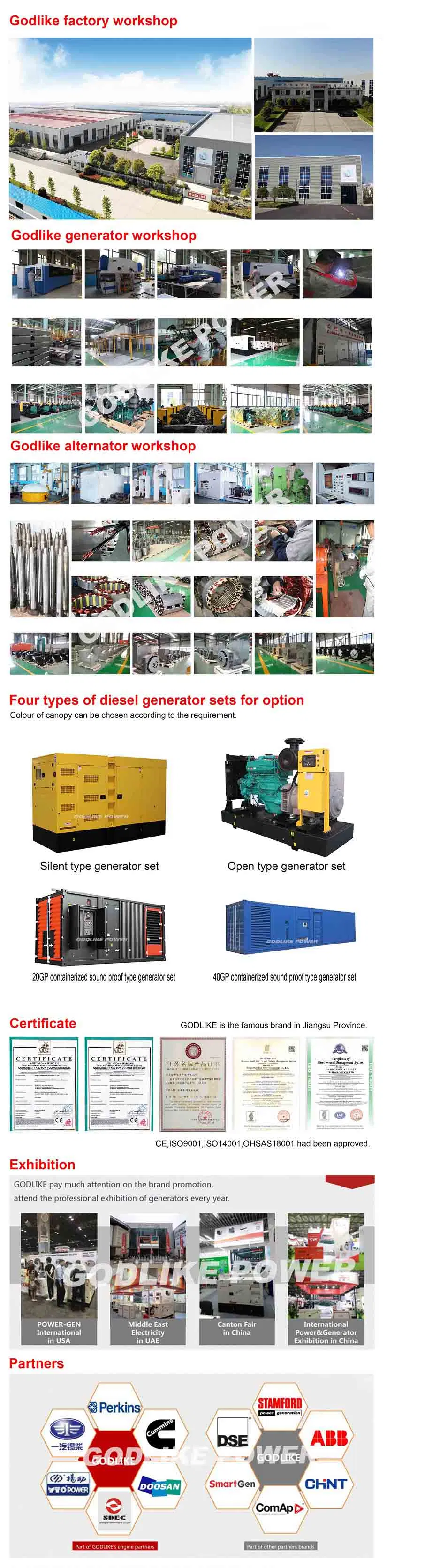

    Detail pictures of GODLIKE generators & alternators workshops
    250kw (MTAA11-G3) Diesel Open Type Generator Set for Sale
