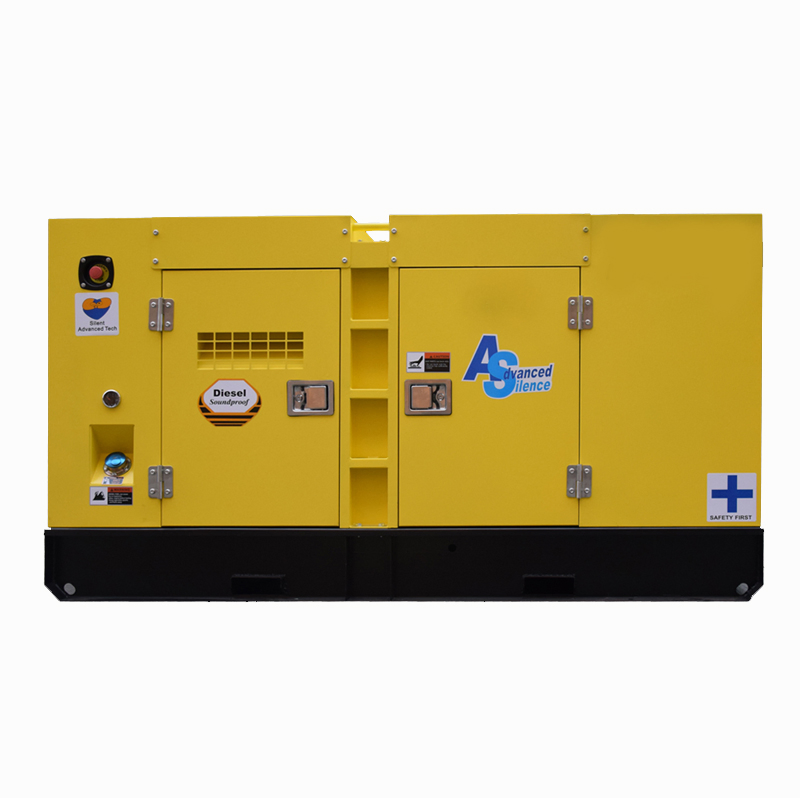

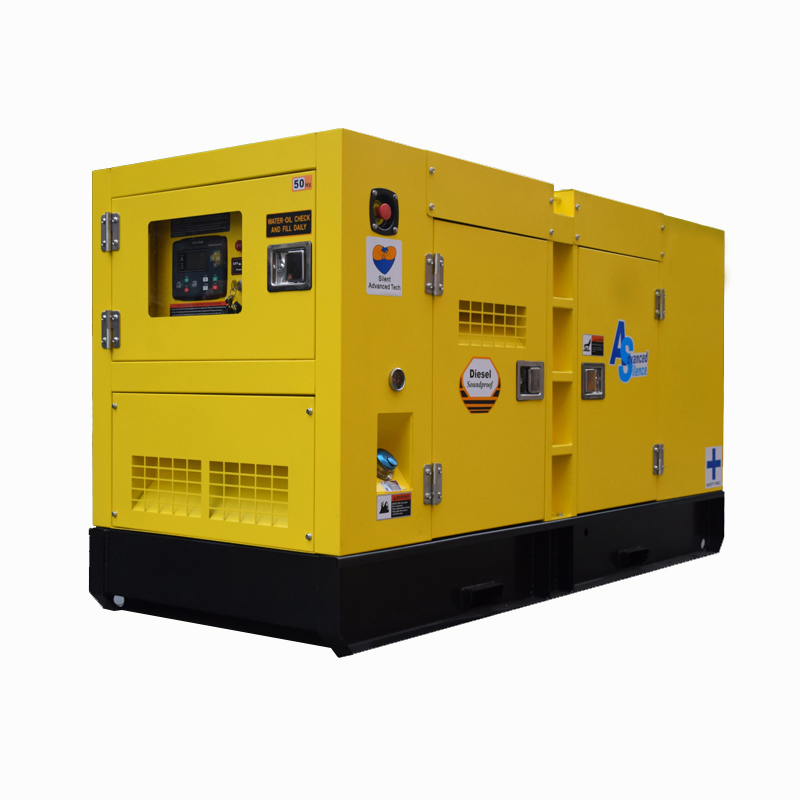

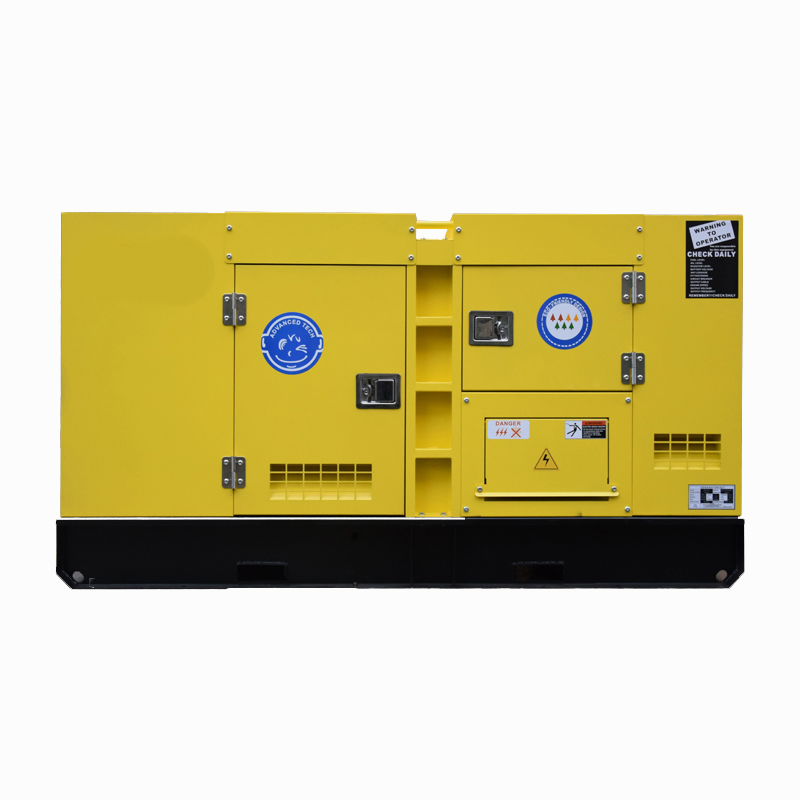

250kVA Silent Diesel Generator Set Powered by Dcec
250kVA Silent Type Diesel Generator For SaleProduct Parameters MODELJDC-250SPRIME POWER (KVA/KW)250/200STANDBY POWER(KVA/KW)275/220Rated voltage(V)400/230Rated speed(rpm)1500Rated frequency(Hz)50Power factor0.8Ambient temperature(°C)40Altitude(m)1000Connection type3 phase 4 wiresENGINE MANU......
Send Inquiry
Product Description
| MODEL | JDC-250S |
| PRIME POWER (KVA/KW) | 250/200 |
| STANDBY POWER(KVA/KW) | 275/220 |
| Rated voltage(V) | 400/230 |
| Rated speed(rpm) | 1500 |
| Rated frequency(Hz) | 50 |
| Power factor | 0.8 |
| Ambient temperature(°C) | 40 |
| Altitude(m) | 1000 |
| Connection type | 3 phase 4 wires |
| ENGINE MANUFACTURER | powered by DCEC |
| Model | 6LTAA8.9-G2 |
| Rated Power(kW) | 220 |
| No. of cylinders & configuration | In-Line 6 cylinders |
| Method of operation | 4-stroke |
| Speed regulation | Electronic Governor |
| Starting system | DC 24V Electronic start |
| Cooling method | Closed-circuit cooling system |
| Total displacement(L) | 8.9 |
| Compression ratio | 16.6:1 |
| Bore×Stroke(mm) | 114×145 |
| 100% Load fuel consumption(L/h) | 53 |
| ALTERNATOR MANUFACTURER | JLT274K |
| Number of Phase | 3 |
| Connection Type | 3Phase and 4Wires |
| Number of Bearing | 1 |
| Power Factor | 0.8 |
| Protection Grade | IP21 |
| Terminal | 12 |
| Winding/ Pitch | 100% Copper 2/3 Pitch |
| Cooling Fan | Cast alloy aluminum |
| Exciter Type | Brushless, Self-Exciting |
| Insulation Class, Temperature Rise | H/H |
| Telephone Influence Factor( TIF) | TIF <50 / THF<2% |
| Total Harmonic TGH/THC | <1.5% at no load / <5% at load |
| Voltage Regulation, Steady State | ≤±1% |
| Sustained Short-Circuit Current | 300%(3 in):10s |
| Standard Control System | Smartgen HGM6120N |
JLT POWER
Fujian Jinlongteng Power Engine & Machinery Co.,Ltd. is a highly professional and experienced manufacturer of engines, generatorsand water pumps. We have specialized in this field over 10years and always dedicated to produce the engines, generators and waterpumps in high quality with reasonable prices.
Our products include:
1, Gasoline Type Engine: 5.5Hp, 7.0Hp, 13.0Hp and 15.0Hp.
2, Diesel Yammar Type Engine: 4.0Hp, 7.0Hp and 10.0Hp.
3, Portable Gasoline Generators: 0.65kW, 2.0kW, 2.5kW, 2.7kW, 5.0kW, 6.0kW, 10kW.
4, Portable Diesel Generators: 2.0kW, 3.0kW, 5.0kW and 6.0kW.
5, Water cooled diesel generators range from 10kVA to 1500kVA.
Powered by Cummins,Deutz, Isuzu, Lovol, Chinese Ricardo, Yangdong, Quanchai and so on .
Why Choose Us:
1, Since 2006, with over 17years manufacturer experience.
2, Rich experience in OEM orders.
3, Advanced production equipment.

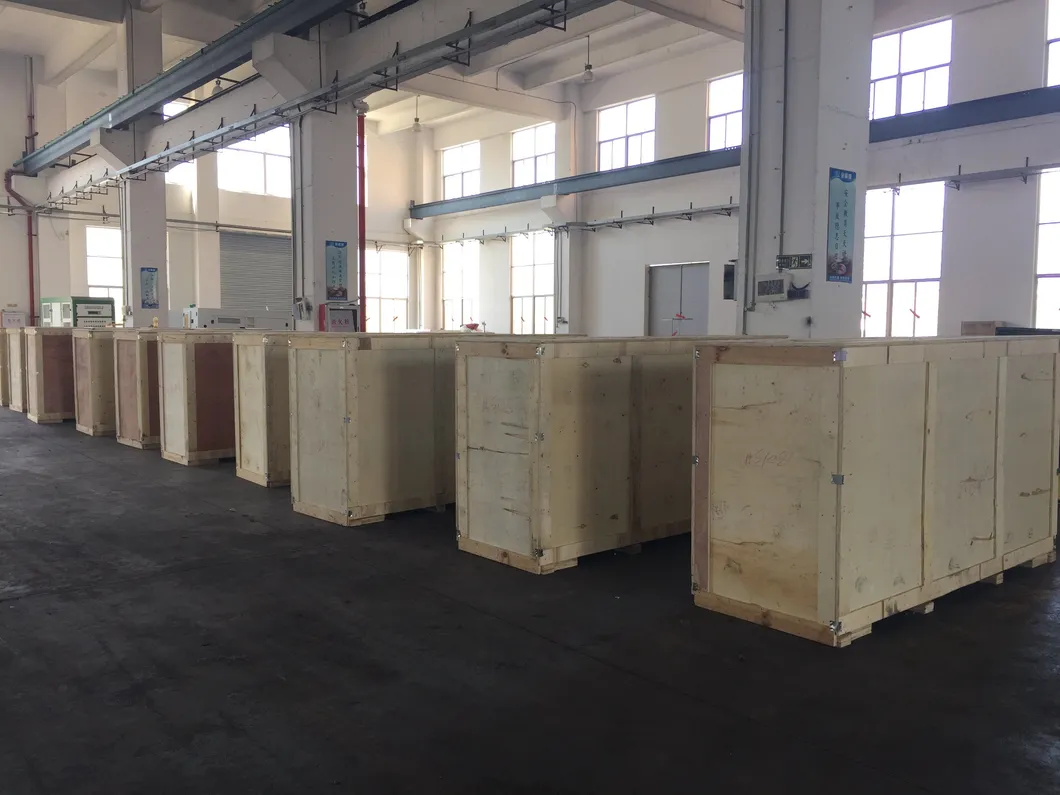

4, Own design team, can help you custom the packaging.

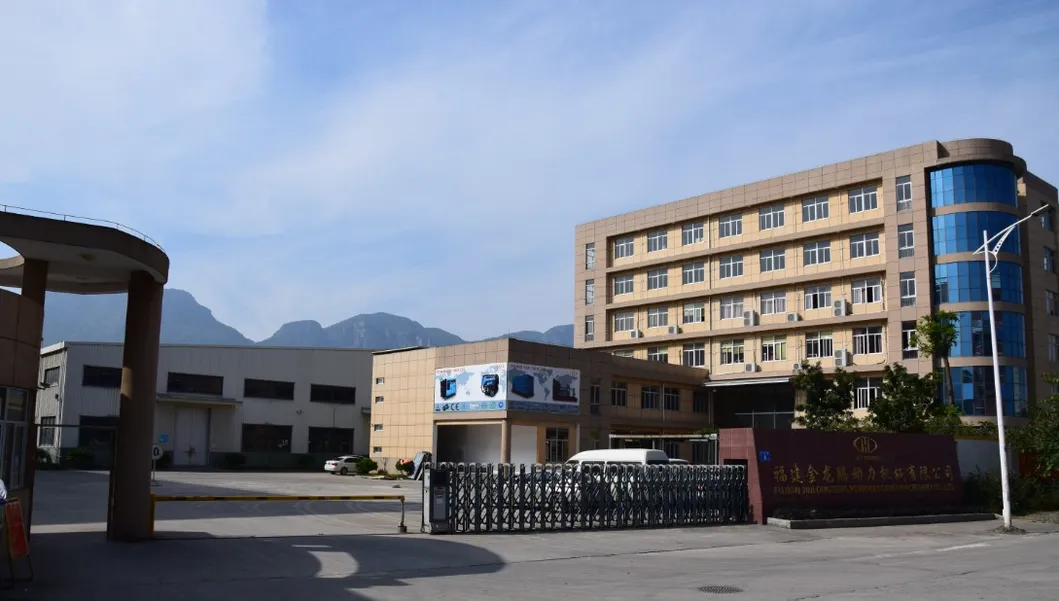

We are a professional manufacturer for engines, generators and water pumps with integrating development, production and sales. Factory located in one of the early open cities Fuzhou, with more than 100,000 square meters.Warmly welcome all partners to join usfor mutual benefits cooperation.
(1) Guarantee for one year or 1000hours (according to whichever reaches first) from ex-factory date.
(2) During guarantee period,our company will provide the free easy-damaged spare-parts for problems caused by our quality of production or raw material.
Our Service:
Guarantee for one year or 1000 hours whichever reach first from ex-factory date. During the guarantee period, JLT-Power will provide the free easy-damageable spare parts of alternator caused by our quality of production or raw material. After expiration, JLT-Power provides cost spare parts maintenance of engine & alternator.
