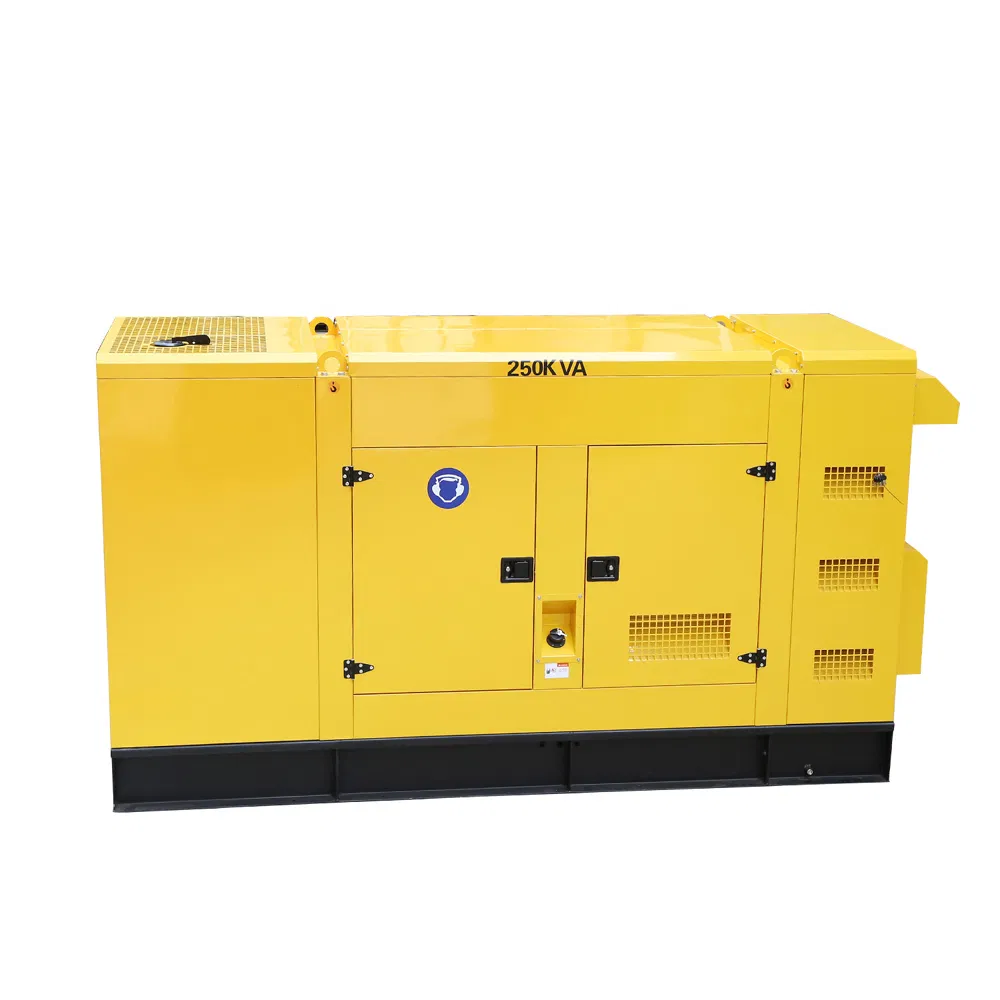

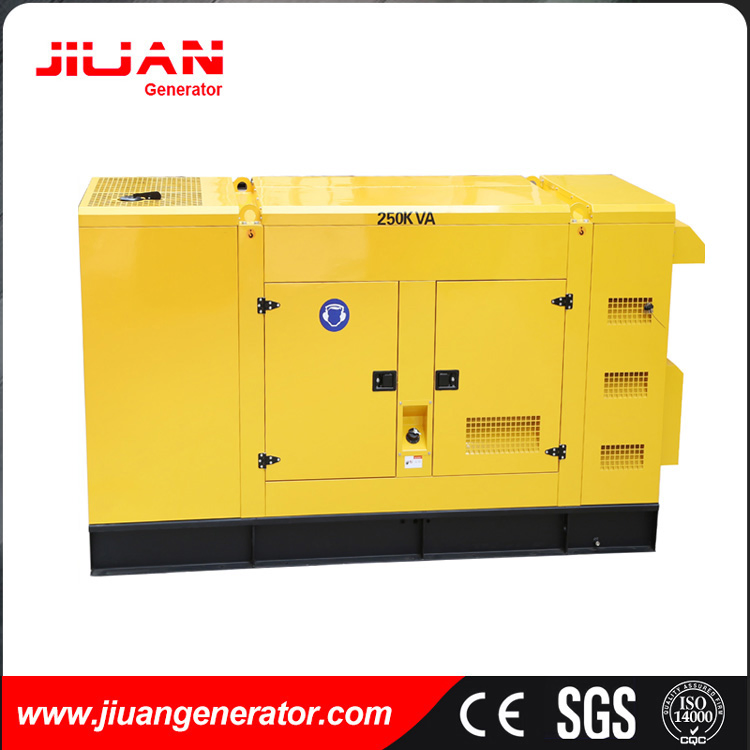

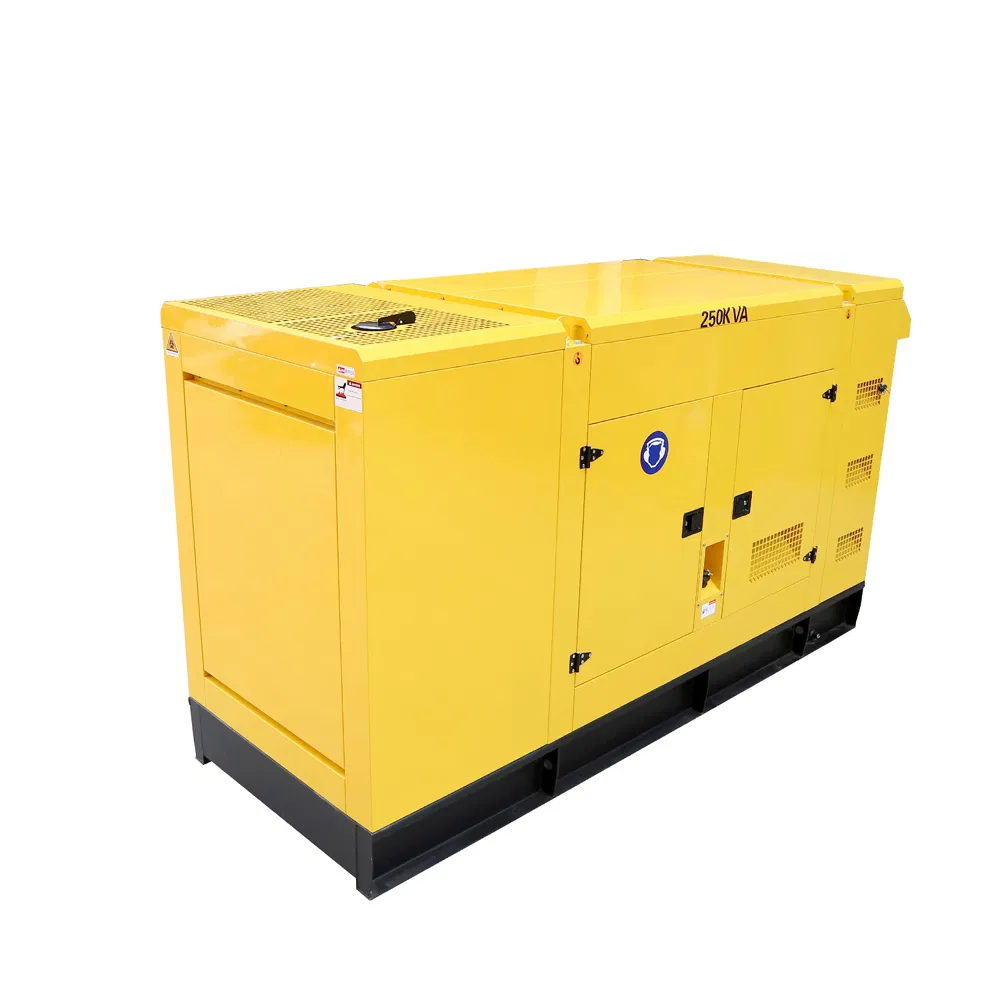

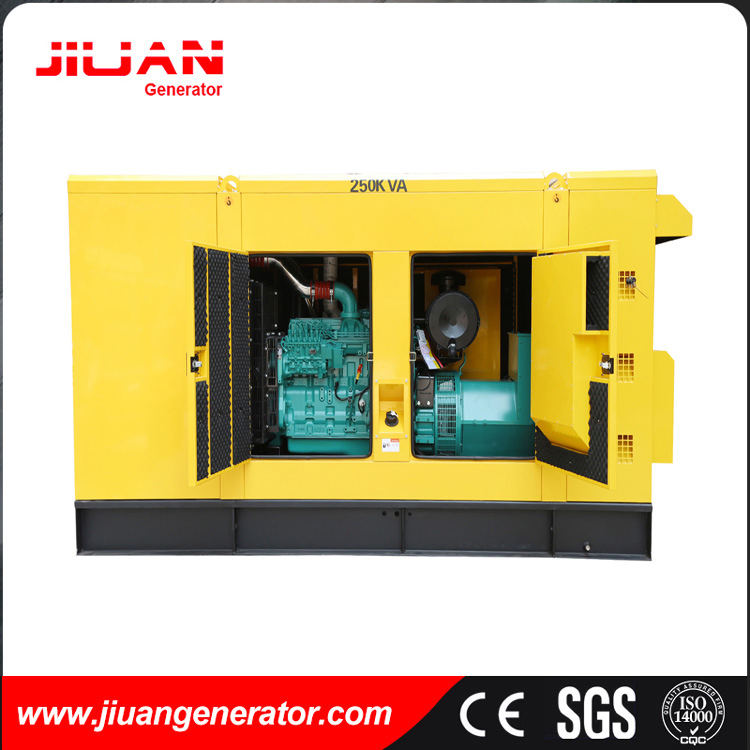

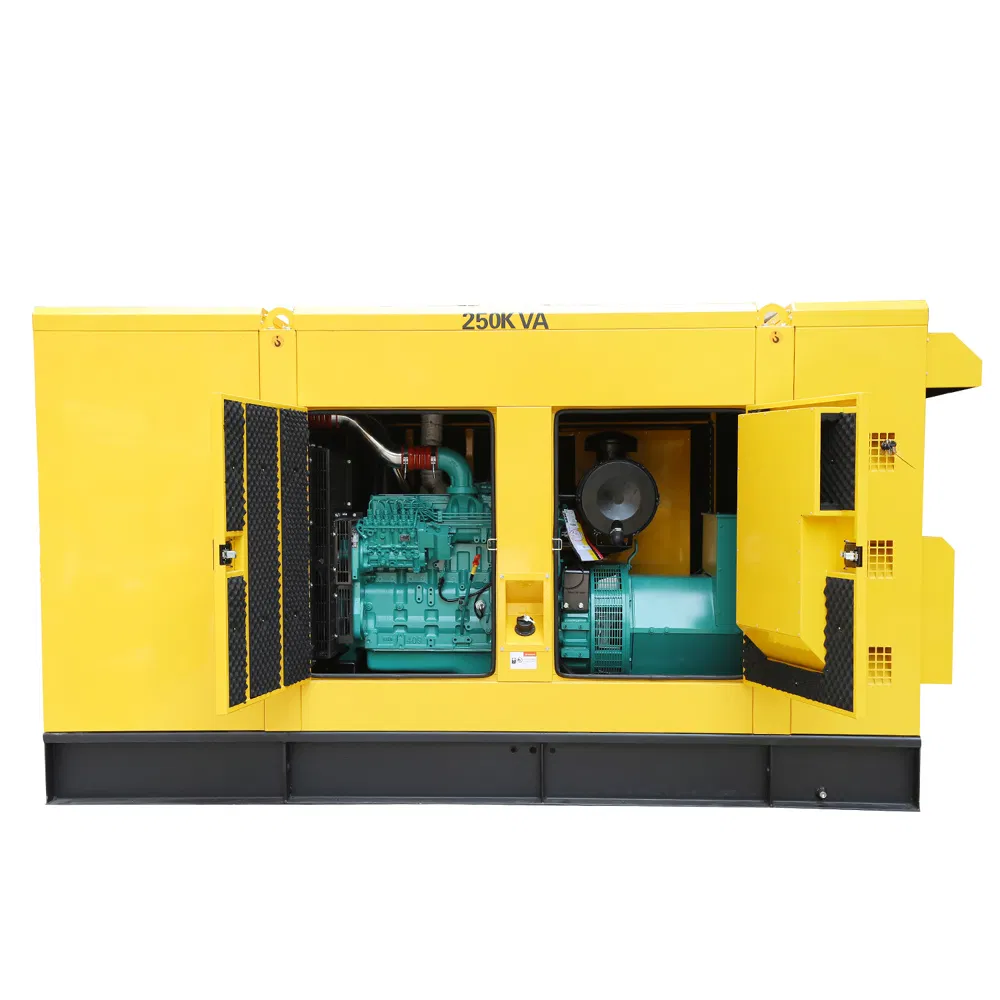

250kVA Groupe Electrogene
MODELCD-C200KW/250KVAPowered by Cummins EnginePrime Power (50HZ)200KW/250KVAStandby Power (50HZ)220kw/275KVAPower Factor 0.8 (Lagging)Phase Wires3-phases 4-WiresStart ModelElectricProtectionLow oil-pressure, High water temperature, Over-speed, Over-currentEngine ModelDCEC Cummins 6LTAA8.9-G2 4 Cycle......
Send Inquiry
Product Description
MODEL | CD-C200KW/250KVA |
| Powered by Cummins Engine | |
| Prime Power (50HZ) | 200KW/250KVA |
| Standby Power (50HZ) | 220kw/275KVA |
| Power Factor | 0.8 (Lagging) |
| Phase Wires | 3-phases 4-Wires |
| Start Model | Electric |
| Protection | Low oil-pressure, High water temperature, Over-speed, Over-current |

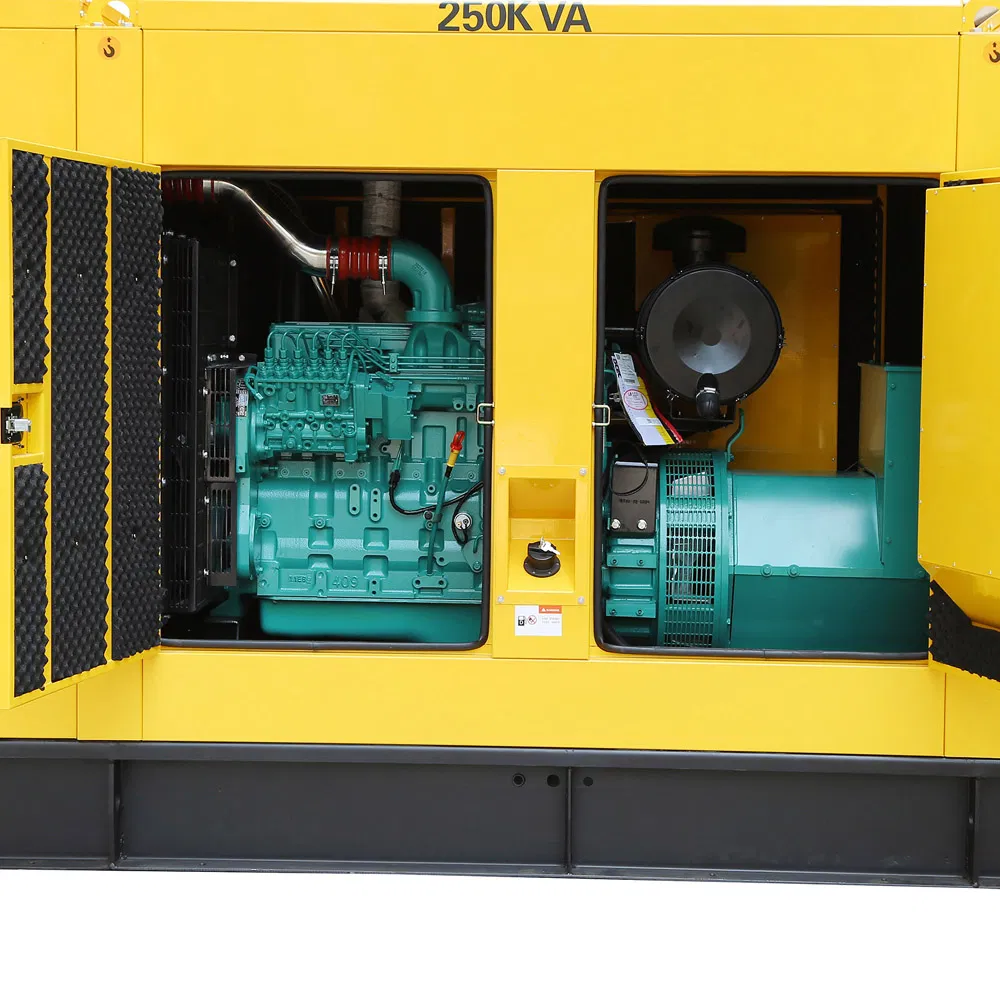

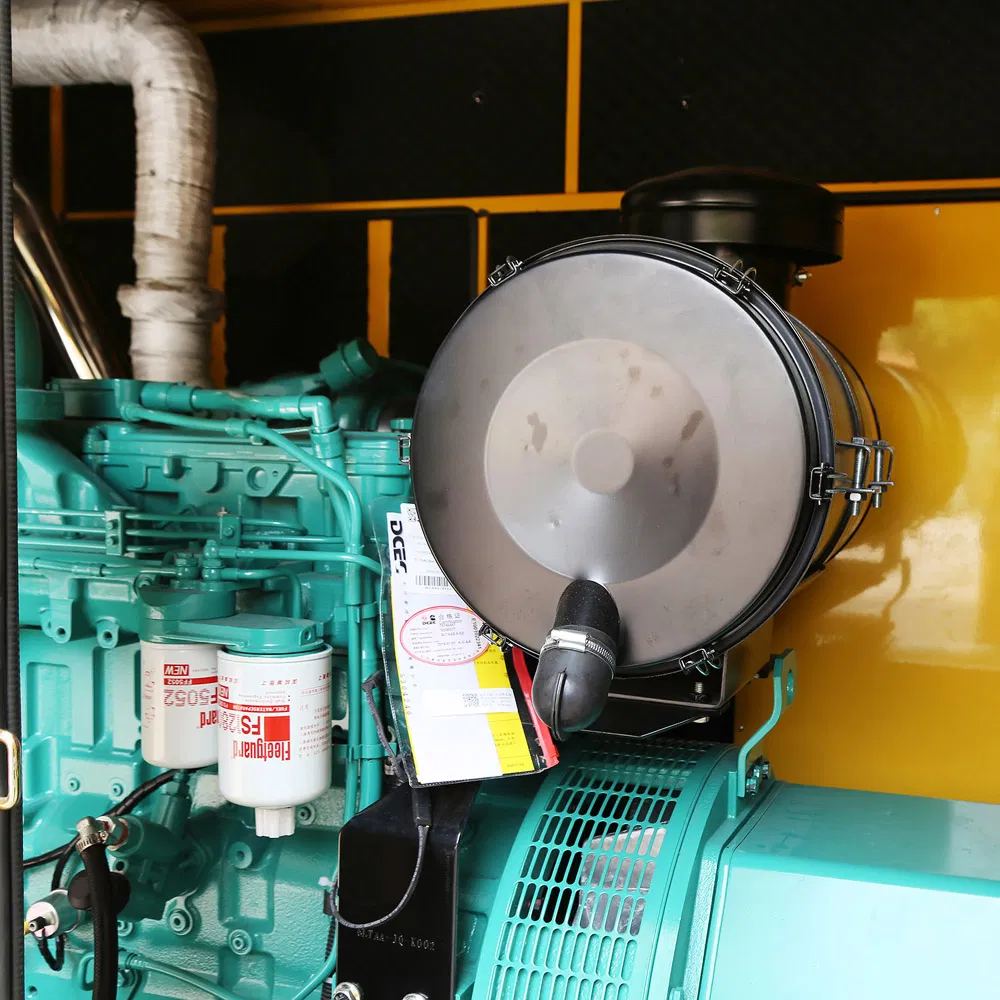

| Engine Model | DCEC Cummins 6LTAA8.9-G2 4 Cycle |
| Cylinders | 6 |
| Cylinder Arrangement | L |
| Bore x Stroke(mm) | 114X 135 |
| Compression Ratio | 16.0:1 |
| Speed | 1500rpm |
| Cooling Method | Water - cooled |
| Starting Method | 24V DC electrical start |
| Full Load Diesel Consumption (L/H) | 42.4 |
| Engine Displacement (L) | 4 |
| Inspiration (L) | Turbocharged Intercooled |
| Lube Volume (L) | 14.3 |
| Coolant Volume (L) | 25 |
| Noise (Db) | ≤ 80 |
| Alternator Model | Newage Stamford UCI274K or Leadtech LTG274L |
| Alternator Power | 200KW/250KVA Brushles with AVR |
| Voltage | 380/220V,400/230V,415/240V,220/127V |
| Protection | IP23 |
| Voltage Regulation | ±4% |
| Insulation Class | H |
| Voltage Control | AVR |
| Net Weigh (KGS) | 2350 |
| Dimensions (L x W x H) mm | 3200*1500*2010 |
| 40FT Container | 4 units |
| Controller | Smartgen 6110 or Deepsea 6020 |
| Standard | Muffler * 2PCS |
| Battery 80A * 2 PCS | |
| Optional | ATS (auto transfer switch) |
| AMF(auto mains failure) | |
After-sales Service
1 year or 1800 running hours subject to the earlier one.
Terms of Payment
- T/T
- Western Union
- Cash
Trade Terms of Products
| Generator Warranty | 1800 hours or 1 year subject to the earlier one. |
| Delivery Items | FOB,CNF,CIF,EXW,Delivery Guangzhou |
| Delivery Time | 15-20 days after receiving advanced payment. |
| Generator MOQ | 1PCS |
| Package | PE Film+Pearl Wool+Iron Frame (standard export packing) |
| Certificate | SGS;Cummins Authorized Factory;TUV;Son cap |
| Loading Port | Guangzhou,Shenzhen,Shanghai |
| Payment | T/T Cash or Western Union |
| Please give detail needs in your inquiry, so that we can make power solutions for you. | |
