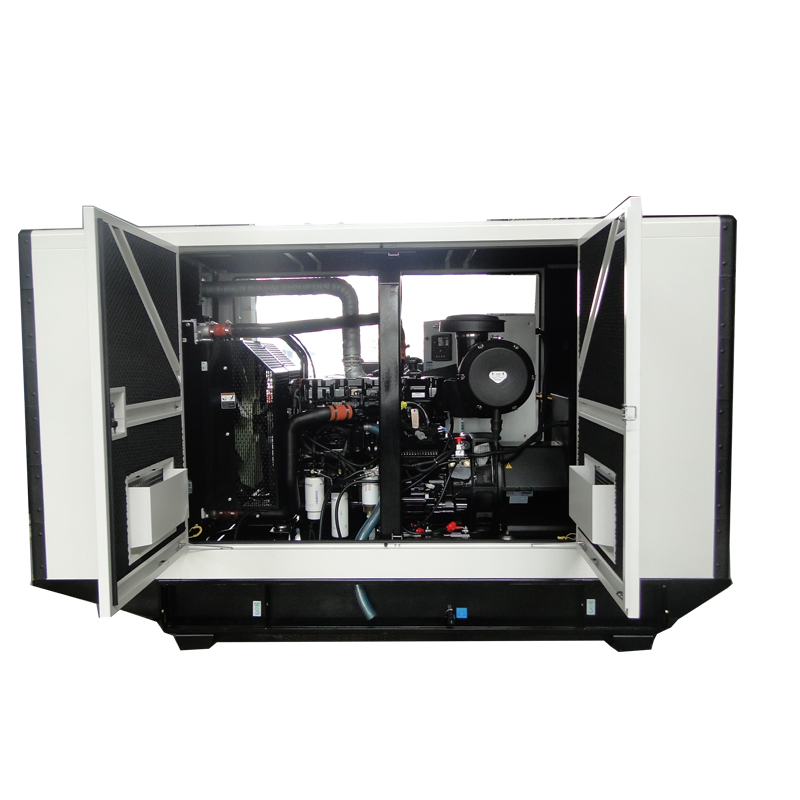

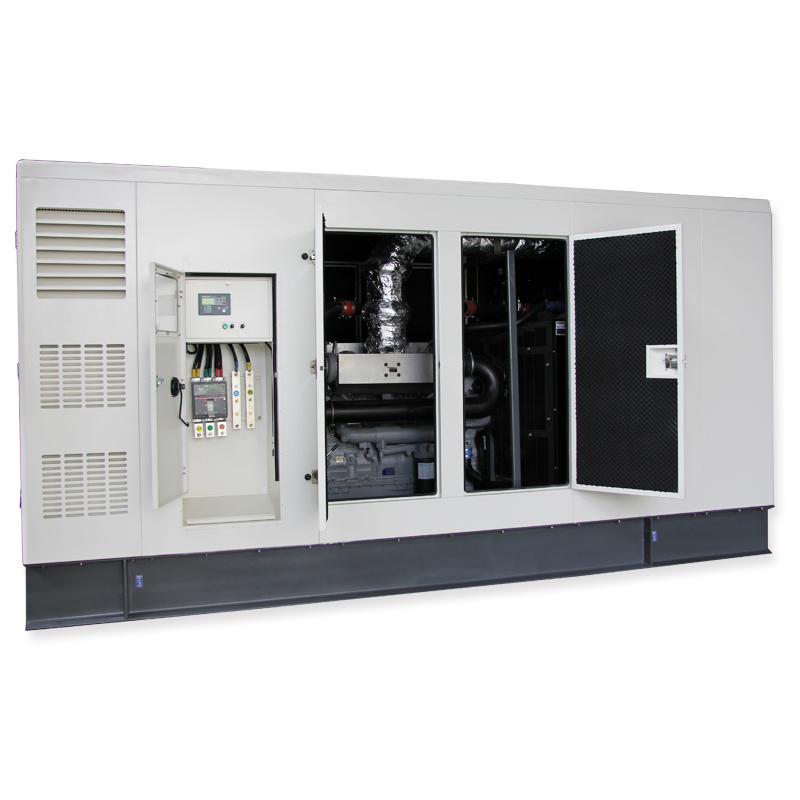

230kVA Silent Diesel Generator Made in UK Perkins Model 1206A -E70ttag2
PW-230T5 powered by:Perkin-s 1206A-E70TTAG2Diesel Genset Features P.F=0.8 3PhaseGenerating Set Performance 50HzService P.R.PStandbyRated outputkVA230,0 250,0 Active power outputkW184,0 ......
Send Inquiry
Product Description

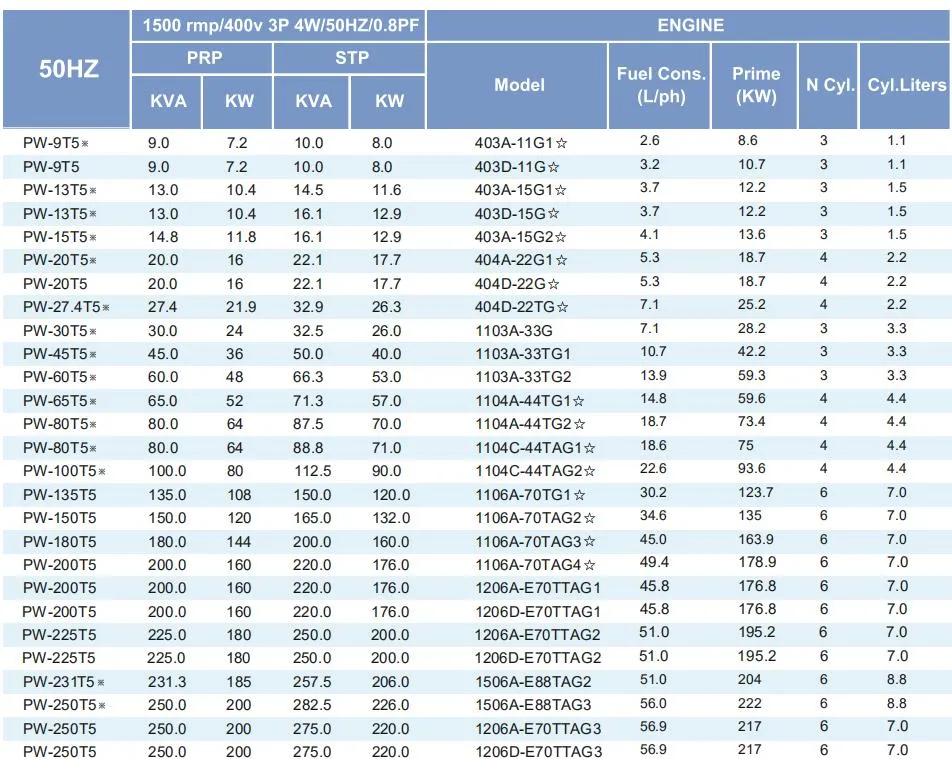

| PW-230T5 powered by:Perkin-s 1206A-E70TTAG2 | ||||||||||
| Diesel Genset Features P.F=0.8 3Phase | ||||||||||
| Generating Set Performance | 50Hz | |||||||||
| Service | P.R.P | Standby | ||||||||
| Rated output | kVA | 230,0 | 250,0 | |||||||
| Active power output | kW | 184,0 | 200,0 | |||||||
| Rated Speed | r.p.m | 1500 | ||||||||
| Standard Voltage | V | 400/230 | ||||||||
| Voltage available | V | 380/220 - 415/240 | ||||||||
| Prime Mover Performance 1500 r.p.m | ||||||||||
| SERVICE | P.R.P | Standby | ||||||||
| Rated output | KW | 204,2 | 226,1 | |||||||
| 4 stroke Diesel Engine - Injection type | Direct | |||||||||
| Aspiration type | Series turbocharged aftercooled | |||||||||
| Cylinders,number and arrangement | 6-L | |||||||||
| Bore×Stroke | mm | 105X135 | ||||||||
| Total Displacement | L | 7,01 | ||||||||
| Cooling system | Water | |||||||||
| Emission Certification | N/A | |||||||||
| Compression ratio | 15.8:1 | |||||||||
| Specific fuel consumption(P.R.P) | L/h | 51 | ||||||||
| Specific oil consumption(at full load) | % | <0.1 | ||||||||
| Total coolant capacity | L | 25 | ||||||||
| Speed governor | Type | Electronic ECM | ||||||||
| GTL Generator Supply Scope | ||||||||||

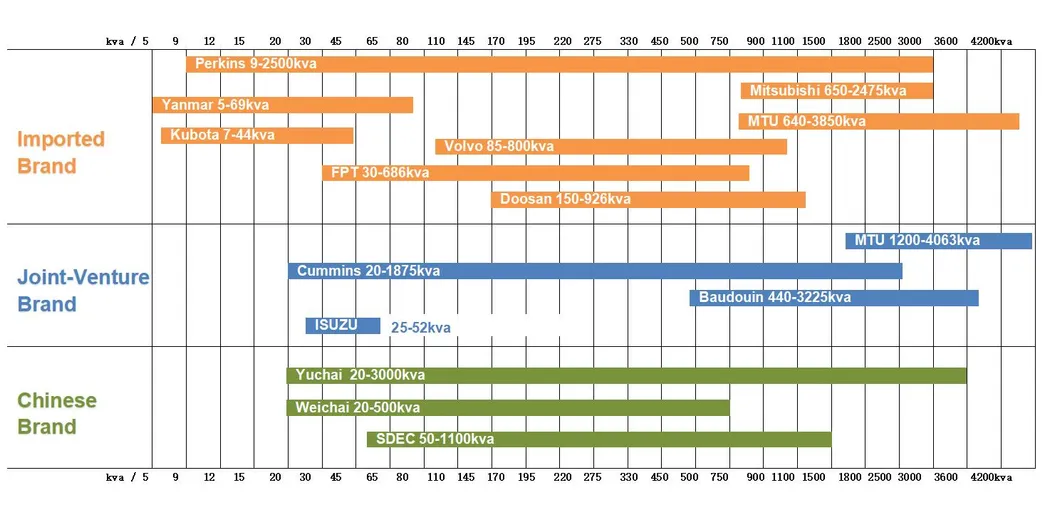

| Engine: | Cummins,Perkin-s,FPT, MTU, Volvo, Doosan,Deutz,Yanmar, Kubota, Chinese brand | |||||||||
| Alternator: | Leroy Somer, Stamford, Marathon, Meccalte, Chinese brand | |||||||||
| Controller: | Deepsea, Comap, Deif | |||||||||
| Circuit Breaker: | ABB/SCHNEIDER | |||||||||
| Type: | Open/Economical type canopy/ Residential type canopy/ Super silent type canopy | |||||||||
| Fuel Tank: | Base Tank, External Daily Fuel Tank | |||||||||

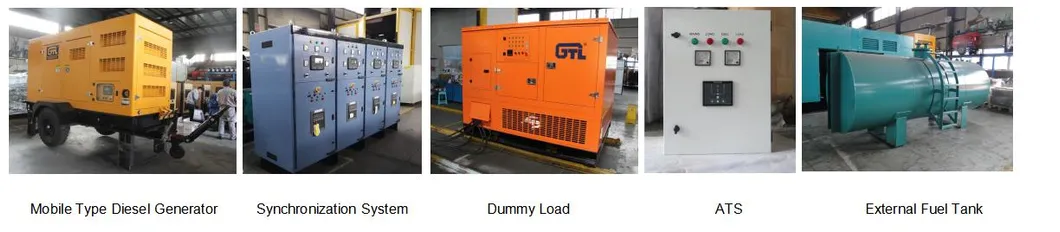

| Optional supporting products: | Mobile Trailer Type Diesel Generator /Synchronization System / ATS(Automatic Transfer Switch) /Dummy Load/ /Engine water heater/PMG | |||||||||

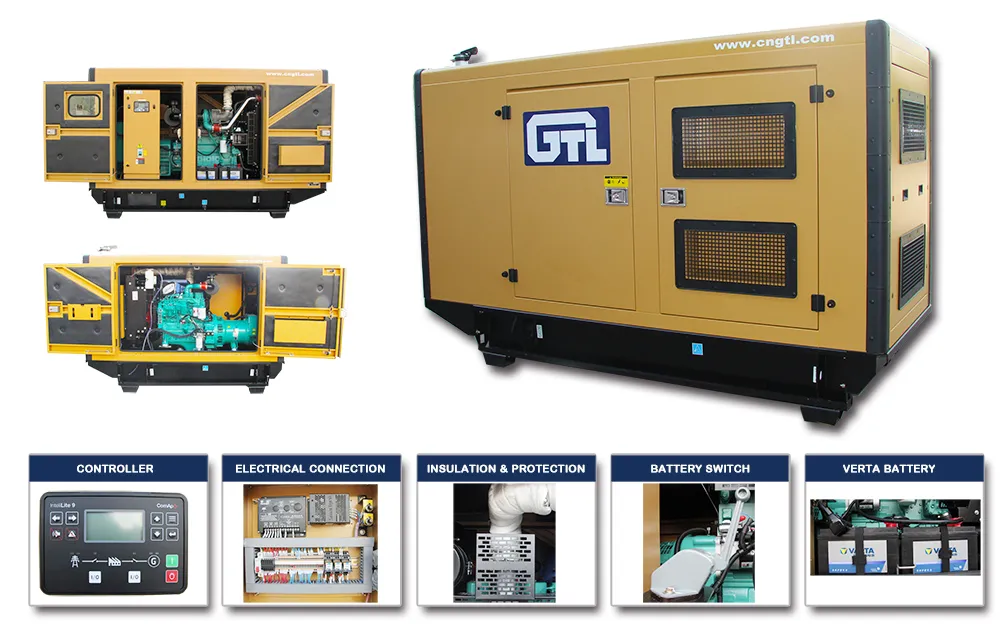

| GTL Generator configuration | ||||||||||
| Engine: | Brand new genuine in warranty | |||||||||
| Alternator: | Brand new brushless alternator, IP23, H insulation class. | |||||||||
| Base Frame: | Heavy-duty steel channel base frame. | |||||||||
| Radiator: | With safety guard. | |||||||||
| Vibration Damper | Vibration damper between Engine/Alternator and base frame | |||||||||
| Breaker: | 3-pole output manual circuit breaker as standard, 4 poles for option | |||||||||
| Controller: | Comap AMF9, AMF20, AMF25 for option.DSE702,DSE6020 DSE6120 DSE7320 DSE7420 and other deepsea models, | |||||||||
| Silencer: | Heavy duty industrial type silencer with flexible bellow,elbow. | |||||||||
| Battery: | Varta Brand, high capacity sealed maintenance-free battery c/w battery cables. | |||||||||
| Fuel Tank: | 8 hours base fuel tank, External Daily Fuel Tank for option | |||||||||
| Accessory: | Standard tool kits and complete operation/maintenance/manuals for Generator/Engine/Alternator/control panel, etc. | |||||||||
| Inquiry Items | ||||||||||
| Before we talk about diesel generators and make an offer for you, and in order to make a good choice for you, please kindly allow me to ask you the following issues and kindly fill in the blanks: | ||||||||||
| Genset parameter | ||||||||||
| Prime power | Standby power | Voltage | Frequency | Phase | Quantity | Another requirement | ||||
| kva | kw | kva | kw | V | 50Hz or 60hz | 1 or 3 phase | set | |||
| Voltage&Frequency | 50hz 380-440/ 190-220/ 220-254 | |||||||||
| 60hz 416-480/ 380-416/ 240-277/ 208-240 | ||||||||||
| Requirement of brand | ||||||||||
| Engine | Alternator | Control Module | ATS(Include or not) | |||||||
| Engine: | Cummins, FPT, MTU, Volvo, Doosan,Deutz,Yanmar, Kubota, Chinese brand | |||||||||
| Alternator: | Leroy Somer, Stamford, Marathon, Meccalte, Chinese brand | |||||||||
| Controller: | Deepsea, Comap, Deif | |||||||||
| Circuit Breaker: | ABB/SCHNEIDER | |||||||||
| Physical conditions | ||||||||||
| Ambient temperature | Sea level height | Relative Humidity | ||||||||
| (ºC) | (m) | (%) | ||||||||
