Product Description
10kVA 12kVA 15kVA 20kVA 25kVA 30kVA
Silent Diesel Generator (Soundproof Type)
Noise level 65dB(A) @7m

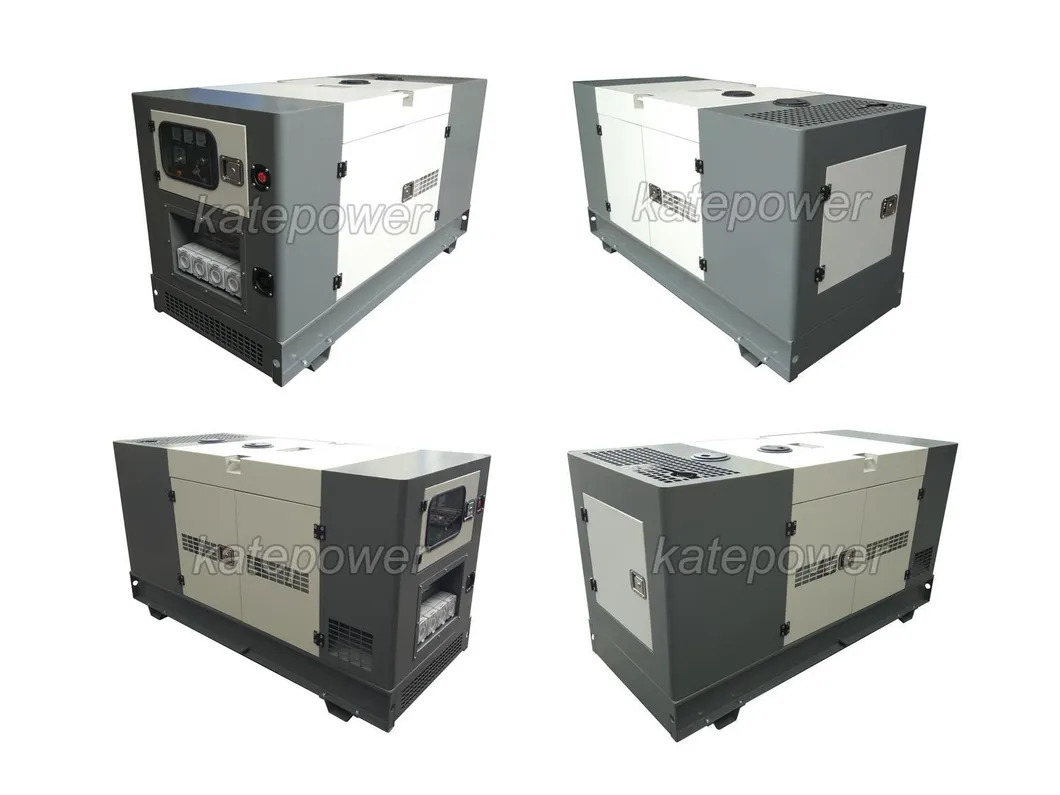

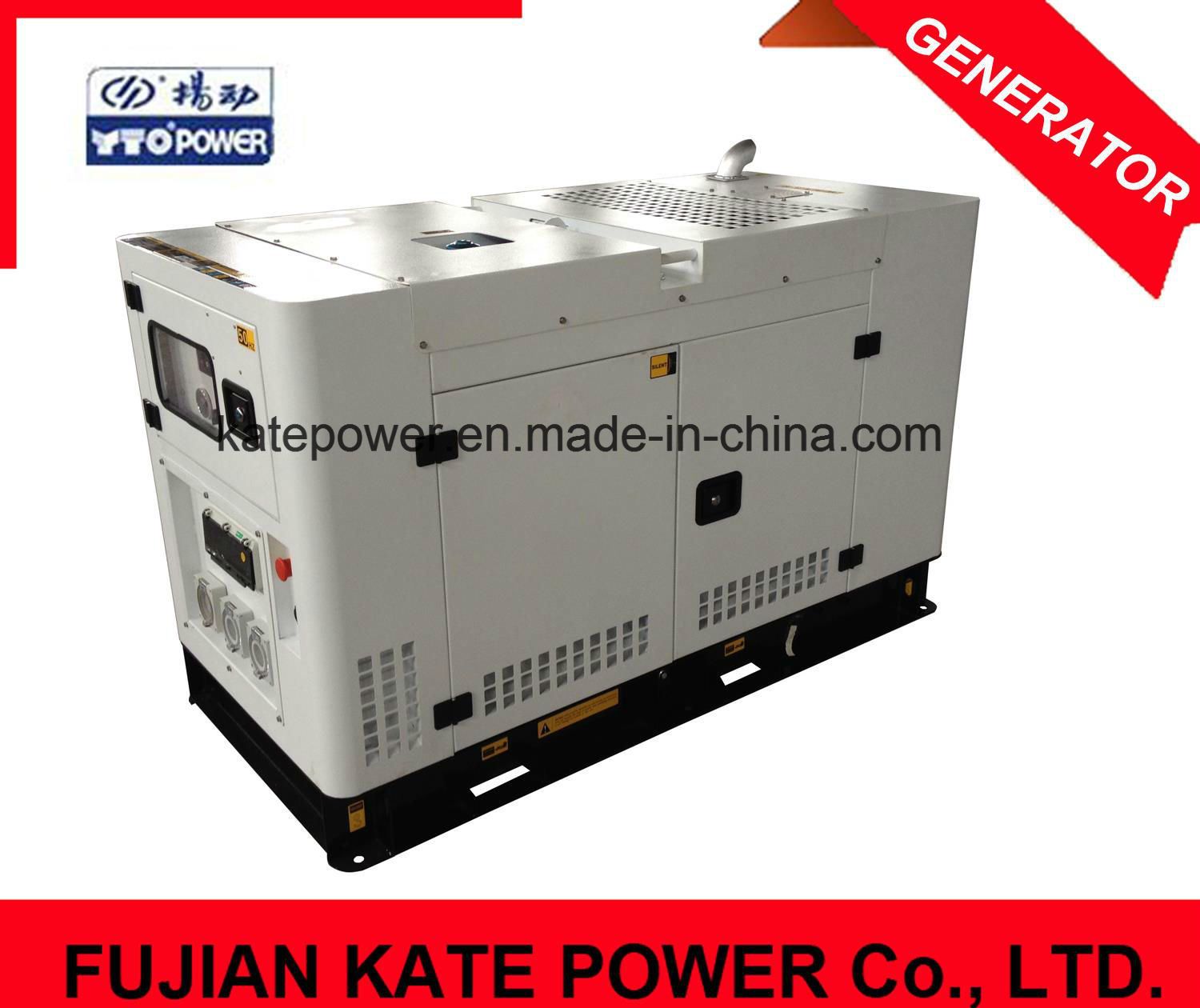

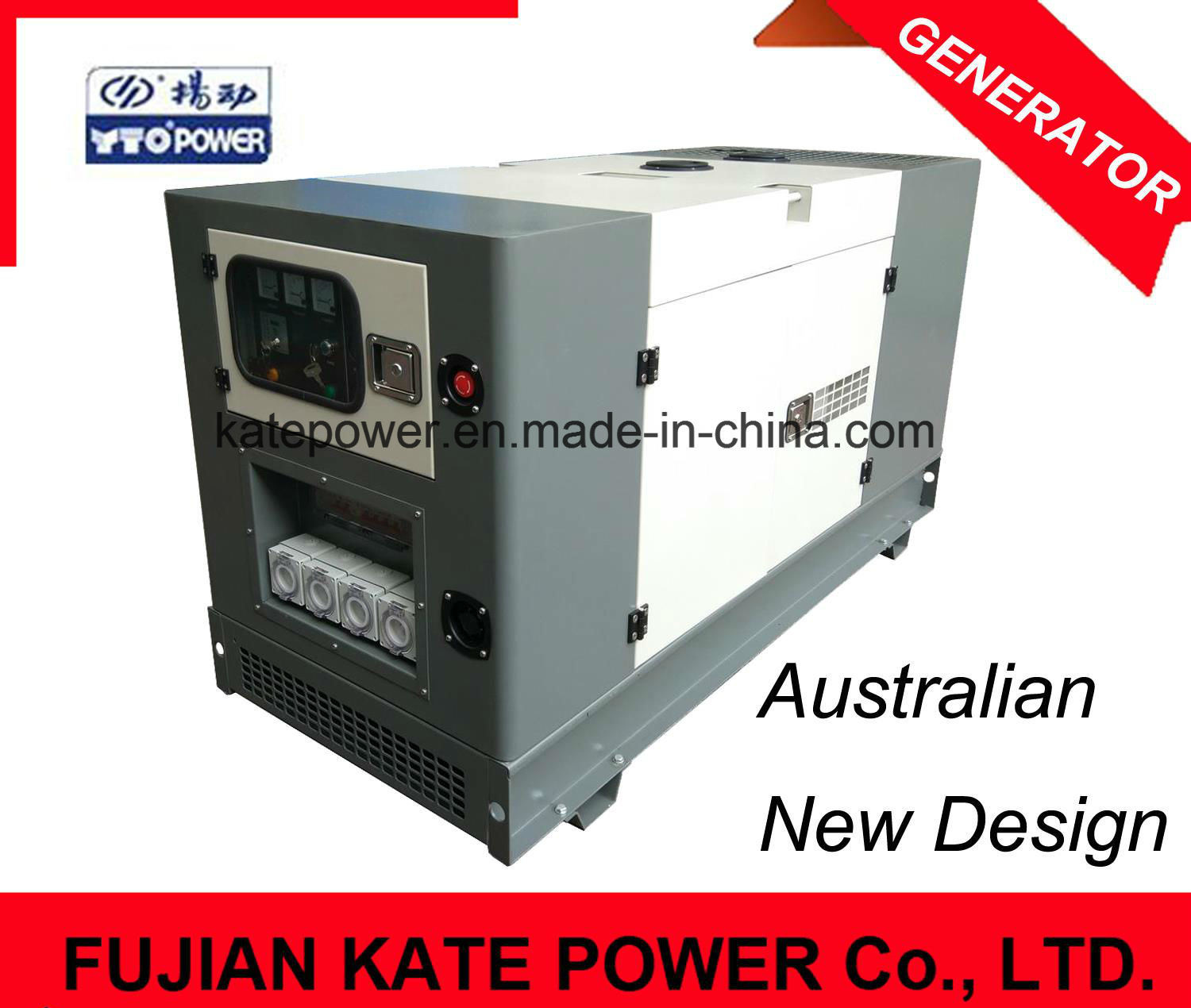

Δ PRODUCTS PHOTOS
Δ Genset Technical Data
| Genset Model | KYD-20S |
| Prime power (kVA/kW) | 20 / 16 |
| Standby power (kVA/kW) | 22 / 18 |
| Output frequency (Hz) | 50 |
| Rated speed (RPM) | 1500 |
| Rated voltage (V) | 400 |
| Rated current (A) | 28.9 |
| Phase | 3 |
| Fuel consumption of 75% load (L/hr) | 3.5 |
| Fuel consumption of 100% load (L/hr) | 4.6 |
| Noise level dB(A) @7m | 65 |
| Fuel tank capacity (L) | 40 |
| Dimension (LxWxH) (mm) | 2050x950x1200 |
| Weight (kg) | 830 |
| Engine model | YSD490D |
| Alternator model | KT-16KW |
| Voltage regulation rate | ≤±1% |
| Random voltage variation | ≤±1% |
| Frequency regulation rate | ≤±5% |
| Random frequency variation | ≤±0.5% |
| Engine Specifications | |
| Engine model | YSD490D |
| Engine manufacturer | Yangdong |
| Number of cylinders | 4 |
| Cylinder arrangement | Vertical |
| Cycle | 4 stroke |
| Combustion chamber type | Direct injector |
| Aspiration | Natural aspiration |
| Bore x Storke (mm x mm) | 90 x 100 |
| Displacement (Liter) | 2.54 |
| Compression Ratio | 18.0:1 |
| Prime power/speed (kW/RPM) | 21/1500 |
| Standby power/speed (kW/RPM) | 25/1500 |
| Speed governor | Mechanical |
| Cooling system | Forced watercooling |
| Fuel consumption at 100% load (g/kWh) | ≤247.5 |
| Firing order | 1-3-4-2 |
| Starting method | Electric |
| Starter motor | DC12V |
| Alternator (Dynamo) | AC14V |
| Alternator Specifications | |
| Alternator model | KT-16KW |
| Alternator manufacturer | KATE Power copy Stamford |
| Exciter type | Single bearing, Brushless, Self-excited |
| Rated output prime power | 20 kVA / 16kW |
| Rated speed | 1500 RPM |
| Rated frequency | 50 Hz |
| Phase | 3 |
| Rated voltage | 400V (Available with customer requirements) |
| Power factor | 0.8 |
| Voltage adjust range | ≥5% |
| Voltage regulation NL-FL | ≤±1% |
| Insulation grade | H |
| Protection grade | IP23 |
| Remark | |
| Alternator option: TBA |
Δ OPTIONAL PARTS
| Engine & Radiator | Alternator part | Electric part | Fuel tank part | Others |
| Water preheater | PMG | ATS | External daily fuel tank | Weatherproof canopy |
| Lub oil pre-heater | Anti-condensation heater | Synchronization panel | Automatic fuel pump | Mobile trailer |
| Spare parts | Parallel droop | ABB breaker | Oil drain pump | Containerized |

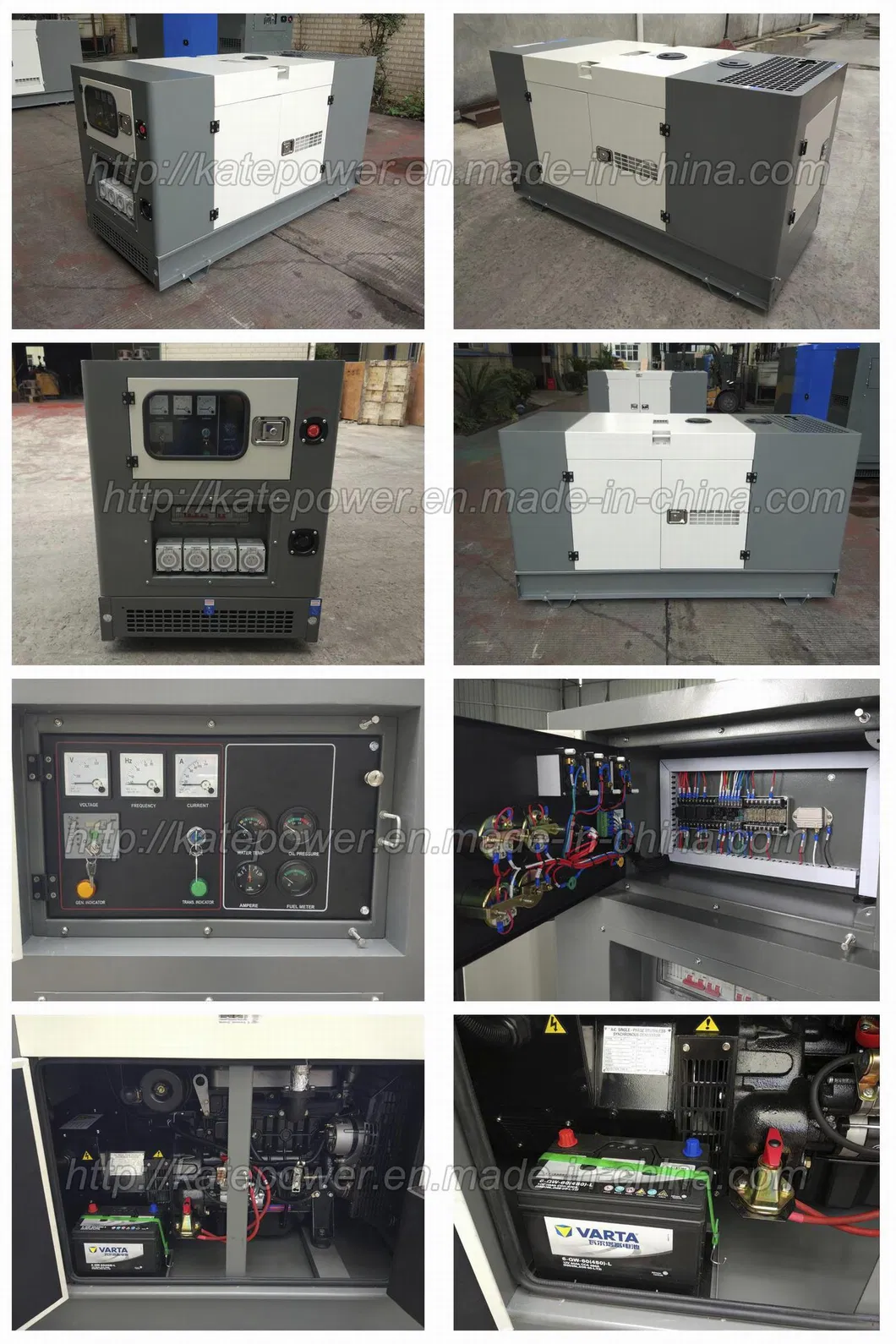

Δ DETAILED PHOTOS
Δ STANDARD CONFIGURATION
√ Industrial China Yangdong / Changchai water-cooled diesel engine
√ Single bearing alternator with insulation class H and IP23
√ Standard CHINT or DELIXI circuit breaker, ABB as an optional
√ Steel base fuel tank with anti-vibration mounting
√ Based 8-10 hours build-in fuel tank
√ 9 dB muffler exhaust system, free-maintenance battery, user's manual
√ Flexible fuel lines and lube oil drain cock
√ Smartgen, Harsen controller module
√ Shrink wrap packing method
Δ TESTING ITEMS
KATE POWER provides a full line of brand new and high quality products.
Each and every unit is strictly factory tested before shipment.
√ Parts faults testing
√ Fuel tank pressure testing
√ Bolt tightening torque testing
√ Painting thickness testing
√ Voltage bearing and insulation testing
√ Noise testing
√ Loading Testing(25%, 50%, 75%, 100%, 110% load to check verify that all control systems, alarm and shut-down protection)
Professional power assistant
Δ FAQ (FREQUENCY ASKED QUESTION)

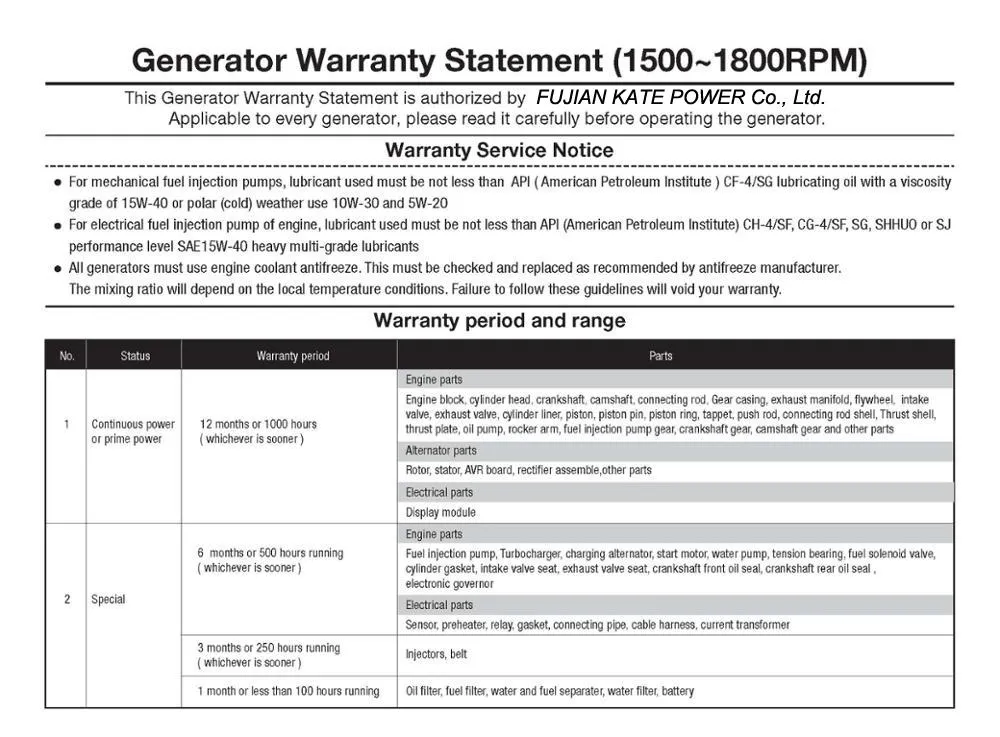

Question: What's your warranty period?
Answer: Our payment terms is 1 year or 1000 running hours whichever comes first. But based on some special project, we can extended our warranty period.
Question: Does your generators has global warranty?
Answer: Yes, most of our products like generator enjoy the global warranty service. And the alternator we use like Leroysomer, Stamford, marathon also enjoy the global warranty service, so you do not need to worry about the aftersales service.
Question: Do you accept OEM/ODM service?
Answer: Yes, we can accept OEM.
Question: What's your payment terms?
Answer: We can accept T/T 30% in advance, and the balance 70% shall be paid before shipment or L/C at sight, L/C deferred payment terms or west union.
Question: What's your delivery time?
Answer: Our normal delivery time is 25 working days. But if your order is some special engine and alternator, then the delivery time is longer.
