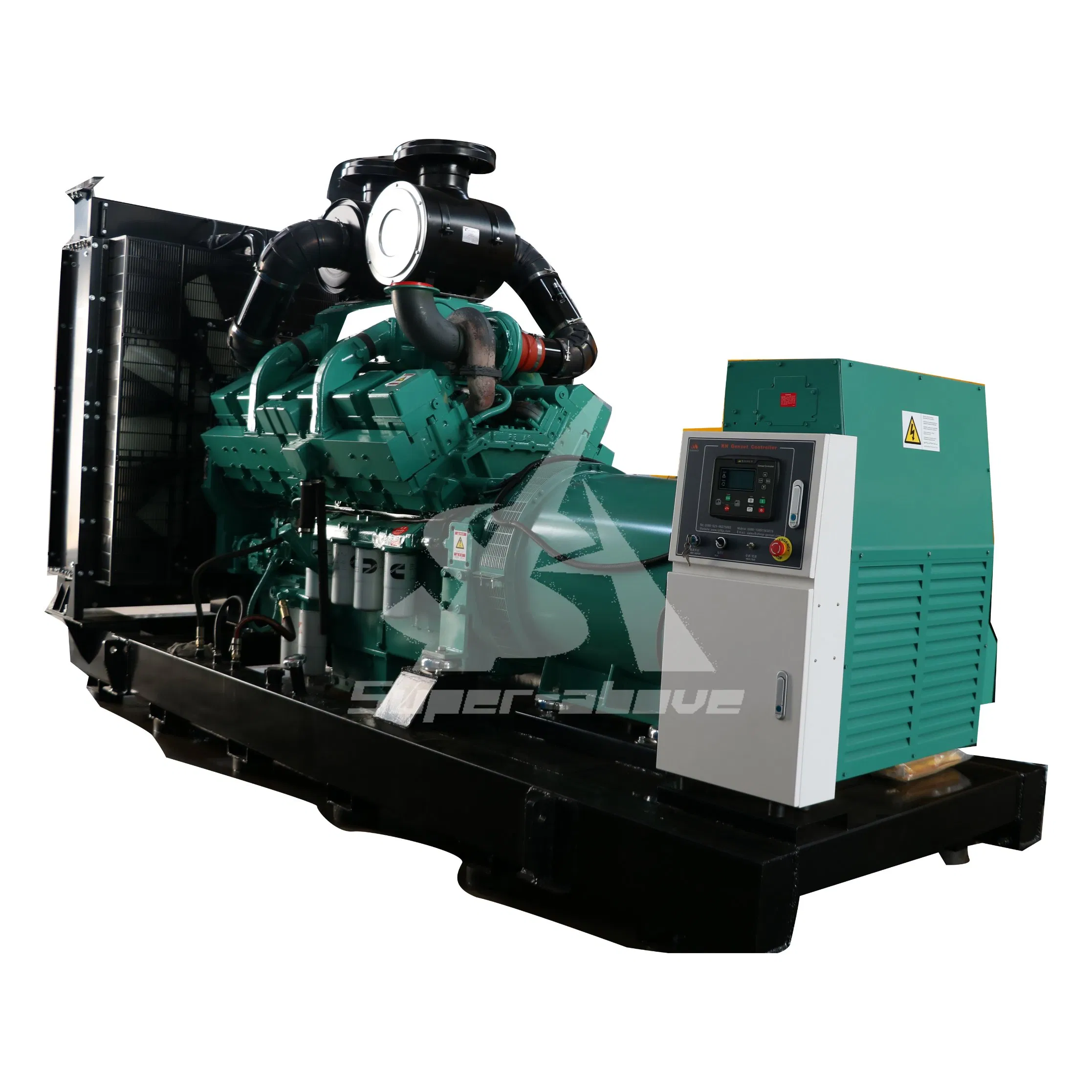

200kw AC Generator 200kw 3 Phase Diesel Generator with Cummins Engine Mta11-G2
200KW/250KVA Diesel GeneratorProduct DescriptionConfiguration Spec.1) Powered by brand new original water cooled diesel engine.2) Brand new STAMFORD, LEROY SOMER or GENLITEC single bearing 3 phase alternator with IP23 and H insulation class.3) Original 50ºC radiator with engine driven fan m......
Send Inquiry
Product Description
200KW/250KVA Diesel Generator
Product Description
Configuration Spec.
1) Powered by brand new original water cooled diesel engine.
2) Brand new STAMFORD, LEROY SOMER or GENLITEC single bearing 3 phase alternator with IP23 and H insulation class.
3) Original 50ºC radiator with engine driven fan mounted on skid.
4) Delixi or Chint branded case circuit breaker mounted.
5) Heavy-duty fabricated steel based frame with built-in fuel tank for at least 8 hours continuous running.
6) Complete set mounted on a based frame with anti-vibration mountings.
7) Industrial 9 dB muffler exhaust system with blexible connects and bellows.
8) Based frame with fuel, oil and coolant drain cocks for easy maintenance.
9) 12/24V DC electric start system with free maintain battery & smartgen brand battery charger.
10) Set mounted automatic control panel, with SMARTGEN brand AMF controller module for automatic start & stop.
11) Test report of generator, set of drawings and manuals.
12) CE, ISO9001 approved

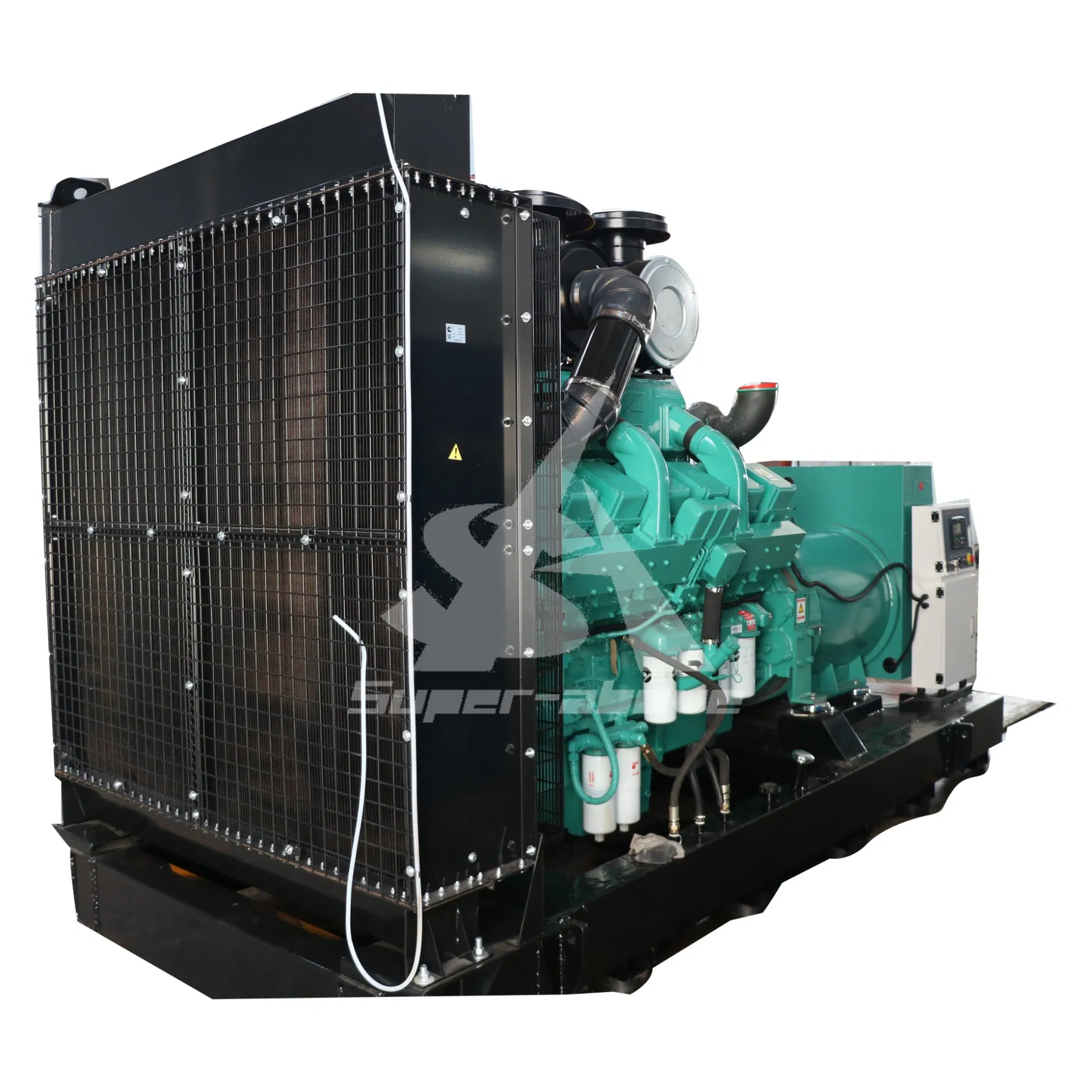

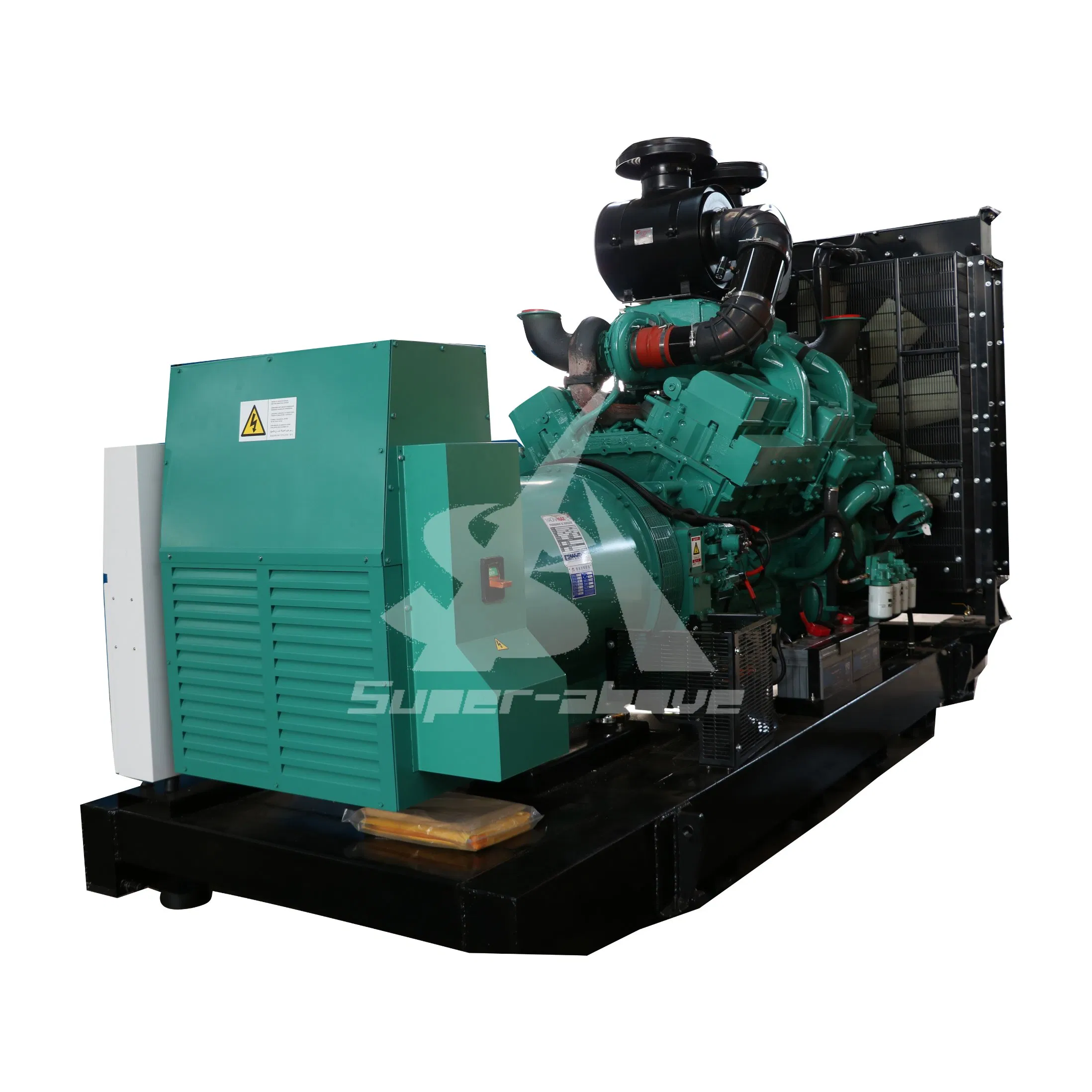

More Pictures

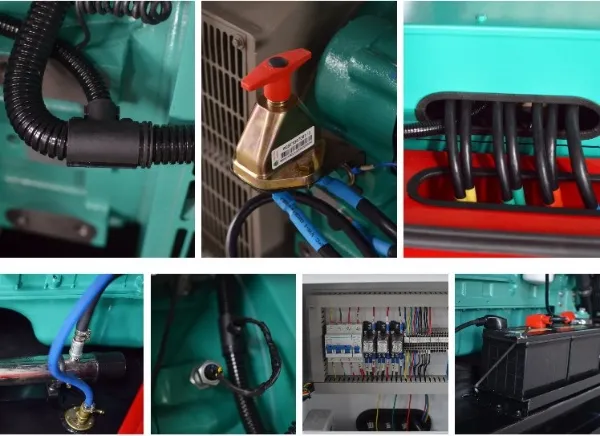

Details

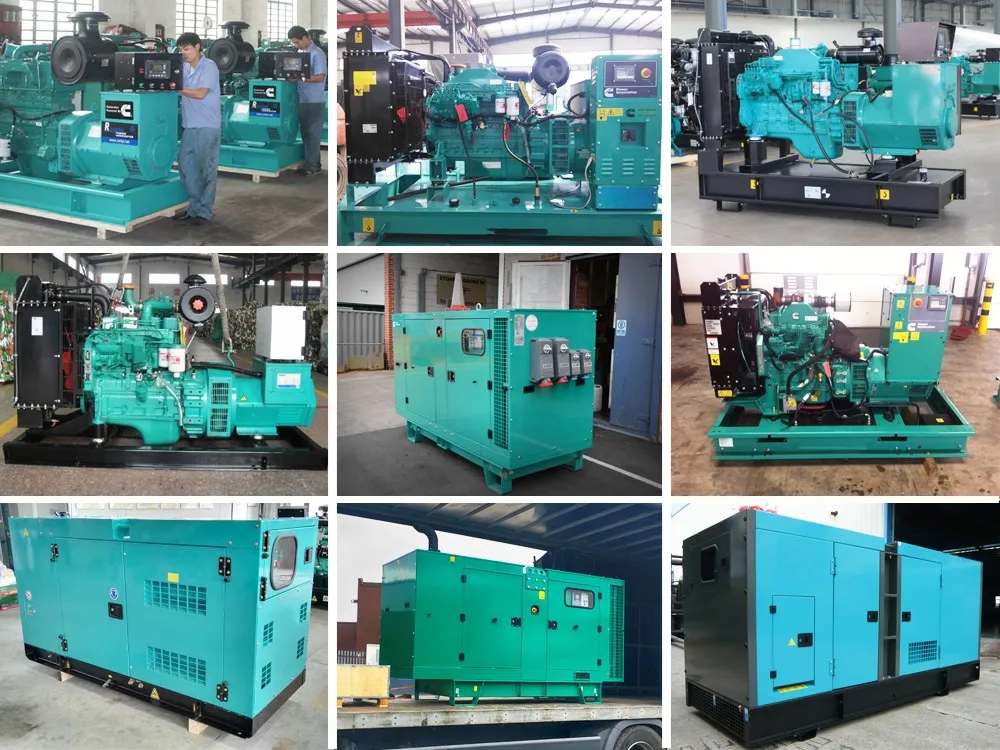

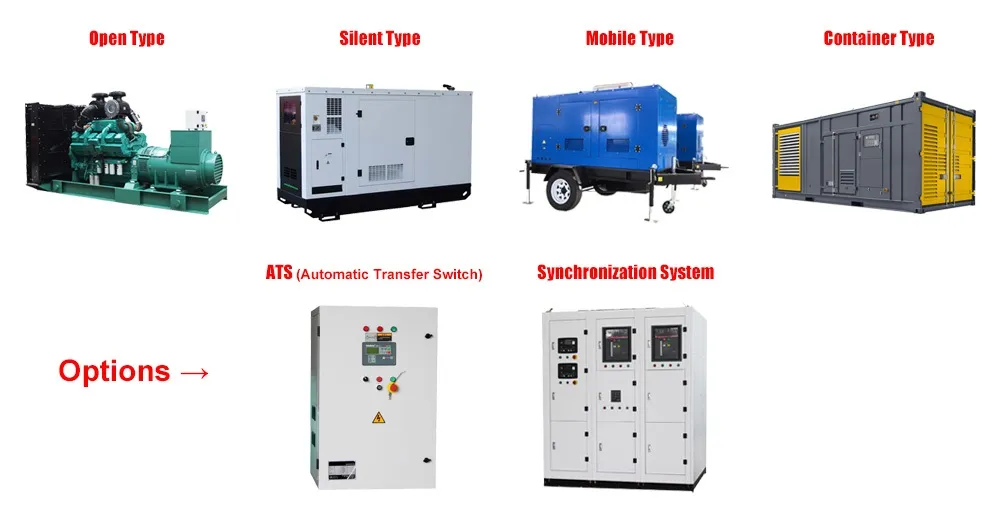

Types you can choose

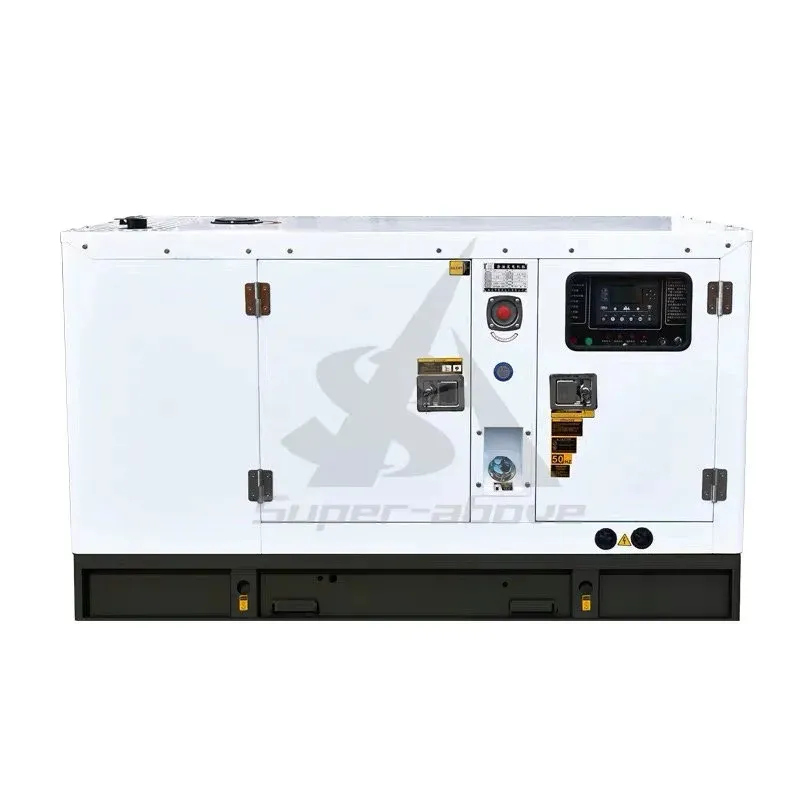

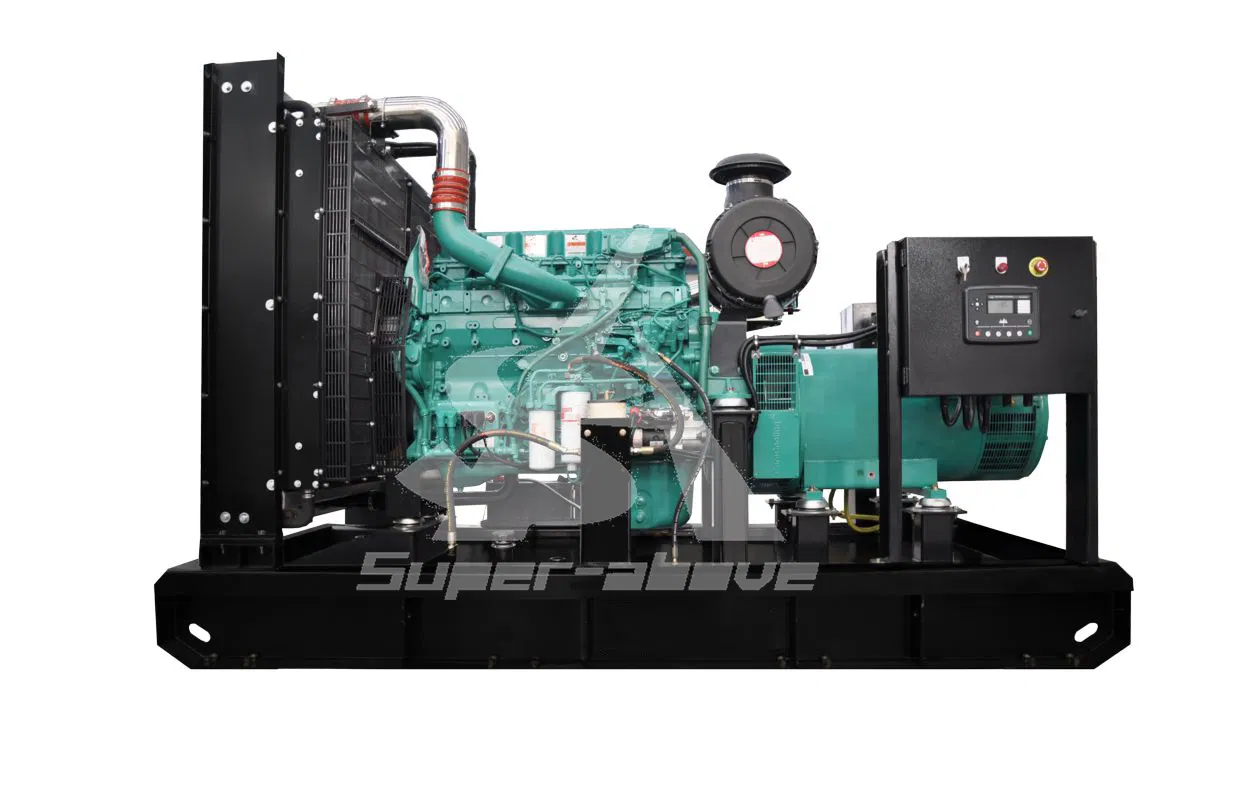

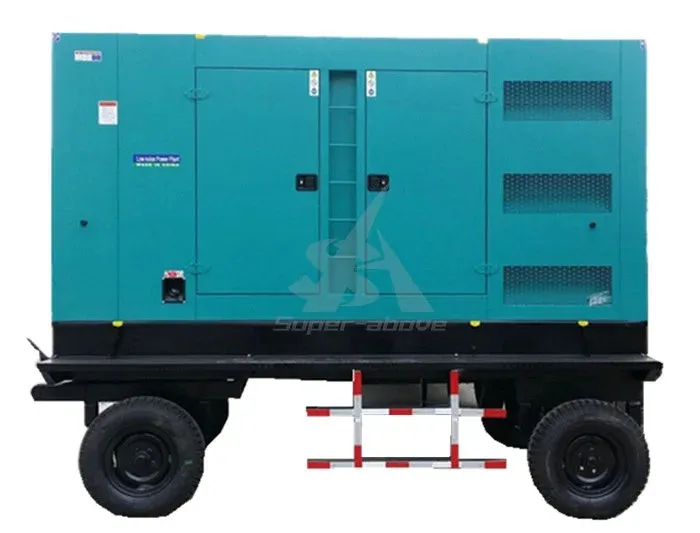

All design for Open, Silent, Trailer, container type generator
Partners
1) Wrap the generator set by stretch film, and put some drying agent.
2) Adopt steel plate or wood rib to make it stronger, can afford rough handling.
3) Design for forklift truck working in 4 directions. Fastened by 8cm length galvanized nail.
4) Load the case into container by forklift truck.
Product Description
Configuration Spec.
1) Powered by brand new original water cooled diesel engine.
2) Brand new STAMFORD, LEROY SOMER or GENLITEC single bearing 3 phase alternator with IP23 and H insulation class.
3) Original 50ºC radiator with engine driven fan mounted on skid.
4) Delixi or Chint branded case circuit breaker mounted.
5) Heavy-duty fabricated steel based frame with built-in fuel tank for at least 8 hours continuous running.
6) Complete set mounted on a based frame with anti-vibration mountings.
7) Industrial 9 dB muffler exhaust system with blexible connects and bellows.
8) Based frame with fuel, oil and coolant drain cocks for easy maintenance.
9) 12/24V DC electric start system with free maintain battery & smartgen brand battery charger.
10) Set mounted automatic control panel, with SMARTGEN brand AMF controller module for automatic start & stop.
11) Test report of generator, set of drawings and manuals.
12) CE, ISO9001 approved
Detail Specification of 250kva/200KW generator
| Diesel generator Details | |
| Model | SA-250GF |
| Power | 250KVA/200KW |
| Frequency | 50/60HZ |
| Voltage | 380/220v(voltage can be customized) |
| Optional Type | Open/soundproof/trailer |
| Size of Open type | 2550*1050*1480mm |
| Weight of Open type | 1700kg |
| With Diesel Engine | |
| Brand&model | 6LTAA8.9-G2 |
| Cylinders | 6 in line arrangement |
| Bore*Stroke | 114*135mm |
| Displacement | 8.9L |
| Fuel Consumption at 100% Load | 207g/kw.h |
| Speed Governor | Electronic |
| With Alternator | |
| Optional Brands | Stamford/Leroy Somer/Mecc Alte/Marathon |
| Exciter type | Single bearing,brushless,Self-excited |
| Power factor | 0.8 |
| Voltage adjust range | ≥5% |
| Insulation Grade | H |
| Protection Grade | IP23 |
| With Controller | |
| Optional brands | Deepsea/ComAp/Smartgen |
Details
Types you can choose
All design for Open, Silent, Trailer, container type generator
Partners
Packing & Delivery
1) Wrap the generator set by stretch film, and put some drying agent.
2) Adopt steel plate or wood rib to make it stronger, can afford rough handling.
3) Design for forklift truck working in 4 directions. Fastened by 8cm length galvanized nail.
4) Load the case into container by forklift truck.
