200KW 250KVA Yuchai Open or Soundproof Power Diesel Generator
Product Description
Product Parameters
Packing & Shipping
Company Information
Product Description
Product Parameters
| Product Overview | |
| 1) Brand-new engine,w/start motor. | |
| 2) Brushless alternator,single bearing,flange connection,IP23,H insulation class,with AVR. | |
| 3) Auto control panel with LCD display. | |
| 4) Engine mounted battery-charging alternator,Genset with battery charge of main supply. | |
| 5) Circuit Breaker,Exhaust Silencer. | |
| 6) Copper Radiator for 40ºC ambient temperature and double-deck cooling,with fan guard and front guard. | |
| 7) Anti-vibration pads fixed between engine/alternator and base frame to ensure the compete genset running stable. | |
| 8) Skid-mounted bottom 8 hours fuel tank. | |
| 9) Extemal recessed emergency stop button for extra safety. | |
| 10)Optional:Soundproof,ATS(automatic transfer switch),AMF panel,Trailer,Parallel system. | |
| Genset Specification | |
| Genset Model | BYC-250 |
| Prime Power(Kva/Kw) | 200KW/250KVA |

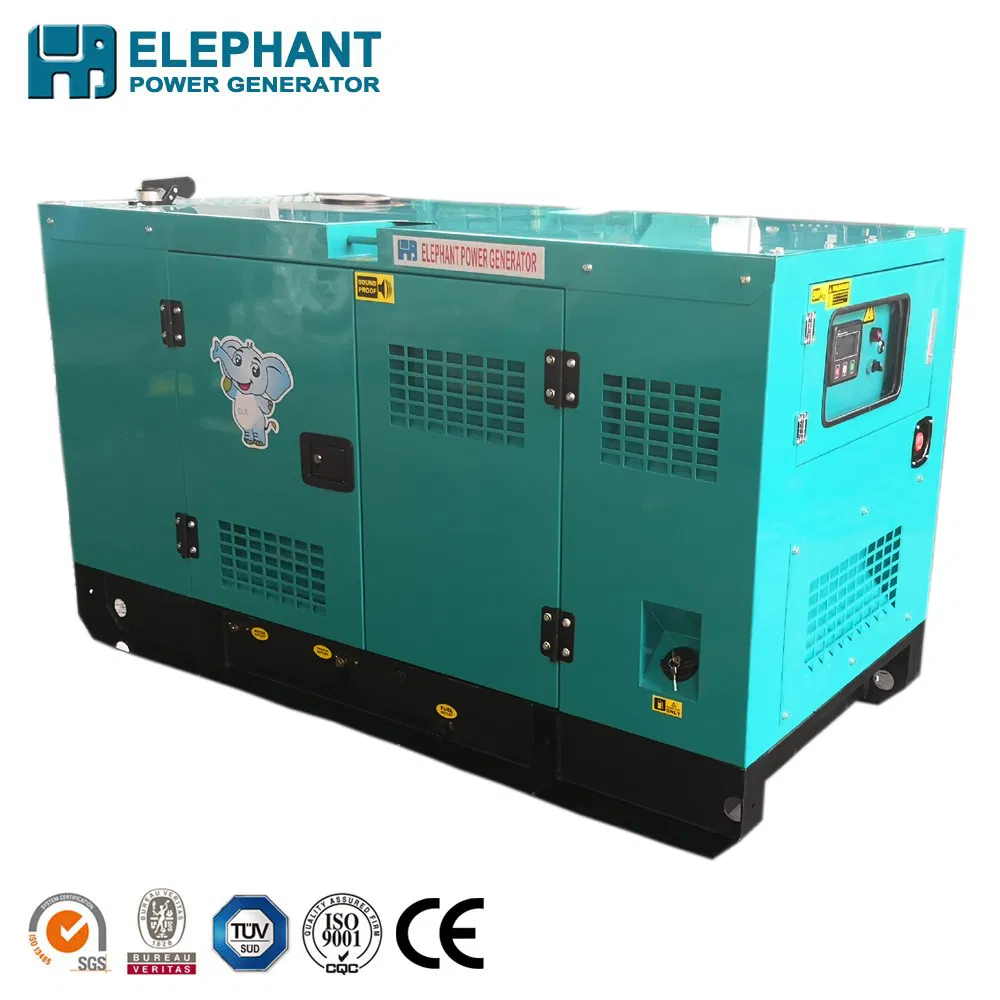

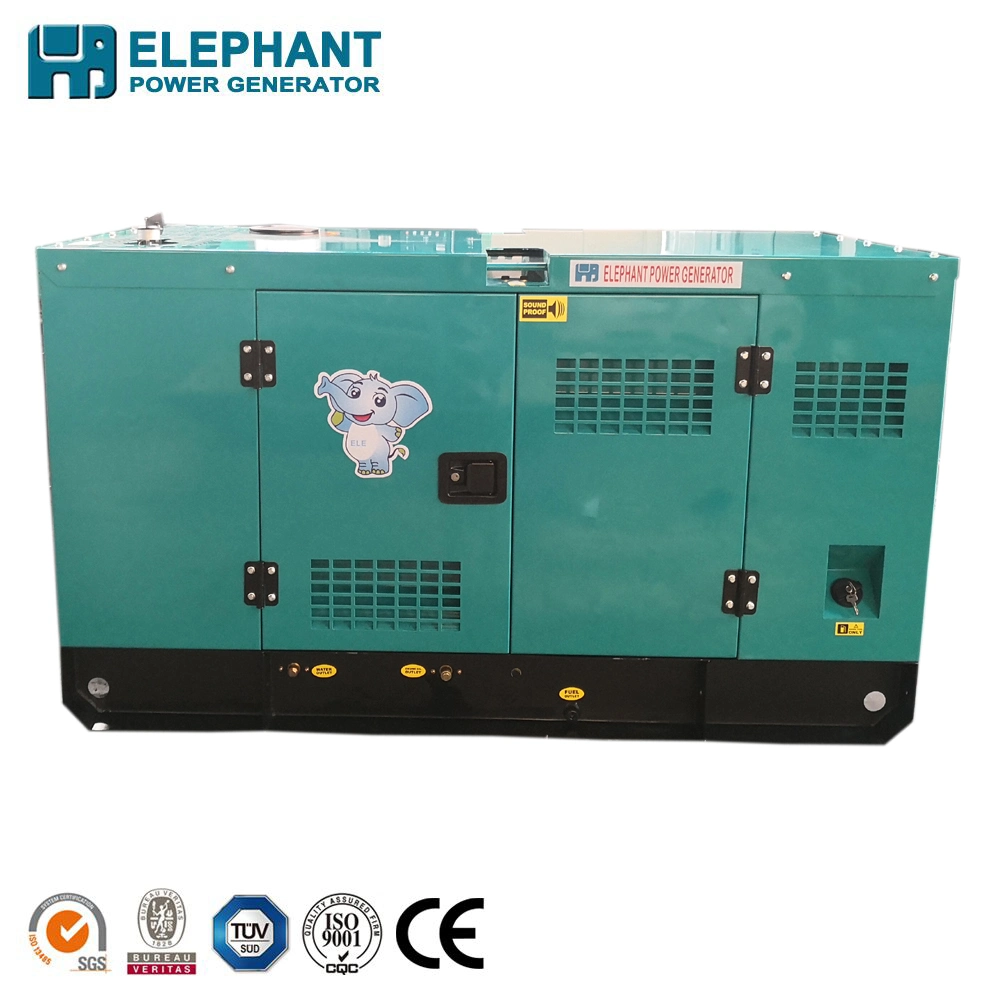

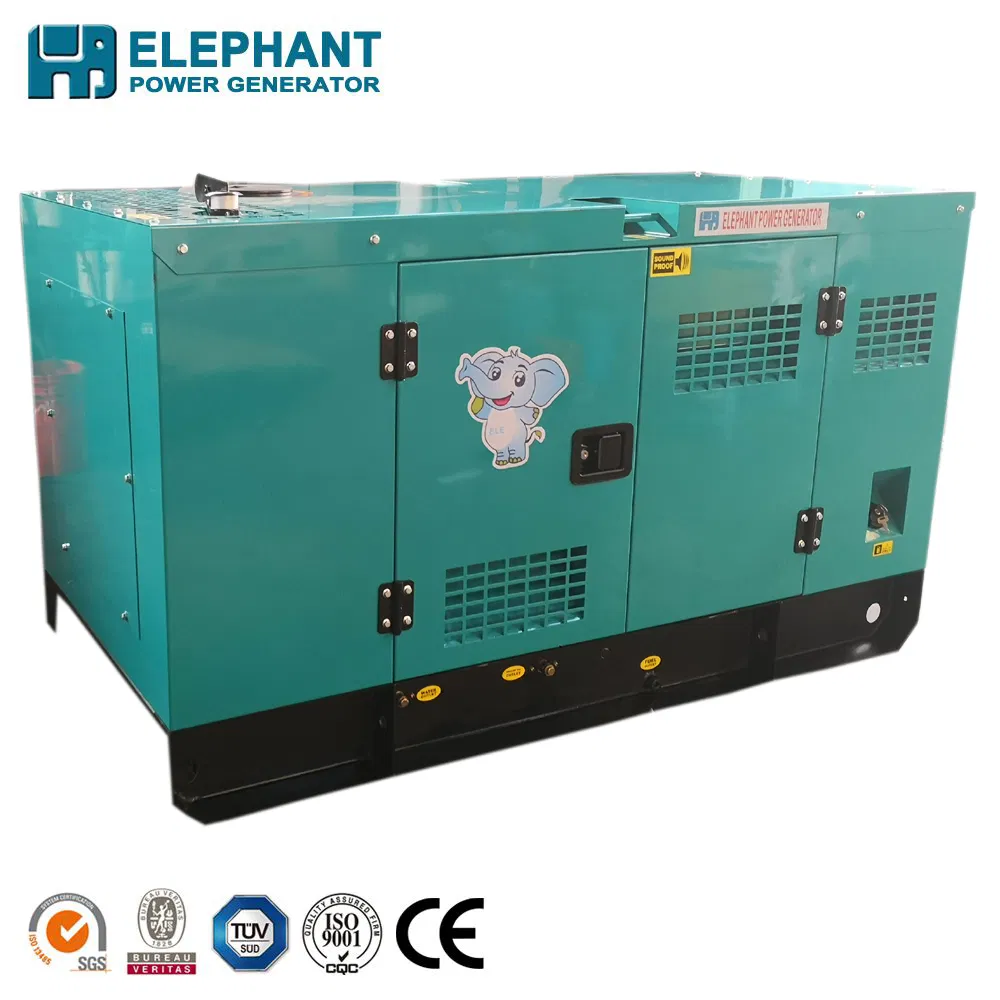

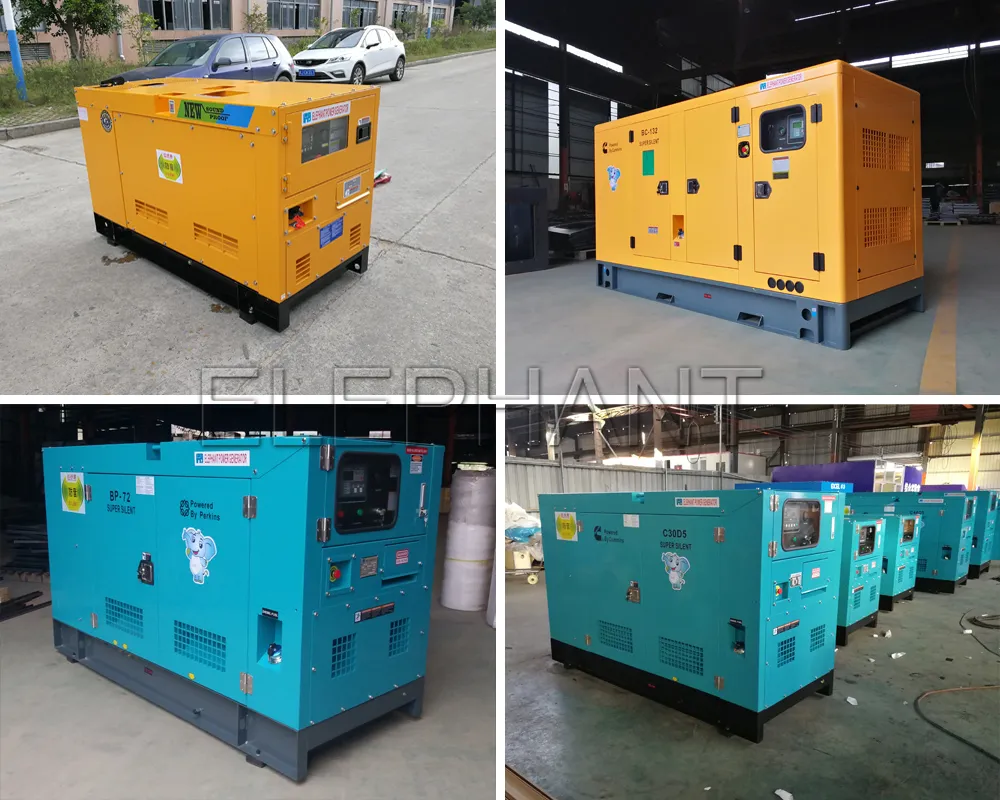

| Structure type | Open/Silent |
| Dba"@7m | silent genset 55-78 dba @ 7m , open type75-98 dba @7m |
| Engine Model | YC6M350L-D20 |
| Alternator Model | STG274K |
| DimensionL*W*H(mm) | |
| Open Type | 3080*1140*1750 |
| Weight | 2390 |
| Silent Type | 3180*1240*1850 |
| Weight(Kg) | 2500 |
| Engine Detail | |
| Engine Brand | Yuchai Diesel engine |
| Model | YC6M350L-D20 |
| Engine speed | 1500rpm |
| Engine power | |
| ......Standby power | 258.5KW |
| ......Prime power | 235KW |
| Type | 4cycle,in-line,6-cylinder |
| Aspiration | Turbocharged, |
| Governor | electrical |
| Bore*Stroke | 120*145mm |
| Displacement | 9.839 Litres |
| Compression ratio | 17:1 |
| Alternator Detail | |
| Manufacturer | ELEPHANT TECH |
| Model | STG274K |
| Output power | 200KW |
| Number of phase | 3 |
| Power factor(Cos Phi) | 0.8 |
| Altitude | ≤1000m |
| Overspeed | 2250rpm |
| Number of Pole | 4 |
| Exciter type | Shunt |
| Insulation class | H |
| Voltage regulation | ±0.5% |
| Sustained short circuit current | 300%(3IN):10s |
| Total haarmonics (TGH/THC) | <4% |
| Wave form:Nema=TIF | <50 |
| Wave form:I.E.C=THF | <2% |
| Bearing | single |
| Coupling | Direct |

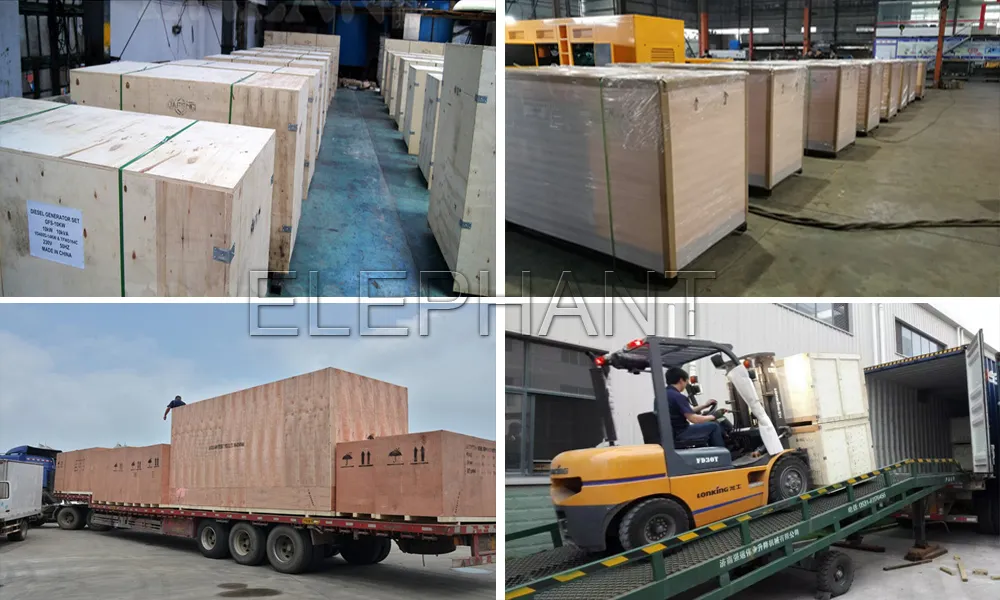

Packing & Shipping
