200kVA Perkins Diesel Genset with Marathon Alternator (BPM160)
1. Main technical parameter for generator setModel No.:BMP160Prime Power:144KW/180KVAStandby Power:160 KW/200 KVARated Speed:1500rpmOutput Frequency:50HzRated Voltage:400V/230VPower Factor:0.8Phase:three-phase four-wireStarting Model:24V DC Electrical StartingNoise(LP7M):≤92 dBEngine:UK Perki......
Send Inquiry
Product Description
1. Main technical parameter for generator set
| Model No.: | BMP160 |
| Prime Power: | 144KW/180KVA |
| Standby Power: | 160 KW/200 KVA |
| Rated Speed: | 1500rpm |
| Output Frequency: | 50Hz |
| Rated Voltage: | 400V/230V |
| Power Factor: | 0.8 |
| Phase: | three-phase four-wire |
| Starting Model: | 24V DC Electrical Starting |
| Noise(LP7M): | ≤92 dB |
| Engine: | UK Perkins |
| Alternator: | Marathon |
| Controller: | DeepSea |
| Dimensions (LxWxH): | 2450×770×1350mm |
| Net Weight: | 1900kgs |
2.Features and technical parameter of Perkins engine
★Compact structure.
★Can use concentration of 20% Biodiesel.
★Fan cooling radiator, inter-cooling air intake.
★Whole suspension seismic design, excellent seismic reducing effect.
| Model No.: | 1106A-70TAG3 |
| Prime/Standby Power: | 163.9KW/179.8KW |
| Cylinders number & configuration: | 6 in line/Vertical |
| Aspiration/air inlet system: | Tubocharge |
| Rated Speed: | 1500 rpm |
| Bore & Stroke: | 105×135mm |
| Displacement: | 7.01L |
| Compression Ratio: | 16:1 |
| Fuel type: | light diesel oil |
| Fuel Consumption 100% load: | 35.49 L/H |
| Lube Oil Consumption: | 0.17L/H |
| Direction of rotation: | Counterclockwise (by flywheel) |
| Gas consumption: | 12.5M³/min |
| Exhaust Gas Flow: | 35.5M³/min |
| Exhaust air rate: | 375 M³/min |
| Exhaust Temperature: | 535ºC |
| Cooling water Capacity: | 21L |
| Lube oil Capacity: | 16.5L |
| Thermostat adjusted temperature: | 82~93ºC |
| Cooling method: | Water to air intercool |
| Combustion system: | Direct injection |
| Speed regulation: | Mechanical |
| Dimensions (LxWxH): | 1763×756×1142mm |
| Net Weight: | 788kgs |
3.Features and technical parameter of Marathon Alternator
★Brushless, self exciting.
★AC excitation, rotating rectification tube.
★With solid-state voltage regulator for voltage self regulating.
★Automatic Voltage Regulator Self regulating.
★Full protection structure with aluminium alloy fan for cooling.
★High-quality lubrication sealed long-time bearing
| Model No.: | MP-160-4 |
| Prime/Standby Power: | 160KW |
| Rated Voltage: | 400V |
| Rated Speed: | 1500 rpm |
| Output Frequency: | 50Hz |
| Design | Brushless single bearing, revolving field |
| Stator | 2/3 pitch |
| Rotor | Single bearing , flexible disc |
| Exciter Type | Brushless excitation |
| Windings | 100% copper |
| Indication of protection | IP22 |
| AC Waveform Total Harmonic Distortion | No load <1.5%. Non distorting balanced linear load <5% |
| Telephone Influence Factor(TIF) | <50 % |
| Telephone Harmonic Factor(THF) | <2% |

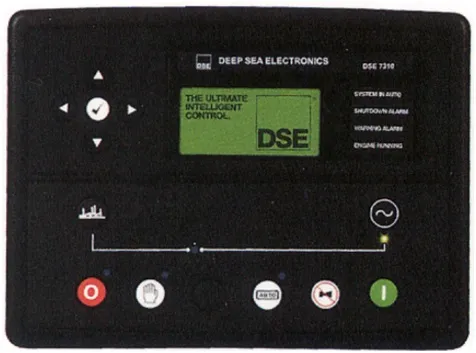

4.Features for Deep Sea control panel
- Control with AMF module
- Fuel usage monitor and low-level alarms
- Emergency stop push button
- Fully PC or front panel configurable
- Custom graphical icon interface display
- Manual/automatic load transfer
- Automatic shutdown on fault condition
- Remote communications (RS232 & RS485)
- Provides engine alarms and status information and alarm indication by 1 LED & LCD;
- Can be used with ATS or may allow up 1 to 32 generators to load share.
- Provides access to historical alarms and operational status
5.Standard configuration for the generator set
- Diesel generator
- Synchronization brushless alternator
- Deepsea controller
- Drive fan for engine and 40ºC heat radiating water tank.
- Moulded case circuit breaker
- Battery and battery cable
- Floating charger
- Base frame with shock absorber
- Daily fuel tank
- Exhaust elbow, exhaust bellows, exhaust muffler
- Fuel filter, oil filter, air filter
- Tool kits
- Plastic membrane packing
- Jacket pre-heater
- Oil-water separator
- Oil pre-heater
- Spit-type daily fuel tank
- Weather and Sound-proof container
- Trailer
Guarantee for one year or 1000 hours (according to whichever reach first)
From ex-factory date. During the guarantee period, we will provide the free
easy-damaged spare parts for problems caused by our quality of production or raw materials,
except the damage caused by customer's incorrect manmade operation.
After expiration, our company will provides cost spare parts maintenance for gen-set.
8.Our Service:
1). Pre-sales promise
8.Our Service:
1). Pre-sales promise
-Professional engineers will give reasonable suggestions about selection , room design to all the technical solutions
- Provide newest products, supply and marketing information
2). Selling promise
- Provide the technical support for the onsite installation gudiance and test before shipping
- Genset installation, room noise reduction and dust pollution ect.
3). After-sales promise
-Training of operation and maintenance personnel
-Onsite repaire
-Spare parts supply
9.Company profile:
Our company is a professional manufacture of gas generator set, all our products are of good quality. Binshi power can produce various gas generator sets, such as natural gas gensets, biogas gensets, coal-gas gensets and LPG gensets. It blongs to new green environmental protection power to substitute those gensets powered by gasoline or diesel in the near future. Natural gas or other flammable gas can be esed well as fuel, which may be turned waste to treasure. Due to the advantage of convenient and safe operation, cost-effectiveness, low-emission pollution, and suitable for CHP, It will have a great prospect and application.
Welcome clients from all the world come to visit and give us guidance in our factory

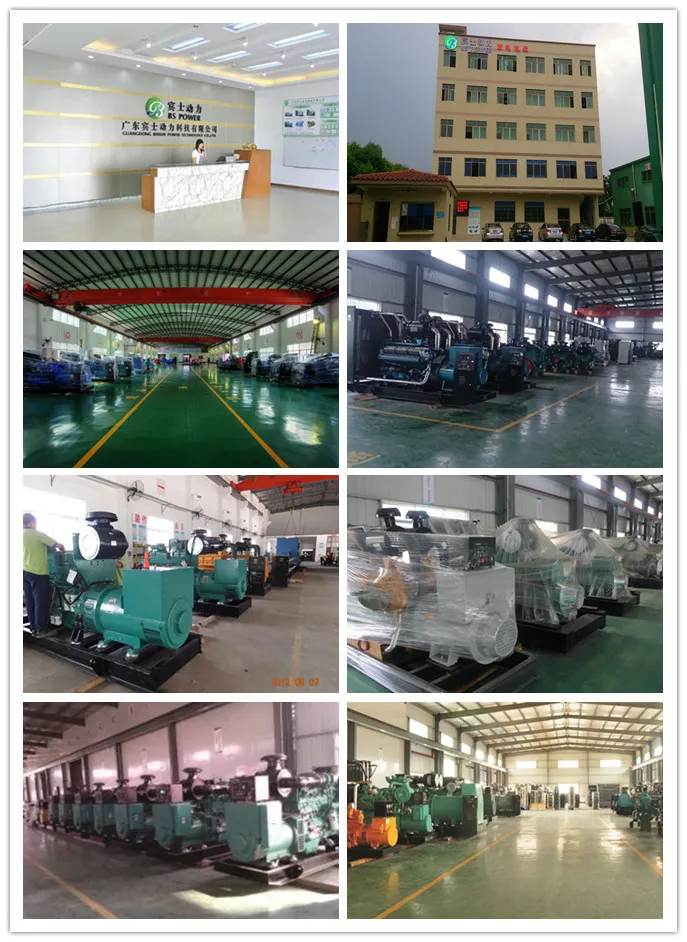

Factory view

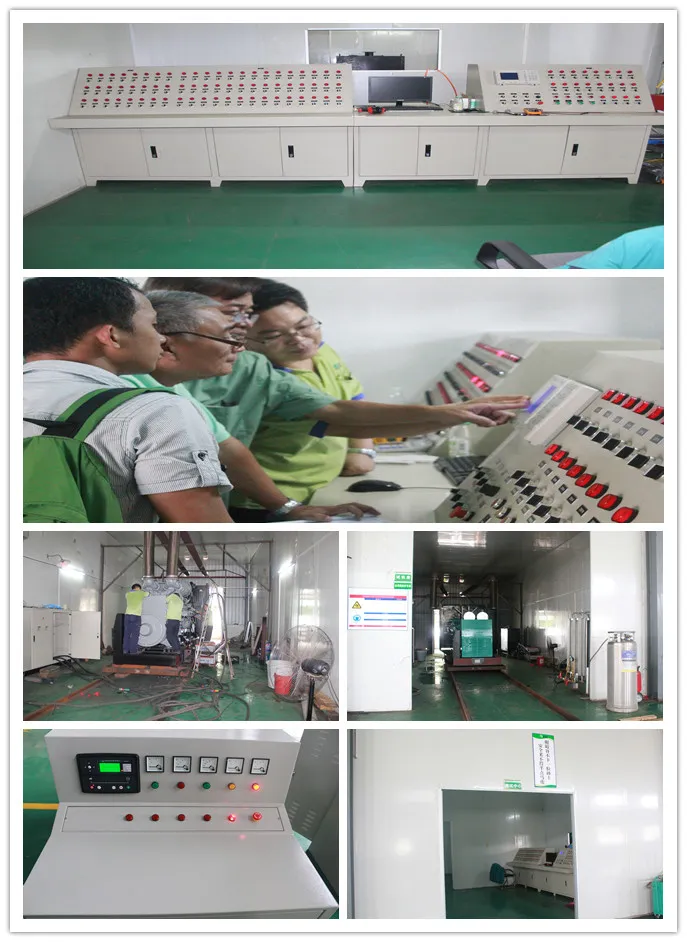

Testing center
