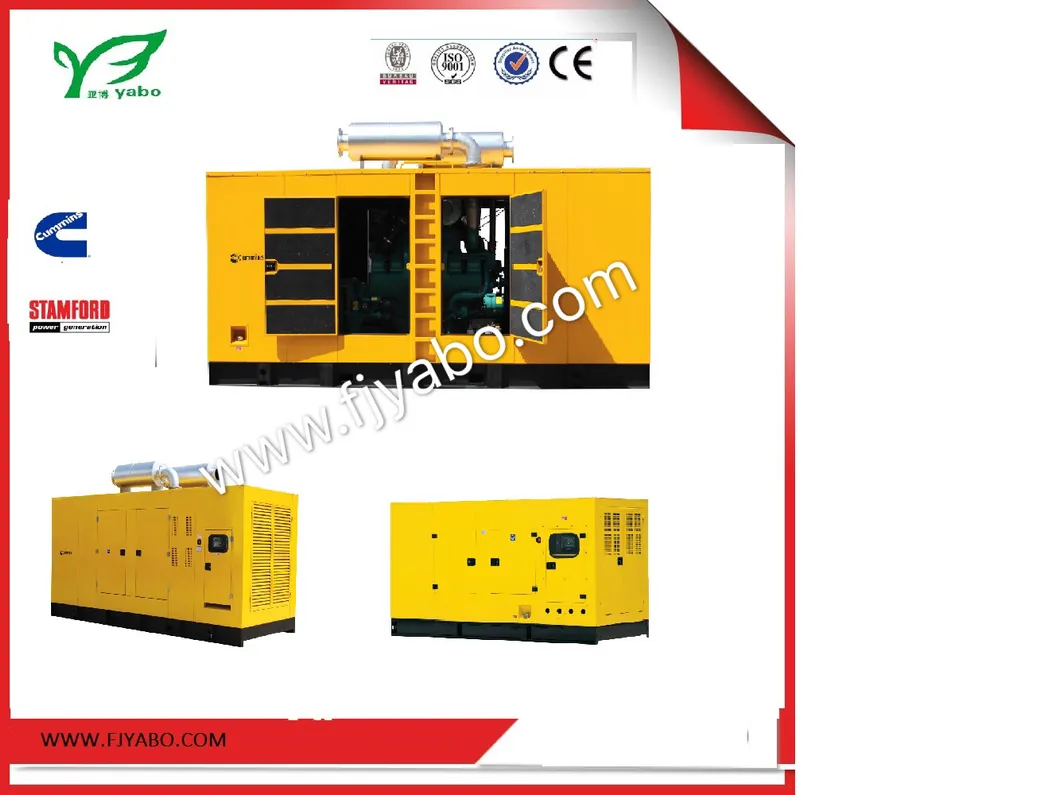

180kVA Silent Type Stanford Cummins Diesel Generator Price
POWER RATINGPRIME POWERSTANDBY POWERPowerKVA180200KW144160Rated Speedr.p.m 1500Standard VoltageV400/230Available VoltagesV400/230 - 230/132 - 230 VRated at power factorCos Phi0.8 P.R.P. Prime Power - ISO 8528 : Prime power is the maximum power available during a variable power sequence, which may be......
Send Inquiry
Product Description
| POWER RATING | PRIME POWER | STANDBY POWER | |
| Power | KVA | 180 | 200 |
| KW | 144 | 160 | |
| Rated Speed | r.p.m | 1500 | |
| Standard Voltage | V | 400/230 | |
| Available Voltages | V | 400/230 - 230/132 - 230 V | |
| Rated at power factor | Cos Phi | 0.8 | |
P.R.P. Prime Power - ISO 8528 : Prime power is the maximum power available during a variable power sequence, which may be run for an unlimited number of hours per year,between stated maintenance intervals. The permissible average power output during a 24 hours period shall not exceed 80% of the prime power.
Standby Power (ISO 3046 Fuel Stop power): power available for use at variable loads for limited annual time (500h), within the following limits of maximum operating time: 100% load 25h per year - 90% load 200h per year. No overload available.
| ENGINE | PRIME | STANDBY | |||
| Rated Output | KW | 163 | 180 | ||
| Manufacturer | Cummins | ||||
| Model | 6CTA8.3-G1 | ||||
| No. of Cylindirs and Build | 4 Cycle; In-line; 6 Cylinder Diesel | ||||
| Aspiration and Cooling | Turbocharged, after-cooled | ||||
| Bore/Stroke | mm | 114X135 | |||
| Compress the ratio | 16.5:1 | ||||
| Cooling system | Water-cooled | ||||
| Engine Speed/Frequency | rpm/Hz | 1500/50HZ | |||
| Coolant Capacity | L | 38 | |||
| Starting System | Electric 24 volt DC | ||||
| Displacement | L | 8.3 | |||
| Lubricant system Capacity | L | 24 | |||
| Battery Volatge / Capacity | 24VDC | ||||
| Governing Type | Type | Mechanical | |||
| Air Filter | Type | Dry | |||
| Fuel Consumption | Load | 100% | 75% | 50% | 25% |
| L/H | 40.0 | 30.0 | 20.0 | 11. | |
ENGINE--Industrial 4 stroke cooled diesel engine complete with air,fuel and oil filters,electric starting and charging equipment,engine protection against low water level.
COOLING--Radiator and colling fan complete with protection guards,designed to cool engine at specified output in air temperatures upto 50 ºC,radiators suitable for higher temperatures are available.Low water level protection fitted as standard.
ELECTRICAL SYSTEM--24V upto.Axial type starter motor,battery charging alternator,high capacity lead acid battery,and battery tray mounted on the generator base frame,and heavy duty interconnecting cable with terminations.
EXHAUST SYSTEM--Heavy duty industrial exhauset silencer with flexible piping.
| ALTERNATOR BRAND | STAMFORD | LEROY SOMER | XINYABO | |
| Model | UCI274C | LSA44.3S5 | SLG-144 | |
| Exciter System | Self-excited, brushless | |||
| Poles | Numbers | 4 | ||
| Connection Type | Reconnectable | |||
| Insulation Type | Class | Class H | ||
| Voltage Regulator | A.V.R. (Electronic) | |||
| Steady Voltage Precision | ± 1% | |||
| Underspeed Protection | Standard | |||
| Overexcitation Protection | IP23 | |||
| TIF (1960 Weightings) | <50 | |||

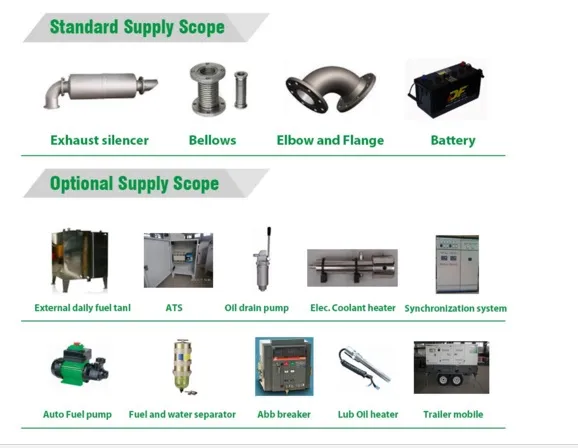

Standard supply:
1) Powered by heavy duty industrial diesel engines, famous engine brand can be chosen.
2) Brushless alternator,single bearing,flange connection,IP23,H insulation class,with AVR.
3) Auto control panel with LCD display.
4) Engine mounted battery-charging alternator,Genset with battery charge of main supply.
5) Circuit Breaker,Exhaust Silencer.
6) Copper Radiator for 40°C ambient temperature and double-deck cooling,with fan guard and front guard.
7) Anti-vibration pads fixed between engine/alternator and base frame to ensure the compete genset running stable.
8) Skid-mounted bottom 8 hours fuel tank.
9) Extemal recessed emergency stop button for extra safety.
10)Optional:Soundproof,ATS(automatic transfer switch),AMF panel,Trailer,Parallel system.
Optional:
--Automatic Transfer Switch
--Soundproof Canopy
--Under base tank
--Oil filter
AMF Control Panel- ComAp AMF20 Or DSE7320
| Brand | Deepsea/ComAp |
| The control module gives digital readouts of: Generator voltage; Output frequency; Engine speed; Battery voltage; Engine hours run. The control module has indicators for failure information: Overspeed/underspeed, Emergency stop Low oil pressure; High water temperature Failure to start Battery charger failure Automatic shutdown occurs under: Low engine oil pressure; High engine water temperature; Overspeed/underspeed; Failure to start after three attempts. |  |
FAQ(Frequently Asked Question): 1.What is your warranty period? Our payment terms is 1 year or 1000 running hours whichever comes first. But based on some special project, we can extended our warranty period. 2.Does your generator have global warranty? Yes, most of our products like Cummins, Perkins, Doosan power generator enjoy the global warranty service. And the alternator we use like Leroysomer, Stamford, marathon also enjoy the global warranty service, so you do not need to worry about the aftersales service. 3.Can you accept OEM? Yes, we can accept OEM. 4.What is your payment terms? We can accept T/T 30% in advance, and the balance 70% shall be paid before shipment or L/C at sight, L/C deferred payment terms or west union. 5.What is your delivery time? Our normal delivery time is 2 to 5 weeks. But if your order is some special engine and alternator, then the delivery time is longer. |
