15kVA Electric Power Diesel Generator with Perkin Engine Super Silent
DieselgeneratorFactory Competitive price Good quality Exquisite workmanship Customized design Own exporting licenseHongfu Power Diesel Generators are based on standard configuration, seriously do every details. Standard configuration∧ Galvanized Steel Canopy∧ Fuel Tank∧ Contr......
Send Inquiry
Product Description
★Dieselgenerator★Factory ★Competitive price ★Good quality ★Exquisite workmanship ★Customized design ★Own exporting license
Hongfu Power Diesel Generators are based on standard configuration, seriously do every details.

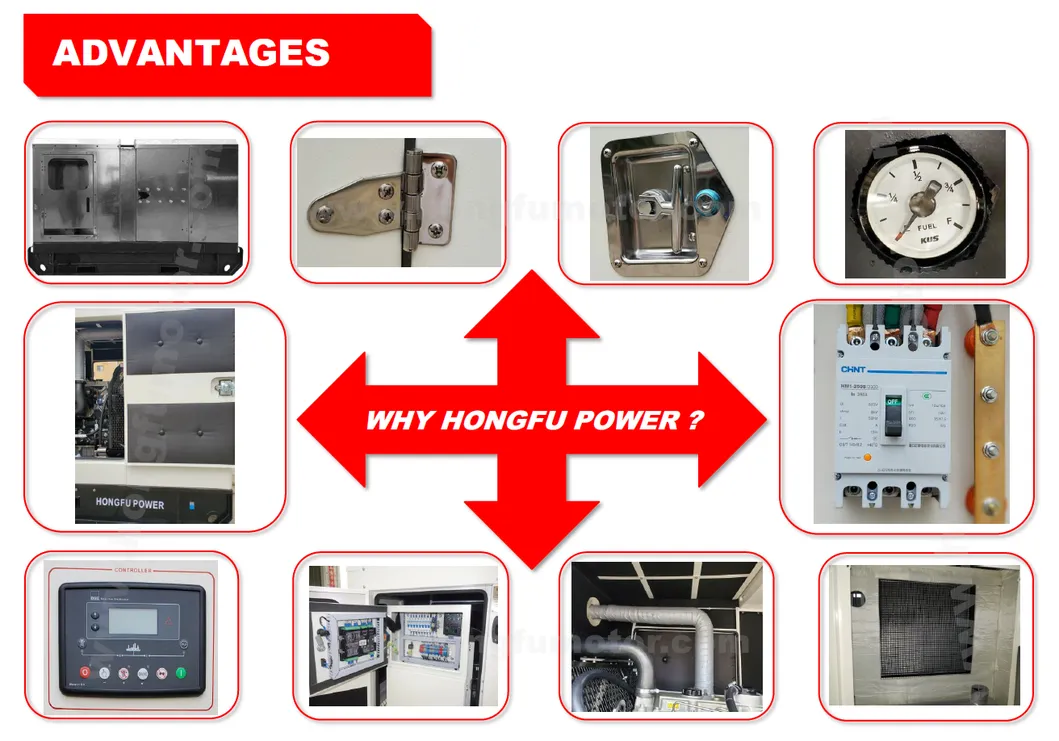

Standard configuration
∧ Galvanized Steel Canopy
∧ Fuel Tank
∧ Control Panel
∧ CHNT Brand Circuit Breaker
∧ Battery & Battery Charger
∧ Exhaust Silencer
∧ Exhaust Pipe
∧ LED Light
∧ Strong density foam with 4 thickness
∧ Plastic Membrane & 4 Shockproof Pad
∧ Manual Books
∧ Within 35 days delivery time
∧ One year warranty
∧ Silent Sound Level:63-75dB at 7m Distance
Optional Parts
∧ Control Panel :Smartgen . ComAp . Deep sea
∧ Canopy :Smooth or Non-Smooth
∧ The type and colour can be designed
∧ Governor:Electrical or Mechanical
∧ Alternator:Original Stamford . Leroy Somer . Hongfu Alternator

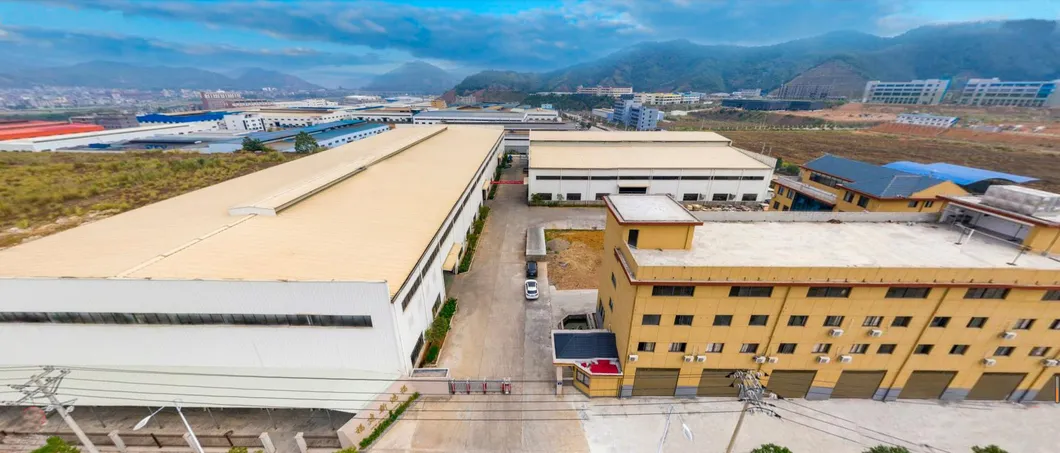

Hongfu Power Factory view

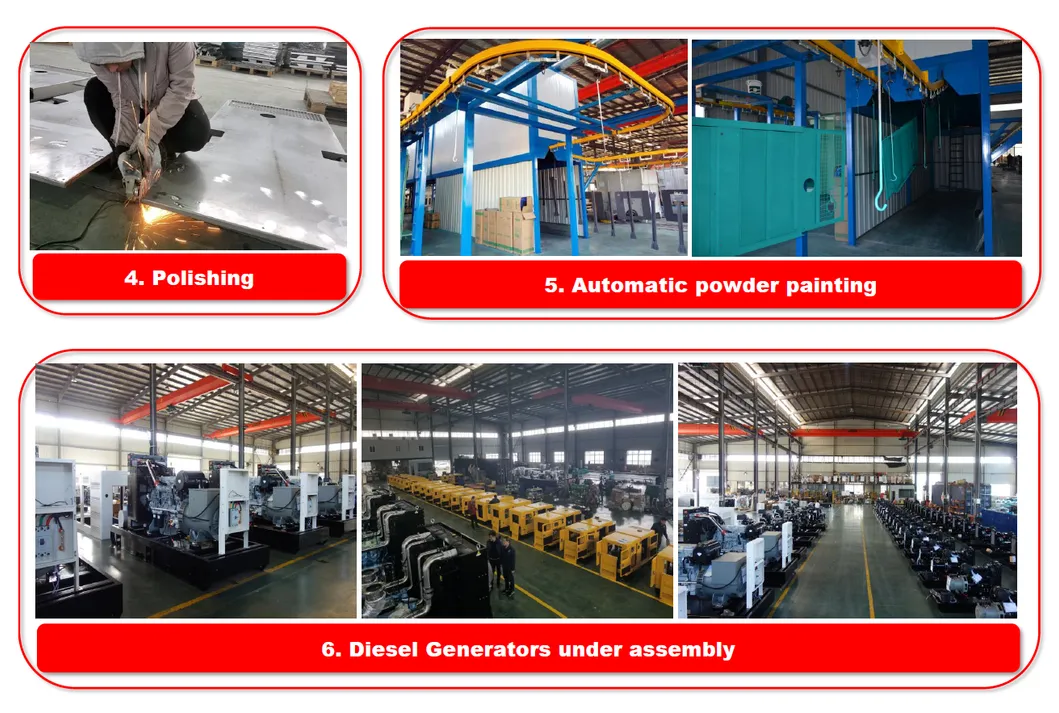

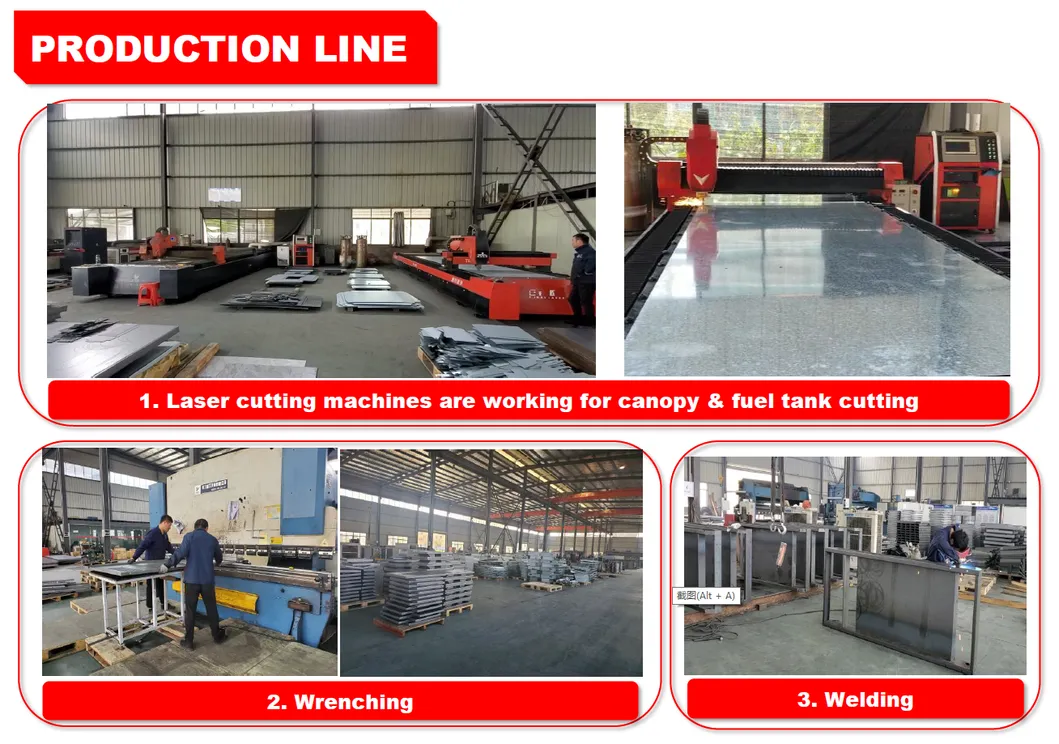

In facility, HONGFU Power factory with 2 workshops which covers 12000 square meters, one workshop for canopy, another for assembling and package. we equipped with 3 laser cutting machines, 1 CNC pressing machine and 2 bending machine for canopy and fuel tank production.
Hongfu Power insist on the "Integrity and innovation" business philosophy, Insist on "Customers first" principle to provide super excellent service for all our partners.
We've been pursuing good in good in workmanship and quality, seriously taking every details into consideration.
We always take customer's care and quality as our top priority.
We always take customer's care and quality as our top priority, we choose the well-known partner, which guarantee the quality and with global warranty.
Hongfu Generator authorized by CE, and we are an ISO 9001 certified manufacturer.
All of our products are with excellent performance.
Hongfu Power Diesel Generators are based on standard configuration, seriously do every details.
Standard configuration
∧ Galvanized Steel Canopy
∧ Fuel Tank
∧ Control Panel
∧ CHNT Brand Circuit Breaker
∧ Battery & Battery Charger
∧ Exhaust Silencer
∧ Exhaust Pipe
∧ LED Light
∧ Strong density foam with 4 thickness
∧ Plastic Membrane & 4 Shockproof Pad
∧ Manual Books
∧ Within 35 days delivery time
∧ One year warranty
∧ Silent Sound Level:63-75dB at 7m Distance
Optional Parts
∧ Control Panel :Smartgen . ComAp . Deep sea
∧ Canopy :Smooth or Non-Smooth
∧ The type and colour can be designed
∧ Governor:Electrical or Mechanical
∧ Alternator:Original Stamford . Leroy Somer . Hongfu Alternator
| HONGFU PERKINS DIESEL GENERATOR PERFORMANCE DATA-50HZ | ||||||||||||||
| Specifications 50Hz 400-230V | General Specifications | |||||||||||||
| GENSETS | Prime Power | Standby Power | Engine Type | Engine Power | CyL | Bore | Stroke | DSPL | Fuel Cons. | Gov | Silent Type Compact Version | |||
| Dimension LxWxH | Weight | |||||||||||||
| kW | kVA | kW | kVA | kW | mm | L | L/h | mm | kg | |||||
| AJ10PE | 7 | 9 | 8 | 10 | 403A-11G1 (China) | 8.6 | 3L | 77 | 81 | 1.13 | 3.0 | Mechnical | 1730x850*1150 | 630 |
| AJ14PE | 10 | 13 | 11 | 14 | 403A-15G1 (China) | 12.2 | 3L | 84 | 90 | 1.50 | 3.7 | Mechnical | 1730x850*1150 | 630 |
| AJ17PE | 12 | 15 | 13 | 17 | 403A-15G2(China) | 14.0 | 3L | 84 | 90 | 1.50 | 5.0 | Mechnical | 1730x850*1150 | 640 |
| AJ23PE | 16 | 20 | 18 | 23 | 404A-22G1 (China) | 18.7 | 4L | 84 | 100 | 2.22 | 5.3 | Mechnical | 1950x900*1150 | 750 |
| AJ10PE | 7 | 9 | 8 | 10 | 403D-11G (China) | 8.6 | 3L | 77 | 81 | 1.13 | 2.6 | Mechnical | 1730x850x1150 | 560 |
| AJ14PE | 10 | 13 | 11 | 14 | 403D-15G (China) | 12.2 | 3L | 84 | 90 | 1.50 | 3.6 | Mechnical | 1730x850x1150 | 630 |
| AJ22PE | 16 | 20 | 18 | 23 | 404D-22G (China) | 18.7 | 4L | 84 | 100 | 2.22 | 5.3 | Mechnical | 1950x900x1150 | 880 |
| AJ28PE | 22 | 28 | 24 | 30 | 404D-22TG (China) | 25.2 | 4L | 84 | 100 | 2.22 | 7.1 | Electrical | 1950*900*1150 | 770 |
| AJ70PE | 52 | 65 | 57 | 72 | 1104A-44TG1 (China) | 59.6 | 4L | 105 | 127 | 4.40 | 14.8 | Mechnical | 2600x1080x1450 | 800 |
| AJ90PE | 64 | 80 | 70 | 88 | 1104A-44TG2 (China) | 73.4 | 4L | 105 | 127 | 4.40 | 18.7 | Mechnical | 2600x1080*1450 | 800 |
| AJ90PE | 64 | 80 | 70 | 88 | 1104C-44TAG1 (China) | 75.0 | 4L | 105 | 127 | 4.41 | 18.6 | Electrical | 2600x1080*1450 | 800 |
| AJ110PE | 80 | 100 | 88 | 110 | 1104C-44TAG2 (China) | 93.6 | 4L | 105 | 127 | 4.41 | 22.6 | Electrical | 2600x1130*1450 | 1580 |
| AJ150PE | 108 | 135 | 119 | 149 | 1106A-70TG1 (China) | 122.7 | 6L | 105 | 135 | 7.01 | 30.2 | Mechnical | 3100*1250x1750 | 1099 |
| AJ165PE | 120 | 150 | 132 | 165 | 1106A-70TAG2 (China) | 136.0 | 6L | 105 | 135 | 7.01 | 33.4 | Mechnical | 3400*1250*1750 | 1300 |
| AJ200PE | 144 | 180 | 158 | 198 | 1106A-70TAG3 (China) | 163.9 | 6L | 105 | 135 | 7.01 | 41.6 | Mechnical | 3400*1250*1750 | 1200 |
| AJ220PE | 160 | 200 | 176 | 220 | 1106A-70TAG4 (China) | 178.9 | 6L | 105 | 135 | 7.01 | 45.8 | Electrical | 3400*1250x1750 | 1200 |
| AJ155PE | 114 | 143 | 125 | 157 | 1106D-E70TAG2 | 131.0 | 6L | 105 | 135 | 7.01 | 35.0 | Electrical | 3100*1250*1750 | 1100 |
| AJ165PE | 120 | 150 | 132 | 165 | 1106D-E70TAG3 | 137.0 | 6L | 105 | 135 | 7.01 | 37.5 | Electrical | 3400*1250*1750 | 1300 |
| AJ200PE | 144 | 180 | 158 | 198 | 1106D-E70TAG4 | 166.0 | 6L | 105 | 135 | 7.01 | 43.4 | Electrical | 3400*1250*1750 | 1200 |
| AJ35PE | 24 | 30 | 26 | 33 | 1103A-33G (India) | 28.2 | 3L | 105 | 127 | 3.30 | 7.2 | Mechnical | 2300*1000*1400 | 1150 |
| AJ50PE | 36 | 45 | 40 | 50 | 1103A-33TG1 (India) | 42.2 | 3L | 105 | 127 | 3.30 | 10.8 | Mechnical | 2300x1000*1400 | 1280 |
| AJ65PE | 48 | 60 | 53 | 66 | 1103A-33TG2 (India) | 59.3 | 3L | 105 | 127 | 3.30 | 13.9 | Mechnical | 2300x1000*1400 | 1310 |
| AJ220PE | 160 | 200 | 176 | 220 | 1506A-E88TAG1 (USA/EP) | 178.0 | 6L | 112 | 149 | 8.80 | 40.2 | Electrical | 3450x1180x2150 | 1480 |
| AJ250PE | 180 | 225 | 198 | 248 | 1506A-E88TAG2 (USA/EU) | 204.0 | 6L | 112 | 149 | 8.80 | 51.5 | ECM | 3450x1180x2150 | 1590 |
| AJ275PE | 200 | 250 | 220 | 275 | 1506A-E88TAG3 (USA/EU) | 222.0 | 6L | 112 | 149 | 8.80 | 56.0 | ECM | 3450x1180x2150 | 1600 |
| AJ345PE | 240 | 300 | 264 | 330 | 1506A-E88TAG5 (USA/EU) | 267.0 | 6L | 112 | 149 | 8.80 | 65.0 | ECM | 3450x1180x2150 | 2300 |
| AJ385PE | 280 | 350 | 308 | 385 | 2206C-E13TAG2 (USA/EU) | 324.0 | 6L | 130 | 157 | 12.50 | 82.0 | ECM | 4500x1600x2500 | 3300 |
| AJ440PE | 320 | 400 | 352 | 440 | 2206C-E13TAG3 (USA/EU) | 368.0 | 6L | 130 | 157 | 12.50 | 93.0 | ECM | 4500x1600x2500 | 3500 |
| AJ500PE | 364 | 455 | 400 | 501 | 2506C-E15TAG1 (USA/EU) | 412.0 | 6L | 137 | 171 | 15.20 | 99.0 | ECM | 4500x1600x2500 | 3800 |
| AJ550PE | 400 | 500 | 440 | 550 | 2506C-E15TAG2 (USA/EU) | 451.0 | 6L | 137 | 171 | 15.20 | 106.0 | ECM | 4500x1600x2500 | 4000 |
| AJ650PE | 480 | 600 | 528 | 660 | 2806C-E18TAG1A (USA/EU) | 532.0 | 6L | 145 | 183 | 18.10 | 129.0 | ECM | 4800x1800x2500 | 5760 |
| AJ715PE | 520 | 650 | 572 | 715 | 2806A-E18TAG2 (USA/EU) | 584.0 | 6L | 145 | 183 | 18.10 | 132.0 | ECM | 4800x1800*2500 | 5760 |
| AJ200PE | 144 | 180 | 158 | 198 | 1106A-70TAG3 (UK) | 163.9 | 6L | 105 | 135 | 7.01 | 41.6 | Mechnical | 3100x1130*1650 | 1644 |
| AJ220PE | 160 | 200 | 176 | 220 | 1106A-70TAG4 (UK) | 178.9 | 6L | 105 | 135 | 7.01 | 45.8 | Electrical | 3100x1130*1650 | 1644 |
| AJ220PE | 160 | 200 | 176 | 220 | 1206A-E70TTAG1 (UK/EP) | 185.8 | 6L | 105 | 135 | 7.01 | 45.8 | ECM | 3100*1130*1650 | 1644 |
| AJ250PE | 180 | 225 | 198 | 248 | 1206A-E70TTAG2 (UK/EP) | 204.2 | 6L | 105 | 135 | 7.01 | 51.0 | ECM | 3450*1180*2150 | 1800 |
| AJ275PE | 200 | 250 | 220 | 275 | 1206A-E70TTAG3 (UK/EP) | 226.2 | 6L | 105 | 135 | 7.01 | 56.9 | ECM | 3450*1180*2150 | 1800 |
| AJ825PE | 600 | 750 | 660 | 825 | 4006-23TAG2A (UK) | 531.0 | 6L | 160 | 190 | 22.92 | 209.0 | Electrical | 6058x2438*2591/20ft | 10370 |
| AJ880PE | 640 | 800 | 704 | 880 | 4006-23TAG3A (UK) | 566.0 | 6L | 160 | 190 | 22.92 | 210.0 | Electrical | 6058*2438x2591/20ft | 10400 |
| AJ1000PE | 720 | 900 | 792 | 990 | 4008TAG1A (UK) | 805.0 | 8V | 160 | 190 | 30.56 | 206.0 | Electrical | 6058*2438x2591/20ft | 11667 |
| AJ1100PE | 820 | 1025 | 902 | 1128 | 4008TAG2A (UK) | 899.0 | 8V | 160 | 190 | 30.56 | 206.0 | Electrical | 6058x2438x2591/20ft | 12030 |
| AJ1100PE | 820 | 1025 | 902 | 1128 | 4008TAG2 (UK) | 899.0 | 8V | 160 | 190 | 30.56 | 206.0 | Electrical | 6058x2438x2591/20ft | 12030 |
| AJ1235PE | 900 | 1125 | 990 | 1238 | 4008-30TAG3 (UK) | 947.0 | 8V | 160 | 190 | 30.56 | 206.0 | Electrical | 12192x2438x2896/40HQ | 17950 |
| AJ1375PE | 1000 | 1250 | 1100 | 1375 | 4012-46TWG2A (UK) | 1113.0 | 12V | 160 | 190 | 45.84 | 256.0 | Electrical | 12192x2438x2896/40HQ | 17950 |
| AJ1485PE | 1080 | 1350 | 1188 | 1485 | 4012-46TWG3A (UK) | 1207.0 | 12V | 160 | 190 | 45.84 | 283.0 | Electrical | 12192x2438x2896/40HQ | 17950 |
| AJ1650PE | 1200 | 1500 | 1320 | 1650 | 4012-46TAG2A (UK) | 1331.0 | 12V | 160 | 190 | 45.84 | 310.0 | Electrical | 12192x2438x2896/40HQ | 18205 |
| AJ1855PE | 1350 | 1688 | 1485 | 1856 | 4012-46TAG3A (UK) | 1500.0 | 12V | 160 | 190 | 45.84 | 370.0 | Electrical | 12192x2438x2896/40HQ | 18435 |
| AJ2035PE | 1480 | 1850 | 1628 | 2035 | 4016TAG1A (UK) | 1588.0 | 16V | 160 | 190 | 61.12 | 205.0 | Electrical | 12192x2438x2896/40HQ | 19200 |
| AJ2200PE | 1600 | 2000 | 1760 | 2200 | 4016TAG2A (UK) | 1766.0 | 16V | 160 | 190 | 61.12 | 415.0 | Electrical | 12192x2438x2896/40HQ | 21780 |
| AJ2200PE | 1600 | 2000 | 1760 | 2200 | 4016-61TRG2 (UK) | 1774.0 | 16V | 160 | 190 | 61.12 | 415.0 | Electrical | 12192x2438x2896/40HQ | 17950 |
| AJ2475PE | 1800 | 2250 | 1980 | 2475 | 4016-61TRG3 (UK) | 1975.0 | 16V | 160 | 190 | 61.12 | 470.0 | Electrical | 12192x2438x2896/40HQ | 21875 |
| AJ1100PE | 800 | 1000 | 880 | 1100 | 4008TAG2A (India) | 899.0 | 8V | 160 | 190 | 30.56 | 215.0 | Electrical | 6058x2438x2591/20ft | 12030 |
Hongfu Power Factory view
In facility, HONGFU Power factory with 2 workshops which covers 12000 square meters, one workshop for canopy, another for assembling and package. we equipped with 3 laser cutting machines, 1 CNC pressing machine and 2 bending machine for canopy and fuel tank production.
Hongfu Power insist on the "Integrity and innovation" business philosophy, Insist on "Customers first" principle to provide super excellent service for all our partners.
We've been pursuing good in good in workmanship and quality, seriously taking every details into consideration.
We always take customer's care and quality as our top priority.
We always take customer's care and quality as our top priority, we choose the well-known partner, which guarantee the quality and with global warranty.
Hongfu Generator authorized by CE, and we are an ISO 9001 certified manufacturer.
All of our products are with excellent performance.
