1500kVA Mitsubishi S12r -Ptaa2 Diesel Power Generator Set Manufacturer

Product Description

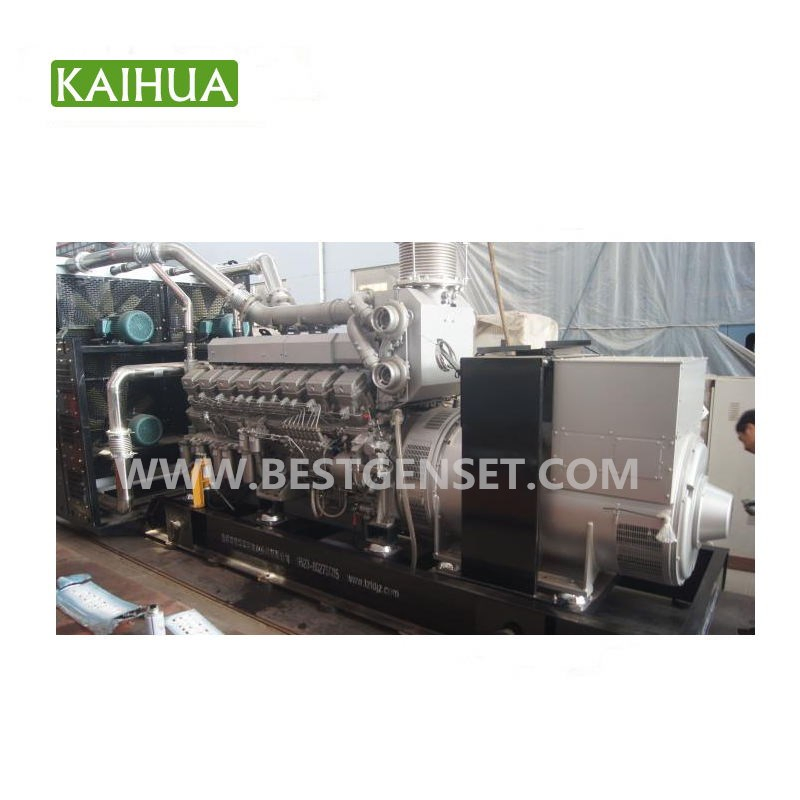

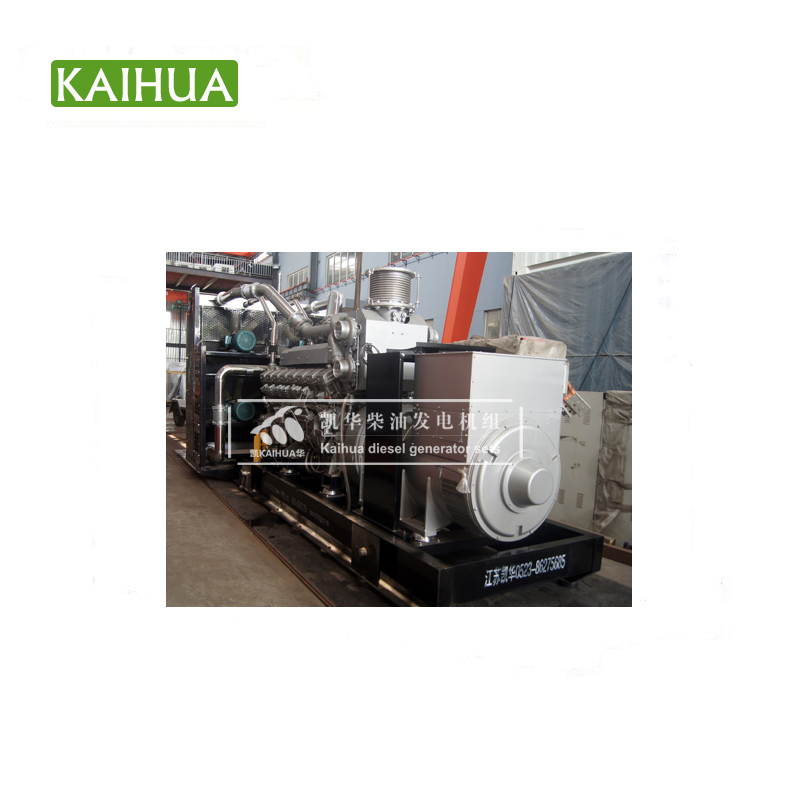

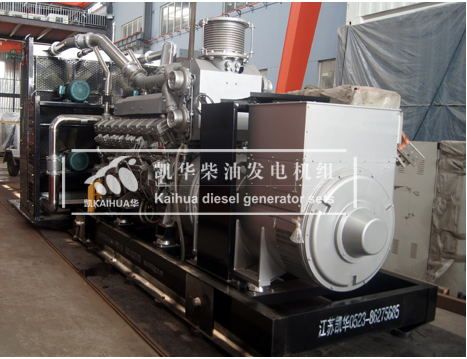

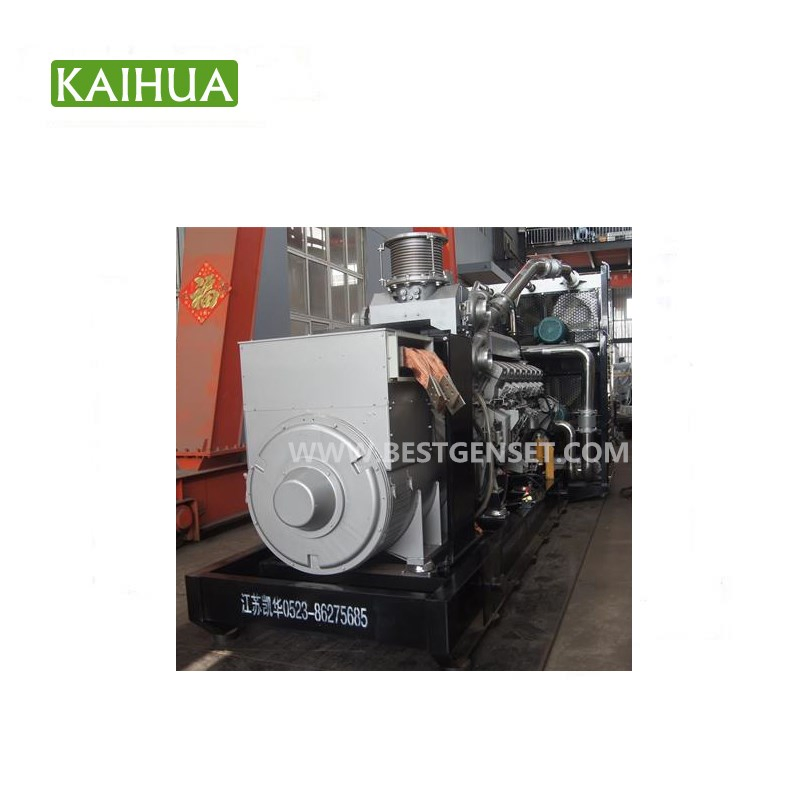

1500KVA Mitsubishi S12R-PTAA2 Diesel Power Generator Set Manufacturer

Mitsubishi diesel power generator set Data
Gensets Model			KH-1200GF
Prime Power			1500KVA
Standby Power			1650KVA
Rated Voltage(V)			380/220V
Rated Frequency(Hz)			50
Rated Speed (RPM)			1500
Power Factor(COS¢)			0.8(lagging)
ENGINE DATA
Engine brand			Mitsubishi
Engine model			S12R-PTAA2
Number of Cylinders			12
Cylinder arrangement			Vertical in Line
Cycle			Four stroke
Aspiration			Turbocharged&2 pump 2 loop
Fuel System			Direct Injection
Bore×Stroke (mm×mm)			170*180
Displacement (Liter)			317
Compression Ratio			13.5:01
Governor Type			Electronic
Cooling System			water cooling
Speed Governor			Electronic
Cooltant capacity (L)-engine			317
Starting Method			DC 24V electrical starting

Alternator brand			Stamford
Alternator model			PI734D
Number of Phase			3
Connecting Type			3 Phase and 4 Wires
Number of Bearing			1
Protection Grade			IP23
Altitude			≤1000m
Exciter Type			Brushless ,Self-exciting, AVR &100% Copper winding wire
