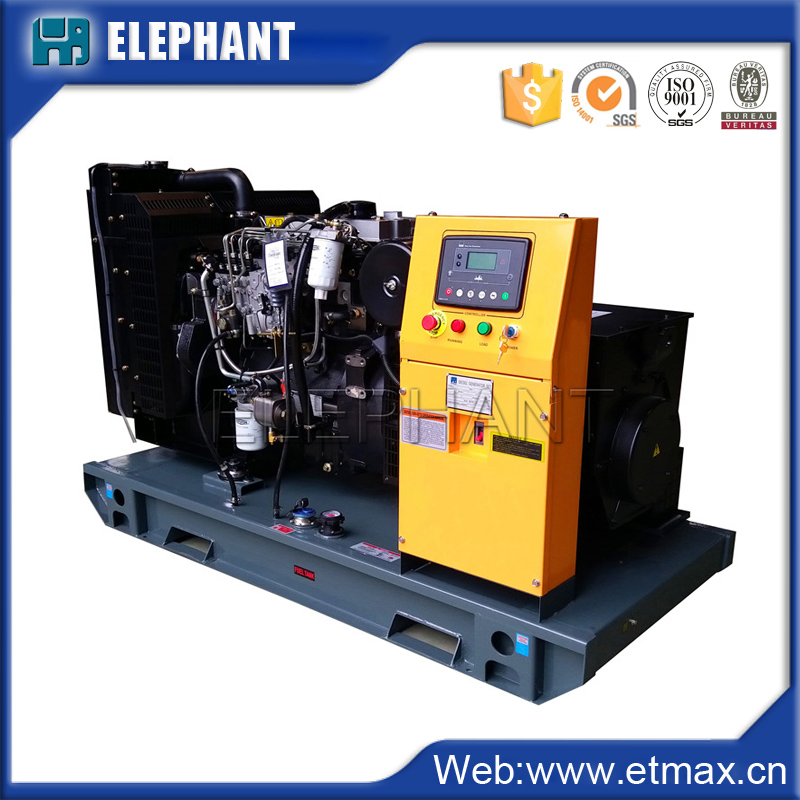

144kw 180kVA Perkins Diesel Power Gensets
144kw 180kVA Perkins Diesel Power GensetsProduct Overview1) Brand-new engine,w/start motor.2) Brushless alternator,single bearing,flange connection,IP23,H insulation class,with AVR.3) Auto control panel with LCD display.4) Engine mounted battery-charging alternator,Genset with battery charge of main......
Send Inquiry
Product Description
144kw 180kVA Perkins Diesel Power Gensets
| Product Overview | |
| 1) Brand-new engine,w/start motor. | |
| 2) Brushless alternator,single bearing,flange connection,IP23,H insulation class,with AVR. | |
| 3) Auto control panel with LCD display. | |
| 4) Engine mounted battery-charging alternator,Genset with battery charge of main supply. | |
| 5) Circuit Breaker,Exhaust Silencer. | |
| 6) Copper Radiator for 40ºC ambient temperature and double-deck cooling,with fan guard and front guard. | |
| 7) Anti-vibration pads fixed between engine/alternator and base frame to ensure the compete genset running stable. | |
| 8) Skid-mounted bottom 8 hours fuel tank. | |
| 9) Extemal recessed emergency stop button for extra safety. | |
| 10)Optional:Soundproof,ATS(automatic transfer switch),AMF panel,Trailer,Parallel system. | |
| 144KW/180KVA Perkins diesel generator | |
| Genset Specification | |
| Genset Model | BP198 |
| Prime Power(Kw/Kva) | 144KW/180KVA |
| Standby Power(kw/kva) | 158.4KW/198KVA |
| Frequency | 50Hz |
| Structure type | Open or Soudproof |
| Engine Model | 1106A-70TAG3 |
| Alternator Model | STG274G |
| Open type DimensionL*W*H(mm) | 2850*850*1350 |
| Weight(Kg) | 1400 |
| Silent type DimensionL*W*H(mm) | 3400*1130*1950 |
| Weight(Kg) | 2360 |
| Engine Detail | |
| Manufacturer | Perkins engine Co.,Ltd |
| Model | 1106A-70TAG3 |
| Type | vertical,6 cylinder,in-line,water-cooled,four-stroke |
| Governor | electrical |
| Bore*Stroke | 105*135mm |
| Displacement | 7.01L |
| Compression ratio | 18.2:01 |
| Alternator Detail | |
| Model | STG274G |
| Output power(Kw/Kva) | 144kw/180kva |
| Number of phase | 3 |
| Power factor(Cos Phi) | 0.8 |
| Number of Pole | 4 |
| Exciter type | Shunt |
| Insulation class | H |
| Voltage regulation | ≤1% |
| Total haarmonics (TGH/THC) | ≤3% |
| Wave form:Nema=TIF | ≤50 |
| Wave form:I.E.C=THF | ≤2% |
| Bearing | single |
| Coupling | Direct |
