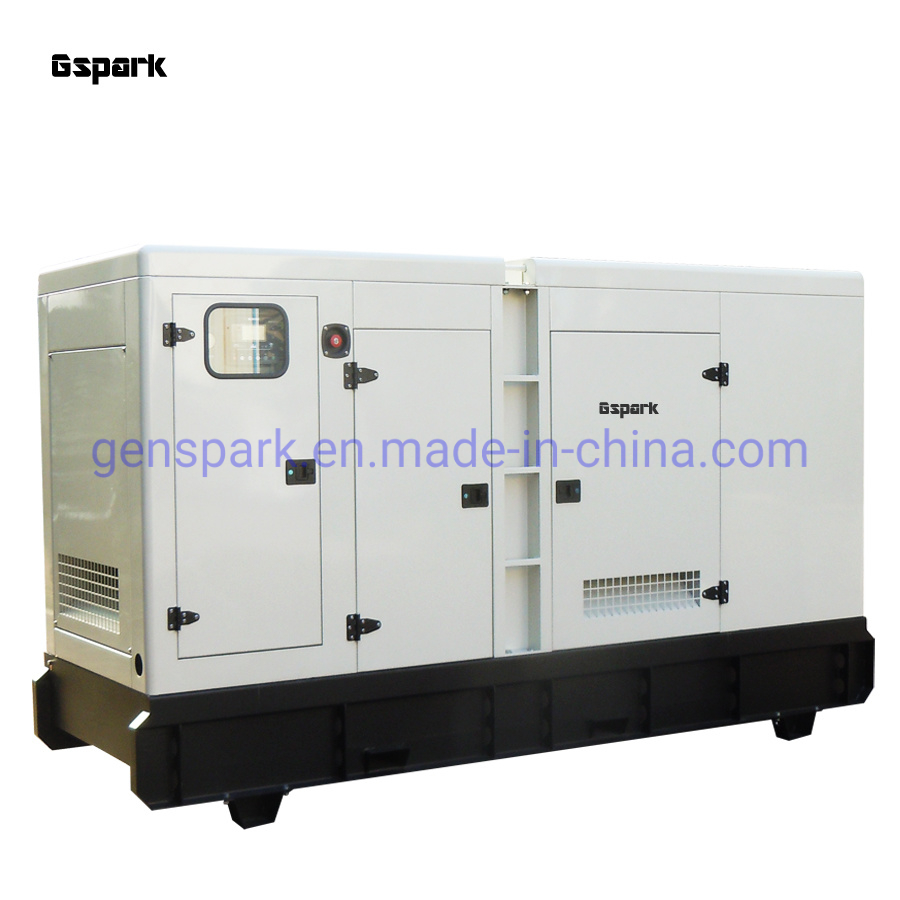

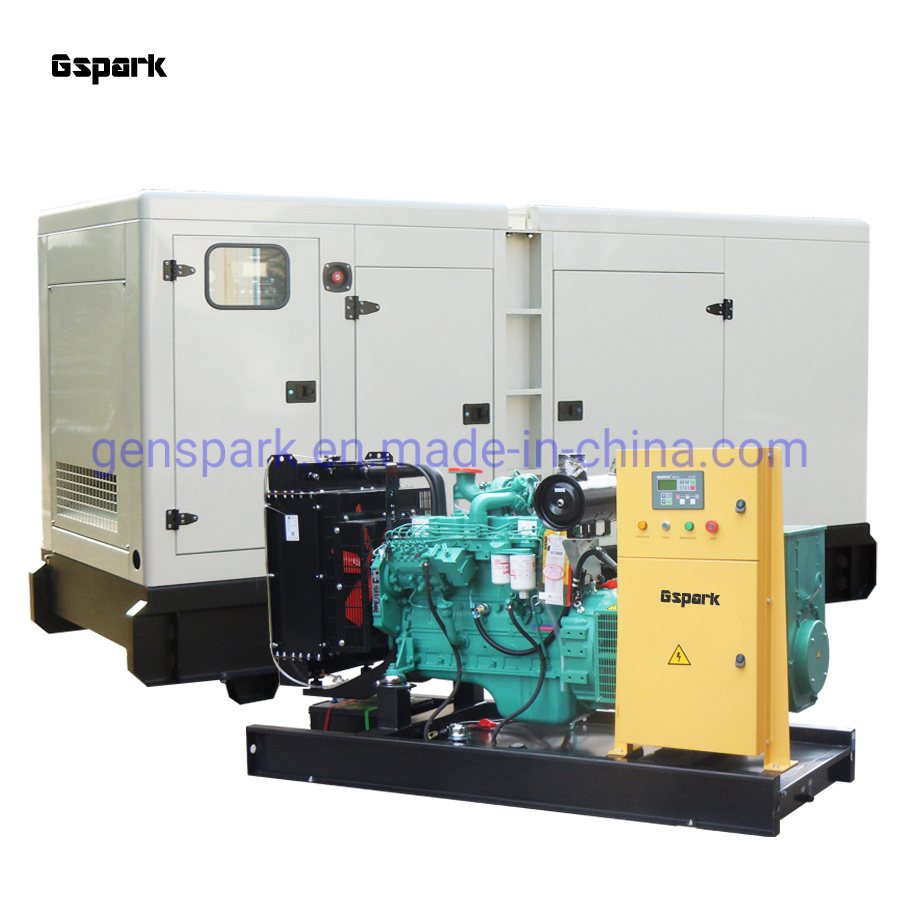

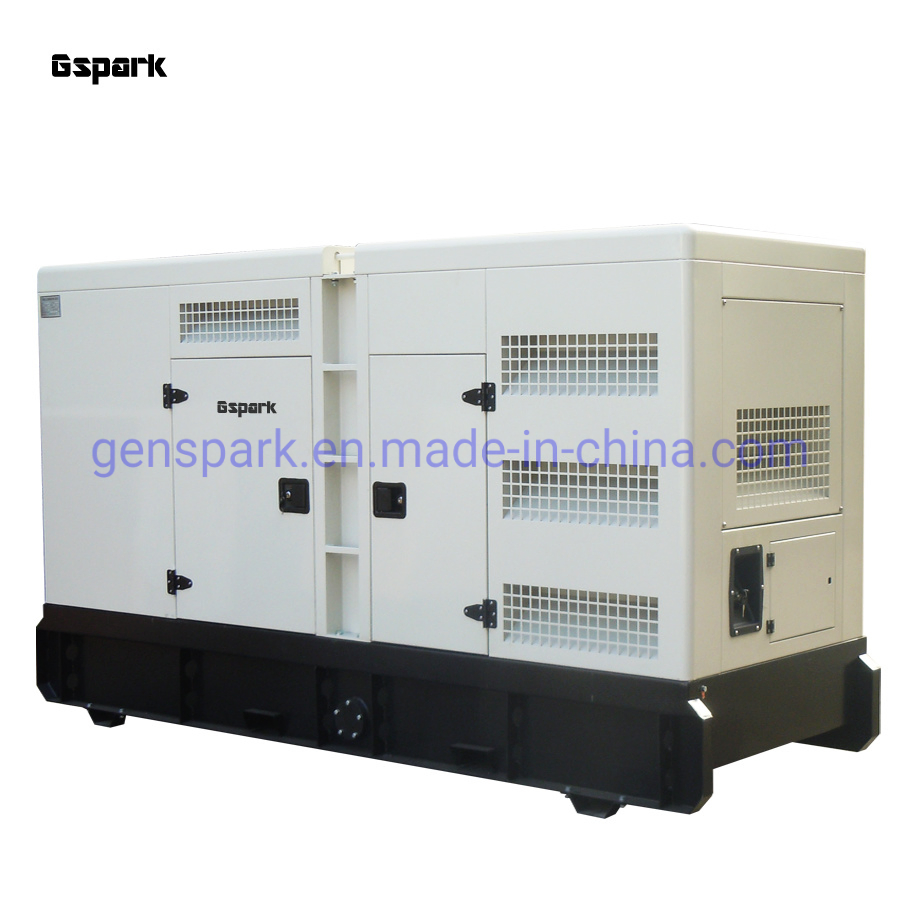

100kw Silent Generator Set with 6BTA5.9-G2 Engine
GSPARK Diesel Power Generator Set G/GS-C Series 50Hz Generator with Cummins Power Generator Set PerformanceEngine SpecificationOpen GensetSoundproof typeGenset Model50Hz OutputEngine ModelPower(Kw)Fuel Comsuption(100% Load)DimensionWeightDimensionWeight50HzPrime StandbyKWL/HL*W*H (mm)KGL*W*H(mm)KG......
Send Inquiry
Product Description
GSPARK
Diesel Power Generator Set G/GS-C Series
 50Hz Generator with Cummins Power | |||||||||||
| Generator Set Performance | Engine Specification | Open Genset | Soundproof type | ||||||||
| Genset Model | 50Hz Output | Engine Model | Power(Kw) | Fuel Comsuption(100% Load) | Dimension | Weight | Dimension | Weight | |||
| 50Hz | Prime | Standby | KW | L/H | L*W*H (mm) | KG | L*W*H(mm) | KG | |||
| KVA | KW | KVA | KW | ||||||||
| G/GS-C20 | 20 | 16 | 22 | 17.6 | 4B3.9-G1/G2 | 24 | 5 | 1700*750*1150 | 850 | 1950*830*1200 | 1250 |
| G/GS-C25 | 25 | 20 | 27 | 22 | 4B3.9-G1/G2 | 24 | 6 | 1700*750*1150 | 850 | 1950*830*1200 | 1290 |
| G/GS-C37 | 37 | 30 | 41 | 33 | 4BT3.9-G1/G2 | 36 | 8 | 1820*760*1150 | 900 | 2200*950*1200 | 1350 |
| G/GS-C43 | 42.5 | 34 | 47 | 37 | 4BT3.9-G1/G2 | 36 | 8 | 1820*760*1150 | 950 | 2200*950*1200 | 1350 |
| G/GS-C56 | 56 | 45 | 62 | 49 | 4BTA3.9-G2 | 50 | 13 | 1950*830*1150 | 1070 | 2400*950*1200 | 1450 |
| G/GS-C73 | 73 | 58 | 80 | 64 | 6BT5.9-G1/G2 | 86-92 | 23 | 2150*880*1350 | 1120 | 2700*1100*1450 | 1800 |
| G/GS-C85 | 85 | 68 | 94 | 75 | 6BT5.9-G1/G2 | 86-92 | 23 | 2150*880*1350 | 1120 | 2700*1100*1450 | 1850 |
| G/GS-C100 | 100 | 80 | 110 | 88 | 6BT5.9-G1/G2 | 86-92 | 23 | 2150*880*1350 | 1120 | 2700*1100*1450 | 1900 |
| G/GS-C113 | 113 | 91 | 125 | 100 | 6BTA5.9-G2 | 110 | 23 | 2350*950*1360 | 1200 | 2700*1100*1450 | 2000 |
| G/GS-C125 | 125 | 100 | 137 | 110 | 6BTA5.9-G2 | 110 | 23 | 2350*950*1360 | 1235 | 2700*1100*1450 | 2100 |
| G/GS-C137 | 138 | 110 | 151 | 121 | 6BTAA5.9-G2 | 120 | 26 | 2350*950*1360 | 1400 | 2800*1150*1560 | 2150 |
| G/GS-C160 | 160 | 128 | 167 | 141 | 6CTA8.3-G2 | 163 | 34 | 2470*950*1430 | 1900 | 3100*1100*1510 | 2400 |
| G/GS-C187 | 187 | 150 | 206 | 165 | 6CTA8.3-G2 | 163 | 35.1 | 2470*950*1430 | 2000 | 3100*1100*1510 | 2450 |
| G/GS-C200 | 200 | 160 | 220 | 176 | 6CTAA8.3-G2 | 183 | 38.7 | 2600*980*1450 | 2300 | 3300*1150*1800 | 2550 |
| G/GS-C225 | 225 | 180 | 248 | 198 | 6LTAA8.9-G2 | 220 | 38.7 | 2600*1000*1450 | 2400 | 3300*1150*1800 | 2700 |
| G/GS-C250 | 250 | 200 | 275 | 220 | 6LTAA8.9-G2 | 220 | 41.6 | 2600*1000*1500 | 2500 | 3400*1200*1900 | 2750 |
