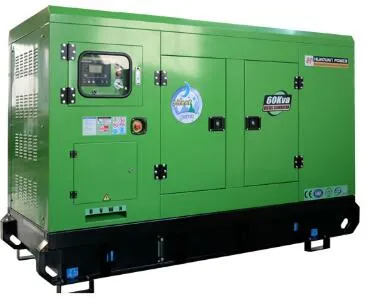

100kVA / 80 Kw Silent Diesel Genset
Product DescriptionWeichai series diesel generator, which is the newest diesel motors. The diesel motors are improved by Weichai power and British Ricardo Sino-British Joint Venture. They are classified into four cylinders and six cylinders. They are belong to the inline, water-cooled, four stroke a......
Send Inquiry
Product Description
Product Description
Weichai series diesel generator, which is the newest diesel motors. The diesel motors are improved by Weichai power and British Ricardo Sino-British Joint Venture. They are classified into four cylinders and six cylinders. They are belong to the inline, water-cooled, four stroke and comnustion chamber type high speed direct injection diesel engines. The power levels are range from 15.8kw to 155kw. There are many advantages, such as high reliability, low fuel consumption, large torque, low discharge, small volumn and large power etc.
Technical Specification
About products
1.Powered by weifang engines
2.Radiator 40°C max, fans are driven by belt, with safety guard
3.12//24V DC start motor and storage battery
4.Brushless, self-excited, IP22/23, insulation H alternator
5.Absorber to reduce vibration
6.Dry type air filter, fuel filter, oil filter
7.Main line circuit breaker

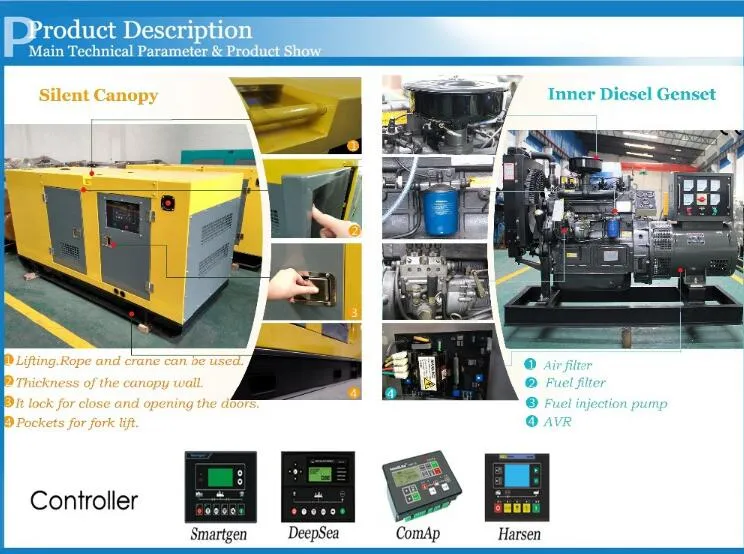

8.Control system: Key start control panel as standard, digital auto start or ATS system is optional
9.8 hours operation base fuel tank
10.High efficient muffler to reduce noise
11.Ripple flex exhaust pipe, exhaust siphon and flange etc.

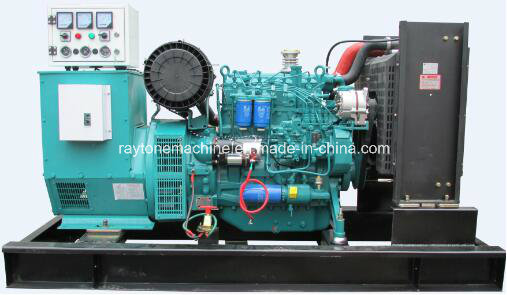

12.Genset type: open type or soundproof/silent type, or trailer type
13 .Maintenance and operation manual, quality certificate, etc.
14.Rigorous testing must be done before delivery, including 50% load, 75%load, 100%load, 110%
and all protection function(over speed stop, high water temperature, low oil pressure, battery
charging fail, emergency stop)
15.Certificate: ISO9001:2000, CE (ESC/070119), BV
Weichai series diesel generator, which is the newest diesel motors. The diesel motors are improved by Weichai power and British Ricardo Sino-British Joint Venture. They are classified into four cylinders and six cylinders. They are belong to the inline, water-cooled, four stroke and comnustion chamber type high speed direct injection diesel engines. The power levels are range from 15.8kw to 155kw. There are many advantages, such as high reliability, low fuel consumption, large torque, low discharge, small volumn and large power etc.
Technical Specification
| 1. Specification of genset(for silent type) | |||||||
| Gensets model | HQ100GF | ||||||
| Prime power | 80KW/100KVA | ||||||
| Rated Voltage | 400/230V | ||||||
| Rated frequency | 50 HZ | ||||||
| Output current | 144A | ||||||
| Rated Speed | 1500rpm | ||||||
| Power Factor(COS¢) | 0.8(lagging) | ||||||
| Dimensions(mm) (L×W×H) | 2200*820*1320mm | ||||||
| Oil Consumption (100% load) | 204g/kw.h | ||||||
| Net Weight | 1300kg | ||||||
| unpitched(LP7m) | 95dB(A) | ||||||
| 2. Specification of diesel engine | |||||||
| Engine brand/Origin | Weichai | ||||||
| Engine model | WP4D100E200 | ||||||
| Number of Cylinders | 4 | ||||||
| Cylinder arrangement | L type | ||||||
| Cycle | Four stroke | ||||||
| Aspiration | Turbocharged | ||||||
| Bore×Stroke (mm×mm) | 105*120 | ||||||
| Cooling System | Forced Water Cooling Cycle | ||||||
| overload ability | 110% | ||||||
| Compression ratio | 15.5:1 | ||||||
| Starting Method | DC24V electrical starting | ||||||
| rotate speed | 1500 rpm | ||||||
| 3. Specification of alternator | |||||||
| Alternator brand/ Origin | Huanquan/ Wuxi | ||||||
| Alternator model | HWF-XN100 | ||||||
| Number of Phase | 3 | ||||||
| Connecting Type | 3 Phase and 4 Wires | ||||||
| Power | 80KW/100KVA | ||||||
| Protection Grade | IP21 | ||||||
| adjust type | AVR | ||||||
| output Frequency | 50HZ | ||||||
| Insulation Class | H | ||||||
| Rated voltage | 400/230V | ||||||
| output factor(COS¢) | 0.8(lagging) | ||||||
About products
1.Powered by weifang engines
2.Radiator 40°C max, fans are driven by belt, with safety guard
3.12//24V DC start motor and storage battery
4.Brushless, self-excited, IP22/23, insulation H alternator
5.Absorber to reduce vibration
6.Dry type air filter, fuel filter, oil filter
7.Main line circuit breaker
8.Control system: Key start control panel as standard, digital auto start or ATS system is optional
9.8 hours operation base fuel tank
10.High efficient muffler to reduce noise
11.Ripple flex exhaust pipe, exhaust siphon and flange etc.
12.Genset type: open type or soundproof/silent type, or trailer type
13 .Maintenance and operation manual, quality certificate, etc.
14.Rigorous testing must be done before delivery, including 50% load, 75%load, 100%load, 110%
and all protection function(over speed stop, high water temperature, low oil pressure, battery
charging fail, emergency stop)
15.Certificate: ISO9001:2000, CE (ESC/070119), BV
