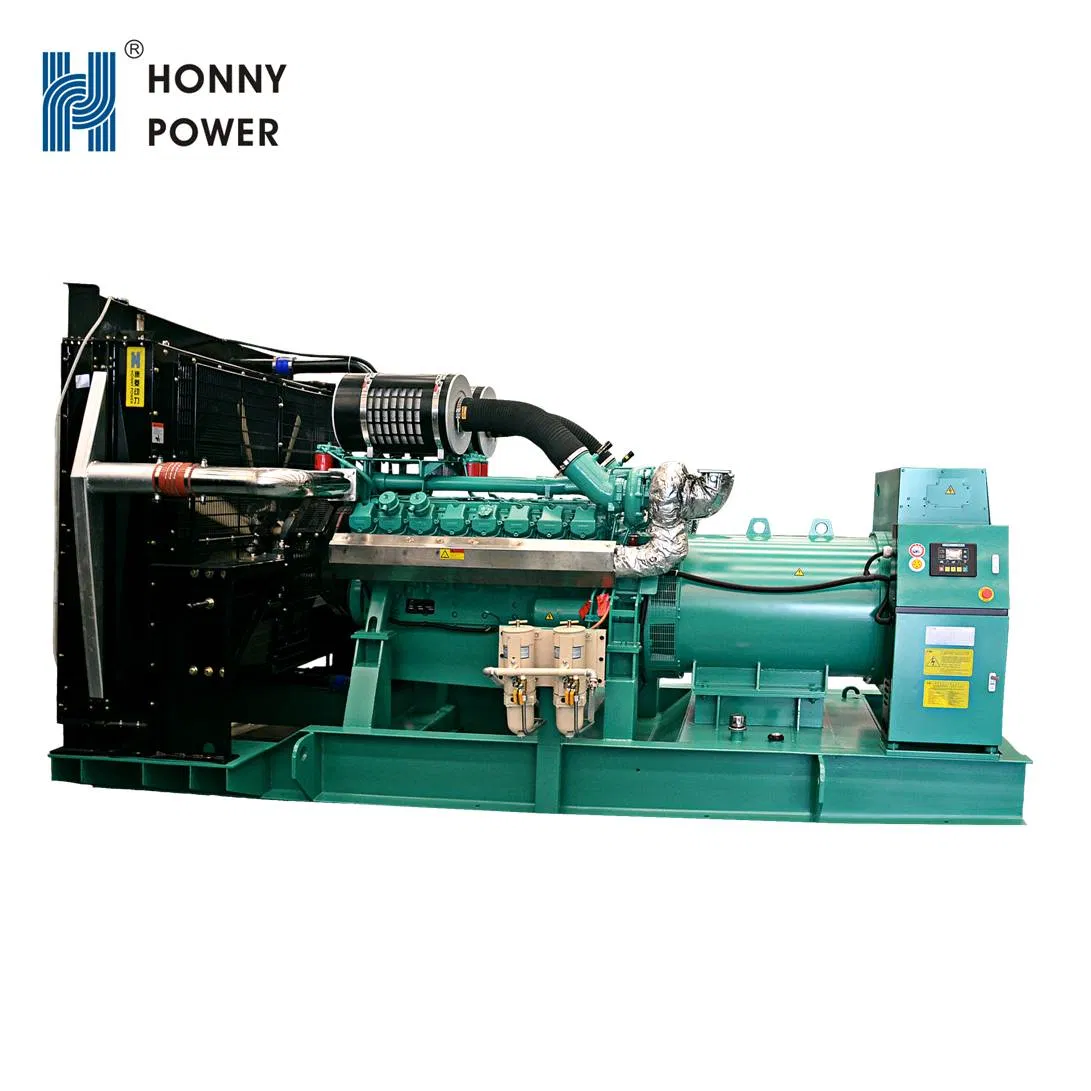

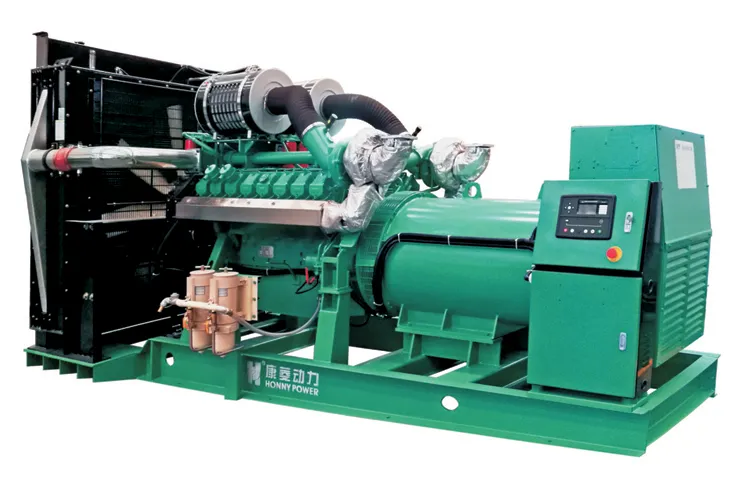

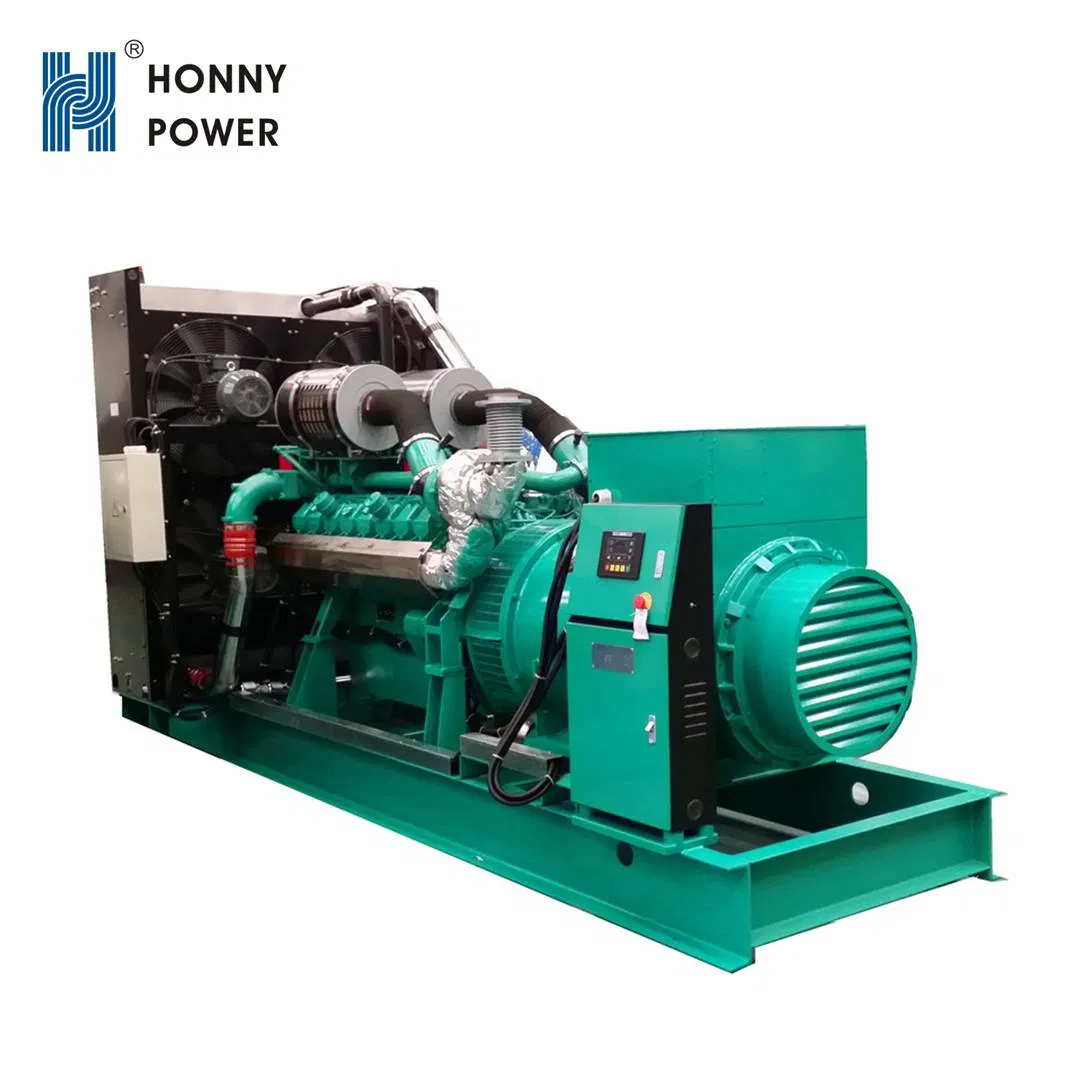

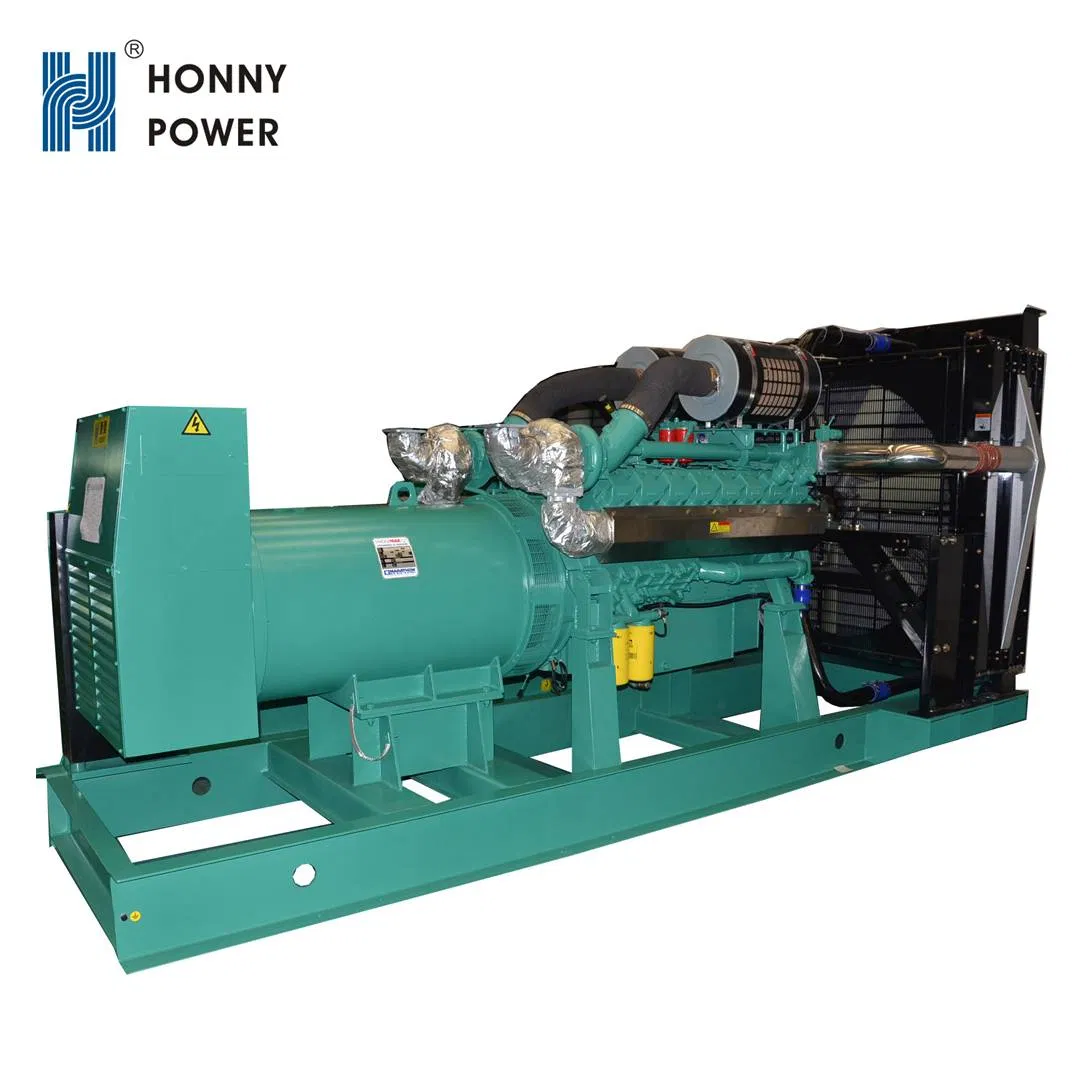

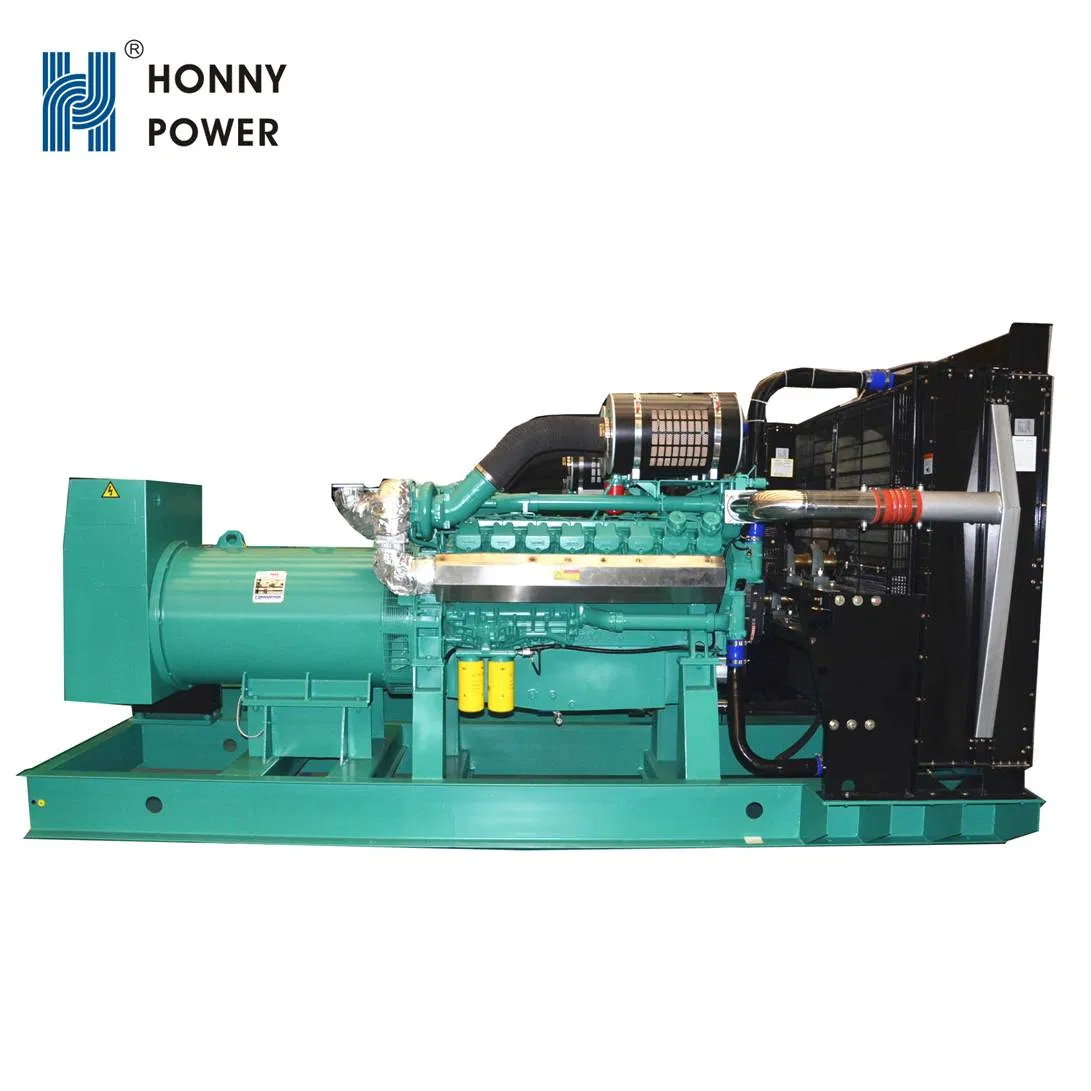

1000kVA Diesel Generator Set High Speed 1800rpm 60Hz

Product Description

1000kVA Diesel Generator Set High Speed 1800rpm 60Hz

Performance Feature:

Engine and alternator shall be mounted on a same frame steel skid.
Built-in damper for anti-vibration.
World most famous brand diesel engine.
World famous brand AC alternator.
Advanced and reliable control module
Full range protection function and alarm shutdown feature.

Alternator Feature:

Brush-less, 4 poles, rotation magnet.
IP21-23(NEMA1) enclosure is standard for all industrial alternators.
The insulation system is Class H
Simple installation and maintenance, with easy access to terminals, rotating diodes and coupling bolts.
Wide range of flange adaptors and single bearing disc coupling.
Standard 2/3 pitch windings avoid excessive neutral currents
AVR auto voltage regulator, auto exciter, auto adjustment

Silent Canopy Description:

Standard Accessory:
Steel Weatherproof Canopy
Built In Fuel Tank For 8 Hours Running
Built In Control Panel
Built In Start Battery
Power Output Rapid Insert
Windows for Looking
Air Louver for Intake & Exhaust
Exhaust Gas Silencer
Soundproof Type

Standard Accessory:

Common steel base frame, Damper, Exhaust silencer, Flexible pipe, Battery and connecting wires, Operation manual and document.

Optional Accessory:

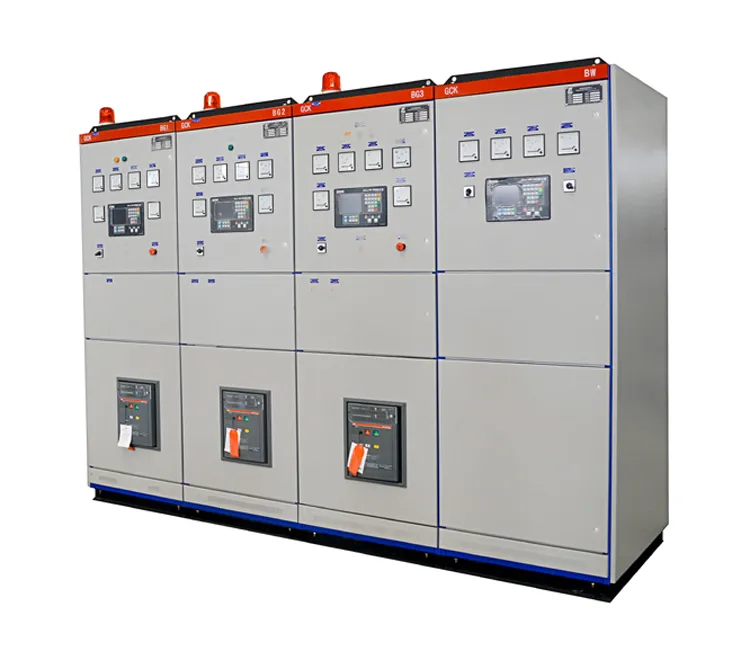

Engine coolant and oil heater, Alternator space heater, Cooling for heat exchanger, Control system with RS232/485 communication interface, Battery charger by main supply, Fuel-water separator, Daily fuel tank, ATS & paralleling system, and Moving Trailer.

Company Introduction:

Guangdong Honny Power-tech Co., Ltd was founded in year 1992, and has been the leading power generation solution and manufacturer in China. We specialize in assembly, design, sale, installation, maintenance, and service of Power Generation, Diesel and Gas Engines, Power Plant & Transformer Station, Emergency Generator Truck. We supply generators from 20 to 5000 kVA, and produce engines from 240 to 2955kW, 3MW to 500MW power plant & transformer station. Honny own 2 manufacturing factories, 3 R & D centers at Dongguan, Chongqing and USA Los Angeles, 43 sale and service offices in China area. The total business area is up to 160, 000 square meters, Honny now owns over 600 employees.

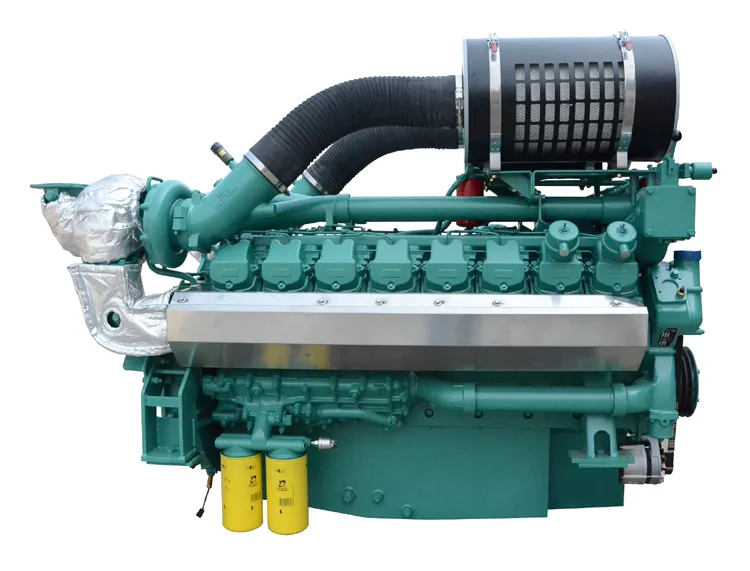

Engine Model		PTAA1780-G2
Speed	rpm	1800
Frequency	Hz	60
Rating Output
Standby Output ( LTP)	kW	877
Prime Output (PRP)	kW	800
Engine Continuous Power (COP)	kW	723
Single Fan Reduction	kW	6.5
Quantity of Fan	Sets	4
Fans Reduction	kW	26
Engine Net Standby Output ( LTP)	kW	851
Engine Net Prime Output (PRP)	kW	774
Engine Net Continuous Output (COP)	kW	697

Typical Standby Generation Output	kVA	1000
Typical Standby Generation Output	kW	800
Typical Prime Generation Output	kVA	910
Typical Prime Generation Output	kW	728
Typical Prime Generation Output	kVA	819
Typical Prime Generation Output	kW	655
Typical Alternator Efficiency	≥	94.0%
Power Factor		0.8
Basic Performance Datasheet
Aspiration Type		Turbocharged, air-ari aftercooled
Injection Type		Direct Injection
Configuration		Vee
No. of Cylinders		16
Displacement	l	29.2
Bore	mm	128
Stroke	mm	142
Compression Ratio		14.6:1
Piston Speed	m/s	8.52
Rotation Direction (from flywheel)		Counter Clockwise
Static Speed Droop		≤ 5%
Number of Flywheel Teeth		160
Flywheel House Size		SAE1-14
Lubrication System
Lube Oil Specification		API-CF4
Oil Capacity	l	72
Max. Premissiable Oil Temperature	°C	110
Oil Pressure Warning	kPa	200
Oil Pressure Shutdown	kPa	160
Cooling System
Coolant Capacity for Engine	l	26
Max. Prenissiable Temperature	°C	90
Max. Coolant Warning Temperature	°C	95
Max. Coolant Shutdown Temperature	°C	105
Thermostat Open Temperature	°C	71
Radiator Cooling Flow	m³/min	1500
Flow of Coolant pump	m³/h	62.35
Fuel System
Governor Type		Electrical
Engine Output at genset prime output	kW	800
Fuel Consumption at 25% of genset prime output	l/h	48.84
Fuel Consumption at 50% of genset prime output	l/h	95.29
Fuel Consumption at 75% of genset prime output	l/h	140.80
Fuel Consumption at 100% ofgenset prime output	l/h	190.59
Intake & Exhaust System
Combustion Air Consumption	m³/min	71.04
Max. Intake Restriction	KPa	2.5
Max. Exhaust Temperature	°C	520
Max. Exhaust Back Pressure	Kpa	2.5
Exhaust Gas Flow	m³/min	179.67
Exhaust Flange Diameter	mm	150
Electrical System
Charging Alternator Voltage	V	28
Charging Alternator Capacity	A	35
Starting Voltage	V	24
Starting Motor Capacity	kW	9
Minimum Battery Capacity	Ah	2*200
Engine Dimension
Length	mm	1950
Width	mm	1389
Height	mm	1162
Engine Dry Weight w/o Cooling System	kg	2250

For more products, please visit our showroom honnydg.en.made-in-china.com

Genset Model	Prime Power ( kW/kVA )	Standby Power ( kW/kVA )	Fuel Consumption ( l/h )	Engine Model	BorexStroke ( mm )	Qua. of Cylinder	Dimension ( mm )	Weight ( kg )	Noise Level( dBA )
HGM500/6	360/450	400/500	102	PTAA780G2	128x166	6L	3200x1230x1540	2750	108
HGM550/6	400/500	440/550	112	PTAA780G4	128x166	6L	3200x1230x1540	2750	108
HGM625/6	450/562.5	500/625	130	PTAA890G2	128x142	8V	3000x1250x2000	3000	108
HGM688/6	500/625	550/687.5	145	PTAA1120G2	128x142	10V	3200x1250x2000	3300	108
HGM825/6	600/750	660/825	171	PTAA1340G2	128x142	12V	3300x1250x2000	3500	108
HGM900/6	640/800	720/900	187	PTAA1340G4	128x142	12V	3500x1250x2000	3800	108
HGM1100/6	800/1000	880/1100	221	PTAA1780G2	128x142	16V	4400x1900x2300	5500	108
HGM1250/6	900/1125	1000/1250	244	PTAA1780G4	128x142	16V	4400x1900x2300	5800	108
HGM1375/6	1000/1250	1100/1375	252	PTAA2230G2	128x142	20V	4800x1900x2300	6200	108
HGM1650/6	1200/1500	1320/1650	300	QTA3240G2	170x195	12V	5100x2190x2600	10900	108
HGM1875/6	1360/1700	1500/1875	338	QTA3240G4	170x195	12V	5100x2190x2600	11050	108
HGM2063/6	1500/1875	1650/2062.5	356	QTA3240G6	170x195	12V	5400x2190x2600	11600	108

NOTE:
1. Rating Frequency 60Hz, 1800rpm, P.F. 0.8, Voltage 220/127V, 440/254V, 480/277V.
2. Environment Condition: 1000 meter altitude, 40 ºC temperature.
3. All above parameters are only for reference. If any change, no notify separately.
