Factory 200W 12/24V Windmill
200W Wind Generator Turbine pictures: 200W Wind Generator Turbine features:1.Low start-up speed, high wind energy utilization.2.Easy installation, tube, or flange connection optional.3.Blades using new art of precision injection. 4.Body of casting aluminum alloy, with 2 bearings swivel.5.Patented pe......
Send Inquiry
Product Description

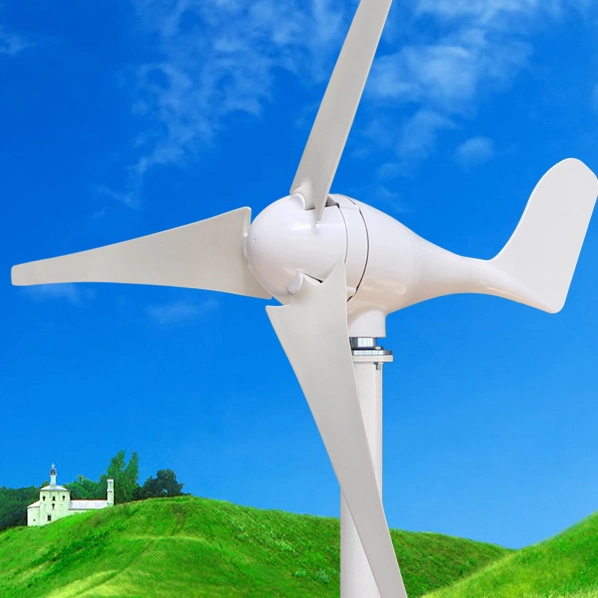

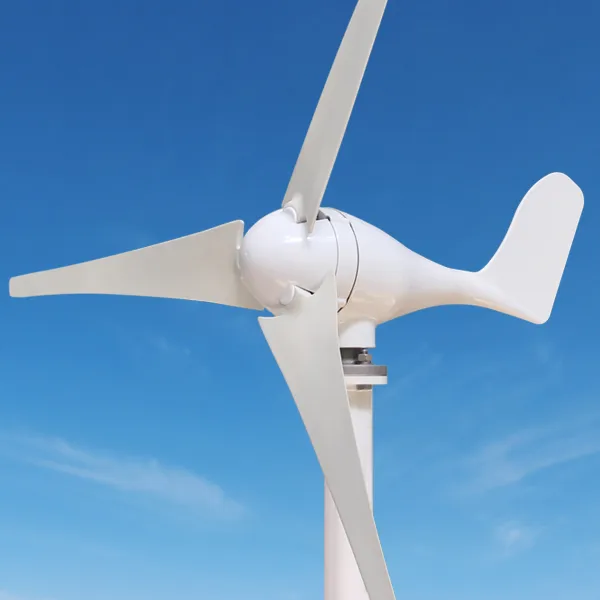

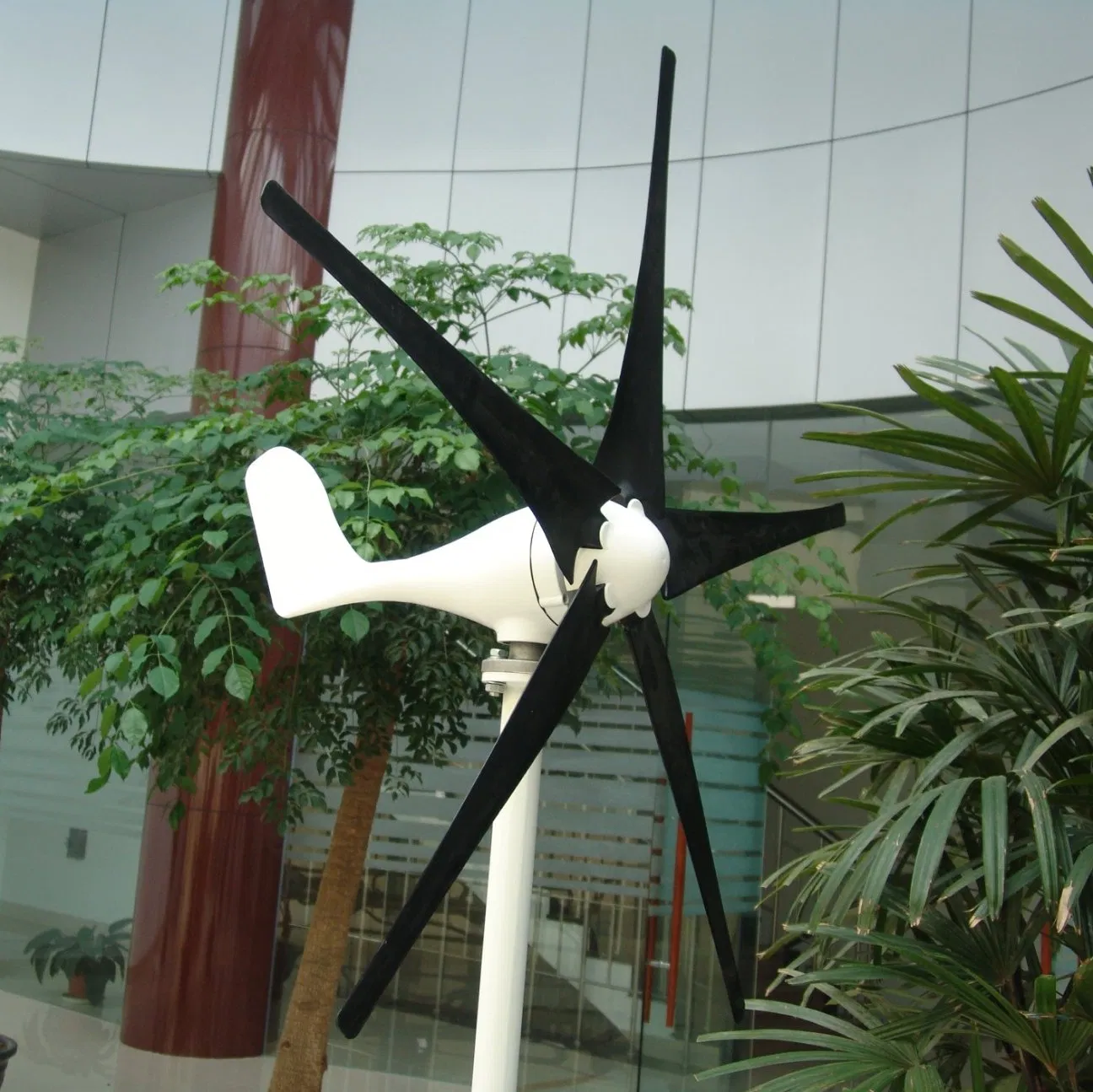

200W Wind Generator Turbine pictures:
200W Wind Generator Turbine features:
Mini Horizontal Axis 200W Wind Generator Turbine technical data:

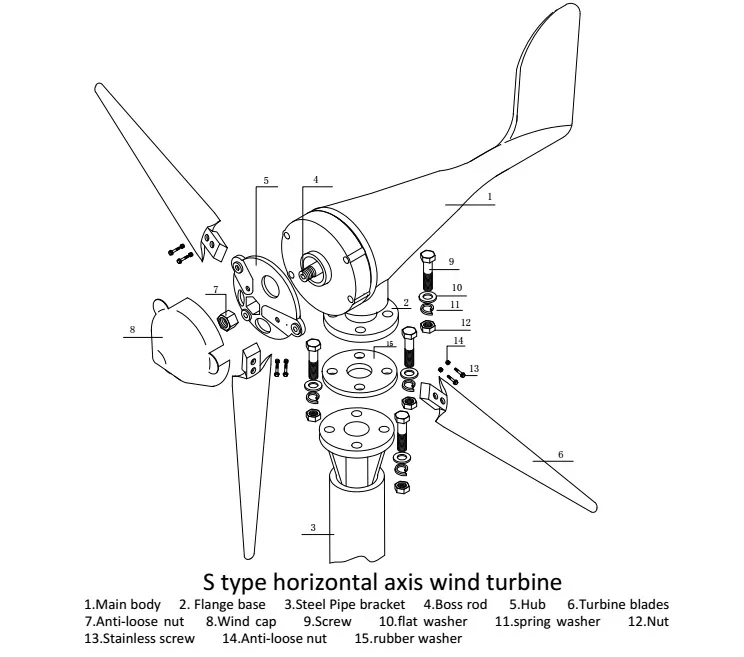

Wind turbine details

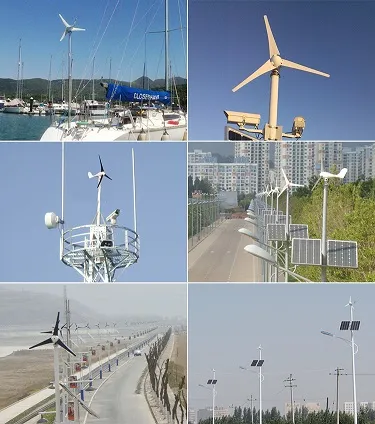

200W Wind Generator Turbine projects:

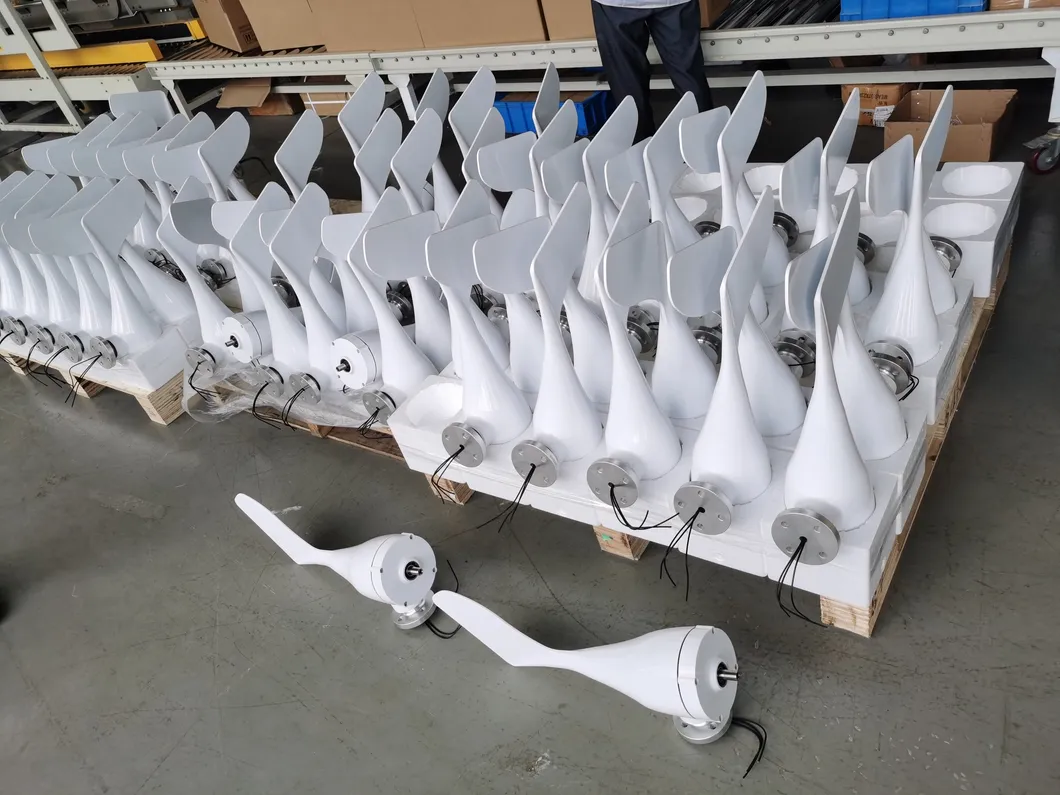

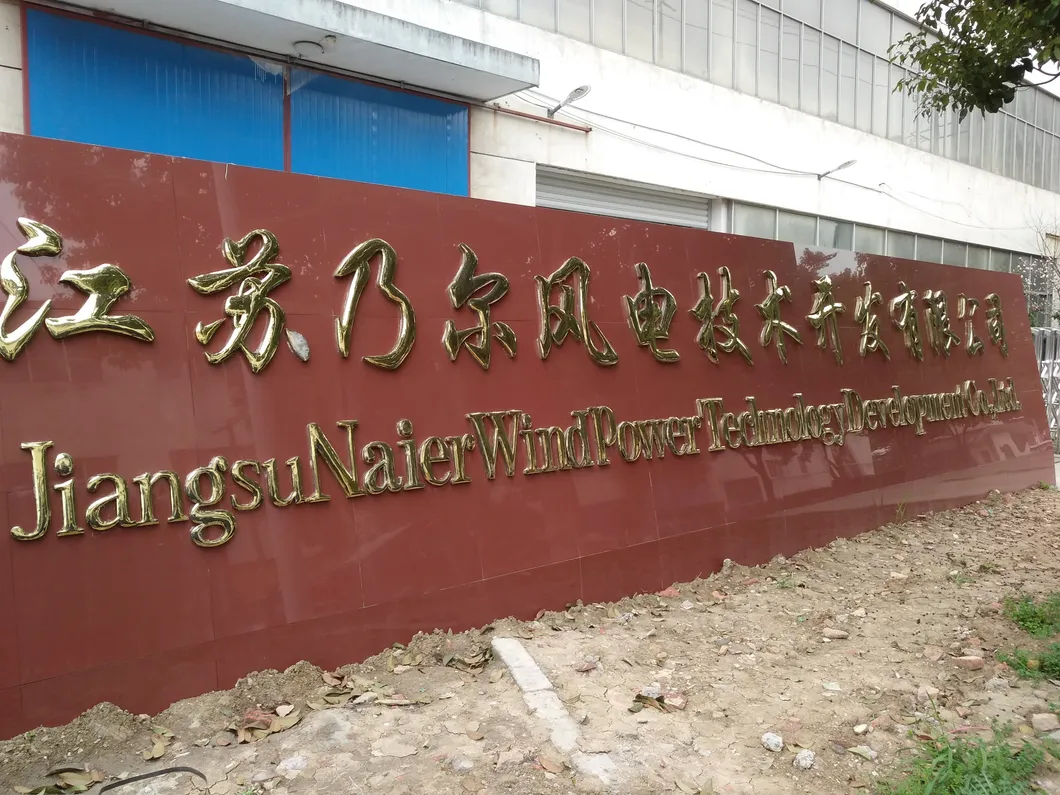

Factory view and warehouse:
Established in 2009 , with registered capital of 2.5 million dollars, Jiangsu Naier wind power is a company that specialized in developing, manufacturing, sales, and after-sales service.
Thanks to the specialists in different areas and all kinds of manufacturing testing facilities, we are making huge progress year by year. With ISO9001 ,ISO14001 and CE approved, all products patented, our company has advanced advantage in new energy area. 100w-200kw small wind generator,wind-solar hybrid street light, monitoring system, home wind generator are our major products. As an OEM, we have very competitive price. Combined with superb quality and strong sales team, we get almost 40% domestic market. Moreover, we also have partners in American, Germany, France, Canada, Norway, Australia,etc.. Nowadays, our products are warmly welcomed by customers from all over the world.
Off-grid system

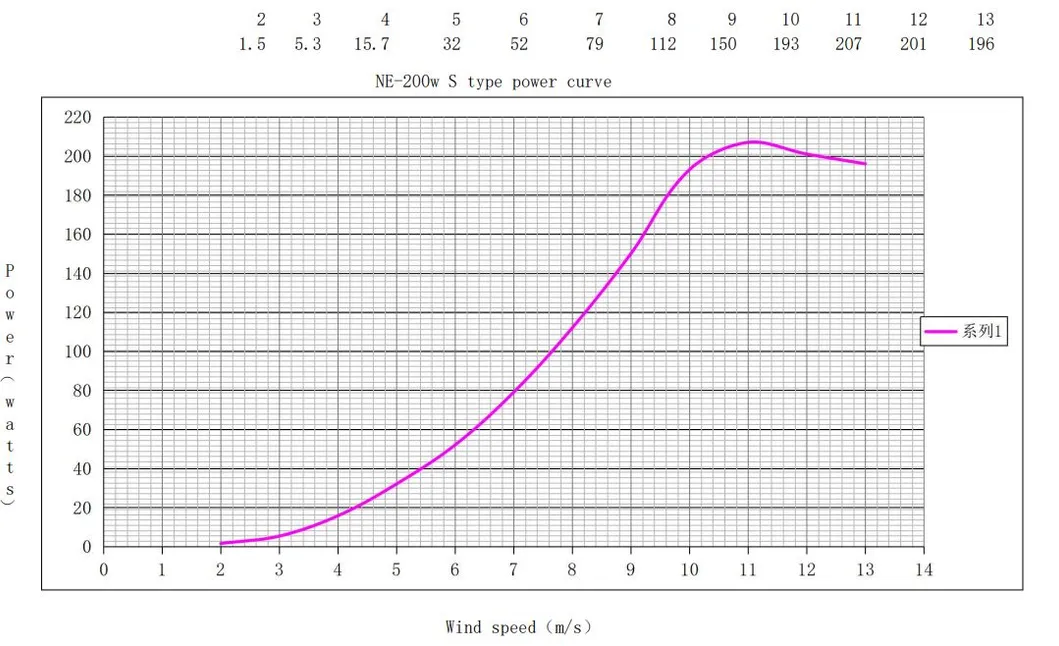

Power curve
Packaging and delivery
Patents and certifications
200W Wind Generator Turbine features:
1.Low start-up speed, high wind energy utilization.
2.Easy installation, tube, or flange connection optional.
3.Blades using new art of precision injection.
4.Body of casting aluminum alloy, with 2 bearings swivel.
5.Patented permanent magnet ac generator with special stator, effectively reduce torque.
6.CE, ISO, TUV certified.
Mini Horizontal Axis 200W Wind Generator Turbine technical data:
| Model | NE-200S |
| Rated power | 200W |
| Maximum power | 230W |
| Rated voltage | 12/24V |
| Start-up wind speed | 2.0m/s |
| Rated wind speed | 11.5m/s |
| Survival wind speed | 65m/s |
| Top net weight | 7.8kg |
| Wheel diameter | 1.24m |
| Number of blades | 3/5 |
| Blades material | Nylon fiber |
| Generator type | Three phase permanent magnet AC synchronous generator |
| Magnet material | NdFeB |
| Generator case | Casting aluminum alloy |
| Control system | Electromagnet/wind wheel yaw |
| Speed regulation | Automatically adjust windward direction |
| Working temperature | -40°C - 80°C |
| Design life | 20 y |
| Certificates | CE, ISO14001, ISO 9001, TUV |

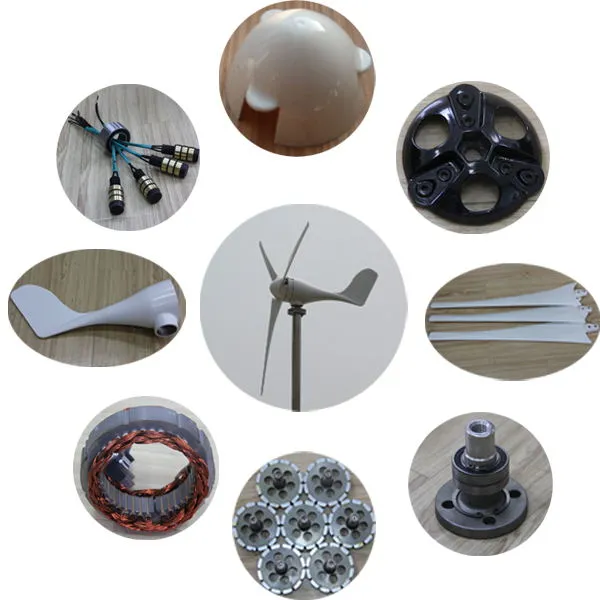

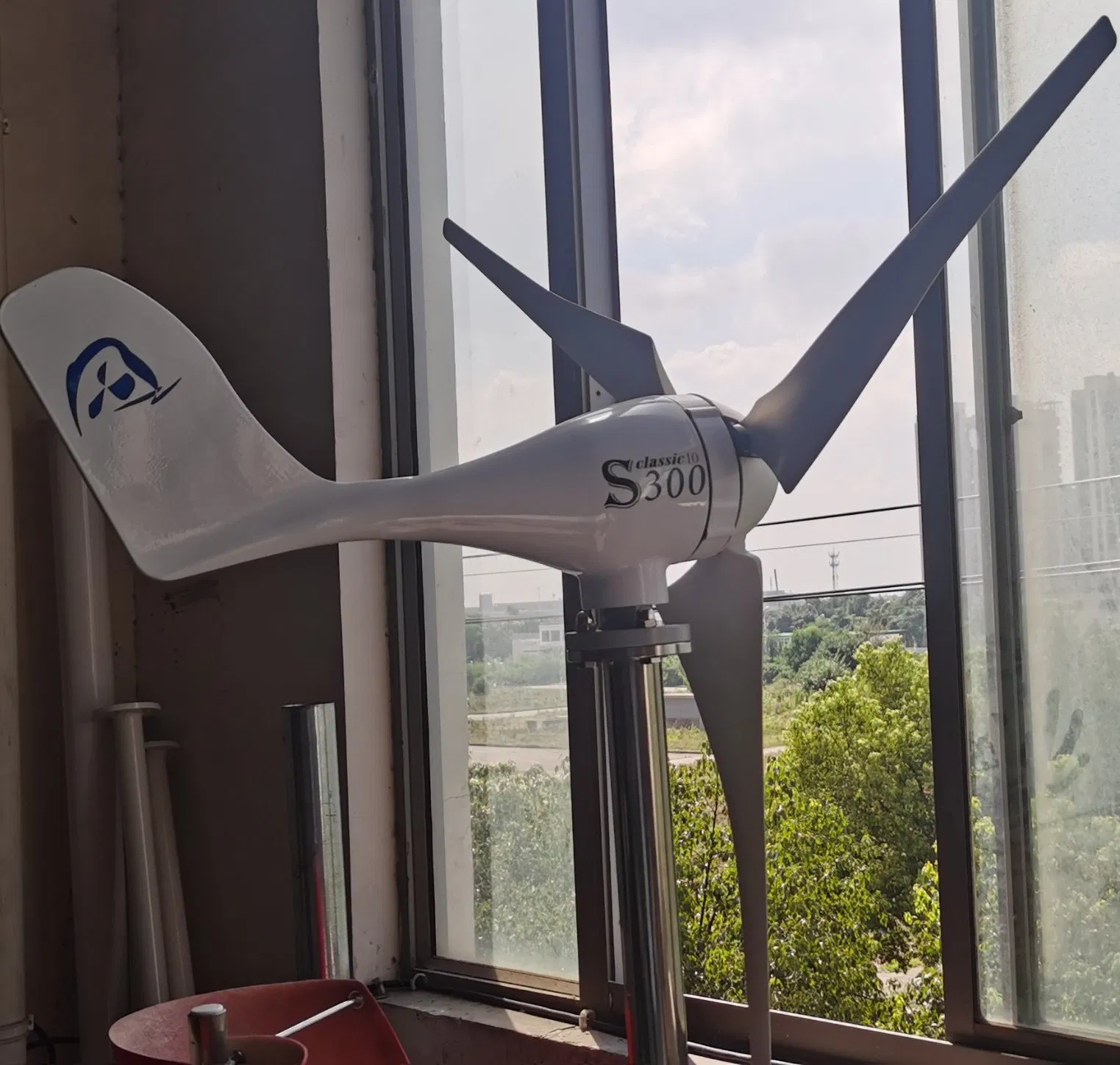

Wind turbine details
200W Wind Generator Turbine projects:
Factory view and warehouse:
Established in 2009 , with registered capital of 2.5 million dollars, Jiangsu Naier wind power is a company that specialized in developing, manufacturing, sales, and after-sales service.
Thanks to the specialists in different areas and all kinds of manufacturing testing facilities, we are making huge progress year by year. With ISO9001 ,ISO14001 and CE approved, all products patented, our company has advanced advantage in new energy area. 100w-200kw small wind generator,wind-solar hybrid street light, monitoring system, home wind generator are our major products. As an OEM, we have very competitive price. Combined with superb quality and strong sales team, we get almost 40% domestic market. Moreover, we also have partners in American, Germany, France, Canada, Norway, Australia,etc.. Nowadays, our products are warmly welcomed by customers from all over the world.

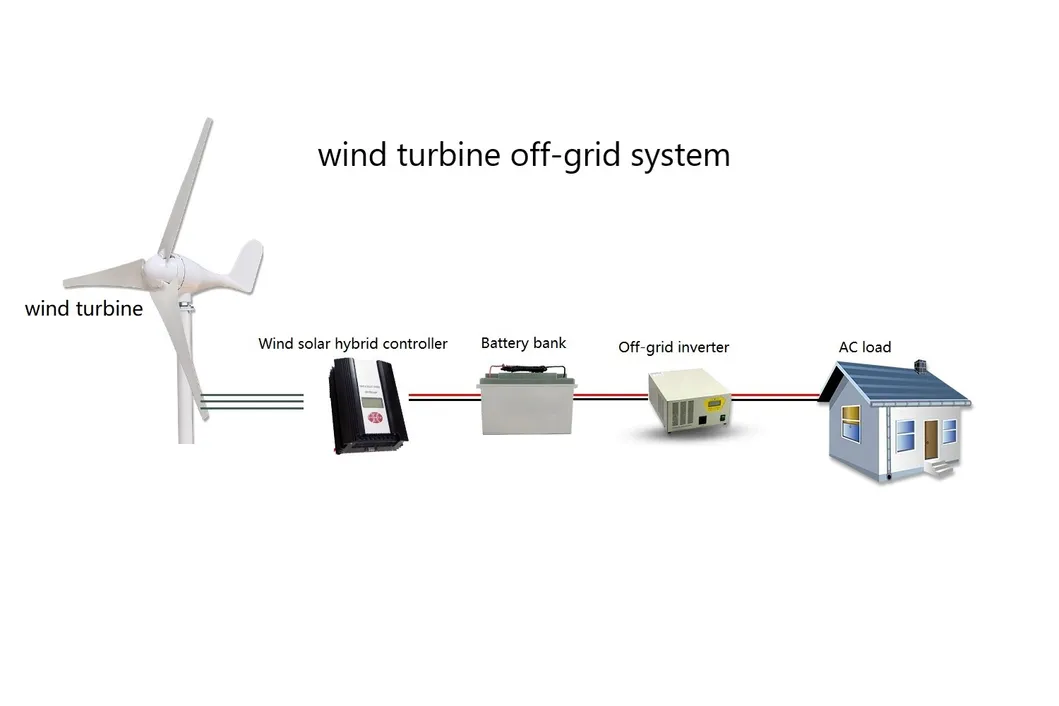

Off-grid system
Power curve

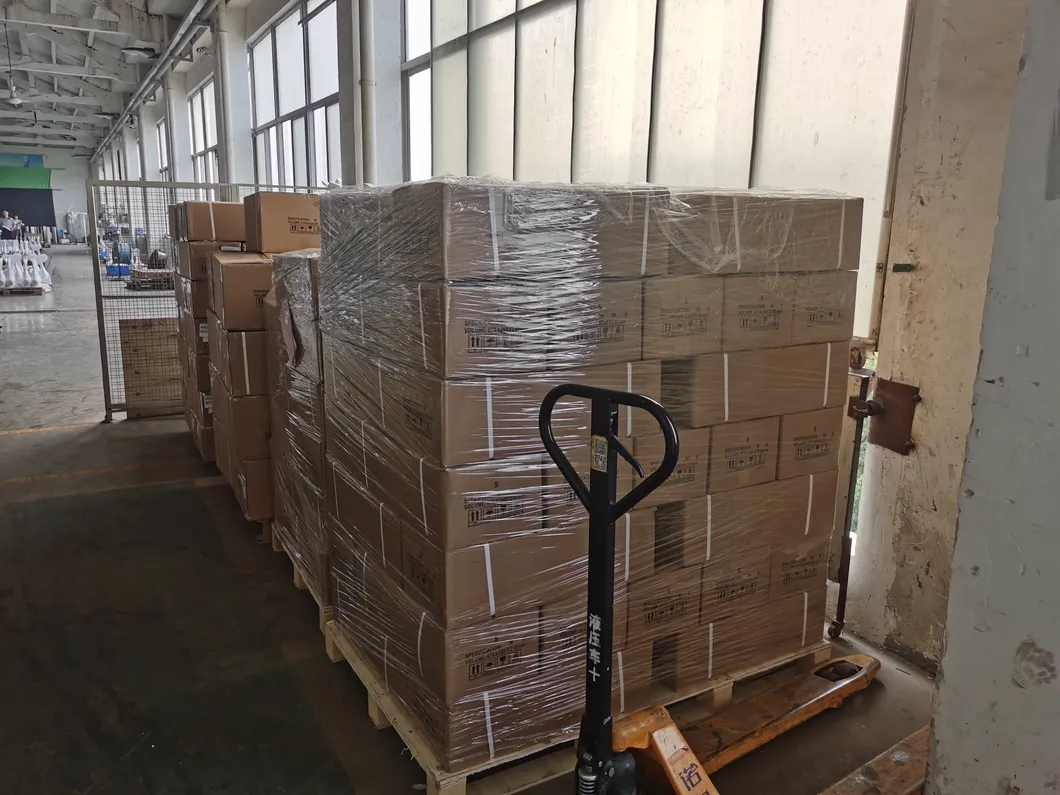

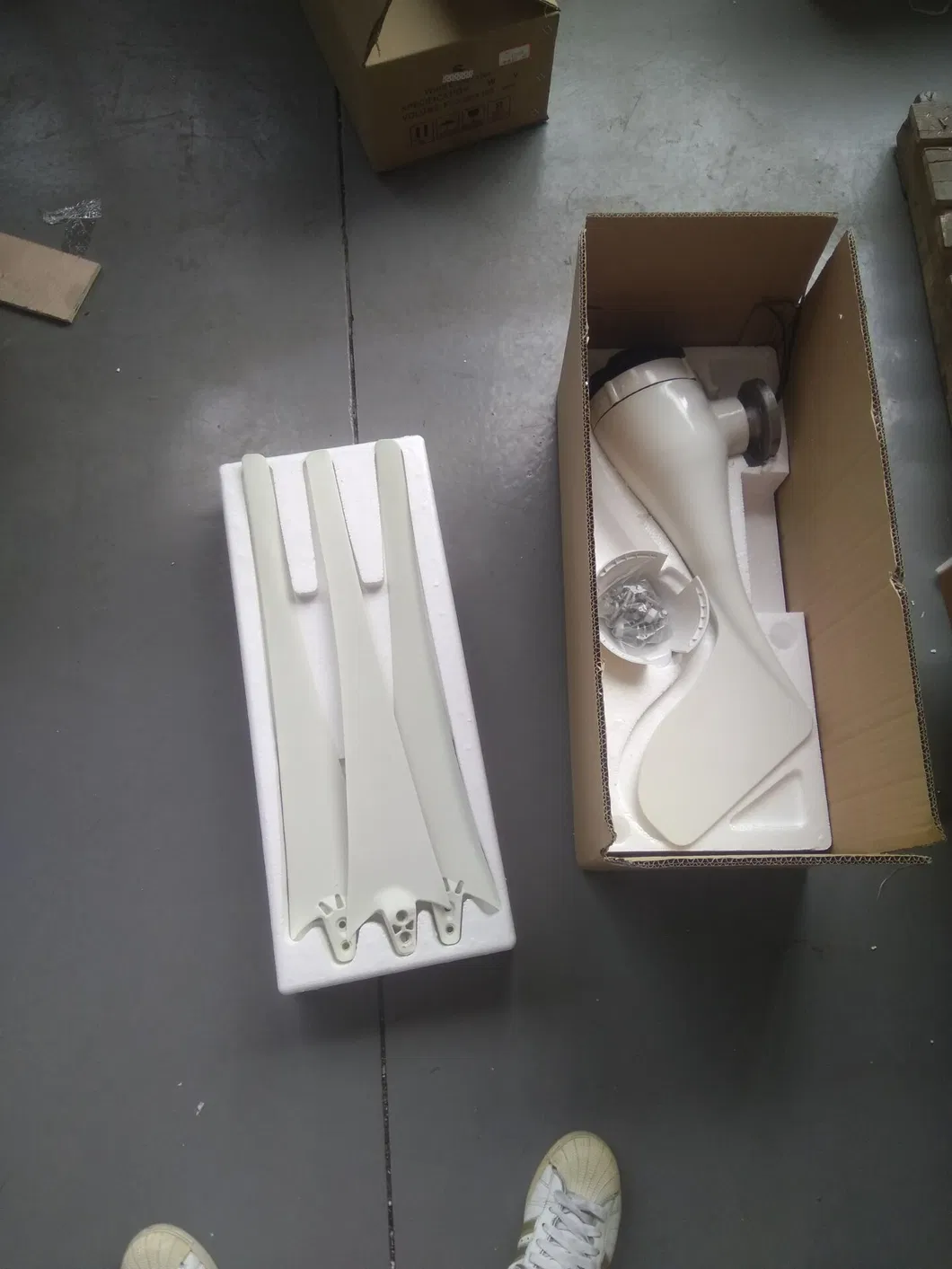

Packaging and delivery

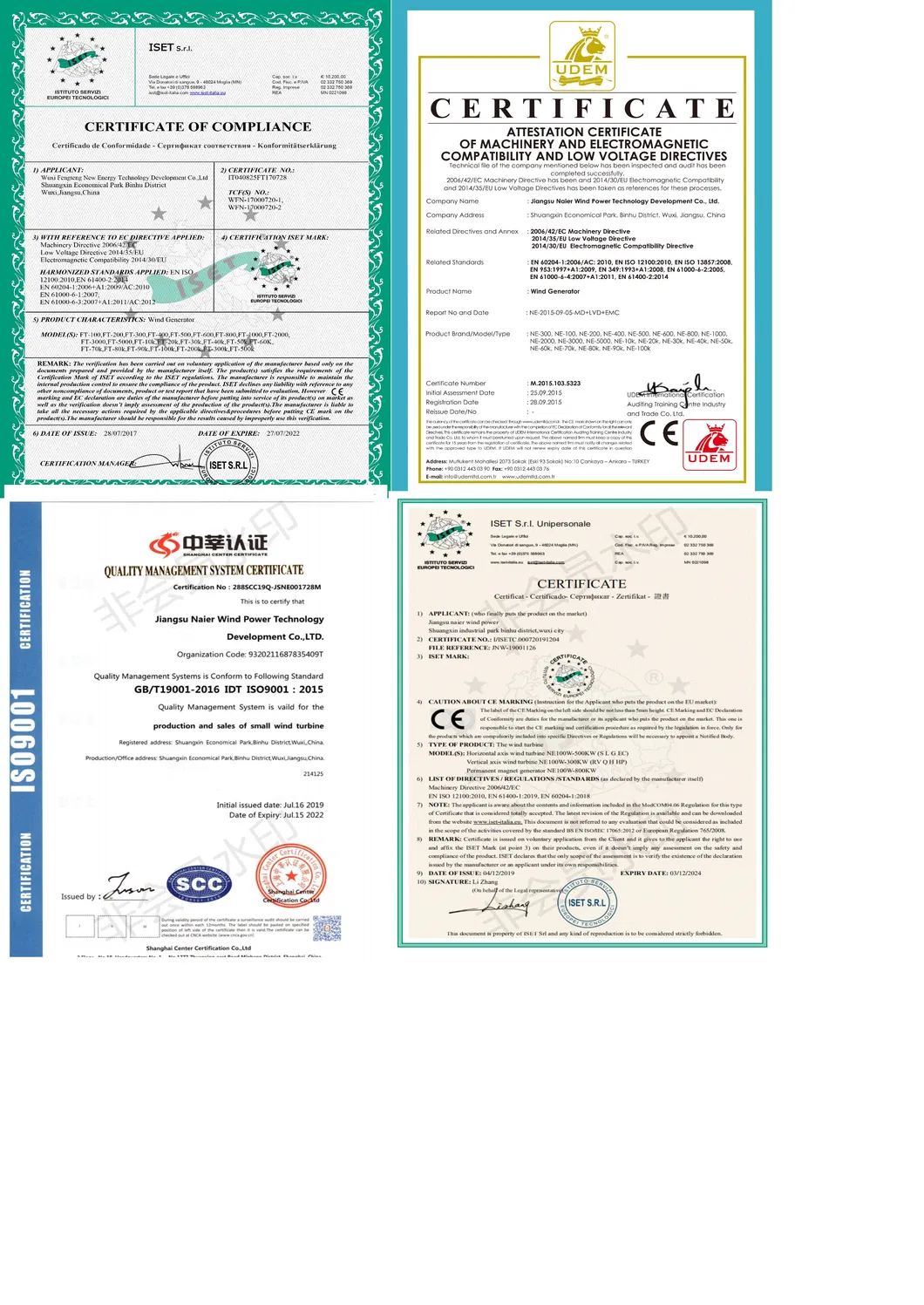

Patents and certifications
