How Does Medium Voltage Switchgear Improve Power Distribution Safety and Efficiency?
2026-05-18
Modern industrial facilities, commercial buildings, renewable energy systems, and utility substations rely heavily on stable and protected electrical distribution systems. Medium Voltage Switchgear plays a critical role in controlling, isolating, and protecting electrical equipment from overloads, faults, and short circuits. Choosing the right switchgear solution can significantly improve operational reliability, reduce downtime, and enhance electrical safety.
This comprehensive guide explains how Medium Voltage Switchgear works, why it matters, how to choose the right system, and what key factors customers should consider before installation.
Table of Contents
- What Is Medium Voltage Switchgear?
- How Does Medium Voltage Switchgear Work?
- Main Components of Medium Voltage Switchgear
- Types of Medium Voltage Switchgear
- Key Benefits for Industrial Applications
- How to Choose the Right Medium Voltage Switchgear
- Common Problems and Solutions
- Maintenance Best Practices
- Why Choose Junray Electrical
- FAQ
What Is Medium Voltage Switchgear?
Medium Voltage Switchgear is an electrical distribution system designed to control, protect, and isolate electrical equipment operating between 1kV and 36kV. It serves as the backbone of medium-voltage power networks in industries, power plants, substations, data centers, mining operations, and infrastructure projects.
Its primary purpose is to ensure safe power distribution while preventing electrical failures from damaging equipment or interrupting operations. In modern electrical systems, switchgear is essential for operational continuity and personnel safety.
Medium Voltage Switchgear can rapidly disconnect faulty sections of the electrical system, minimizing equipment damage and reducing costly downtime.
Applications commonly include:
- Industrial manufacturing plants
- Renewable energy projects
- Commercial complexes
- Utility substations
- Oil and gas facilities
- Mining operations
- Transportation infrastructure
- Hospitals and critical facilities
How Does Medium Voltage Switchgear Work?
Medium Voltage Switchgear monitors electrical circuits and reacts immediately when abnormal conditions occur. The system combines circuit breakers, relays, disconnect switches, busbars, and protection devices to maintain safe operation.
When the system detects issues such as overloads, short circuits, insulation failure, or voltage fluctuations, protective relays activate the circuit breaker to isolate the affected section.
This process helps:
- Prevent fire hazards
- Protect transformers and generators
- Reduce equipment failure
- Ensure worker safety
- Maintain uninterrupted operations
| Function | Description | Operational Benefit |
|---|---|---|
| Protection | Detects faults and disconnects damaged circuits | Prevents equipment destruction |
| Control | Manages power flow within the system | Improves operational stability |
| Isolation | Separates faulty components safely | Enhances maintenance safety |
| Monitoring | Tracks electrical performance data | Supports predictive maintenance |
Main Components of Medium Voltage Switchgear
A complete Medium Voltage Switchgear assembly contains multiple integrated components that work together for system protection and control.
| Component | Function |
|---|---|
| Circuit Breaker | Interrupts electrical current during faults |
| Protection Relay | Detects abnormal electrical conditions |
| Busbar | Distributes electrical power internally |
| Disconnect Switch | Provides visible electrical isolation |
| Current Transformer | Measures current for monitoring and protection |
| Voltage Transformer | Measures system voltage levels |
| Enclosure | Protects internal components from environmental factors |
Each component contributes to the reliability and longevity of the electrical distribution system.
Types of Medium Voltage Switchgear
Different applications require different switchgear technologies. Selecting the correct type depends on installation environment, budget, maintenance expectations, and safety requirements.
| Type | Characteristics | Typical Applications |
|---|---|---|
| Air-Insulated Switchgear | Uses air as insulation medium | Industrial facilities |

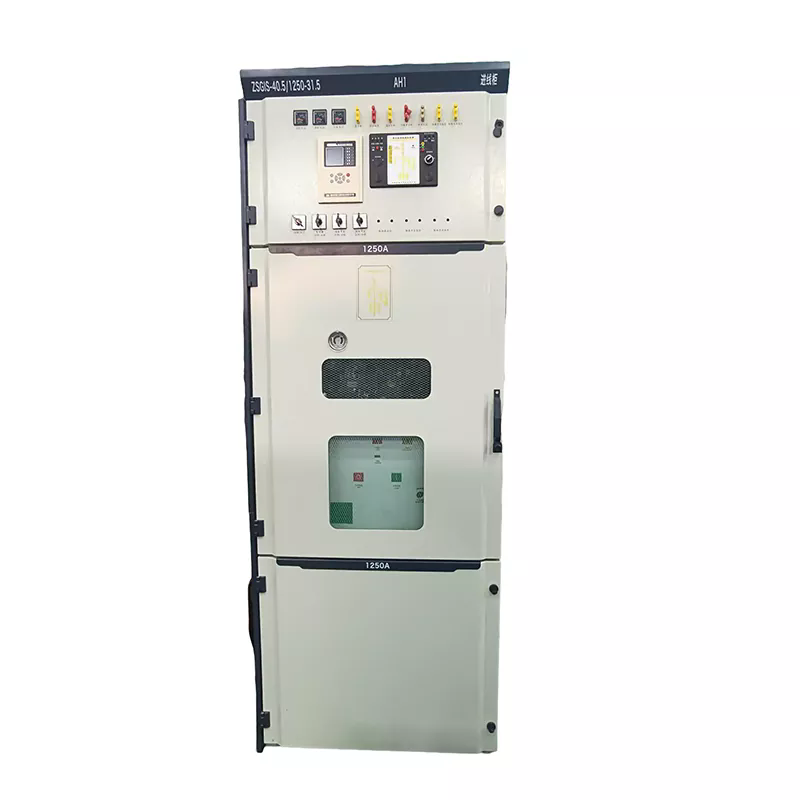

| Gas-Insulated Switchgear | Compact design using SF6 gas insulation | Urban substations |
| Vacuum Switchgear | Uses vacuum interrupters for arc extinction | Power distribution systems |
| Metal-Clad Switchgear | Enhanced compartmentalized safety structure | Critical infrastructure |
| Compact Switchgear | Space-saving integrated design | Commercial buildings |
Vacuum switchgear has become increasingly popular due to its low maintenance requirements, long service life, and strong environmental performance.
Key Benefits for Industrial Applications
Modern industries face increasing demands for stable power systems, operational continuity, and worker safety. Medium Voltage Switchgear provides several major advantages.
- Improved electrical safety
- Reduced maintenance downtime
- Higher system reliability
- Faster fault isolation
- Enhanced equipment protection
- Better operational efficiency
- Long-term cost savings
- Support for automation and smart monitoring
Facilities that invest in advanced Medium Voltage Switchgear often experience fewer unexpected shutdowns and improved power quality across operations.
For high-demand industries such as mining, oil and gas, renewable energy, and manufacturing, reliable switchgear directly impacts productivity and profitability.
How to Choose the Right Medium Voltage Switchgear
Selecting the proper switchgear system requires careful technical evaluation. Customers should analyze operational needs, environmental conditions, and future expansion plans.
Key factors include:
- Rated voltage requirements
- Short-circuit current capacity
- Installation space limitations
- Environmental conditions
- Maintenance accessibility
- Safety certifications
- Arc flash protection features
- Digital monitoring capabilities
| Selection Factor | Why It Matters |
|---|---|
| Voltage Rating | Ensures compatibility with the power system |
| Current Capacity | Supports operational electrical loads |
| Arc Resistance | Improves personnel safety |
| Environmental Protection | Prevents dust, moisture, and corrosion damage |
| Expandability | Supports future system growth |
Before purchasing, customers should also evaluate supplier experience, engineering support, customization capability, and after-sales service quality.
Common Problems and Solutions
Improperly selected or poorly maintained switchgear can create operational challenges and safety risks.
| Problem | Possible Cause | Recommended Solution |
|---|---|---|
| Overheating | Loose connections or overload | Conduct thermal inspections regularly |
| Frequent Tripping | Faulty relays or short circuits | Test protection systems |
| Insulation Failure | Moisture or aging materials | Replace damaged insulation |
| Arc Flash Risk | Improper maintenance procedures | Implement arc-resistant systems |
| Corrosion | Harsh environmental exposure | Use corrosion-resistant enclosures |
Routine inspections and predictive maintenance significantly reduce unexpected failures.
Maintenance Best Practices
Regular maintenance extends the operational life of Medium Voltage Switchgear and improves system reliability.
- Perform infrared thermal imaging inspections
- Check insulation resistance periodically
- Inspect mechanical operating mechanisms
- Clean dust and contaminants regularly
- Test relay protection systems
- Monitor breaker contact wear
- Verify grounding system integrity
- Maintain accurate maintenance records
Predictive maintenance technologies now allow operators to identify potential issues before failures occur, reducing operational risk and repair costs.
Why Choose Junray Electrical
Junray Electrical specializes in advanced power distribution equipment and customized Medium Voltage Switchgear solutions for global industrial applications.
The company provides:
- Reliable engineering expertise
- Strict quality control systems
- Customized switchgear solutions
- Comprehensive technical support
- Competitive manufacturing capability
- Modern production facilities
- Professional after-sales service
Customers looking for dependable switchgear systems can explore the company’s Medium Voltage and High Voltage solutions here:
https://www.junrayelectrical.com/high-voltage-switchgear
Junray Electrical focuses on delivering safe, efficient, and durable electrical distribution products designed to meet the evolving demands of modern power systems.
FAQ
What voltage range is considered medium voltage?
Medium voltage generally refers to electrical systems operating between 1kV and 36kV.
What is the lifespan of Medium Voltage Switchgear?
With proper maintenance, modern switchgear systems can operate reliably for 20 to 40 years.
Why is vacuum switchgear widely used today?
Vacuum switchgear offers low maintenance requirements, long operating life, compact design, and reliable arc interruption performance.
How often should switchgear maintenance be performed?
Inspection frequency depends on operational conditions, but annual inspections and periodic electrical testing are commonly recommended.
Can Medium Voltage Switchgear support renewable energy systems?
Yes. Medium Voltage Switchgear is widely used in solar farms, wind power systems, and energy storage facilities to ensure stable and protected power distribution.
